Sungold Power Complete Off-Grid Solar Kit 8000W 48V 120V/240V output 10.24KWH Lithium Battery 5400 Watt Solar Panel

Sungold Power Complete 8000W Off-Grid Solar Kit  Overview

If you're looking for a safe, reliable way to build your own DIY Solar system at a fraction of the cost, you've come to the right place. This solar Kits includes 8000W 48V AC120V/240V Split output inverter + 12PCS 450 Watt Solar Panel + 4PCS 200AH Lithium Battery + other Accessories, the solar kit is powerful for the air-conditioner, washer, refrigerator, water pump and other big appliances with the low frequency inverter, It is widely use in the off grid home, solar system or emergency back up system! you can extend your system by adding more solar panel or batteries in the future!

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 8000 Watt 48V DC 120V/240V Inverter
• 8 x 450 Watt Monocrystalline Solar Panels
• 2 x 200AH Lifepo4 Battery with Bluetooth
• 8 x Sets of Mounting Z-Brackets
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input

Sungold Power Complete 8000W Off-Grid Solar Kit Specification

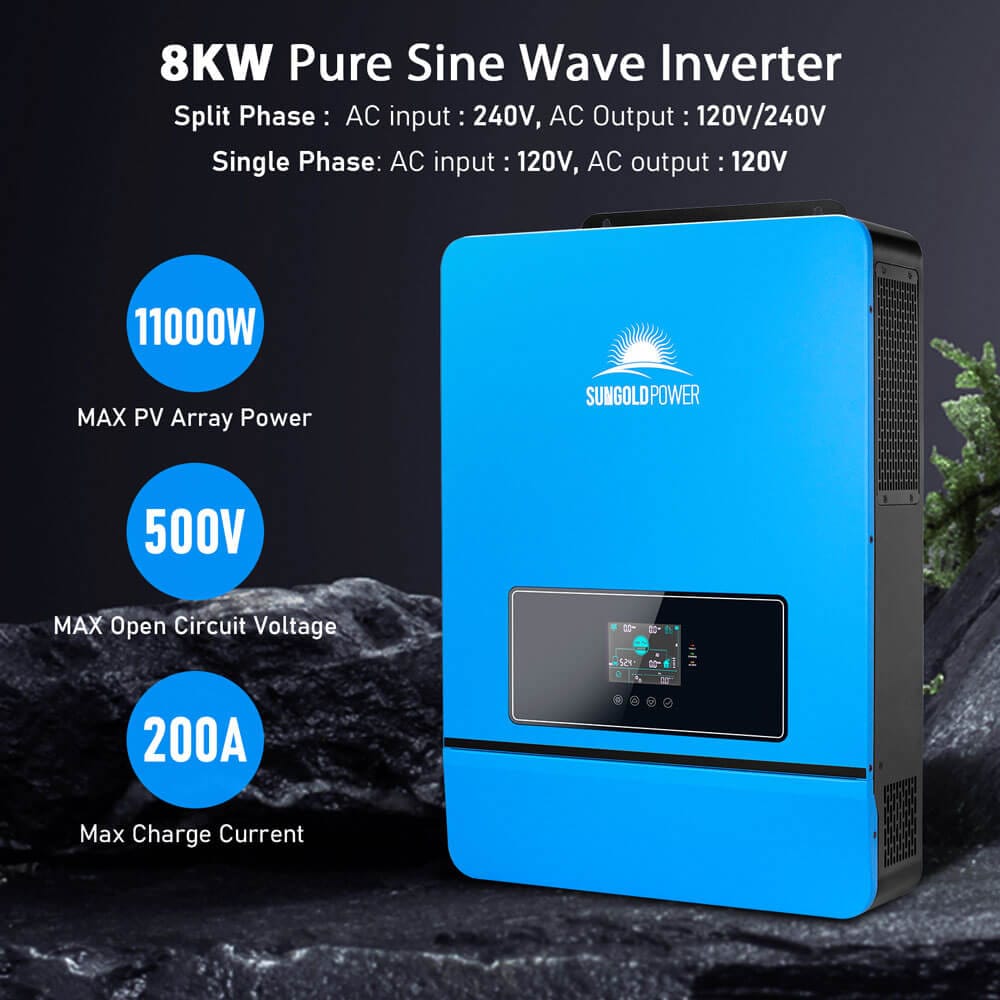

8000 Watt Inverter

• AC Output: 8000W
• Output Waveform: Pure Sine Wave
• AC Output: 120V/240V (split phase/single phase)
• Max PV Input: 500VDC
• Efficiency: 92%
• Max Charging Current: 200A
• Maximum PV Array Power: 11,000W
• Dimension: 620 X 445 X 130mm
• Weight: 59 LB
• Warranty: 3 Years

LifePo4 Battery

• Nominal Voltage: 12.8V
• Nominal Capacity: 200AH
• Energy: 2560WH
• Voltage window: 10.8-14.6V
• MAX Continuous Charge Current: 150A
• Peak Discharge Current: 245A
• Cycle Life: >4000
• Main Charactor: Self Heating / IP65
• Monitoring function: LCD/Bluetooth
• Dimension: 19.7 X 9.4 X 9.1inch
• Weight: 48.5 lbs
• Warranty: 5 Years

450 Watt Mono Solar Panel

• Peak Power: 450W
• Solar Cell: Monocrystalline
• Product Tolerance: ±3%
• Maximum Power Current (IMP): 13.16A
• Maximum Power Voltage (VMP): 34.2V
• Short Circuit Current(ISC): 13.82A
• Open Circuit Voltage(VOC): 41.72V
• Product Dimension: 75.2 X 44.7 X 1.4 inch
• Product Weight: 53.9LB
• Warranty: 25 Years

Solar Kit Specification

• Max Continuous Output: 8000W
• AC Output: 120V/240V
• DC Voltage: 48V
• Max Solar Input: 11,000W
• Total Watt of Panels: 3320W
• Per Panel Watt: 415 Watt
• Panel NO.: 8 pcs
• Total KWH of Batteries: 10.24KWH
• Chemistry: Lithium
• Battery NO.: 2 pcs
• Battery Spec: 48V 100AH

User Manual

• Sungold Power 8000 Watt Inverter User Manual
• Sungold Power 200Ah LiFePo4 Battery With Bluetooth User Manual
• Sungold Power 450 Watt Monocrystalline Solar Panels
