SunGold Power | Hybrid Solar Kit | 11.4kW 48V Split Phase | 51.2 kWh Lithium Battery | 36 x 440 Watt Solar Panels | SGH-11N5E Solar Kits SunGoldPower

SunGold Power | Hybrid Solar Kit | 11.4kW 48V Split Phase | 51.2 kWh Lithium Battery | 36 x 440 Watt Solar Panels | SGH-11N5E

SunGoldPower
SKU SGH-11N5E
Save $7,597.00
$31,680.00
$24,083.00

⭐ Authorized SunGoldPower Dealer

⭐ Fast & Free Shipping + No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

SunGold Power | Hybrid Solar Kit | 11.4kW 48V Split Phase | 51.2 kWh Lithium Battery | 36 x 440 Watt Solar Panels | SGH-11N5E

The SunGold Power 11.4kW Hybrid Solar Kit is a high-performance, whole-home energy solution designed for off-grid, hybrid, and grid-tied applications. With advanced lithium battery storage, high-efficiency solar panels, and a powerful 48V hybrid inverter, this system provides unmatched energy reliability and independence.

Perfect for residential homes, remote locations, farms, and businesses, this kit offers seamless energy integration, ensuring continuous power even in grid outages.

Placeholder Image

SunGold Power Hybrid Solar Kit Features

Powerful & Scalable Energy Storage

  • 11.4kW Hybrid Inverter efficiently manages power flow between solar, battery, and grid.
  • 51.2 kWh Lithium Battery Bank ensures long-lasting energy storage for extended power supply.
  • Split-Phase 120V/240V Output, ideal for running heavy-duty appliances and whole-home backup.

36 x High-Efficiency 440W Solar Panels

  • High Solar Efficiency – Captures maximum sunlight for fast, effective charging.
  • Durable & Weather-Resistant – Designed for long-term outdoor use, with high wind and snow load ratings.

Seamless Off-Grid & Grid-Tied Operation

  • Supports off-grid, hybrid, and grid-tied systems for flexible installation.
  • Automatic transfer switch for seamless power transition in grid outages.
  • Smart monitoring & control via WiFi & mobile app integration.

Intelligent Battery Management System (BMS)

  • Optimized charging and discharging for extended battery life.
  • High voltage protection, overcharge protection, and temperature control ensure safety and performance.

Custom Schematics & Wiring Diagram for Easy Installation

  • Pre-configured layout to simplify setup and installation.
  • Technical specifications and wiring details included for seamless integration.
Placeholder Image

SunGold Power Hybrid Solar Kit Applications

  • Whole-Home Backup – Provides automatic power switching during blackouts.
  • Off-Grid Energy Storage – Perfect for remote locations, cabins, and sustainable living.
  • Emergency Preparedness – Reliable backup for natural disasters and power outages.
  • Farms & Commercial Use – Supports agricultural equipment, refrigeration, and heavy loads.
  • Smart Home Optimization – Monitor and control power usage remotely via the SunGold Power App.
Placeholder Image

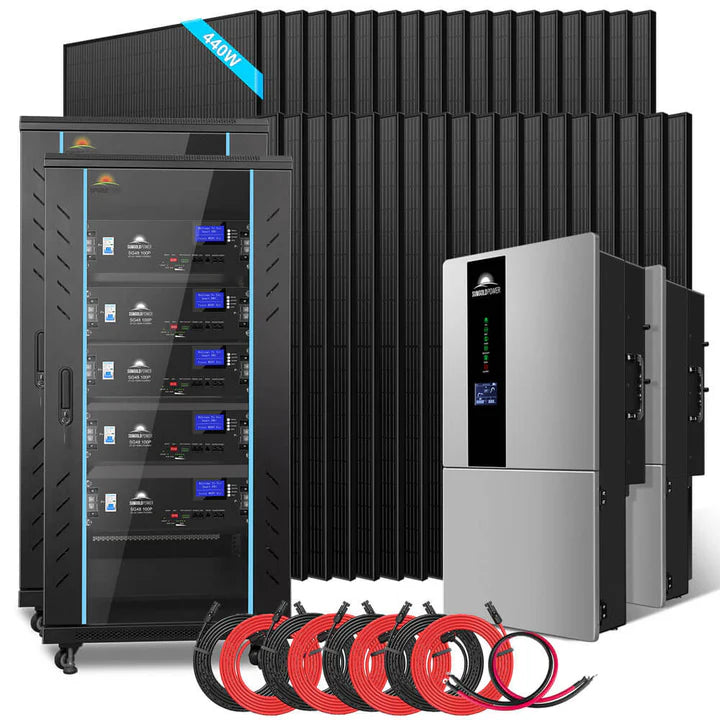

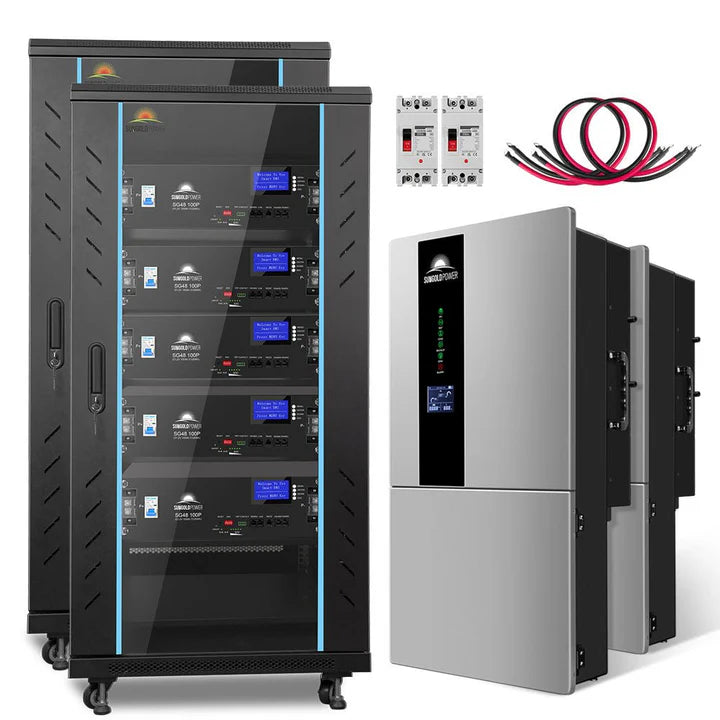

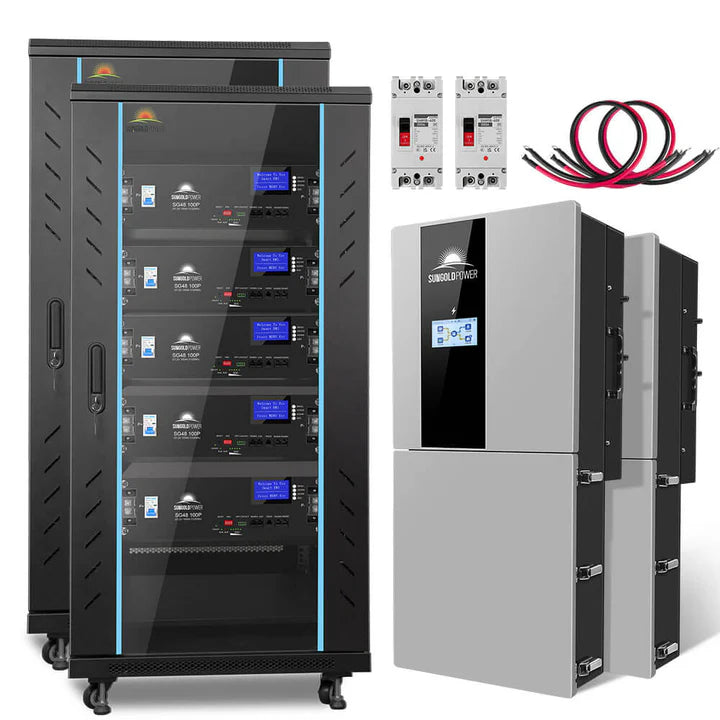

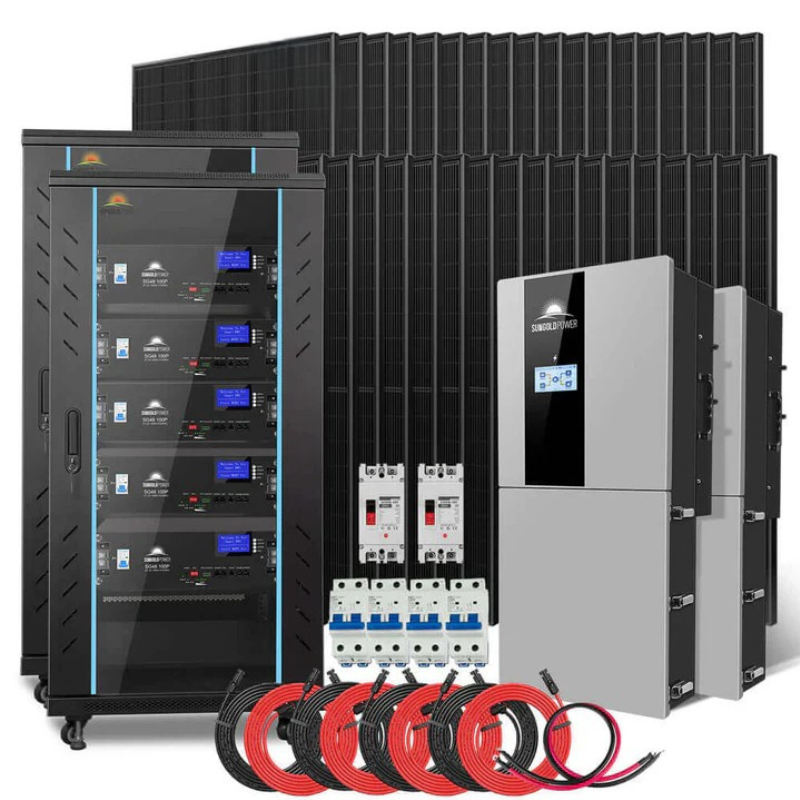

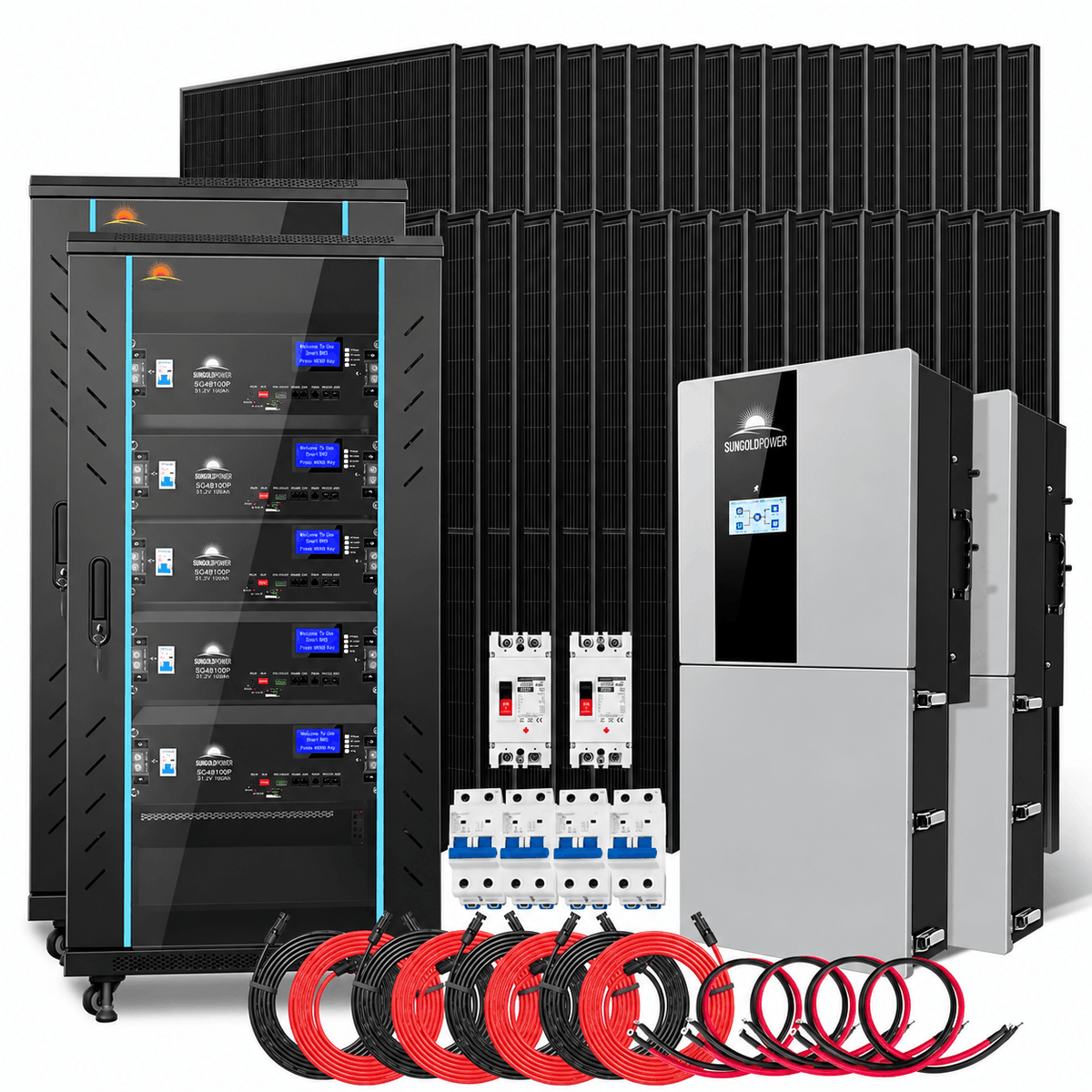

What's Included

Everything you need is included with your product.

  • 2 X 11.4KW 48V Split Phase Hybrid Solar Inverter
  • 36 X 440W Watt Monocrystalline Solar Panels

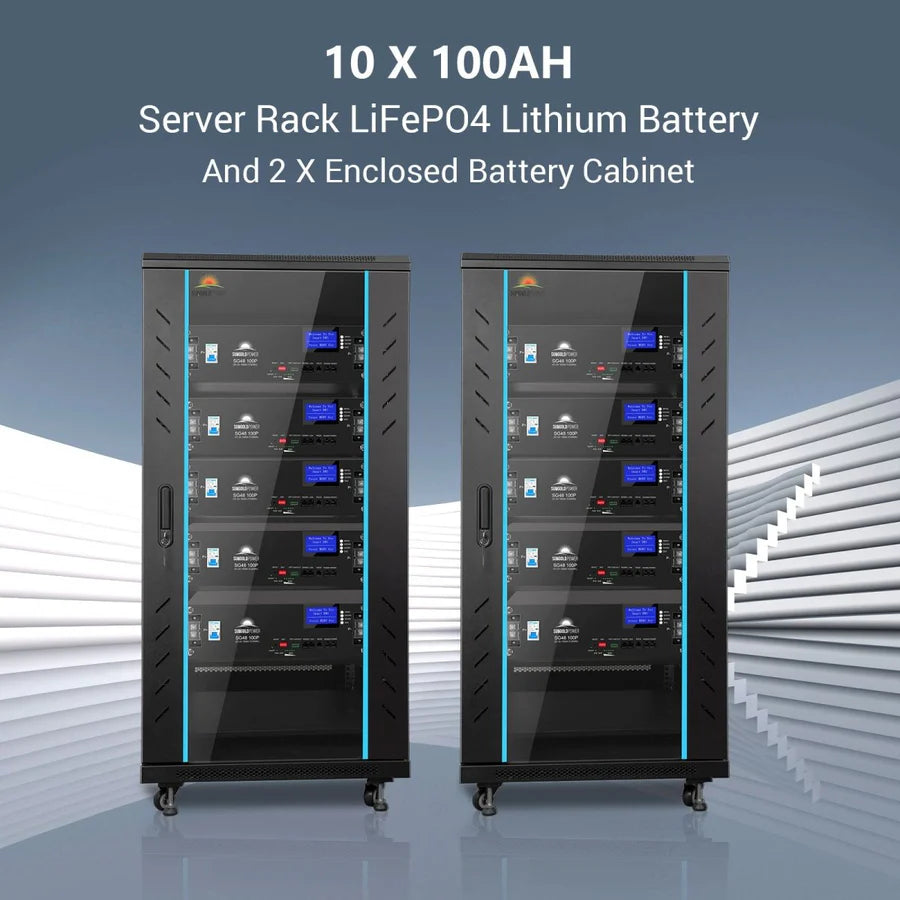

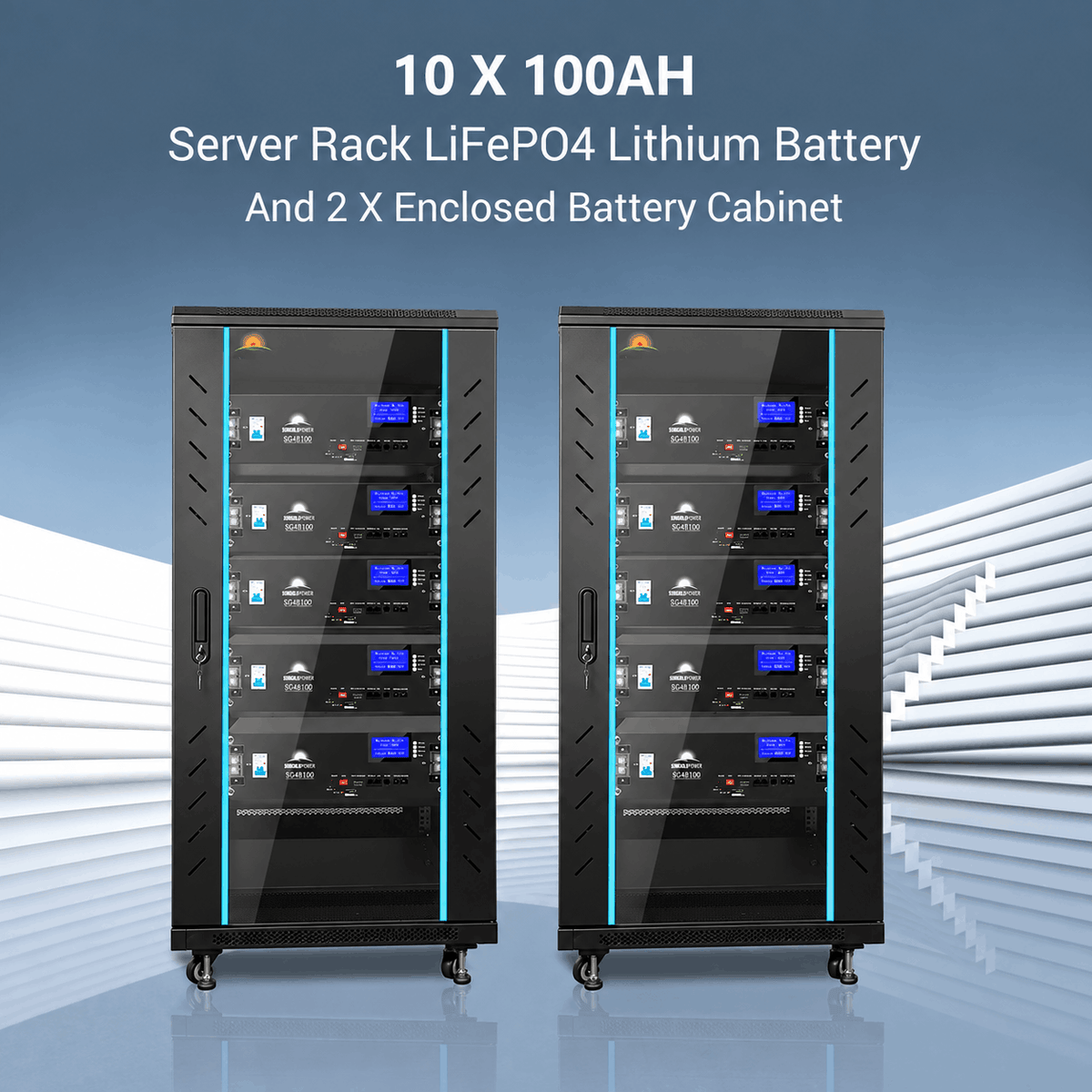

  • 10 X 100AH 51.2V Lifepo4 Battery
  • 2 X Enclosed Battery Cabinet for 10X 100AH 51.2V Lifepo4 Batteries
  • 4 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
  • 2 X 2/0 AWG Battery Cable
  • 36 X Sets of Mounting Z-Brackets
  • 2 X 200A DC Breakers
  • 4 X 25A PV Breakers
Placeholder Image

SunGold Power | Hybrid Solar Kit | 11.4kW 48V Split Phase | 51.2 kWh Lithium Battery | 36 x 440 Watt Solar Panels Specifications

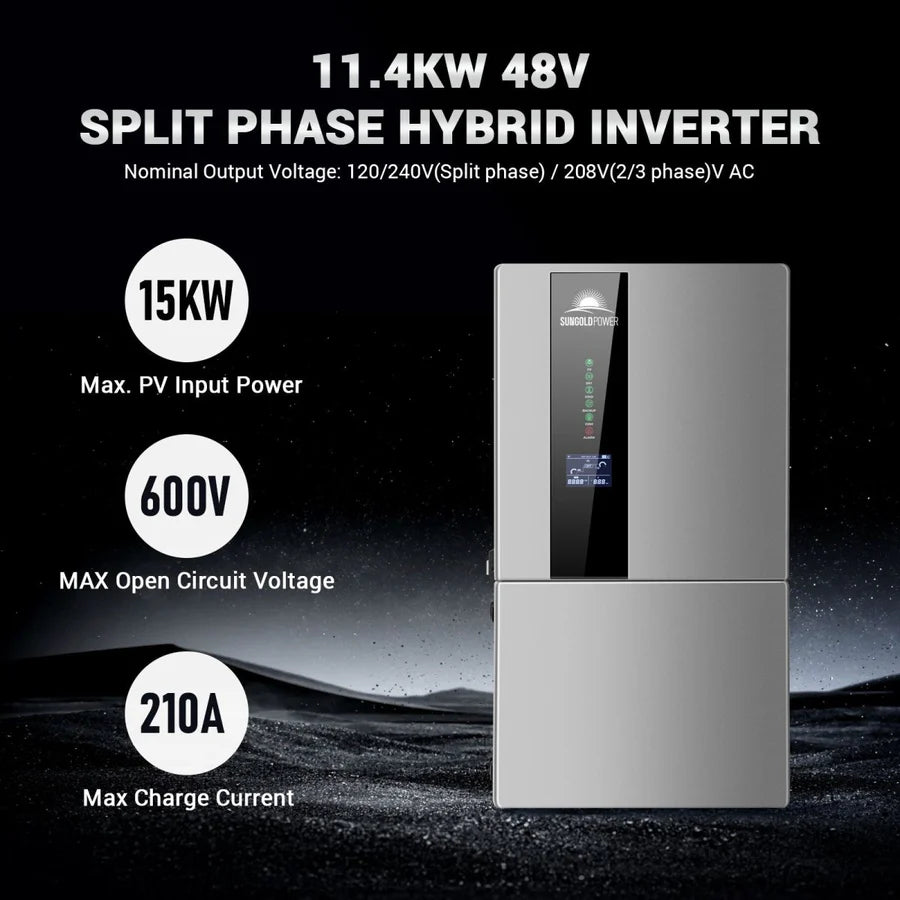

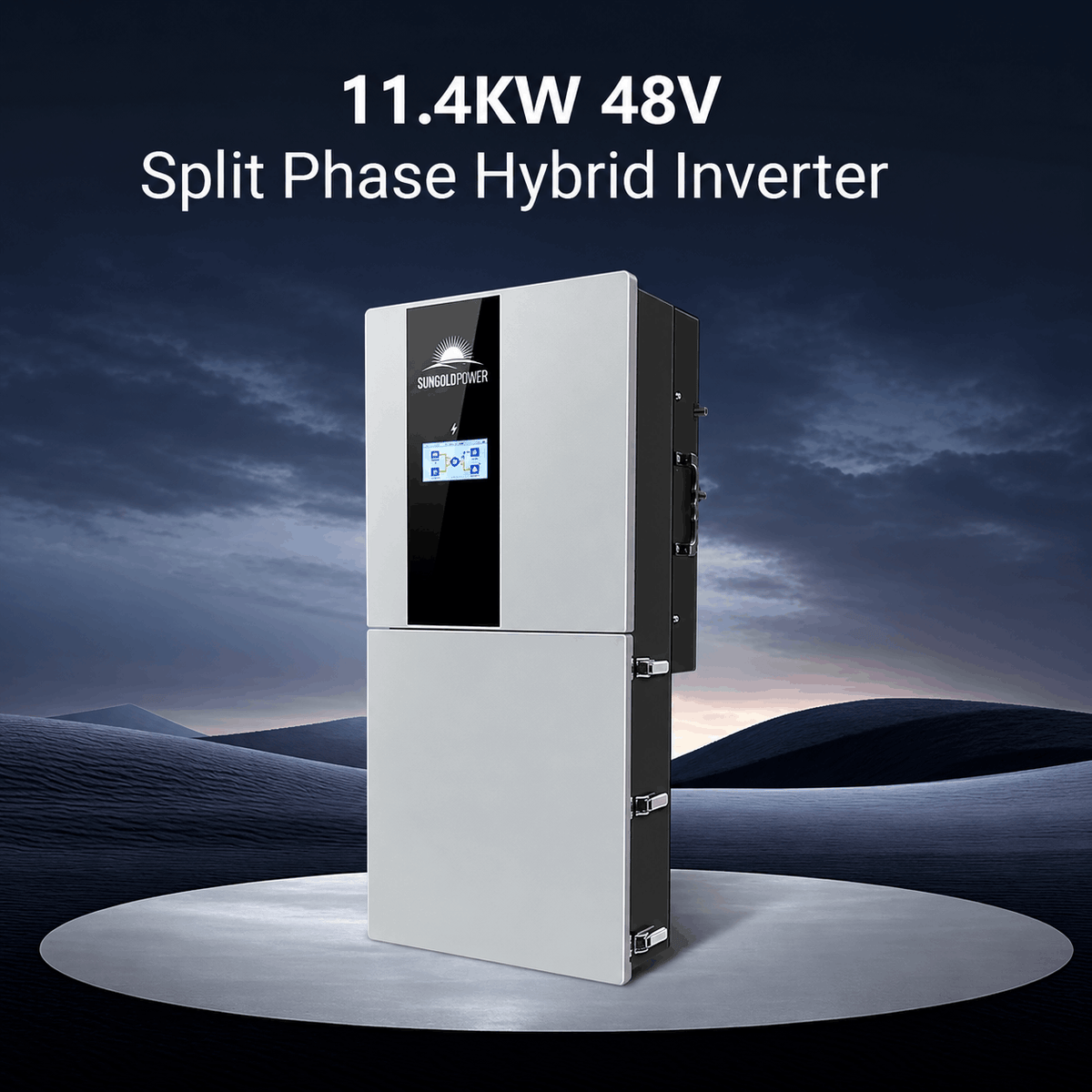

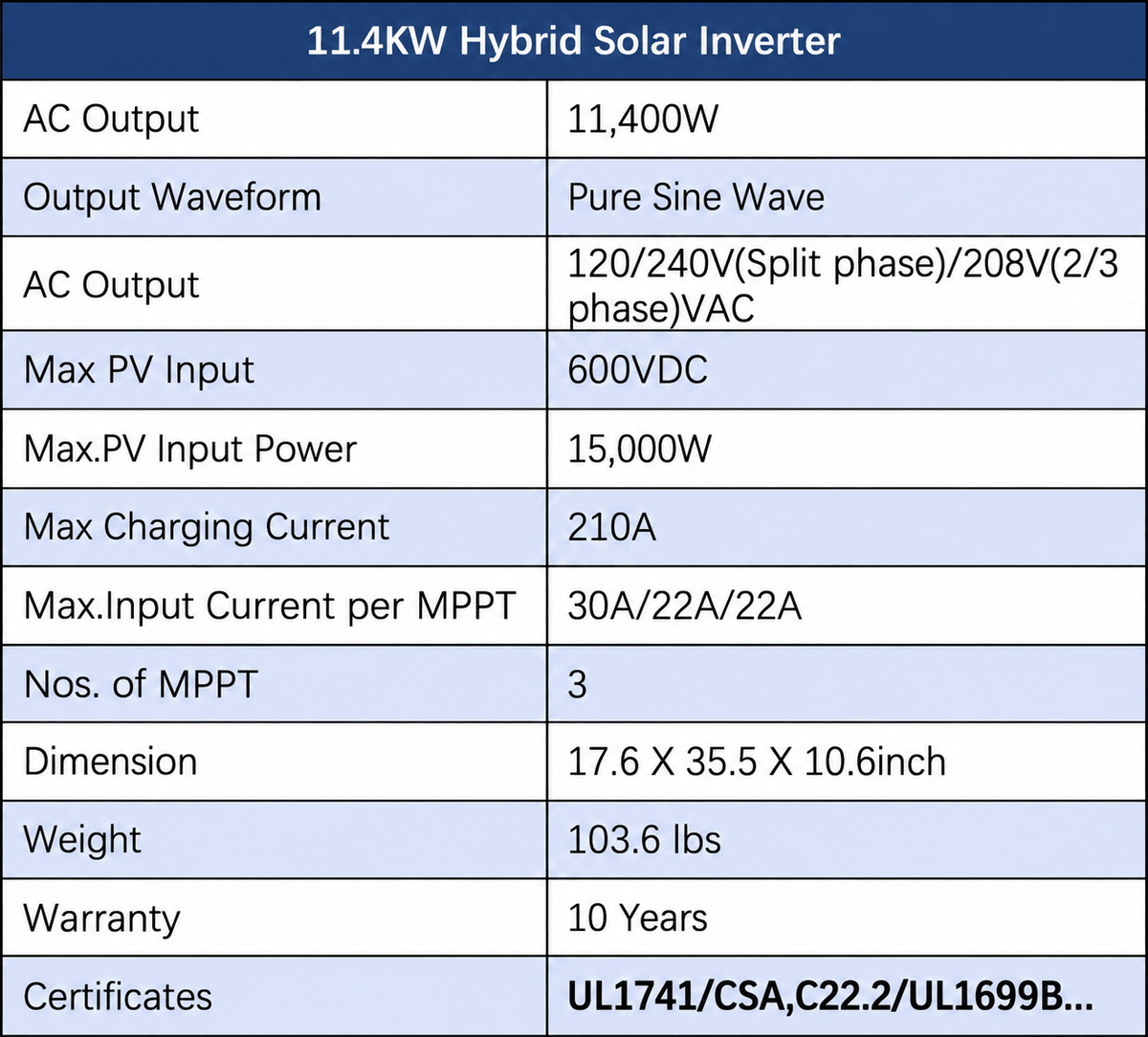

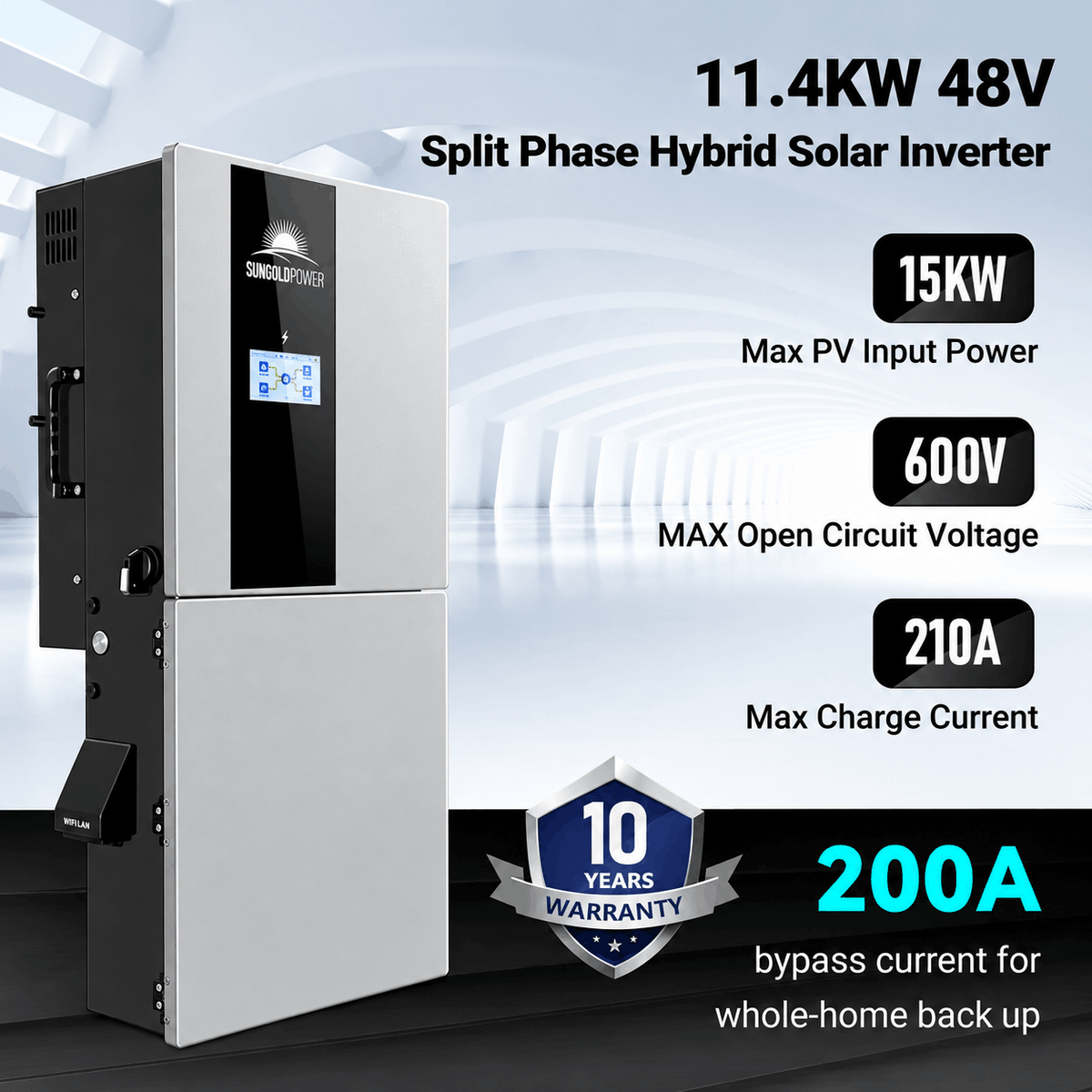

11.4KW Hybrid Solar Inverter

Specification Details
AC Output 11,400W
Output Waveform Pure Sine Wave
AC Output 120/240V (Split phase) / 208V (2/3 phase) VAC
Max PV Input 600VDC
Max PV Input Power 15,000W
Max Charging Current 210A
Max. Input Current per MPPT 30A / 22A / 22A
Nos. of MPPT 3
Dimension 16.5 × 31.5 × 9.4 inches
Weight 88 lbs
Warranty 5 Years
Certificate UL1741 / CSA, C22.2 / UL1699B...

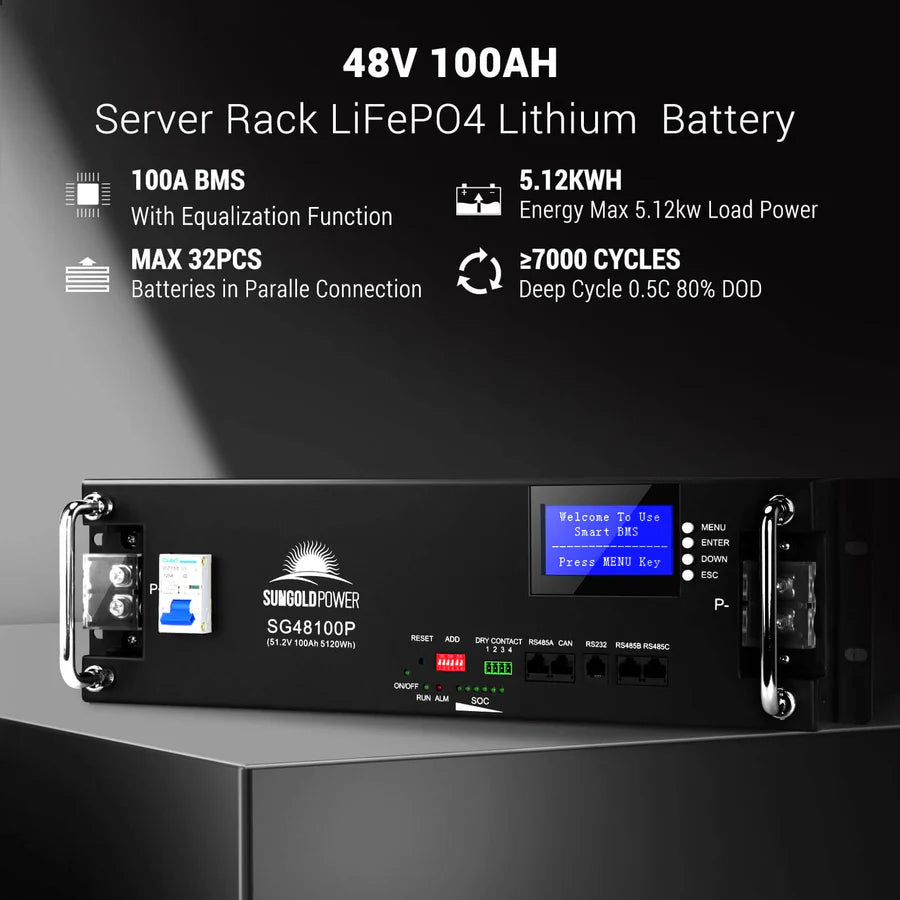

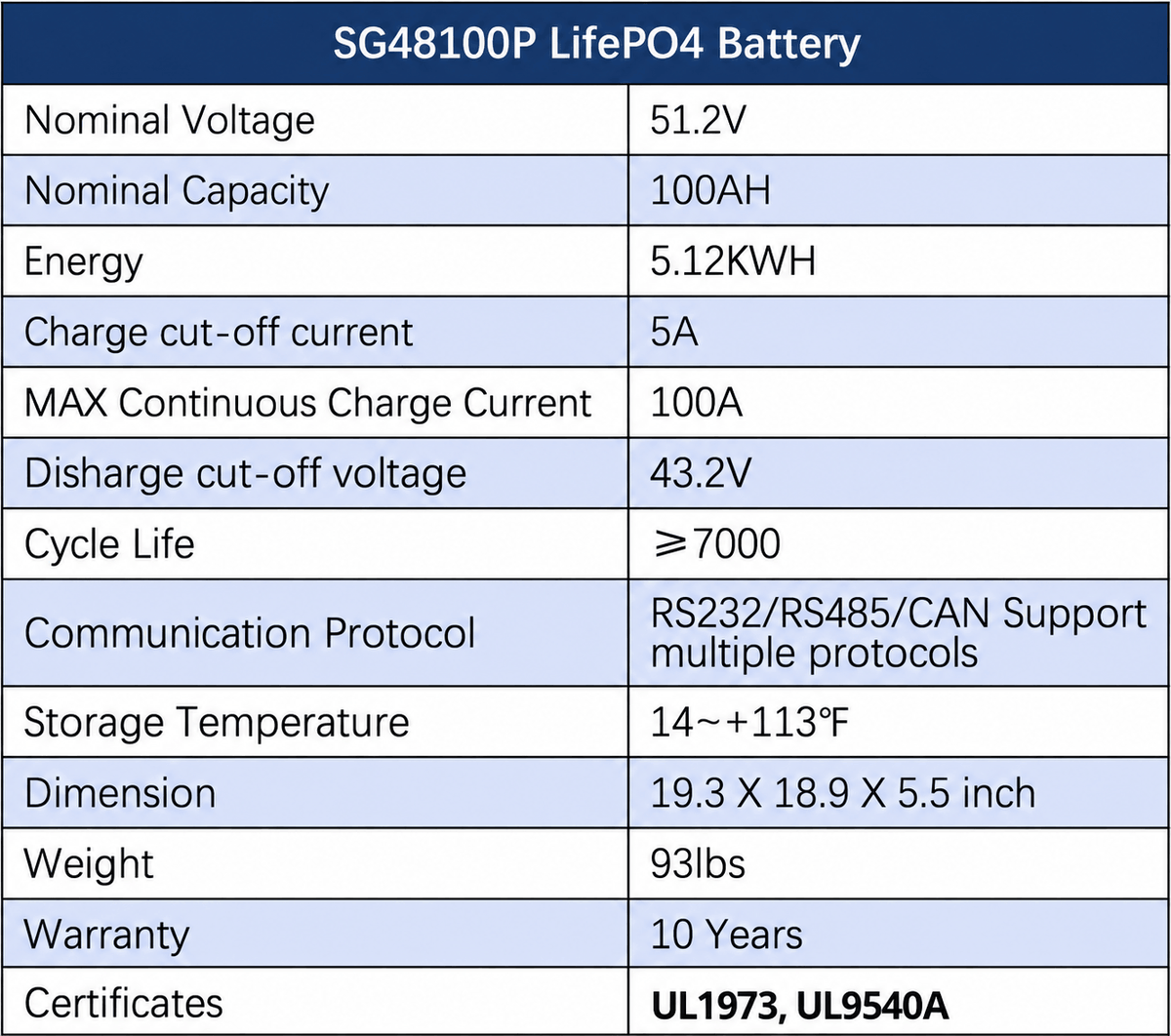

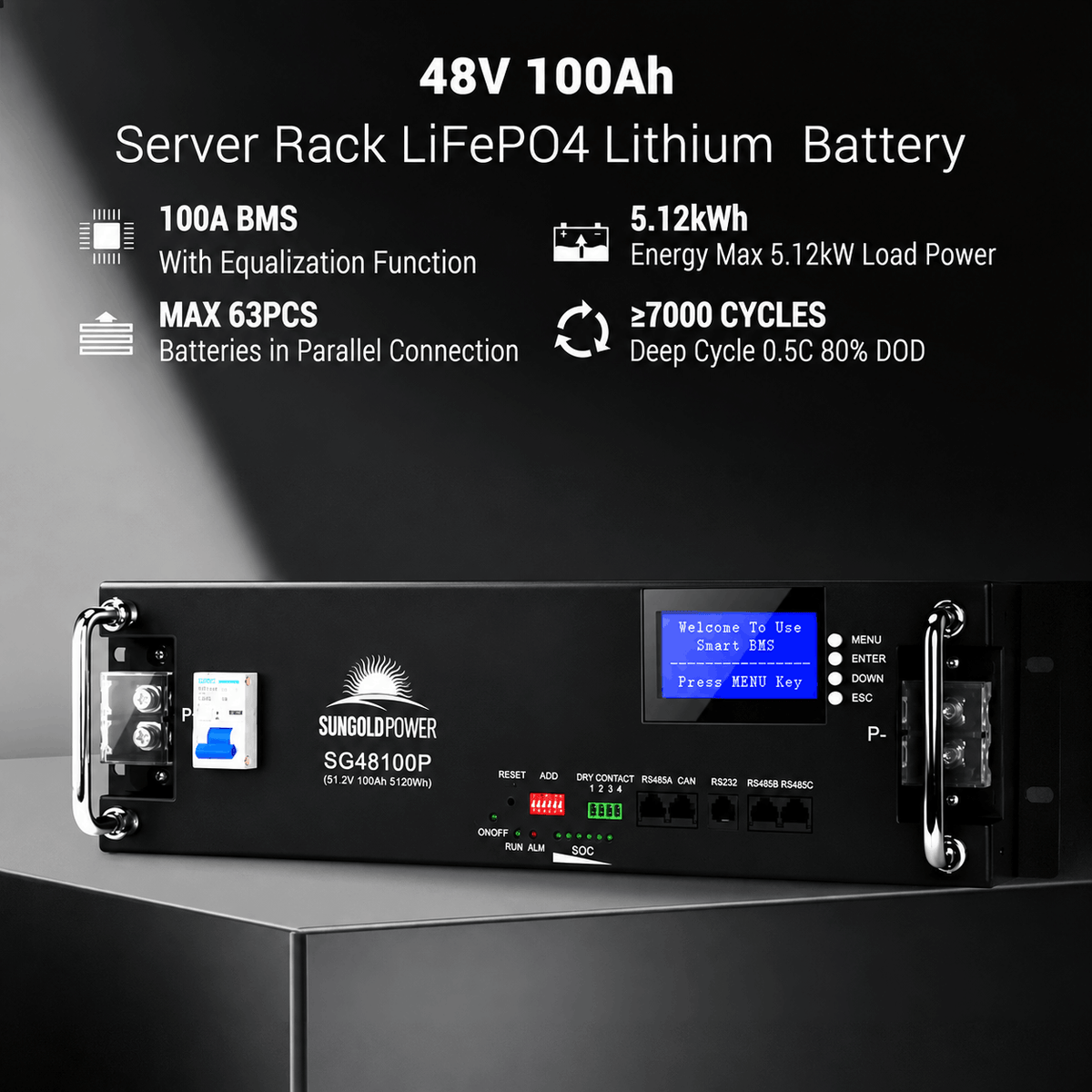

SG48100P LifePO4 Battery

Specification Details
Nominal Voltage 51.2V
Nominal Capacity 100AH
Energy 5.12KWH
Charge cut-off current 5A
MAX Continuous Charge Current 100A
Discharge cut-off voltage 43.2V
Cycle Life >7000
Communication Protocol RS232/RS485/CAN Support multiple protocols
Storage Temperature 14~+113°F
Dimension 19.3 × 18.9 × 5.5 inches
Weight 93lbs
Warranty 10 Years
Certificates UL1973, CE, UN38.3

440 Watt Mono Solar Panel

Specification Details
Peak Power 440W
Solar Cell Monocrystalline
Product Tolerance ±3%
Maximum Power Current (IMP) 13.05A
Maximum Power Voltage (VMP) 33.72V
Short Circuit Current(ISC) 13.73A
Open Circuit Voltage(VOC) 39.79V
Product Dimension 75.16 × 44.65 × 1.38 inches
Product Weight 54.0 lbs
Warranty 25 Years
Certificates UL61730, TUV, IEC, CEC, CE...

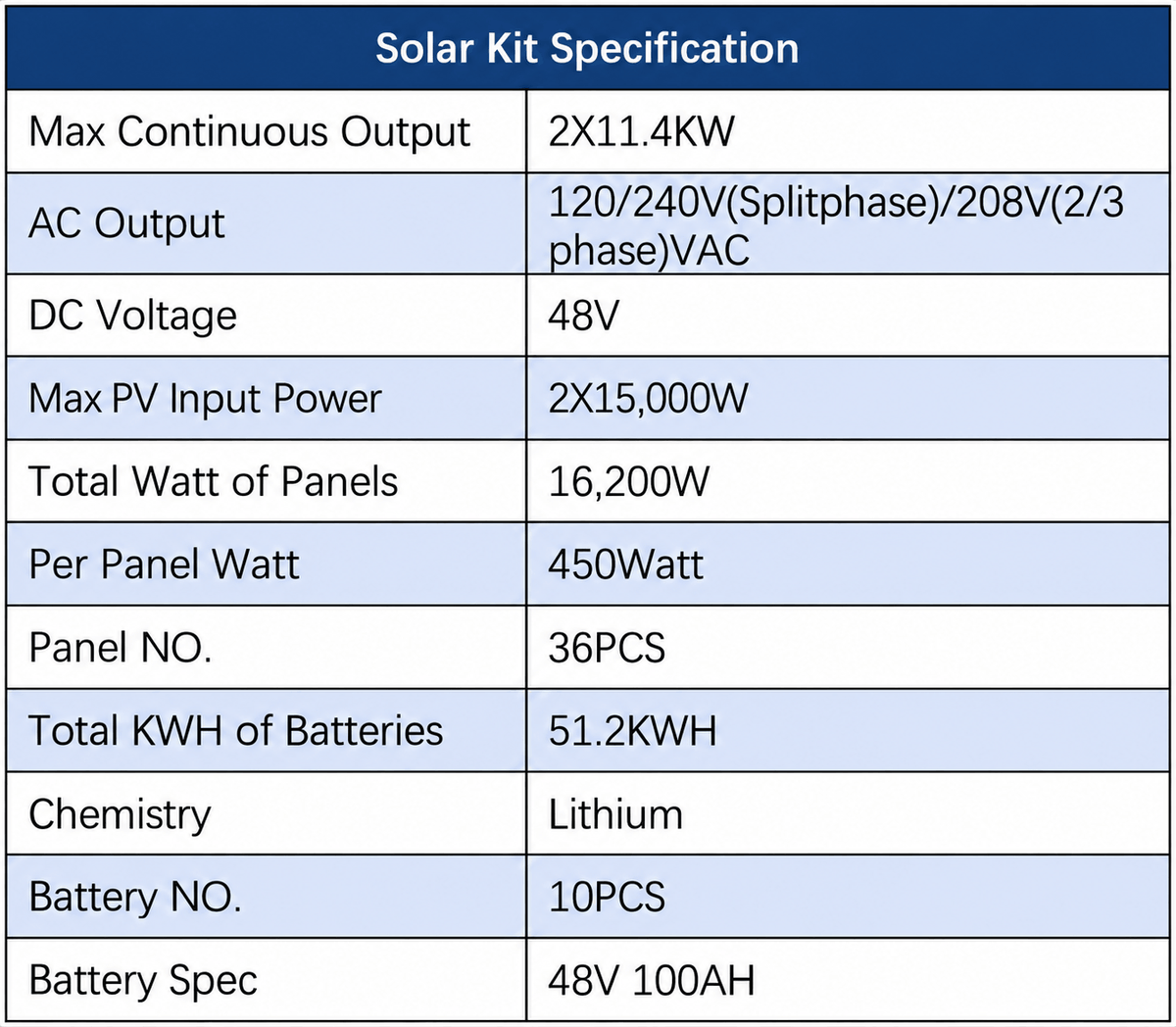

Solar Kit Specification

Specification Details
Max Continuous Output 2 x 11.4KW
AC Output 120/240V (Split-phase) / 208V (2/3 phase) VAC
DC Voltage 48V
Max. PV Input Power 2 x 15,000W
Total Watt of Panels 15,840W
Per Panel Watt 440Watt
Panel NO 36PCS
Total KWH of Batteries 51.2KWH
Chemistry Lithium
Battery NO 10PCS
Battery Spec 48V 100AH

Frequently-Asked Questions

Can this system power my entire home?

Yes! With 11.4kW power output, 51.2 kWh battery storage, and 36 high-efficiency solar panels, this kit provides sufficient power for whole-home backup.

Is this system expandable?

Yes! You can add more battery storage and additional solar panels to scale your energy system as needed.

How long will the battery last on a full charge?

Battery runtime depends on energy consumption, but with 51.2 kWh storage, you can power essential appliances for multiple days without sunlight.

Does this system work in extreme weather conditions?

Yes! The solar panels and battery are weather-resistant, capable of withstanding rain, snow, and high winds.

Can I use this system for off-grid living?

Absolutely! This kit is designed for off-grid, hybrid, and grid-tied applications, offering complete energy independence.

How difficult is installation?

This kit includes pre-configured schematics and wiring diagrams, making installation straightforward for professionals. However, we recommend a licensed electrician for proper setup.
