Sungold Power Off-Grid Solar Kit 10000W 48VDC 120V/240V LifePO4 20.48KWH Lithium Battery 12 X 450 Watts Solar Panels

Sungold Power 10000W Off-Grid Solar Kit Overview

Sungold Power 10000W Off-Grid Solar Kit  is a great package which inlcudes the 12 X 450W solar panel, 4 X 5.12KWH server rack batteries, 2 X 5000W solar inverter (120V/240V) and some cables and brackets. Without relying on the grid, you’d better generate enough energy through your own renewable sources to power your home, This size of system with 10KW 120V/240V split inverter is powerful enough to run everything from air conditioners and well pumps, fridge, tv, workshop, office and more! It is ready for expansion, up to 6 identical inverters can be paralleled in single-phase (120VAC) or split-phase (240VAC) or three-sphase (208V). You can add more batteries and solar panel according to your requirment. Let’s Enjoy off grid living and the adventure with Solar Energy Kit!

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 2 x 5000 Watt 48V DC 120V/240V Output with Wifi Model
• 12 x 450 Watt Monocrystalline Solar Panels
• 4 x 100AH 51.2V Lifepo4 Battery
• 2 x 50 Feet, Solar Extension Cables-Inverter PV input
• 12 x Sets of Mounting Z-Brackets

Sungold Power 10000W Off-Grid Solar Kit Specification

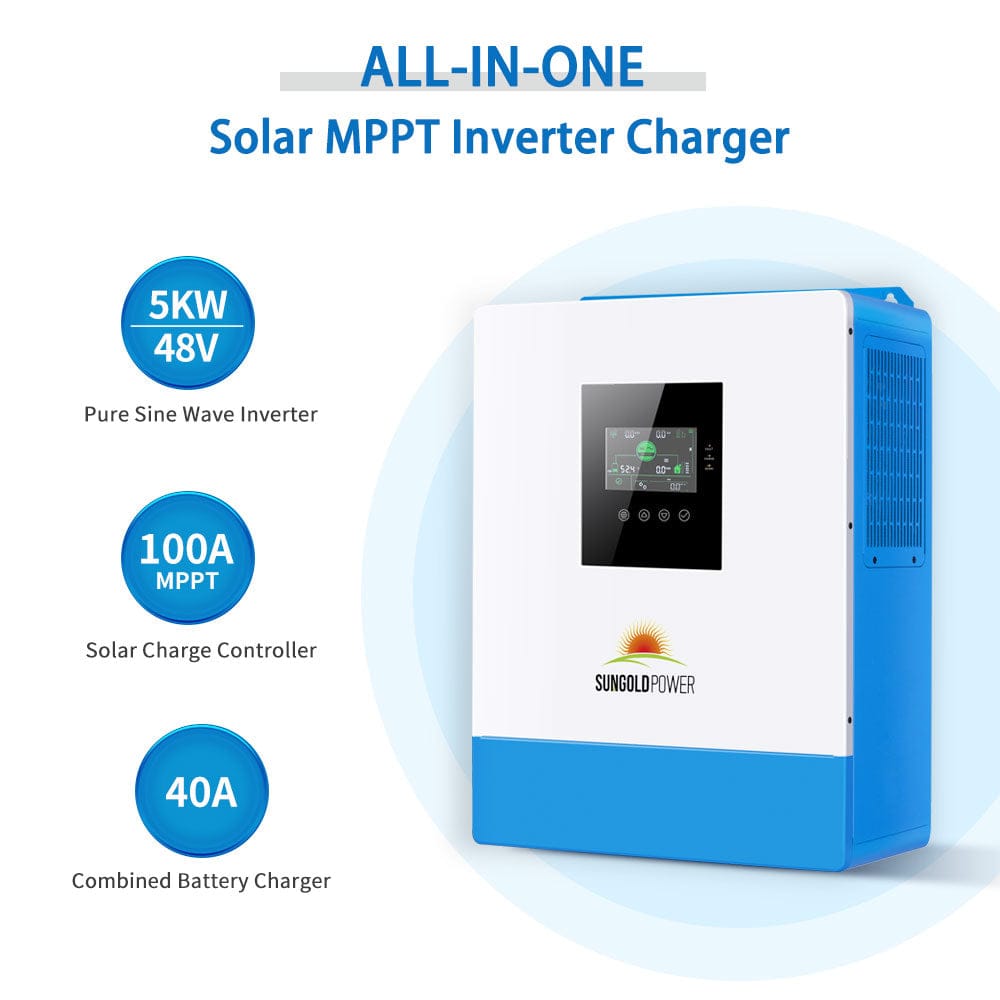

5000 Watt Solar Inverter

• AC Output: 5000W Solar Inverter with Wifi Model
• Output Waveform: Pure Sine Wave
• AC Output: 120V 50Hz/60Hz
• Max PV INPUT: 500VDC
• Efficiency: >95%
• Max Charging Current: 100A
• Maximum PV Array Power: 5500W
• Dimension: 17.3 X 12.8 X 5.1 inch
• Weight: 28 lbs
• Warranty: 3 Years

LifePo4 Battery

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Energy: 5.12KWH
• Charge cut-off current: 5A
• MAX Continuous Charge Current: 100A
• Discharge cut-off voltage: 43.2V
• Cycle Life: >7000
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Storage Temperature: -10~+45°C
• Dimension: 19.3*18.9 5.5inch
• Weight: 93lbs
• Warranty: 10 Years

450 Watt Mono Solar Panel

• Peak Power: 450W
• Solar Cell: Monocrystalline
• Product Tolerance: ±3%
• Maximum Power Current (IMP): 13.16A
• Maximum Power Voltage (VMP): 34.2V
• Short Circuit Current(ISC): 13.82A
• Open Circuit Voltage(VOC): 41.72V
• Product Dimension: 75.2 X 44.7 X 1.4 inch
• Product Weight: 53.9LB
• Warranty: 25 Years

Solar Kit Specification

• Max Continuous Output: 10000W
• AC Output: 120V/240V
• DC Voltage: 48V
• Max Solar Input: 11,000W
• Total Watt of Panels: 5400W
• Per Panel Watt: 450 Watt
• Panel NO.: 12 pcs
• Total KWH of Batteries: 20.48KWH
• Chemistry: Lithium
• Battery NO.: 4 pcs
• Battery Spec: 51.2V

User Manual

• Sungold Power 5000 Pure Sine Watt Inverter User Manual
• Sungold Power LifePo4 5.12KWH Lithium Battery User Manual
• Sungold Power 450 Watt Monocrystalline Solar Panels
