Sungold Power Off-Grid Solar Kit 10000W 48VDC 120VAC/240V 20.48KWH Powerwall Lithium Battery 12 X 415 Watts Solar Panels Solar Kits SunGoldPower

Sungold Power Off-Grid Solar Kit 10000W 48VDC 120VAC/240V 20.48KWH Powerwall Lithium Battery 12 X 415 Watts Solar Panels

BY: SunGoldPower SKU: SGM-10M2T Availability: In Stock
$11,823.00
$9,307.00
You Save: $2,516.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized SunGoldPower Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Sungold Power Off-Grid Solar Kit 10000W 48VDC 120VAC/240V 20.48KWH Powerwall Lithium Battery 12 X 415 Watts Solar Panels

The Sungold Power SGM-10M2T is a comprehensive off-grid solar solution designed to provide reliable and sustainable energy for your home, cabin, or remote workspace. This kit includes 12 high-efficiency 415W monocrystalline solar panels, dual 5000W 48V split-phase inverters with WiFi capability, and four 5.12kWh LiFePO₄ Powerwall batteries, totaling 20.48kWh of energy storage. With the ability to produce approximately 20kWh per day based on 4 hours of sunlight, this system is ideal for powering essential appliances and electronics in off-grid settings.

Placeholder Image

Sungold Power Off-Grid Solar Kit 10000W 48VDC 120VAC/240V 20.48KWH Powerwall Lithium Battery 12 X 415 Watts Solar Panels Features

High-Efficiency Solar Panels

Includes 12 x 415W monocrystalline solar panels, providing a total of 4.98kW solar input for maximum energy capture.

Dual 5000W Inverters with WiFi

Two 5000W 48V DC to 120V/240V AC split-phase inverters with WiFi capability allow for seamless power conversion and remote monitoring.

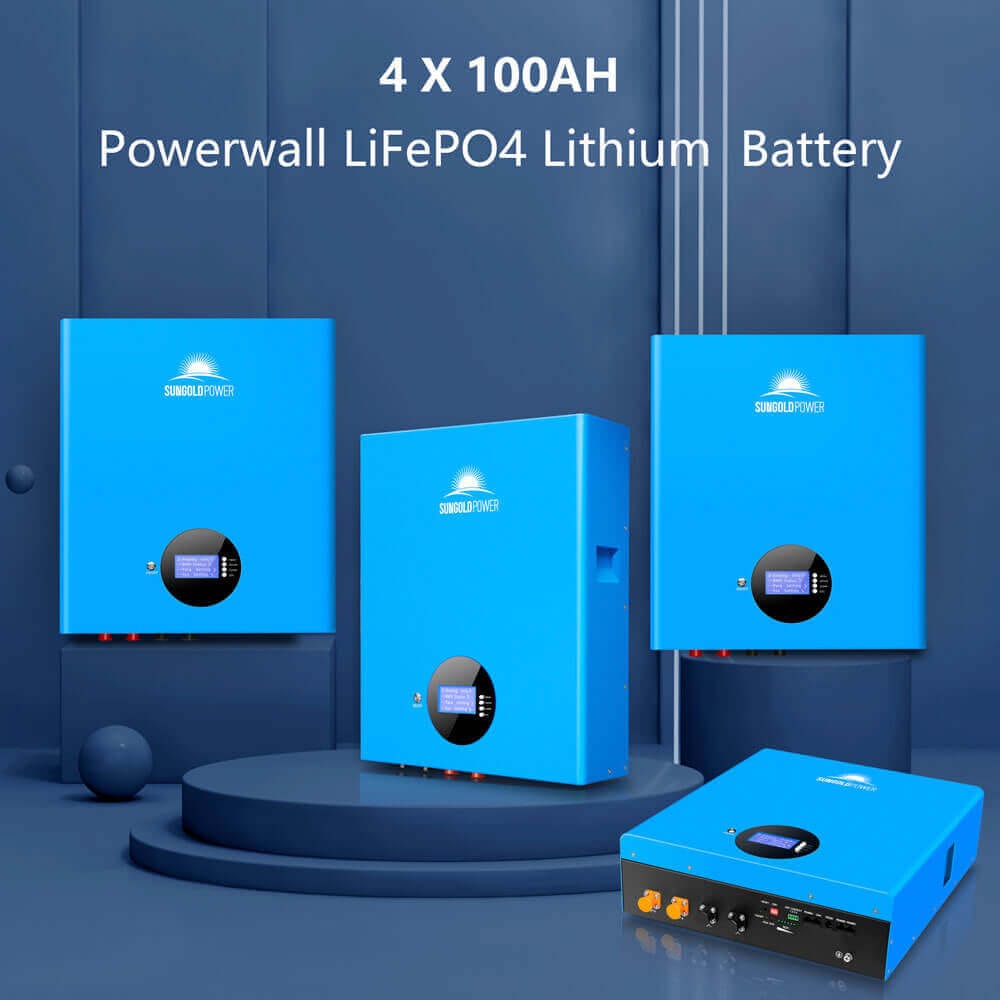

Expandable Energy Storage

Four 5.12kWh 51.2V LiFePO₄ Powerwall batteries offer 20.48kWh total storage, with the option to add more batteries as needed.

Comprehensive Protection

Equipped with 2 x 200A DC breakers and 2 x 25A PV breakers to safeguard your system against overcurrent and short circuits.

Flexible Installation

Includes 12 sets of mounting Z-brackets and 2 sets of 50-foot solar extension cables for versatile setup options.

Placeholder Image

Sungold Power Off-Grid Solar Kit 10000W 48VDC 120VAC/240V 20.48KWH Powerwall Lithium Battery 12 X 415 Watts Solar Panels Applications

  • Off-Grid Homes and Cabins: Provides reliable power for remote residences without grid access.
  • Emergency Backup Systems: Ensures uninterrupted power supply during outages.
  • Workshops and Remote Offices: Powers tools, equipment, and electronics in off-grid work environments.
  • Sustainable Living: Supports eco-friendly lifestyles by reducing reliance on fossil fuels.
Placeholder Image

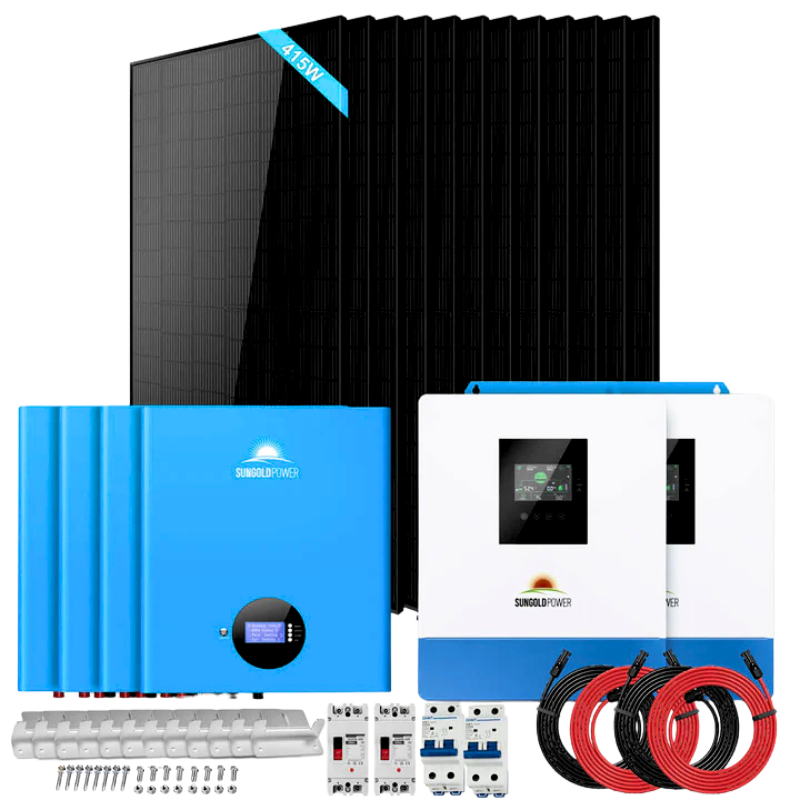

What's Included

Everything you need is included with your product.

  • 2 X 5000 Watt 48V DC 120V/240V Output with Wifi Model
  • 12 X 415 Watt Monocrystalline Solar Panels
  • 4 X 100AH 51.2V PowerWall Lithium Battery
  • 2 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
  • 2 X 200A DC Breaker
  • 2 X 25A PV Breaker

Sungold Power Off-Grid Solar Kit 10000W 48VDC 120VAC/240V 20.48KWH Powerwall Lithium Battery 12 X 415 Watts Solar Panels Specifications

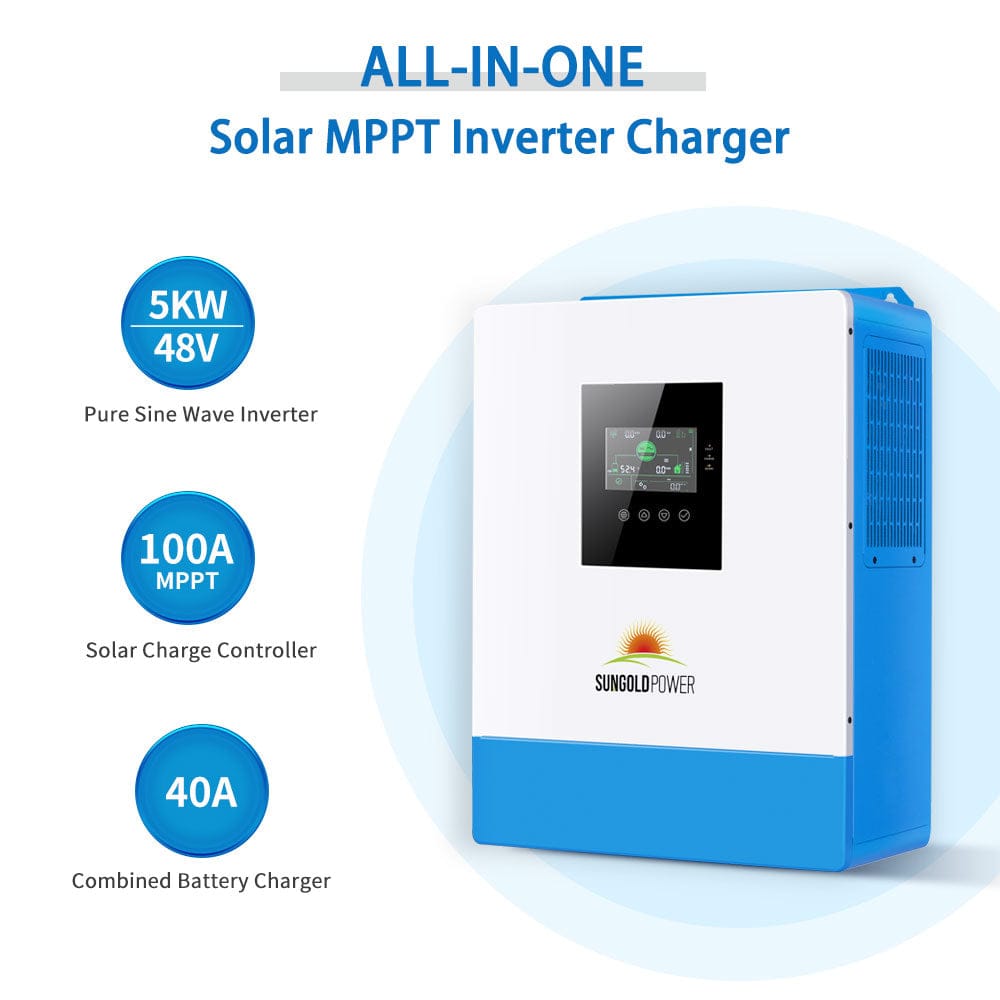

5000 Watt Solar Inverter

Specification Details
AC Output 5000W Solar Inverter with WiFi Model
Output Waveform Pure Sine Wave
AC Output 120V 50Hz / 60Hz
Max PV Input 500VDC
Efficiency >95%
Max Charging Current 100A
Maximum PV Array Power 5500W
Dimension 17.3 × 12.8 × 5.1 inch
Weight 28 lbs
Warranty 3 Years

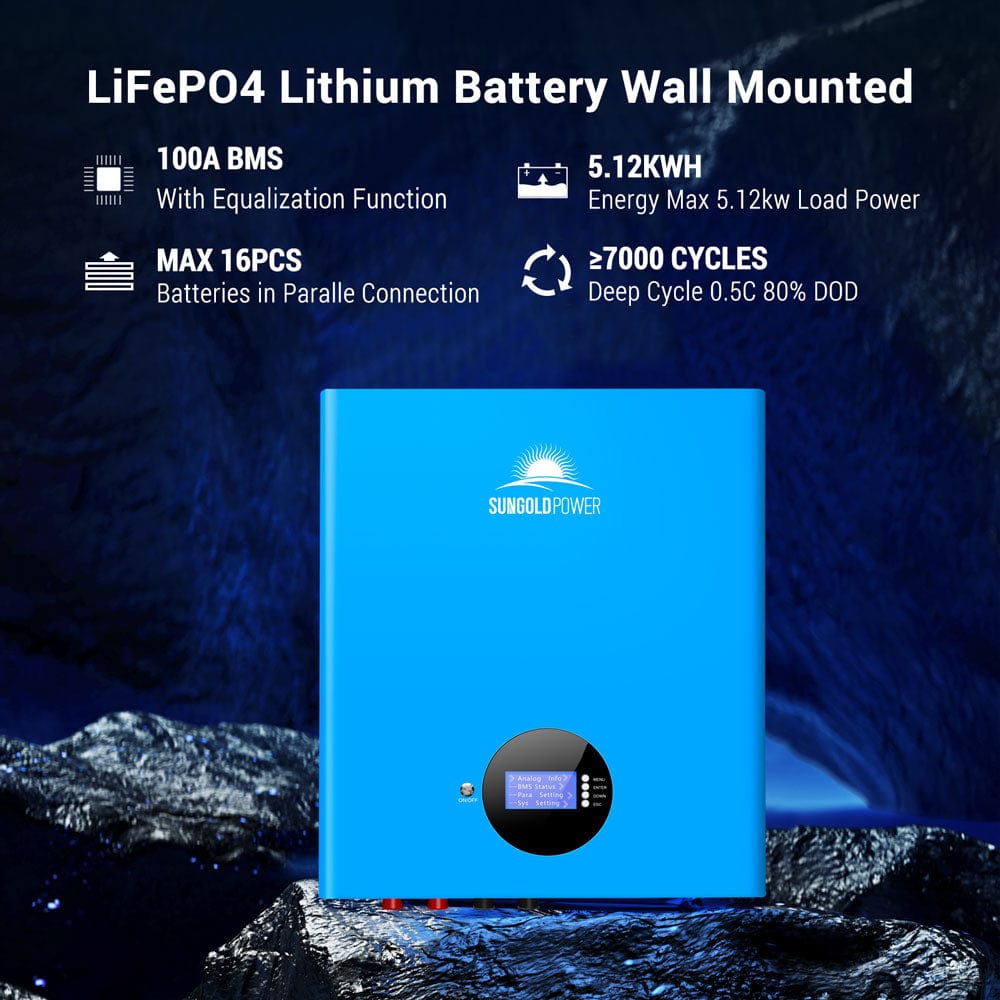

LifePO4 Battery

Specification Details
Nominal Voltage 51.2V
Nominal Capacity 100AH
Energy 5.12KWH
Charge Cut-off Current 5A
MAX Continuous Charge Current 100A
Discharge Cut-off Voltage 43.2V
Cycle Life ≥7000
Communication Protocol RS232 / RS485 / CAN Support multiple protocols
Storage Temperature -10°C ~ +45°C
Dimension 23 × 16.5 × 6 inch
Weight 113.4 lbs
Warranty 10 Years

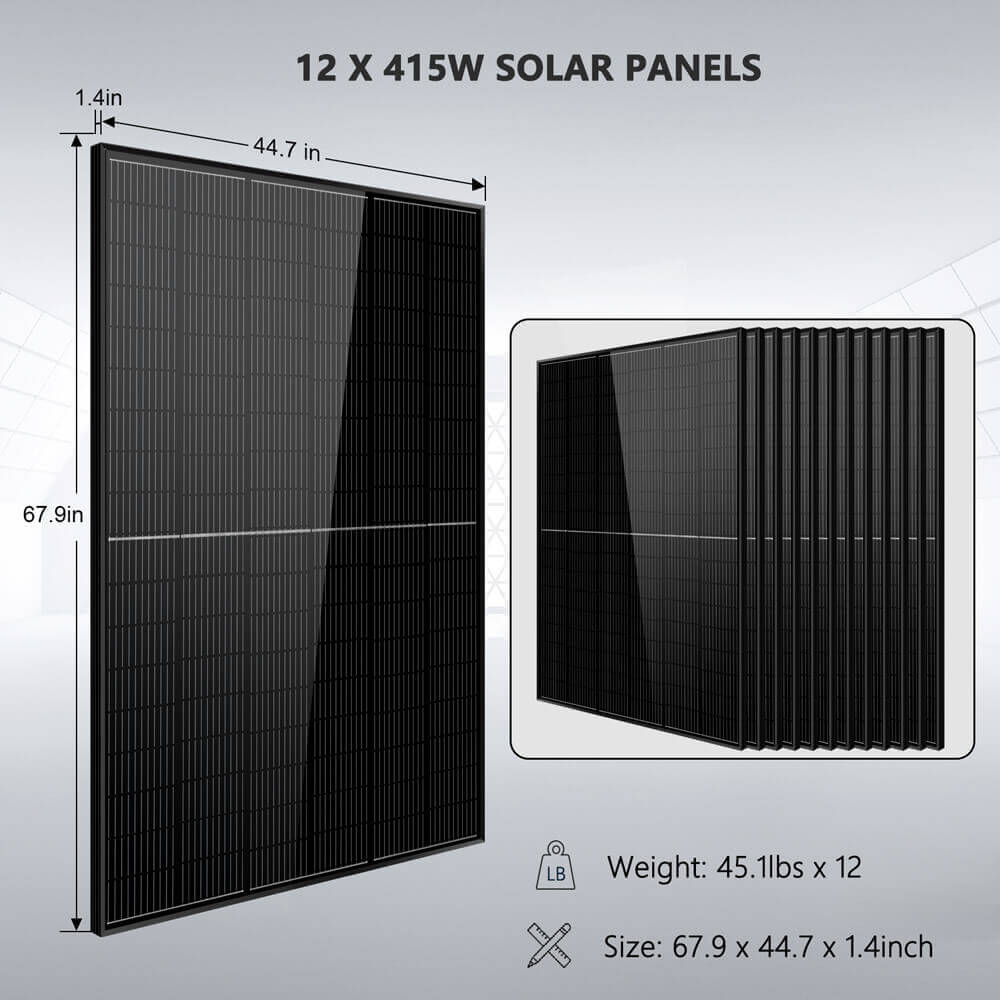

415 Watt Mono Solar Panel

Specification Details
Peak Power 415W
Solar Cell Monocrystalline
Product Tolerance ±3%
Maximum Power Current (IMP) 13.13A
Maximum Power Voltage (VMP) 31.61V
Short Circuit Current (ISC) 13.79A
Open Circuit Voltage (VOC) 38.82V
Product Dimension 67.8 × 44.6 × 1.4 inch
Product Weight 45.1 lbs
Warranty 25 Years
Certificates UL61730, TUV, IEC, CEC, CE...

Solar Kit Specification

Specification Details
Max Continuous Output 10000W
AC Output 120V / 240V
DC Voltage 48V
Max Solar Input 11000W
Total Watt of Panels 4980W
Per Panel Watt 415 Watt
Panel NO. 12 pcs
Total KWH of Batteries 20.48KWH
Chemistry Lithium
Battery NO. 4 pcs
Battery Spec 51.2V
Placeholder Image

Frequently-Asked Questions

Can I expand the system in the future?

Yes! The system is designed for expandability. You can add more LiFePO₄ batteries or solar panels to increase your energy storage and generation capacity.

What appliances can this kit power?

This 10,000W system can power most household appliances, including refrigerators, lights, fans, TVs, air conditioners, washing machines, and power tools. Total load should not exceed inverter or battery capacity.

How long will the battery power my home?

With 20.48kWh of battery storage, the runtime depends on your usage. For example:

  • Low usage (2kW load): ~10 hours
  • Medium usage (4kW load): ~5 hours
  • High usage (8kW+): ~2.5 hours

Can this system power both 120V and 240V appliances?

Yes. The included split-phase inverters provide both 120V and 240V AC outputs, making it compatible with U.S. residential power requirements.

Does it work during cloudy days or at night?

During cloudy days, solar generation is reduced. At night, the system runs entirely on stored battery power. You can also integrate a generator for backup.

Is professional installation required?

While this kit is DIY-friendly for experienced users, Sungold Power recommends hiring a licensed electrician or solar installer to ensure safe and optimal installation.

Does this system include a monitoring app?

Yes. The inverters have built-in WiFi, and you can use a mobile app to monitor real-time performance, battery status, and solar input remotely.

Is the battery safe?

Yes. The included LiFePO₄ batteries have a built-in Battery Management System (BMS) for overcharge, over-discharge, temperature, and short-circuit protection.
