Sungold Power Off-Grid Solar Kit 13000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery 14 X 415 Watts Solar Panels

Sungold Power 13000W Off-Grid Solar Kit Overview

This solar panel kit is a great package for a complete off grid home system, it inlcudes the 14 X 415W solar panel, 4 X 5.12KWH server rack batteries, 2 X 6500W solar inverter and two set of solar cables.The solar array will produce around 25KW per day based on 4 hours sun. This size of system with 13000W 120V/240V split inverter is powerful enough to run everything from air conditioners and well pumps, fridge, tv, workshop, office and more!The system is ready for expansion, up to 6 identical inverters can be paralleled in single-phase (120VAC) or split-phase (240VAC) or three-sphase (208V) . You can add more batteries and solar panel according to your requirment. Let’s Enjoy off grid living and the adventure with Solar Energy Kit!

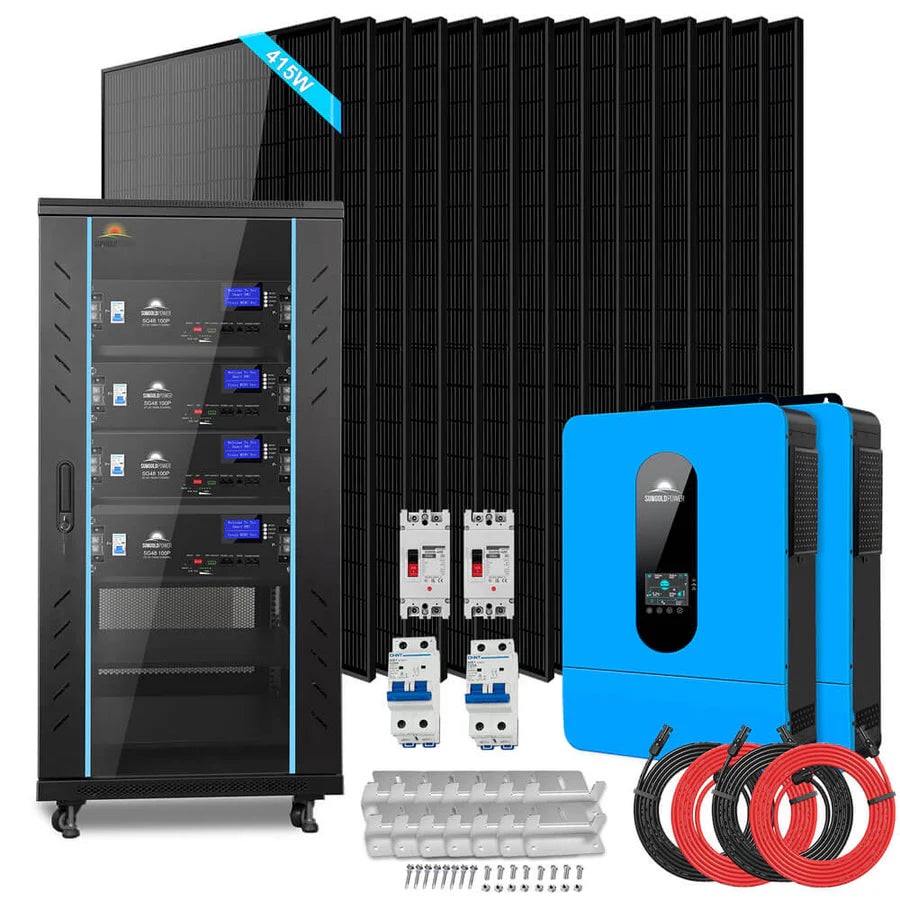

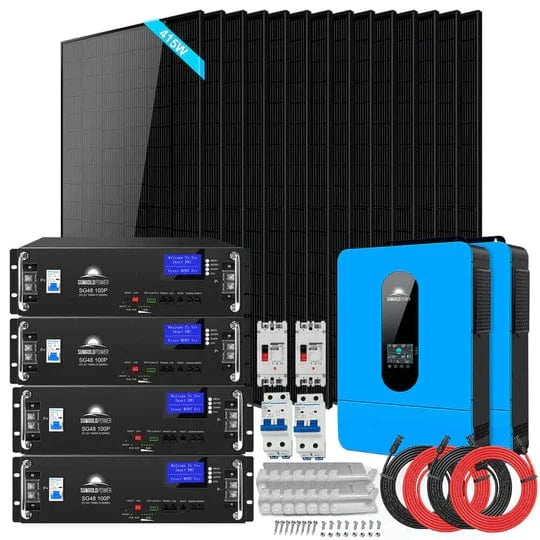

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 2 X 6500 Watt UL 1741 48V DC 120V AC Output Inverters
• 14 x 415 Watt Monocrystalline Solar Panels

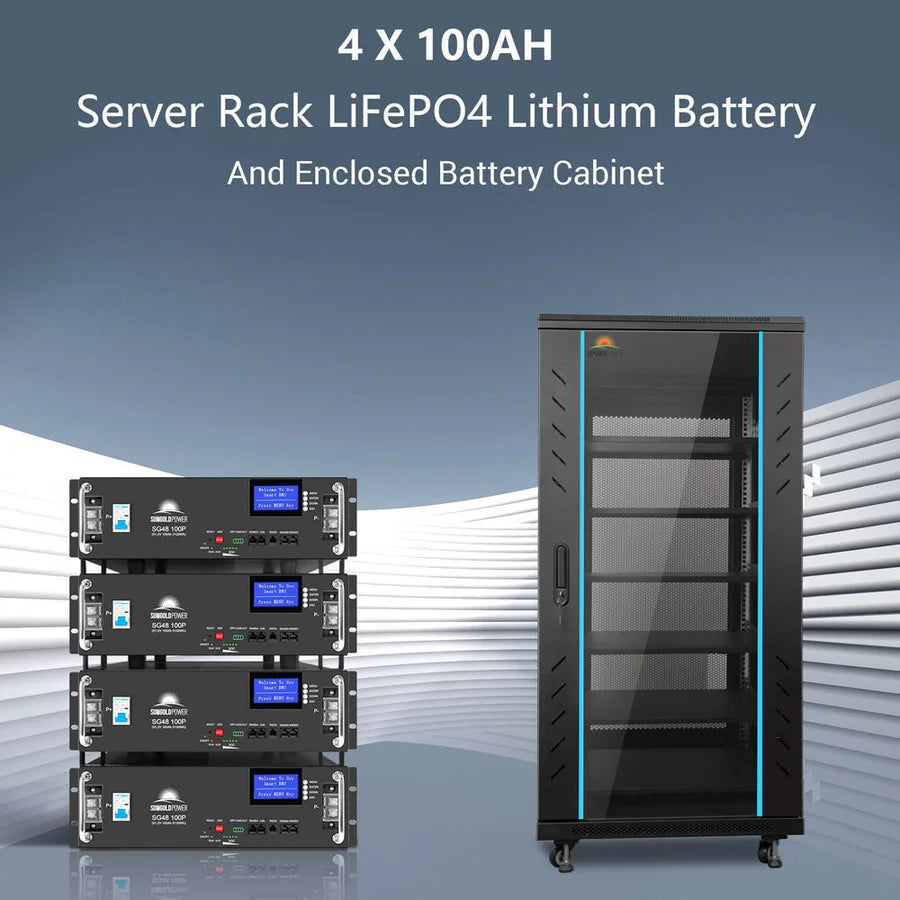

• 4 X 100AH 51.2V Lifepo4 Battery
• 2 x 50 Feet, Solar Extension Cables-Inverter PV input
• 12 x Sets of Mounting Z-Brackets

Sungold Power Complete 13000W Off-Grid Solar Kit Specification

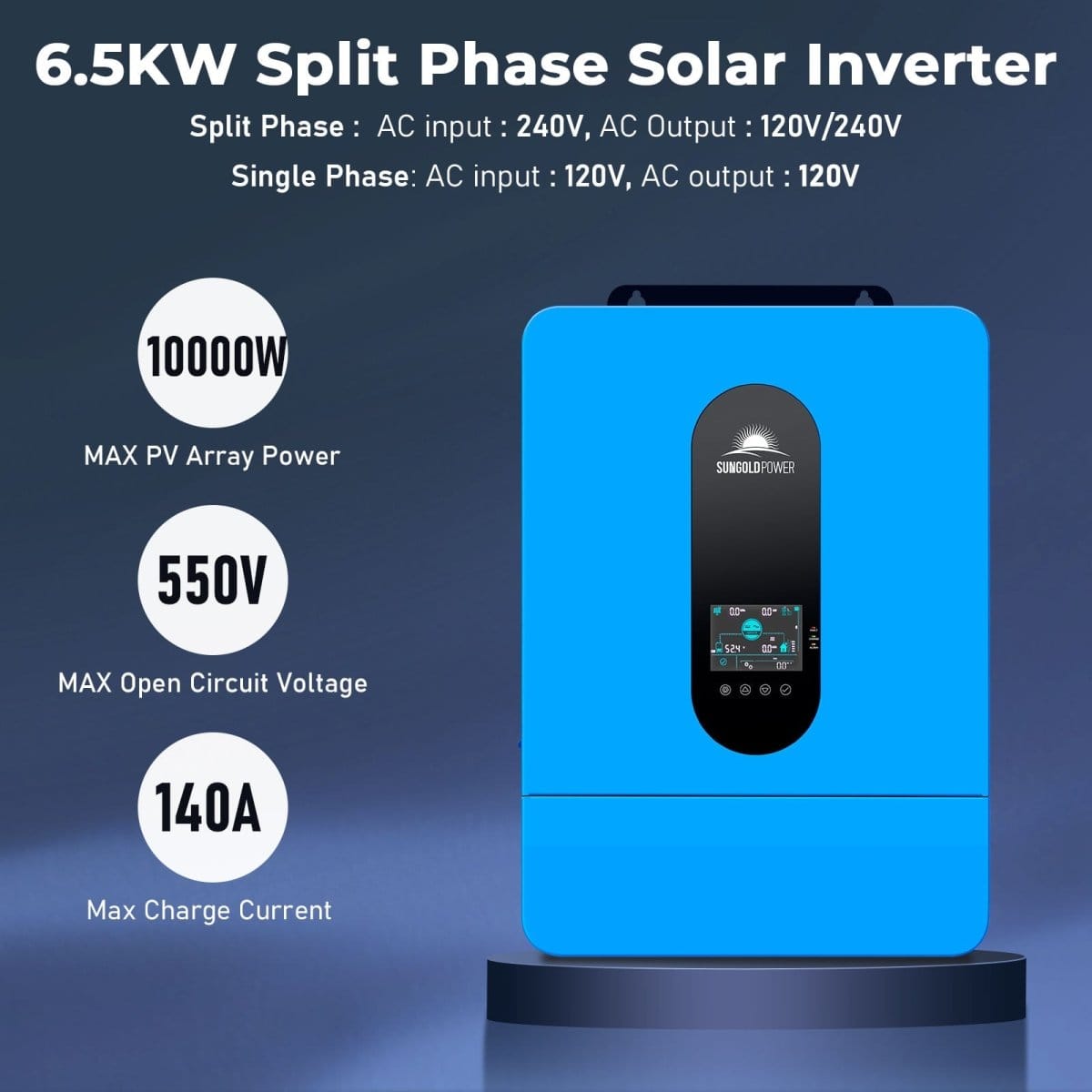

6500 Watt Inverter

• AC Output: 6500W
• Output Waveform: Pure Sine Wave
• AC Output: 120V 60HZ
• Max PV Mppt Operation Voltage: 90-390VDC
• Efficiency: 93%
• Max Charging Current: 120A
• Maximum PV Array Power: 2X4000W
• Dimension: 23.6 X 16.9X 5.9 inch
• Weight: 43LB
• Warranty: 3 Years

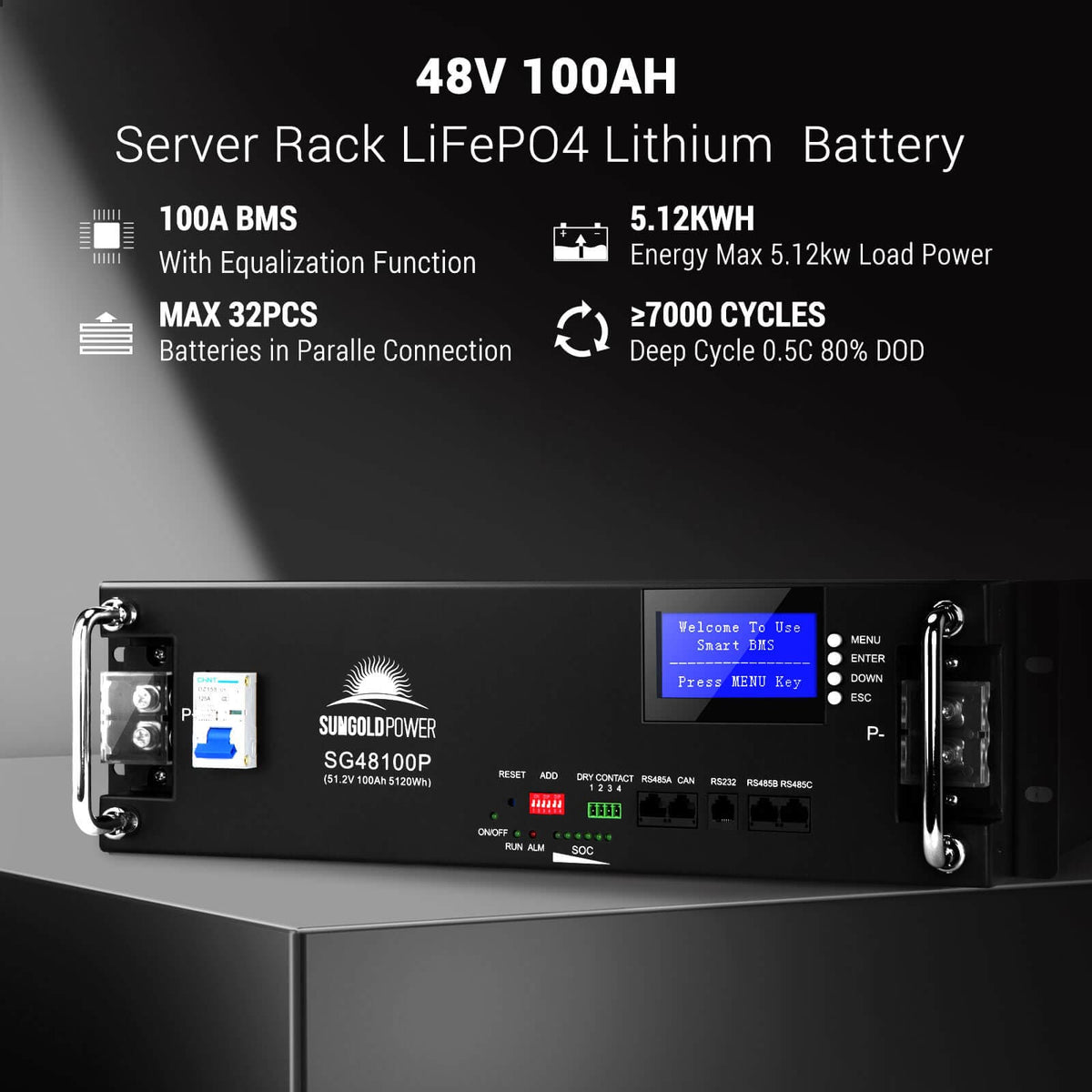

LifePo4 Battery

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Energy: 5.12KWH
• Charge cut-off current: 5A
• MAX Continuous Charge Current: 100A
• Discharge cut-off voltage: 43.2V
• Cycle Life: >7000
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Storage Temperature: -10~+45°C
• Dimension: 19.3*18.9 5.5inch
• Weight: 93lbs
• Warranty: 10 Years

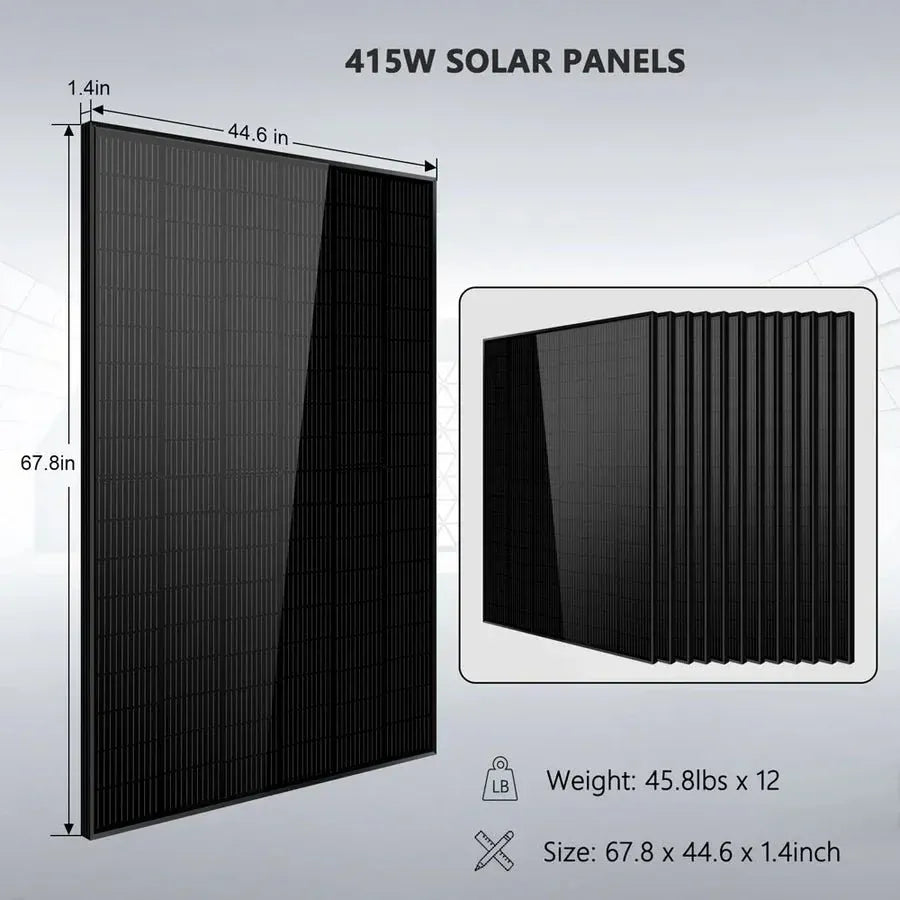

415 Watt Mono Solar Panel

• Peak Power: 415W
• Solar Cell: Monocrystalline
• Product Tolerance: ±3%
• Maximum Power Current (IMP): 13.13A
• Maximum Power Voltage (VMP): 31.61V
• Short Circuit Current(ISC): 13.79A
• Open Circuit Voltage(VOC): 38.82V
• Product Dimension: 67.9 X 44.7 X 1.4 inch
• Product Weight: 45.1LB
• Warranty: 25 Years

Solar Kit Specification

• Max Continuous Output: 13000W
• AC Output: 120V/240V
• DC Voltage: 48V
• Max Solar Input: 4 x 4000W
• Total Watt of Panels: 5810W
• Per Panel Watt: 415 Watt
• Panel NO.: 14 pcs
• Total KWH of Batteries: 20.48KWH
• Chemistry: Lithium
• Battery NO.: 4 pcs
• Battery Spec: 48V 100AH

User Manual

• Sungold Power 6500W Inverter User Manual
• Sungold Power LifePo4 5.12KWH Lithium Battery User Manual
• Sungold Power 415 Watt Monocrystalline Solar Panels
