What is the difference between the SGR-20K30E and SGR-20K30T?

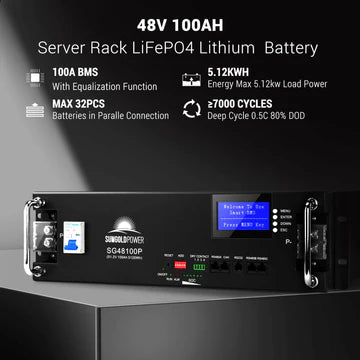

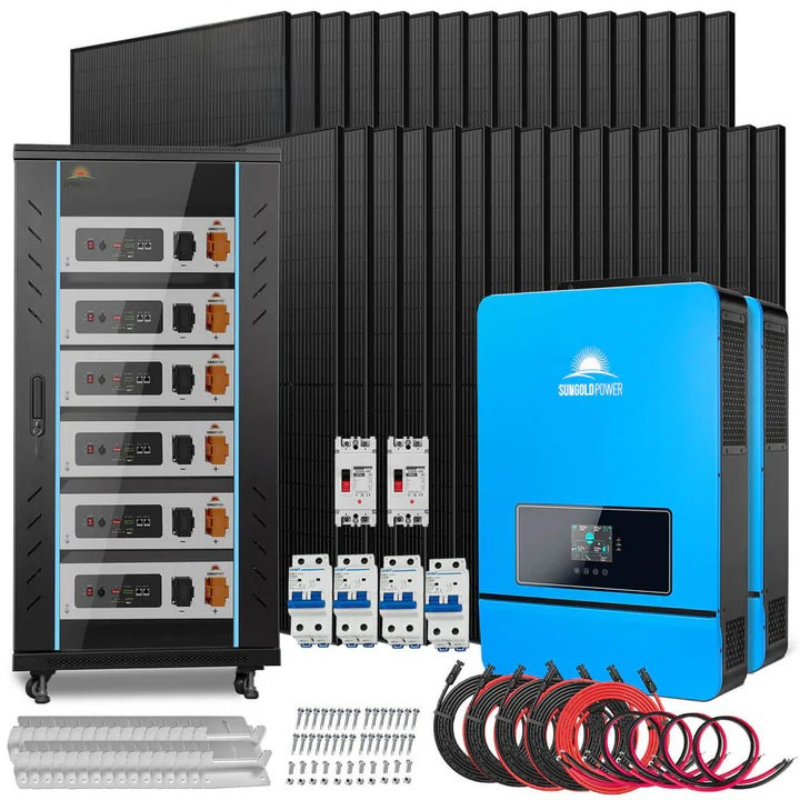

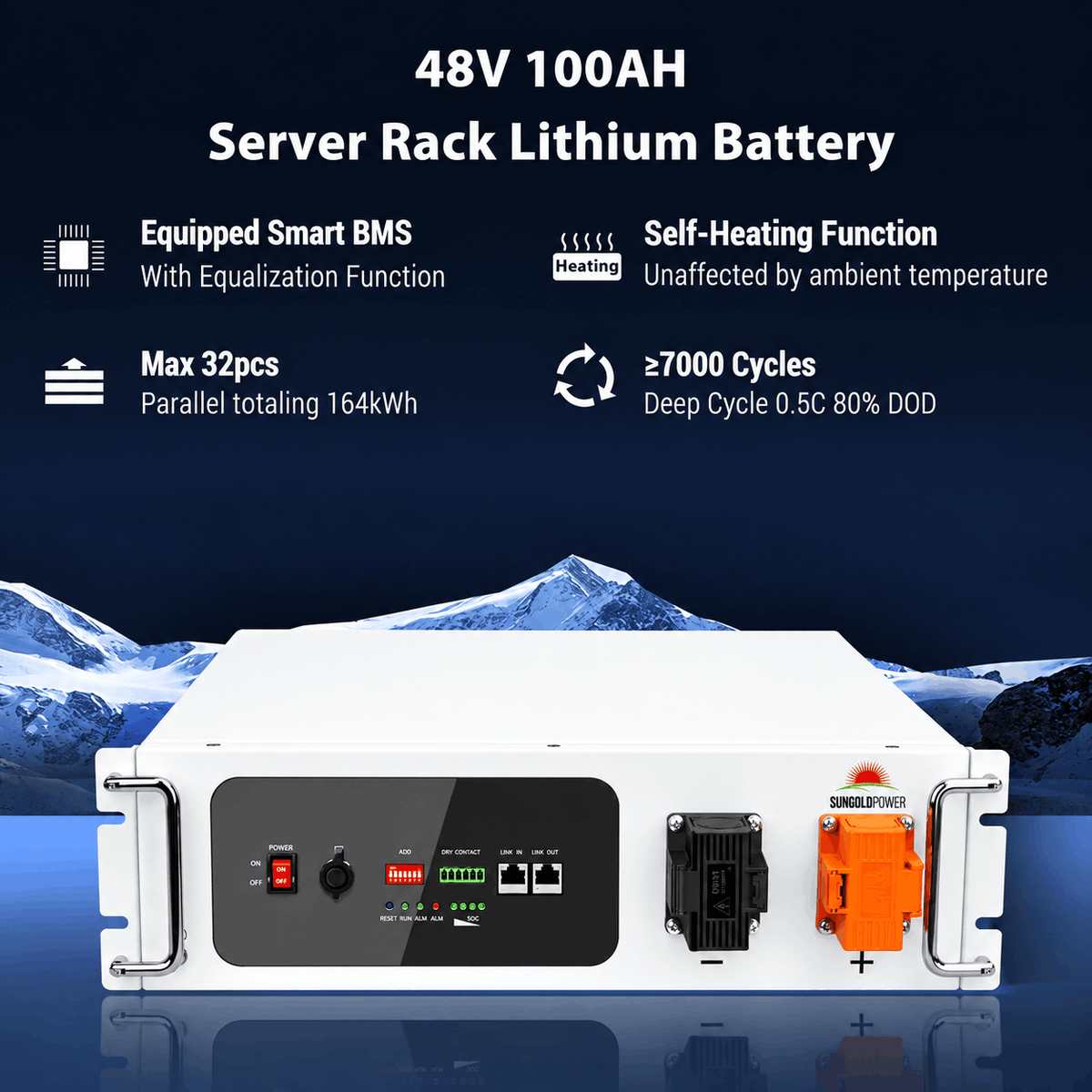

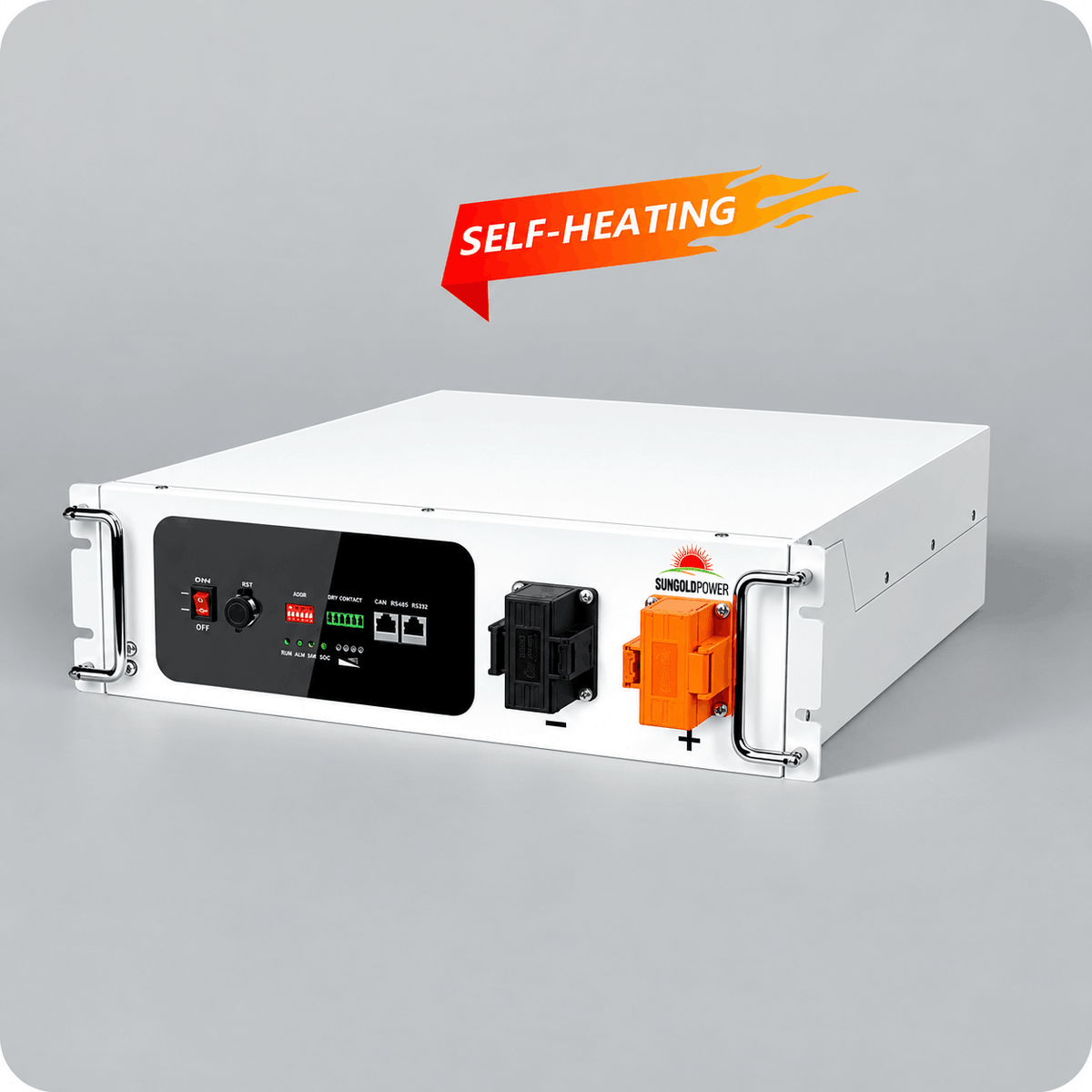

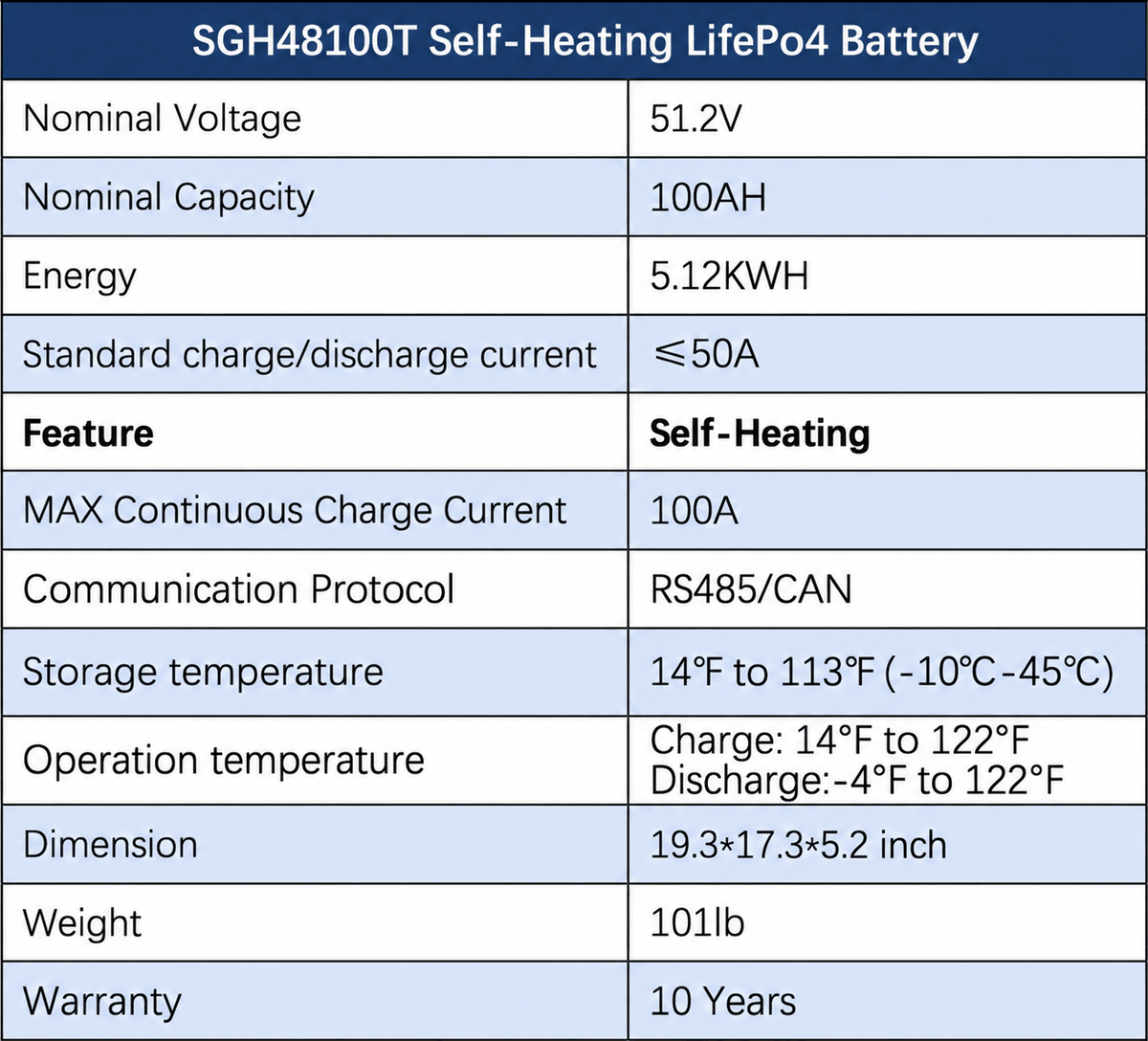

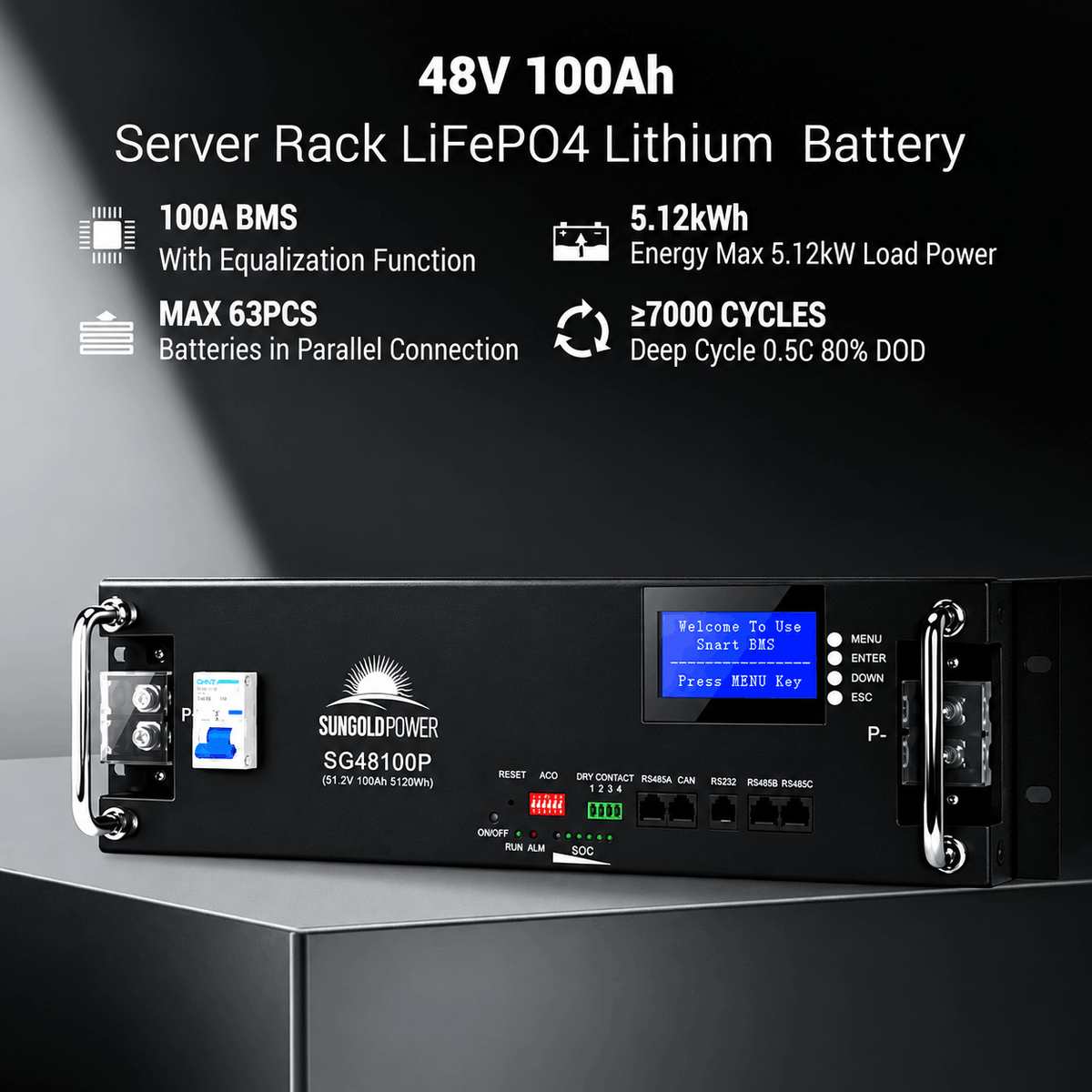

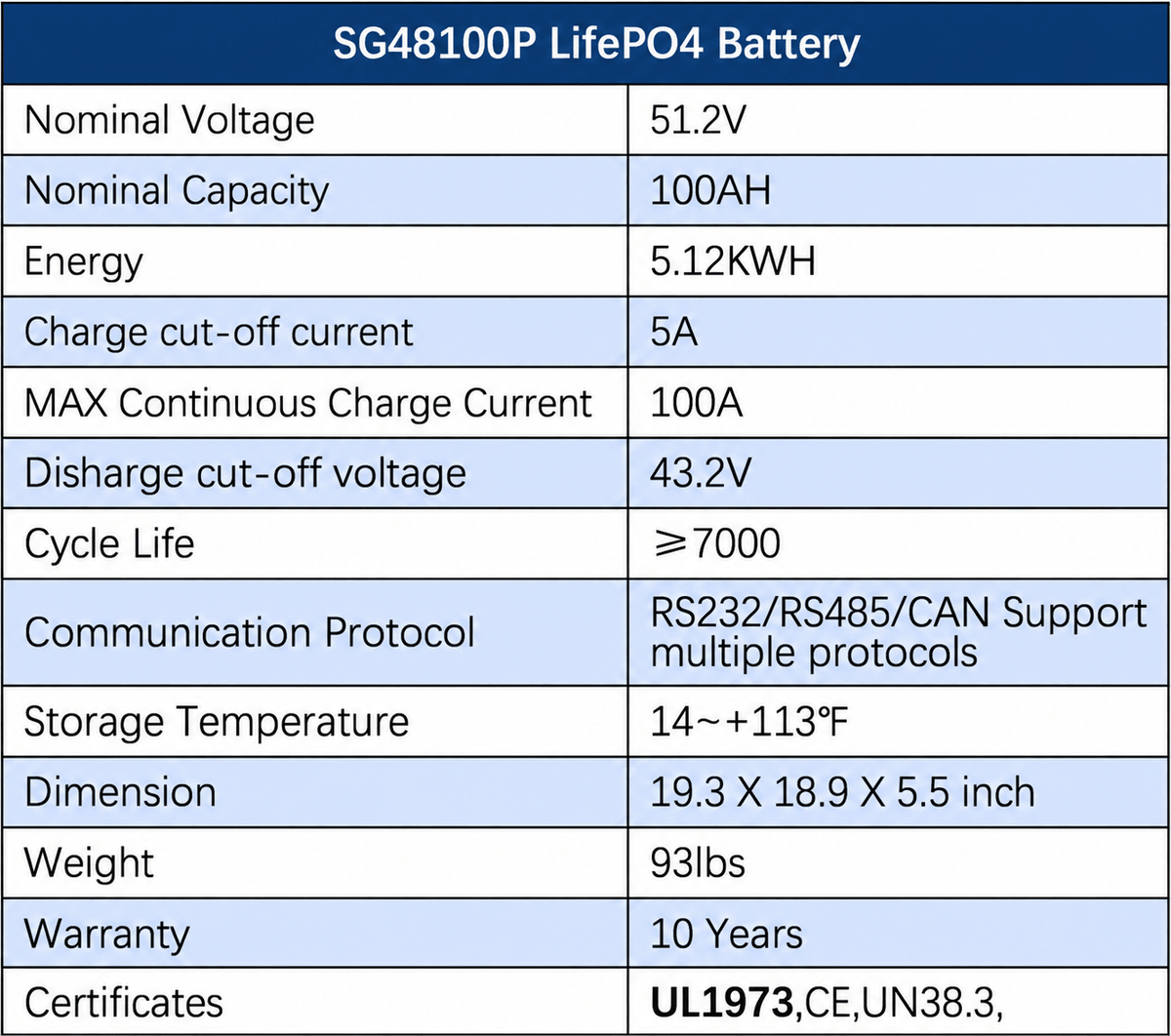

The batteries, and only the batteries. Both kits have the same two inverters, the same thirty-two panels, the same 30.72kWh and the same cabinet. The 20K30E uses standard SG48100P cells. The 20K30T uses SGH48100T cells that warm themselves and keep charging down to 14°F. Ask how cold the room holding the cabinet gets in winter: standard lithium stops accepting a charge below freezing, so in an unheated space a cold snap means the array generates and the bank refuses it. The trade is charge rate, since the self-heating cells accept 70A each against 100A on the standard ones.
Can this kit really hold 20,000W, or does the battery cap it?
It holds it. Six batteries each sustain 100A, so the bank supplies 600A while two paralleled 10,000W inverters draw about 425A at full output. There is no battery-side ceiling here, which is not true of every kit at this size, so the rating on the box is the rating you get. What runs out is stored energy: at a full 20,000W this bank lasts a little over an hour, so size the inverter for what runs at once and the battery for how long you need it.
Does this kit include everything I need to install it?

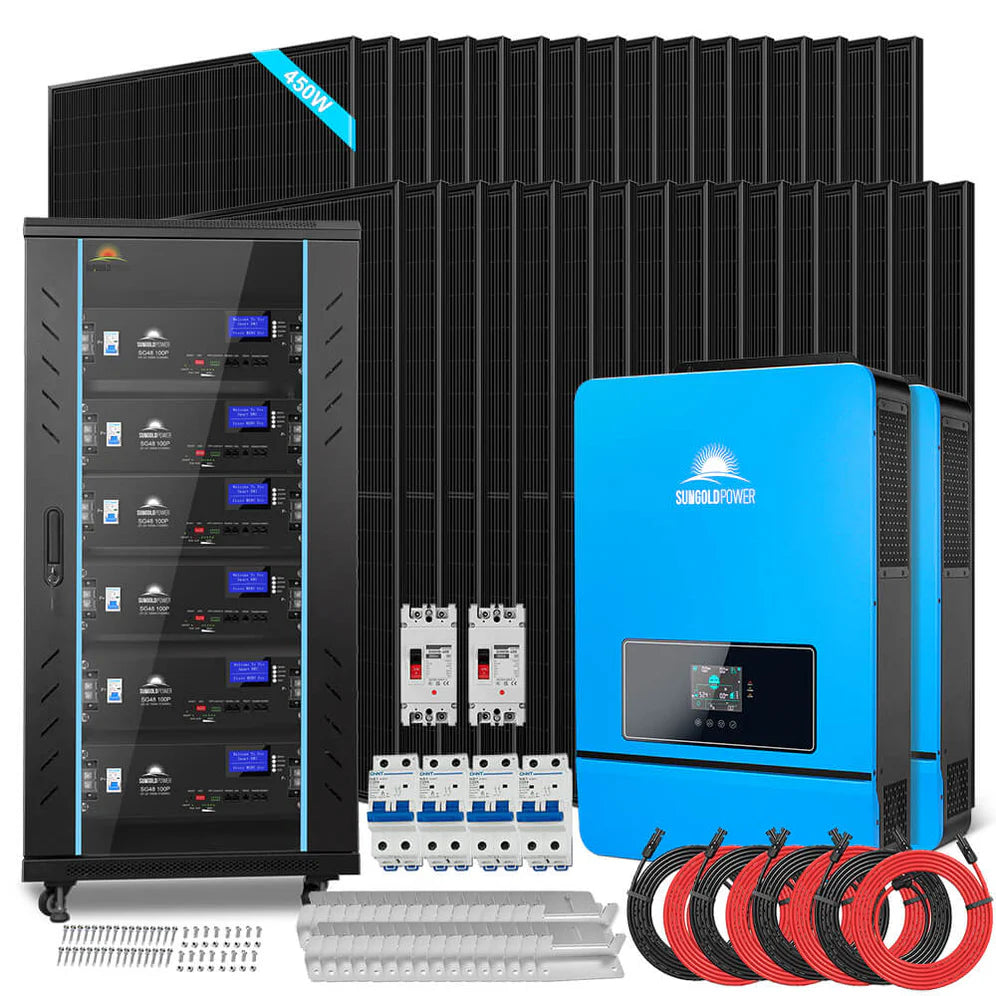

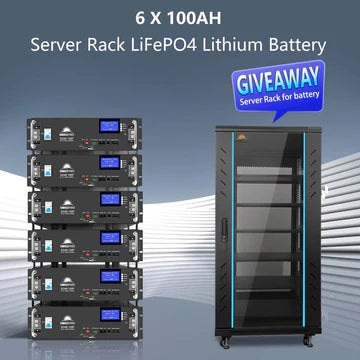

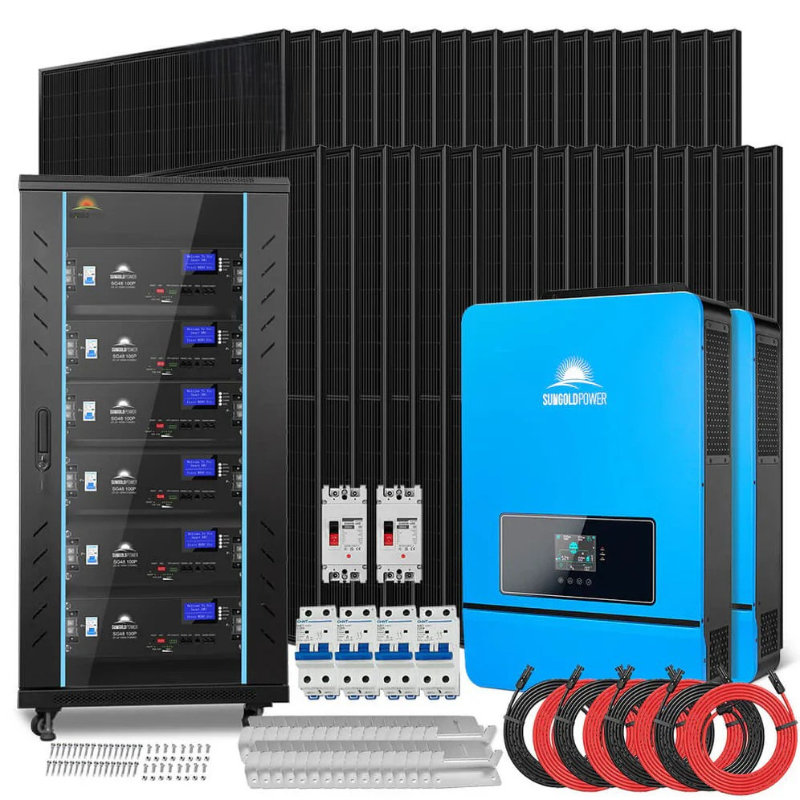

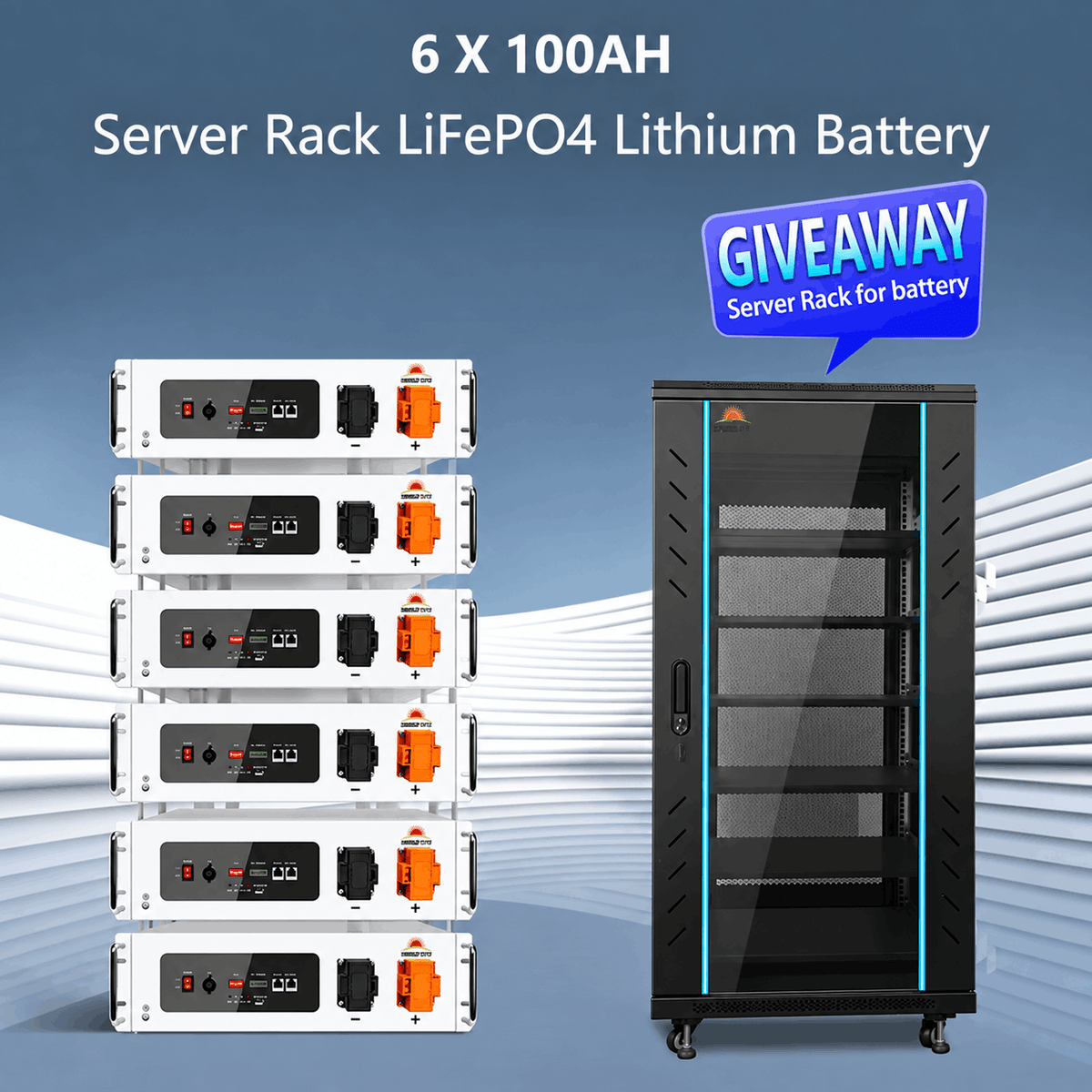

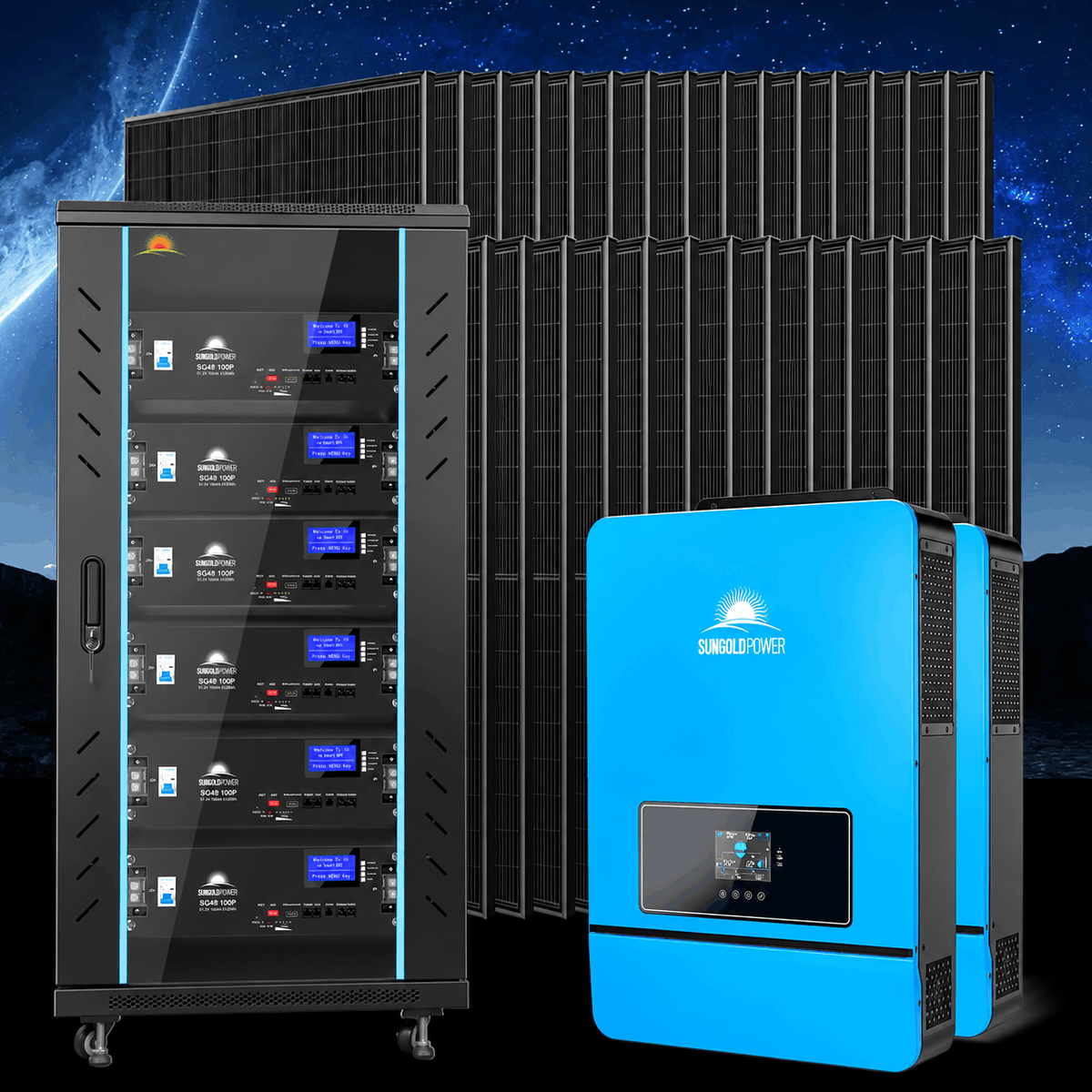

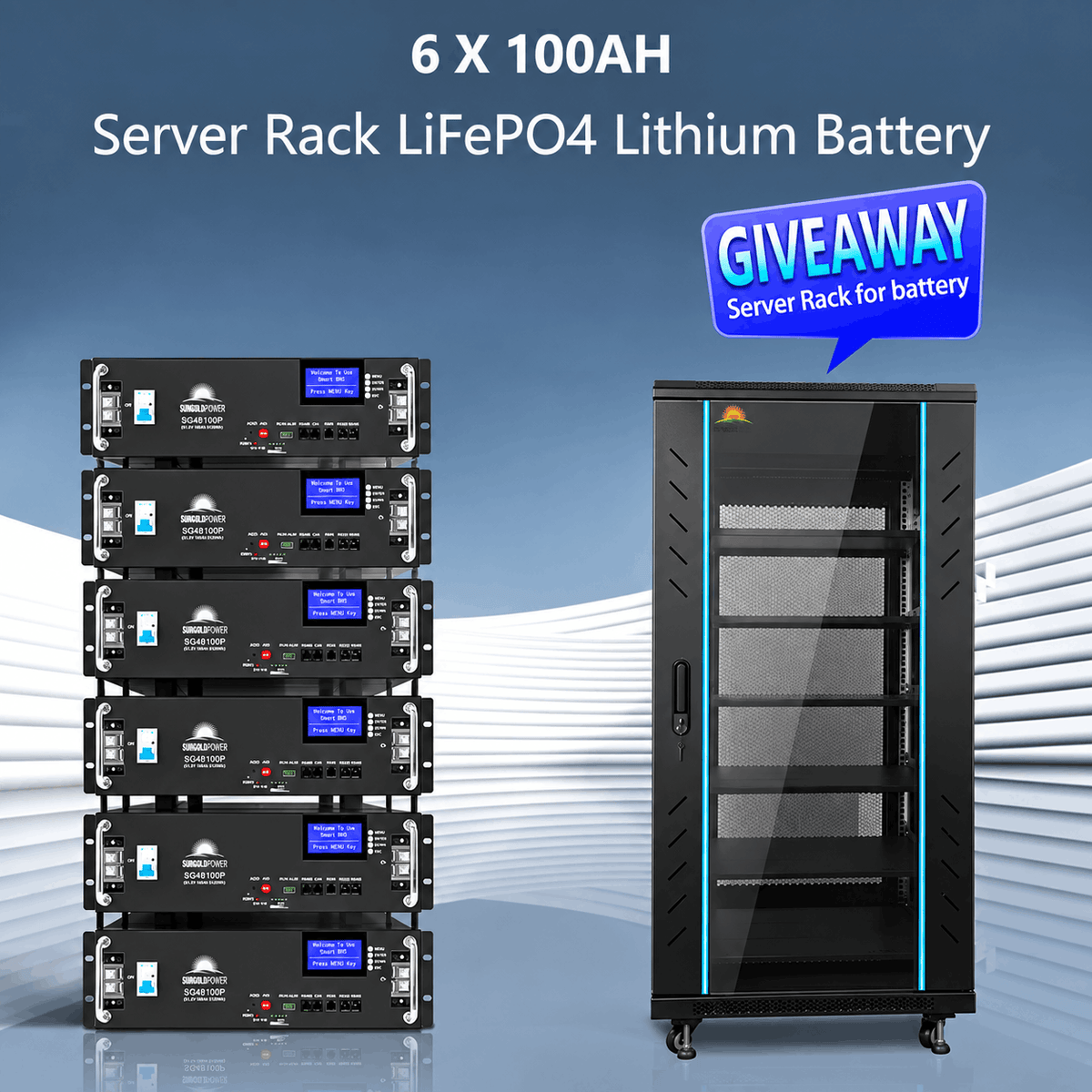

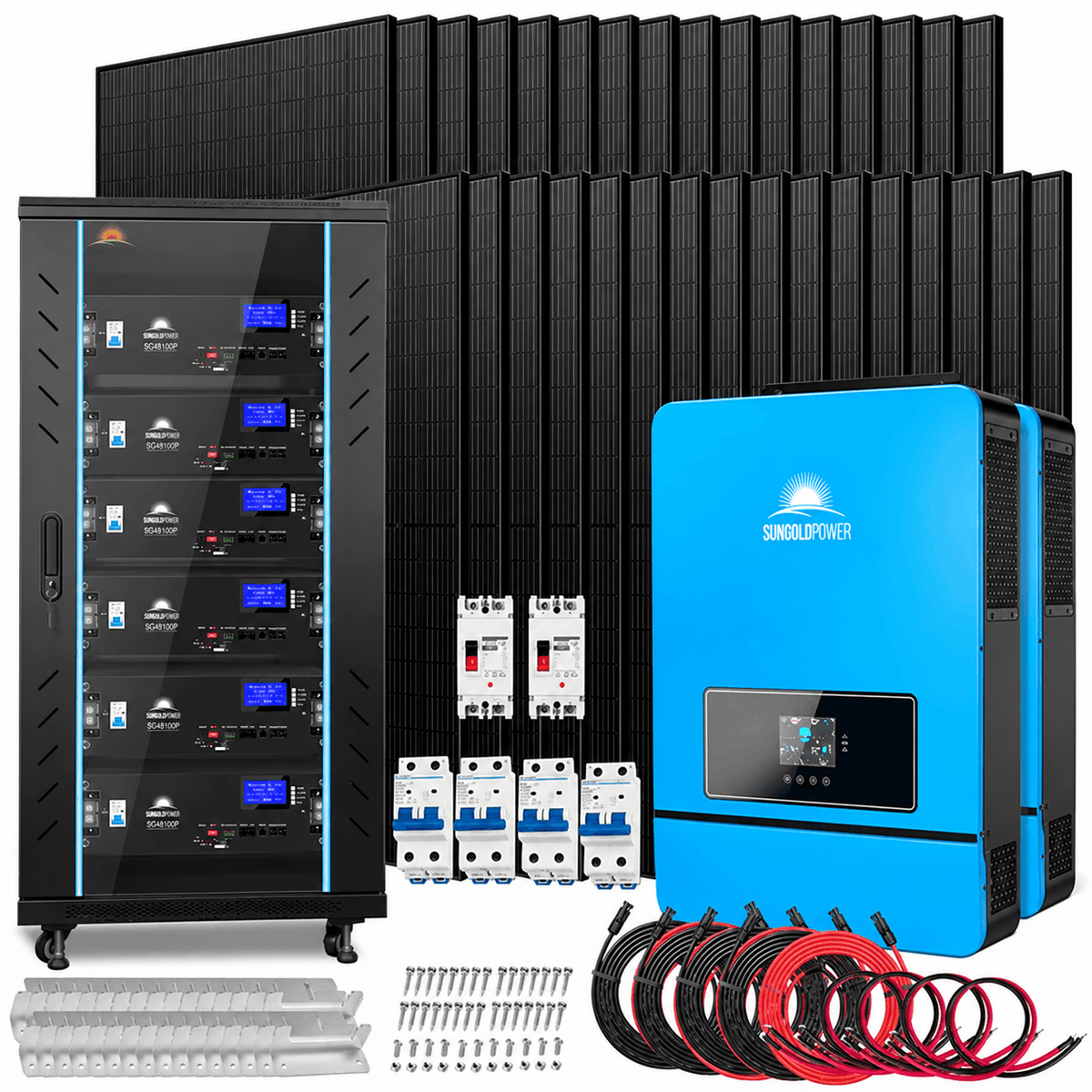

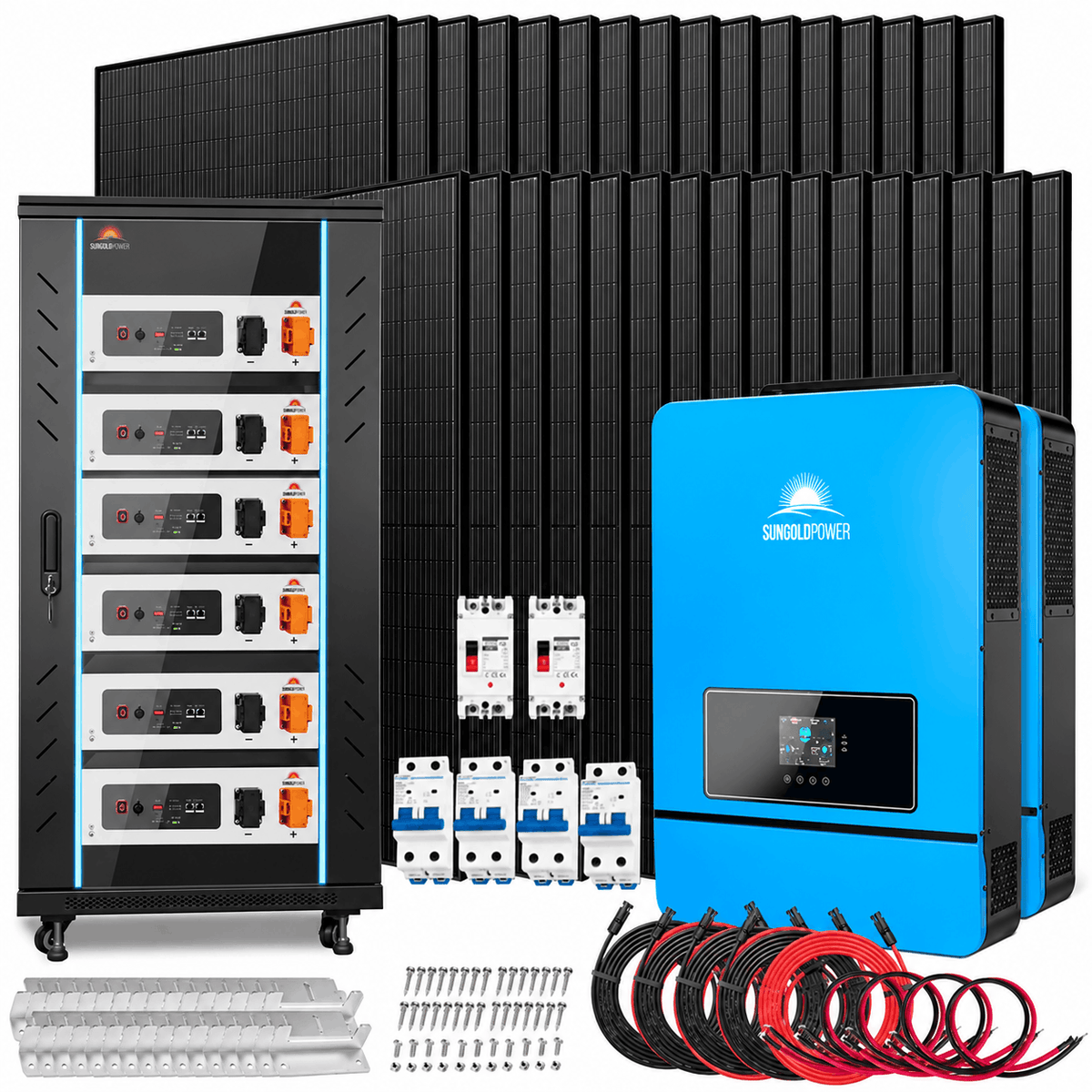

More than most: the enclosed battery cabinet is included, which on comparable systems is a separate purchase. You also get both inverters, all six batteries, all thirty-two panels, both DC breakers, all four PV breakers, four sets of solar extension cables, the battery cabling and the Z-brackets. What varies is the building side, and on an array this size that side is substantial: ground-mount structure or rail racking across multiple roof planes, conduit, junction boxes, building wire, a critical loads panel or transfer switch, generator input wiring, and labor. Those depend on your site and local code, which is why we spec them per install.
How should the panels be wired?

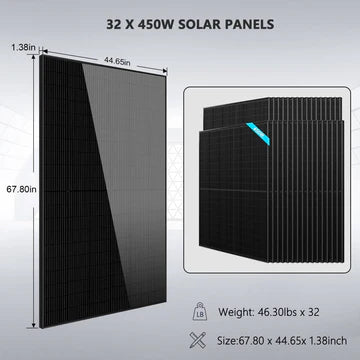

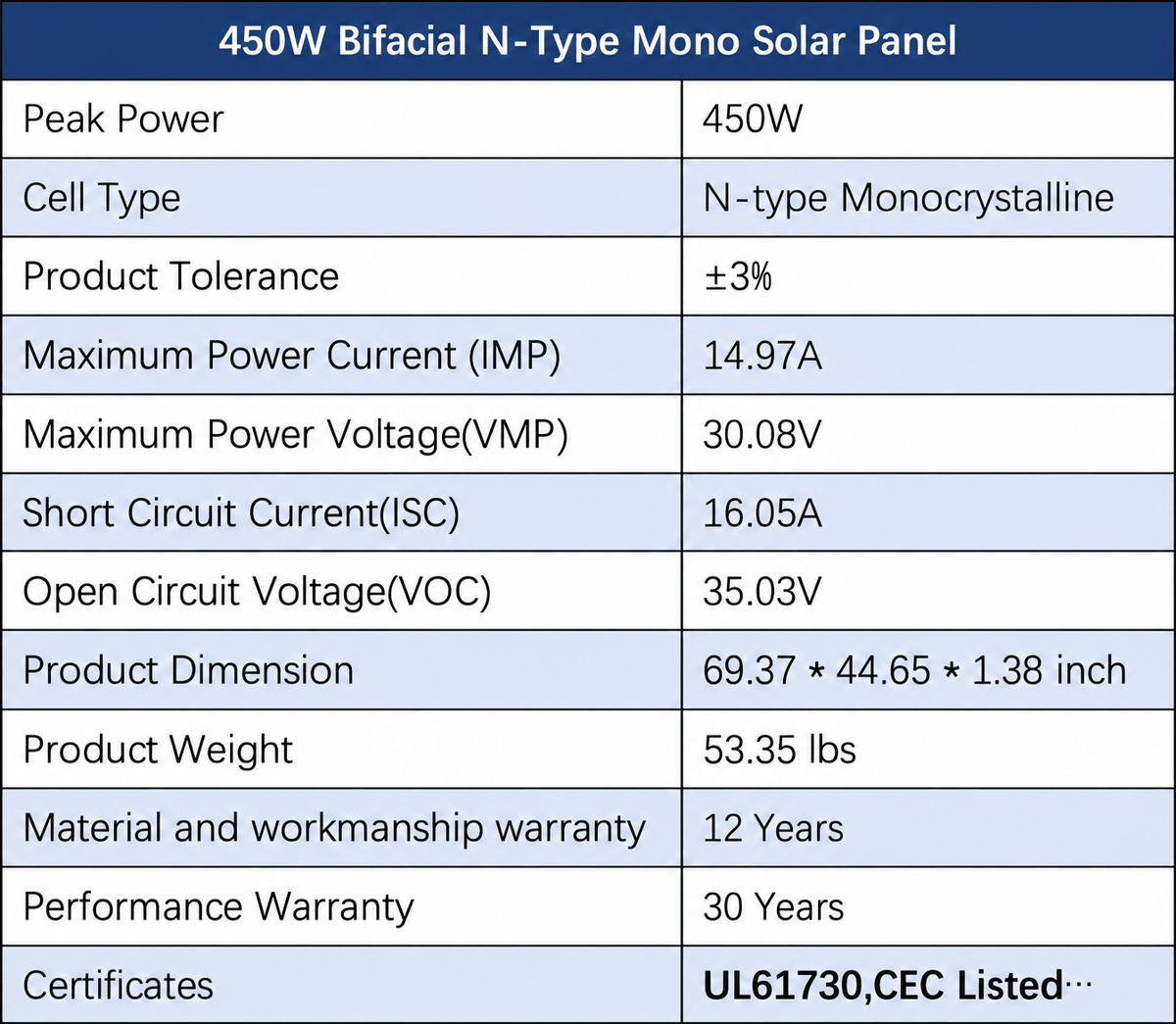

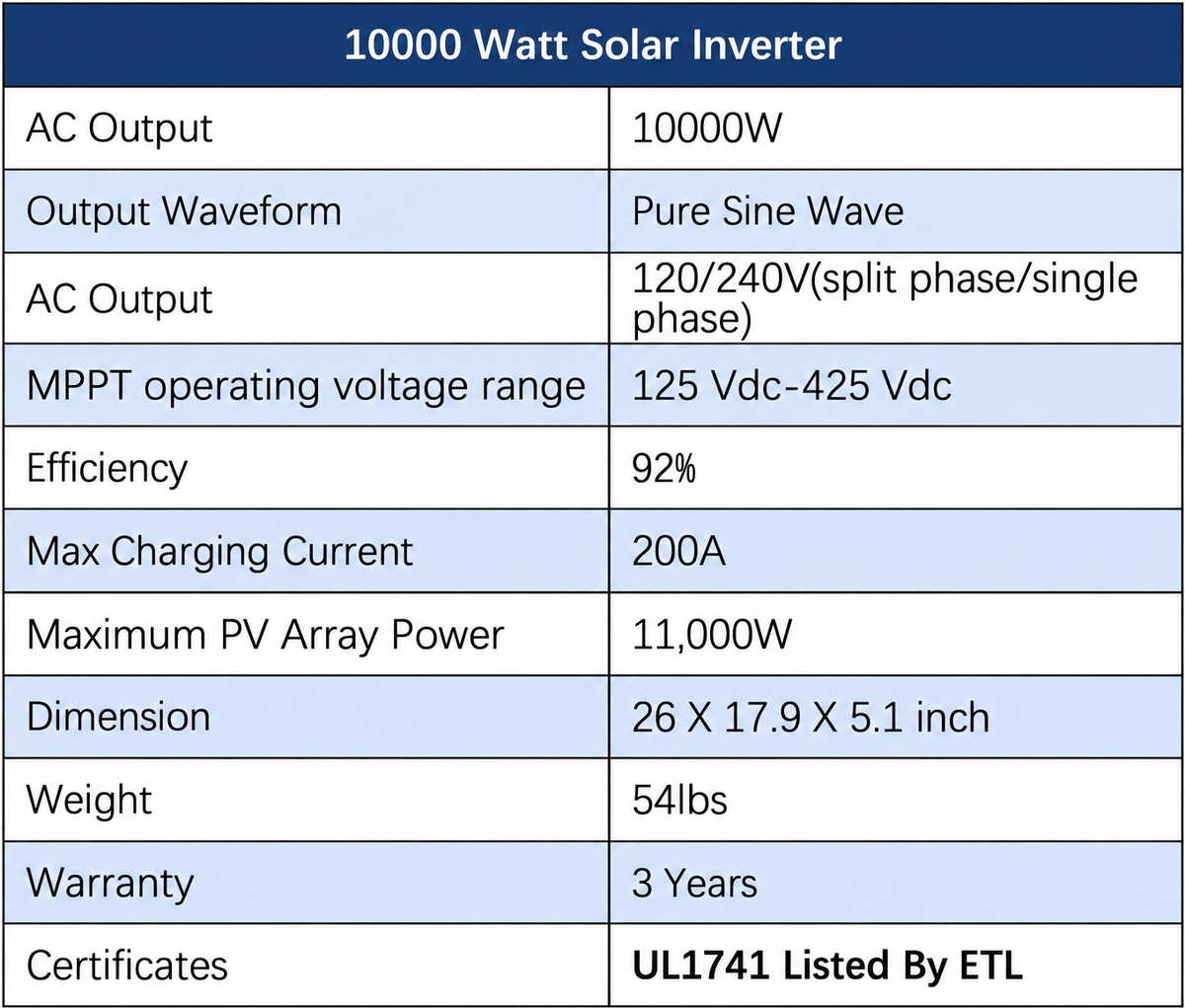

Four strings of eight, two to each inverter. Eight of these panels in series operate near 241V and reach 280V open circuit, which sits in the middle of the 125 to 425V tracking window and well under the 500V ceiling even in cold weather, and each string draws 16A against a 22A tracker limit. Four independent trackers also means you can point the four strings in four different directions without one dragging down the others, which is often what an array this large needs.

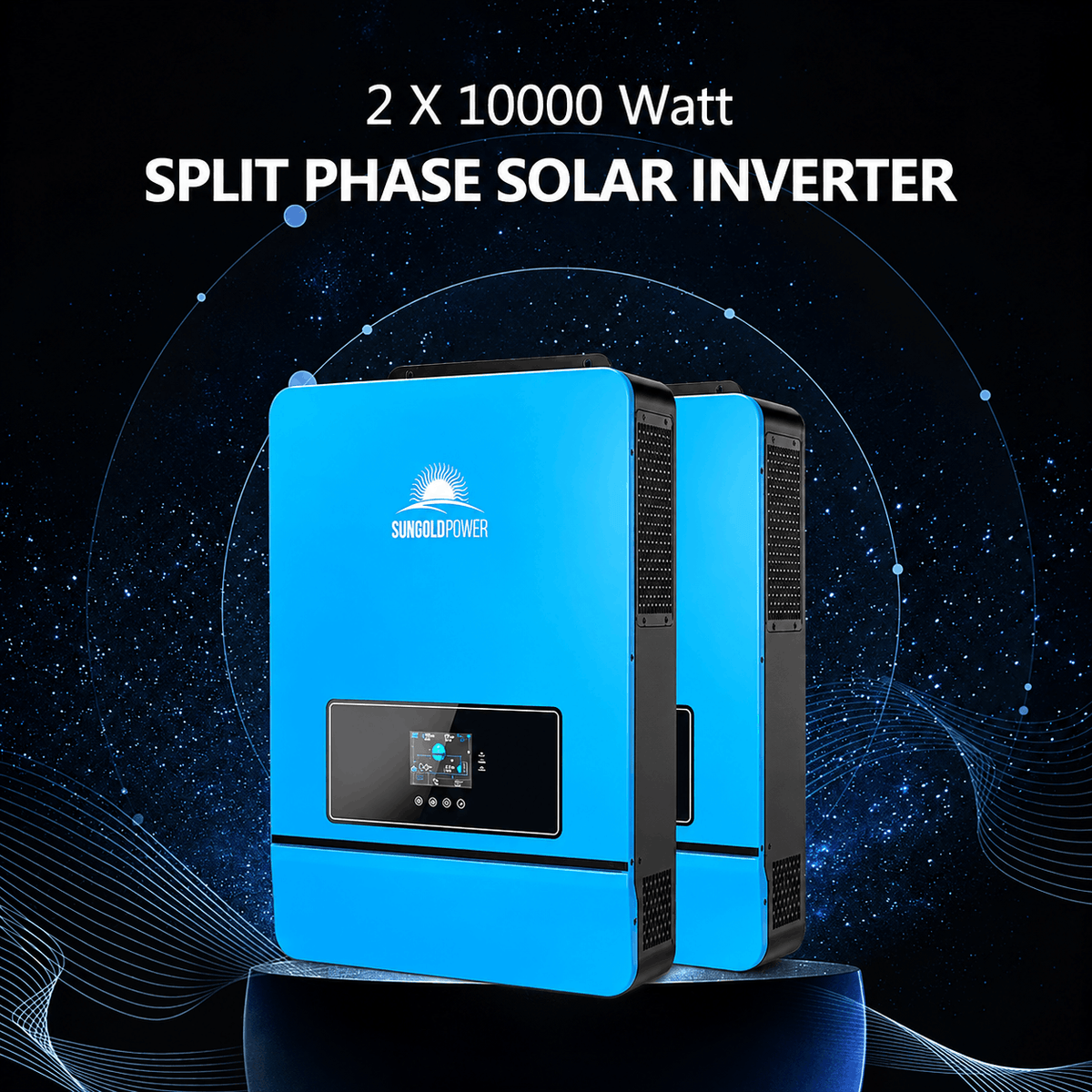

What does running two inverters in parallel actually involve?

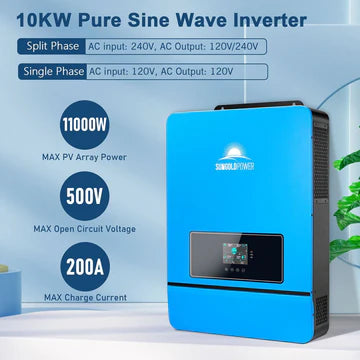

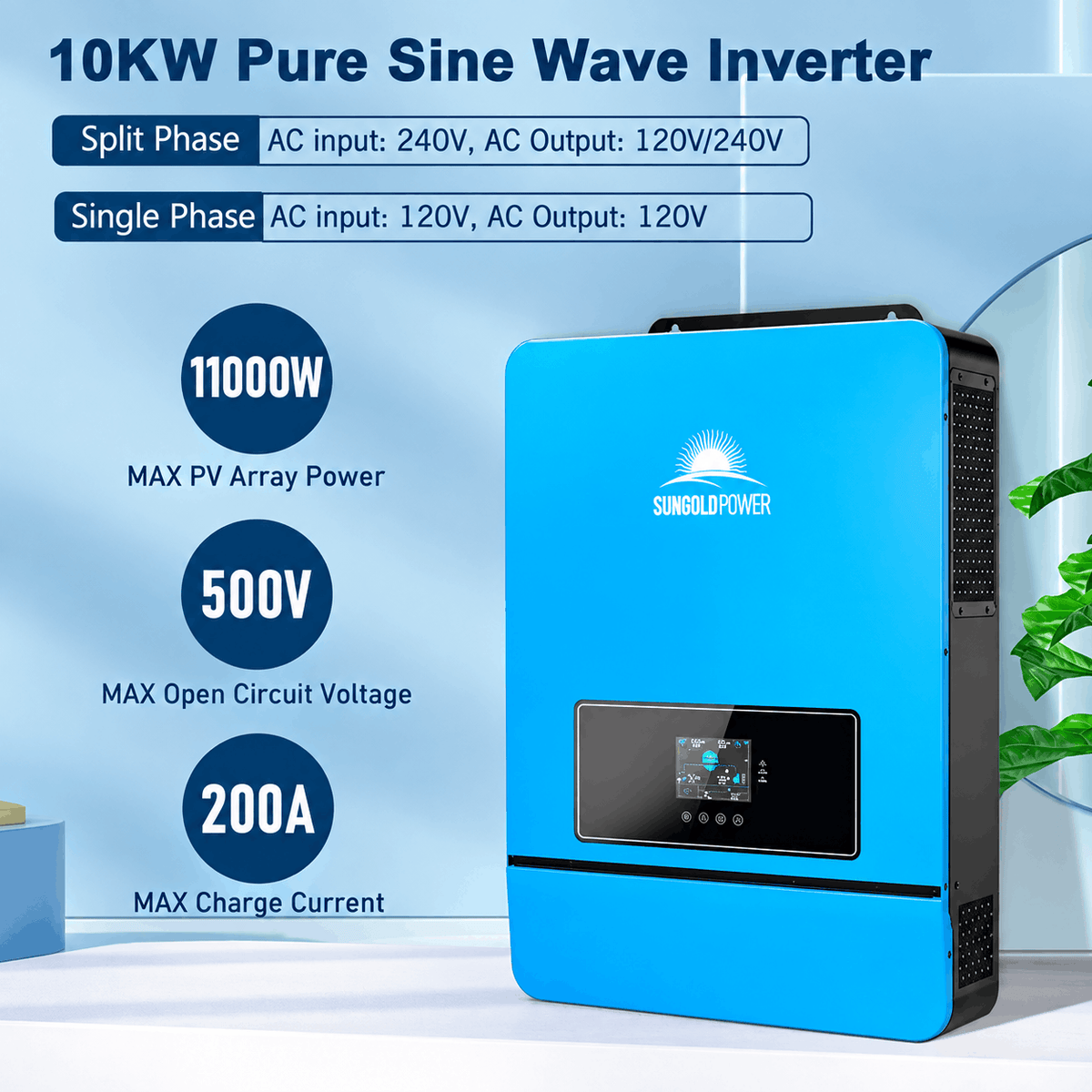

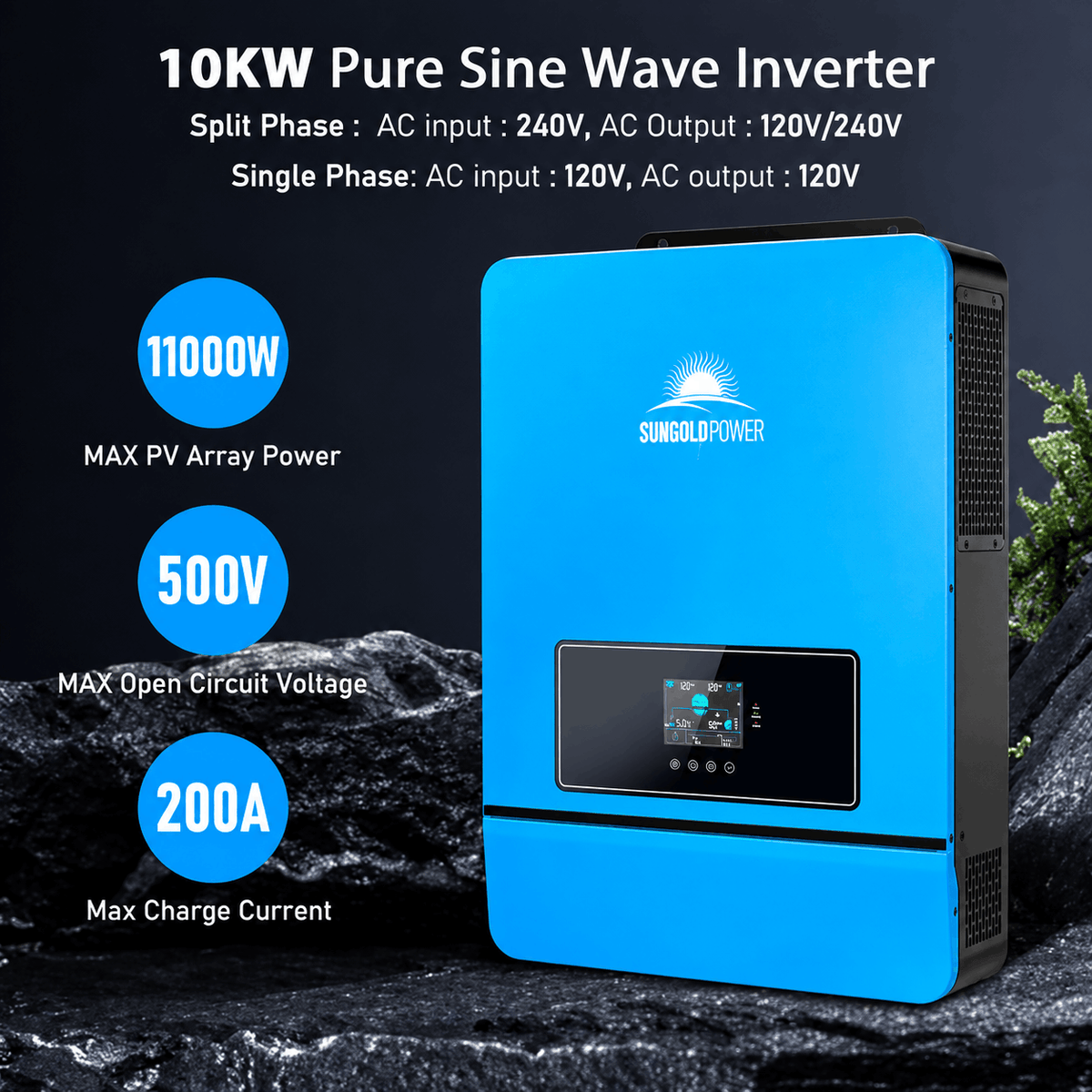

They ship configured as a pair and are joined by a communication cable that keeps them synchronised and sharing load. Both units need matching firmware settings before the system is energised. Done properly it behaves as one 20,000W inverter. Done improperly the two fight each other. It is routine work for a solar installer and it is the main reason we treat this as a professional installation rather than a DIY project.
How much energy will this generate daily?
The 14.4kW array produces roughly 58 to 72kWh per day at 4 to 5 peak sun hours, plus whatever the rear faces add on a ground mount. Actual output depends on your location, season, panel angle and shading.
Can I recharge it from a generator?
Yes. Each inverter accepts up to 200A of charge current, so the pair can push 400A into the bank, and the standard cells accept 100A each across six units. On the self-heating configuration the cells accept 70A each, so a generator recharge takes longer. Size the generator to the charge rate you actually want rather than to the inverter rating, and we will help work that out on the call.
Can I add batteries later?
Yes, though the cabinet is sized for six, so more capacity means an additional enclosure. Adding storage is what extends how long the property runs overnight rather than what it can run at once, since the output side is already fully supported. Batteries work best when they match the originals in age and state of health, so if you know you will want more, buy it up front.
Can I install this myself?
We would not recommend it. Thirty-two panels, a ground mount, two paralleled inverters and a 600 lb battery cabinet is a professional job, and at 20,000W the tie-in to a distribution panel is licensed electrician work in most jurisdictions.
Is LiFePO4 safe?
It's the safest widely available lithium chemistry, with strong thermal stability, long service life and minimal maintenance. These cells carry UL1973 and UN38.3, and every battery includes BMS protection against overcharge, deep discharge, overheating, overload and short circuit.
