Why is the array so much bigger than the battery?
Because this kit is built for properties that consume during daylight. 14.4kW of panel makes 58 to 72kWh on a good day against a 25.6kWh bank, so if you are running pumps, tools, refrigeration and cooling while the sun is up, most of that energy goes straight to the loads and never touches the battery. That is the efficient path. If your consumption is mostly after dark, you will fill the bank by midday and waste the rest, and you would be better served by the SGR-10K25S, which has the same battery and the same cabinet on a much smaller array.
What is the difference between the SGR-16K25E and SGR-16K25T?

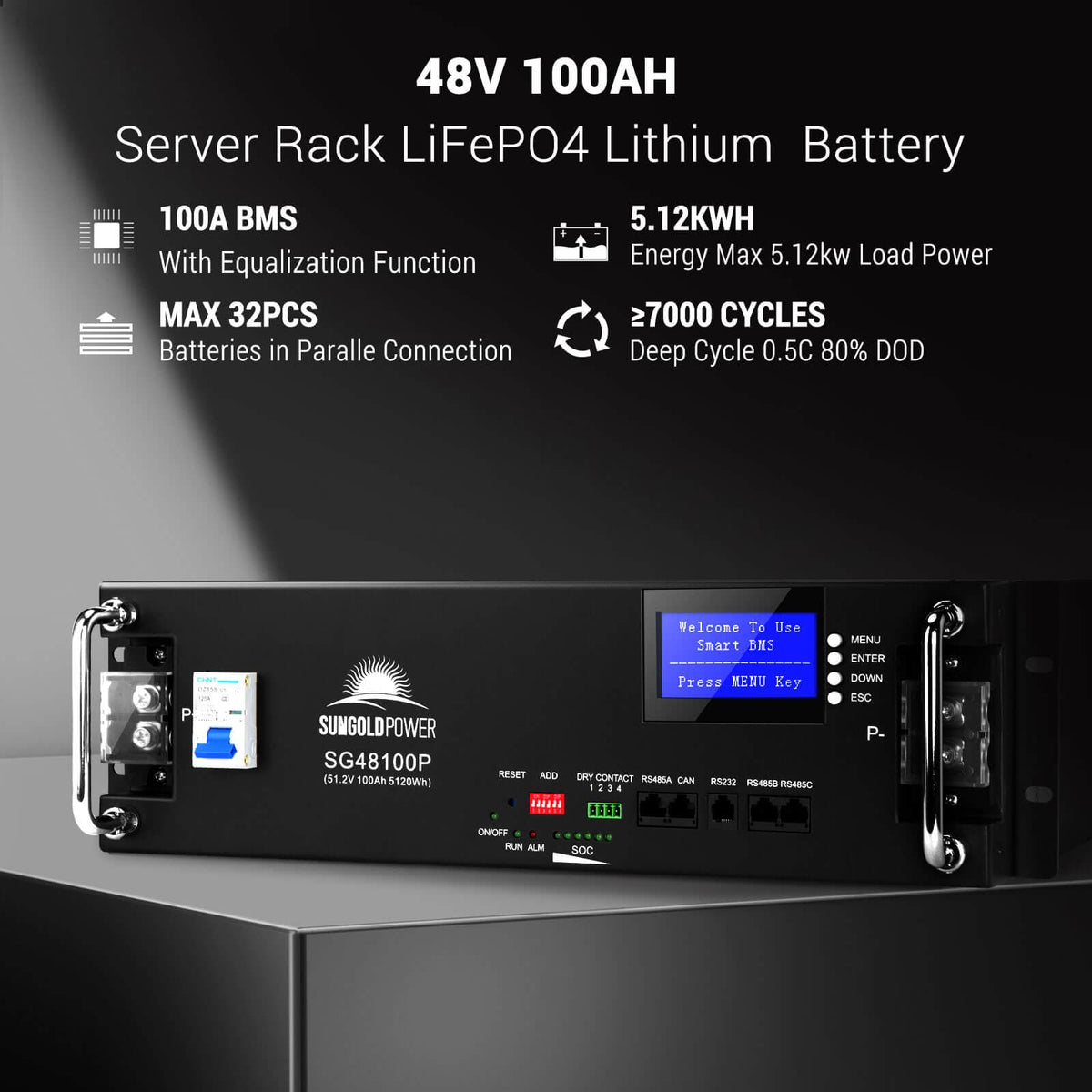

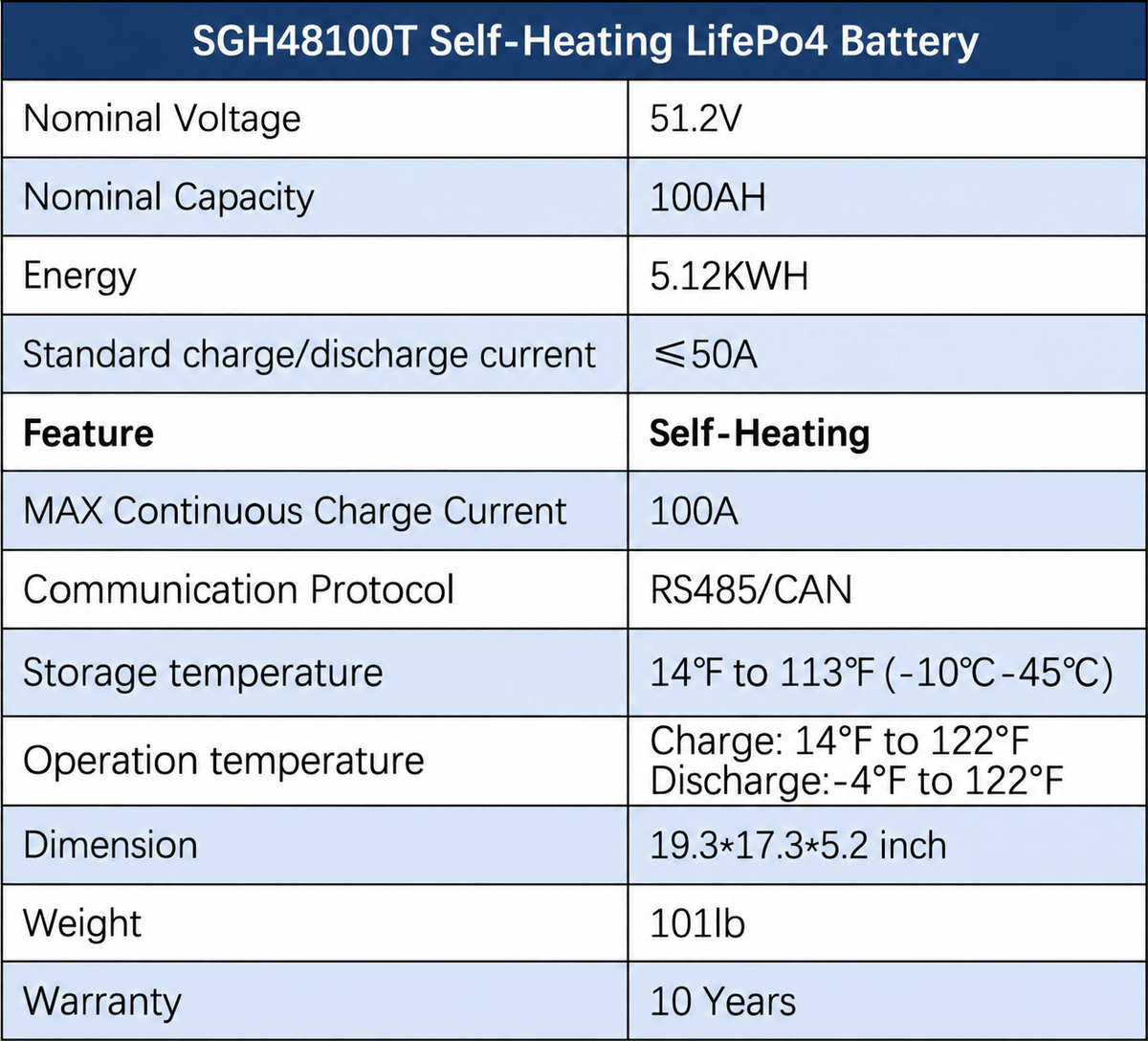

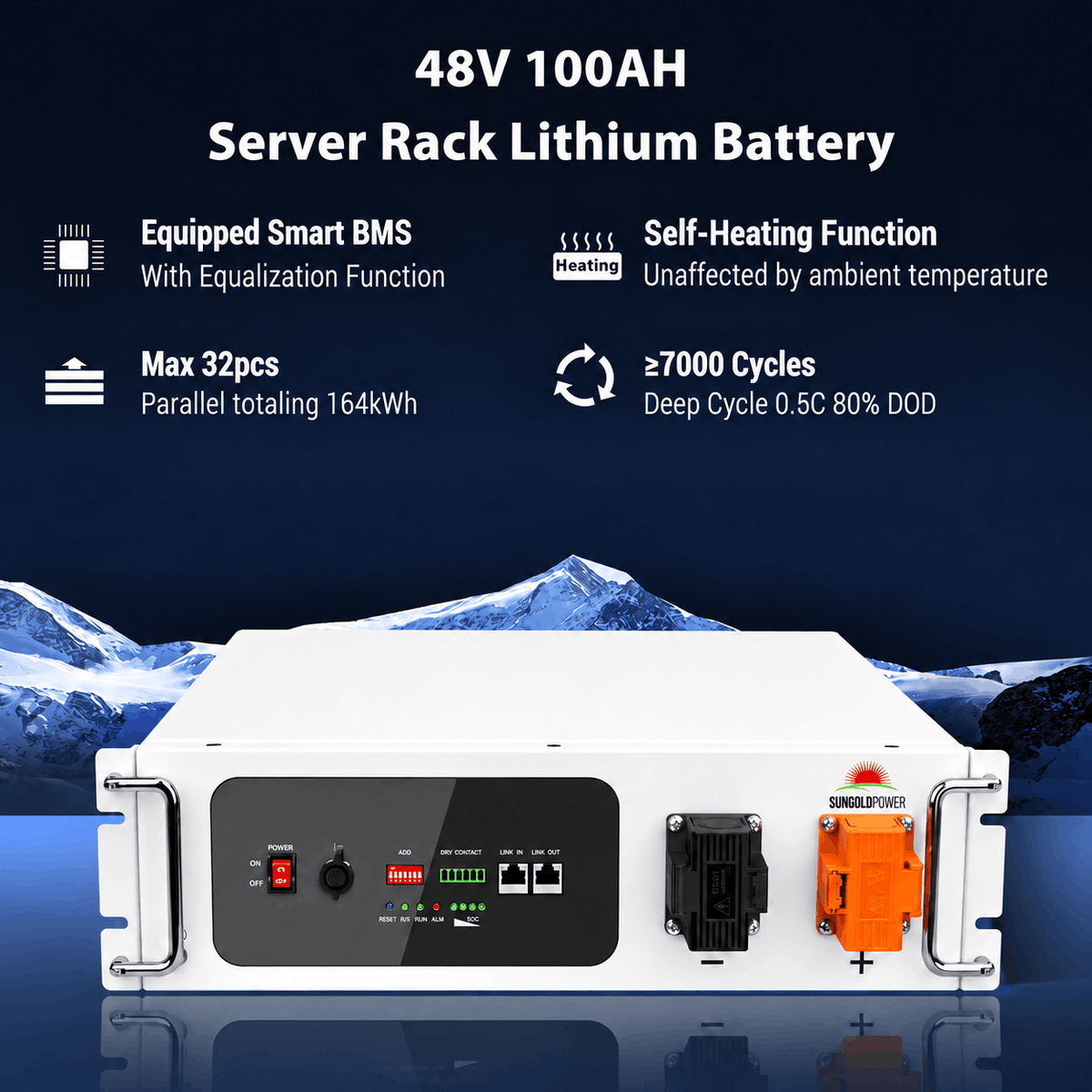

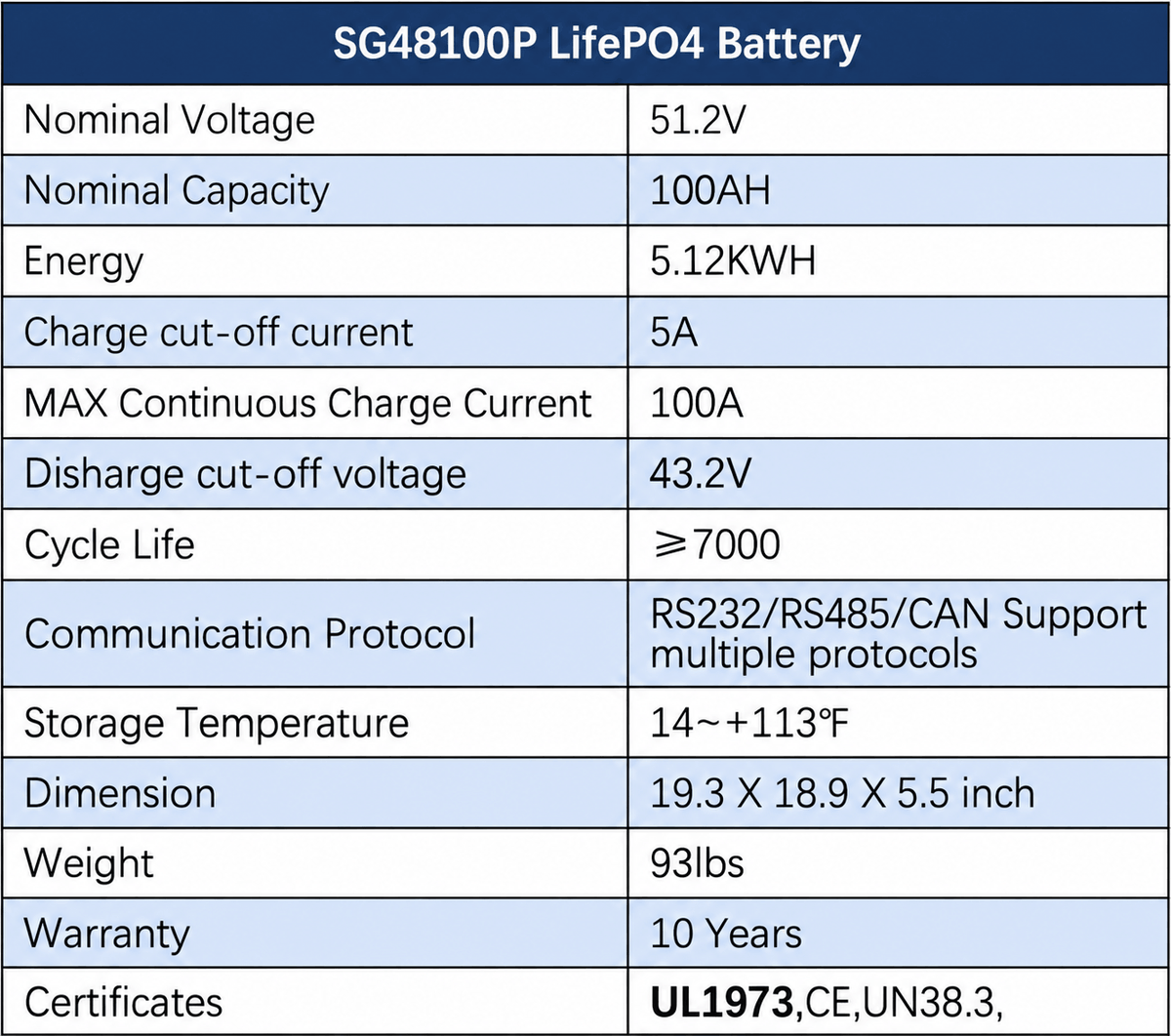

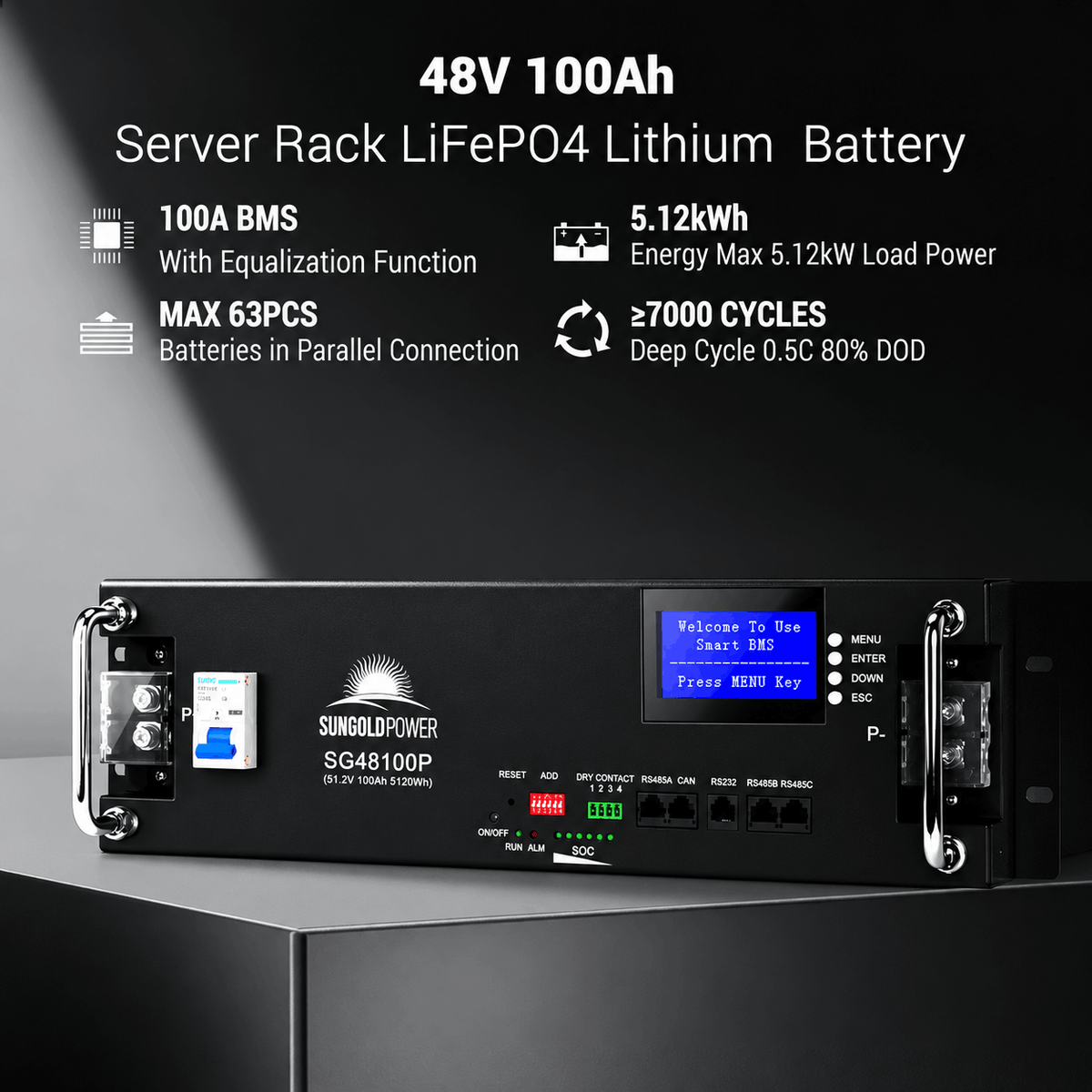

The batteries, and only the batteries. Both kits have the same two inverters, the same thirty-two panels, the same 25.6kWh and the same cabinet. The 16K25E uses standard SG48100P cells. The 16K25T uses SGH48100T cells that warm themselves and keep charging down to 14°F. Ask how cold the room holding the cabinet gets in winter: standard lithium stops accepting a charge below freezing, so in an unheated space a cold snap means the array generates and the bank refuses it.

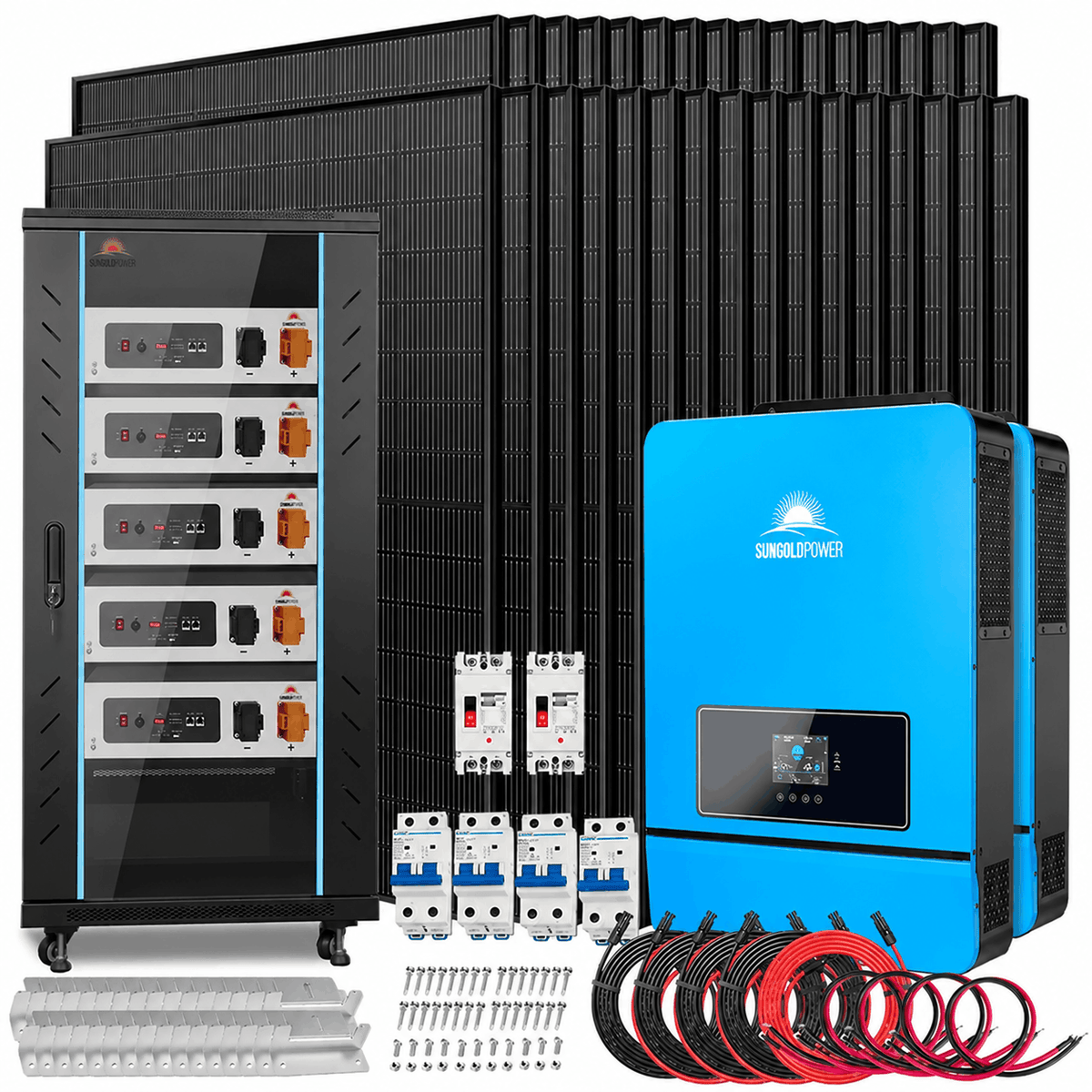

Does this kit include everything I need to install it?

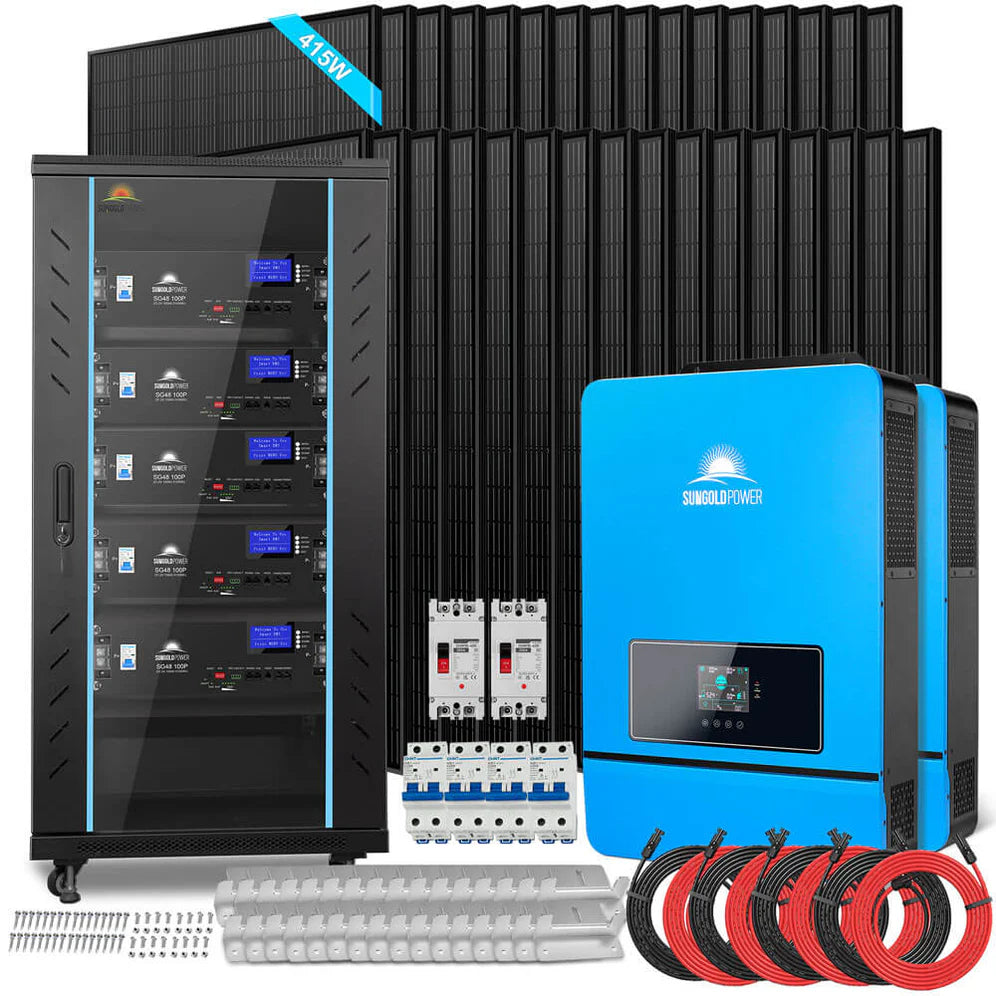

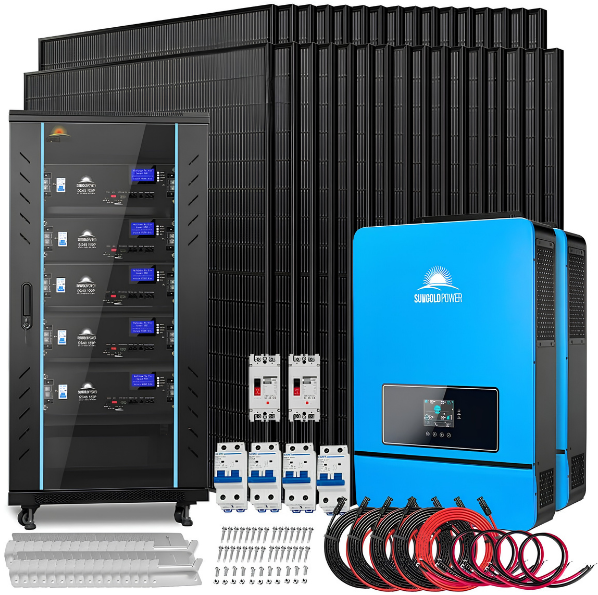

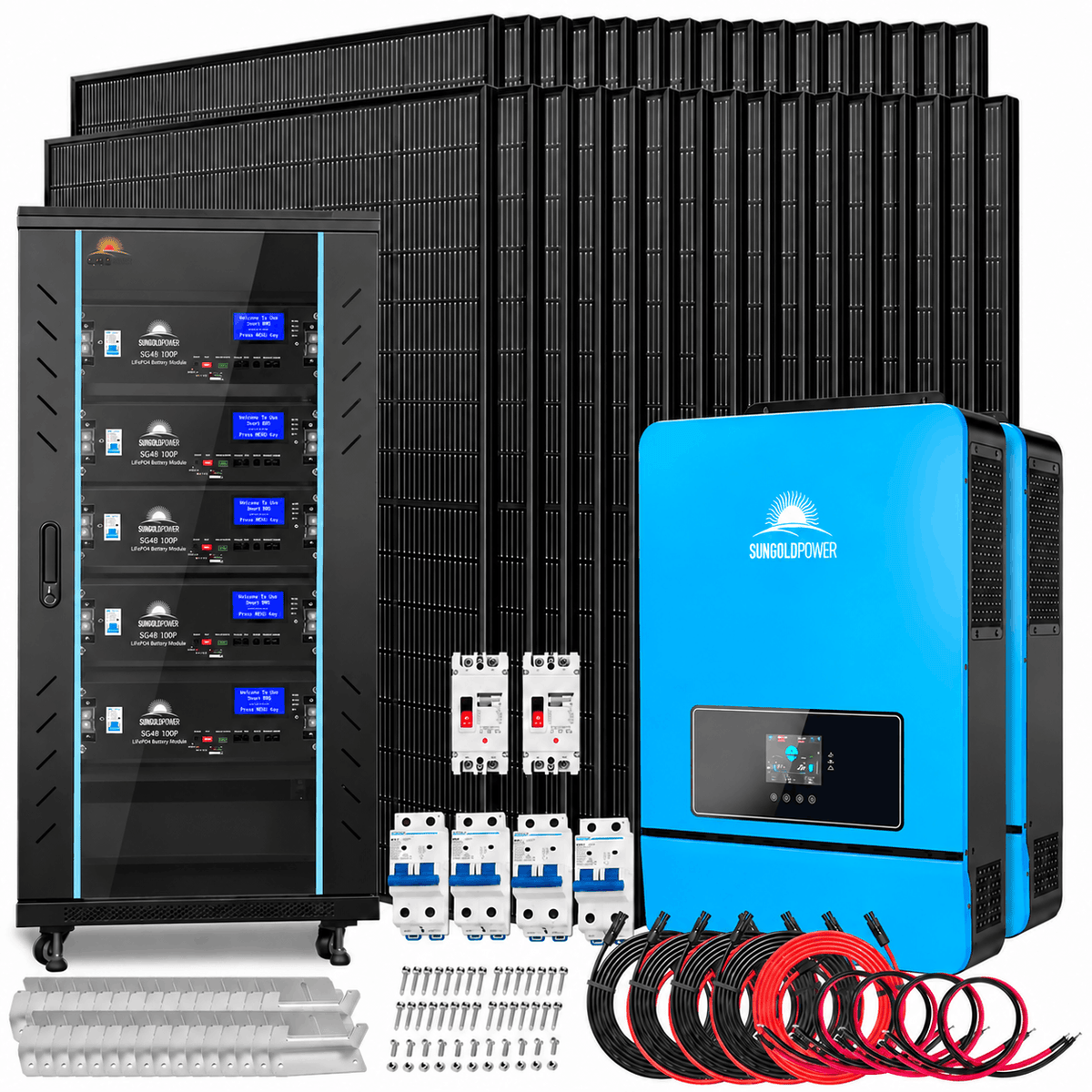

More than most: the enclosed battery cabinet is included, which on comparable systems is a separate purchase. You also get both inverters, all five batteries, all thirty-two panels, both DC breakers, all four PV breakers, four sets of solar extension cables, the battery cabling and the Z-brackets. What varies is the building side, and on an array this size that side is substantial: ground-mount structure or rail racking across multiple roof planes, conduit, junction boxes, building wire, a critical loads panel or transfer switch, generator input wiring, and labor. Those depend on your site and local code, which is why we spec them per install.

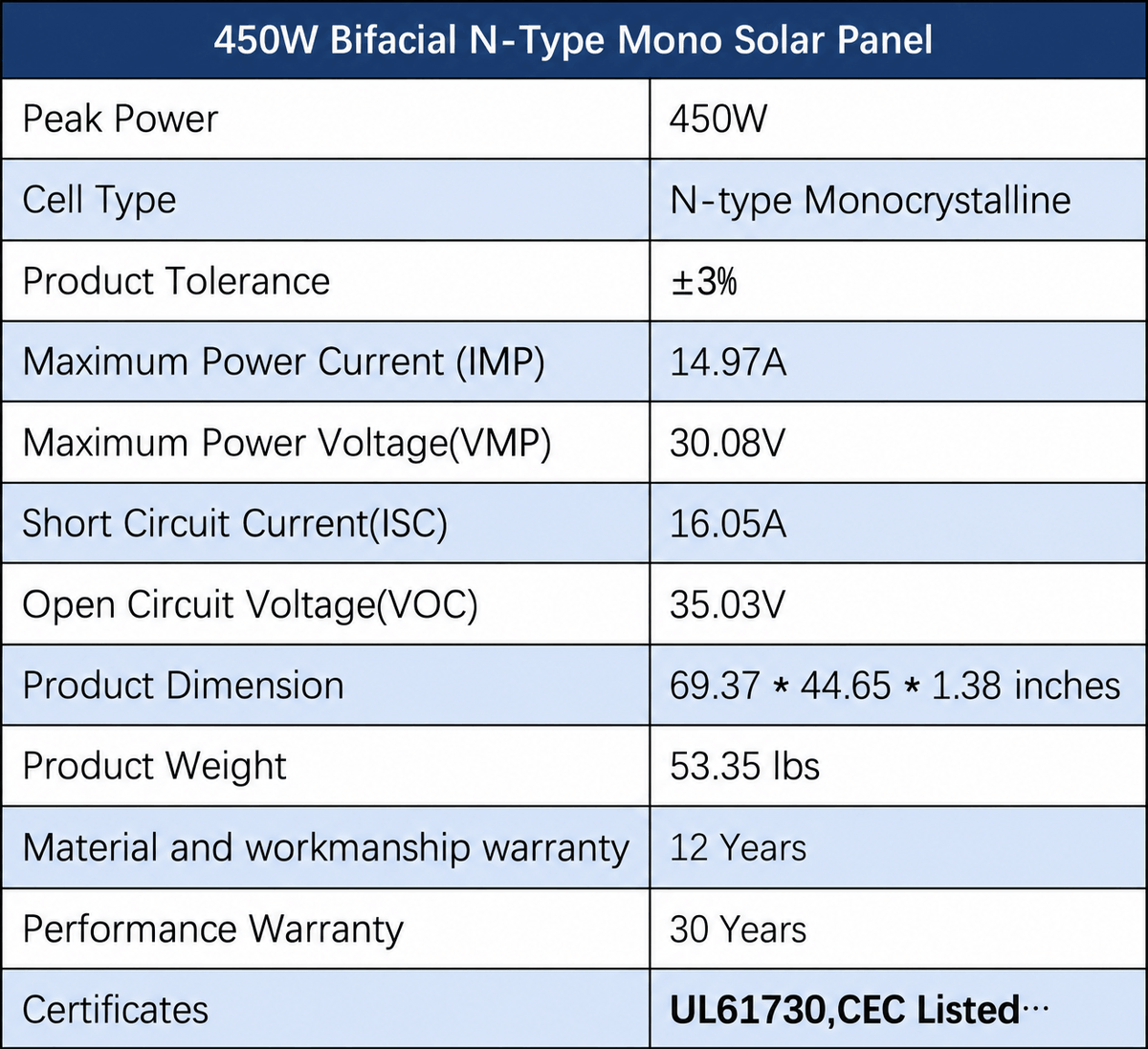

How should the panels be wired?

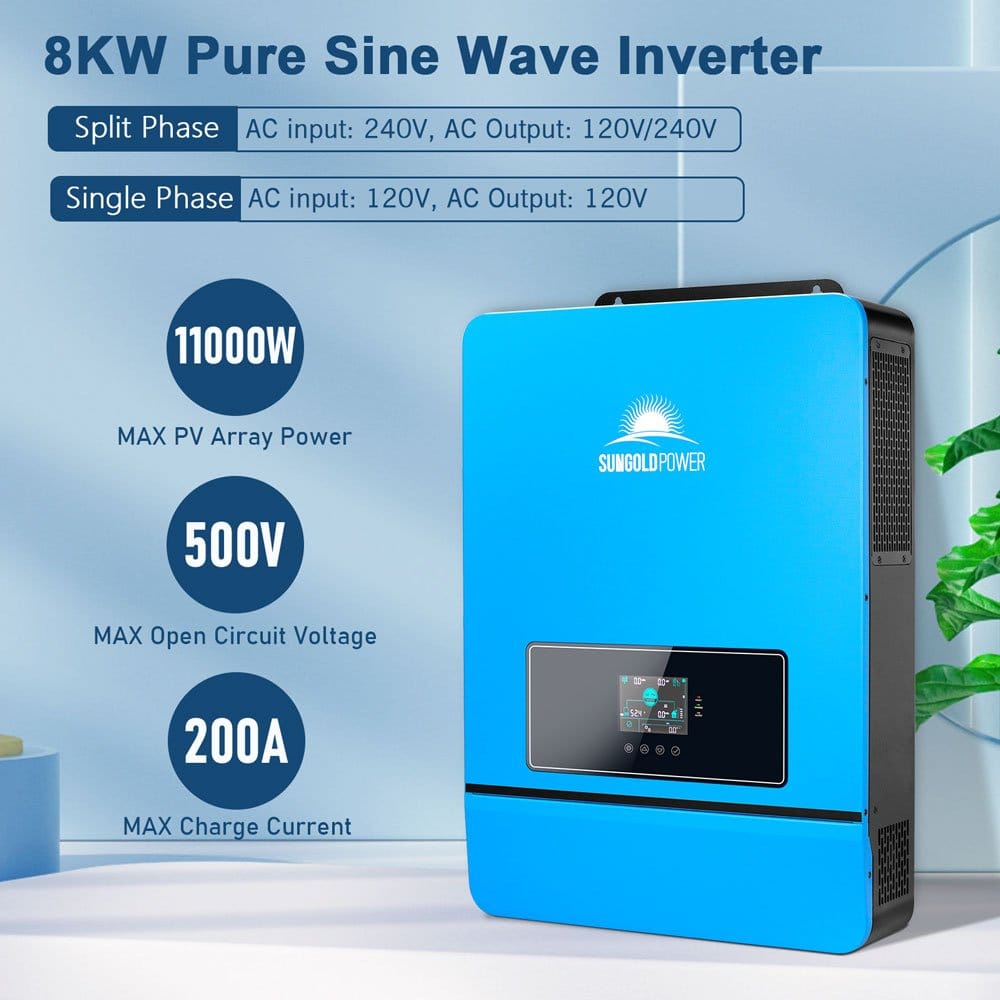

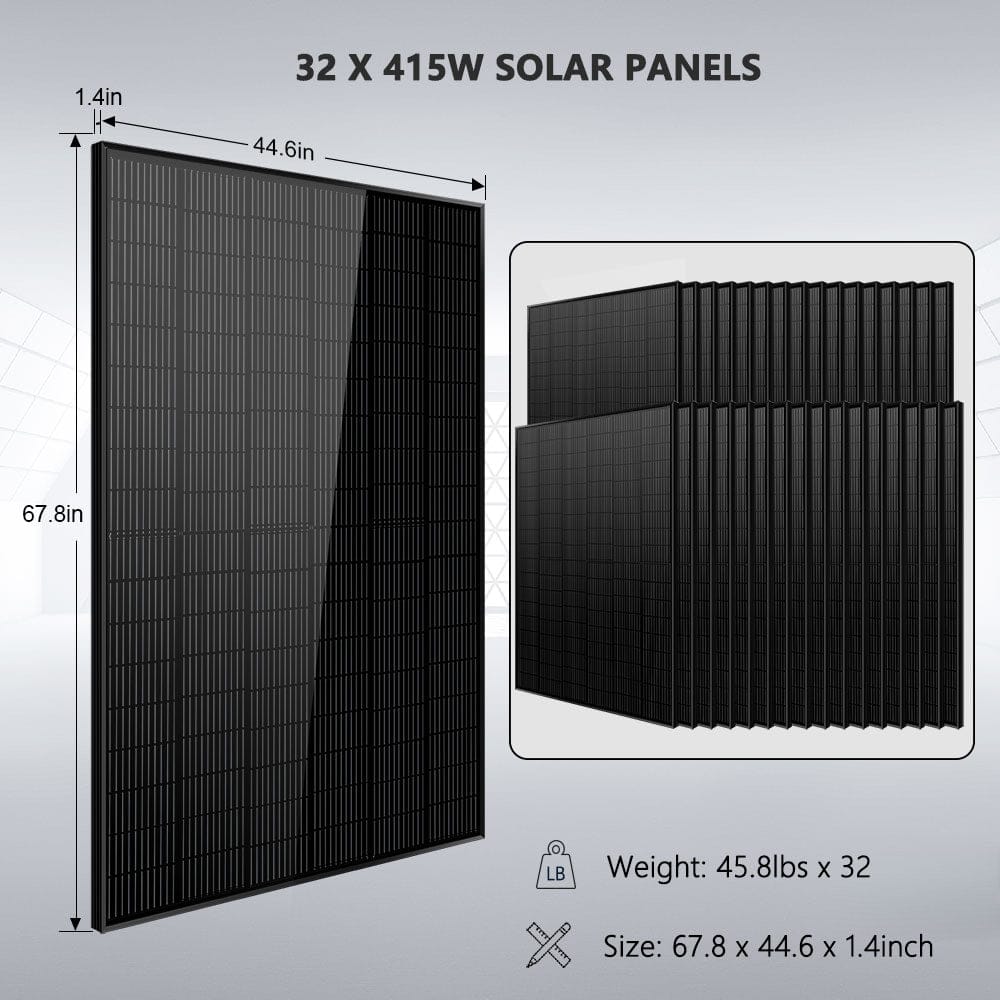

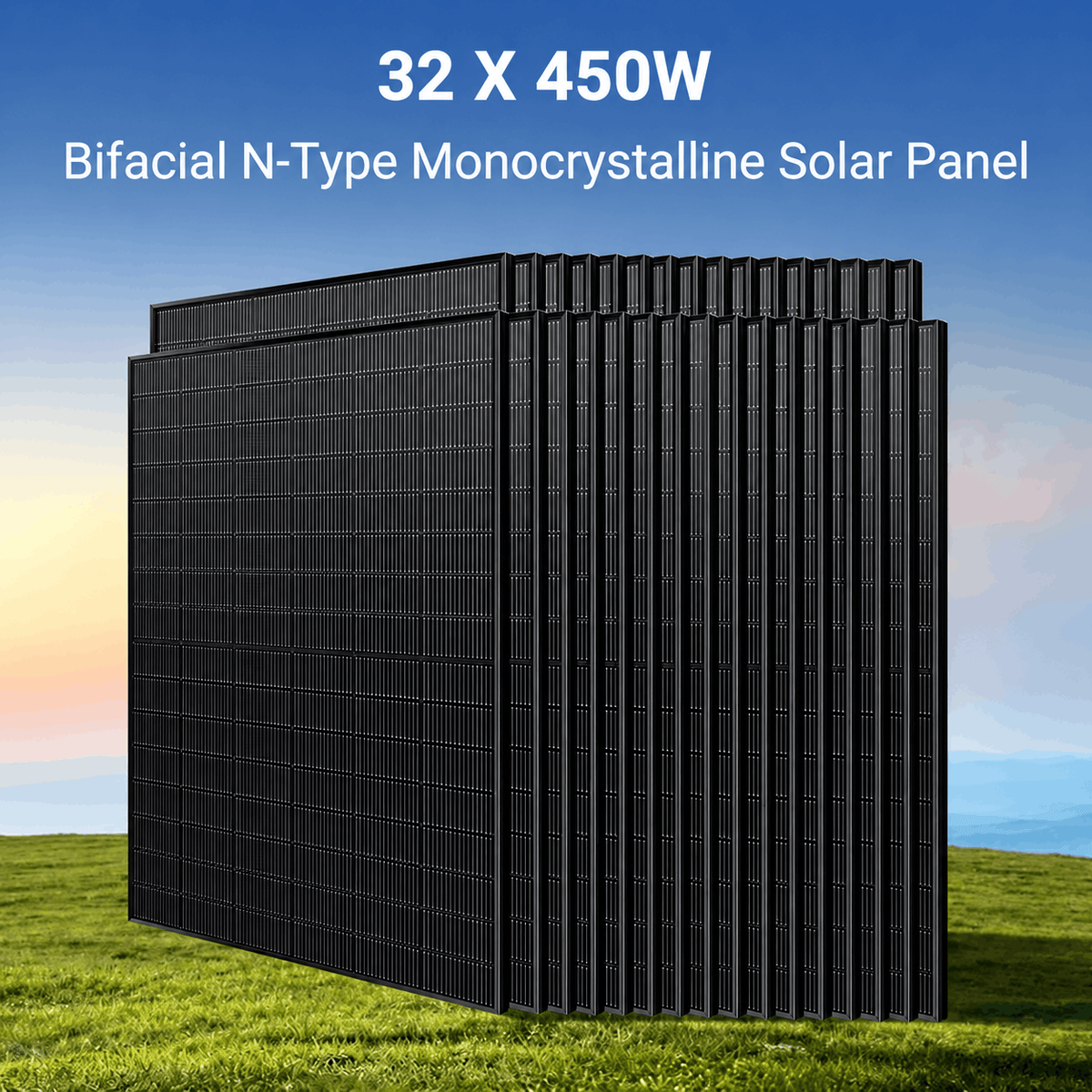

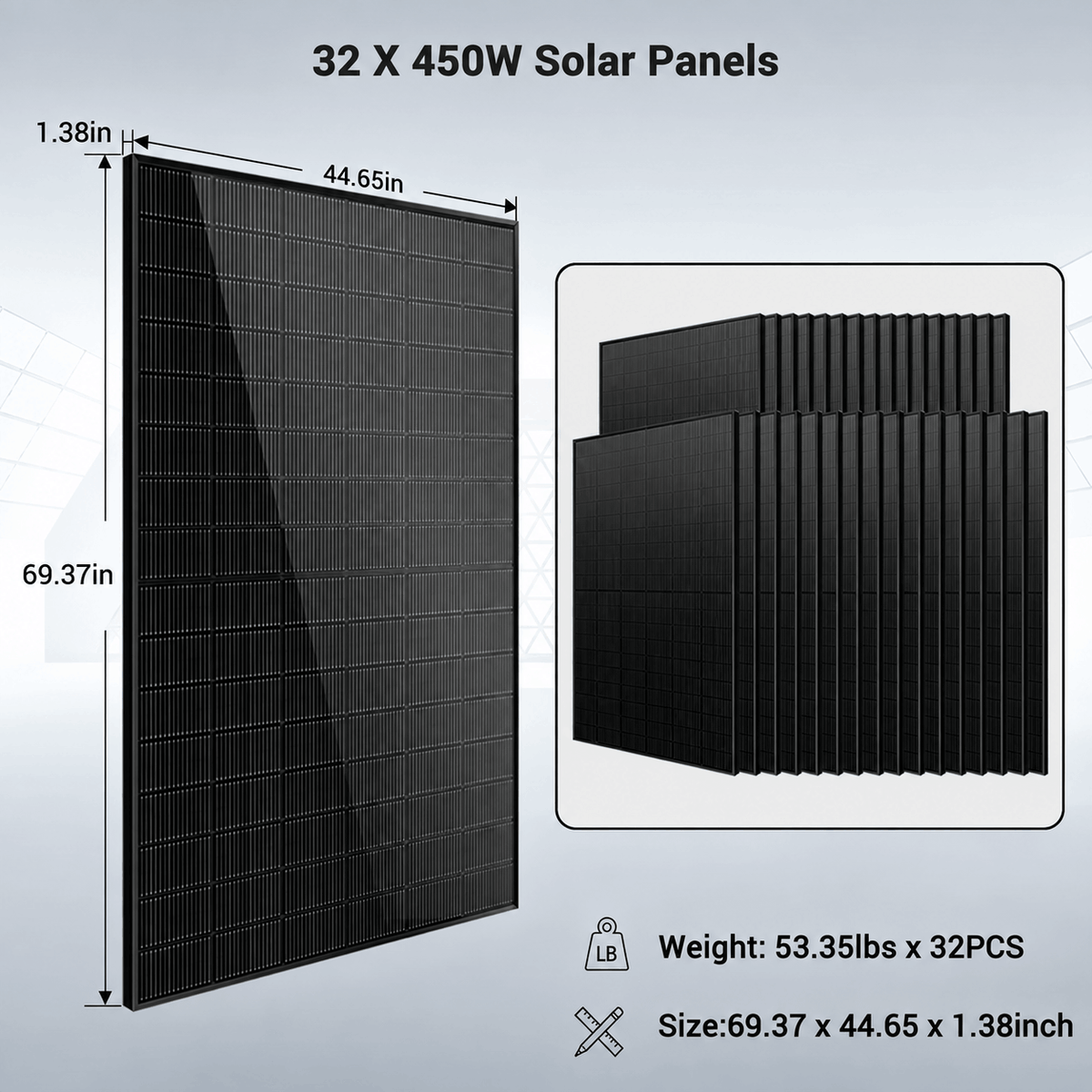

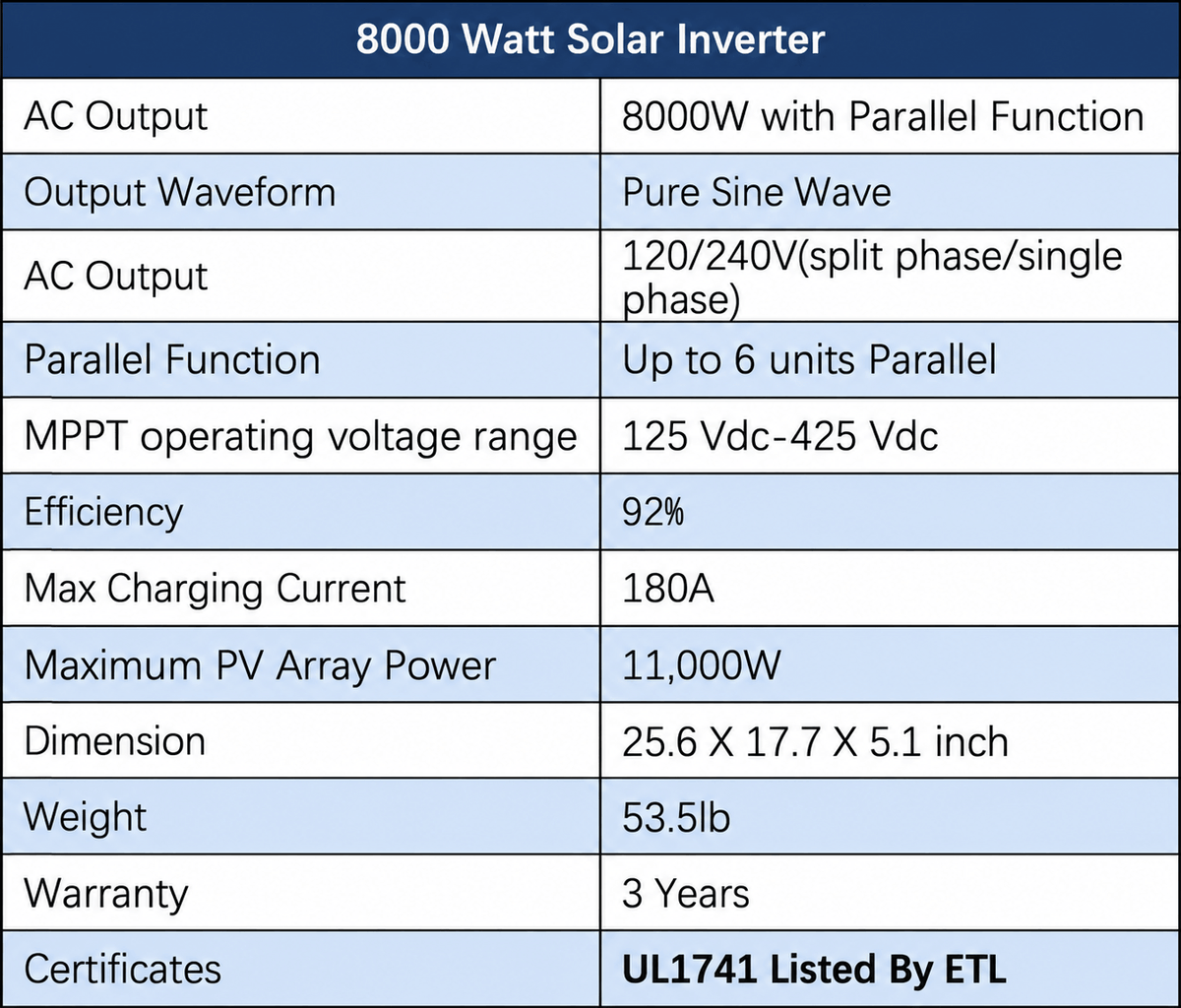

Four strings of eight, two to each inverter. Eight of these panels in series operate near 241V and reach 280V open circuit, which sits in the middle of the 125 to 425V tracking window and well under the 500V ceiling even in cold weather, and each string draws 16A against a 22A tracker limit. Four independent trackers also means you can point the four strings in four different directions without one dragging down the others, which is often what an array this large needs.

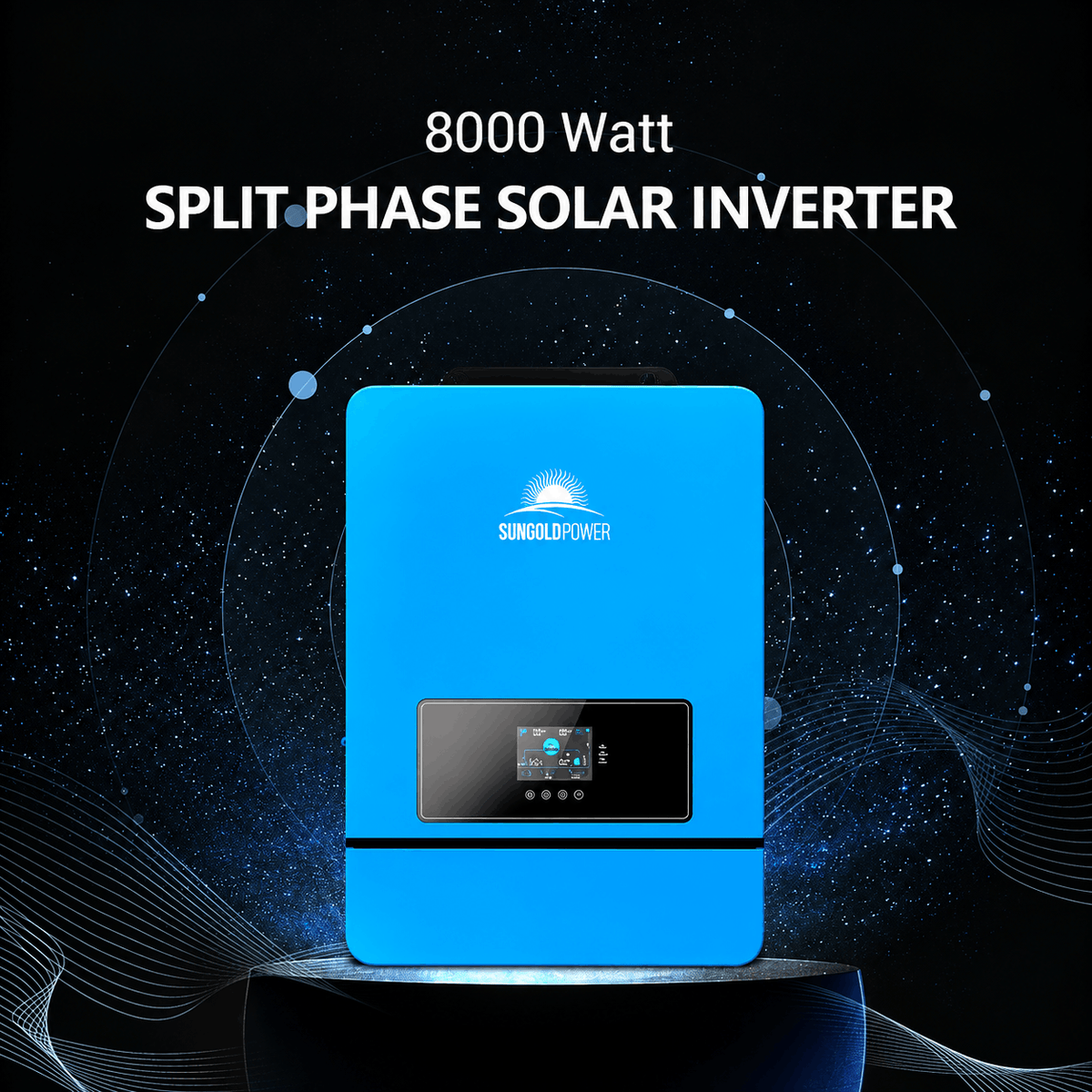

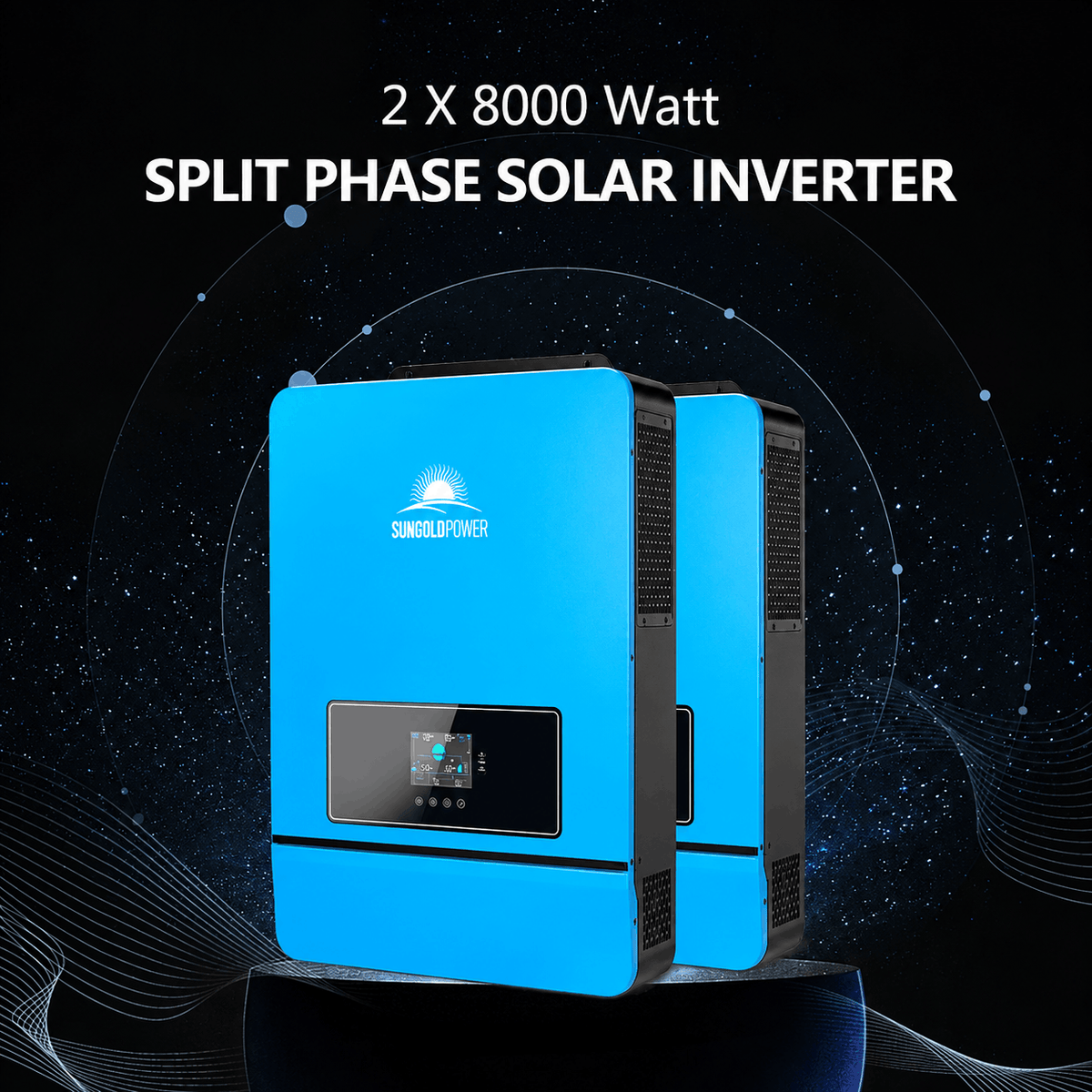

What does running two inverters in parallel actually involve?

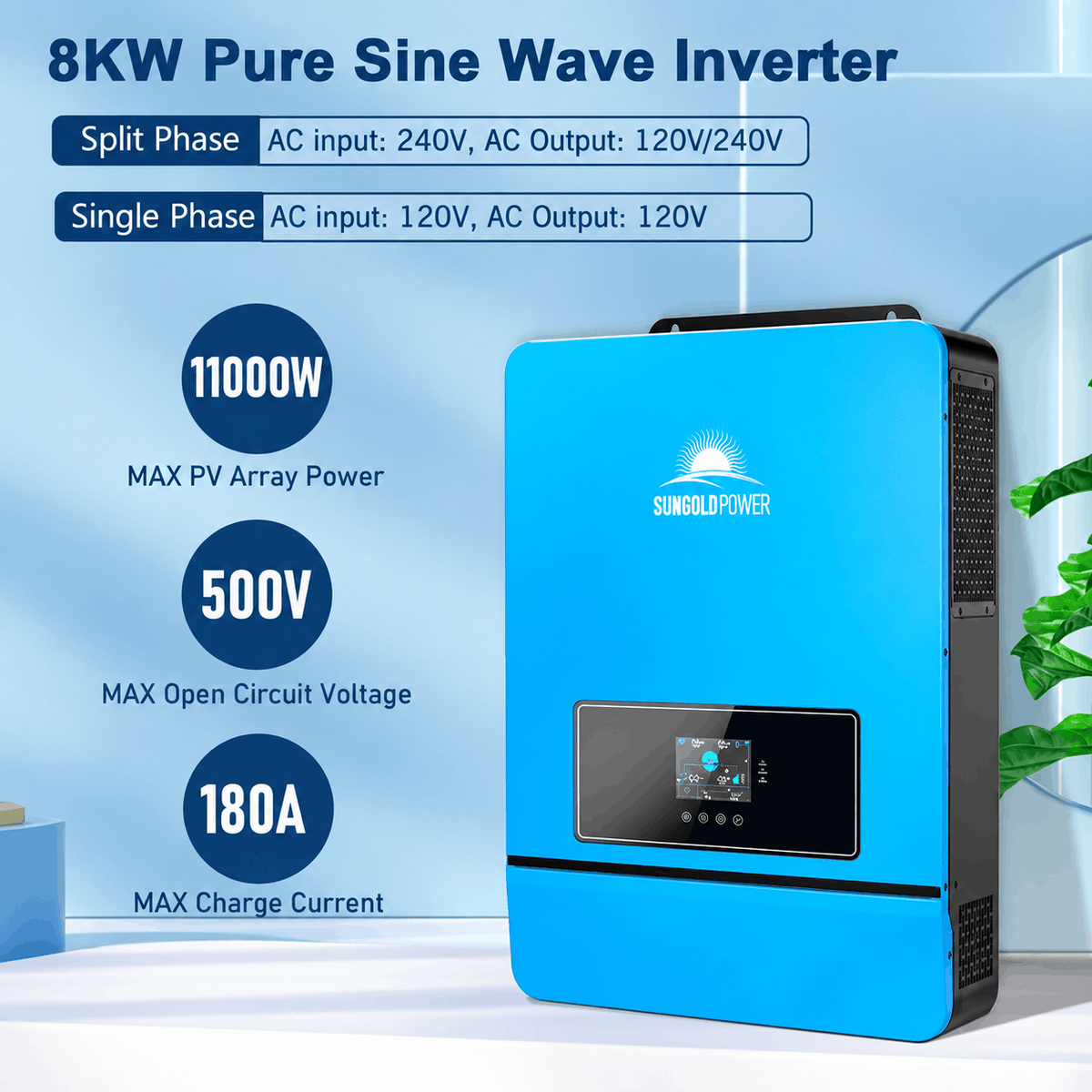

They ship configured as a pair and are joined by a communication cable that keeps them synchronised and sharing load. Both units need matching firmware settings before the system is energised. Done properly it behaves as one 16,000W inverter. Done improperly the two fight each other. It is routine work for a solar installer and it is the main reason we treat this as a professional installation rather than a DIY project.
How much energy will this generate daily?

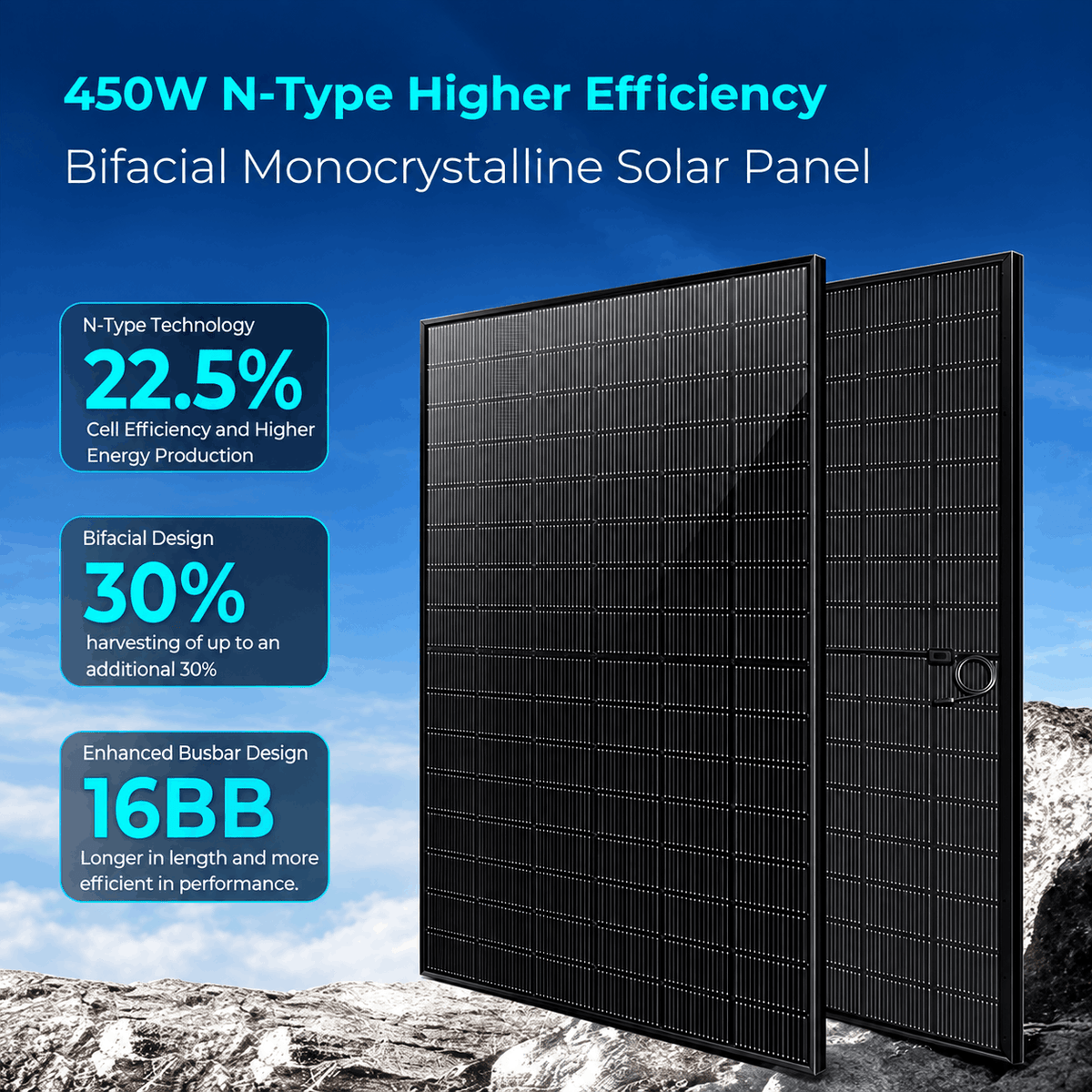

The 14.4kW array produces roughly 58 to 72kWh per day at 4 to 5 peak sun hours, plus whatever the rear faces add on a ground mount. Actual output depends on your location, season, panel angle and shading.
Can I add batteries later?
Yes, and on this kit it is the upgrade that makes the most difference. The cabinet is sized for five, so more capacity means additional enclosure, but adding storage is what converts this from a daytime system into one that carries a property overnight. Batteries work best when they match the originals in age and state of health, so if you know you will want more, buy it up front.
Can I install this myself?
We would not recommend it. Thirty-two panels, a ground mount, two paralleled inverters and a 500 lb battery cabinet is a professional job, and at 16,000W the tie-in to a distribution panel is licensed electrician work in most jurisdictions.
Is LiFePO4 safe?
It's the safest widely available lithium chemistry, with strong thermal stability, long service life and minimal maintenance. These cells carry UL1973 and UN38.3, and every battery includes BMS protection against overcharge, deep discharge, overheating, overload and short circuit.
