Sungold Power Off-Grid Solar Kit 12 X 550 WATTS SOLAR PANELS 25.6KWH LITHIUM BATTERY 10KW SOLAR INVERTER 48VDC 120V/240V

SKU SGR-10K25S
Save $3,955.00
Original Price $14,205.00
Current Price $10,250.00

⭐ Authorized SunGoldPower Dealer

⭐ Fast & Free Shipping with No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Options Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Sungold Power 10000 Watt Off-Grid Solar Kit Overview

This Solar Panel Kit is a great package which inlcudes the 12 X 550W solar panel, 5 X 5.12KWH server rack batteries, 10KW solar inverter (120V/240V), some cables and brackets and free server rack gift. This solar system can generate 26kwh/day if the full sun hour is 4 hours, This size of system with 10KW 120V/240V split inverter is powerful enough to run everything from air conditioners and well pumps, fridge, tv, workshop, office and more! You can add more batteries and solar panel according to your requirment.with Wi-Fi monitor shows the performance and energy data of your solar system through an app. Let’s Enjoy off grid living and the adventure with Solar Energy Kit!

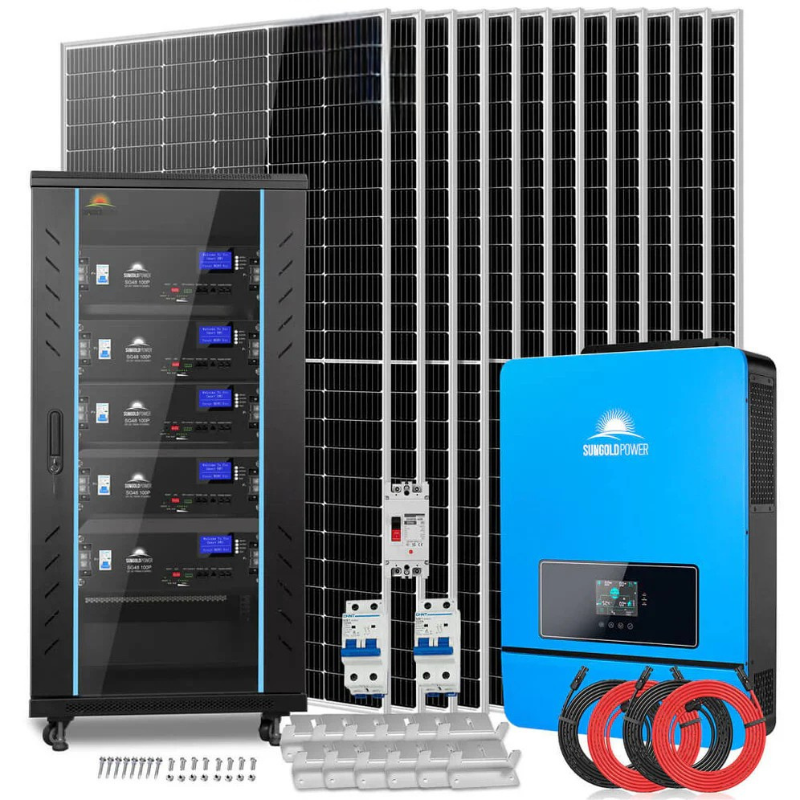

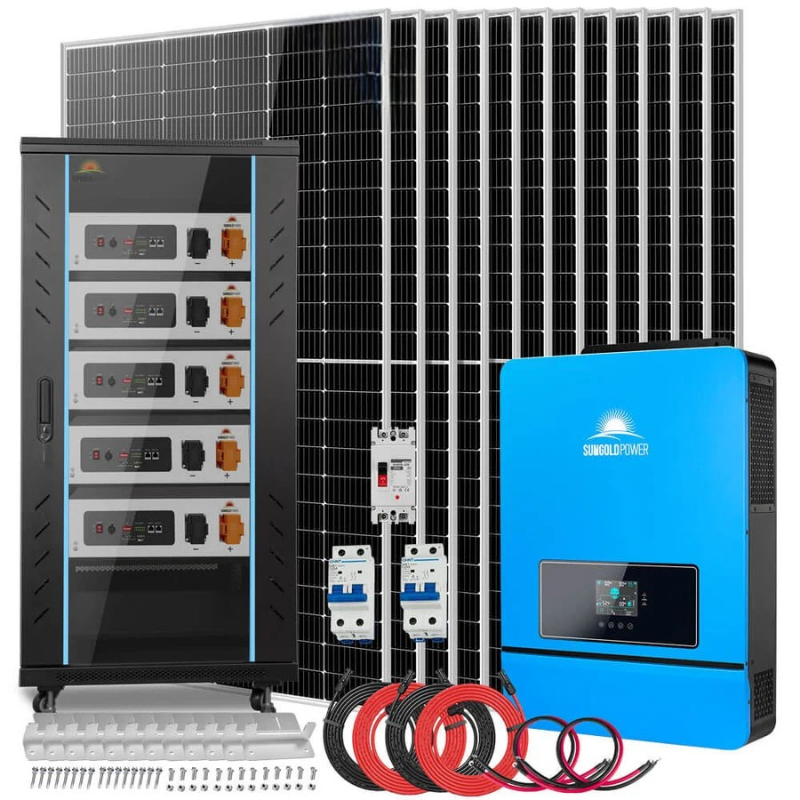

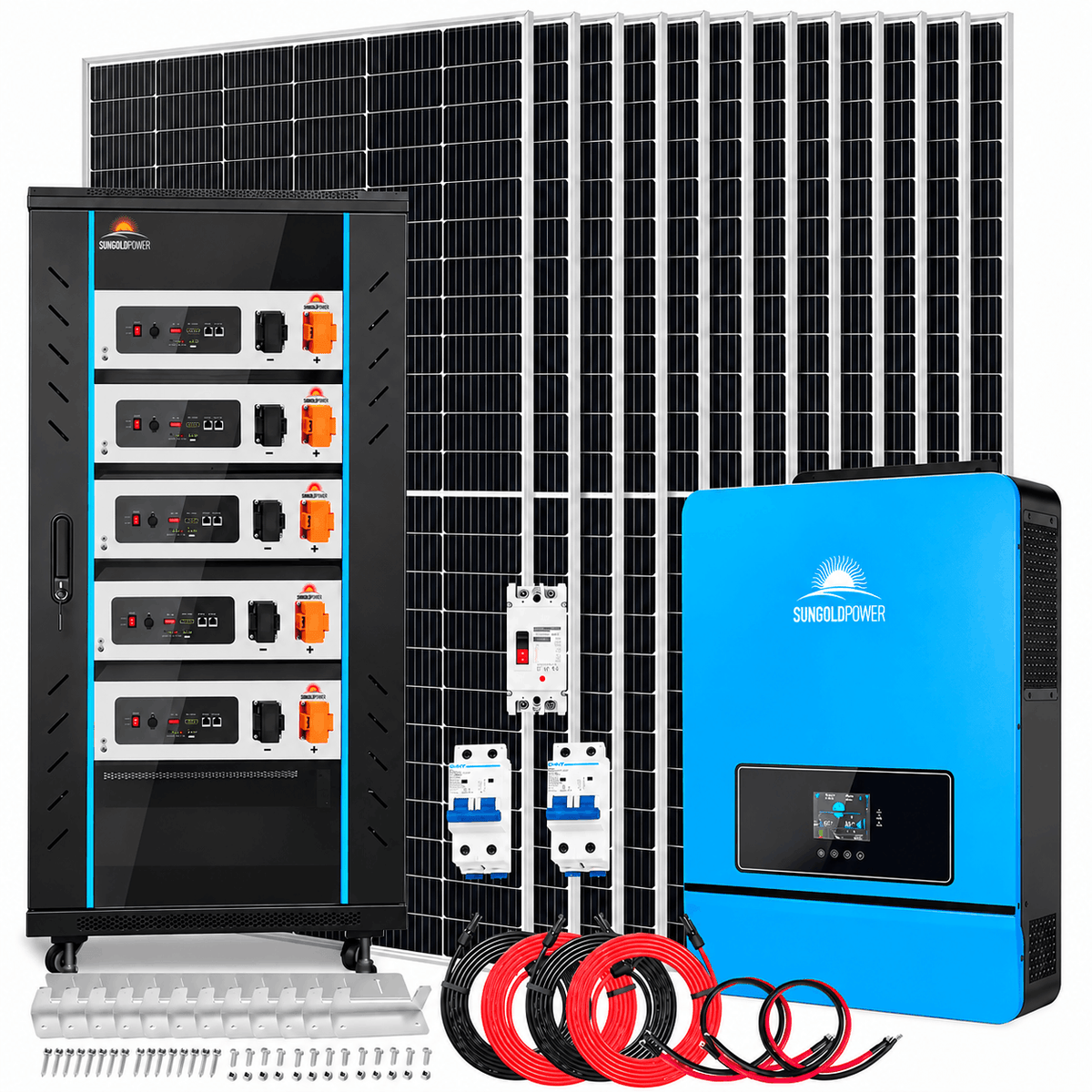

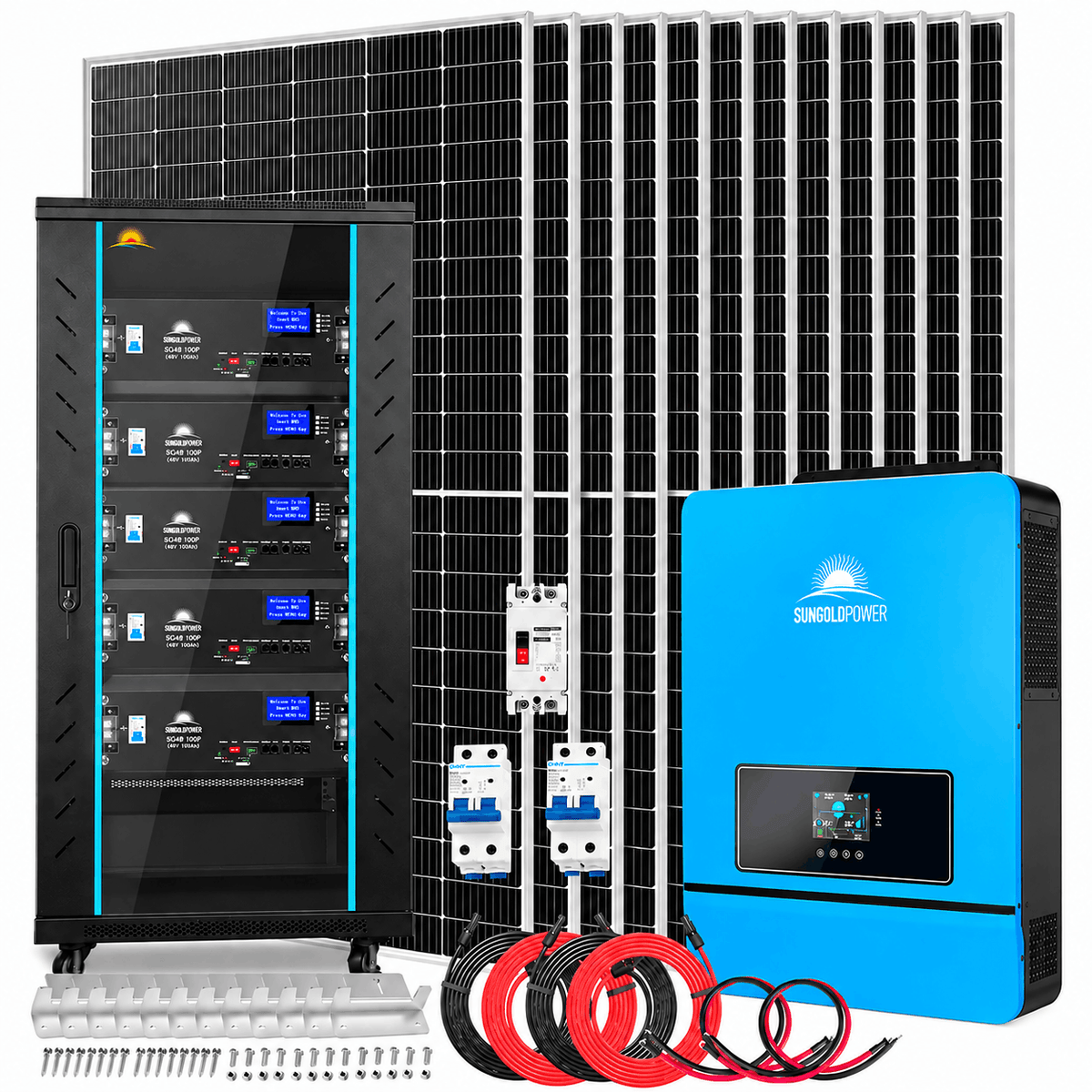

WHAT IS INCLUDED WITH THE SOLAR KITS!

  • 1 x 10000 Watt 48V DC 120V/240V AC Output
  • 12 x 550 Watt Monocrystalline Solar Panels
  • 5 x 100AH 51.2V Lifepo4 Battery

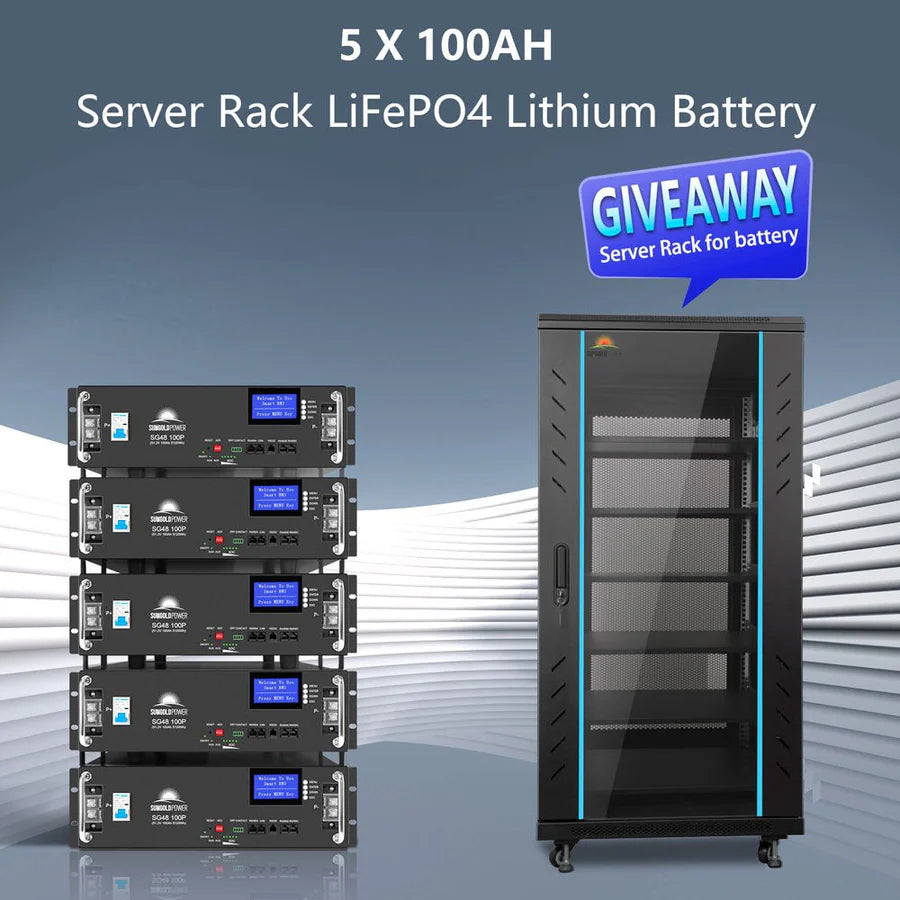

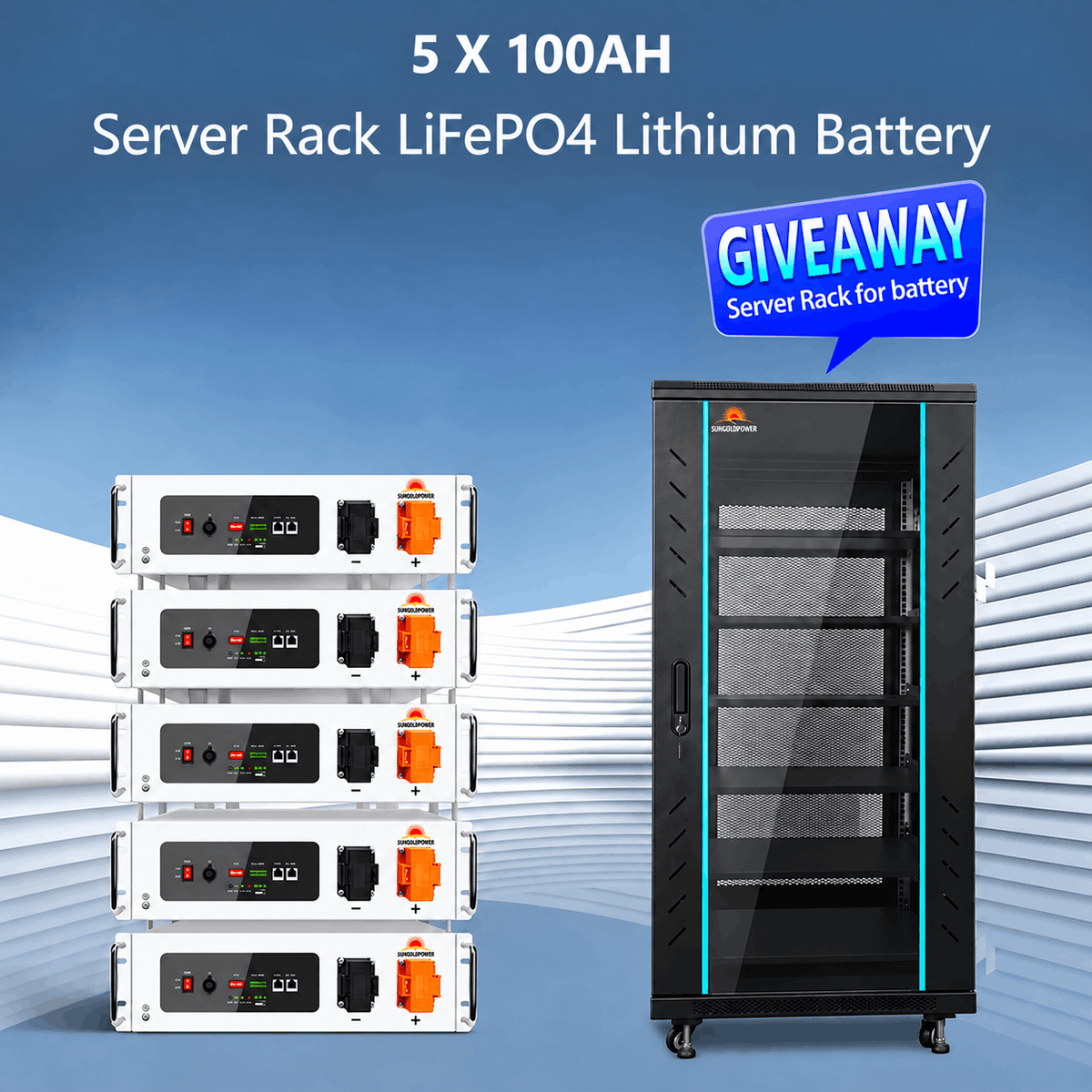

  • 1 X Server Rack for 5 X 100AH 51.2V Lifepo4 Batteries
  • 2 x 50 Feet, Solar Extension Cables-Inverter PV input
  • 12 x Sets of Mounting Z-Brackets

Sungold Power 10000 Watt Off-Grid Solar Kit Specification

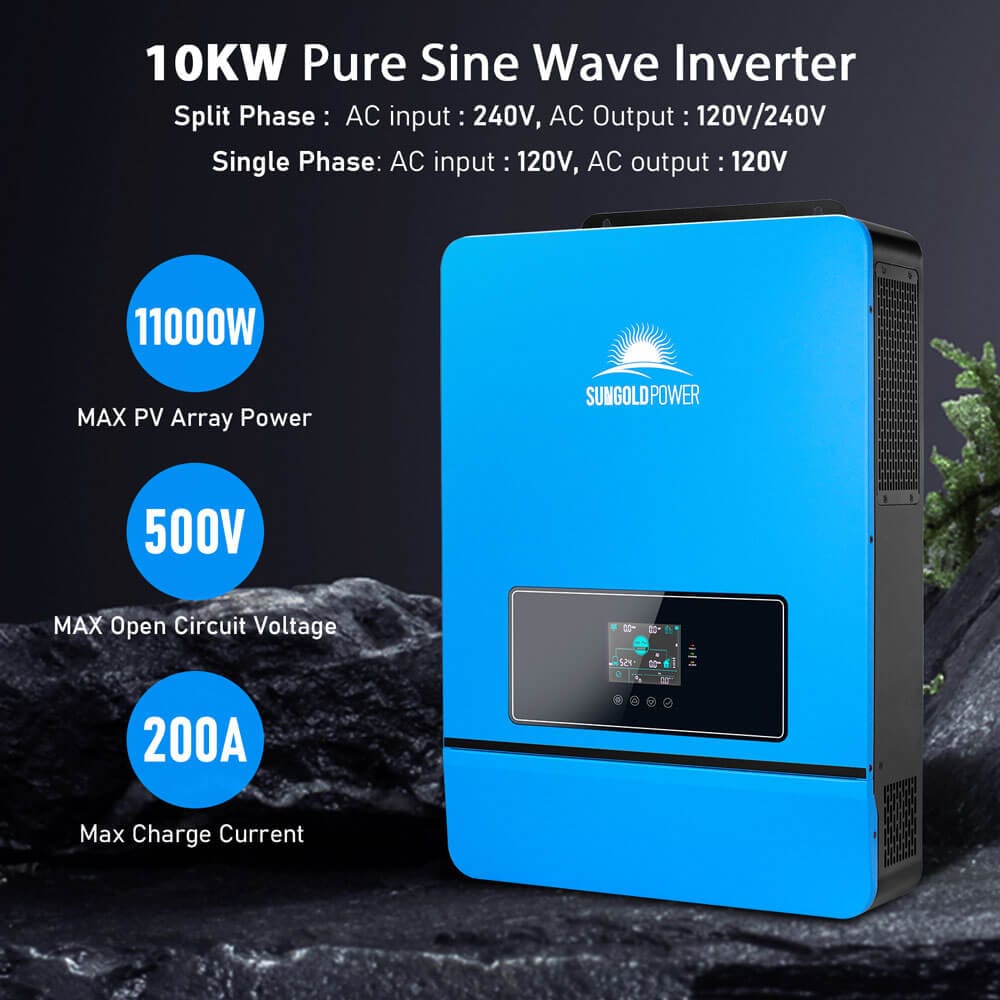

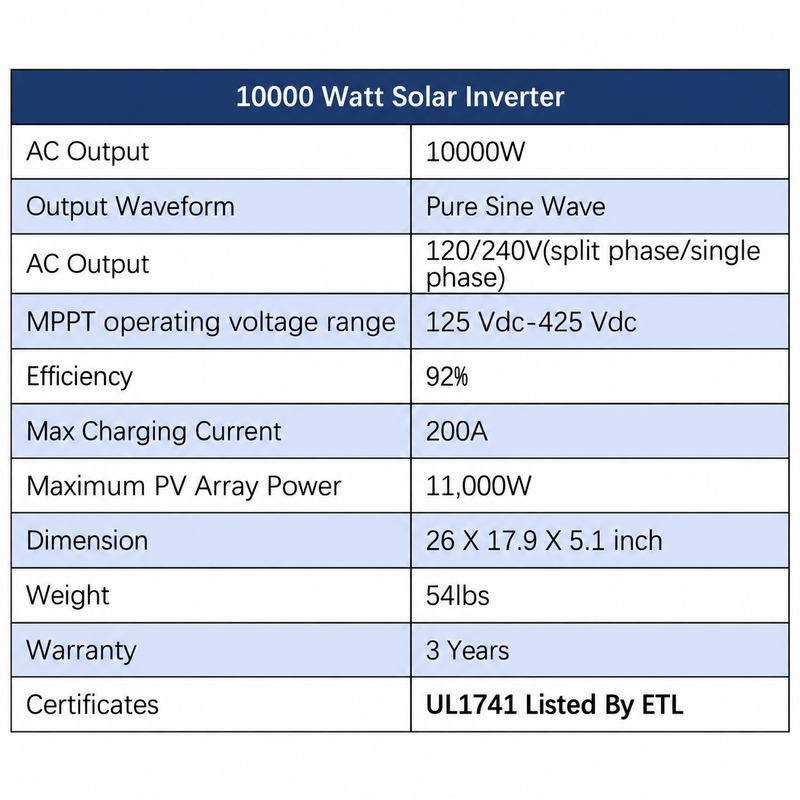

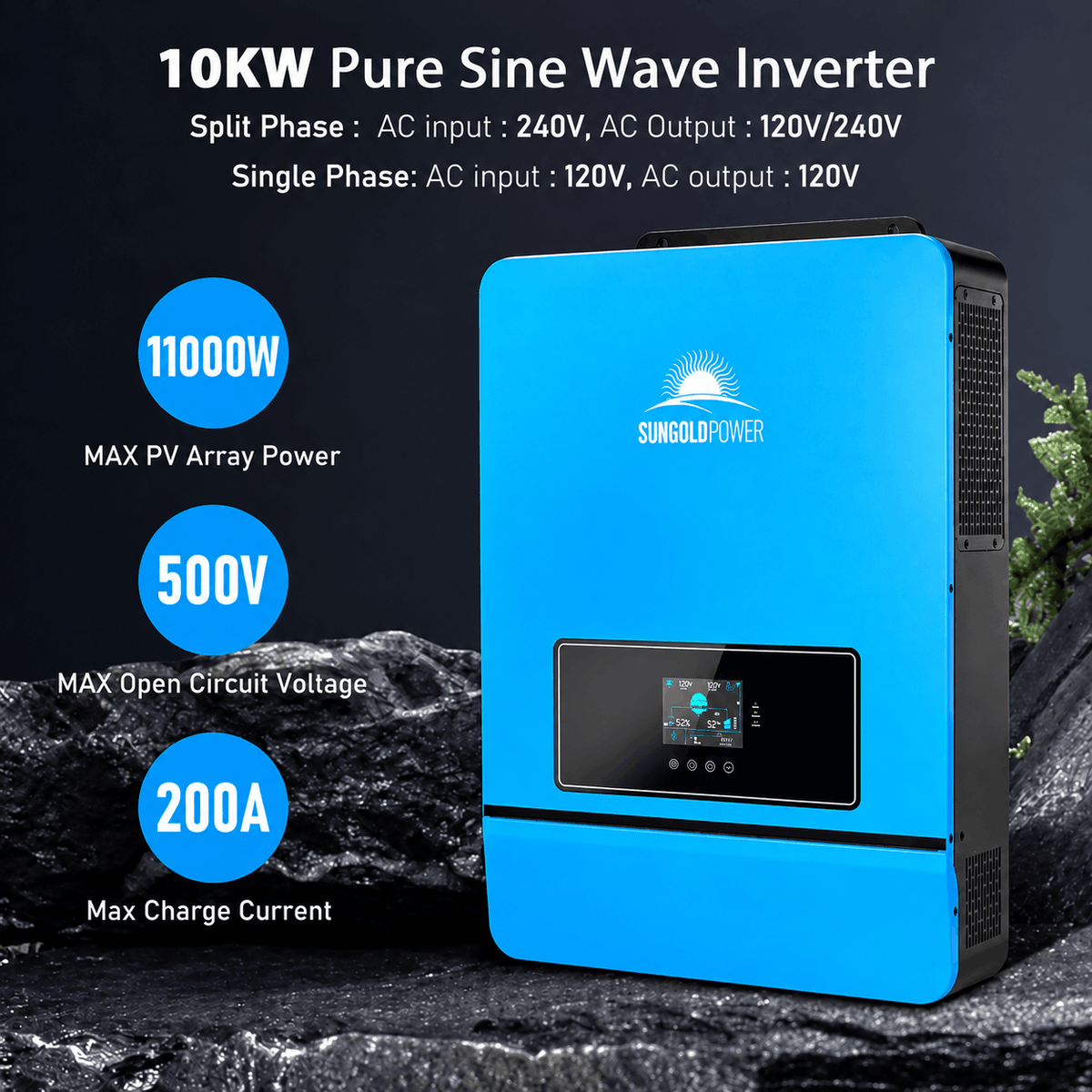

10000 Watt Solar Inverter

  • AC Output10000W
  • Output Waveform: Pure Sine Wave
  • AC Output: 120/240V(split phase/single phase)
  • Max PV Input: 500VDC
  • Efficiency: 92%
  • Max Charging Current: 200A
  • Maximum PV Array Power: 11,000W
  • Dimension: 25.6 X 17.7 X 5.1 inch
  • Weight: 53.5lb
  • Warranty: 3 Years

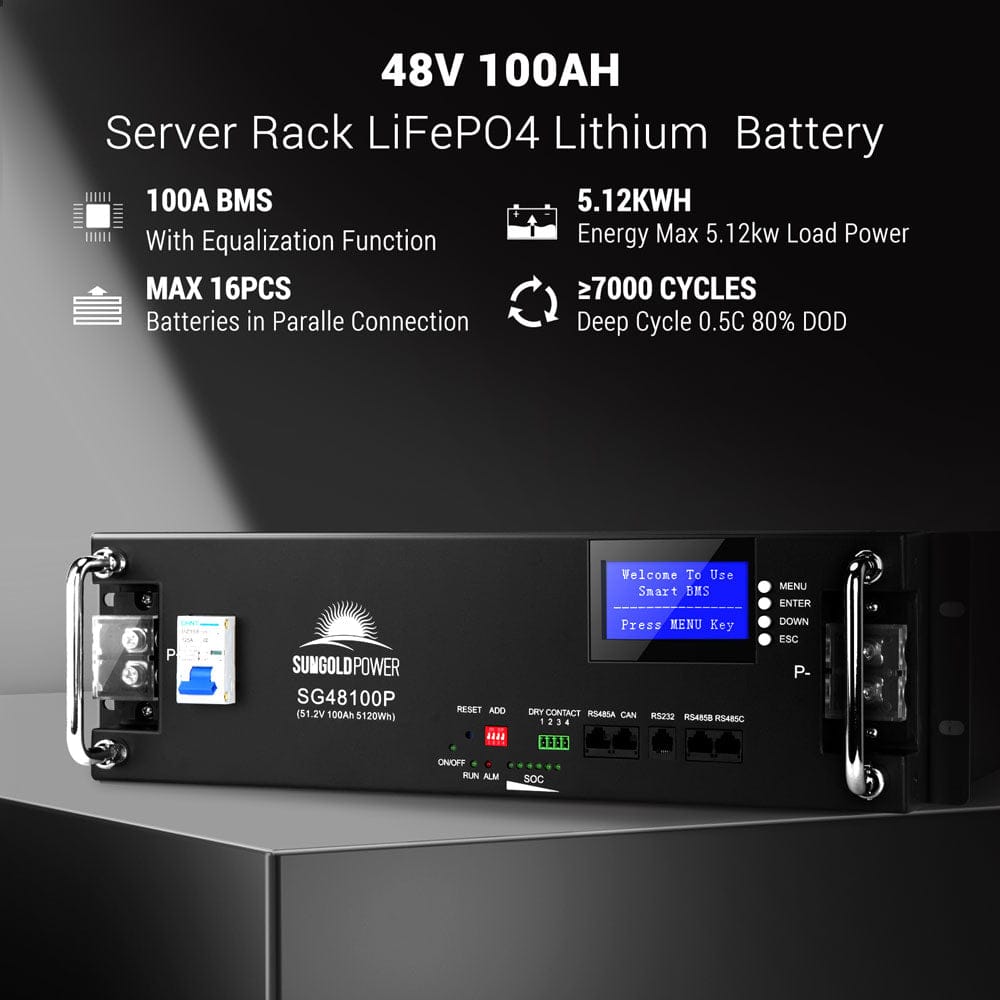

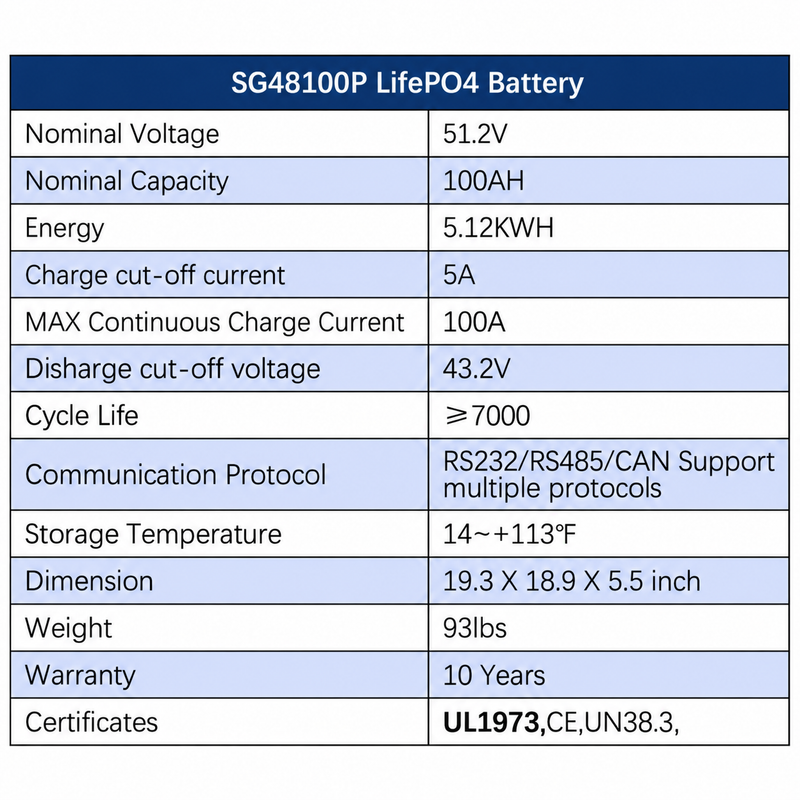

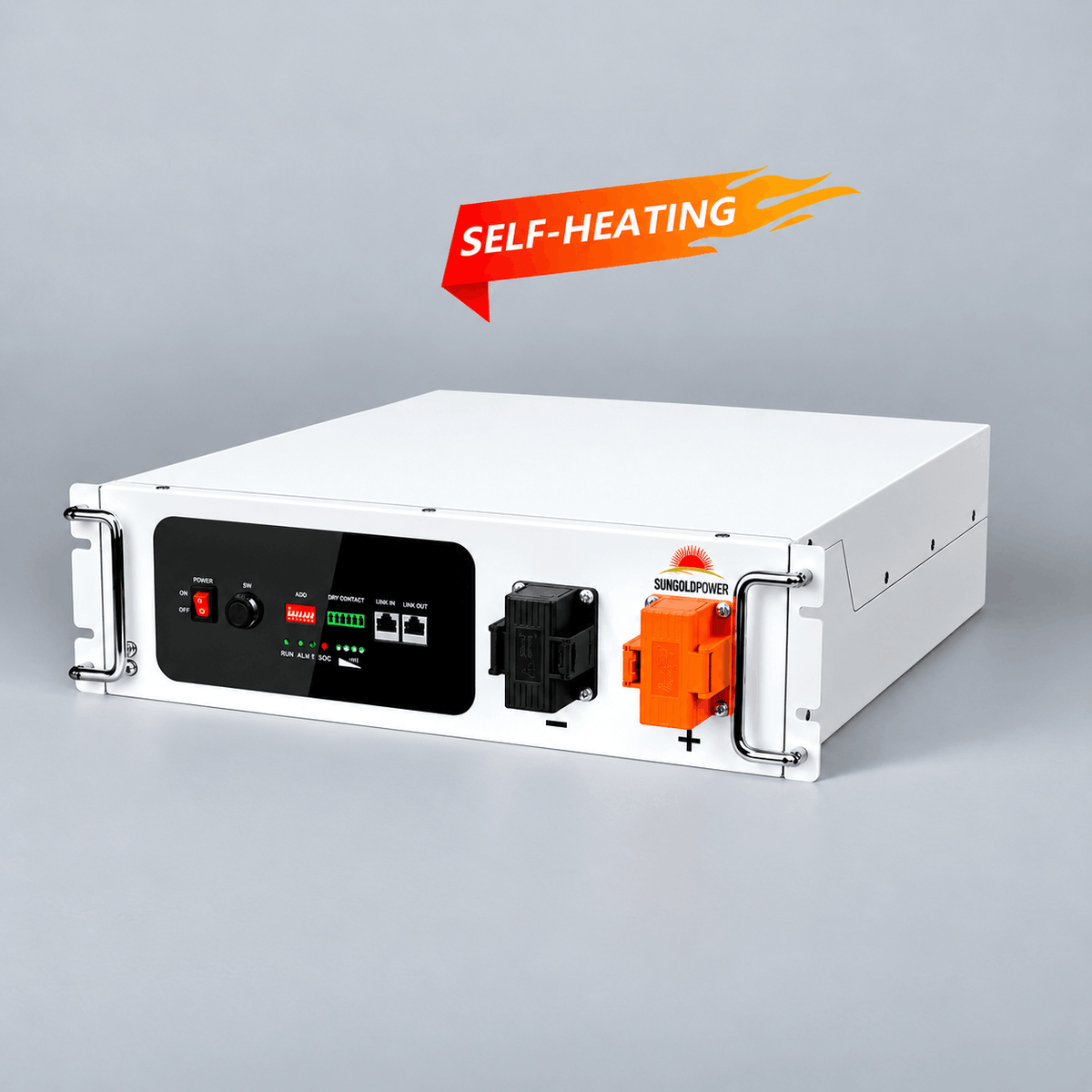

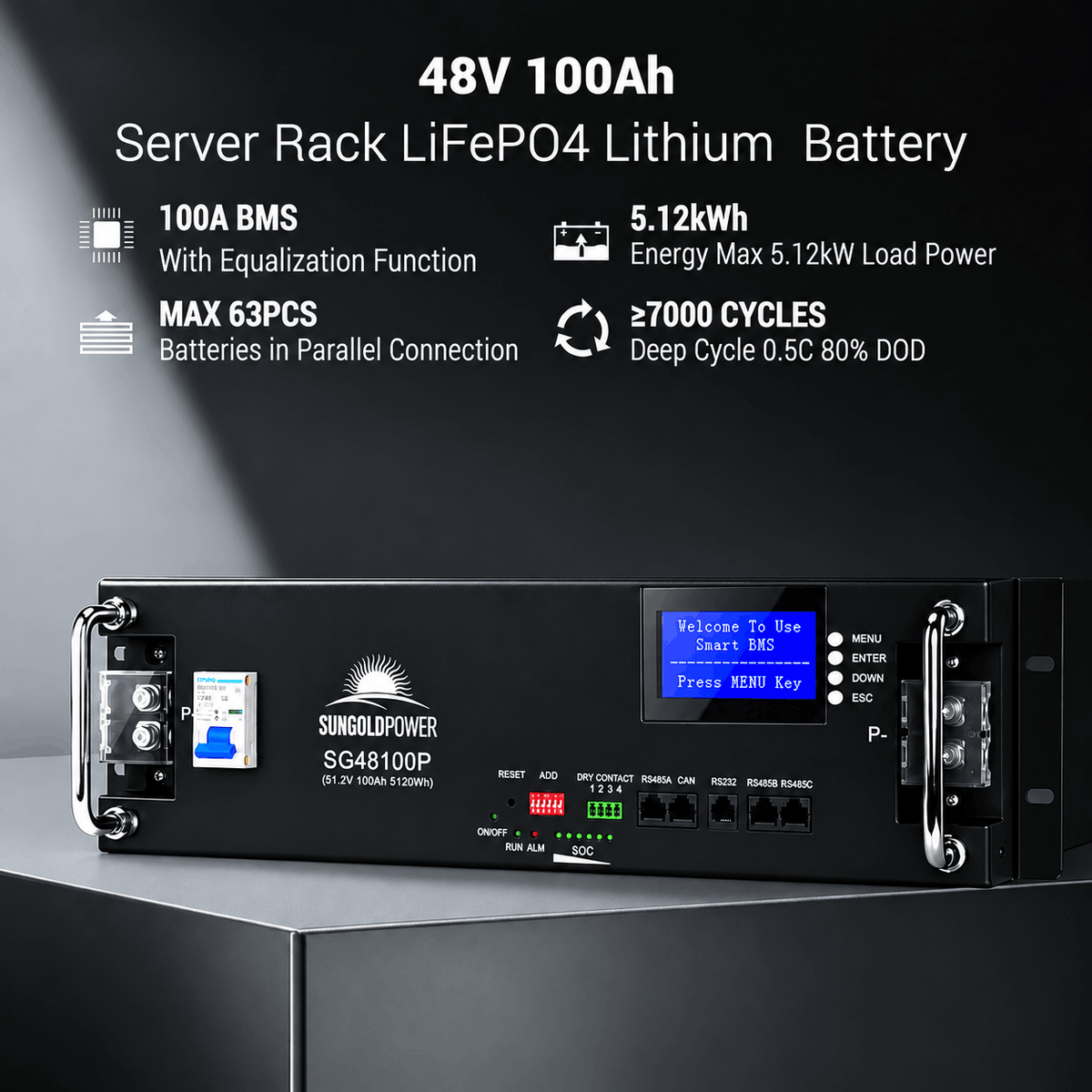

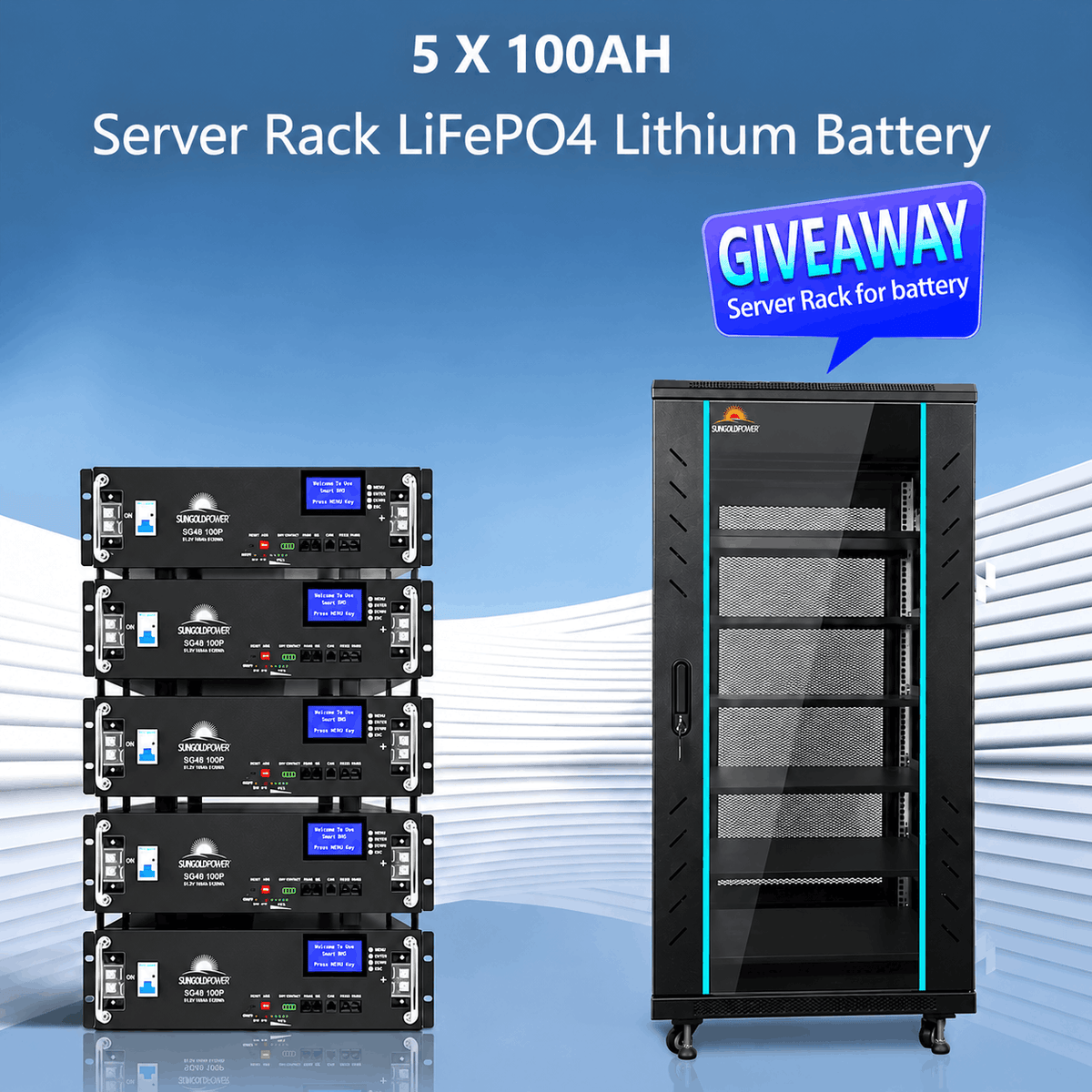

LifePo4 Battery

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100AH
  • Energy: 5.12KWH
  • Charge cut-off current: 5A
  • MAX Continuous Charge Current: 100A
  • Discharge cut-off voltage: 43.2V
  • Cycle Life>7000
  • Communication ProtocolRS232/RS485/CAN Support multiple protocols
  • Storage Temperature: -10~+45°C
  • Dimension: 19.3*18.9 5.5inch
  • Weight: 93lbs
  • Warranty: 10 Years

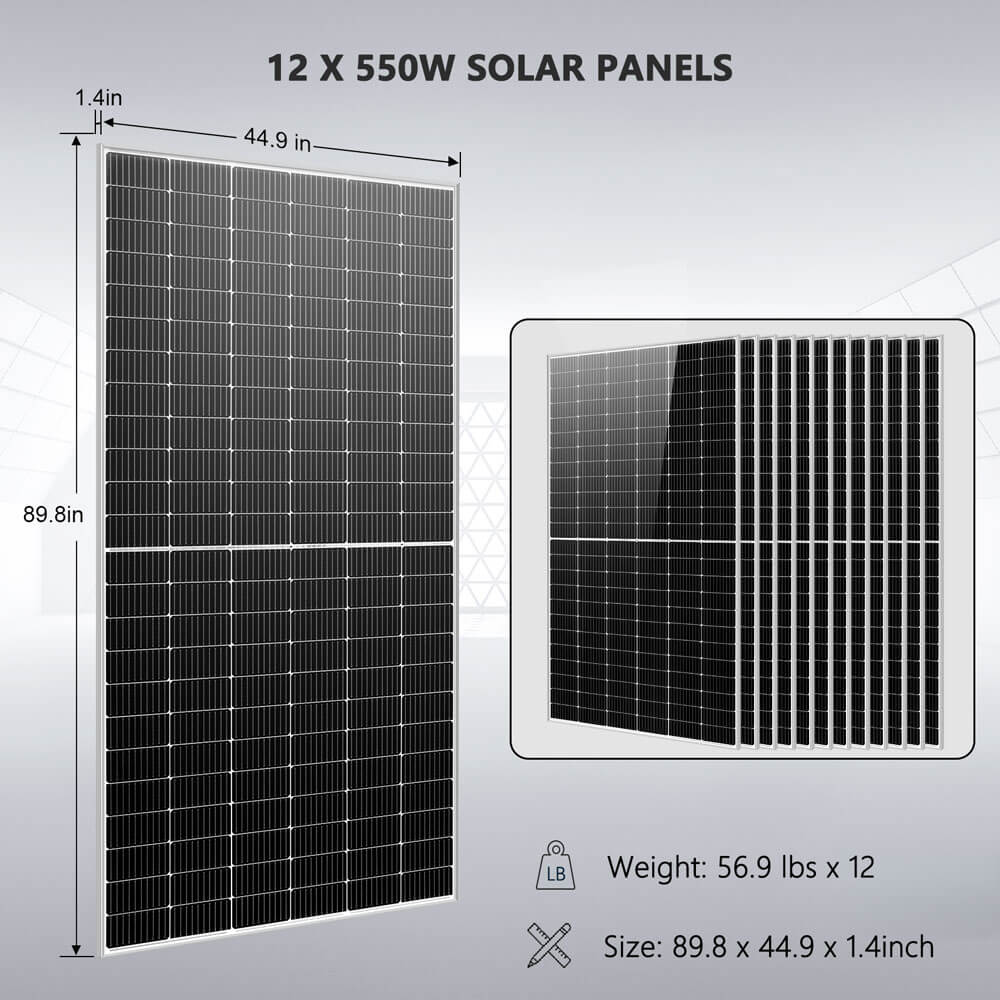

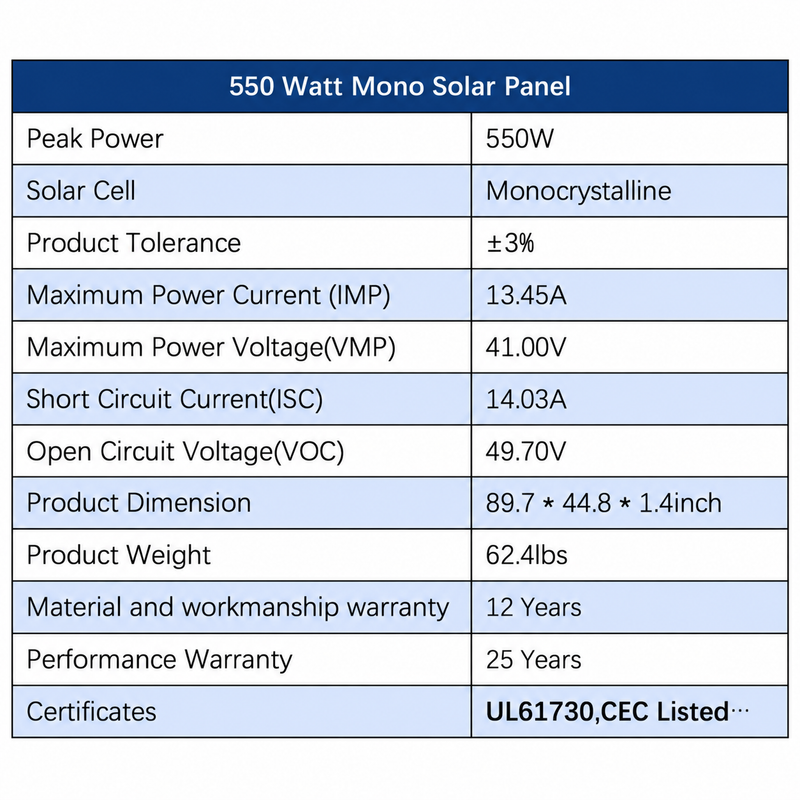

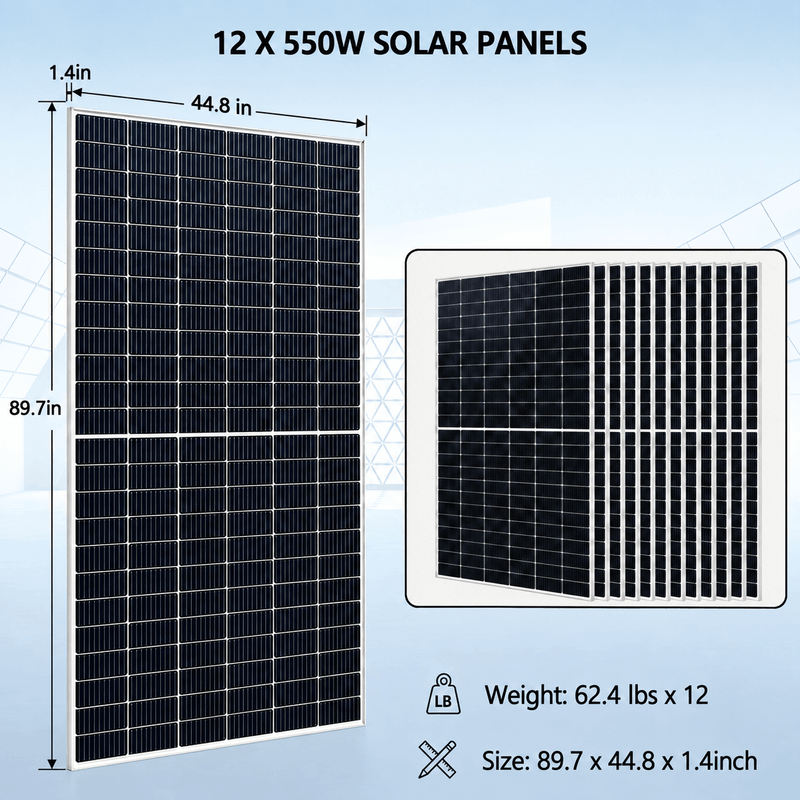

550 Watt Mono Solar Panel

  • Peak Power: 550W
  • Solar Cell: Monocrystalline
  • Product Tolerance: +3%
  • Maximum Power Current (IMP): 13.11A
  • Maximum Power Voltage(VMP): 41.96V
  • Short Circuit Current(ISC): 14.01A
  • Open Circuit Voltage(VOC): 49.9V
  • Product Dimension: 89.8 44.9 1.4inch
  • Product Weight: 56.9lbs
  • Warranty: 25 Years


Solar Kit Specification

  • Max Continuous Output: 10000W
  • AC Output: 120V/240V
  • DC Voltage: 48V
  • Max Solar Input: 11,000W
  • Total Watt of Panels: 6600W
  • Per Panel Watt: 550W
  • Panel NO.: 12pcs
  • Total KWH of Batteries: 25.6KWH
  • Chemistry: Lithium
  • Battery NO.: 5 pcs
  • Battery Spec: 48V 100AH

User Manual
