Sungold Power Off-Grid Solar Kit 8000W 48VDC 120V/240V LifePo4 10.24KWH Lithium Battery 8 X 415 Watts Solar Panels | SGR-8K10E

Sungold Power 8000W Off-Grid Solar Kit Overview

Our off grid solar system kit contains nearly everything you need to bring 3.32KW of off-grid solar power and storage to mid-sized off-grid homes or remote cabins. With 10.24KWH Lithuim battery type and solar panel mounting, and you're on your way !  this system includes a 8000W split phase Inverter/Charger, which power the most of 120V and 240V home applicance, with wifi remote monitoring, auto generator start, you will get the clean,quiet and amazing off grid power!

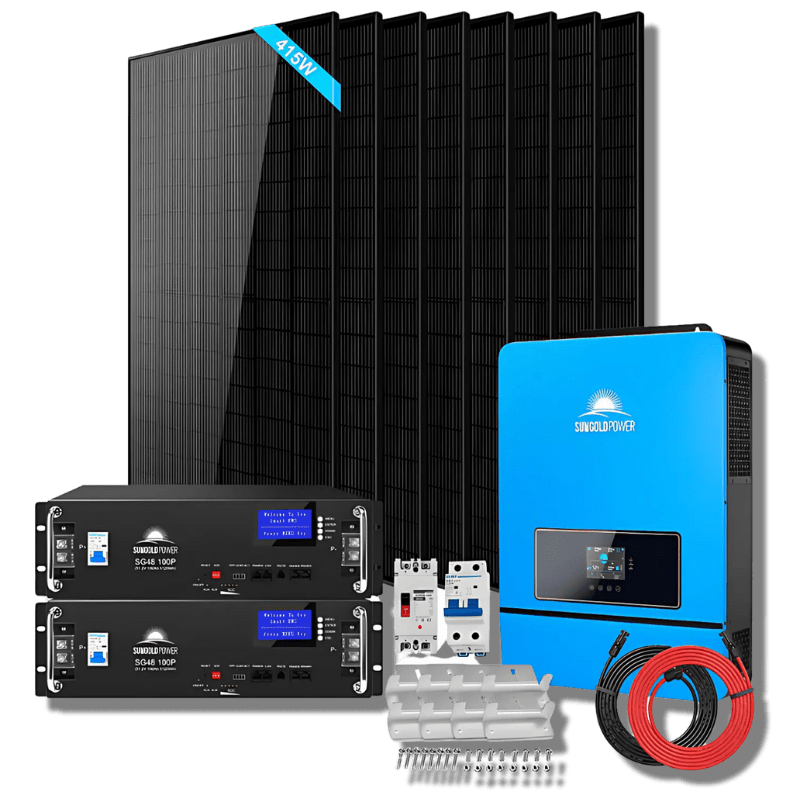

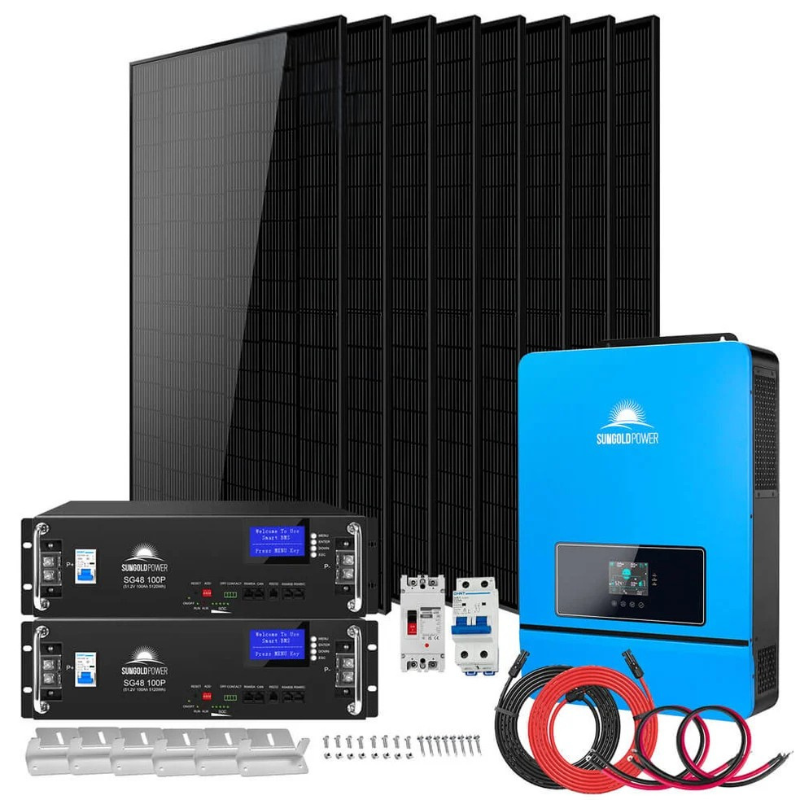

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 8000 Watt 48V DC 120V/240V AC Output
• 8 x 415 Watt Monocrystalline Solar Panels
• 2 x 100AH 51.2V Lifepo4 Battery
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input
• 8 x Sets of Mounting Z-Brackets

Sungold Power 8000W Off-Grid Solar Kit Feature

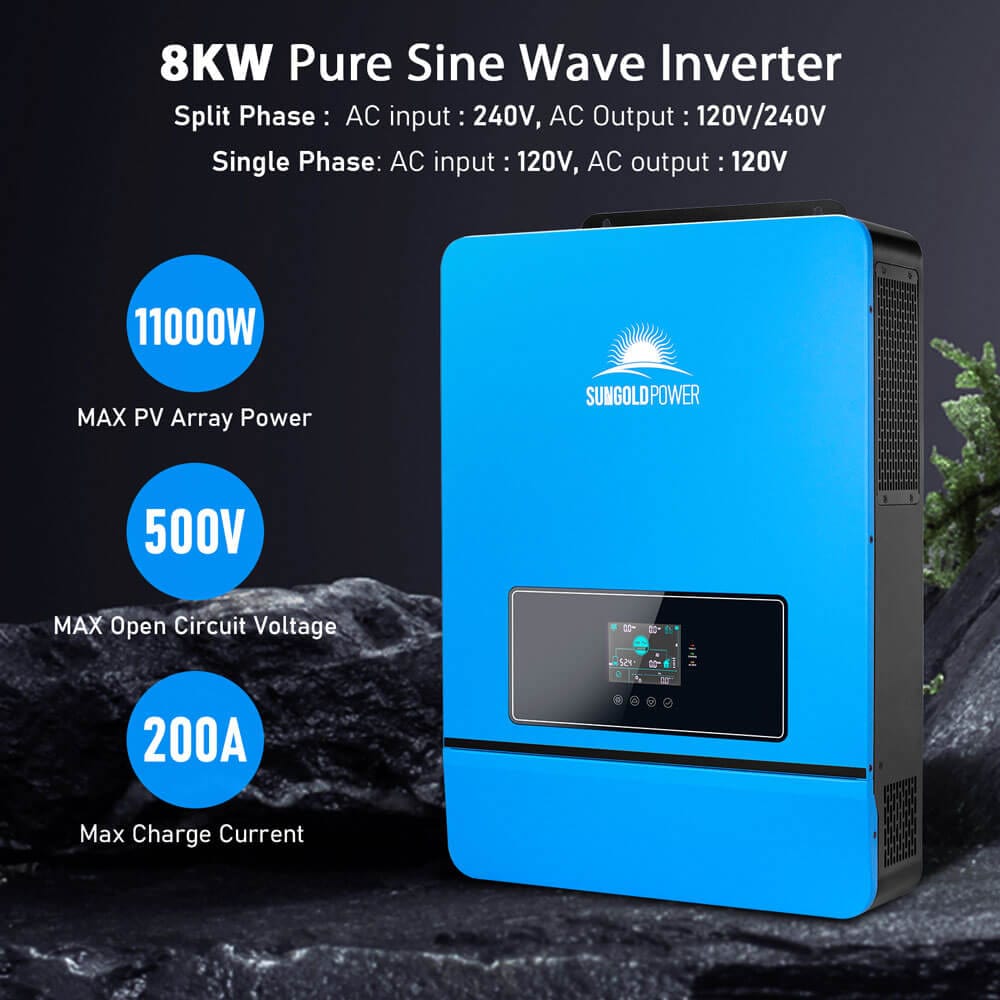

8000 Watt Solar Inverter

• AC Output: 8000W
• Output Waveform: Pure Sine Wave
• AC Output: 120V/240V (split phase/single phase)
• Max PV Input: 500VDC
• Efficiency: 92%
• Max Charging Current: 200A
• Maximum PV Array Power: 11,000W
• Dimension: 620 X 445 X 130mm
• Weight: 59 LB
• Warranty: 3 Years

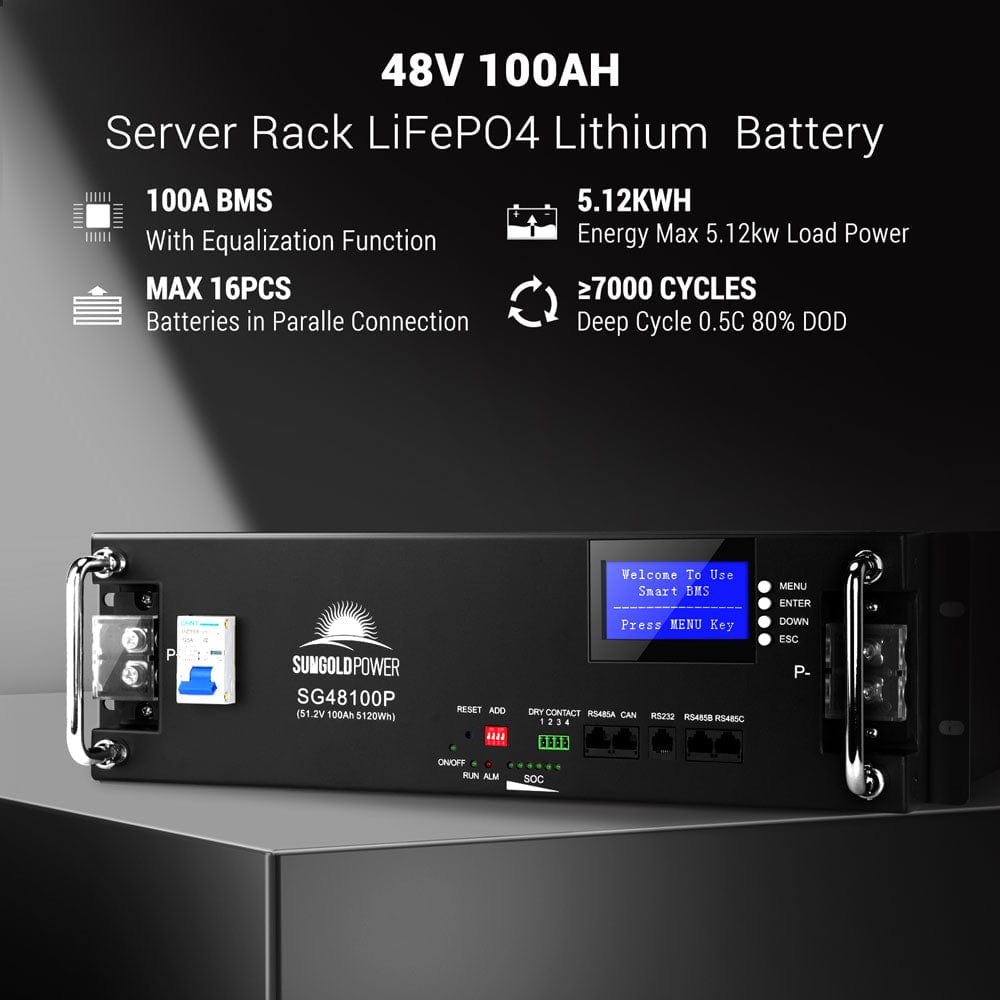

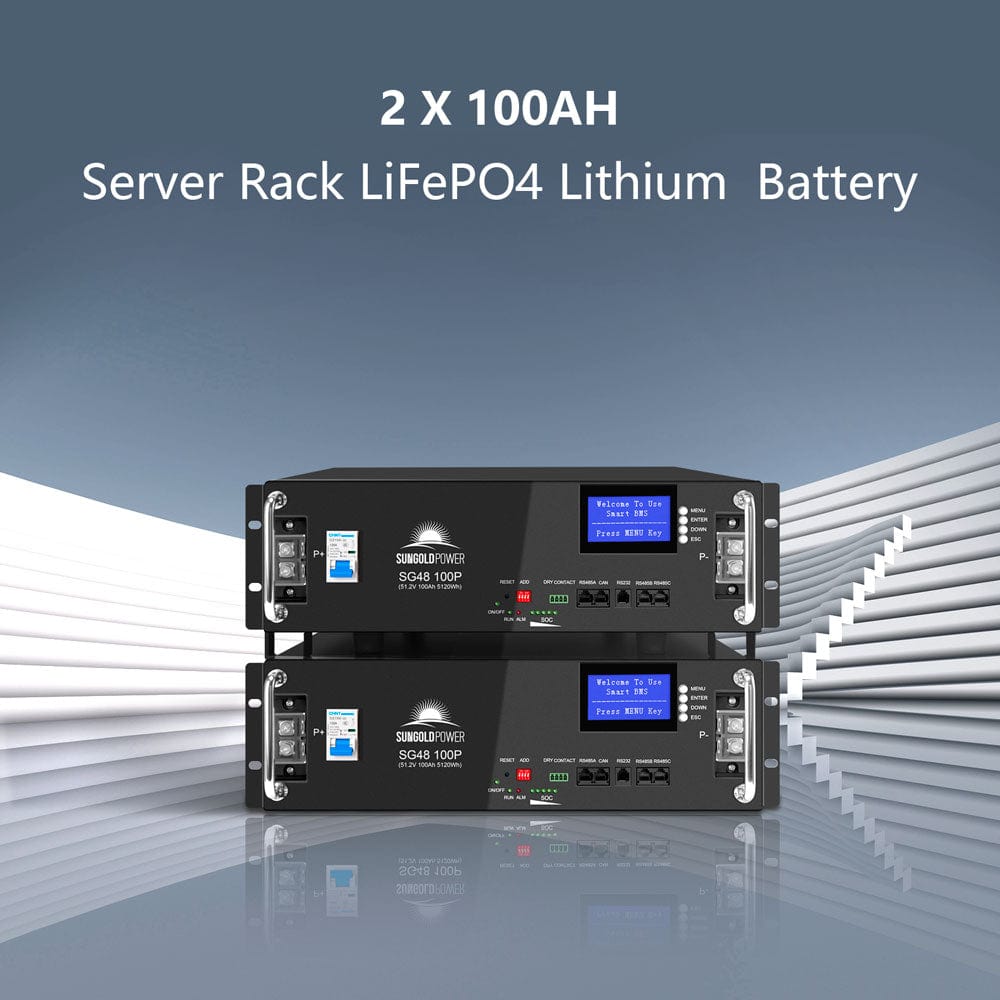

LifePo4 Battery

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Energy: 5.12KWH
• Charge cut-off current: 5A
• MAX Continuous Charge Current: 100A
• Discharge cut-off voltage: 43.2V
• Cycle Life: >7000
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Storage Temperature: -10~+45°C
• Dimension: 19.3*18.9 5.5inch
• Weight: 93lbs
• Warranty: 10 Years

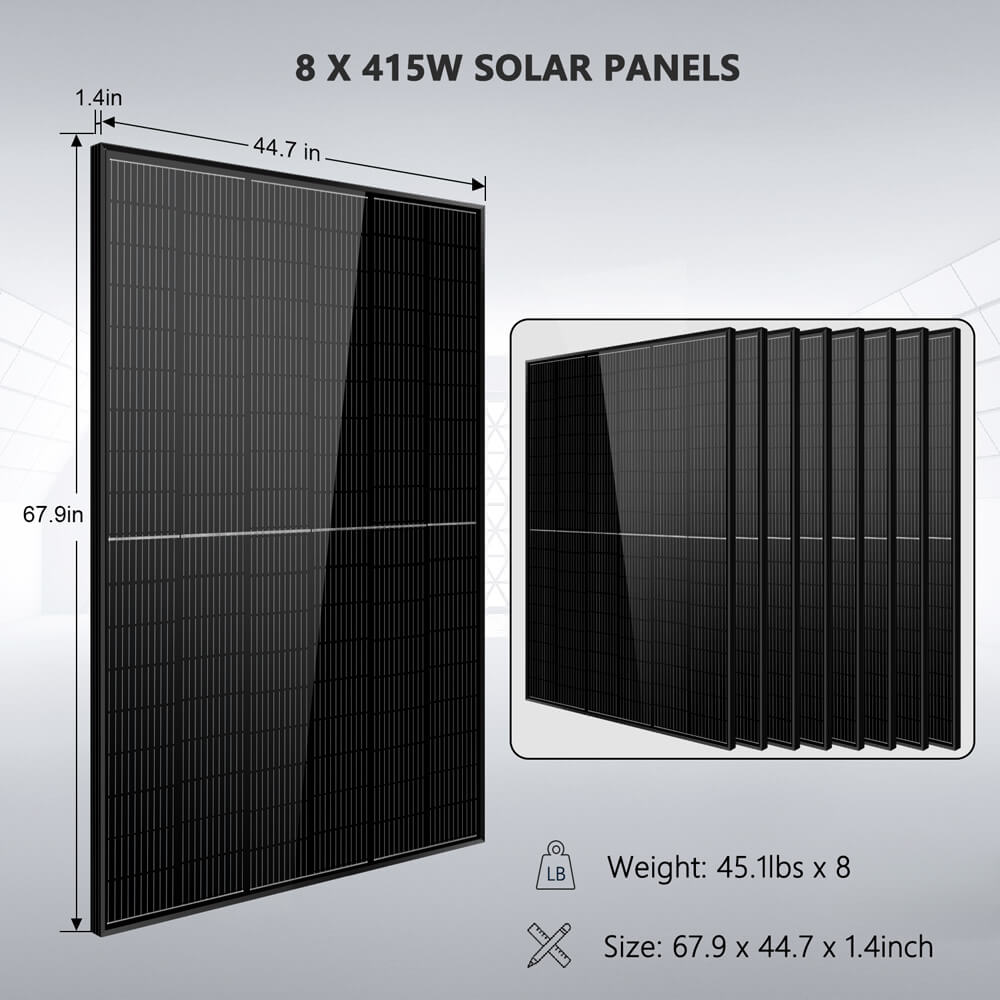

415 Watt Mono Solar Panel

• Peak Power: 415W
• Solar Cell: Monocrystalline
• Product Tolerance: ±3%
• Maximum Power Current (IMP): 13.13A
• Maximum Power Voltage (VMP): 31.61V
• Short Circuit Current(ISC): 13.79A
• Open Circuit Voltage(VOC): 38.82V
• Product Dimension: 67.9 X 44.7 X 1.4 inch
• Product Weight: 45.1LB
• Warranty: 25 Years

Solar Kit Specification

• Max Continuous Output: 8000W
• AC Output: 120V/240V
• DC Voltage: 48V
• Max Solar Input: 11,000W
• Total Watt of Panels: 3320W
• Per Panel Watt: 415 Watt
• Panel NO.: 8 pcs
• Total KWH of Batteries: 10.24KWH
• Chemistry: Lithium
• Battery NO.: 2 PCS
• Battery Spec: 48V 100AH

User Manual

• Sungold Power 8000 Watt Inverter User Manual
• Sungold Power LifePo4 5.12KWH Lithium Battery User Manual
• Sungold Power 415 Watt Monocrystalline Solar Panels
