Does this kit include everything I need to install it?

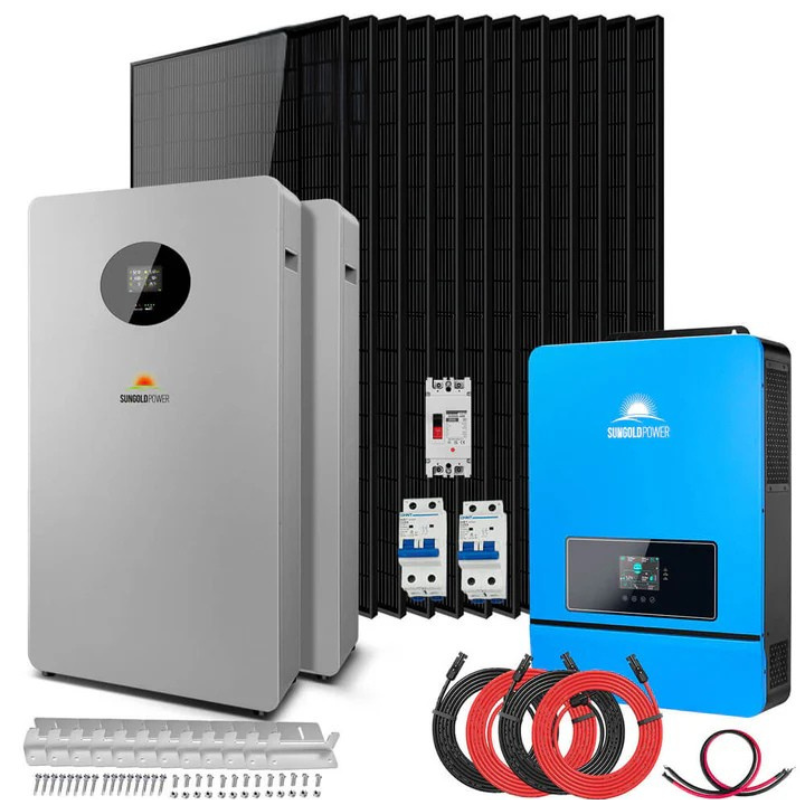

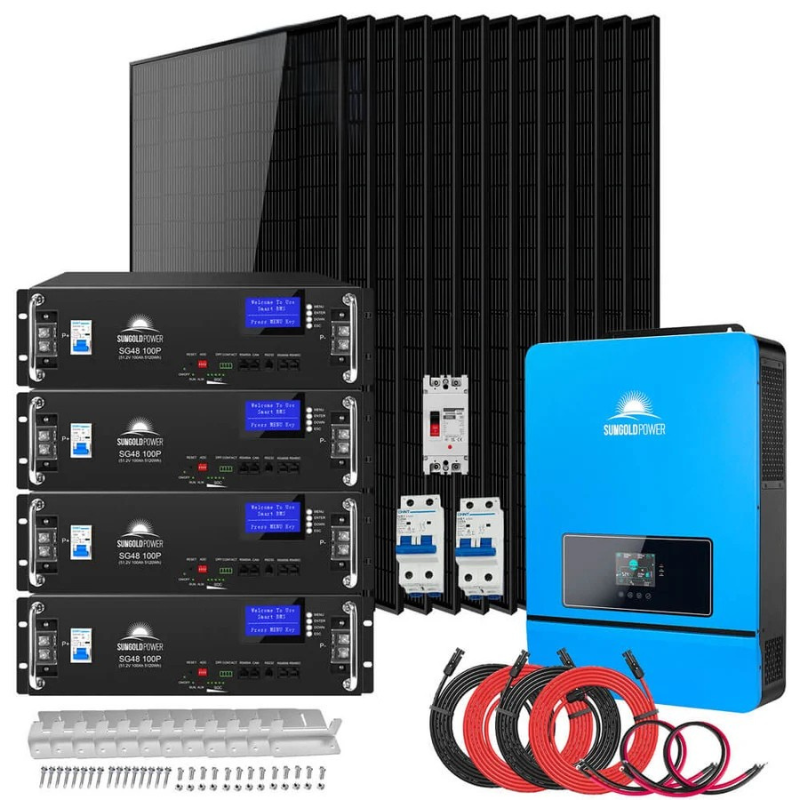

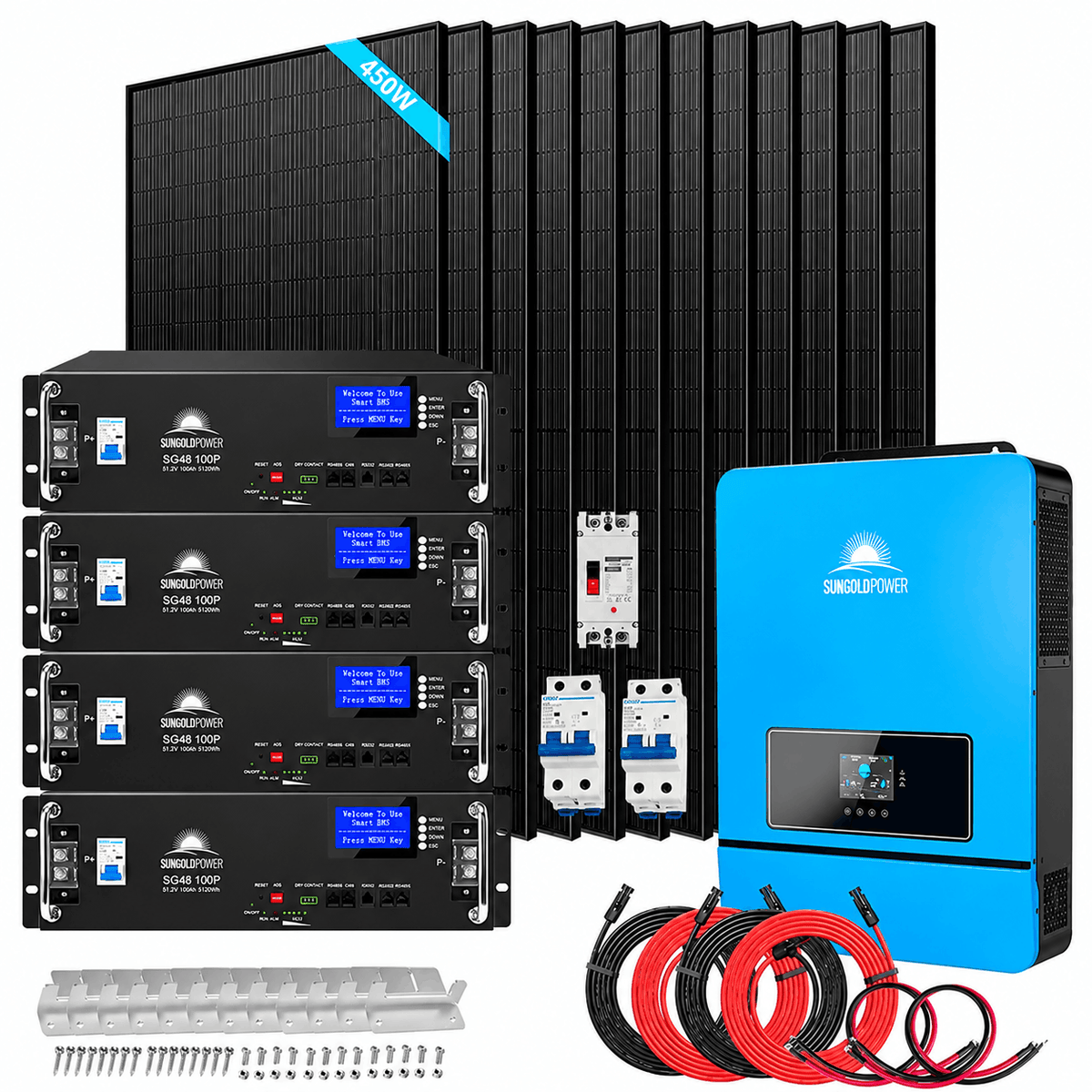

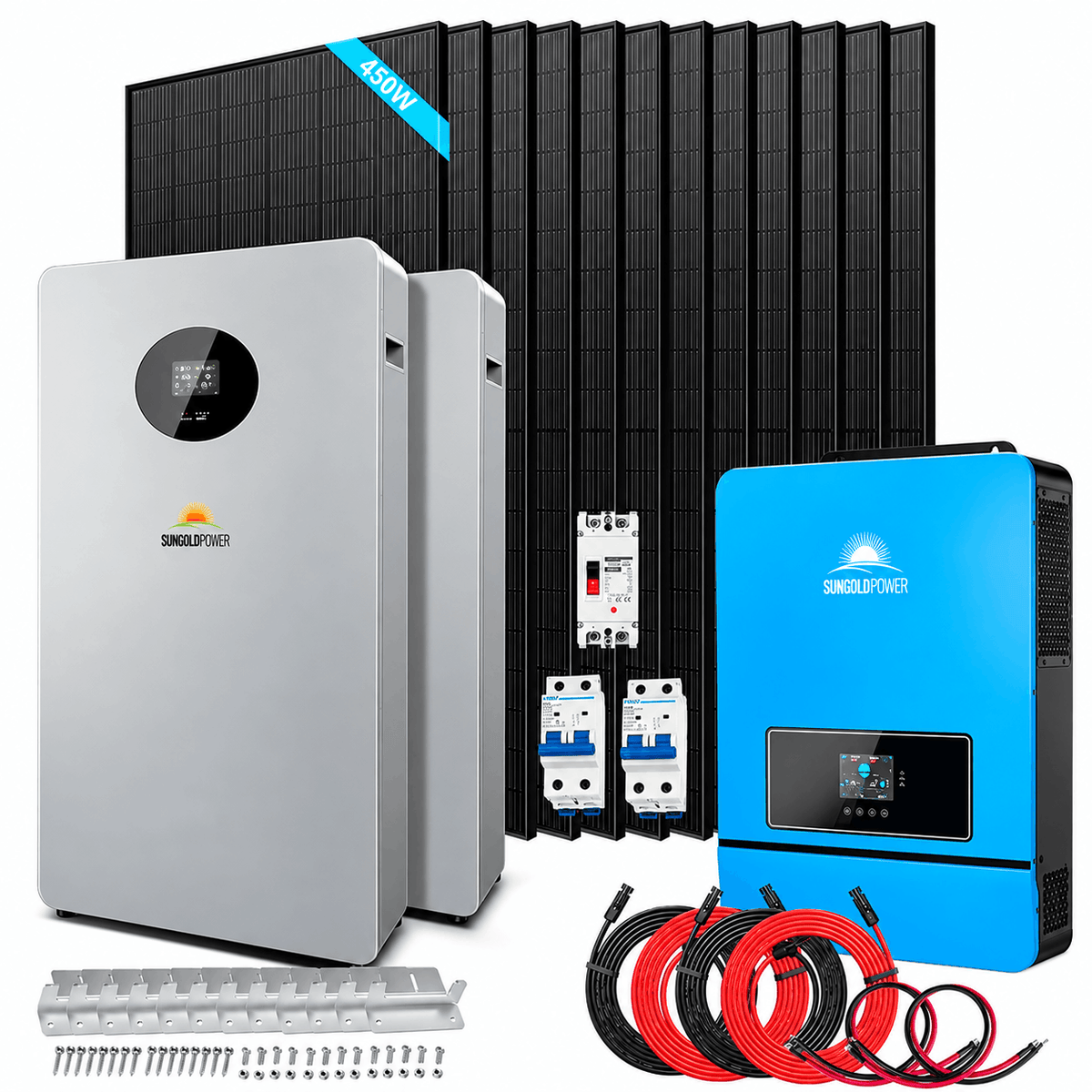

It includes the major system components: the inverter, your chosen batteries, all twelve panels, the DC and both PV breakers, two sets of solar extension cables, the battery cabling, Z-brackets, and the manuals. What varies is the mounting and building side of the job, and that's site by site. Depending on your site that typically means a rack or cabinet if you take the four-battery configuration, rail racking for twelve panels on a shingle roof or the ground, conduit, junction boxes, building wire, a critical loads panel or transfer switch, generator or shore power input wiring, and labor. Those depend on your structure and your local code, which is why we spec them per site rather than boxing a set that might not fit. Tell us about your install and we'll list exactly what yours needs.
Which battery configuration should I choose?

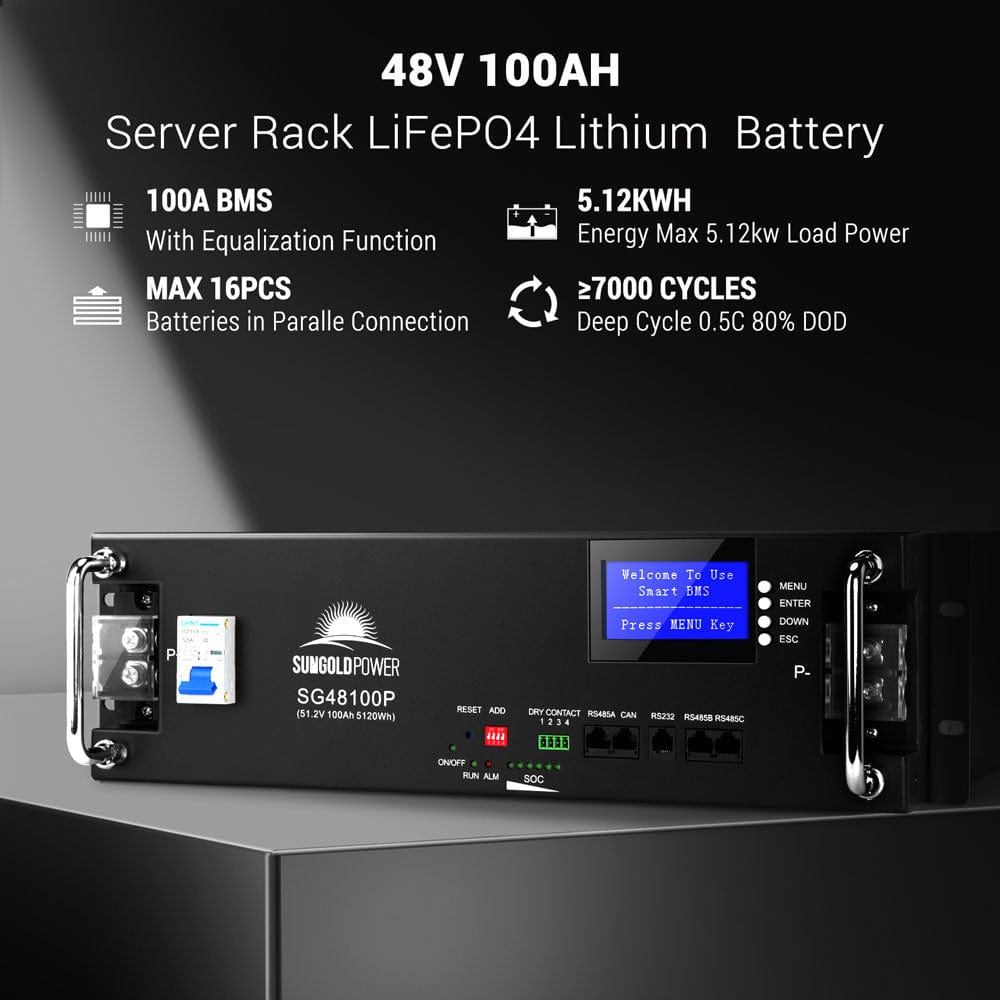

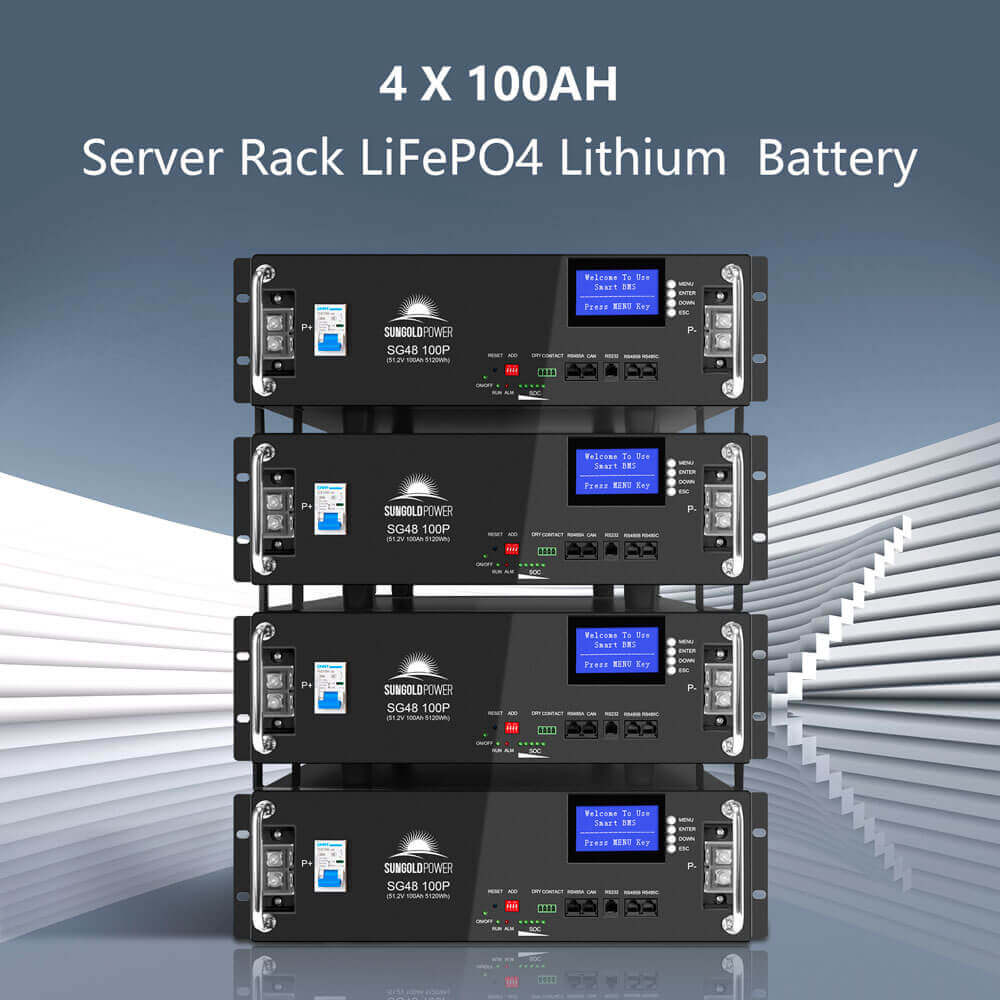

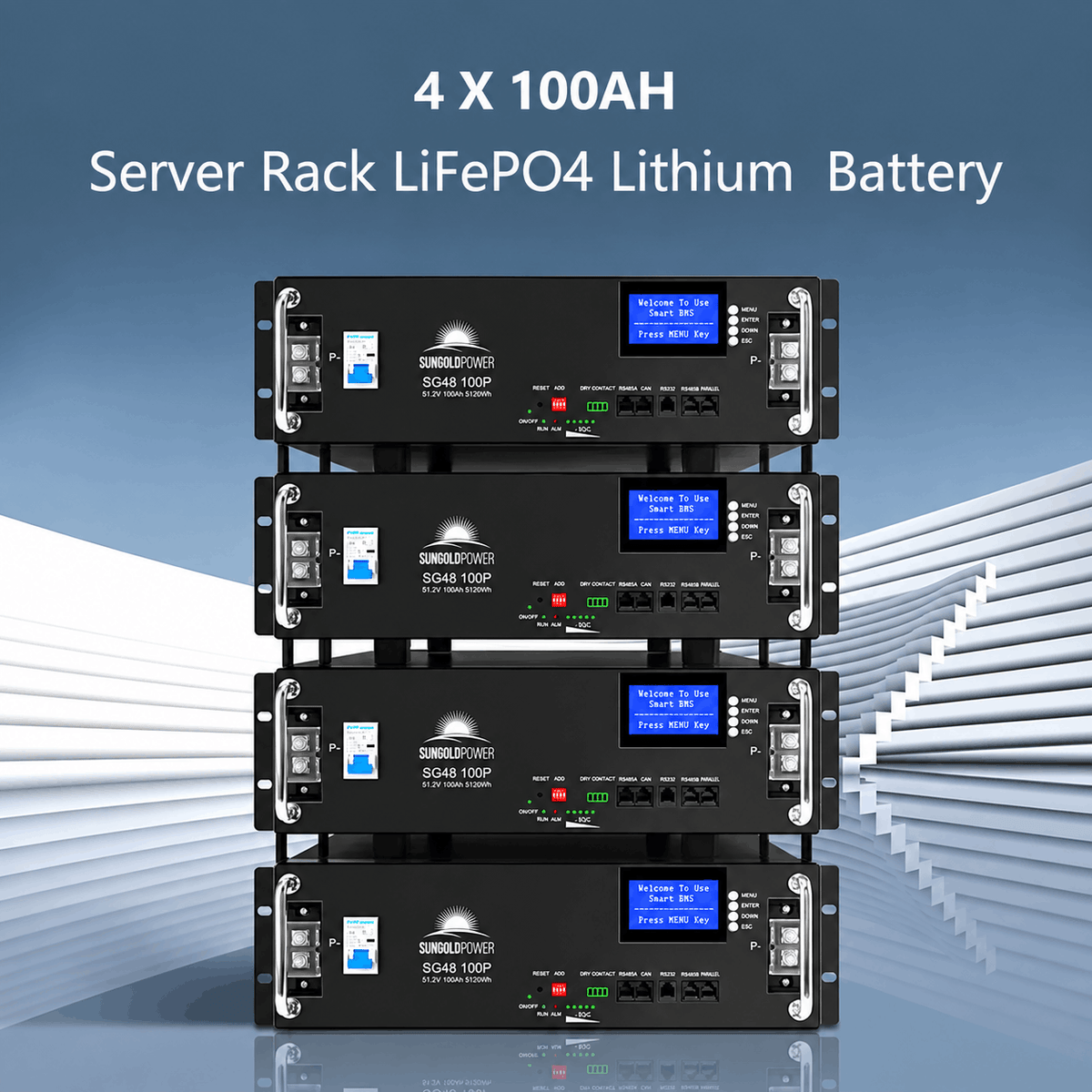

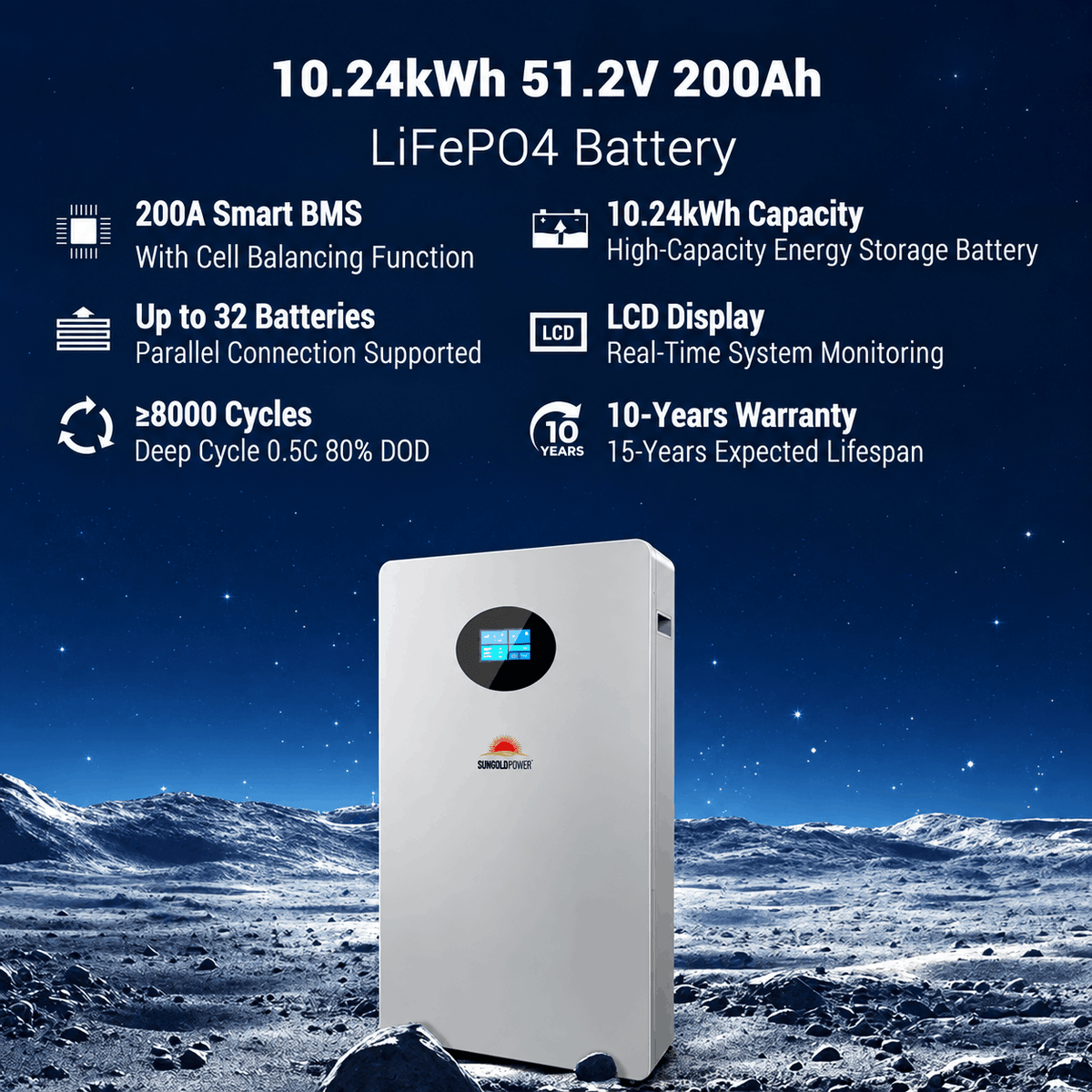

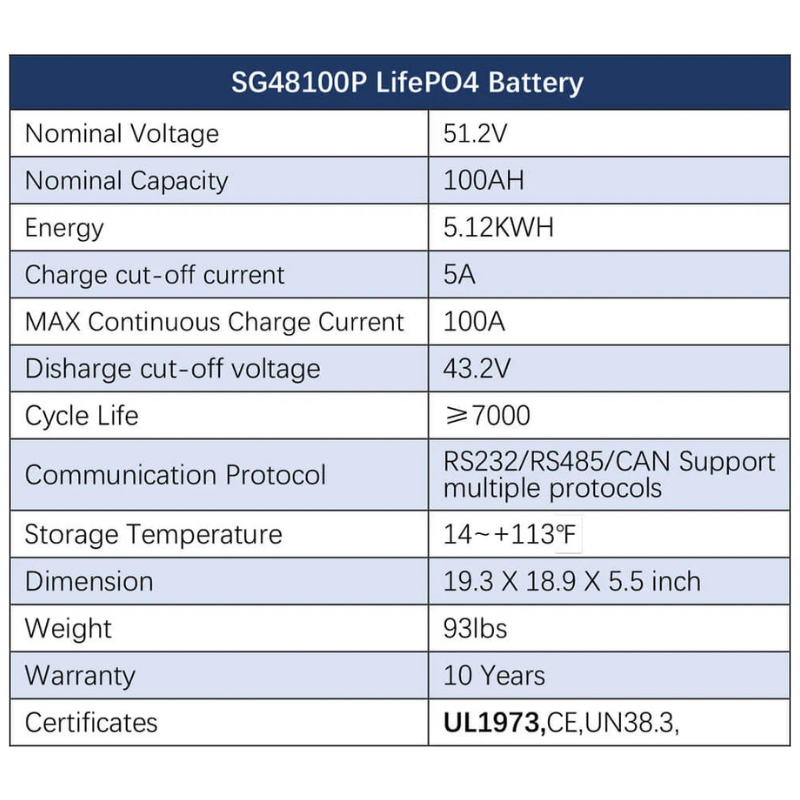

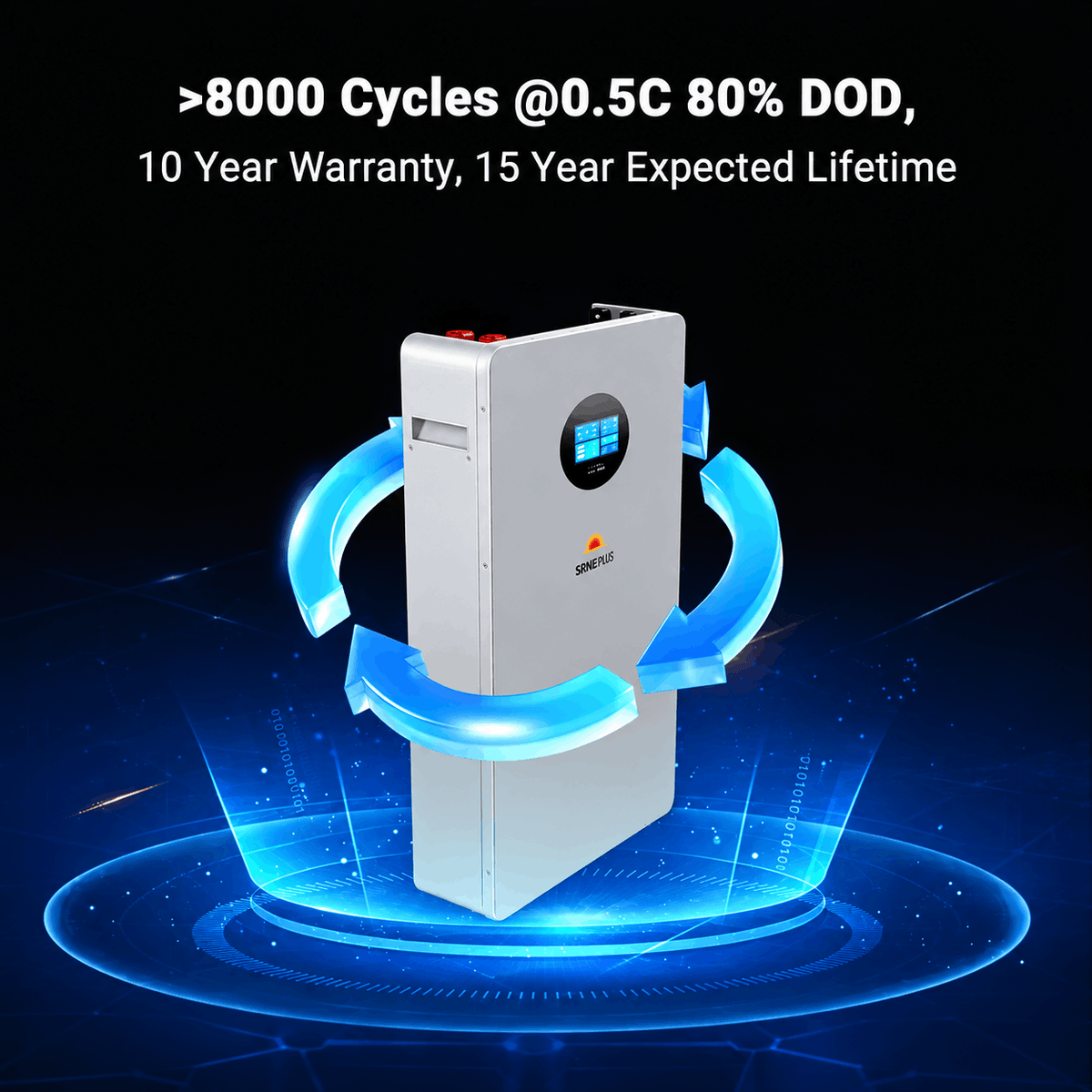

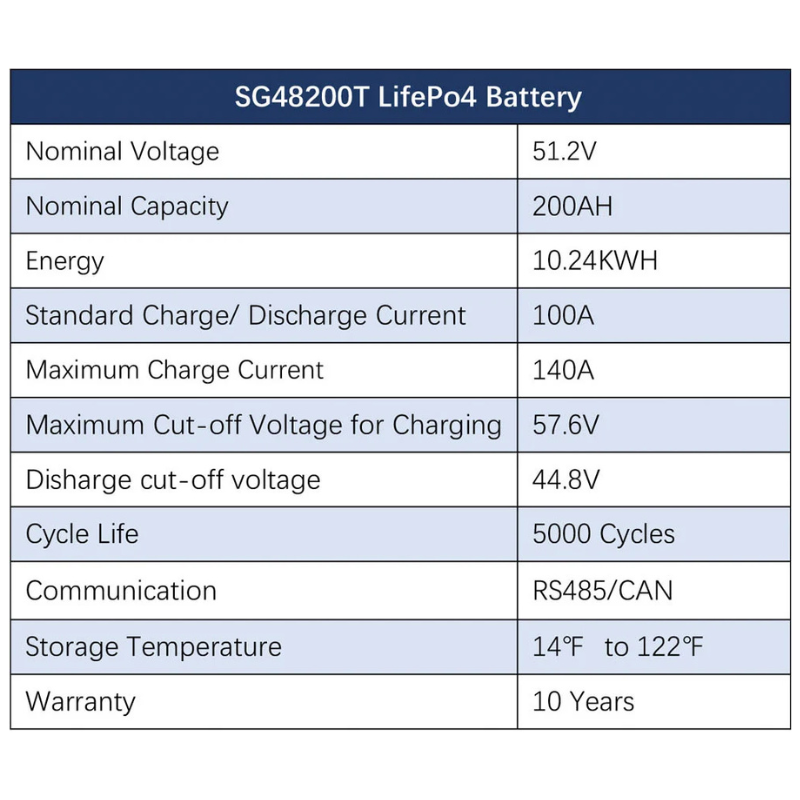

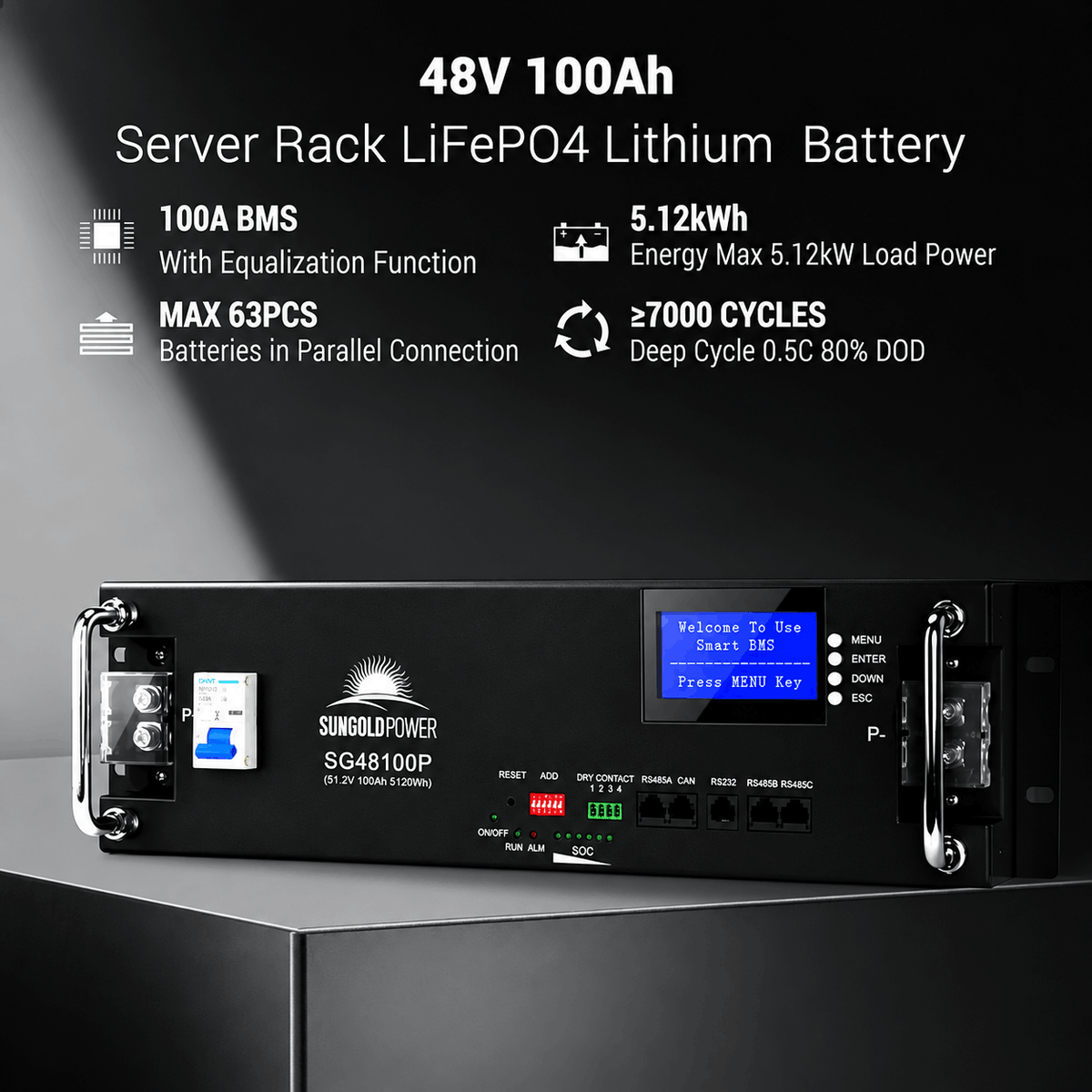

Two things separate them. The four server-rack units are rated past 7,000 cycles against 5,000 for the two larger units, so on paper the SGM-8K20 bank lasts longer. Against that, two batteries is a simpler install than four, and the larger units mount on supplied brackets rather than needing a rack. If the batteries have to go up stairs, 93 lbs each is a lot easier than 198.

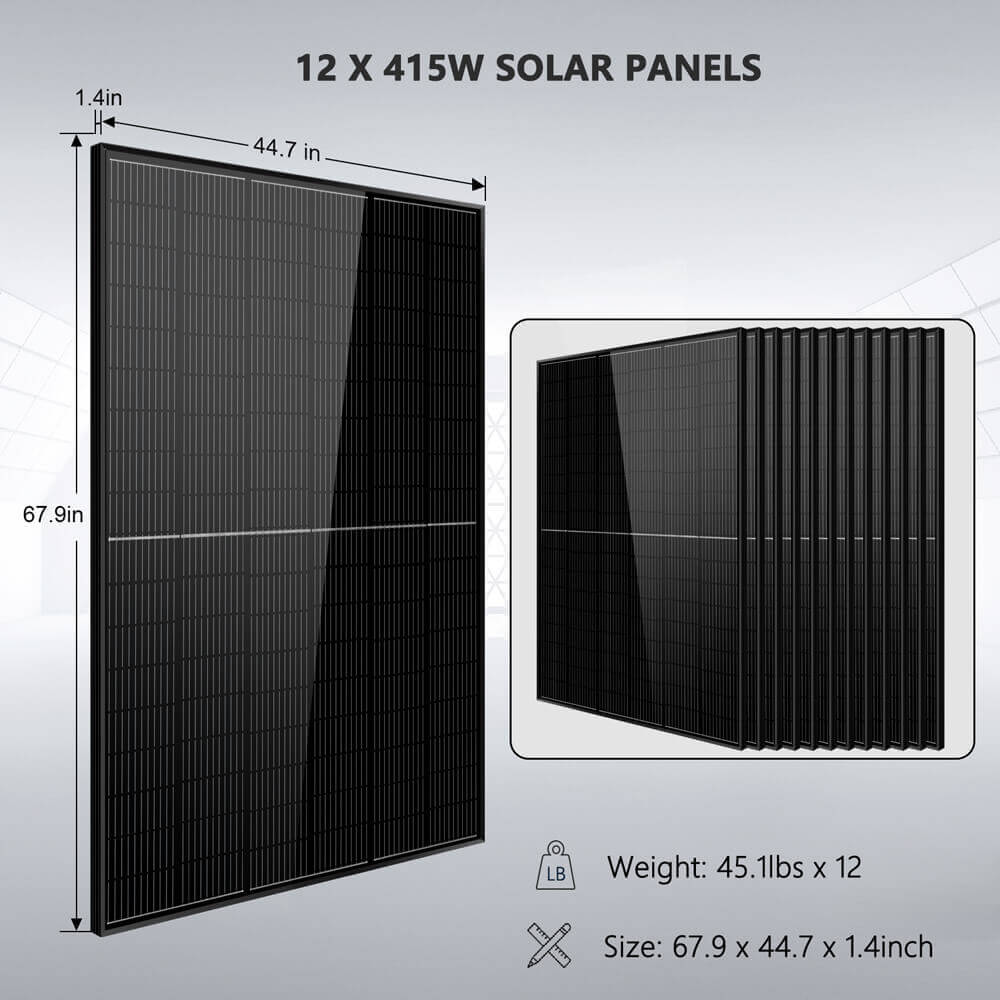

How should the panels be wired?

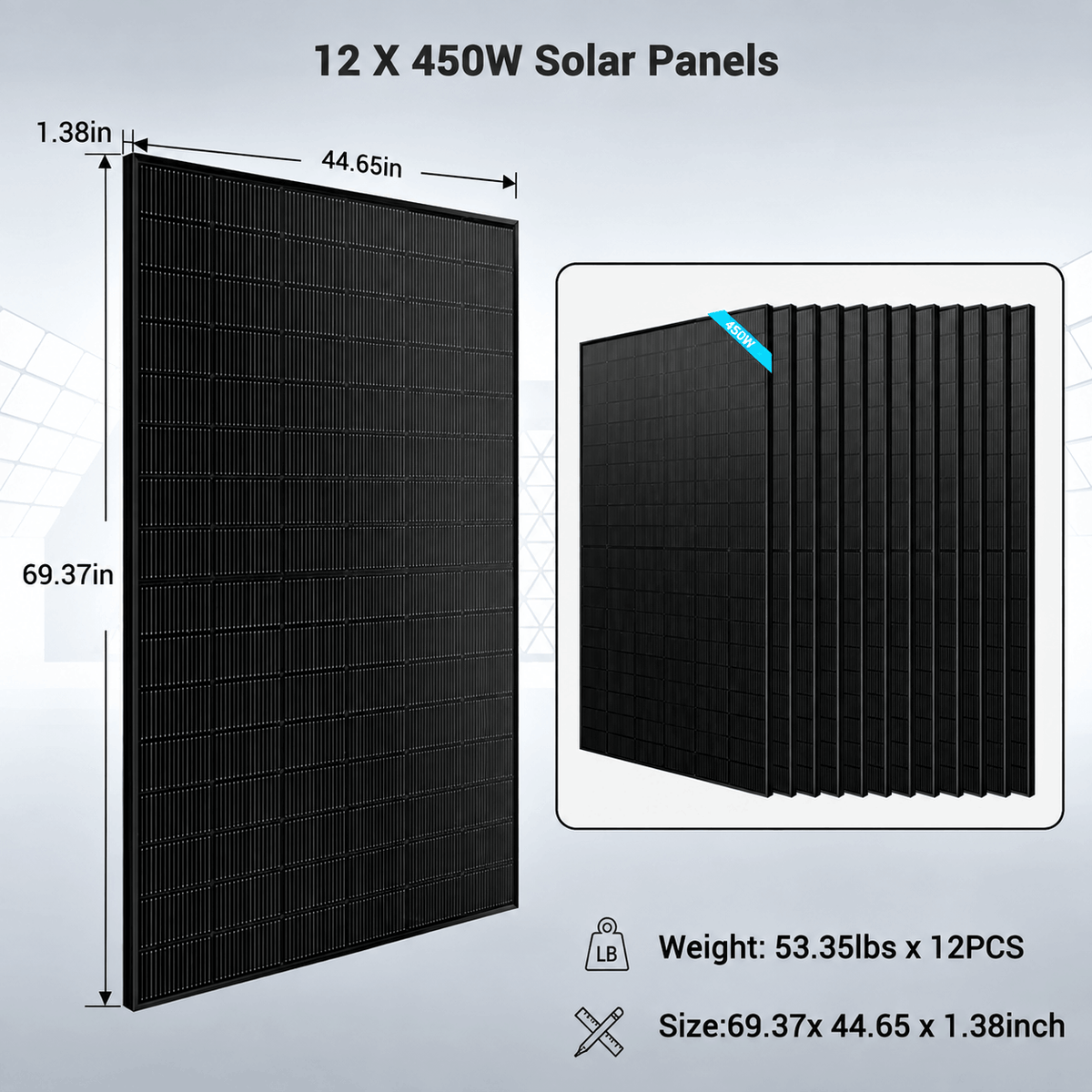

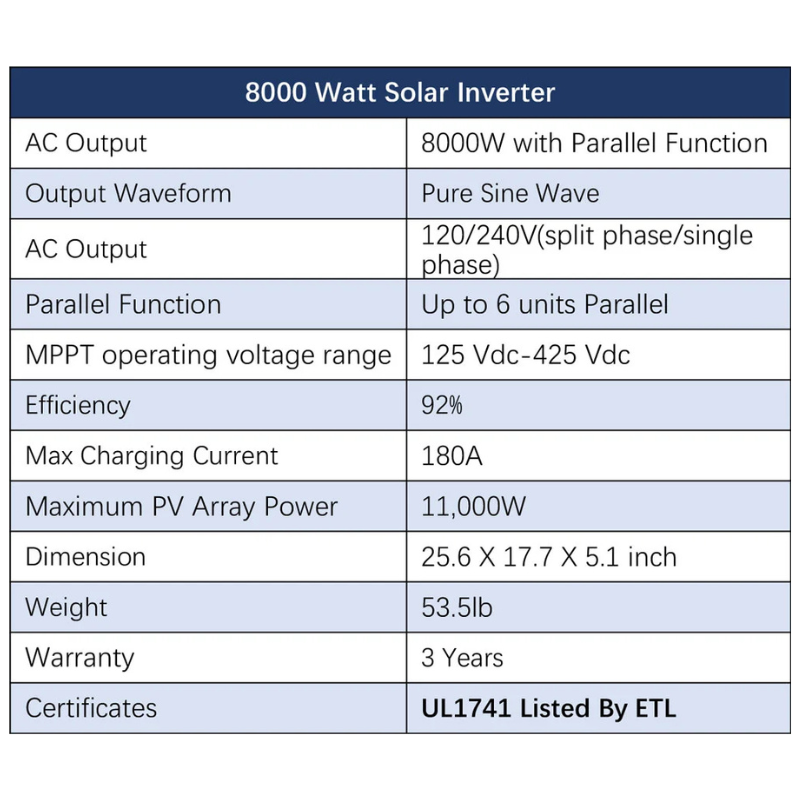

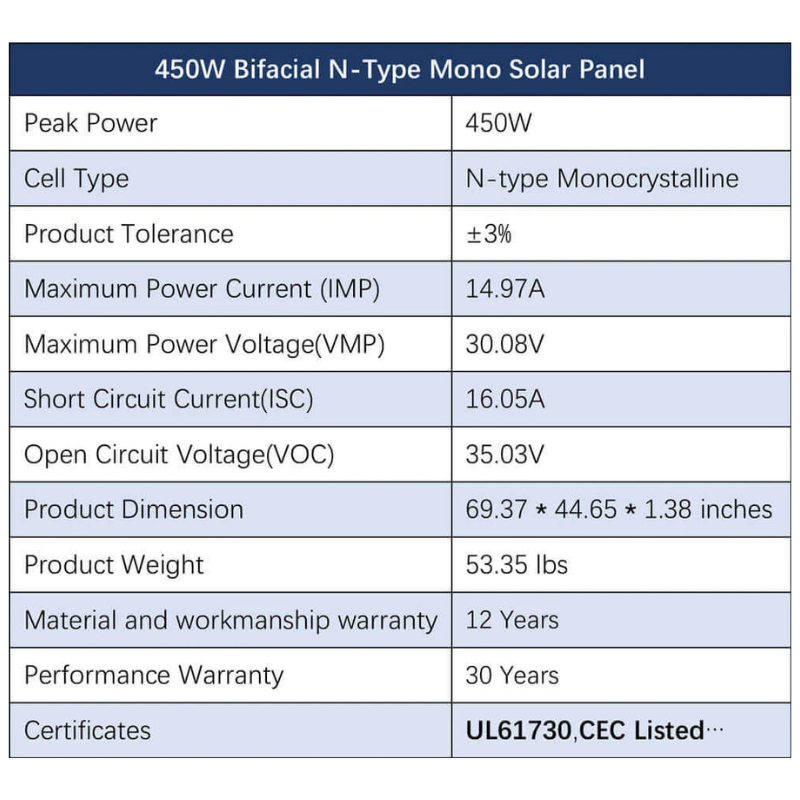

Two strings of six, one on each MPPT tracker. That's why the kit ships two PV breakers and two sets of extension cable. Six panels in series operate near 180V, in the middle of the inverter's 125 to 425V window, at 15A against a 22A limit. All twelve on one tracker would sit at 420V open circuit against a 425V ceiling, and panel voltage rises in cold weather, so that arrangement would exceed the limit on a cold morning.
How much energy will this generate daily?

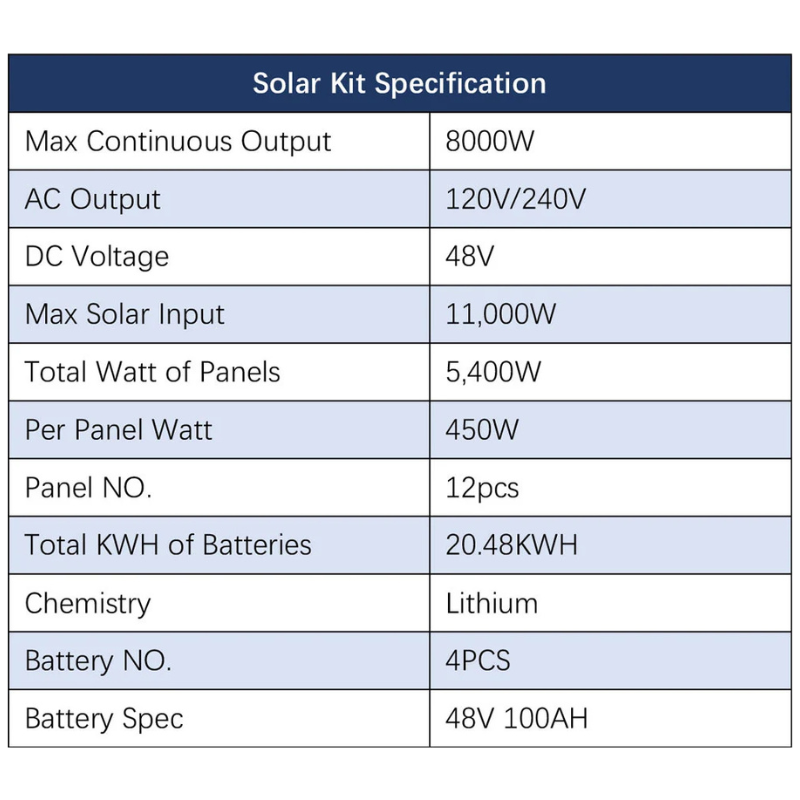

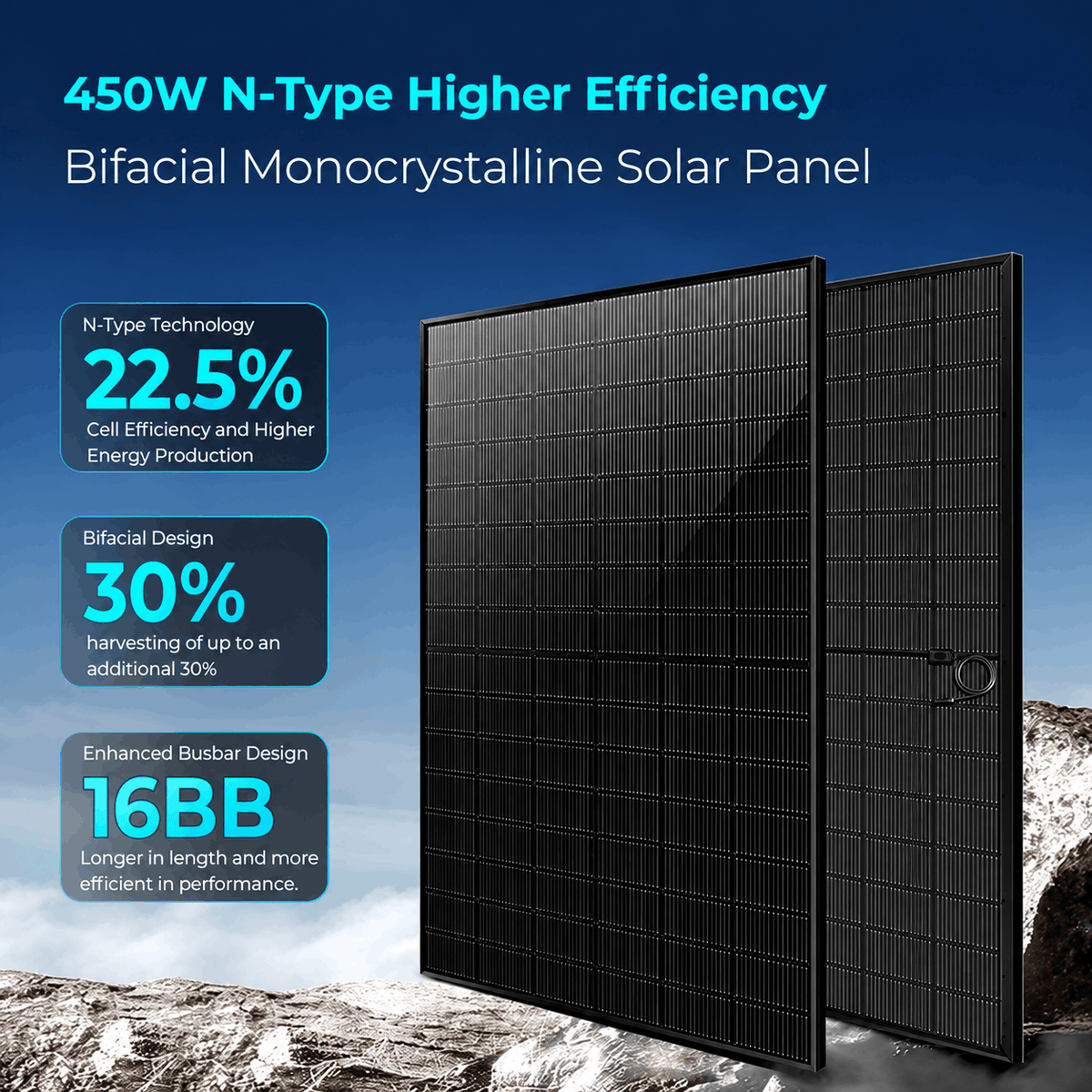

The 5.4kW array produces roughly 22 to 27kWh per day at 4 to 5 peak sun hours, and more where the rear face picks up reflected light. Actual output depends on your location, season, panel angle, and shading.
Is this enough for full-time off-grid living?
For most households, yes, and it's the point in the range where that becomes a comfortable rather than a careful yes. 20.48kWh carries essential loads for days, and the array replaces a full bank in a single good day. What decides it is your actual consumption, which is worth a call before you order.
Can I add panels or batteries later?

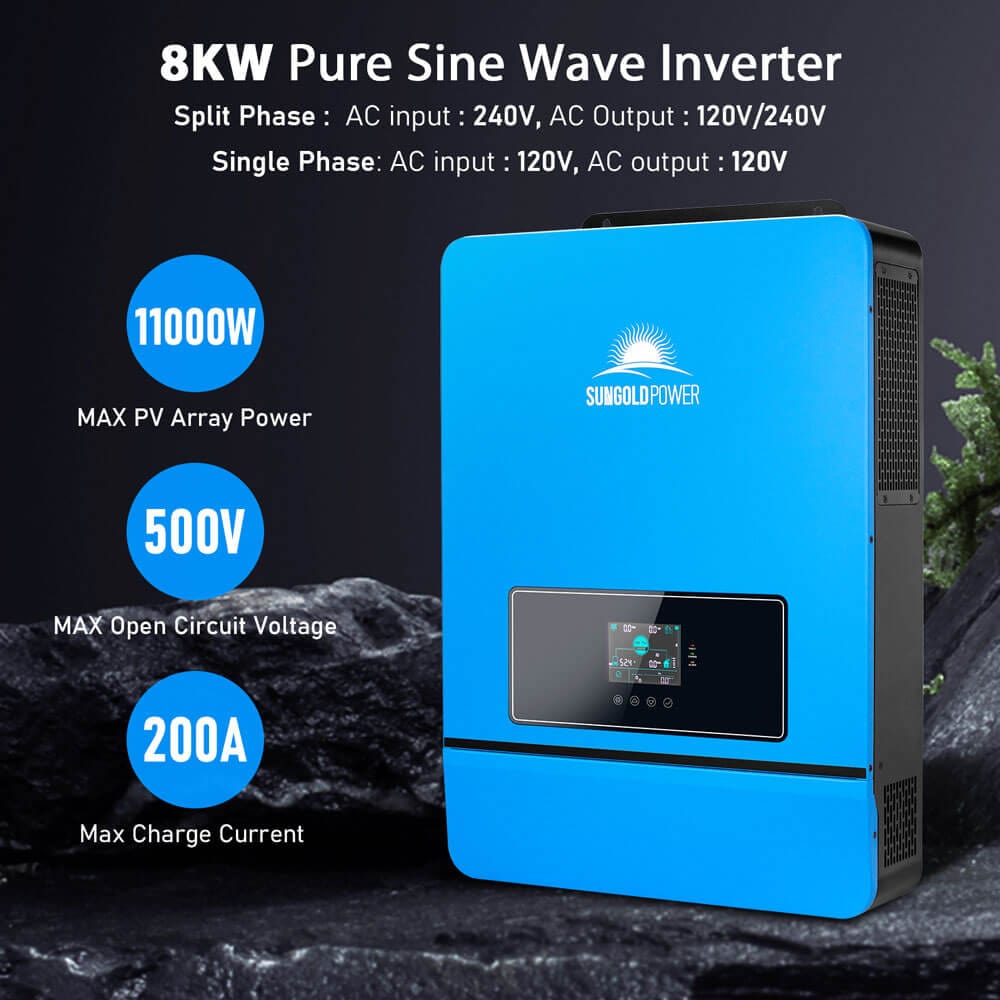

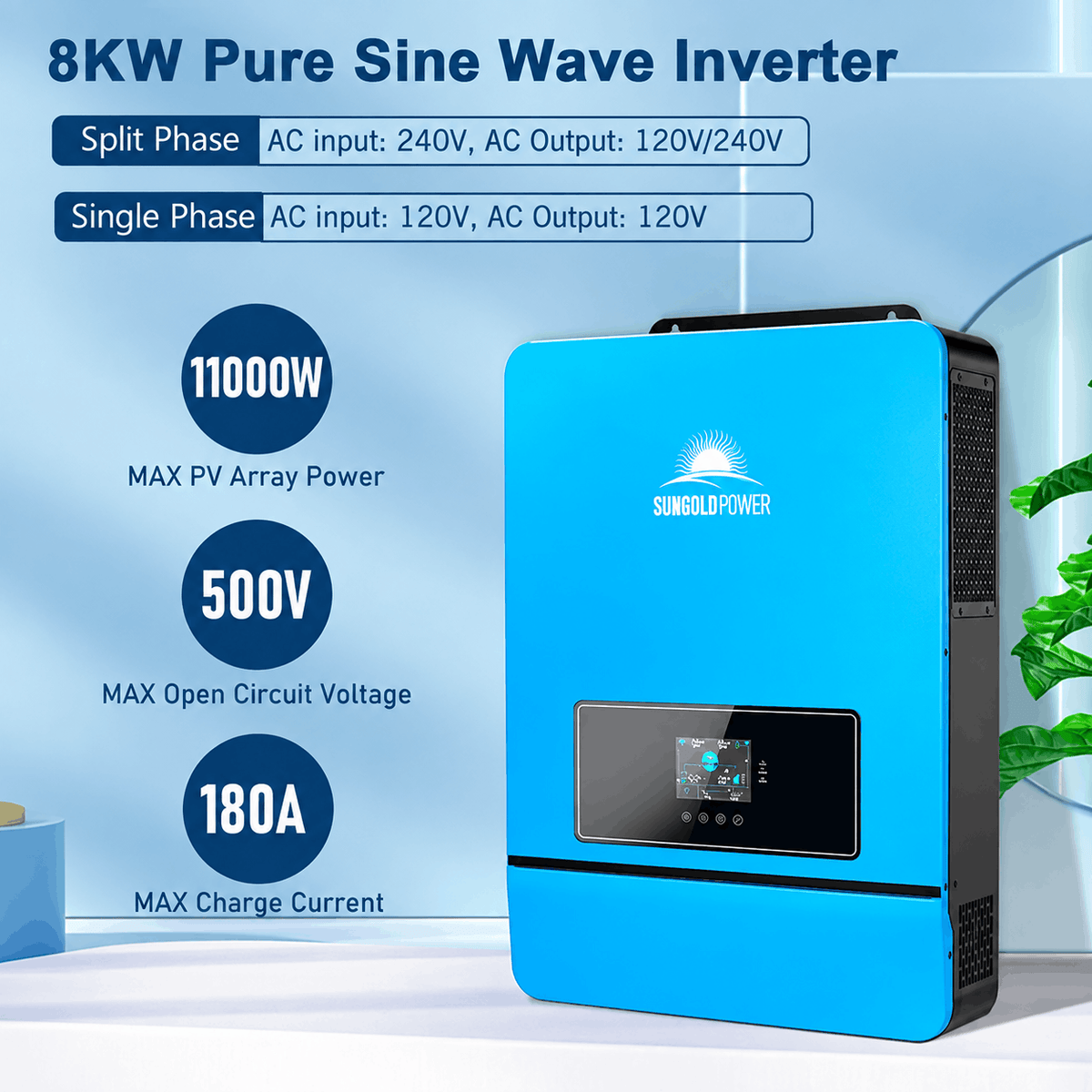

Yes. The inverter takes 11,000W of PV against the 5,400W included, so the array can roughly double, and both battery configurations expand by adding matching units. Batteries work best when they match the originals in age and state of health, so if you expect to grow the bank it's worth buying the capacity up front.
Can I install this myself?
Many customers do. The line worth drawing is where the system meets your building: setting the inverter, running PV, and wiring the battery bank are within reach for someone with real electrical experience, while tying into an existing house panel is work for a licensed electrician.
Is LiFePO4 safe?
It's the safest widely available lithium chemistry, with strong thermal stability, long service life, and minimal maintenance. Every battery includes BMS protection against overcharge, deep discharge, overheating, overload and short circuit.
