Sungold Power Off-Grid Solar Kit 6500W 48VDC 120VAC 5.12KWH PowerWall Lithium Battery 4 X 370 Watts Solar Panels

Sungold Power 6500W Off-Grid Solar Kit Overview

This Solar Panel Kit is a great starter package for a Complete Offgrid cabin or shop, it inlcudes the 4 X 370W solar panel, 5.12KWH powerwall battery, 6500W solar inverter and a set of solar cable.The Solar Array will produce around 5.92KW per day based on 4 hours sun. This size of system generally works great for cabins, shops, RVs and etc that use around 177 KWH per month. You can add more batteries and solar panel according to your requirment. Let’s Enjoy off grid living and the adventure with Solar Energy Kit !

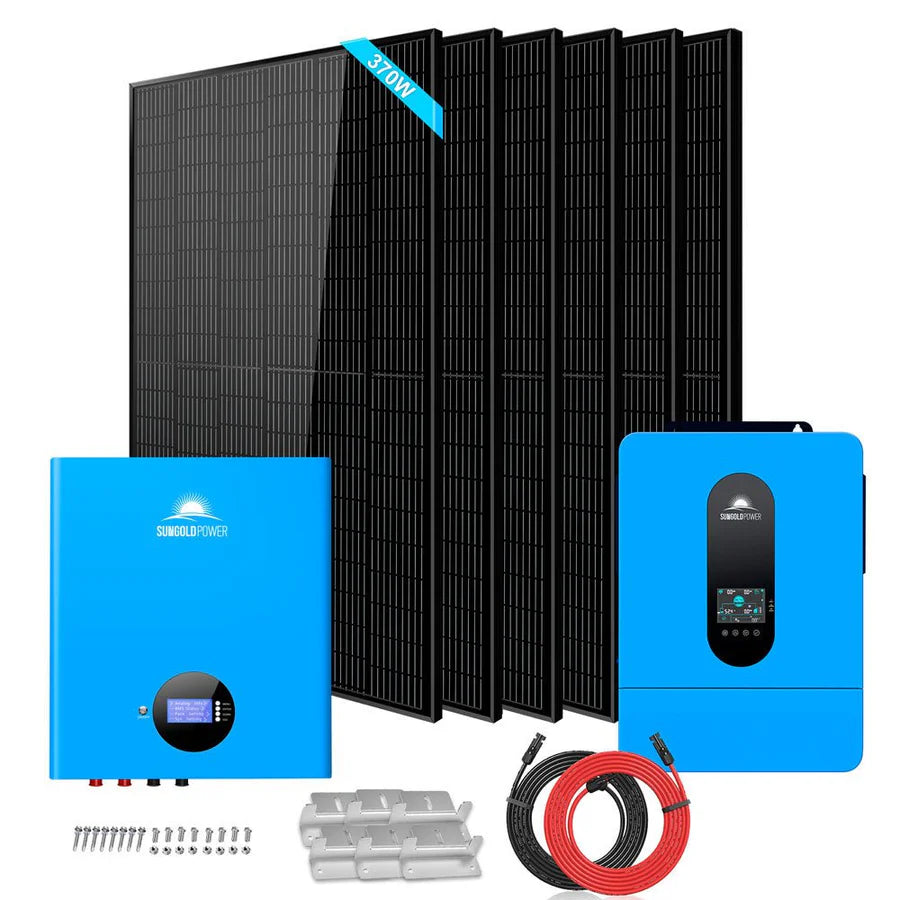

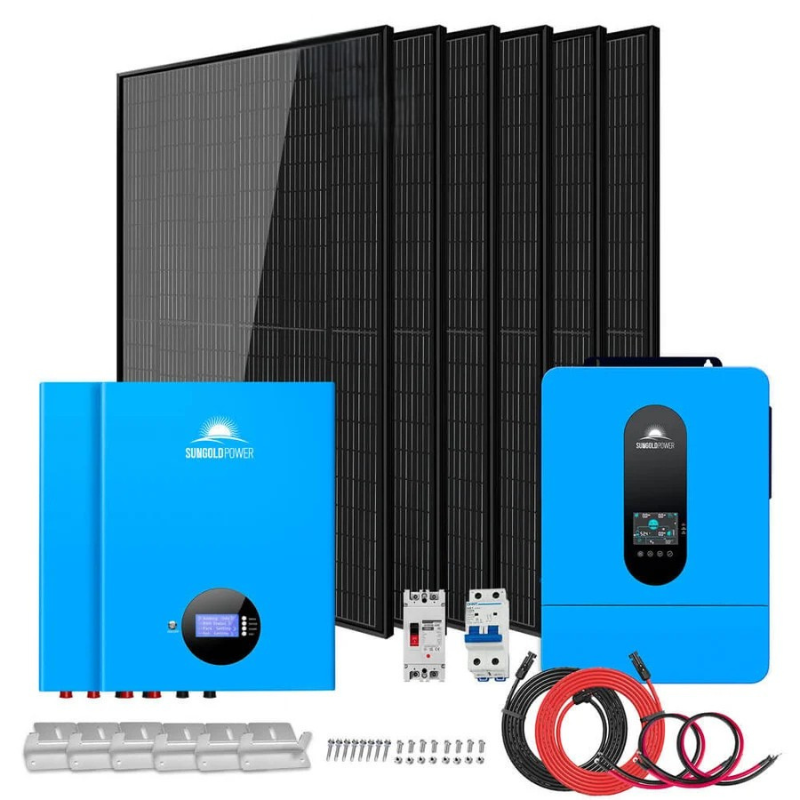

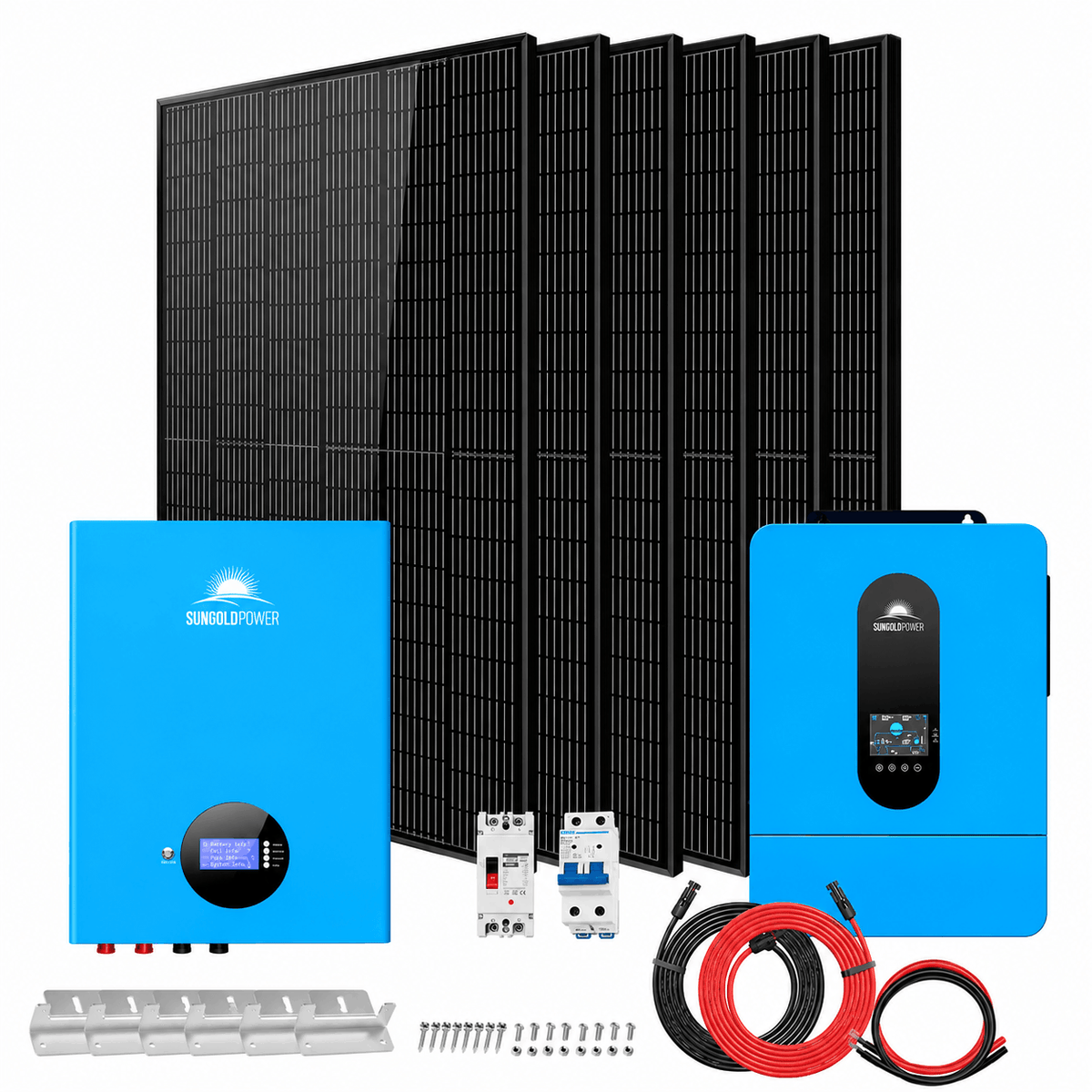

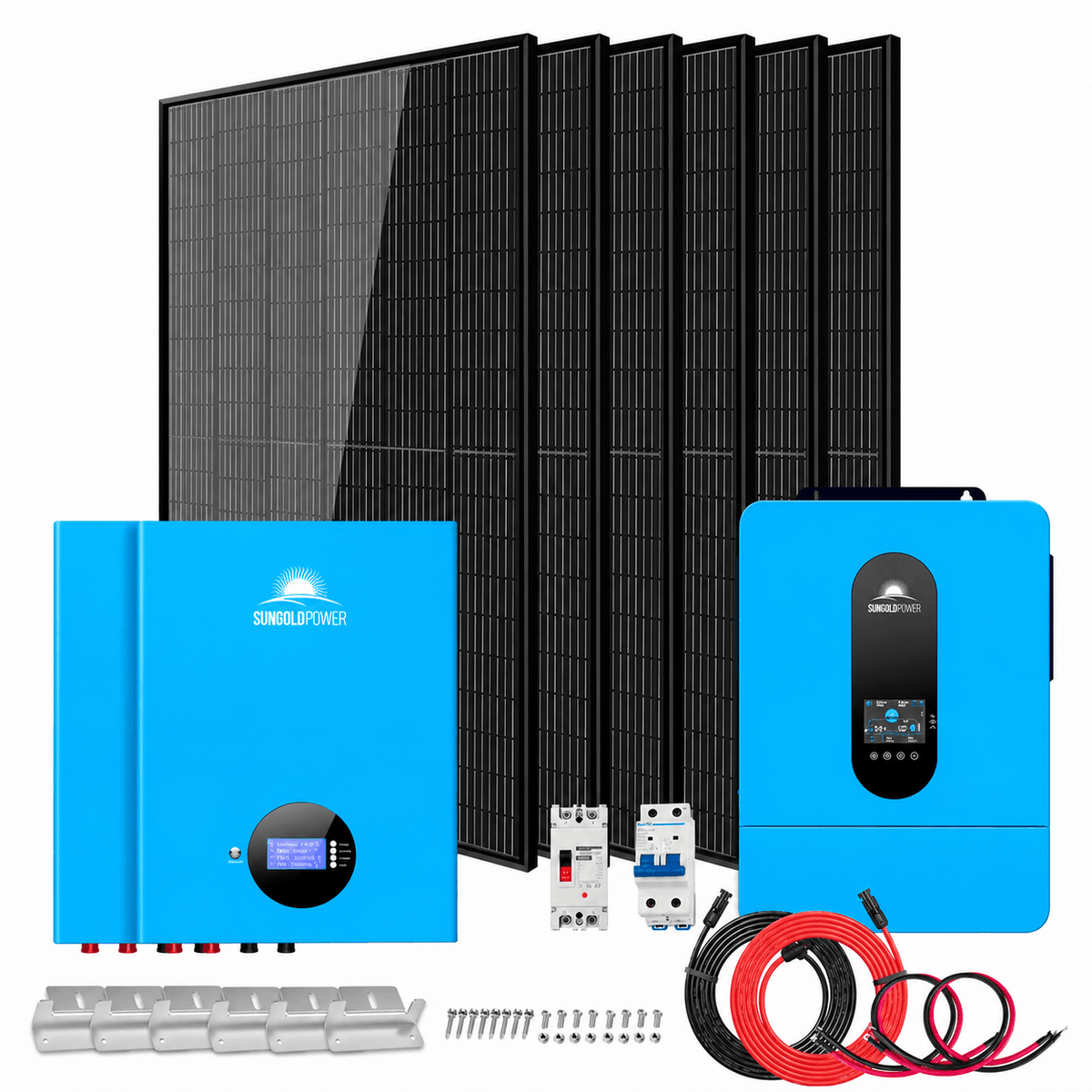

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 6500 Watt UL 1741 48V DC 120V AC Output
• 4 x 370 Watt Monocrystalline Solar Panels
• 1 x 100AH 51.2V PowerWall Lithium Battery
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input
• 4 x Sets of Mounting Z-Brackets

Sungold Power 6500W Off-Grid Solar Kit Feature

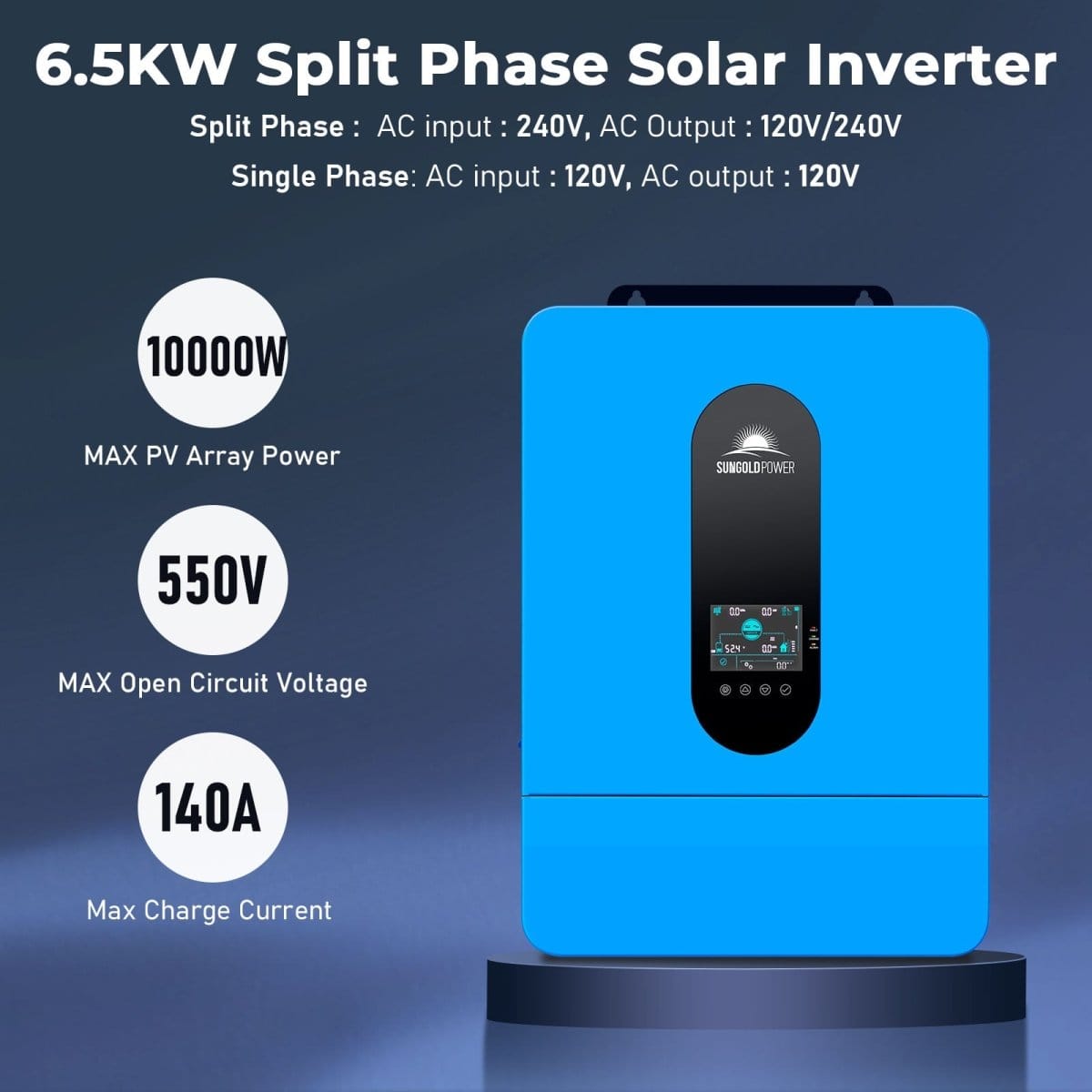

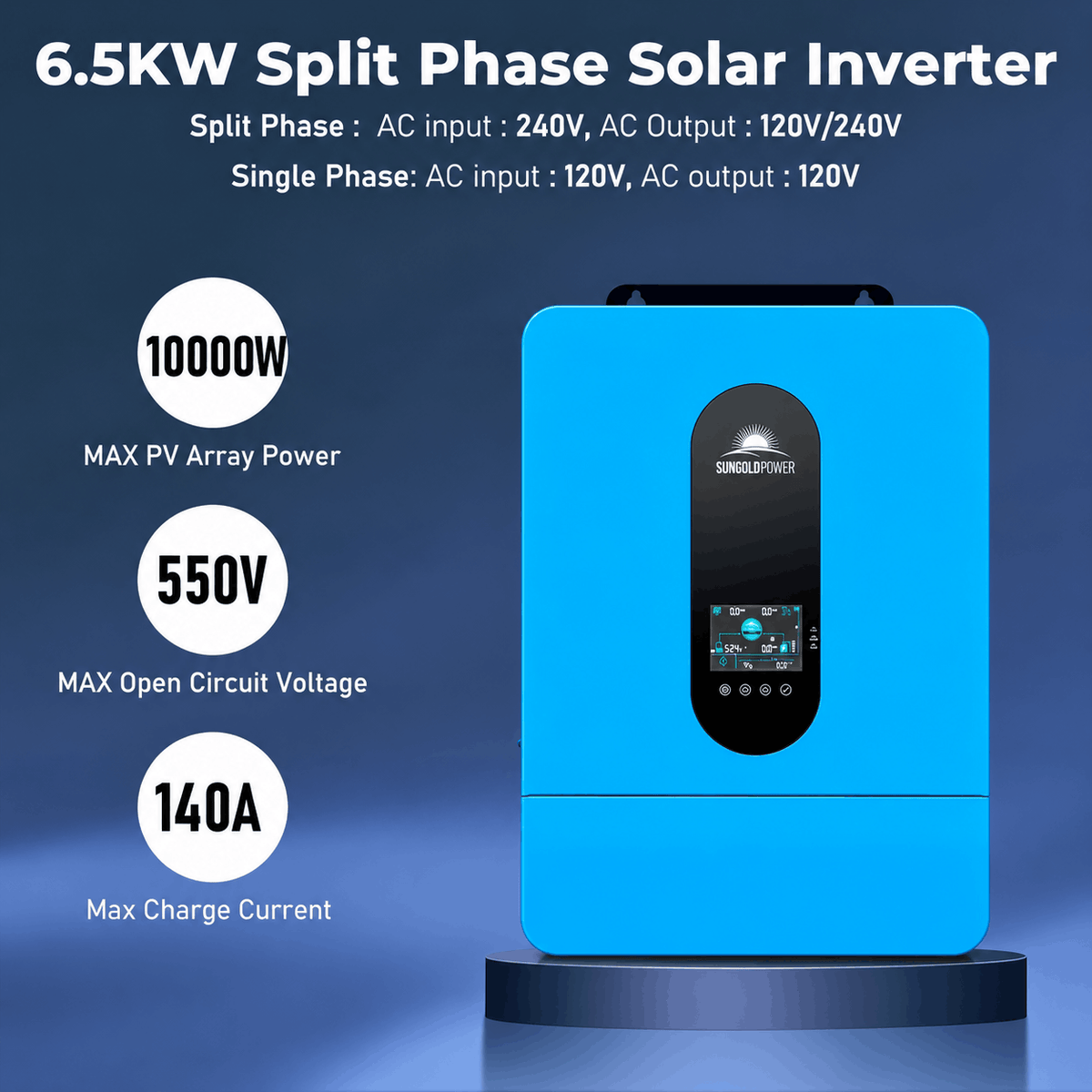

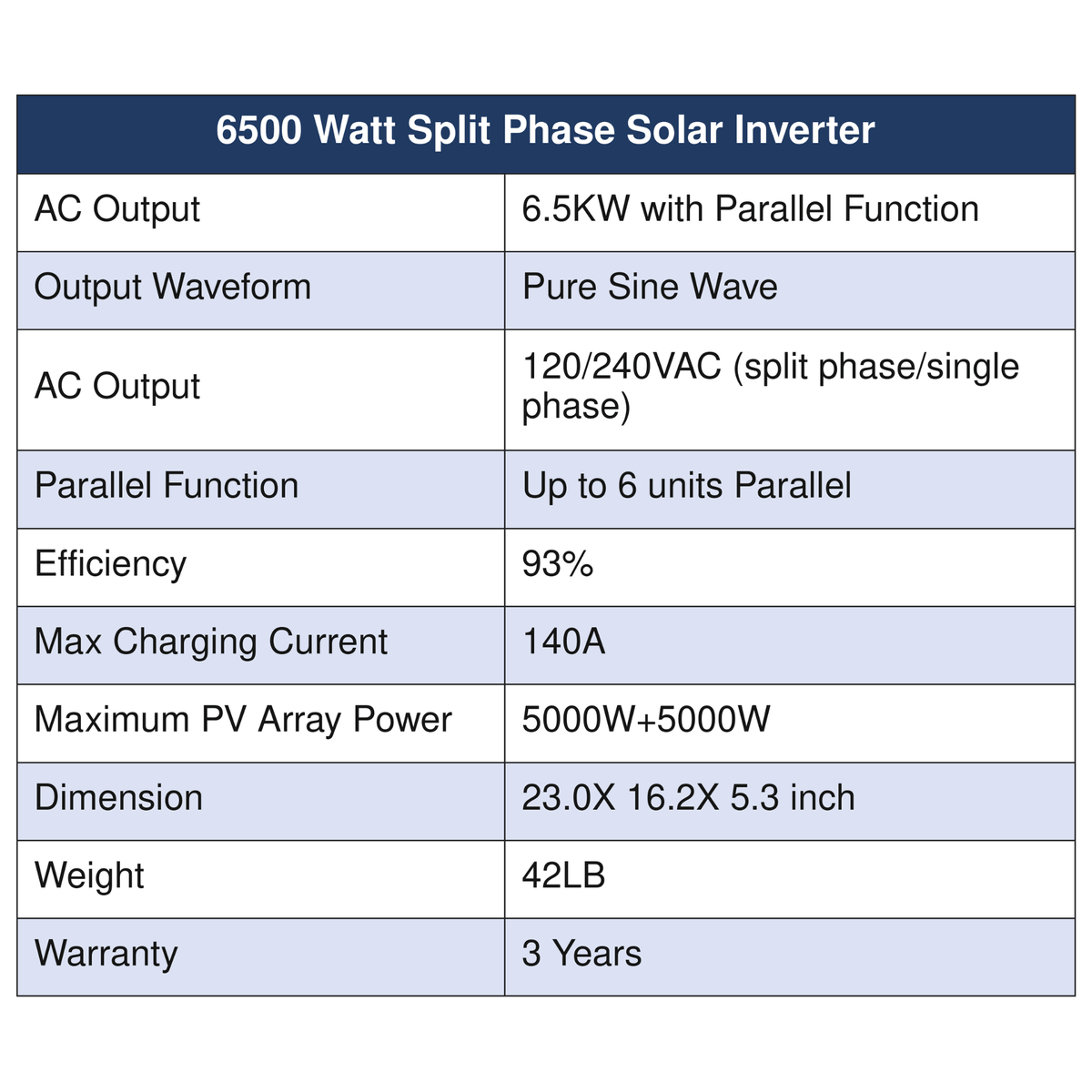

6500 Watt Solar Inverter

• AC Output: 6500W
• Output Waveform: Pure Sine Wave
• AC Output: 120V 60HZ
• Max PV Mppt Operation Voltage: 90-390VDC
• Efficiency: 93%
• Max Charging Current: 120A
• Maximum PV Array Power: 2X4000W
• Dimension: 23.6 X 16.9X 5.9 inch
• Weight: 43LB
• Warranty: 3 Years

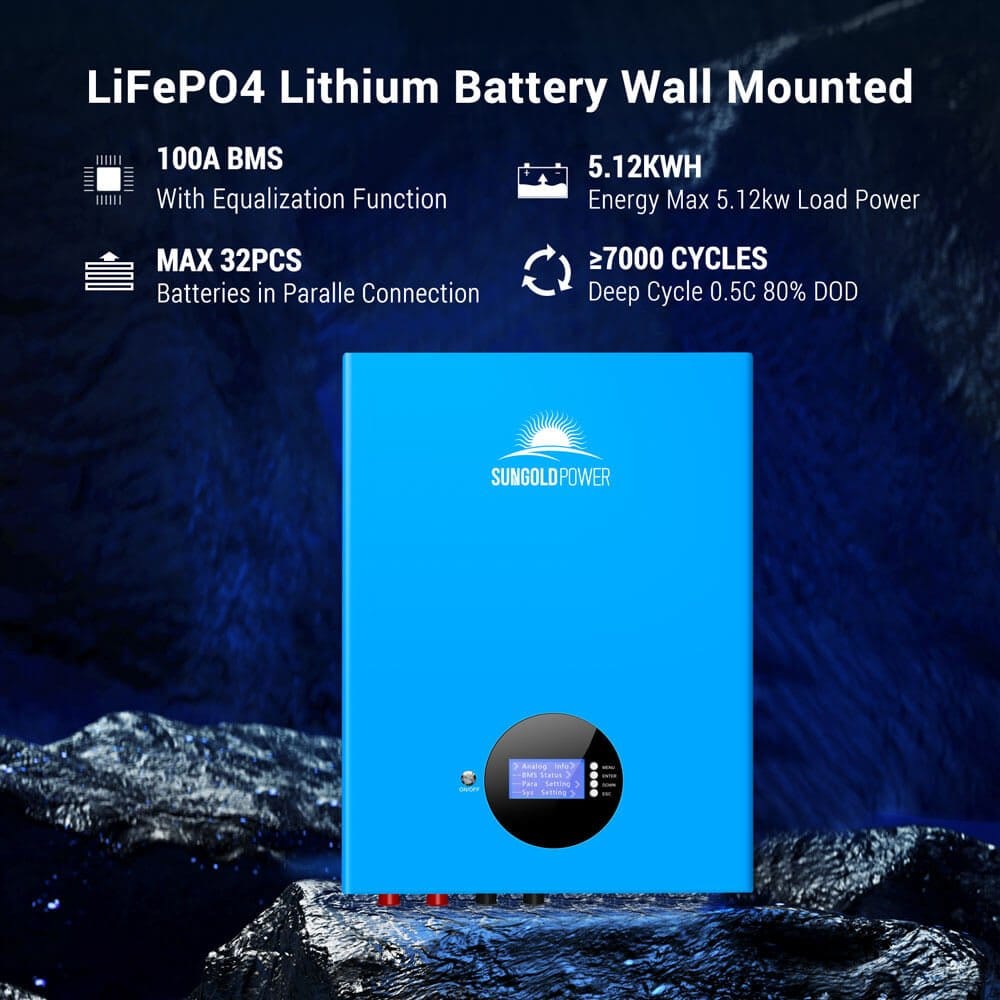

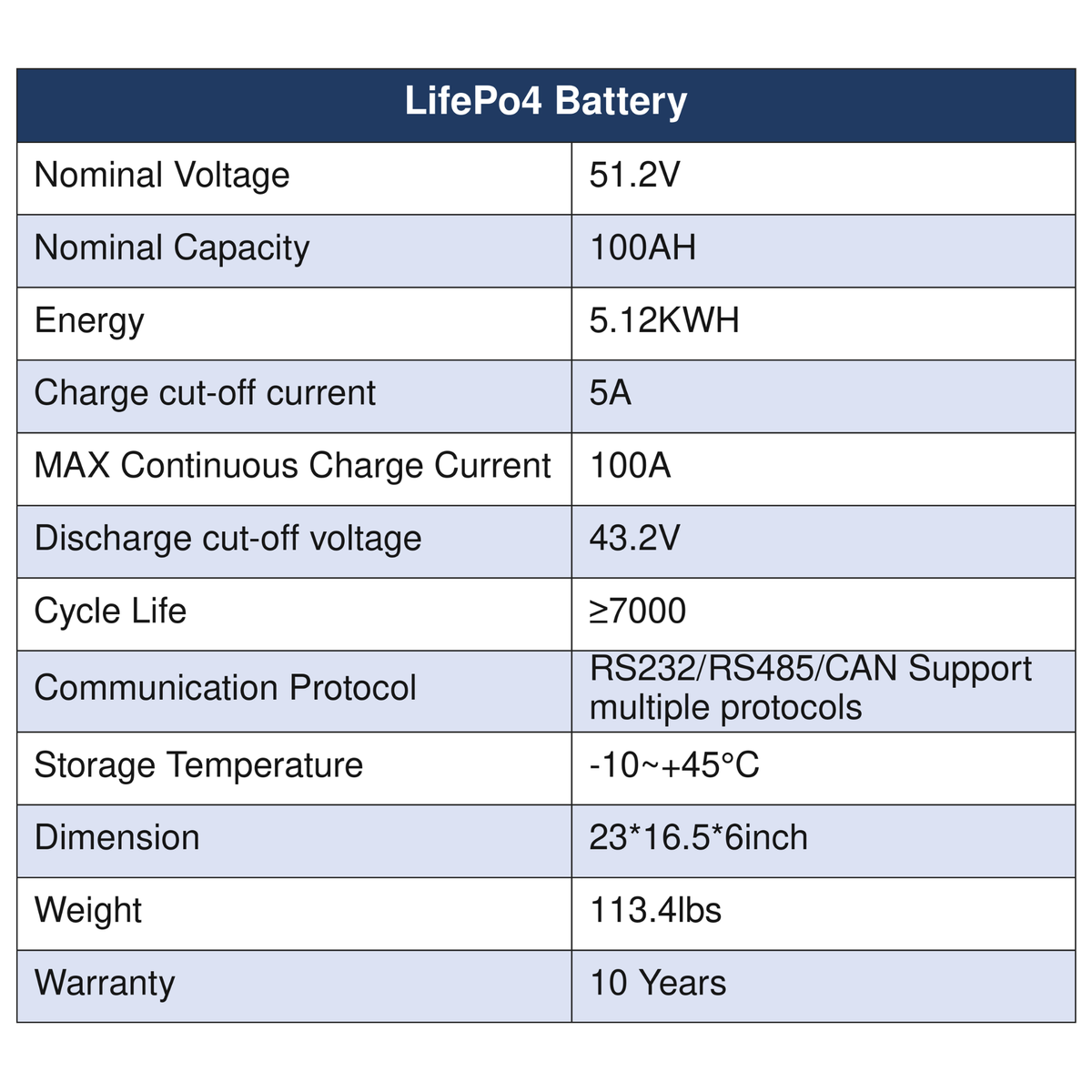

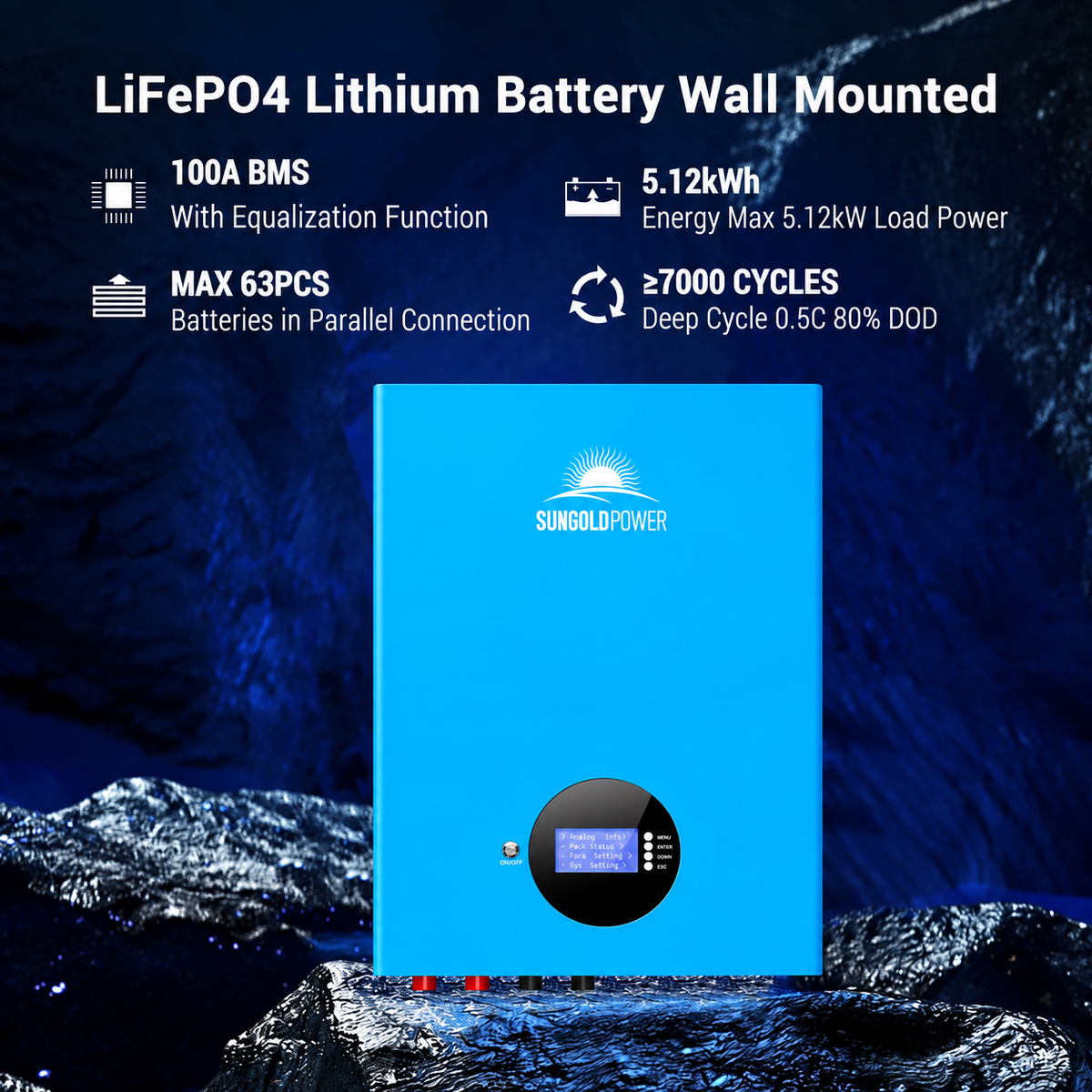

LifePo4 Battery

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Energy: 5.12KWH
• Charge cut-off current: 5A
• MAX Continuous Charge Current: 100A
• Discharge cut-off voltage: 43.2V
• Cycle Life: > 7000
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Storage Temperature: -10~+45°C
• Dimension: 23*16.5*6inch
• Weight: 113.4lbs
• Warranty: 10 Years

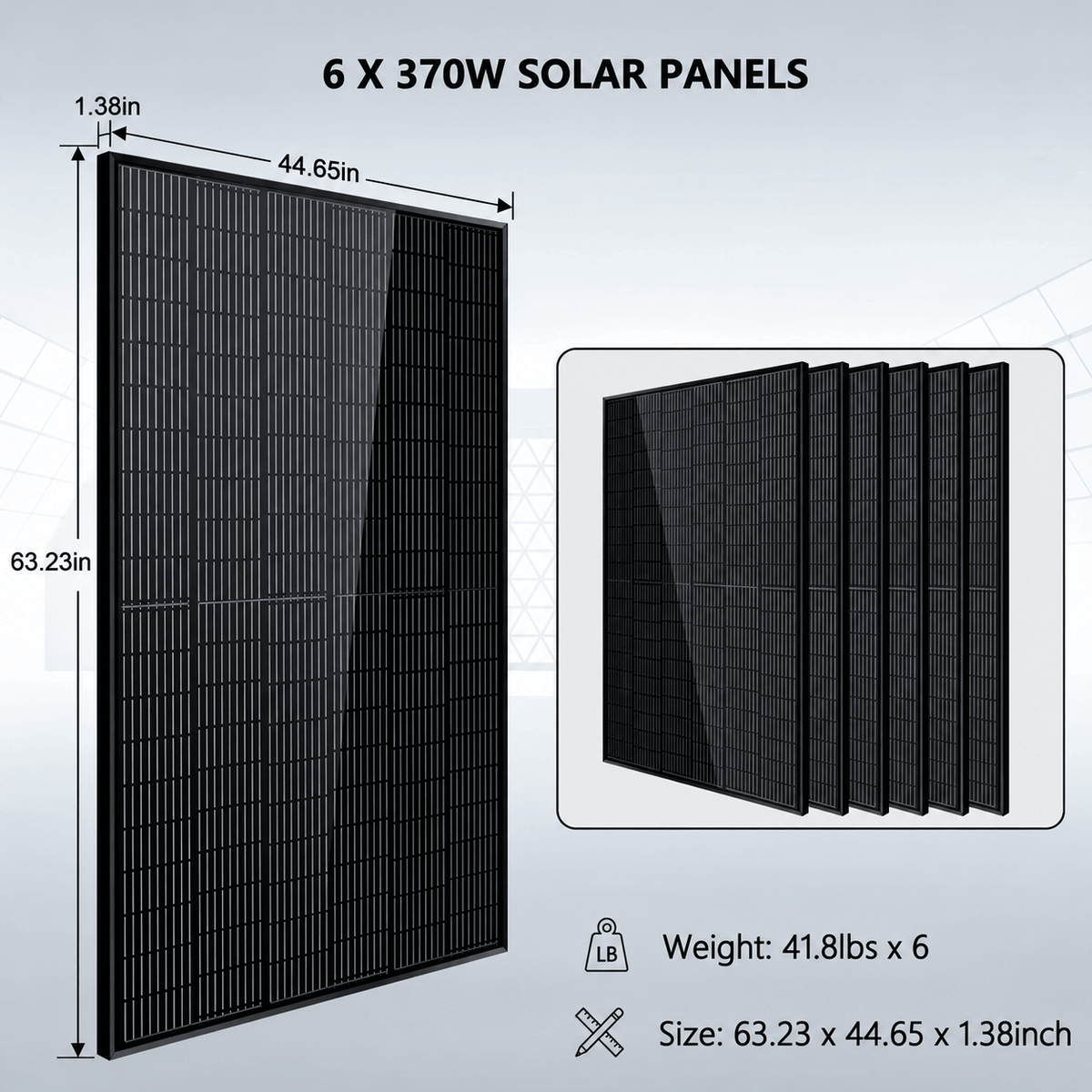

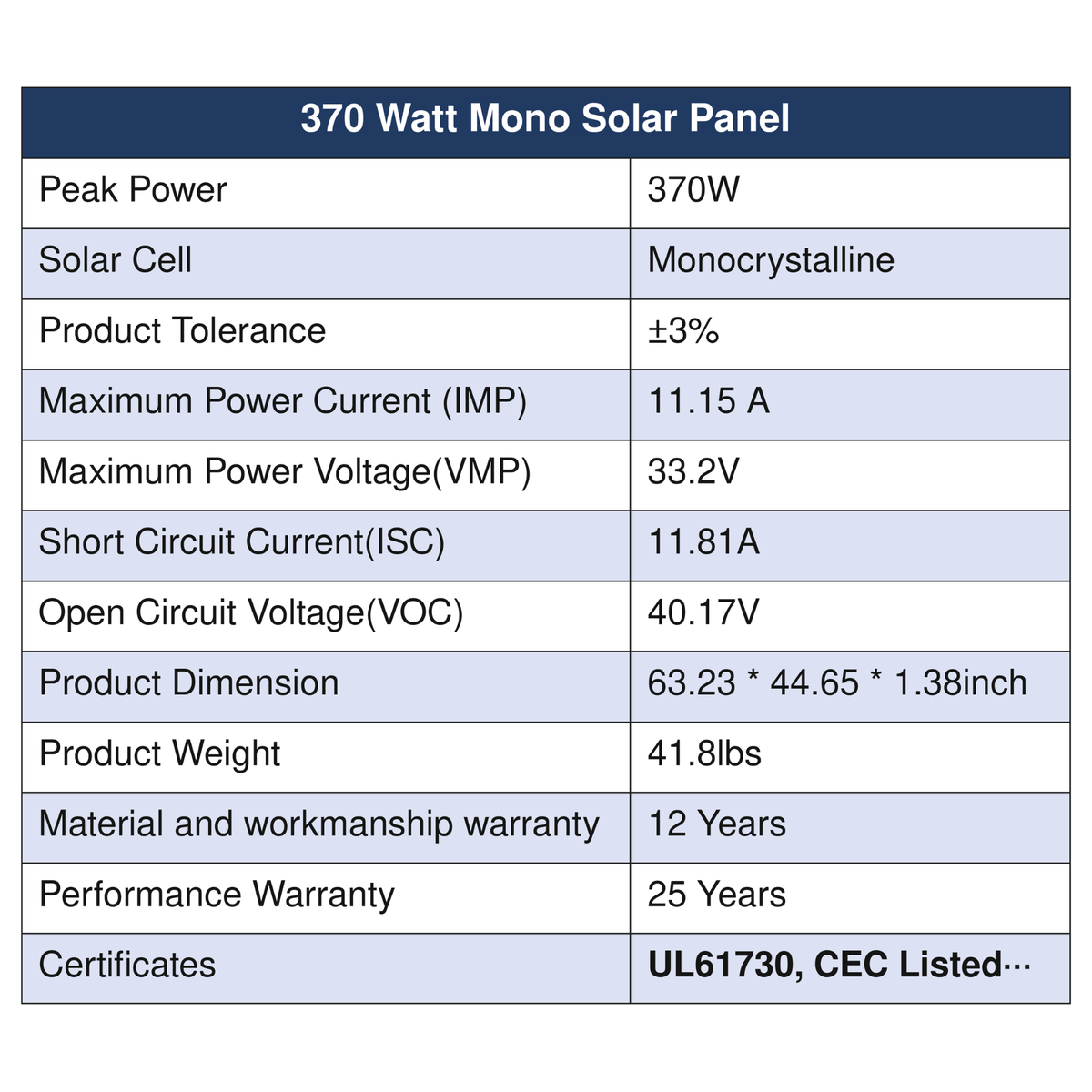

370 Watt Mono Solar Panel

• Peak Power: 370W
• Solar Cell: Monocrystalline
• Product Tolerance: +3%
• Maximum Power Current (IMP): 11.15A
• Maximum Power Voltage(VMP): 33.2V
• Short Circuit Current(ISC): 11.81A
• Open Circuit Voltage(VOC): 40.17V
• Product Dimension: 63.23 X 44.65 X 1.38 inch
• Product Weight: 41.8LB
• Warranty: 25 Years

Solar Kit Specification

• Max Continuous Output: 6500W
• AC Output: 120V
• DC Voltage: 48V
• Max Solar Input: 2 x 4000W
• Total Watt of Panels: 1480W
• Per Panel Watt: 370 Watt
• Panel NO.: 4 pcs
• Total KWH of Batteries: 5.12KWH
• Chemistry: Lithium
• Battery NO.: 1 PCS
• Battery Spec: 48V 100AH

User Manual

• Sungold Power 6500W Inverter User Manual
• Sungold Power 5.12KWH Powerwall LifePo4 Battery User Manual
• Sungold Power 370 Watt Monocrystalline Solar Panel User Manual
