Sungold Power Off-Grid Solar Kit 5000W 48VDC 120V LifePo4 10.24KWH Lithium Battery 6 X 415 Watts Solar Panels

Sungold Power 5000W Off-Grid Solar Kit Overview

Our off grid solar system kit come with mostly that you need to set up off-grid solar system,it includes the 5000W inverter allowing you to connect Max 5000W of solar panel, 6 X 415w solar panel, 2 x 5.12kwh server rack batteries, a set of solar cables and brackets.The Solar Array will produce around 10KWH per day based on 4 hours sun. You can add more batteries and solar panel according to your requirment. with Wi-Fi monitor shows the performance and energy data of your solar system through an app. Let’s Enjoy off grid living and the adventure with Solar Energy Kit !

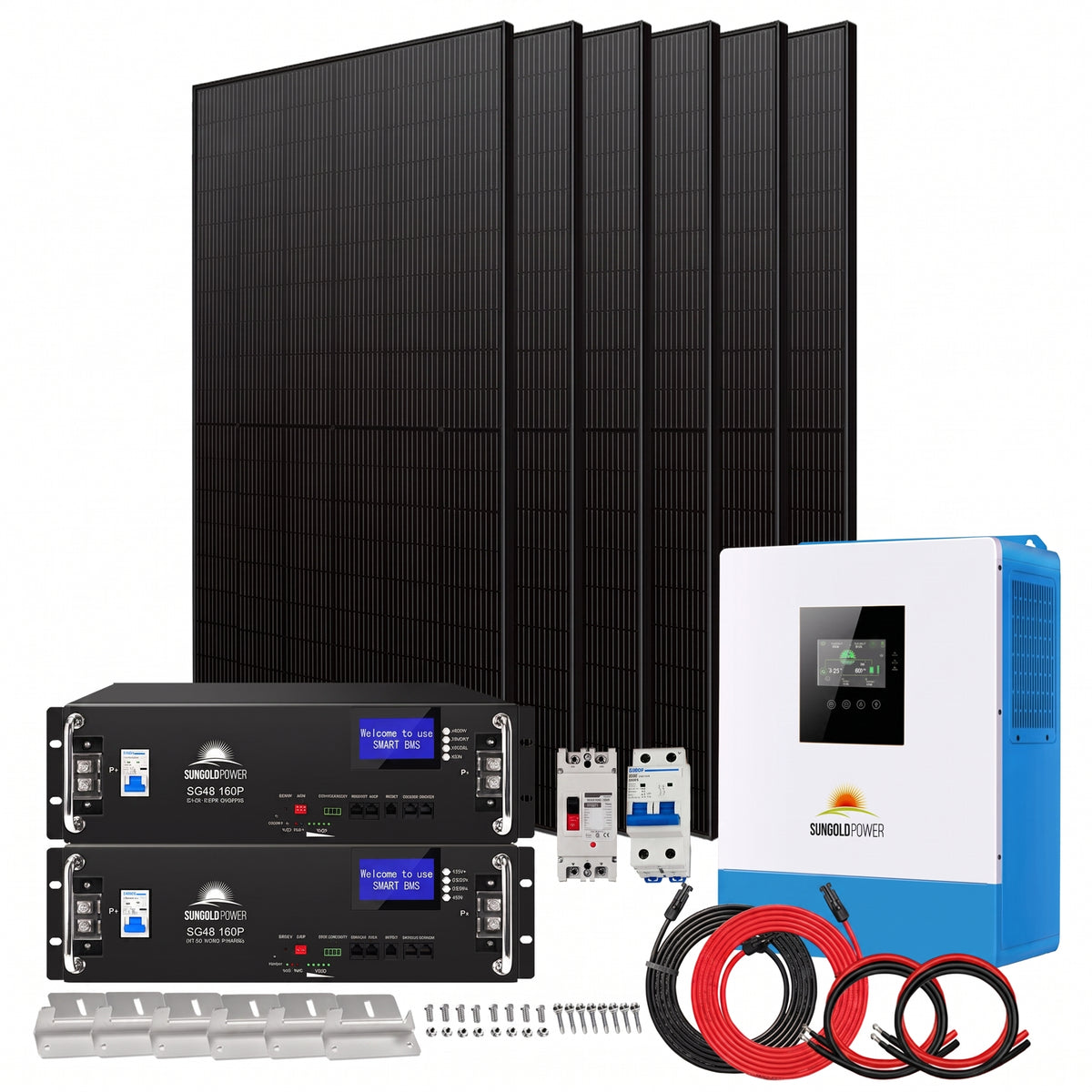

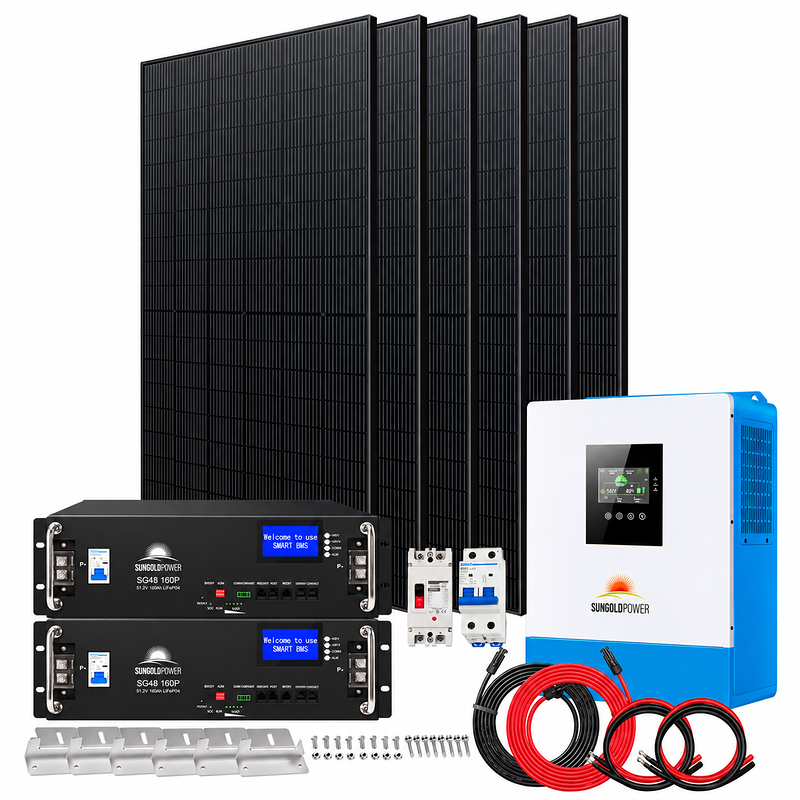

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 5000 Watt 48V DC 120V Output with Wifi Model
• 6 x 415 Watt Monocrystalline Solar Panels

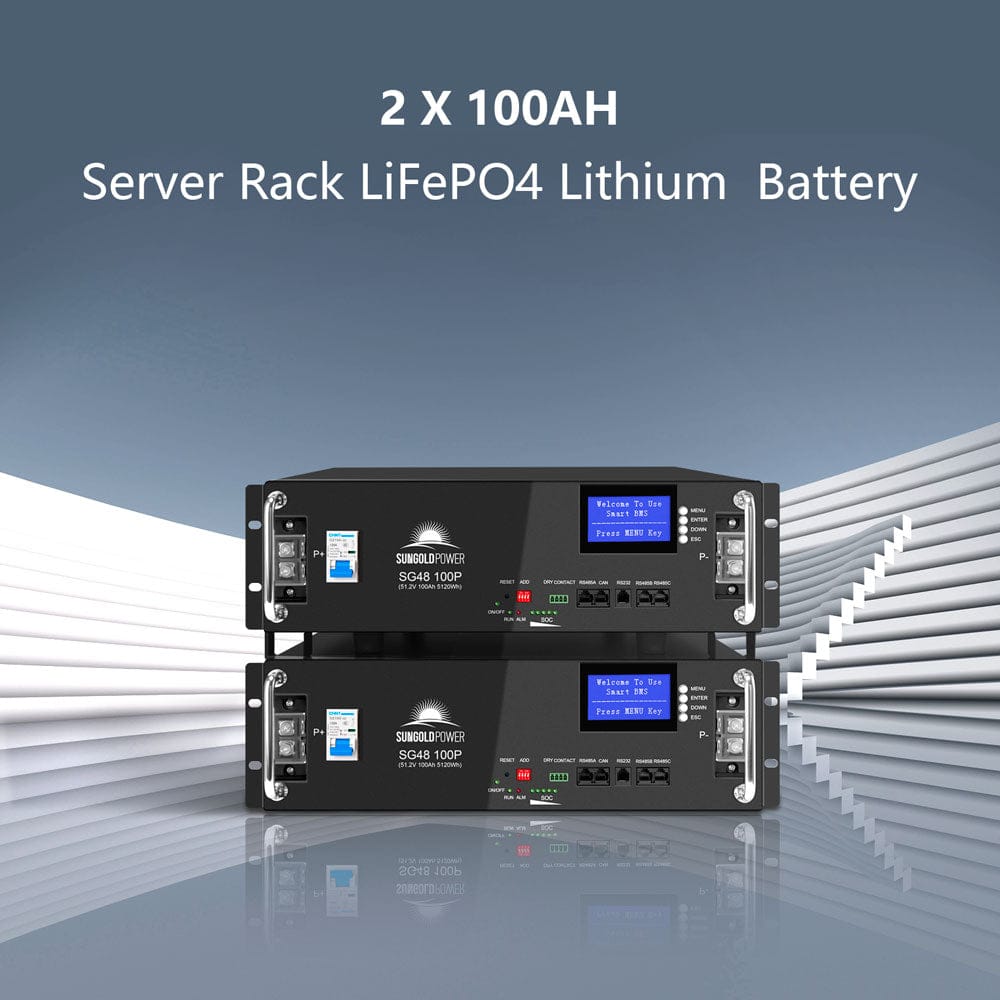

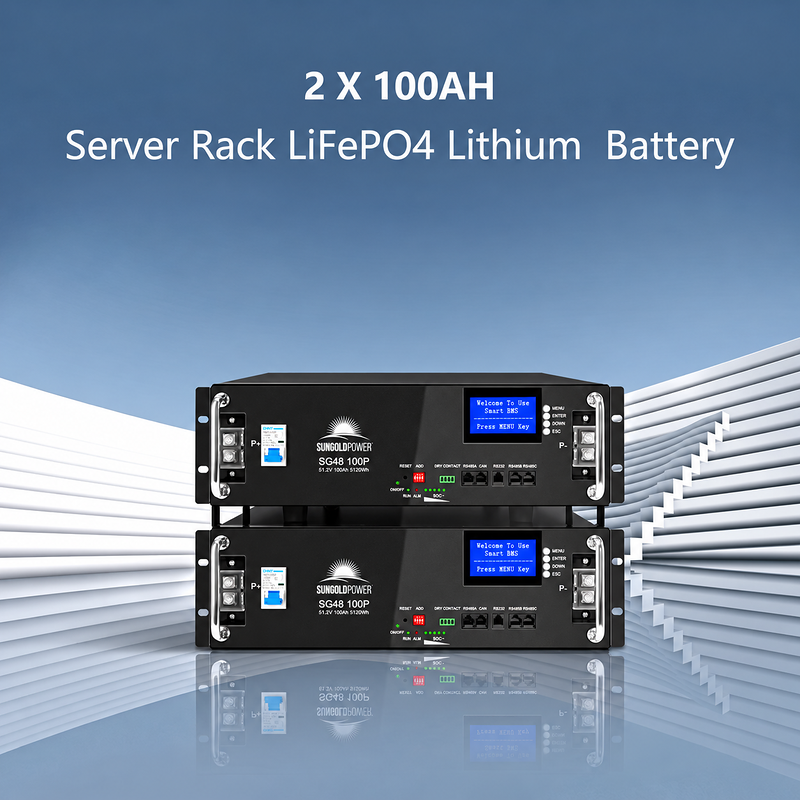

• 2 x 100AH 51.2V Lifepo4 Battery
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input
• 6 x Sets of Mounting Z-Brackets

Sungold Power 5000W Off-Grid Solar Kit Feature

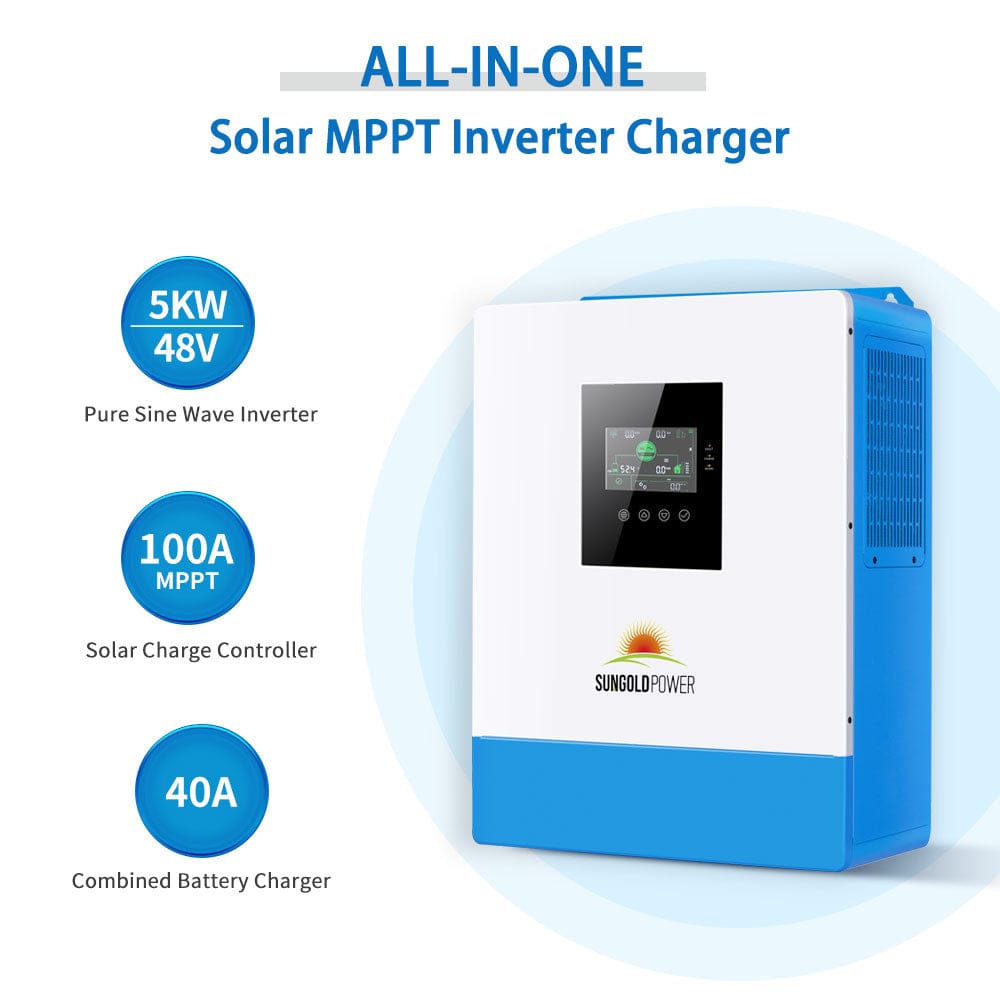

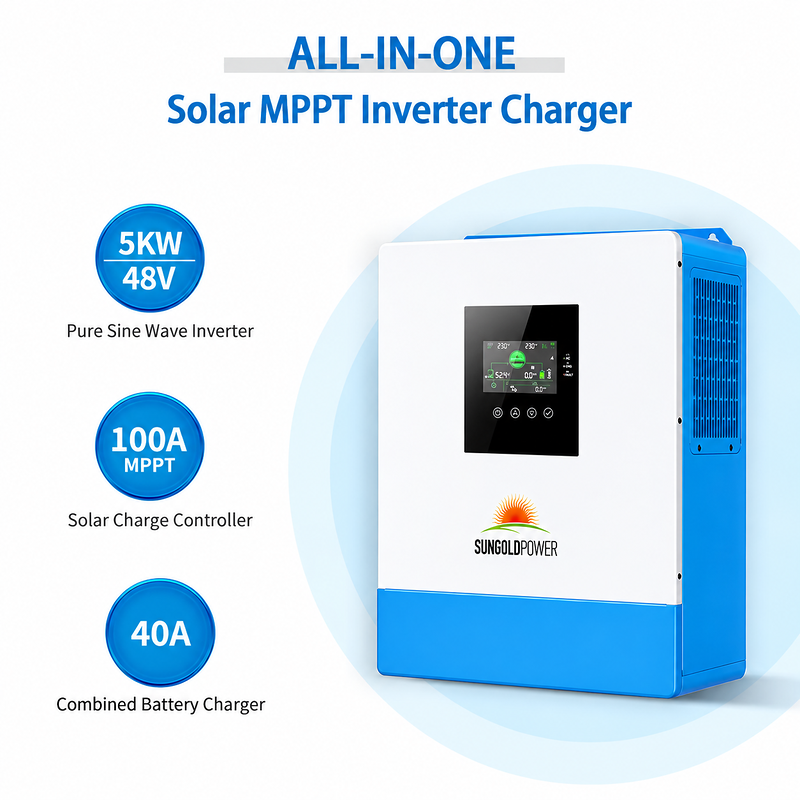

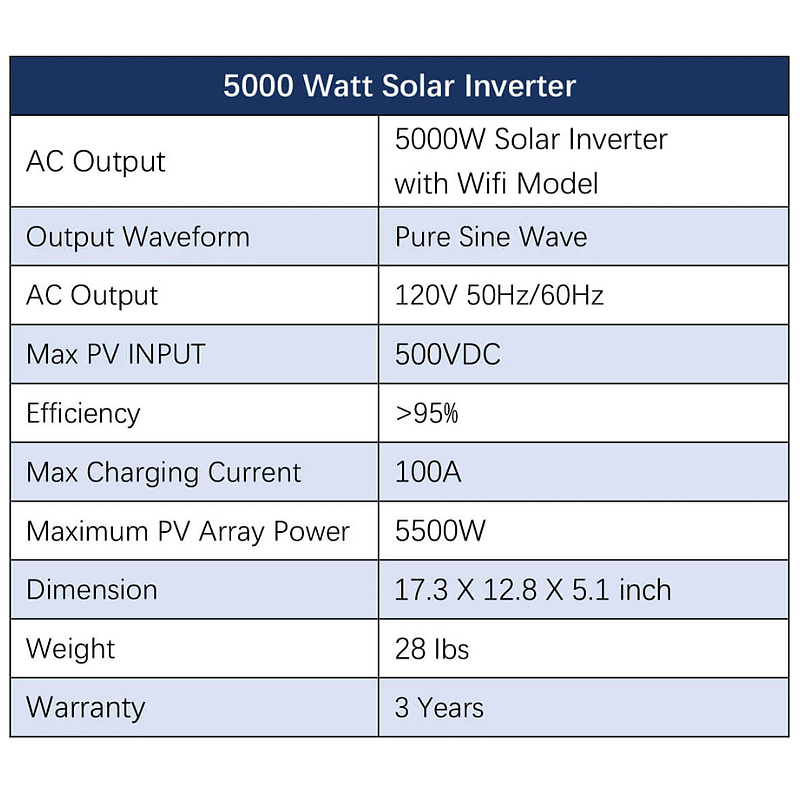

5000 Watt Solar Inverter

• AC Output: 5000W Solar Inverter with Wifi Model
• Output Waveform: Pure Sine Wave
• AC Output: 120V 50Hz/60Hz
• Max PV INPUT: 500VDC
• Efficiency: >95%
• Max Charging Current: 100A
• Maximum PV Array Power: 5500W
• Dimension: 17.3 X 12.8 X 5.1 inch
• Weight: 28LB
• Warranty: 3 Years

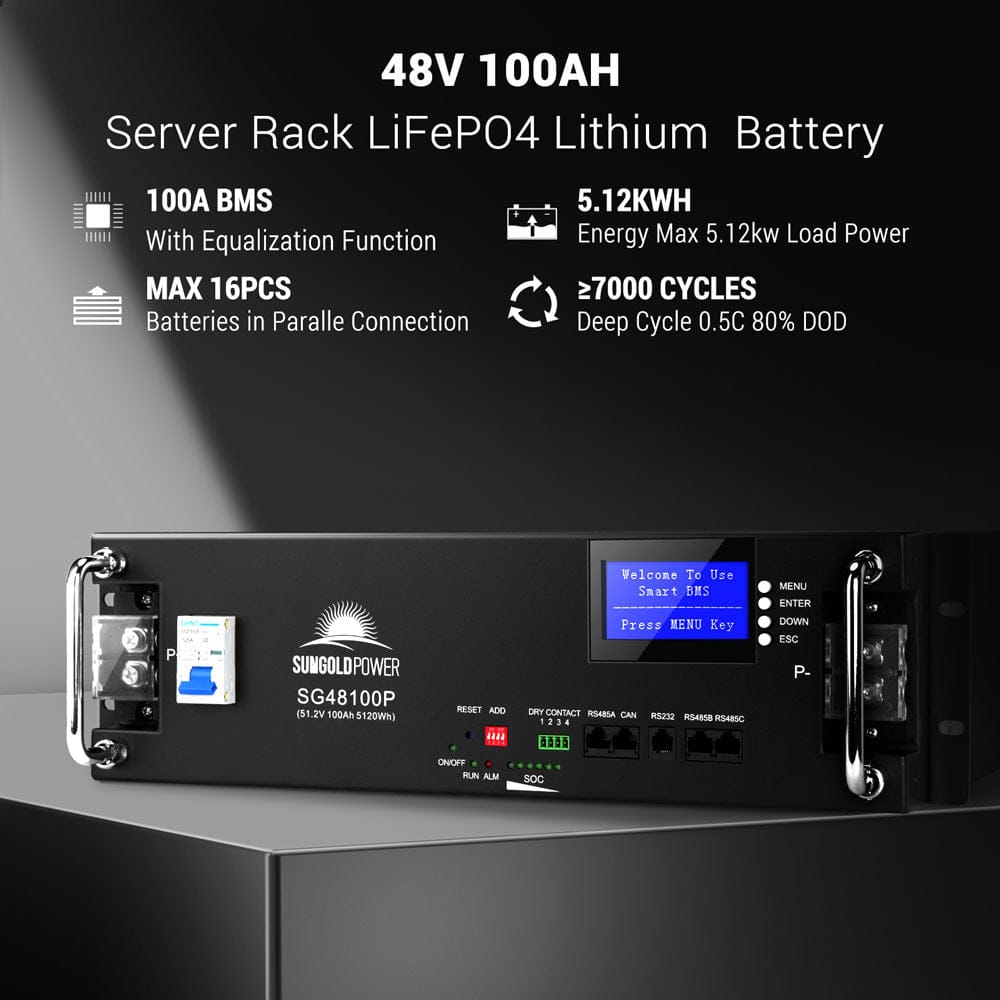

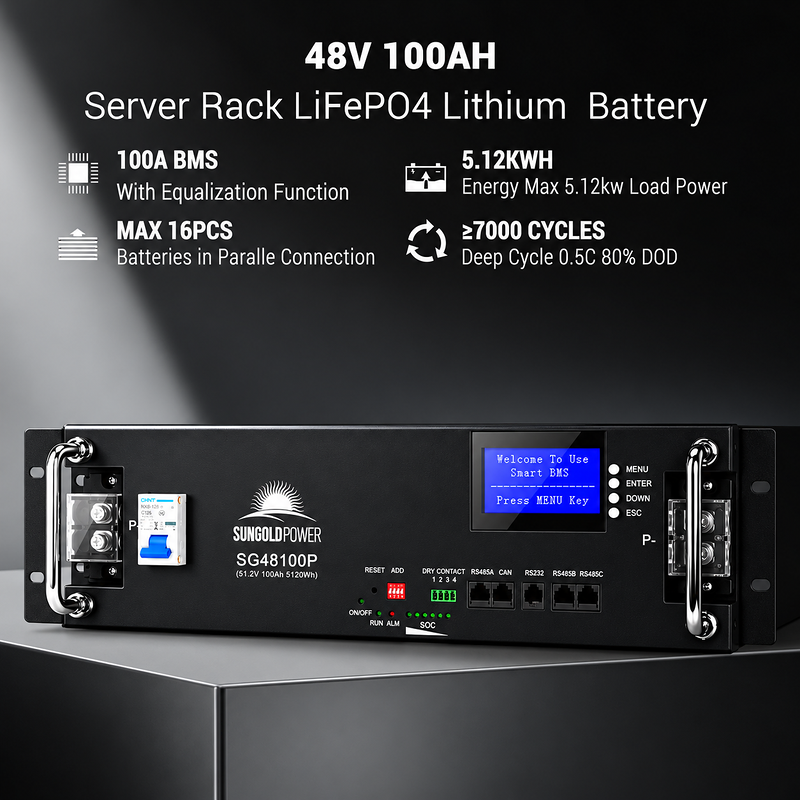

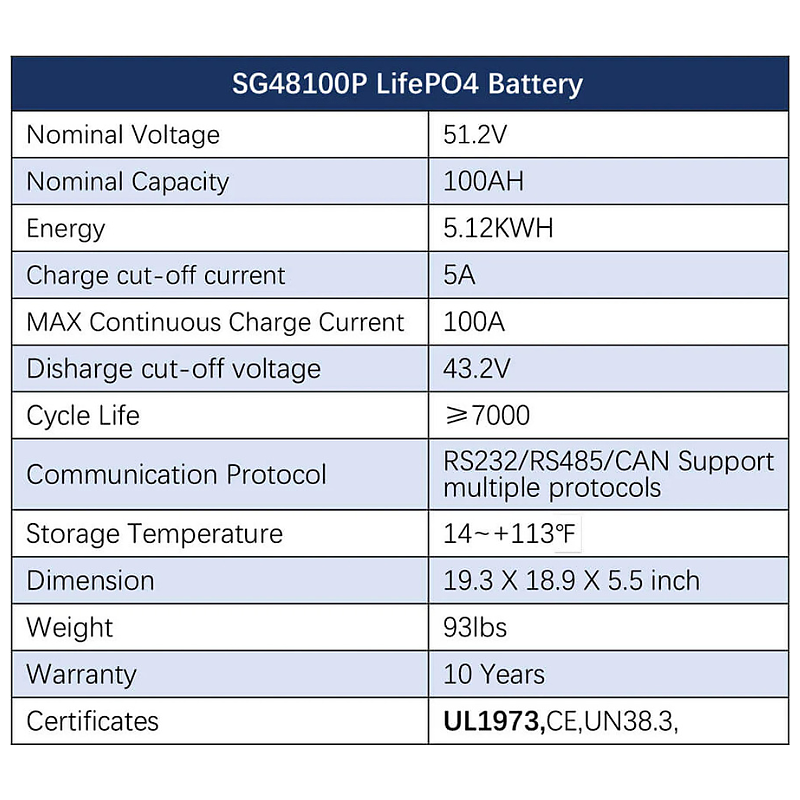

LifePo4 Battery

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Energy: 5.12KWH
• Charge cut-off current: 5A
• MAX Continuous Charge Current: 100A
• Discharge cut-off voltage: 43.2V
• Cycle Life: >7000
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Storage Temperature: -10~+45°C
• Dimension: 19.3*18.9*5.5inch
• Weight: 93lbs
• Warranty: 10 Years

415 Watt Mono Solar Panel

• Peak Power: 415W
• Solar Cell: Monocrystalline
• Product Tolerance: ±3%
• Maximum Power Current (IMP): 13.13A
• Maximum Power Voltage (VMP): 31.61V
• Short Circuit Current(ISC): 13.79A
• Open Circuit Voltage(VOC): 38.82V
• Product Dimension: 67.9 X 44.7 X 1.4 inch
• Product Weight: 45.1LB
• Warranty: 25 Years

Solar Kit Specification

• Max Continuous Output: 5000W
• AC Output: 120V
• DC Voltage: 48V
• Max Solar Input: 5000W
• Total Watt of Panels: 2490W
• Per Panel Watt: 415 Watt
• Panel NO.: 6 pcs
• Total KWH of Batteries: 10.24KWH
• Chemistry: Lithium
• Battery NO.: 2pcs
• Battery Spec: 48V 100AH

User Manual

• Sungold Power 5000W Pure Sine Wave Inverter User Manual
• Sungold Power LifePo4 5.12KWH Lithium Battery User Manual
• Sungold Power 415 Watt Monocrystalline Solar Panels
