Sungold Power Off-Grid Solar Kit 4000W Inverter 12VDC 120V/240V LiFePO4 Battery 1200 Watt Solar Back Up

Sungold Power 4000W Off-Grid Solar Kit Overview

If you spend time camping and traveling in an RV, a solar system setup can be a cost-effective, environmentally friendly and convenient way to use electricity on the go. An RV solar panel kit consists of solar panel, inverter, a charge controller, brackets, and solar wires needed to mount the panel on an RV. You can add more batteries and solar panel according to your requirment. Let’s Enjoy RV living, the adventure, seeing interesting places with Solar Energy Kit !This Package is a great starter package for a Complete Offgrid cabin or RV. The Solar Array will produce around 5400 Watts per day based on 4.5 hours sun. This size of system generally works great for cabins, shops, RVs and etc that use around 162 KWH per month. This system is built to be scaled up for future additions of Panels or Batteries.

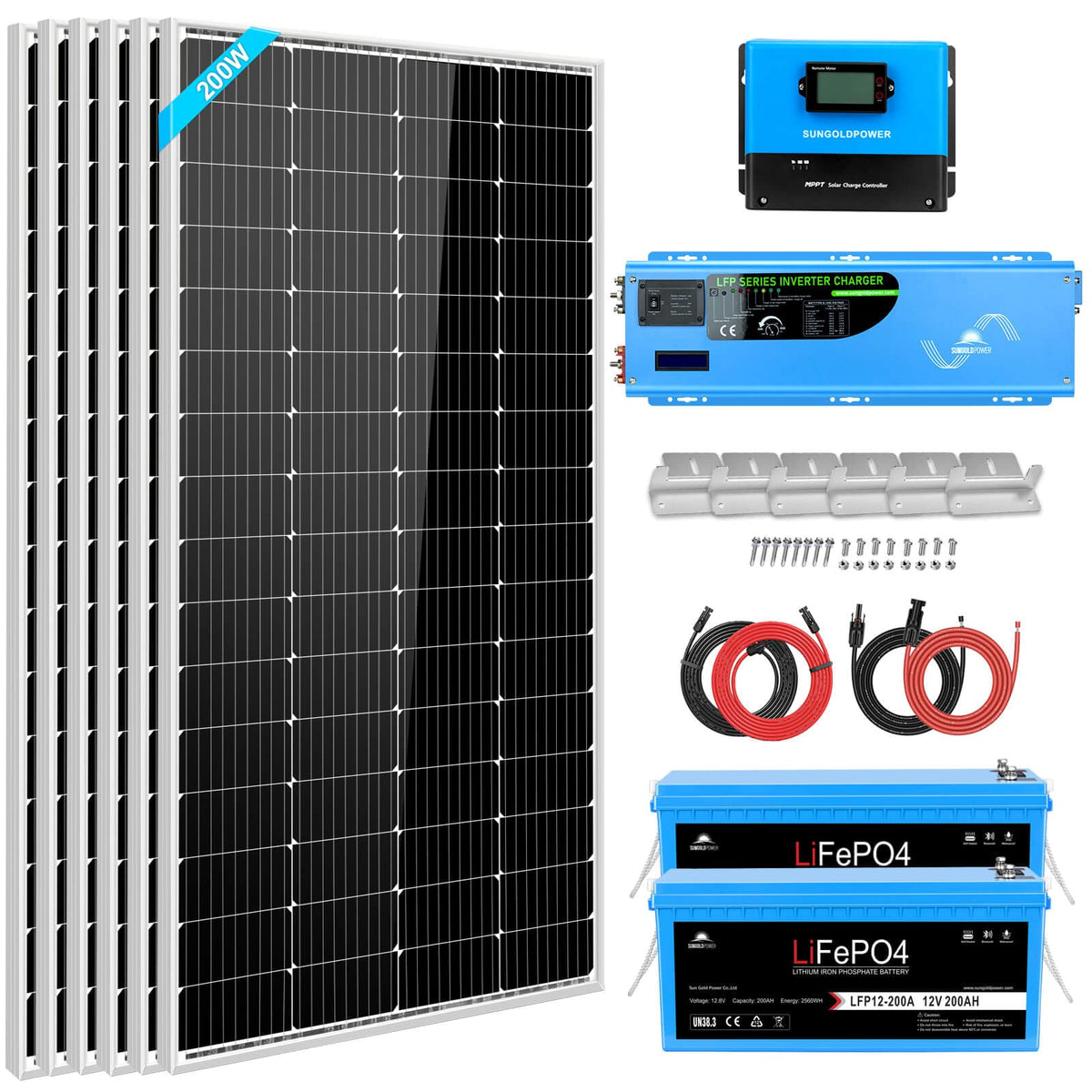

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 4000 Watt 12V DC 120V/240V Split Phase Inverter
• 6 x 200 Watt Monocrystalline Solar Panels
• 2 x 12V 200AH  Lifepo4 battery with Bluetooth
• 1 x 100A MPPT Solar Charge Controller
• 6 x Sets of Mounting Z-Brackets
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input
• 1 x Sets Solar Cables Between Solar Panel and MPPT Controller

Sungold Power 4000W Off-Grid Solar Kit Feature

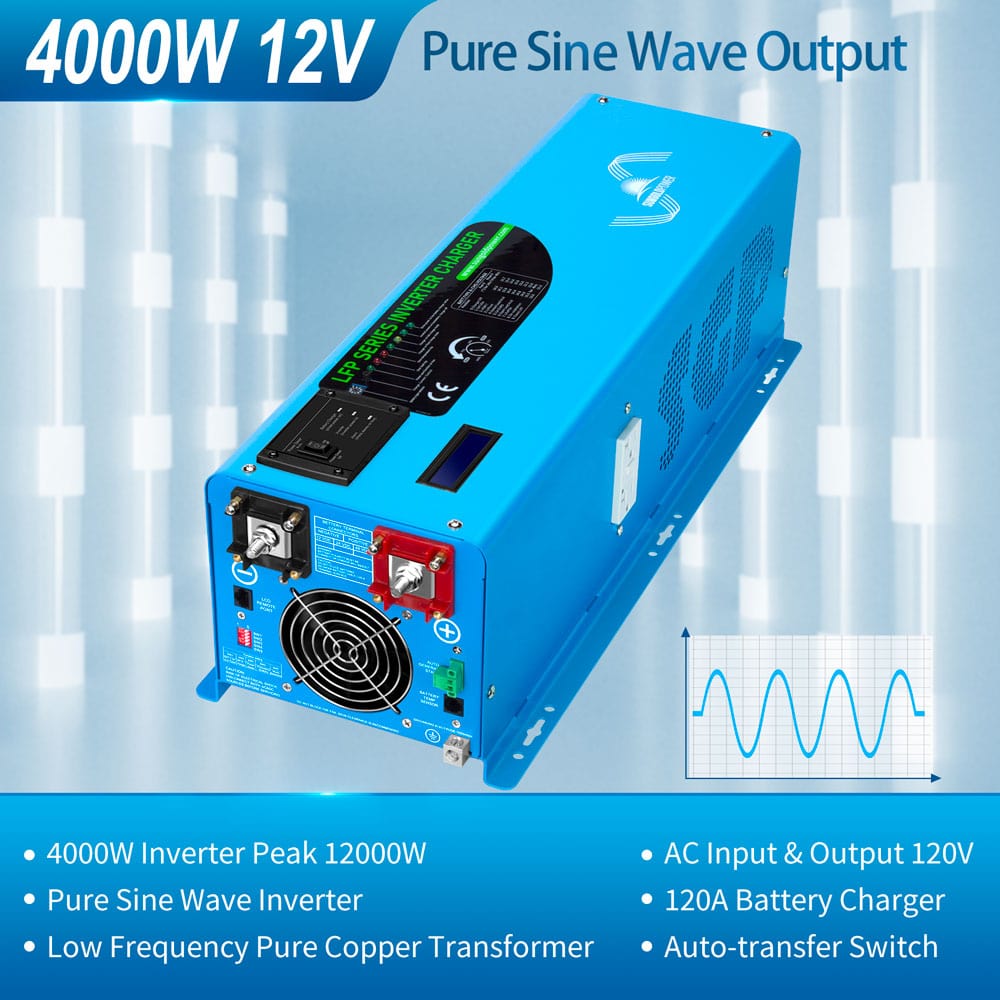

4000 Watt Inverter

• AC Output: 4000W
• Output Waveform: Pure Sine Wave
• AC Output: 120V/240V, 50HZ/60HZ
• Efficiency: >88%
• Nominal Input Voltage: 12VDC
• Max Charging Current: 120+/-5A
• Dimension: 25.6 x 9.1 x 7.5 inch

• Weight: 58.9LB
• Warranty: 3 Years

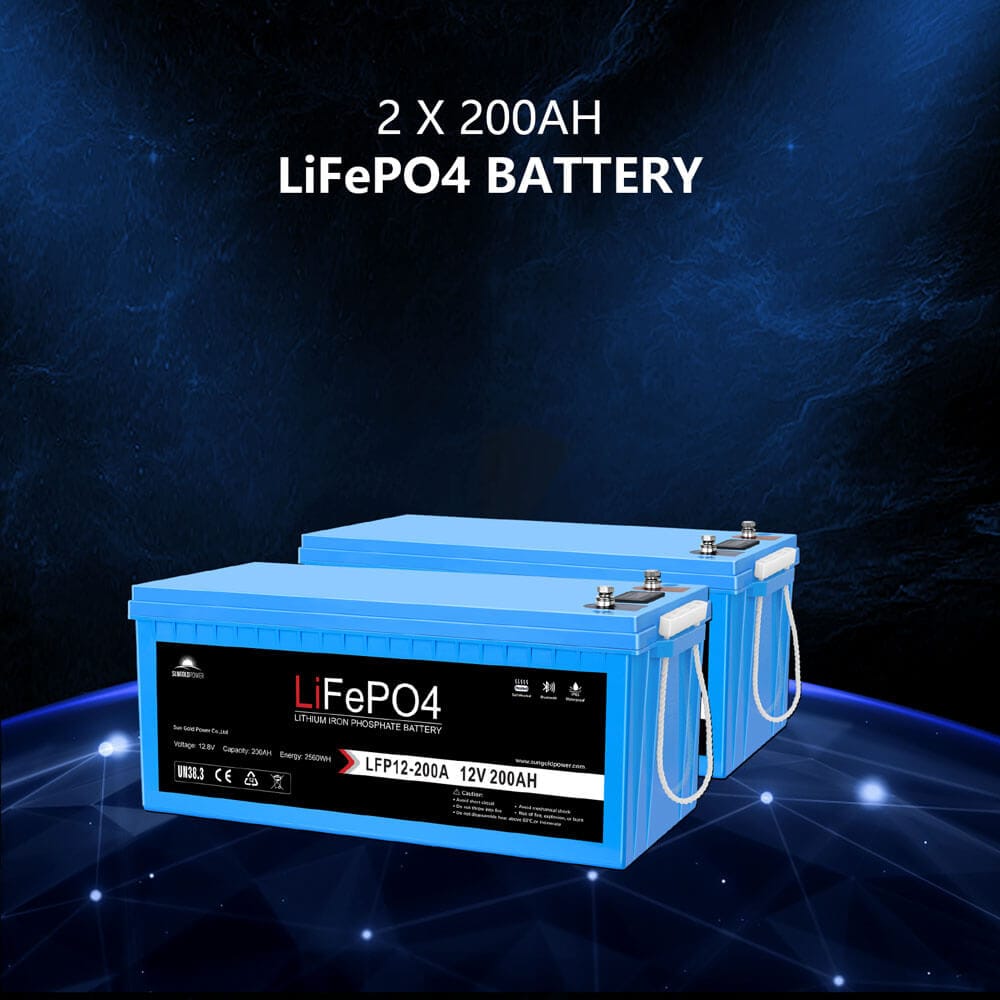

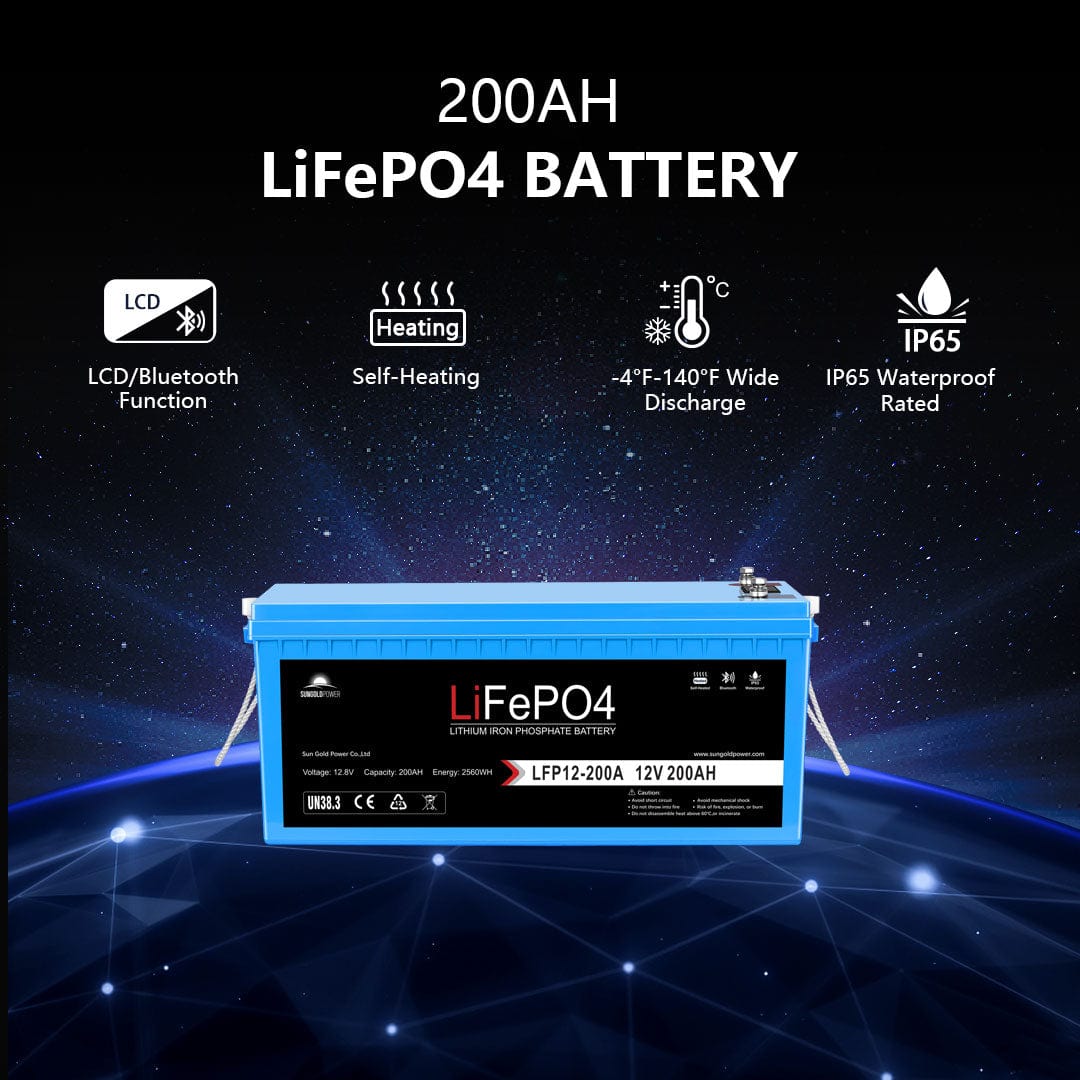

LifePo4 Battery

• Nominal Voltage: 12.8V
• Nominal Capacity: 200AH
• Energy: 2560WH
• Voltage window: 10.8-14.6V
• MAX Continuous Charge Current: 150A
• Peak Discharge Current: 245A
• Cycle Life: >4000
• Main Charactor: Self Heating / IP65
• Monitoring function: LCD/Bluetooth
• Dimension: 19.7 x 9.4 x 9.1 inch
• Weight: 48.5 lbs
• Warranty: 5 Years

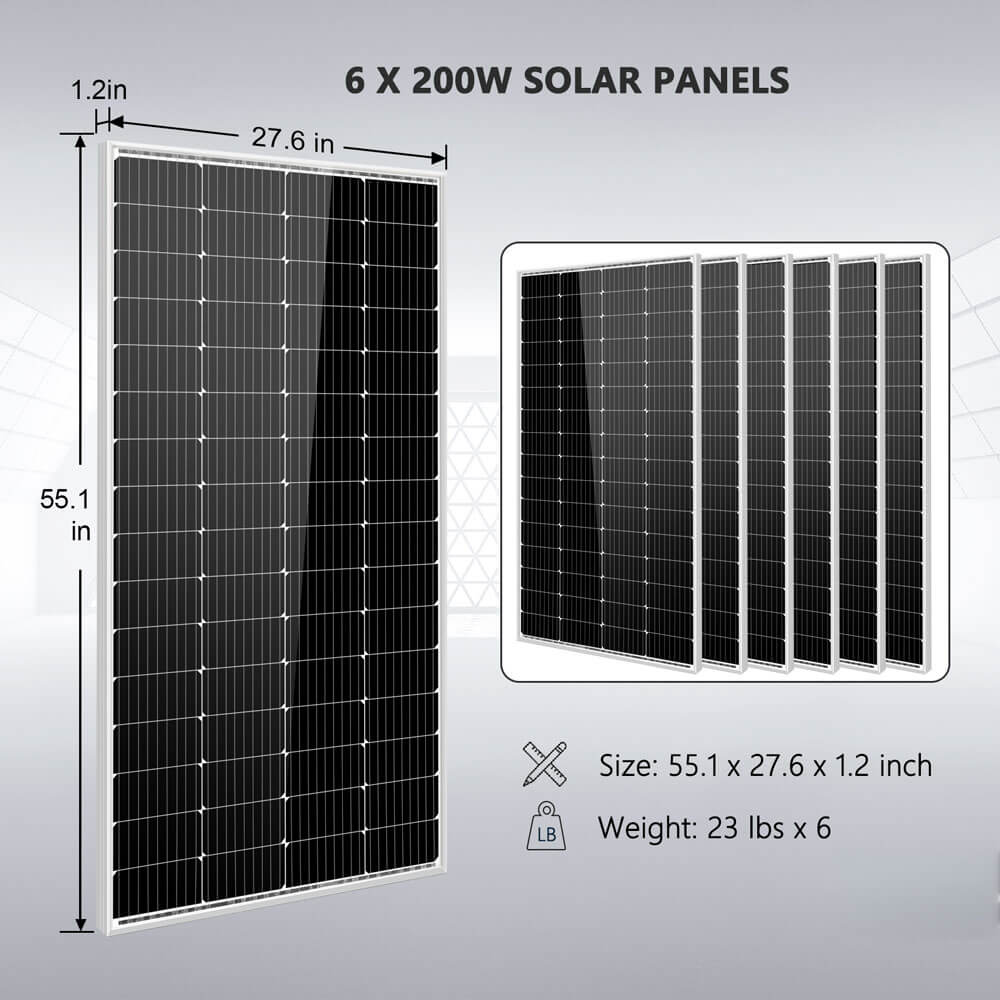

200 Watt Mono Solar Panel

• Peak Power: 200W
• Solar Cell: Monocrystalline
• Product Tolerance: +3%
• Maximum Power Current (IMP): 5.28A
• Maximum Power Voltage(VMP): 37.9V
• Short Circuit Current(ISC): 5.57A
• Open Circuit Voltage(VOC): 43.5V
• Product Dimension: 55.1 X 27.6 X 1.2 inch
• Product Weight: 23lbs
• Warranty: 25 Years

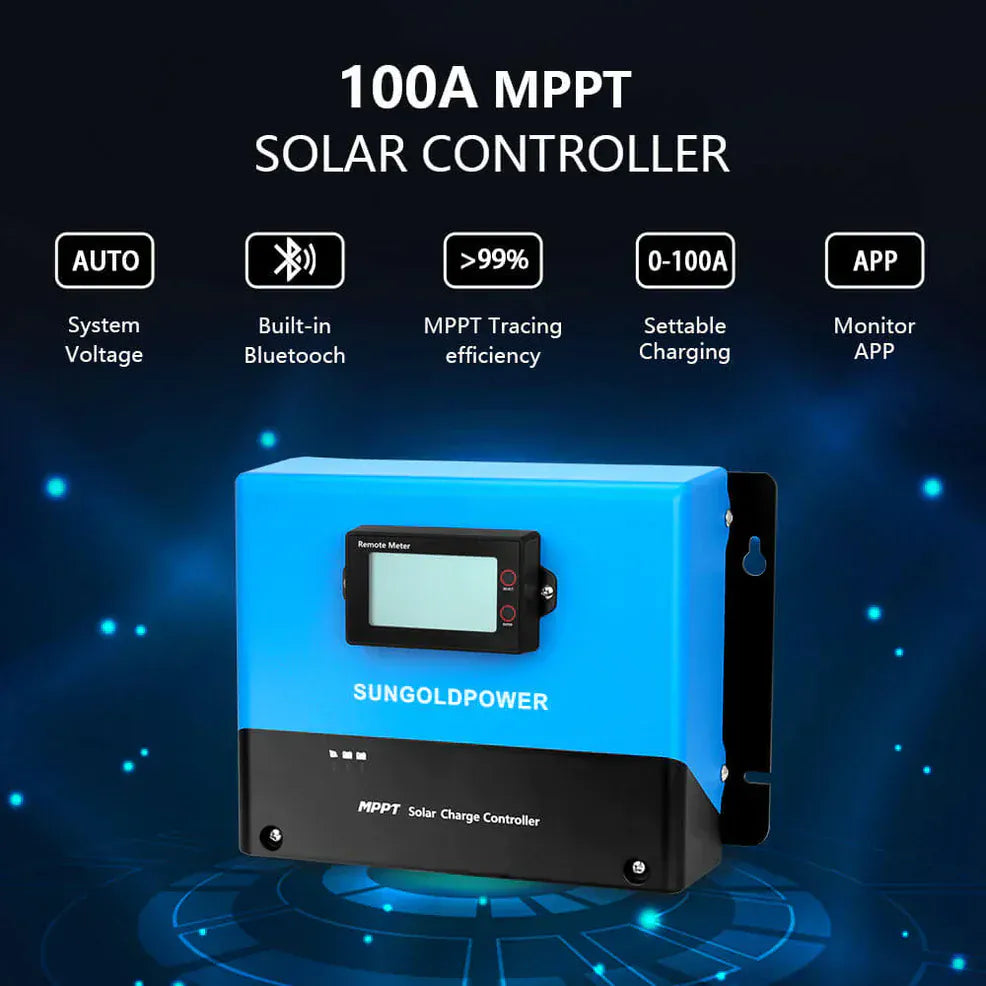

100A Mppt Solar Controller

• System Voltage: 12V/24V/36V/48V Auto
• Support: Bluetooth and APP monitoring
• Maximum PV Open-circuit Voltage: 250V
• Maximum PV Short-circuit Current: 70A
• Rated Charging Current: 100A
• Settable Charging Current: 0-100A
• Power of Solar Panel: 12V-1320W, 24V-2640W, 36V-3960W, 48V-5280W
• MPPT Tracing efficiency: >99%
• Product Dimension: 12.4 X 8.9 X 4.8 inch
• Product Weight: 12.5lb
• Warranty: 3 Years

Solar Kit Specification

• Max Continuous Output: 4000W
• AC Output: 120V/240V
• DC Voltage: 12V
• Max Solar Input: 4000W
• Total Watt of Panels: 1200W
• Per Panel Watt: 200 Watt
• Panel NO.: 6 pcs
• Total KWH of Batteries: 5.12KWH
• Chemistry: Lithium
• Battery NO.: 2pcs
• Battery Spec: 12V 200AH

User Manual

• Sungold Power 4000W Pure Sine Wave Inverter User Manual
• Sungold Power 200Ah LiFePo4 Battery With Bluetooth User Manual
• Sungold Power 200 Watt Monocrystalline Solar Panel User Manual
• Sungold Power 100A MPPT Solar Charge Controller User Manual
