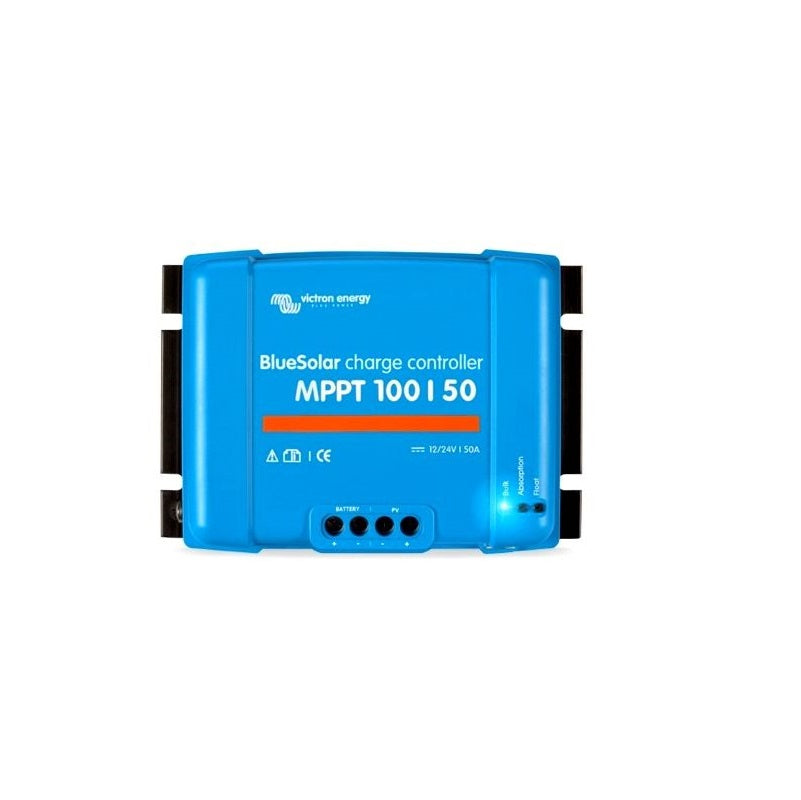

Victron Energy SCC020030200 MPPT Solar Charger
Enhance your solar power system with the Victron Energy SCC020030200 MPPT Solar Charger, a pinnacle of solar conversion technology. This advanced MPPT charger is engineered to maximize the efficiency of your solar panels, ensuring that you harness the most energy possible from the sun. Suitable for a wide range of applications, from residential solar setups to mobile and marine installations, the Victron MPPT charger is the ideal solution for optimizing your renewable energy sources.
- Advanced MPPT Technology: Maximizes the extraction of solar power, significantly increasing the efficiency of your solar panels.
- Auto Voltage Recognition: Automatically adjusts to 12V or 24V system voltage, providing versatile compatibility with different battery systems.
- High Charging Efficiency: Up to 98%, ensuring more energy is stored and less is wasted.
- Real-Time Monitoring: Integrated with Victron's Remote Management Portal (VRM) for easy monitoring and control of your solar energy system.
- Robust Design: Built to withstand harsh environmental conditions, making it perfect for outdoor use in any climate.
Technology and Overview
The SCC020030200 MPPT Solar Charger incorporates cutting-edge technology to ensure that solar panels operate at their optimum power point throughout the day, adapting to varying sunlight conditions without sacrificing efficiency. Its intelligent design enables quick response to shading and ensures that energy yield is maximized, making it an essential component of any high-performance solar power system.
Installation and Compatibility Overview
Designed for easy installation and compatibility with a variety of solar panel and battery configurations, this MPPT charger integrates seamlessly into existing power systems. It supports both 12V and 24V batteries and includes a range of protective features to safeguard against overcharging, overheating, and other common issues.
Benefits and Applications Overview
With its exceptional efficiency and versatility, the Victron MPPT charger is a valuable addition to any solar power system, offering significant improvements in energy harvesting and system performance. Its suitability for various applications, including residential, automotive, and marine, makes it a universally beneficial solution for enhancing solar energy utilization.
| Specification |
Value |
| Model |
SCC020030200 |
| Maximum Power Point Tracking (MPPT) |
Yes |
| System Voltage |
12V/24V Auto Recognition |
| Max. PV Input Voltage |
100V |
| Max. Charging Current |
30A |
| Efficiency |
Up to 98% |
| Protection Features |
Overcharge, Overtemperature, Reverse Polarity Protection |
| Integration |
Victron Remote Management (VRM) |
