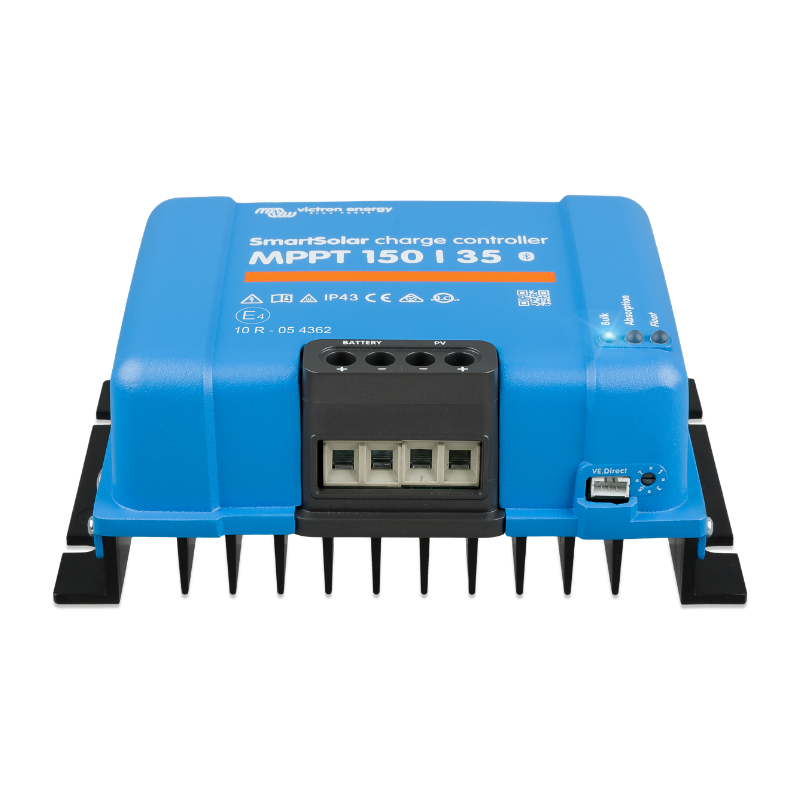

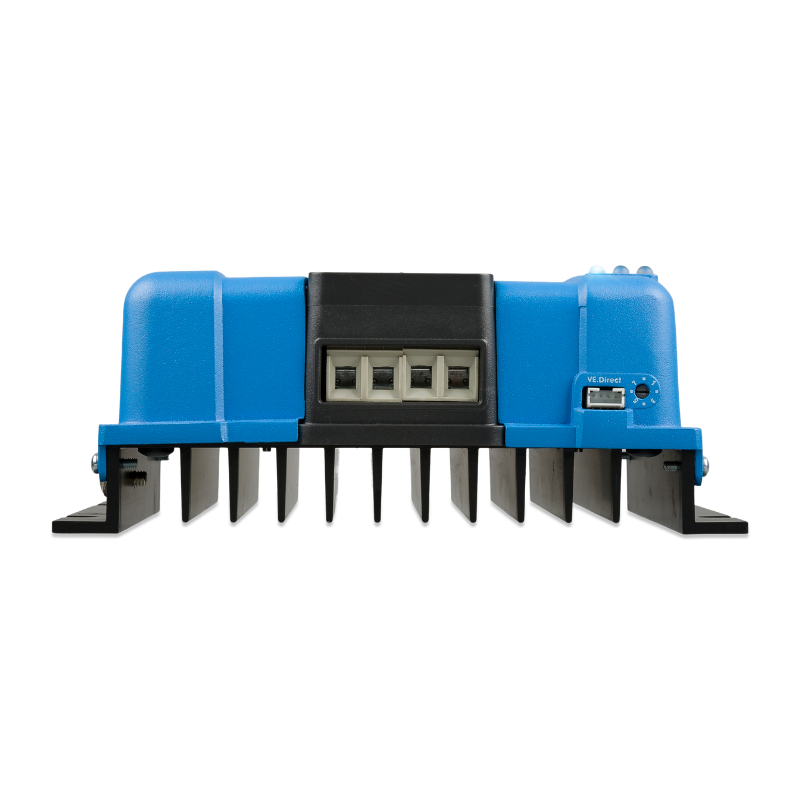

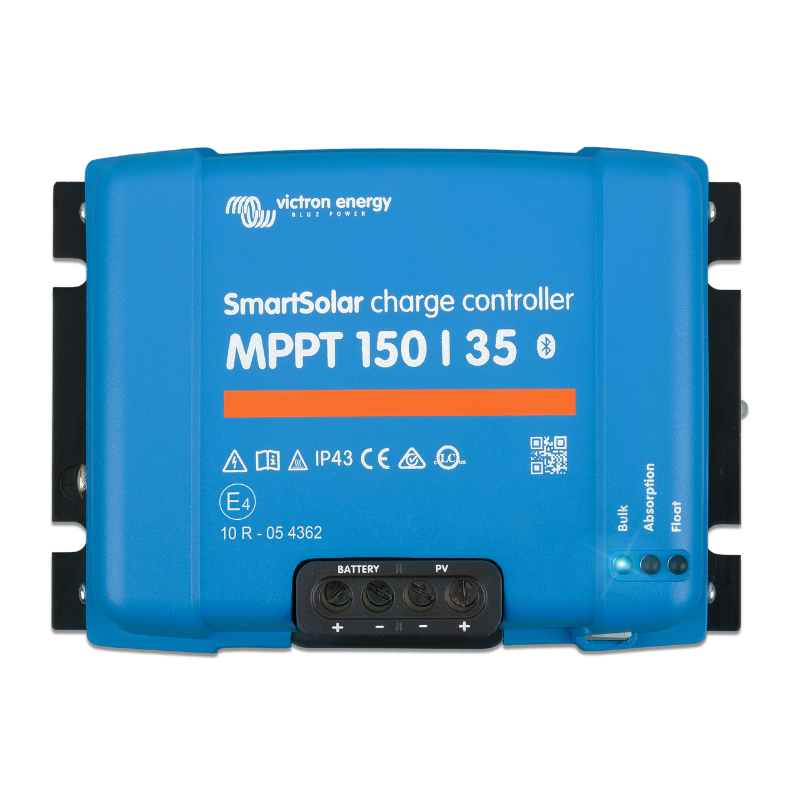

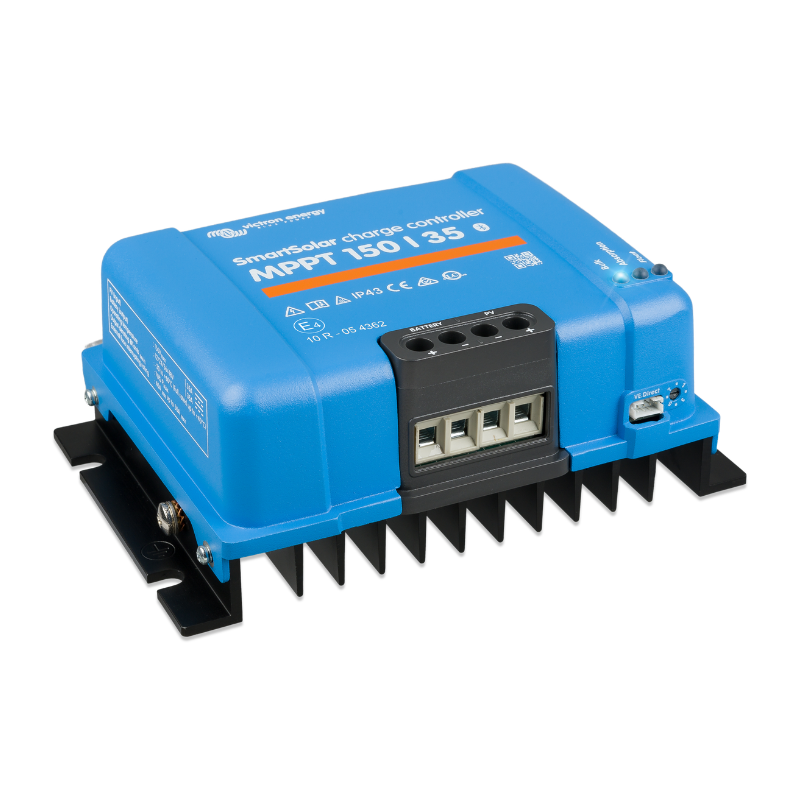

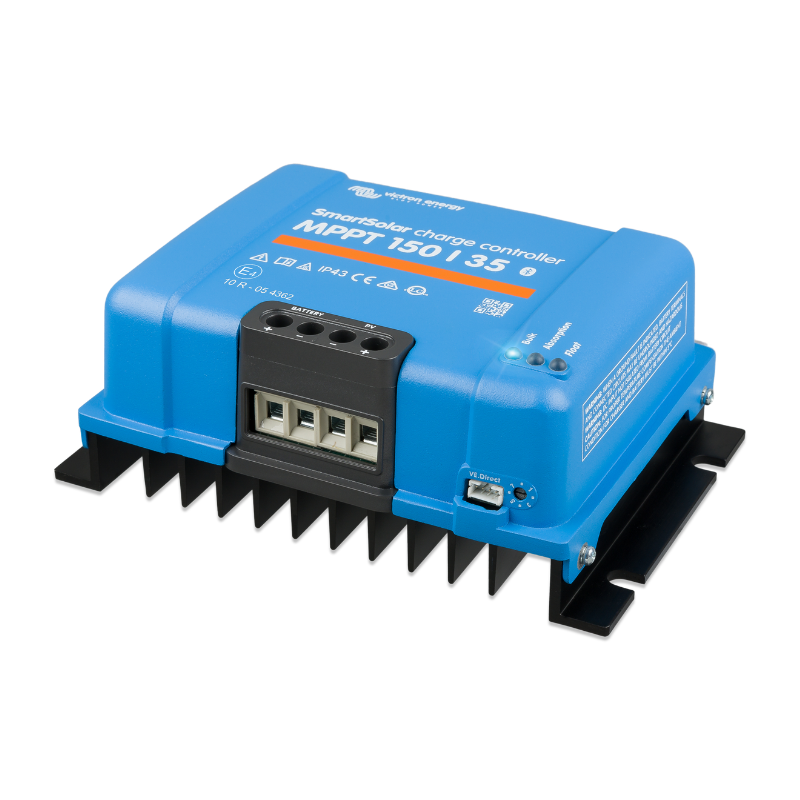

Victron Energy 35 Amp MPPT 12/24/48 VDC 150 VOC (Smart Solar), Solar Charge Controller

Victron Energy 35 Amp MPPT 12/24/48 VDC 150 VOC (Smart Solar), Solar Charge Controller

Name: Victron Energy 35 Amp MPPT 12/24/48 VDC 150 VOC (Smart Solar), Solar Charge Controller
Brand: Victron Energy
SKU: SCC115035210
Price: 215.0 USD
Availability: OutOfStock

BY: Victron Energy

SKU: SCC115035210

| Availability: Out of stock

$217.00

$215.00

Sold out

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Victron Energy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Victron Energy 35 Amp MPPT 12/24/48 VDC 150 VOC (SmartSolar) Solar Charge Controller

The Victron Energy SmartSolar MPPT 150/35 is a powerful and intelligent solar charge controller designed to maximize energy harvest from solar panels while efficiently charging 12V, 24V, 36V, and 48V battery banks. Utilizing Victron's advanced Maximum Power Point Tracking (MPPT) technology and built-in Bluetooth connectivity, this controller continuously optimizes solar output to achieve superior charging performance in varying weather conditions. Ideal for RVs, marine systems, off-grid homes, backup power systems, and renewable energy installations, the SmartSolar MPPT 150/35 delivers reliable battery management, advanced monitoring capabilities, and exceptional energy conversion efficiency.

Victron Energy 35 Amp MPPT 12/24/48 VDC 150 VOC (SmartSolar) Solar Charge Controller Features

Advanced MPPT Technology - Maximize solar energy production. Continuously tracks the maximum power point of solar panels to increase energy harvest and improve charging efficiency.

Built-In Bluetooth Smart - Wireless monitoring and configuration. Connect directly through the VictronConnect app to monitor performance, adjust settings, and update firmware.

Supports Multiple Battery Voltages - Flexible installation options. Automatically supports 12V, 24V, and 48V battery systems, with manual selection available for 36V applications.

35A Charging Capacity - Perfect for medium-sized solar systems. Provides reliable charging for battery banks in residential, marine, RV, and off-grid applications.

Adaptive Multi-Stage Charging - Extends battery life. Features intelligent charging algorithms that optimize battery performance and longevity.

150V PV Input Capability - Supports larger solar arrays. Allows higher-voltage panel configurations for reduced wiring losses and increased design flexibility.

VE.Direct Communication - Simple system integration. Easily connects to Victron GX devices and monitoring systems for advanced control and remote access.

Comprehensive Protection Features - Reliable long-term operation. Includes protection against PV reverse polarity, output short circuits, and over-temperature conditions.

Victron Energy 35 Amp MPPT 12/24/48 VDC 150 VOC (SmartSolar) Solar Charge Controller Applications

Off-grid solar systems – Efficient charging for cabins, remote homes, and standalone energy systems.
RV and camper installations – Reliable battery charging while traveling.
Marine power systems – Supports sailboats, yachts, and commercial vessels.
Residential battery storage – Optimizes solar charging for home energy storage systems.
Agricultural solar projects – Powers remote pumps, fencing, and monitoring equipment.
Backup power systems – Maintains battery banks for emergency power applications.
Telecommunications equipment – Supports remote communications infrastructure.
Small commercial solar systems – Provides efficient battery charging for renewable energy installations.

What's Included?

Victron Energy 35 Amp MPPT 12/24/48 VDC 150 VOC (Smart Solar), Solar Charge Controller
User Manual

Warranty

5-Year Limited Manufacturer Warranty

Victron Energy 35 Amp MPPT 12/24/48 VDC 150 VOC (SmartSolar) Solar Charge Controller Specifications

Electrical Specifications

Specification	Details
Battery Voltage	12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Rated Charge Current	35 A
Nominal PV Power (35 A)	12 V: 500 W / 24 V: 1000 W / 36 V: 1500 W / 48 V: 2000 W
Nominal PV Power (45 A)	12 V: 650 W / 24 V: 1300 W / 36 V: 1950 W / 48 V: 2600 W
Max. PV Short Circuit Current	40 A
Maximum PV Open Circuit Voltage	150 V absolute maximum coldest conditions 145 V start-up and operating maximum
Maximum Efficiency	98%
Self-Consumption	12 V: 20 mA / 24 V: 15 mA / 48 V: 10 mA
Charge Voltage "Absorption"	Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable)
Charge Voltage "Float"	Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable)
Charge Algorithm	Multi-stage adaptive (eight pre-programmed algorithms)
Temperature Compensation	-16 mV / -32 mV / -64 mV / °C
Protection	PV reverse polarity / output short circuit / over-temperature
Operating Temperature	-30 to +60°C (full rated output up to 40°C)
Humidity	95%, non-condensing
Data Communication Port	VE.Direct See the data communication white paper on our website

Enclosure

Specification	Details
Colour	Blue (RAL 5012)
Power Terminals	16 mm² / AWG6
Protection Category	IP43 (electronic components), IP22 (connection area)
Weight	1.25 kg
Dimensions (h × w × d)	130 × 186 × 70 mm

Standards

Specification	Details
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2

Stored Trends

Specification	Details
Data Stored	Battery voltage, current and temperature, as well as load output current, PV voltage and PV current
Number of Days Trends Data is Stored	46

Frequently Asked Questions

What is MPPT technology?

MPPT (Maximum Power Point Tracking) continuously adjusts the controller's operating point to maximize the amount of power harvested from connected solar panels.

Does the SmartSolar MPPT 150/35 include Bluetooth?

Yes. Built-in Bluetooth Smart allows wireless setup, monitoring, diagnostics, and firmware updates through the VictronConnect app.

What battery voltages are supported?

The controller automatically supports 12V, 24V, and 48V battery systems. A 36V battery bank can be selected using the appropriate software tool.

What is the maximum solar panel input voltage?

The controller supports up to 150V open-circuit PV voltage, with 145V maximum for startup and operation.

Can I use oversized solar arrays?

Yes. The controller can safely limit charging current when connected PV power exceeds the nominal rating, allowing some array oversizing within Victron guidelines.

Is this controller compatible with lithium batteries?

Yes. The SmartSolar MPPT 150/35 supports lithium batteries and allows charging parameters to be customized via VictronConnect.

Can I connect this controller to a GX device?

Yes. The VE.Direct communication port allows integration with compatible Victron GX monitoring and control systems.

Is this suitable for RV, marine, and off-grid systems?

Absolutely. Its high input voltage capability, Bluetooth monitoring, and support for multiple battery voltages make it ideal for RV, marine, residential, and off-grid solar applications.
