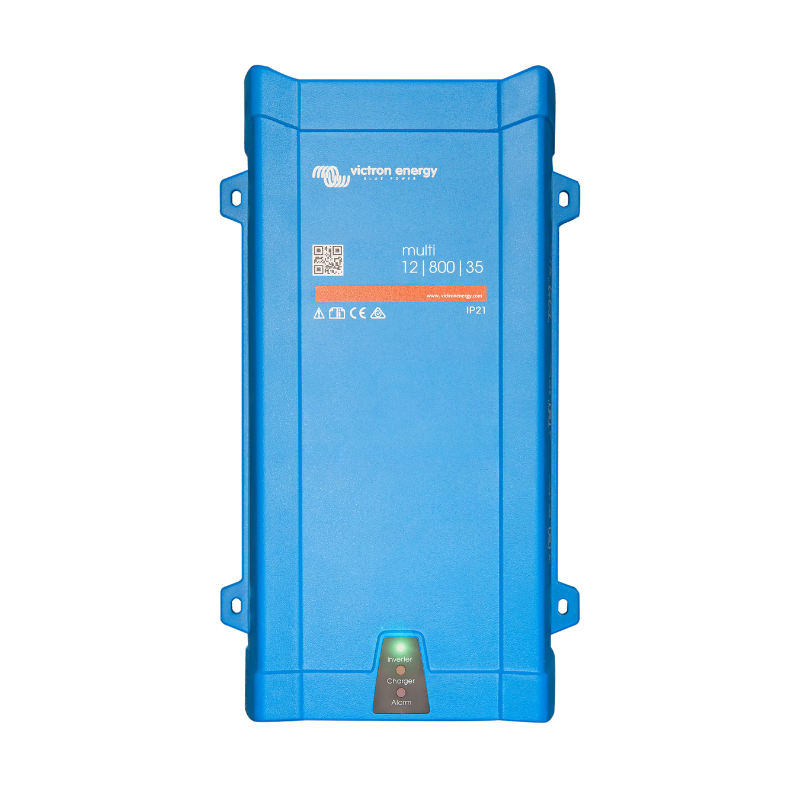

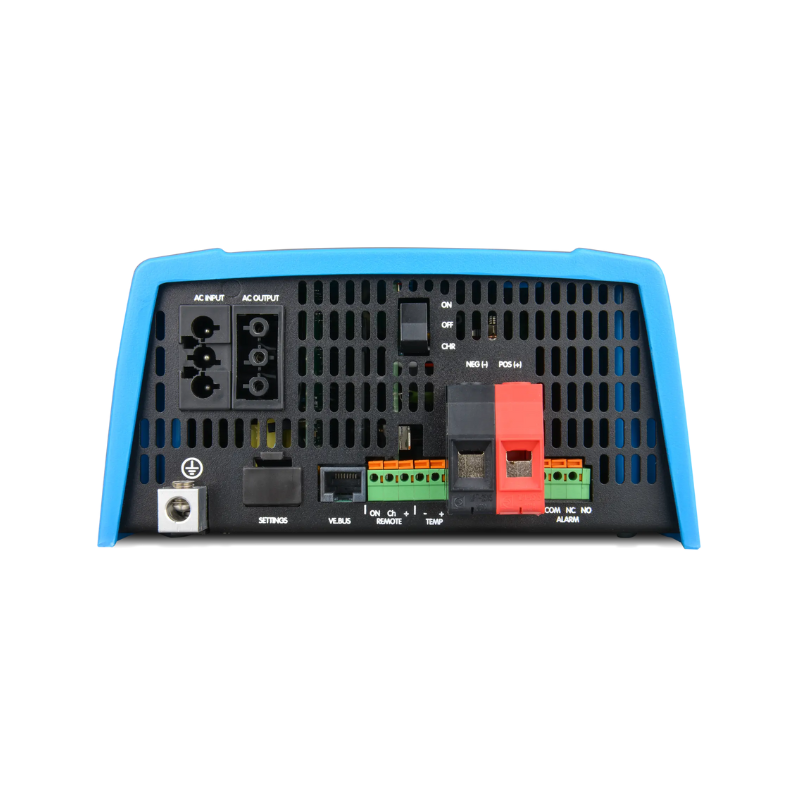

Victron Energy MultiPlus 12/800/35-16 230V VE.Bus

Victron Energy MultiPlus 12/800/35-16 230V VE.Bus

BY: Victron Energy | SKU: PMP121800000 Availability: In Stock
$397.80

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Victron Energy Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax (Most States)

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Victron Energy MultiPlus 12/800/35-16 230V VE.Bus

The Victron Energy MultiPlus 12/800/35-16 is a compact inverter/charger designed for reliable off-grid, marine, RV, and backup power systems. It combines a pure sine wave inverter with a built-in battery charger and an automatic transfer switch, so you can power AC loads from your battery bank and seamlessly pass through shore or generator power when available. With PowerAssist and PowerControl, it helps manage limited AC sources while still supporting short peak loads, making it a dependable all-in-one heart for smaller 12V systems.

Victron Energy MultiPlus 12/800/35-16 230V VE.Bus Features

Pure sine wave inverter output – Clean, stable AC power that’s safe for sensitive electronics and appliances.

800VA continuous inverter capacity – Ideal for smaller systems needing dependable everyday AC power.

PowerAssist support – Adds battery power to supplement weak shore or generator input during brief load spikes.

PowerControl management – Prevents overload by automatically limiting charger draw when AC loads rise.

Automatic transfer switch – Built-in 16A transfer switch provides fast, seamless switching between inverter and AC input.

Multi-stage battery charging – Integrated charger delivers proper bulk/absorption/float charging for healthier batteries.

VE.Bus connectivity – Enables system monitoring and configuration through Victron tools and compatible GX devices.

Low-idle energy modes – AES and Search modes reduce power use when loads are light.

Placeholder Image

Victron Energy MultiPlus 12/800/35-16 230V VE.Bus Applications

  • Small off-grid solar systems – compact power hub for cabins or tiny homes.
  • RV and camper builds – reliable inverter/charger for mobile living.
  • Marine electrical setups – clean AC power and easy shore integration.
  • Backup power for essentials – keeps critical loads running during outages.
  • Work vehicles and service rigs – dependable AC from a 12V battery bank.
Placeholder Image

What's Included

Everything you need is included with your product.

  • Victron Energy MultiPlus 12/800/35-16 230V VE.Bus
  • User Manual

Warranty

  • 5-year Victron warranty

Victron Energy MultiPlus 12/800/35-16 230V VE.Bus Specifications

Specification Details
PowerControl / PowerAssist Yes
Transfer switch 16A 16A

Inverter

Specification Details
DC Input voltage range 9.5 - 17V
AC output voltage 120V ±2%
AC output frequency 60Hz ±0.1%
Cont. output power at 25°C (77°F) 800VA
Cont. output power at 25°C (77°F) 700W
Cont. output power at 40°C (104°F) 650W
Cont. output power at 65°C (149°F) 400W
Peak power 1600W
Maximum efficiency 92%
Zero-load power 7W
Zero-load power search mode 2W

Charger

Specification Details
AC Input voltage range 95 - 140V
AC input frequency range 55 - 65Hz
Charge voltage 'absorption' 14.4V
Charge voltage 'float 13.8V
Charge voltage 'storage' 13.2V
Charge current house battery 35A
Charge current starter battery 1A
Battery temperature sensor Yes

General

Specification Details
Programmable relay Yes
Protection a – g
Operating temperature -40 to +65°C (-40 to + 140°F), fan assisted cooling
Humidity Maximum 95%, non-condensing

Enclosure

Specification Details
Material & colour Steel/ABS, blue RAL 5012
Protection category IP 21
Battery-connection 25mm²
230V AC-connection G-ST18i connector
Weight 6.4kg
Dimensions (h x w x d) 360 x 240 x 100

Standards

Specification Details
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
Emission / Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Frequently-Asked Questions

Can the MultiPlus automatically switch between shore power and battery power?

Yes. The built-in 16A transfer switch automatically passes through incoming AC when available and switches back to inverter power when AC input is lost.

How much charging power does this unit provide for my 12V battery bank?

It includes a multi-stage charger that delivers up to 35A to the house battery, helping recharge efficiently and extend battery health.

Will this work with a small solar/off-grid setup?

Absolutely. It’s a great fit for compact 12V systems like small cabins, RVs, or boats where you need reliable inverter power plus charging in one unit.

Can I expand or monitor this later with other Victron gear?

Yes. Through VE.Bus, it can connect to Victron monitoring/control devices (like GX systems) and supports future system upgrades.
