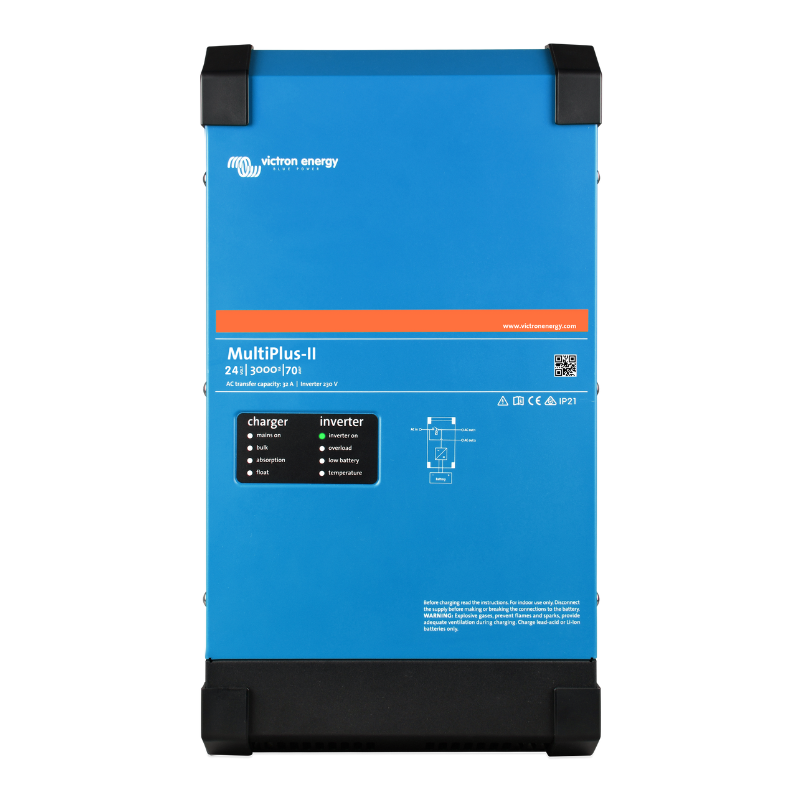

Visit CalculatorThe Victron Energy MultiPlus-II 24/3000/70-32 is a robust all-in-one inverter/charger for larger 24V off-grid, RV, marine, and backup power systems. It combines a 3000VA pure sine wave inverter, a 70A adaptive multi-stage battery charger, and a fast 32A transfer switch in one unit. When shore or generator power is available, it passes AC through while charging your battery bank. When AC drops out, it switches to inverter power smoothly to keep your loads running. PowerControl and PowerAssist help protect limited AC sources from overload while supporting short high-surge demands.
3000VA pure sine wave inverter – Clean 230V AC output that’s safe for sensitive electronics and appliances.
High surge capability – Handles demanding startup loads with up to 5500W peak power.
70A adaptive battery charger – Multi-stage charging designed for medium-to-large 24V battery banks.
32A automatic transfer switch – Seamless switching between shore/generator input and inverter output.
PowerControl – Automatically limits charger draw to prevent tripping weak AC sources.
PowerAssist – Adds battery power during short load spikes to support heavier demands.
VE.Bus communication – Supports Victron monitoring, configuration, and system integration.
Programmable relay – Allows custom alarms or generator start/stop automation.
Auxiliary AC output – Helps manage critical vs. non-critical loads cleanly.
Rugged steel enclosure – Durable casing suitable for mobile and stationary installs.


Everything you need is included with your product.
| Specification | Details |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32 A |
| Maximum AC input current | 32 A |
| Specification | Details |
| DC Input voltage range | 12 V - 9,5–17 V | 24 V - 19–33 V | 48 V – 38-66 V |
| Output | Output voltage: 230 VAC ± 2 % Frequency : 50 Hz ± 0,1 % |
| Cont. output power at 25°C (VA) | 3000 VA |
| Cont. output power at 25°C | 2400 W |
| Cont. output power at 40°C | 2200 W |
| Cont. output power at 65°C | 1700 W |
| Max apparent feed-in power | 3000 VA |
| Peak power | 5500 W |
| Maximum efficiency | 93%/94%/95% |
| Zero load power | 13 / 13 / 11 W |
| Zero load power in AES mode | 9 / 9 / 7 W |
| Zero load power in Search mode | 3 / 3 / 2 W |
| Specification | Details |
| AC Input | Input voltage range: 187 -265 VAC | Input frequency: 45 – 65 Hz |
| Charge voltage 'absorption' | 14,4 / 28,8 / 57,6V |
| Charge voltage 'float' | 13,8 / 27,6 / 55,2V |
| Storage mode | 13,2 / 26,4 /52,8V |
| Max. battery charge current | 120 /70 / 35 A |
| Battery temperature sensor | Yes |
| Specification | Details |
| Auxiliary output | Yes (32 A) |
| External AC current sensor (optional) | 50 A or 100 A |
| Programmable relay | Yes |
| Protection | a – g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65 °C (fan assisted cooling) |
| Humidity (non -condensing) | max 95 % |
| Maximum altitude | 2000 m |
| Specification | Details |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP22 |
| Battery-connection | M8 bolts |
| 230 VAC-connection | Screw terminals 13 mm ² (6 AWG) |
| Weight kg | 19 kg |
| Dimensions (hxwxd) mm | 546 x 275 x 147 | 499 x 268 x 141 | 499 x 268 x 141 |
| Specification | Details |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission / Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
What size system is this best for?
This model is ideal for medium-to-large 24V systems needing a strong 3000VA inverter and a 70A charger—great for cabins, RVs, boats, and backup setups.
Can it start motor-driven appliances?
Yes. With up to 5500W peak power, it can handle high startup loads from pumps, compressors, and similar devices.
Will it work on limited shore or generator power?
Yes. PowerControl reduces charger draw automatically, while PowerAssist supplements short spikes with battery power.
Can I monitor or expand later?
Yes. VE.Bus connectivity supports Victron monitoring systems and allows future expansion using compatible equipment.
