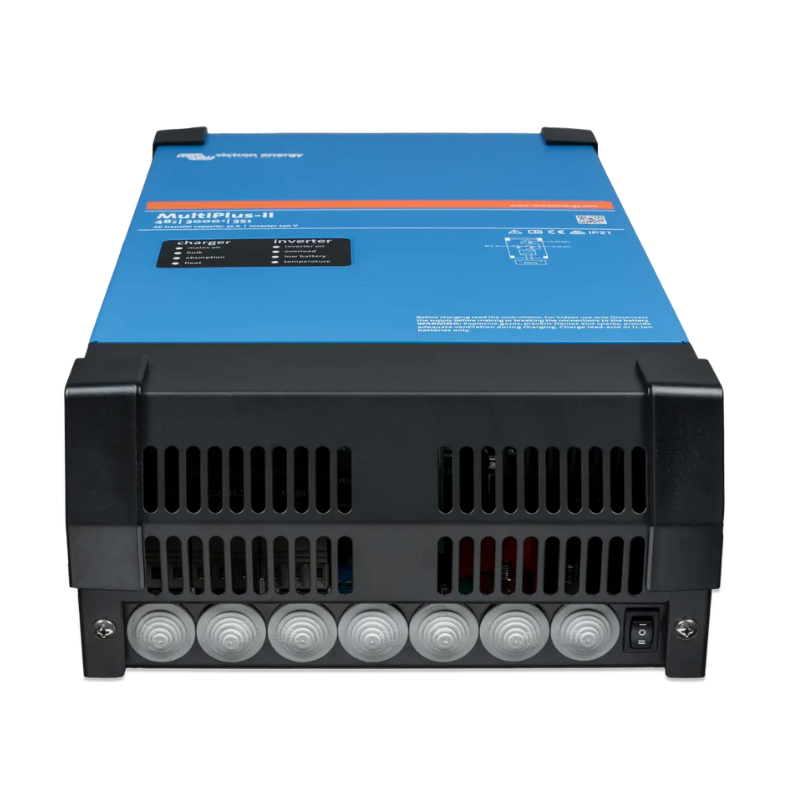

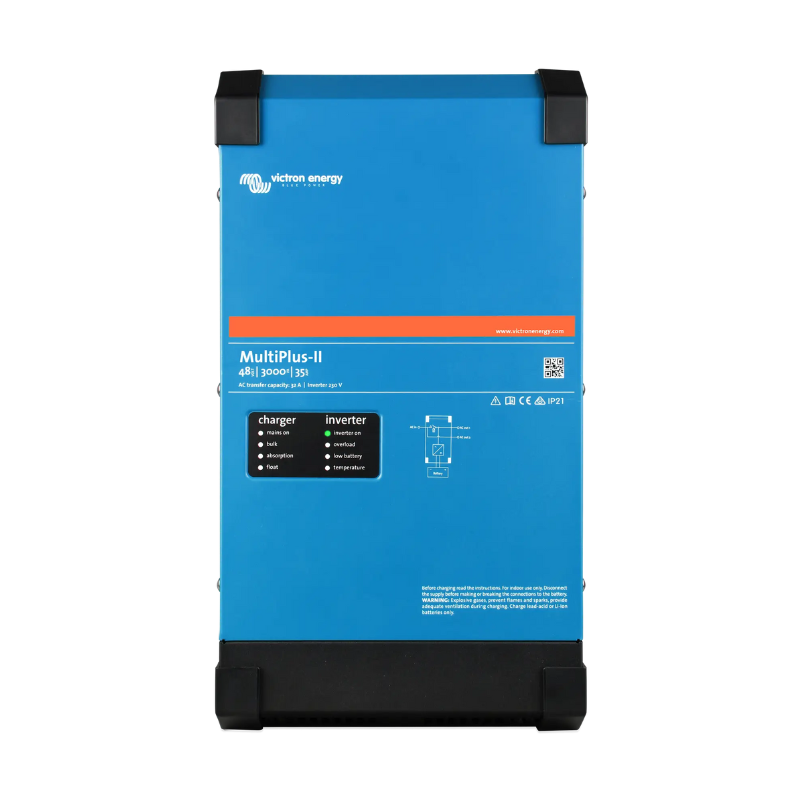

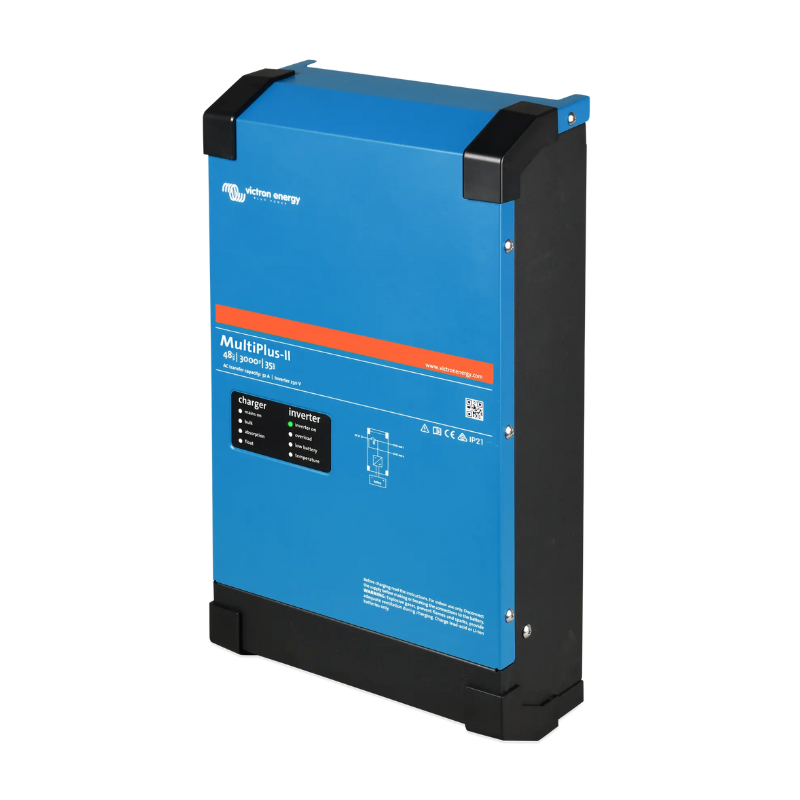

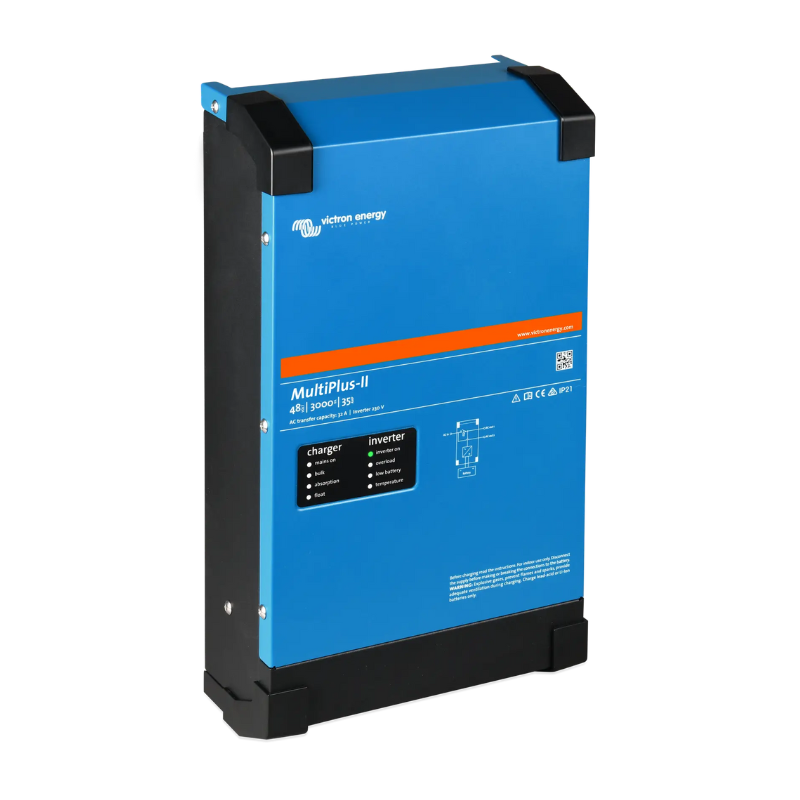

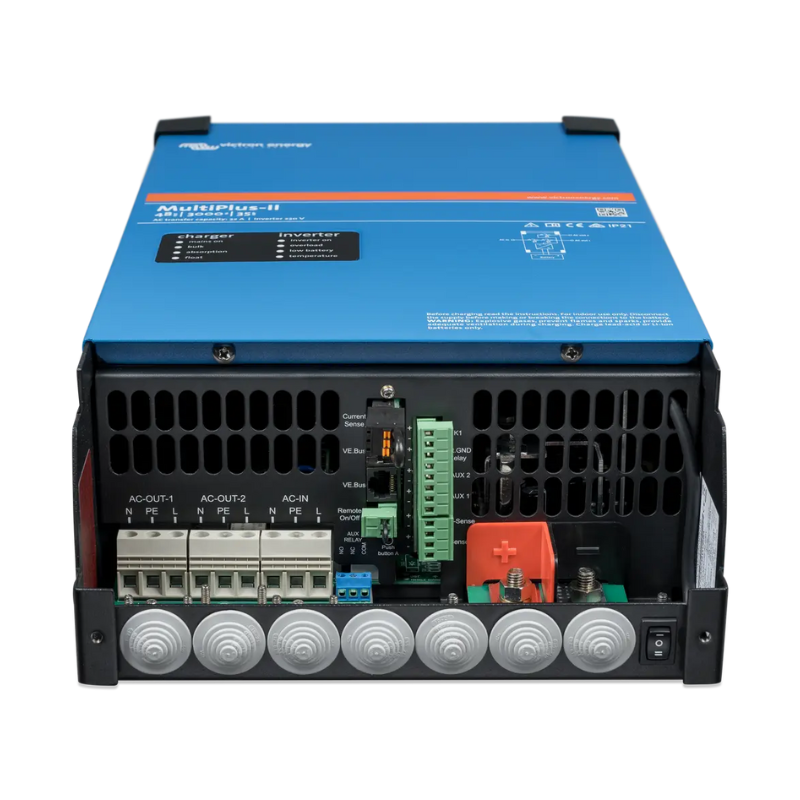

Victron Energy MultiPlus-II 48/3000/35-32 230V

The Victron Energy MultiPlus-II 48/3000/35-32 is a high-reliability 48V inverter/charger designed for off-grid homes, marine systems, RVs, and backup power setups. It combines a 3000VA pure sine wave inverter, an adaptive 35A battery charger, and a fast 32A transfer switch in a single unit. When shore or generator power is available, it passes AC through while charging your 48V battery bank. If AC input drops, it automatically switches to inverter power to keep critical loads running. PowerControl and PowerAssist help prevent overload on limited AC sources and support short surge demands smoothly.

Victron Energy MultiPlus-II 48/3000/35-32 230V Features

3000VA pure sine wave inverter – Delivers clean 230V AC power that’s safe for sensitive electronics and appliances.

High surge performance – Supports demanding startup loads with up to 5500W peak power.

35A adaptive battery charger – Multi-stage charging optimized for 48V battery banks, including lithium.

32A transfer switch – Seamlessly switches between AC input and inverter output.

PowerControl – Limits AC draw to avoid tripping weak shore or generator circuits.

PowerAssist – Adds battery power during short load spikes to prevent overload.

VE.Bus communication – Enables remote monitoring, configuration, and parallel/three-phase expansion.

Programmable relay – Can be set for alarms, generator start/stop, or custom triggers.

Rugged steel enclosure – Built for demanding mobile and stationary installs.

Victron Energy MultiPlus-II 48/3000/35-32 230V Applications

Off-grid home systems (48V) – stable daily power with integrated charging support.
Solar + battery storage – reliable inverter/charger core for hybrid systems.
Marine power setups – shore pass-through plus onboard AC when underway.
Backup power – keeps essential circuits running during outages.
Remote worksite or cabin – dependable AC supply where grid power is unavailable.

What's Included

Everything you need is included with your product.

Victron Energy MultiPlus-II 48/3000/35-32 230V

User Manual

Warranty

5-year Victron warranty

Victron Energy MultiPlus-II 48/3000/35-32 230V

Specification	Details
PowerControl & PowerAssist	Yes
Transfer switch	32 A
Maximum AC input current	32 A

Inverter

Specification	Details
DC Input voltage range	12 V - 9,5–17 V \| 24 V - 19–33 V \| 48 V – 38-66 V
Output	Output voltage: 230 VAC ± 2 % Frequency : 50 Hz ± 0,1 %
Cont. output power at 25°C (VA)	3000 VA
Cont. output power at 25°C	2400 W
Cont. output power at 40°C	2200 W
Cont. output power at 65°C	1700 W
Max apparent feed-in power	3000 VA
Peak power	5500 W
Maximum efficiency	93%/94%/95%
Zero load power	13 / 13 / 11 W
Zero load power in AES mode	9 / 9 / 7 W
Zero load power in Search mode	3 / 3 / 2 W

Charger

Specification	Details
AC Input	Input voltage range: 187 -265 VAC \| Input frequency: 45 – 65 Hz
Charge voltage 'absorption'	14,4 / 28,8 / 57,6V
Charge voltage 'float'	13,8 / 27,6 / 55,2V
Storage mode	13,2 / 26,4 /52,8V
Max. battery charge current	120 /70 / 35 A
Battery temperature sensor	Yes

General

Specification	Details
Auxiliary output	Yes (32 A)
External AC current sensor (optional)	50 A or 100 A
Programmable relay	Yes
Protection	a – g
VE.Bus communication port	For parallel and three phase operation, remote monitoring and system integration
General purpose com. port	Yes, 2x
Remote on-off	Yes
Operating temperature range	-40 to +65 °C (fan assisted cooling)
Humidity (non -condensing)	max 95 %
Maximum altitude	2000 m

Enclosure

Specification	Details
Material & Colour	Steel, blue RAL 5012
Protection category	IP22
Battery-connection	M8 bolts
230 VAC-connection	Screw terminals 13 mm ² (6 AWG)
Weight kg	19 kg
Dimensions (hxwxd) mm	546 x 275 x 147 \| 499 x 268 x 141 \| 499 x 268 x 141

Standards

Specification	Details
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission / Immunity	EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Frequently-Asked Questions

What systems is this model best for?

This unit is ideal for mid-size to large 48V systems requiring a strong 3000VA inverter and reliable charging, such as off-grid homes, marine builds, and solar storage setups.

Can it handle appliance startup surges?

Yes. With up to 5500W peak power, it supports startup loads from pumps, compressors, and other motor-driven appliances.

Does it work with lithium batteries?

Yes. The charger is compatible with lithium battery profiles when configured properly through Victron tools.

Can I expand this system later?

Yes. VE.Bus supports parallel stacking and three-phase configurations with compatible Victron units.
