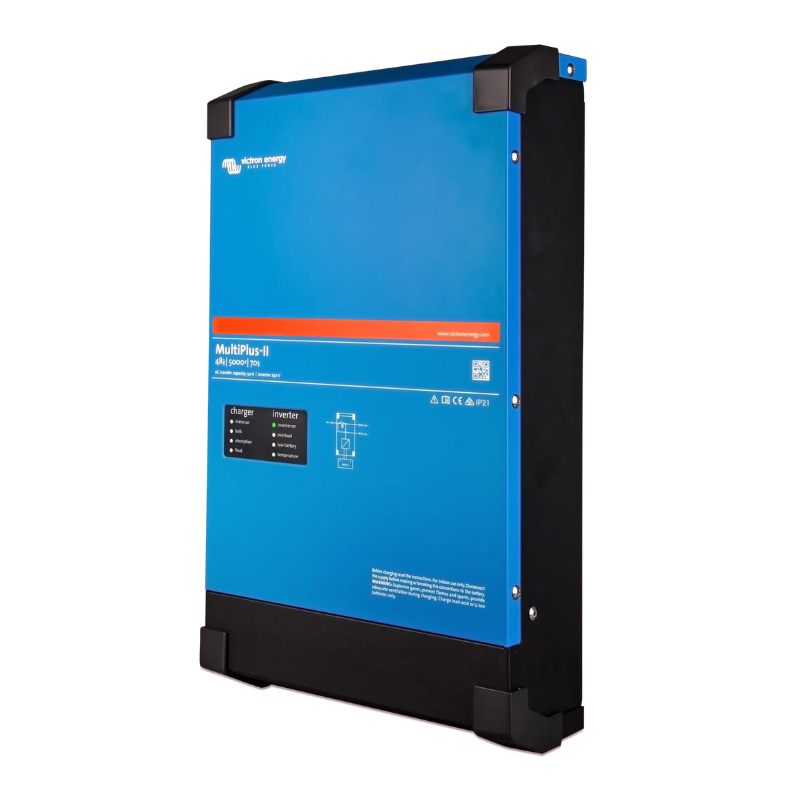

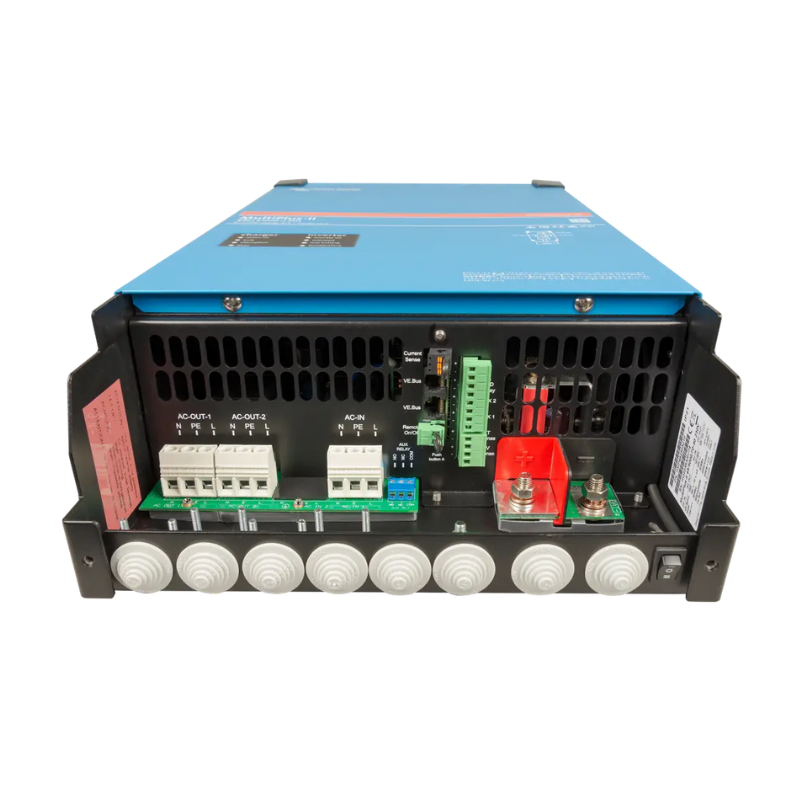

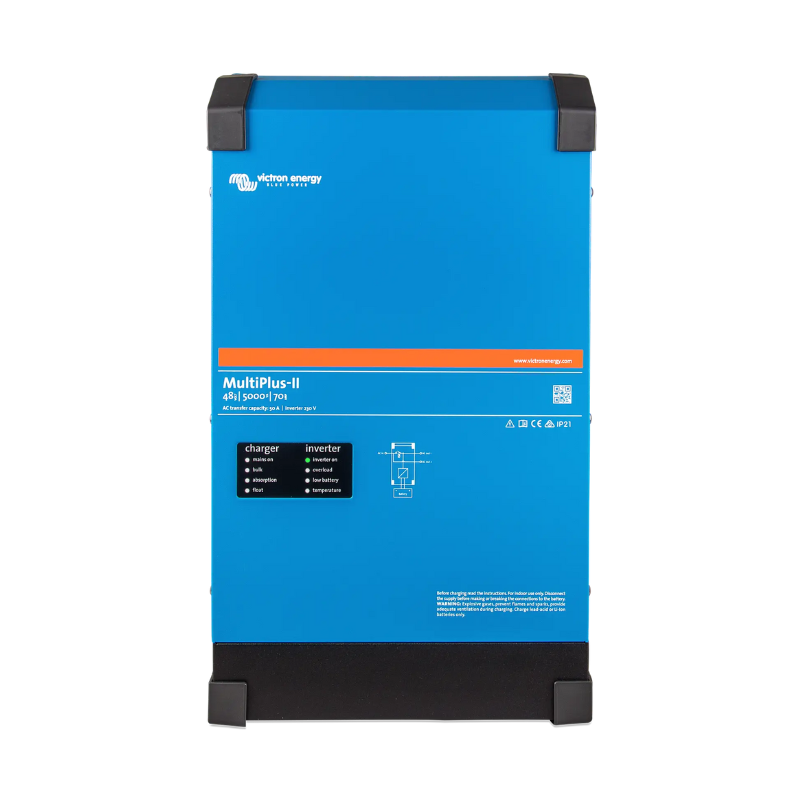

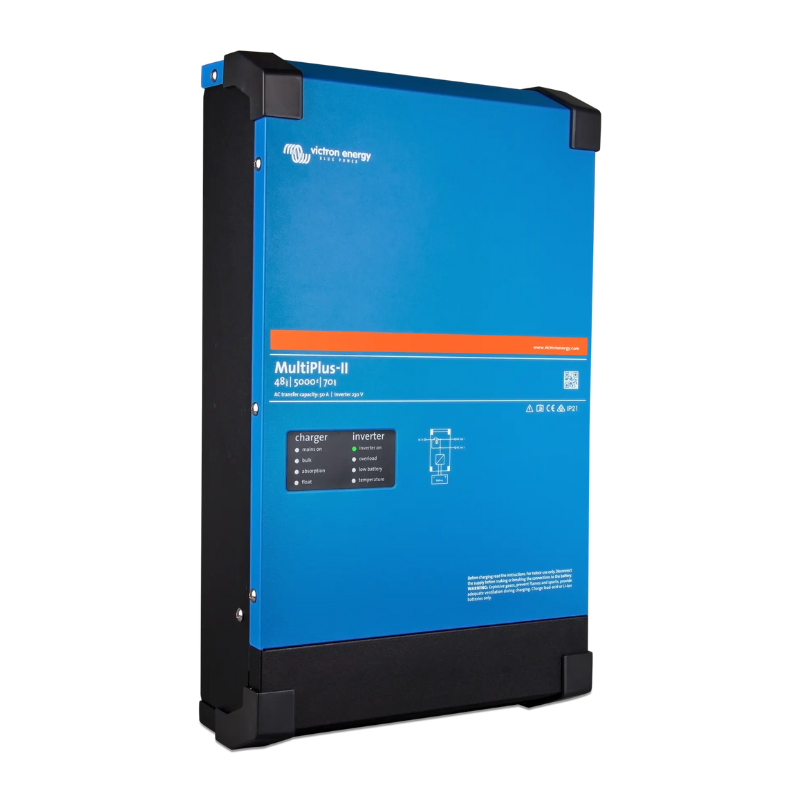

Victron Energy MultiPlus-II 48/5000/70-50 230V

Victron Energy MultiPlus-II 48/5000/70-50 230V

BY: Victron Energy | SKU: PMP482505010 Availability: In Stock
$833.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Victron Energy Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax (Most States)

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Victron Energy MultiPlus-II 48/5000/70-50 230V

The Victron Energy MultiPlus-II 48/5000/70-50 is a robust 48V inverter/charger for demanding off-grid, marine, RV, and backup applications. It combines a 5000VA pure sine wave inverter, a 70A adaptive battery charger, and a high-capacity 50A transfer switch in one unit. When shore or generator power is available, it passes AC through while charging your battery bank. If the AC source fails, it switches to inverter power automatically to keep essential loads running without interruption. PowerControl and PowerAssist help manage limited AC inputs and support short surge demands smoothly.

Victron Energy MultiPlus-II 48/5000/70-50 230V Features

5000VA pure sine wave inverter – Produces clean 230V AC power suitable for sensitive electronics and household appliances.

High surge capability – Handles heavy startup loads with up to 9000W peak output.

70A adaptive battery charger – Efficient multi-stage charging for 48V battery systems, including lithium profiles when configured.

50A transfer switch – Fast automatic switching between AC input and inverter output for seamless operation.

PowerControl – Prevents overloading weak shore or generator sources by limiting input current.

PowerAssist – Supplements limited AC input with battery power during short load spikes.

VE.Bus communication – Enables monitoring, remote control, and system expansion (parallel or three-phase).

Programmable relay – Can be configured for alarms, generator auto-start, or other control events.

Durable steel enclosure – Built to withstand mobile and fixed installations in harsh environments.

Placeholder Image

Victron Energy MultiPlus-II 48/5000/70-50 230V Applications

  • Off-grid home systems (48V) – reliable high-output AC plus integrated charging.
  • Solar + battery storage – core inverter/charger for hybrid and ESS builds.
  • Marine power systems – shore power pass-through and onboard AC when underway.
  • Large RV or van builds – supports high continuous loads and fast charging.
  • Backup power – automatic switchover for critical circuits during outages.
Placeholder Image

What's Included

Everything you need is included with your product.

  • Victron Energy MultiPlus-II 48/5000/70-50 230V
  • User Manual

Warranty

  • 5-year Victron warranty

Victron Energy MultiPlus-II 48/5000/70-50 230V Specifications

Specification Details
PowerControl & PowerAssist Yes
Transfer switch 50 A
Maximum AC input current 50 A

Inverter

Specification Details
DC Input voltage range 12 V - 9,5–17 V | 24 V - 19–33 V | 48 V – 38-66 V
Output Output voltage: 230 VAC ± 2 % Frequency : 50 Hz ± 0,1 %
Cont. output power at 25°C (VA) 5000 VA
Cont. output power at 25°C 4000 W
Cont. output power at 40°C 3700 W
Cont. output power at 65°C 3000 W
Max apparent feed-in power 5000 VA
Peak power 9000 W
Maximum efficiency 95%96%/96%
Zero load power 15/18/18 W
Zero load power in AES mode 11/12/12 W
Zero load power in Search mode 3 / 3 / 2 W

Charger

Specification Details
AC Input Input voltage range: 187 -265 VAC | Input frequency: 45 – 65 Hz
Charge voltage 'absorption' 14,4 / 28,8 / 57,6V
Charge voltage 'float' 13,8 / 27,6 / 55,2V
Storage mode 13,2 / 26,4 /52,8V
Max. battery charge current 220/120/ 70 A
Battery temperature sensor Yes

General

Specification Details
Auxiliary output Yes (32 A)
External AC current sensor (optional) 50 A or 100 A
Programmable relay Yes
Protection a – g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65 °C (fan assisted cooling)
Humidity (non -condensing) max 95 %
Maximum altitude 2000 m

Enclosure

Specification Details
Material & Colour Steel, blue RAL 5012
Protection category IP22
Battery-connection M8 bolts
230 VAC-connection Screw terminals 13 mm ² (6 AWG)
Weight kg 33/ 30/ 30 kg
Dimensions (hxwxd) mm 702 x 345 x 152 | 607 x 330 x 149 | 565 x 320 x 149

Standards

Specification Details
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission / Immunity EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Frequently-Asked Questions

What size systems is this model designed for?

This unit is intended for larger 48V systems needing high continuous AC output and strong surge handling, such as off-grid homes, marine systems, and large RV builds.

Can it start high-surge appliances?

Yes. With up to 9000W peak power, it supports startup loads from pumps, compressors, power tools, and similar motor-driven equipment.

Does it work with lithium battery banks?

Yes. The charger supports lithium profiles when configured correctly in Victron settings.

Can I expand later to parallel or three-phase?

Yes. VE.Bus enables parallel stacking and three-phase operation with compatible Victron units.
