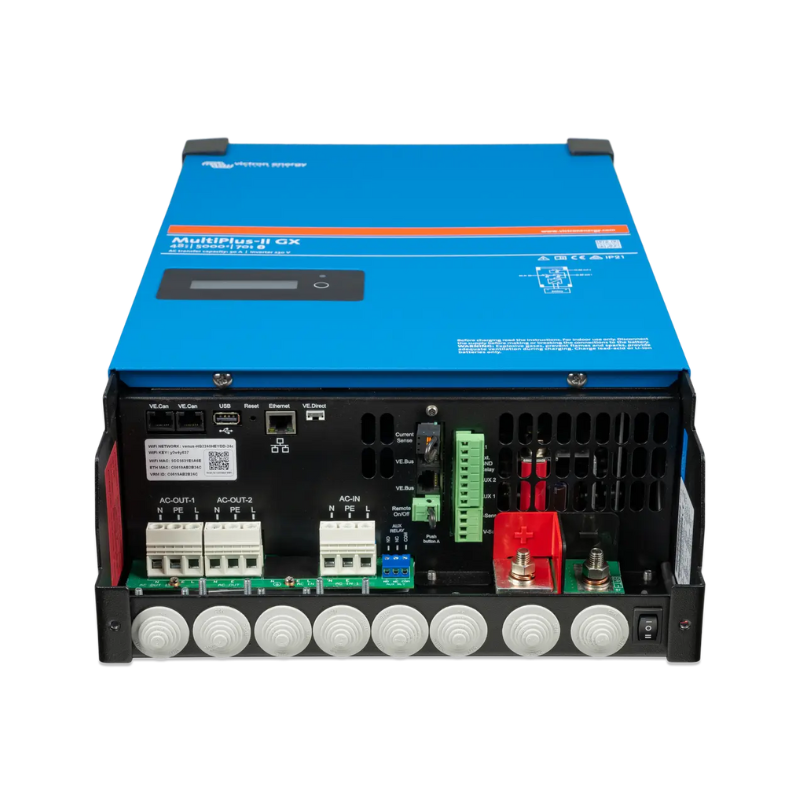

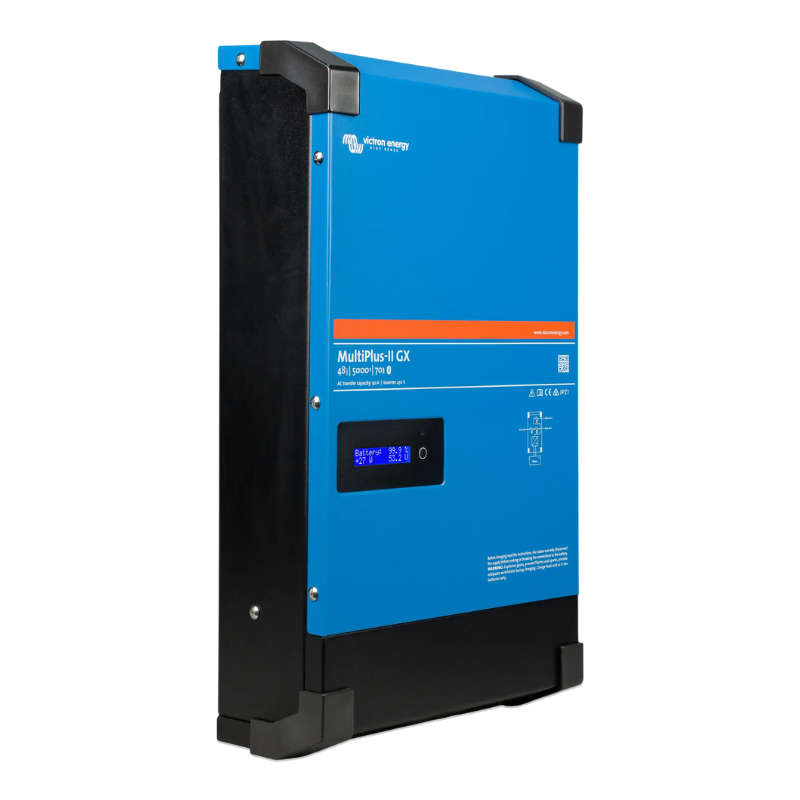

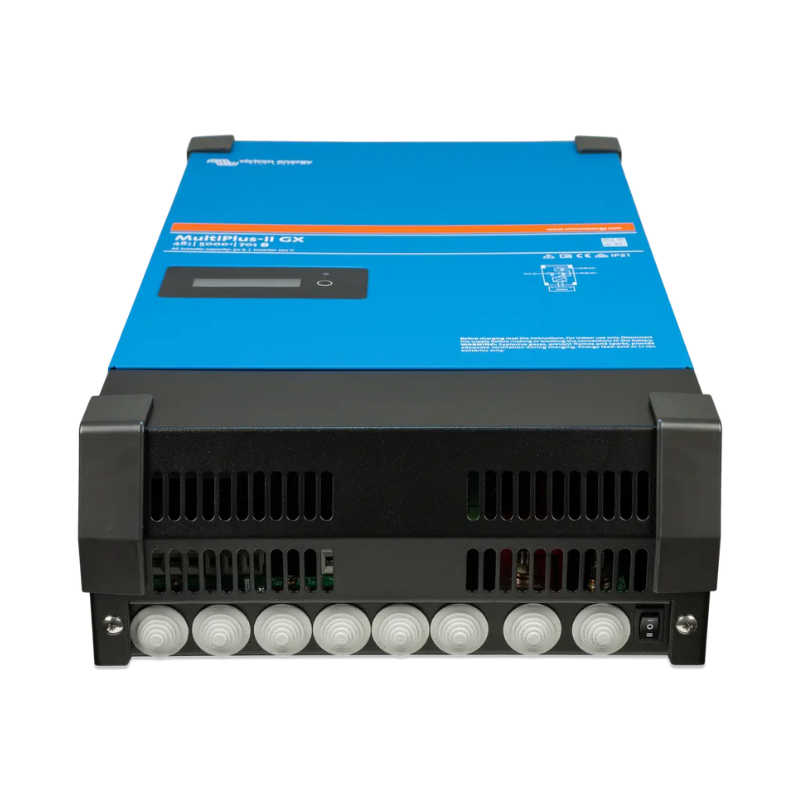

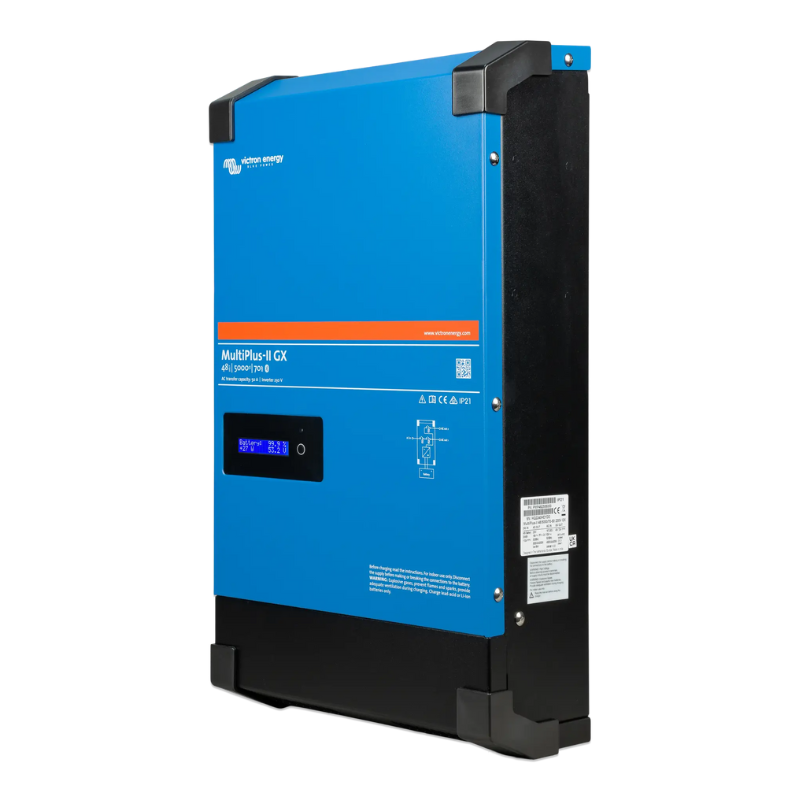

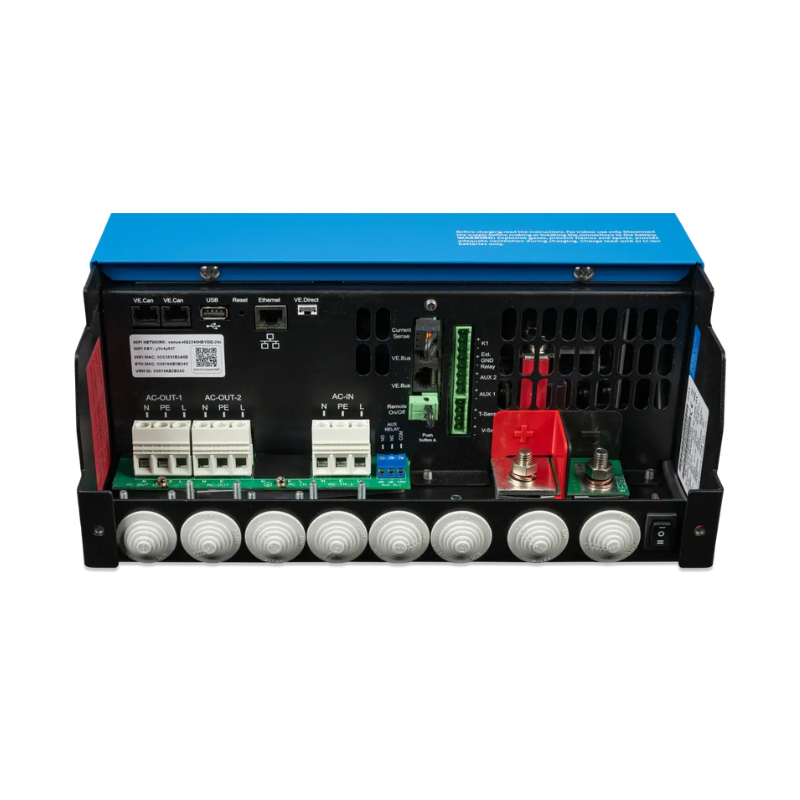

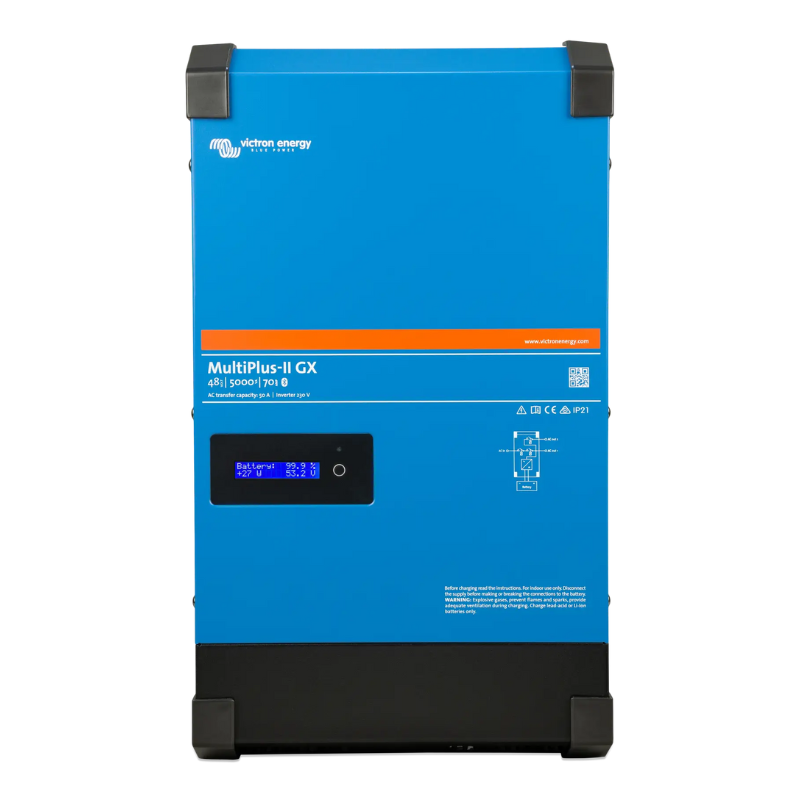

Victron Energy MultiPlus-II 48/5000/70-50 230V GX

The Victron Energy MultiPlus-II 48/5000/70-50 230V GX is a high-capacity inverter/charger with an integrated GX communication and monitoring platform. Built for advanced 48V off-grid, marine, RV, and backup systems, it combines a 5000VA pure sine wave inverter, a 70A adaptive battery charger, and a 50A high-speed transfer switch. When shore or generator power is present, it passes AC through while charging your battery bank. If the AC source fails, it switches to inverter power instantly to keep critical loads running. With PowerControl and PowerAssist, it manages limited AC inputs and supports surge-heavy appliances smoothly. The built-in GX feature adds onboard system monitoring, remote access, and seamless integration with Victron’s ecosystem.

Victron Energy MultiPlus-II 48/5000/70-50 230V GX Features

5000VA pure sine wave inverter – Delivers clean, stable 230V AC power suitable for sensitive electronics and heavy household loads.

High surge capability – Supports demanding startups with up to 9000W peak output.

70A adaptive battery charger – Multi-stage charging for 48V banks, including lithium when configured.

50A transfer switch – Automatic and fast switching between AC input and inverter output.

PowerControl – Prevents overloading weak shore or generator sources by limiting AC input.

PowerAssist – Supplements limited AC input with battery power during load spikes.

Integrated GX monitoring – Built-in communication hub for system oversight and remote management.

Flexible interfaces – Supports BMS-Can, USB, Ethernet, VE.Direct, and Wi-Fi connections.

VE.Bus communication – Enables parallel or three-phase expansion and remote configuration.

Programmable relay – Can be set for alarms, generator start/stop, or custom triggers.

Durable steel enclosure – Rugged housing designed for mobile and stationary installations.

Victron Energy MultiPlus-II 48/5000/70-50 230V GX Applications

Off-grid home systems – reliable high-output AC with integrated charging and monitoring.
Solar + battery storage – ideal inverter/charger core for 48V hybrid builds.
Marine electrical systems – shore pass-through plus onboard AC when underway.
Large RV and van builds – supports high continuous loads and fast battery charging.
Backup power setups – automatic switchover for essential circuits during outages.

What's Included

Everything you need is included with your product.

Victron Energy MultiPlus-II 48/5000/70-50 230V GX

User Manual

Warranty

5-year Victron warranty

Victron Energy MultiPlus-II 48/5000/70-50 230V GX Specifications

Specification	Details
PowerControl & PowerAssist	Yes
Transfer switch	50 A
Maximum AC input current	50 A
Auxiliary output	Yes (32A)

Inverter

Specification	Details
Input voltage range	38 – 66 V
Output in inverter mode	Output voltage: 230 VAC ± 2% \| Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA)	5000 VA
Cont. output power at 25°C	4000 W
Cont. output power at 40	3700 W
Cont. output power at 65°C	3000 W
Maximum feed-in power	5000 VA
Peak power	9000 W
Maximum efficiency	96 %
Zero load power	18 W
Zero load power in AES mode	12 W
Zero load power in Search mode	2 W

Charger

Specification	Details
AC Input	Input voltage range: 187-265 VAC \| Input frequency: 45 – 65 Hz
Charge voltage 'absorption'	57,6 V
Charge voltage 'float'	55,2 V
Storage mode	52,8 V
Max. battery charge current	70 A
Battery temperature sensor	Yes

General

Specification	Details
Interfaces	BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
External AC current sensor (optional)	100 A
Programmable relay	Yes
Protection	a – g
VE.Bus communication port	For parallel and three phase operation, remote monitoring and system integration
General purpose com. port	Yes, 2x
Remote on-off	Yes
Operating temperature range	-40 to +65 °C (fan assisted cooling)
Humidity (non-condensing)	max 95 %

Enclosure

Specification	Details
Material & Colour	Steel, blue RAL 5012
Protection category	IP22
Battery-connection	M8 bolts
230 VAC-connection	Screw terminals 13 mm ² (6 AWG)
Weight kg	31 kg
Dimensions (hxwxd) mm	565 x 323 x 148

Standards

Specification	Details
Safety	EN-IEC 62019-1, EN-IEC 6201-2, EN-IEC 60335-1, EN-IEC 60335-2-29
Emission / Immunity	EN55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible power supply	IEC 62040-1

Frequently-Asked Questions

What makes the GX version different?

The GX version includes built-in system monitoring and communications, allowing easier remote access, data logging, and integration with Victron monitoring tools without needing a separate GX device.

What size systems is this model best for?

It’s designed for larger 48V systems needing high continuous output (5000VA) and strong surge handling, such as off-grid homes, marine platforms, and large RV builds.

Can it handle high-surge appliances?

Yes. With up to 9000W peak power, it supports startup loads from pumps, compressors, and other motor-driven appliances.

Does it support lithium battery banks?

Yes. The adaptive charger supports lithium profiles when configured correctly in Victron settings.

Can I expand to parallel or three-phase later?

Yes. VE.Bus enables parallel stacking and three-phase configurations with compatible Victron units.
