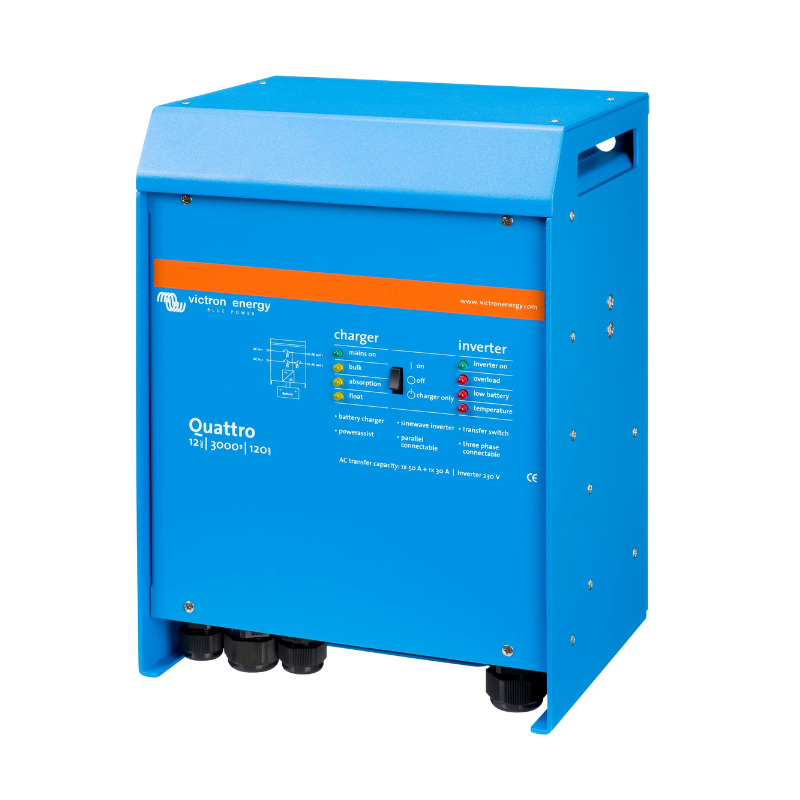

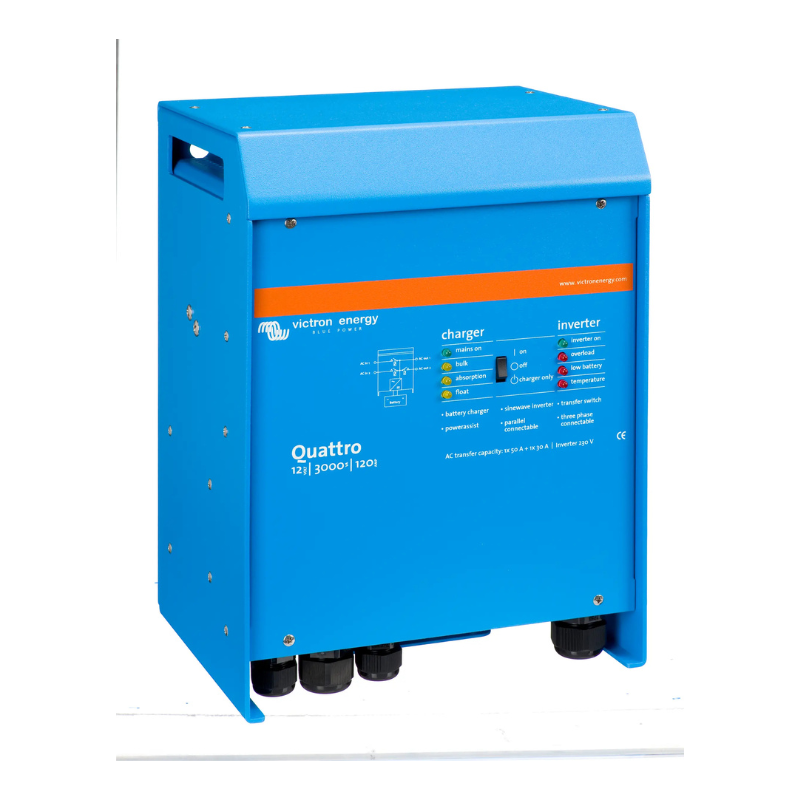

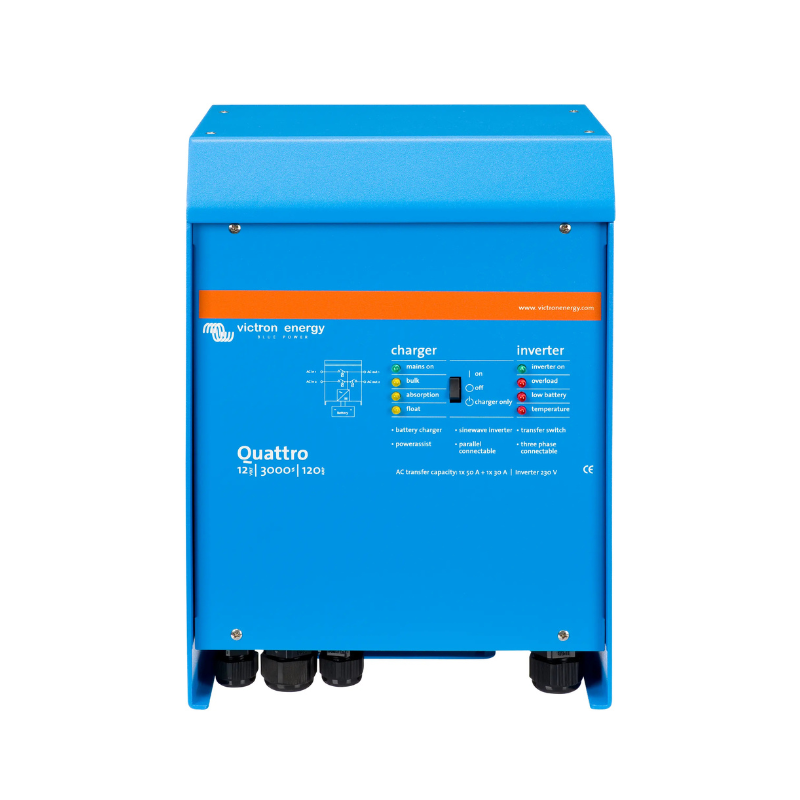

Victron Energy Quattro 12/3000/120-50/50 230V Inverter/Charger

Victron Energy Quattro 12/3000/120-50/50 230V Inverter/Charger

BY: Victron Energy | SKU: QUA123020010 Availability: In Stock
$1,810.50

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Victron Energy Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax (Most States)

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Victron Energy Quattro 12/3000/120-50/50 230V Inverter/Charger

The Victron Energy Quattro 12/3000/120-50/50 230V is a powerful inverter/charger built for demanding off-grid, marine, RV, and backup systems. It combines a 3000VA pure sine wave inverter with a high-capacity battery charger and two independent AC inputs, letting you automatically switch between shore, generator, or other AC sources without interruption. With Victron’s PowerControl and PowerAssist features, the Quattro helps prevent overloads on limited AC supplies while still supporting heavy loads when needed.

Victron Energy Quattro 12/3000/120-50/50 230V Inverter/Charger Features

Pure sine wave 3000VA inverter – Delivers clean, stable AC power suitable for sensitive electronics and household appliances.

Two AC inputs with automatic transfer – Connects to two separate AC sources (like shore and generator) and switches automatically to the active source.

PowerControl – Helps manage limited AC input by reducing charger draw when AC loads increase.

PowerAssist – Boosts available AC power by supplementing with battery power during high-demand moments.

High-capacity battery charger – Provides strong multi-stage charging performance for fast, reliable battery recovery.

Parallel and 3-phase capable – Expandable for larger systems and multi-unit configurations.

Low idle consumption modes – Includes AES and Search modes to reduce power draw when loads are light.

Rugged aluminum enclosure – Built for durability in mobile and off-grid environments.

Placeholder Image

Victron Energy Quattro 12/3000/120-50/50 230V Inverter/Charger Applications

  • Off-grid solar homes – reliable inverter/charging core for everyday power and backup.
  • Marine systems – automatic shore/generator switching and clean sine power for onboard loads.
  • RV and van builds – supports high-demand appliances with smart AC assist.
  • Hybrid backup systems – seamless operation during outages with fast transfer.
  • Workshops and remote sites – stable power and scalable system design.
Placeholder Image

What's Included

Everything you need is included with your product.

  • Victron Energy Quattro 12/3000/120-50/50 230V Inverter/Charger
  • User Manual

Warranty

  • 5-year Victron warranty

Victron Energy Quattro 12/3000/120-50/50 230V Inverter/Charger Specifications

Specification Details
Nominal Battery Voltage 12 V Battery
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-250 VAC | Input frequency: 50/60 Hz Cos Φ >0.8
Maximum feed through current (A) AC-in-1: 50 A | AC-in-2: 50A
Minimum PowerAssist current (A) AC-in-1: 5,3 A | AC-in-2: 5,3A

Inverter

Specification Details
Input voltage range (V DC) 9,5 – 17
Input current (A DC) 250
Output Output voltage: 230 VAC ± 2 % | Frequency: 50 Hz ± 0,1 %
Cont. output power at 25 °C (VA) 3000
Cont. output power at 25 °C (W) 2400
Cont. output power at 40 °C (W) 2200
Cont. output power at 65 °C 1700
Peak power (W) 6000
Maximum continuous Output current (A~) 11
Power factor range ±0.8
Maximum output fault current 32 A peak 1 sec.
Maximum efficiency ( %) 93
Zero-load power (W) 20
Zero-load power in AES mode (W) 15
Zero-load power in Search mode (W) 8

Charger

Specification Details
Charge voltage 'absorption' (V DC) 14,4
Charge voltage 'float' (V DC) 13,8
Storage mode (V DC) 13,2
Charge current house battery (A) 120
Charge current starter battery (A) 4
Battery temperature sensor yes

General

Specification Details
Auxiliary AC output Max load: 25 A Switches off when in inverter mode
Programmable relay Yes
Protection a - g
Common Characteristics Operating temp.: -40 to +65 °C (fan assisted cooling) | Humidity (non condensing): max 95 %
Maximum altitude 2000 m.

Enclosure

Specification Details
Common Characteristics Material & Colour: aluminium (blue RAL 5012), Protection: IP20, pollution degree 2, OVC III, Icw: 6kA 30mS
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 VAC-connection Screw terminals 13mm² (6 AWG)
Weight (kg) 19
Dimensions (hxwxd in mm) 362 x 258 x 218

Standards

Specification Details
Safety EN 60335-1, EN 60335-2-29
Emission / Immunity EN 55014-1, EN 55014-2, EN 61000-3-3

Frequently-Asked Questions

What’s the main advantage of the Quattro vs a standard inverter/charger?

The Quattro has two AC inputs and can automatically switch between them, making it ideal for systems that alternate between shore power and a generator.

Can it help if my shore power is limited?

Yes. PowerControl and PowerAssist reduce the chance of tripping limited AC sources by managing charger draw and adding battery support when loads spike.

Is it safe for sensitive electronics?

Yes. The pure sine wave inverter provides clean power for laptops, medical devices, and modern appliances.

Can I expand the system later?

Yes. The Quattro supports parallel operation and multi-phase setups for larger builds.
