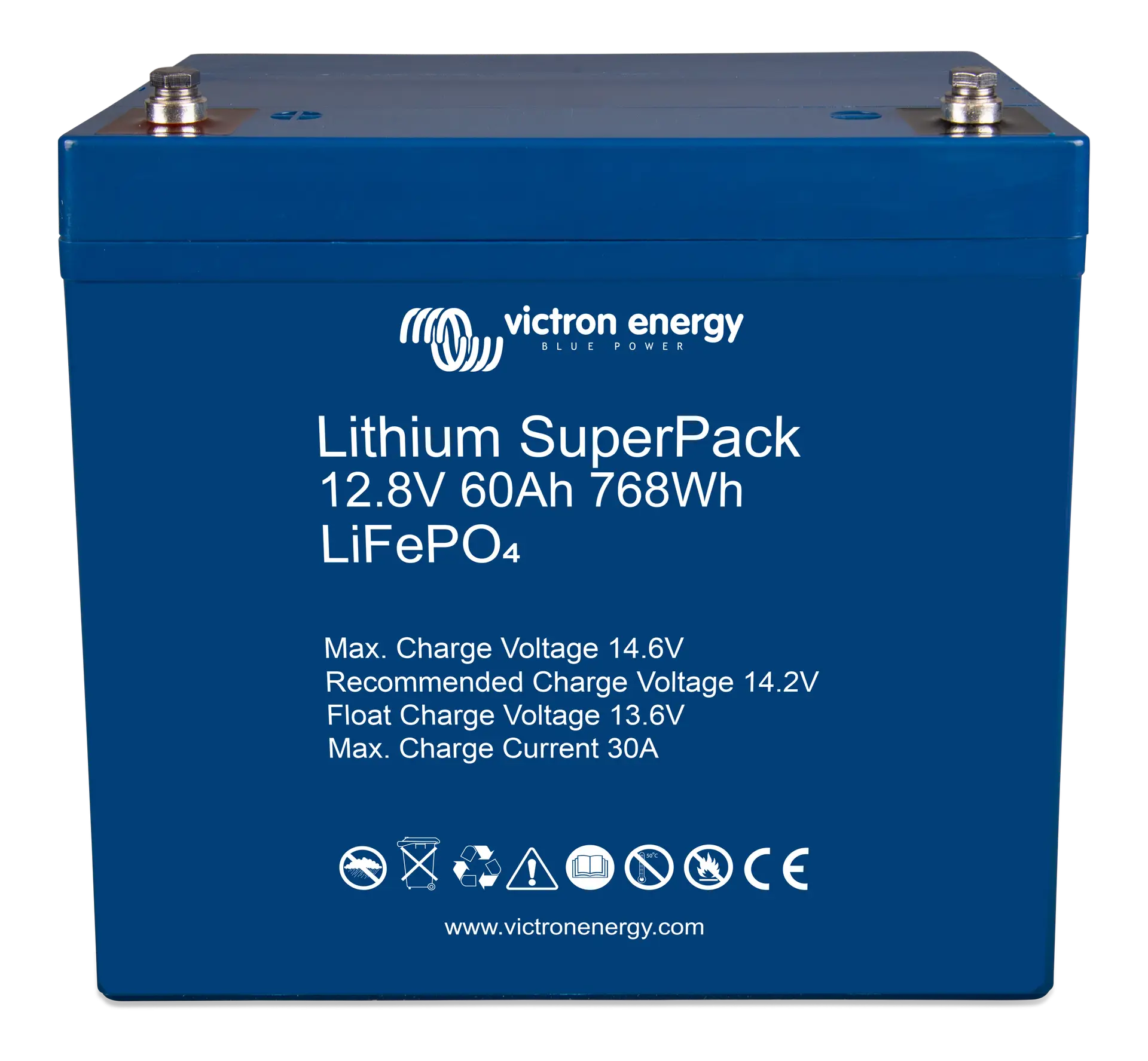

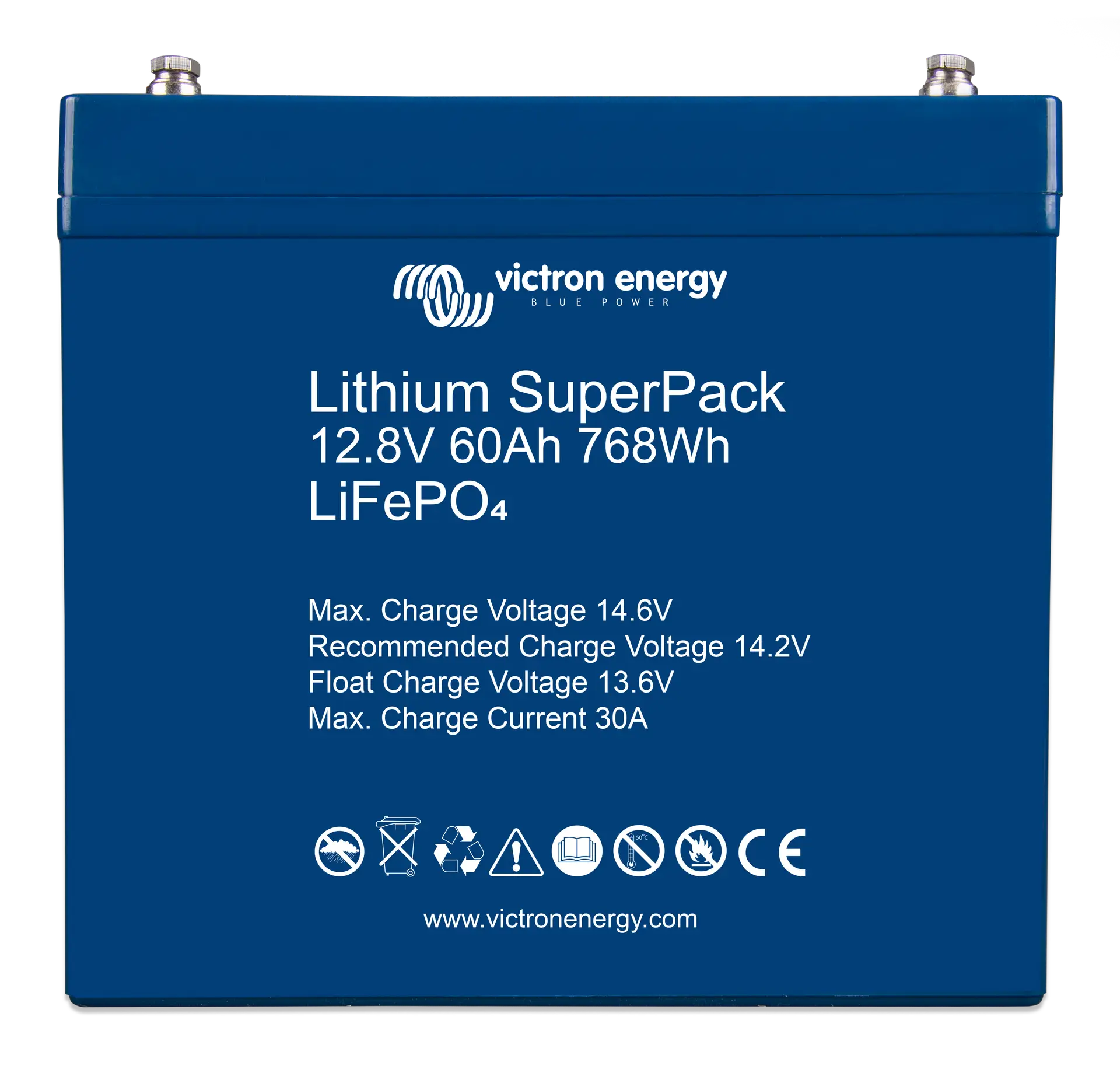

Victron Lithium SuperPack 60Ah Battery

The Victron Lithium SuperPack 60Ah Battery (BAT512060705) is a compact and efficient 12.8V LiFePO₄ (Lithium Iron Phosphate) battery designed for long-lasting energy storage in marine, RV, and solar applications. Built with a fully integrated Battery Management System (BMS) and safety switch, this all-in-one battery provides reliable protection against overcharge, over-discharge, and high temperature — eliminating the need for external components.

Delivering up to 2,500 cycles at 80% depth of discharge, the SuperPack outperforms traditional AGM and Gel batteries, offering superior efficiency, lightweight design, and reduced maintenance. Its internal BMS automatically disconnects the battery in unsafe conditions, ensuring both user safety and long service life.

The Victron SuperPack 60Ah Battery is the ultimate plug-and-play lithium solution — safe, durable, and ready for demanding off-grid systems.

Victron Lithium SuperPack 60Ah Battery Features

Integrated BMS and Safety Switch - No need for external components — the SuperPack includes an internal Battery Management System that automatically disconnects in case of overcharge, over-discharge, or overheating.

Abuse-Proof Design - The battery is self-protecting and cuts off automatically when voltage or temperature exceeds safe limits, preventing damage and improving reliability.

High Efficiency - Enjoy 92% round-trip energy efficiency, significantly higher than typical lead-acid batteries. It maintains performance even under partial state-of-charge conditions.

Compact & Lightweight - Up to 70% lighter and smaller than comparable lead-acid batteries, allowing flexible installation in mobile or space-limited applications.

Long Cycle Life - Provides up to 2,500 cycles at 80% DoD, delivering dependable power for years of daily use.

Easy Installation -The prebuilt protection and management system make it ready to use right out of the box — simply connect and power up.

Placeholder Image

Victron Lithium SuperPack 60Ah Battery Applications

  • Marine & Boats – Power onboard electronics, lighting, and navigation systems efficiently.
  • RVs & Campers – Ideal for off-grid power in mobile applications.
  • Solar Systems – Reliable storage for residential and portable solar setups.
  • Work Vans & Mobile Power Units – Compact, durable energy source for professionals on the move.
Placeholder Image

What's Included

Everything you need is included with your product.

  • Victron Lithium SuperPack 60Ah Battery
  • User Manual

Warranty

  • Victron Energy Standard Warranty: 5 Years

Victron Lithium SuperPack 60Ah Battery Specifications

Category Specifications
Model 12.8/60
Chemistry LiFePO₄
Nominal Voltage 12.8V
Nominal Capacity @ 25°C 60Ah
Nominal Capacity @ 0°C 48Ah
Nominal Energy @ 25°C 768Wh
Cycle Life (80% DoD, 25°C) 2500 cycles
Capacity Loss <1% per 100 cycles @25°C, 100% DoD
Energy Loss <1% per 100 cycles @25°C, 100% DoD
Round Trip Efficiency 92%

Charge and Discharge

Category Specifications
Max Continuous Discharge Current 30A
Peak Discharge Current (10 sec) 80A
End of Discharge Voltage 10V
Charge Voltage, Absorption 14.2V – 14.4V
Charge Voltage, Float 13.5V
Max Continuous Charge Current 30A

Operating Conditions

Category Specifications
Parallel Configuration Yes, unlimited
Series Configuration No
Operating Temperature Discharge: -20°C to +50°C / Charge: 0°C to +45°C
Storage Temperature -40°C to +65°C
Max Storage Time When Fully Charged 1 year ≤25°C / 3 months ≤40°C
Humidity (Non-Condensing) Max. 95%
Protection Class IP43

Mounting

Category Specifications
Can Be Placed on Longest Side Yes (4)

Other

Category Specifications
Power Connection (Threaded Inserts) M6
Dimensions (H × W × D) 213 × 229 × 138 mm
Weight 9.5 kg

Notes

  • The battery may disconnect when a load with a high input capacitance is connected, such as an inverter. The battery will however retry and reconnect after approximately 10 seconds.
  • The absorption period should preferably not exceed 4 hrs. A longer absorption period may slightly reduce service life.
  • For serial number HQ2040 and newer, the charge is automatically blocked when the cell temperature decreases below 0 ± 3 °C. It will accept charging again when the temperature is above +3 ± 3 °C. Discharge is automatically blocked when cell temperature decreases below −20 ± 3 °C. This protection resets when temperature is above −15 ± 3 °C.
  • The battery can be mounted upright and on its longest sides (assuming the exceptions in note 5), but not with both battery terminals facing down.
  • Do not lay the battery on its long side where the positive terminal (+) is at the bottom—see the image on the left.

Frequently-Asked Questions

Do I need an external BMS?

No. The SuperPack includes a fully integrated BMS, so no external components are required.

Can I connect multiple batteries in series?

No. The SuperPack allows parallel connections only — series configurations are not supported.

Is this suitable for off-grid solar systems?

Yes. The SuperPack’s efficiency and built-in protection make it ideal for off-grid solar and energy storage setups.

How does it compare to lead-acid batteries?

The SuperPack is lighter, longer-lasting, more efficient, and offers higher usable capacity per charge cycle.
