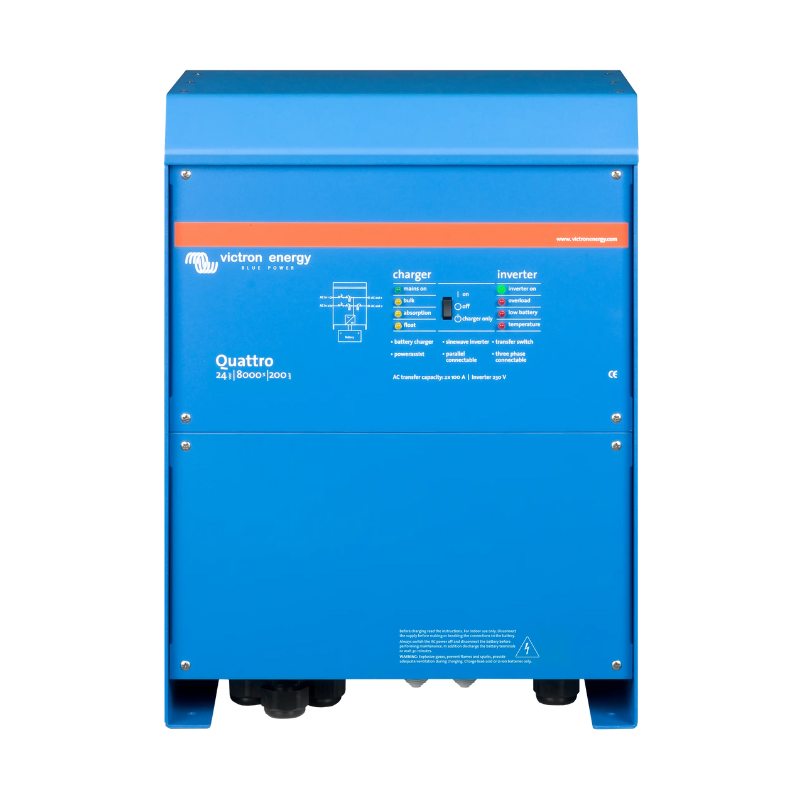

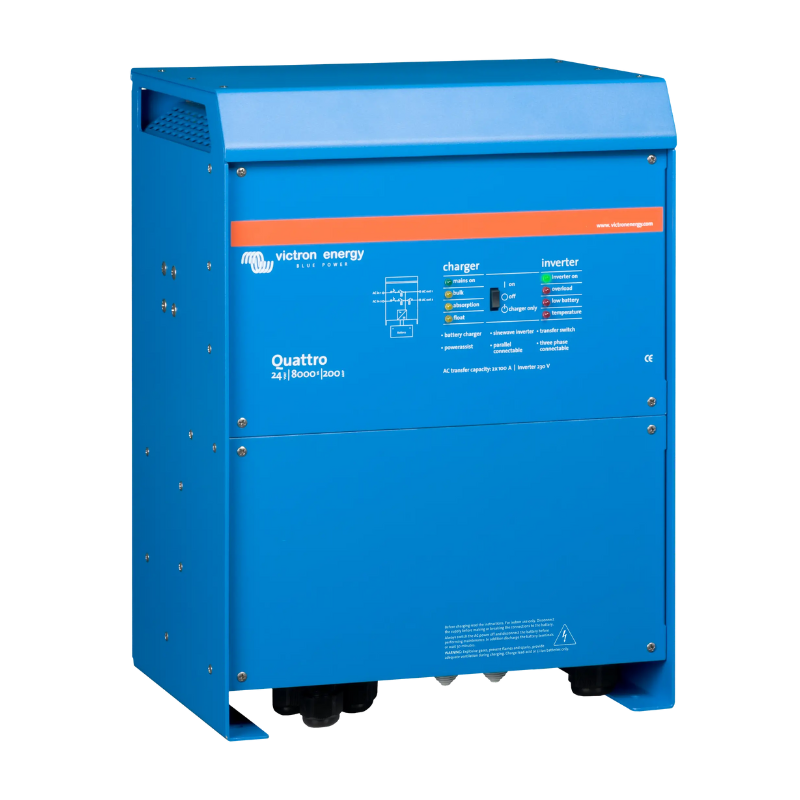

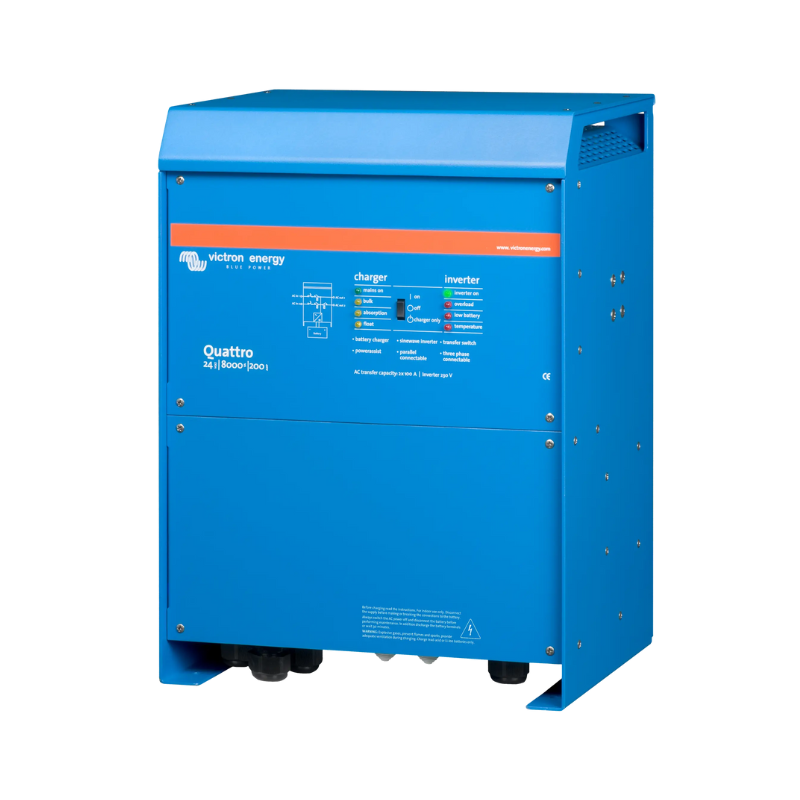

Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus

Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus

Name: Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus
Brand: Victron Energy
SKU: QUA248020010
Price: 2804.88 USD
Availability: InStock

BY: Victron Energy

SKU: QUA248020010

| Availability: In stock

$2,804.88

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Victron Energy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus

The Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus is a high-output inverter/charger built for serious off-grid, marine, RV, and backup power systems. It combines an 8000VA pure sine wave inverter with a powerful 24V battery charger and two independent AC inputs. This lets the Quattro automatically switch between shore power, generator, or other AC sources without interruption. With PowerControl and PowerAssist, it manages limited AC supplies intelligently and can boost power using the battery during load spikes, helping prevent breaker trips while still running demanding appliances.

Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus Features

Pure sine wave 8000VA inverter – Delivers clean, stable power for sensitive electronics and large AC loads.

Two AC inputs with automatic transfer – Seamlessly switches between two power sources (shore, generator, etc.) for uninterrupted operation.

PowerControl – Prevents overloading limited AC inputs by reducing charger draw as loads increase.

PowerAssist – Adds battery power to shore or generator input during short high-demand peaks.

High-capacity 24V battery charger – Up to 200A charging for fast battery recovery and strong daily cycling support.

Parallel and three-phase capable – Expandable for larger systems and multi-unit configurations.

Low-idle energy modes – AES and Search modes reduce consumption when loads are light.

Rugged aluminum enclosure – Durable build suited for mobile, marine, and off-grid environments.

Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus Applications

Off-grid solar homes – reliable core inverter/charger for daily power and backup.
Marine systems – automatic shore/generator switching and clean sine power onboard.
RV and van builds – supports heavy appliances with smart AC support.
Hybrid backup setups – seamless operation during outages with fast transfer.
Workshops and remote sites – stable, scalable power for tools and equipment.

What's Included

Everything you need is included with your product.

Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus

User Manual

Warranty

5-year Victron warranty

Victron Energy Quattro 24/8000/200-100/100 230V VE.Bus Specifications

Specification	Details
PowerControl / PowerAssist	Yes
Integrated Transfer switch	Yes
AC inputs (2x)	Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A)	2x100

Inverter

Specification	Details
Input voltage range (V DC)	9,5 – 17V \| 19 – 33V \| 38 – 66V
Output	Output voltage: 230 VAC ± 2% \| Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA)	8000
Cont. output power at 25°C (W)	6500
Cont. output power at 40°C (W)	5500
Cont. output power at 65°C (W)	3600
Peak power (W)	16000
Maximum efficiency (%)	94 / 96
Zero load power (W)	45 / 50
Zero load power in AES mode (W)	30 / 30
Zero load power in Search mode (W)	10 / 20

Charger

Specification	Details
Charge voltage 'absorption' (V DC)	28,8 / 57,6
Charge voltage 'float' (V DC)	27,6 / 55,2
Storage mode (V DC)	26,4 / 52,8
Charge current house battery (A)	200 / 110
Charge current starter battery (A)	4 (12V and 24V models only)
Battery temperature sensor	Yes

General

Specification	Details
Auxiliary output (A)	50
Programmable relay	3x
Protection	a - g
VE.Bus communication port	For parallel and three phase operation, remote monitoring and system integration
General purpose com. port	2x
Remote on-off	Yes
Common Characteristics	Operating temp.: -40 to +65˚C Humidity (non-condensing): max. 95%

Enclosure

Specification	Details
Common Characteristics	Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection	Four M8 bolts (2 plus and 2 minus connections)
230 VAC-connection	Bolts M6
Weight (kg)	45 / 41
Dimensions (hxwxd in mm)	470 x 350 x 280

Standards

Specification	Details
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission / Immunity	EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-3, EN-IEC 61000-6-2, EN-IEC 61000-6-1
Vehicles, aftermarket	12V and 24V models: EN 50498

Frequently-Asked Questions

What’s the main advantage of the Quattro?

It has two AC inputs and automatically switches between them, which is perfect for systems that alternate between shore power and a generator.

Can it help when shore or generator power is limited?

Yes. PowerControl and PowerAssist manage charger draw and add battery support during spikes, helping avoid breaker trips.

Is it safe for sensitive electronics?

Yes. The pure sine wave output provides clean power for electronics and modern appliances.

Can I expand the system later?

Yes. It supports parallel operation and three-phase setups for larger builds.
