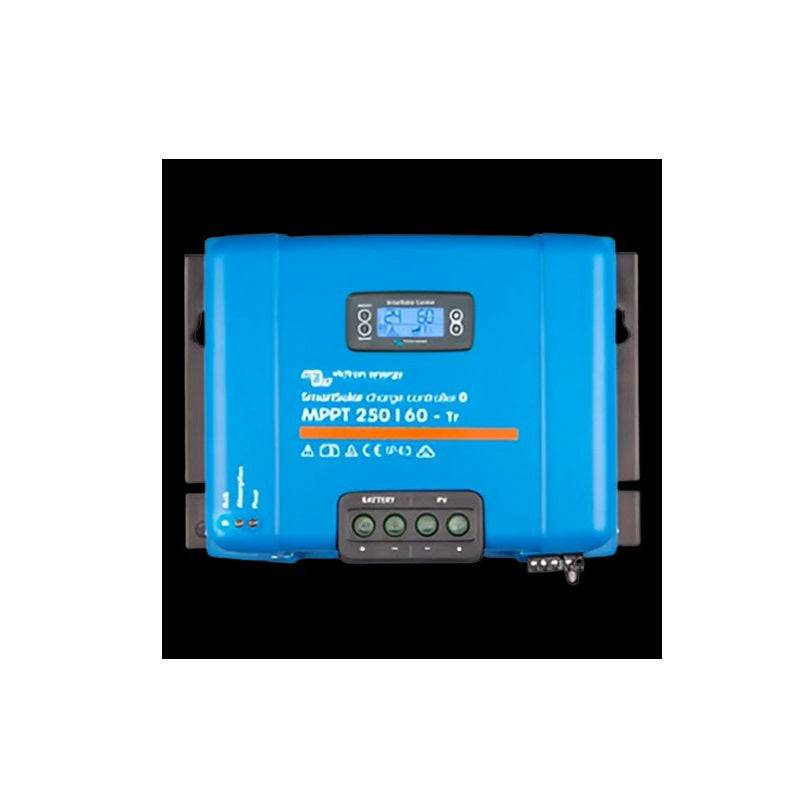

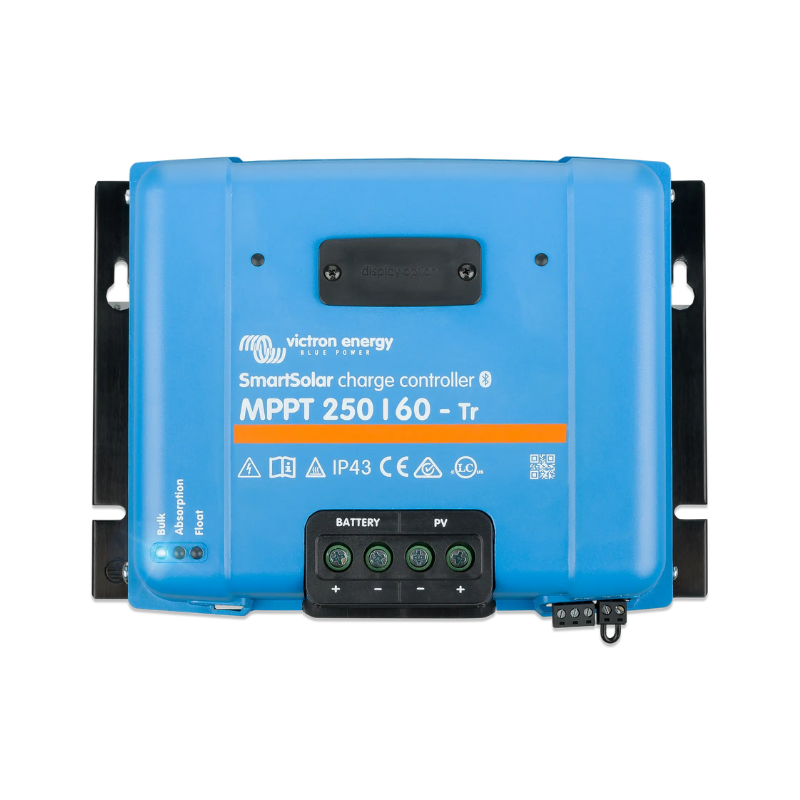

Victron SmartSolar MPPT Charge Controller 250/60-Tr VE.Can – SCC125060221

The Victron SmartSolar MPPT 250/60-Tr VE.Can is a high-voltage, high-current solar charge controller built for serious off-grid and mobile power systems. It supports 12V, 24V, and 48V battery banks automatically (with optional 36V selection via software), and can handle up to 250V open-circuit PV input. With fast MPPT tracking, ultra-high efficiency, and built-in Bluetooth plus VE.Can/VE.Direct communications, it’s designed to maximize solar harvest and provide smart monitoring for RV, marine, cabin, and backup power setups.

Victron SmartSolar MPPT Charge Controller 250/60-Tr Features

60A high-current charging – Delivers strong charging performance for medium to large battery banks.

250V PV input support – Handles high-voltage solar arrays for efficient long-distance panel runs and larger systems.

Automatic 12/24/48V battery detection – Quickly matches common battery system voltages, with 36V available via software selection.

Ultra-high MPPT efficiency – Up to 99% conversion efficiency to maximize solar harvest.

Built-in Bluetooth monitoring – Lets users check status, history, and settings from a phone or tablet.

VE.Can and VE.Direct communications – Supports networking, system integration, and external monitoring.

Victron SmartSolar MPPT Charge Controller 250/60-Tr Applications

RV solar systems – reliable high-voltage MPPT charging for travel and boondocking setups.
Marine power – strong charging control for boats needing efficient solar harvest.
Cabins and off-grid homes – supports larger arrays and battery banks for daily energy independence.
Backup power systems – maintains battery storage for emergency and standby use.
Commercial/industrial DC systems – high PV voltage handling makes it suitable for larger deployments.

What's Included

Everything you need is included with your product.

Victron SmartSolar MPPT Charge Controller 250/60-Tr VE.Can – SCC125060221

User Manual

Warranty

5-year limited warranty

Victron SmartSolar MPPT Charge Controller 250/60-Tr VE.Can – SCC125060221 Specifications

Category	Specifications
SmartSolar Charge Controller	250/60
Battery voltage	12 / 24 / 48V Auto Select (software tool needed to select 36V)
Rated charge current	60A
Nominal PV power, 12V 1a,b)	860W
Nominal PV power, 24V 1a,b)	1720W
Nominal PV power, 36V 1a,b)	2580W
Nominal PV power, 48V 1a,b)	3440W
Max. PV short circuit current	35A (max 30A per MC4 conn.)
Maximum PV open circuit voltage	250V absolute maximum coldest conditions \| 245V start-up and operating maximum
Maximum efficiency	99%
Self-consumption	Less than 35mA @ 12V / 20mA @ 48V
Charge voltage 'absorption'	Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'float'	Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'equalization'	Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable
Charge algorithm	multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
Temperature compensation	-16 mV / -32 mV / -64 mV / °C
Protection	PV reverse polarity / Output short circuit / Over temperature
Operating temperature	-30 to +60°C (full rated output up to 40°C)
Humidity	95%, non-condensing
Maximum altitude	5000m (full rated output up to 2000m)
Environmental condition	Indoor, unconditioned
Pollution degree	PD3
Data communication port	VE.Direct or Bluetooth
Remote on/off	Yes (2 pole connector)
Programmable relay	DPST AC rating: 240VAC / 4A \| DC rating: 4A up to 35VDC, 1A up to 60VDC
Parallel operation	Yes

Enclosure

Category	Specifications
Colour	Blue (RAL 5012)

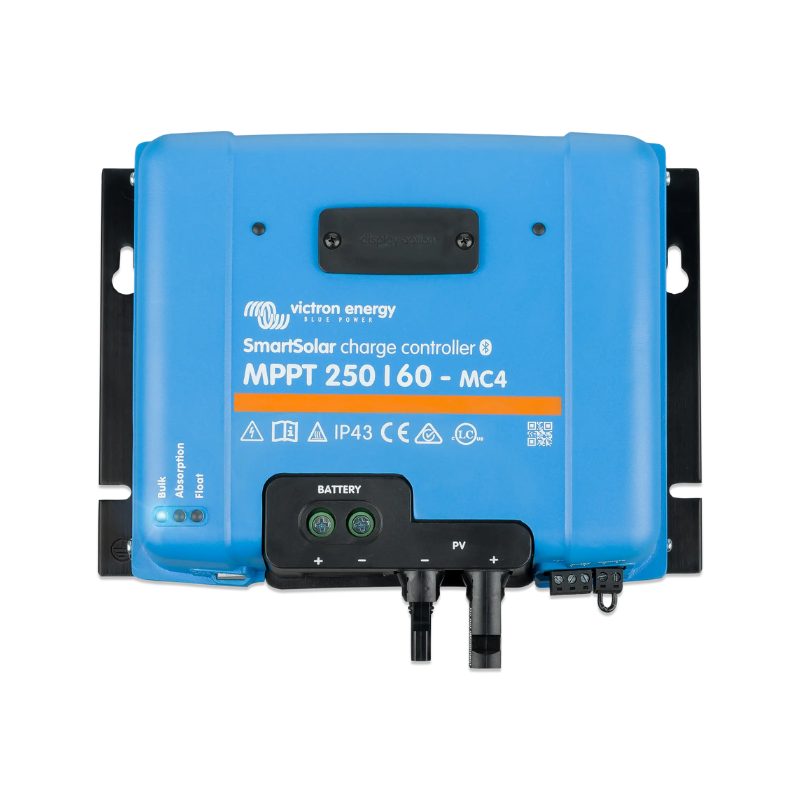

PV terminals	35 mm² / AWG2 (Tr models) \| Two pairs of MC4 connectors (MC4 models)
Battery terminals	35mm² / AWG2
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	3 kg
Dimensions (h x w x d) in mm	Tr models: 185 x 250 x 95 mm \| MC4 models: 215 x 250 x 95 mm

Standards

Category	Specifications
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
	1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V. 2) A PV array with a higher short circuit current may damage the controller. 3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels Maximum current per MC4 connector: 30A (the MC4 connectors are parallel connected to one MPPT tracker)

Frequently-Asked Questions

What battery systems does this controller support?

It auto-detects and supports 12V, 24V, and 48V batteries. A 36V battery system can be selected using Victron software tools.

How big of a solar array can I connect?

Array size depends on battery voltage. Nominal PV power limits are 860W (12V), 1720W (24V), 2580W (36V), and 3440W (48V). Always keep PV open-circuit voltage below the 250V maximum.

Can I monitor it from my phone?

Yes. Built-in Bluetooth lets users view performance, history, and adjust settings through a compatible app.

Can this be networked with other Victron gear?

Yes. VE.Can allows device networking and system-level monitoring, while VE.Direct supports direct connections to monitors or smart devices.

Is it safe in hot or cold environments?

It operates from −30°C to +60°C, delivering full rated output up to 40°C. Built-in protections guard against overheating and electrical faults.

Manual

Victron SmartSolar MPPT Charge Controller Manual
