Sungold Power 3000W Solar Kit Overview

This is all-in-one solar kits source for ho- me applications creates 120V for power- ingstandard household appliances duri- ng short-term utility outages, it inlcudes 3000W 24V AC120V output Solar inverter + 4PCS 200 Watt Solar Panel +2pcs 24V 100AH Lithium Battery + other Accesso- ries, the solar kit is powerful for the RV or home applicances, It is widely use in the off grid home, solar system or emergency back up system! you can extend your system by adding more solar panel or batteries in the future!

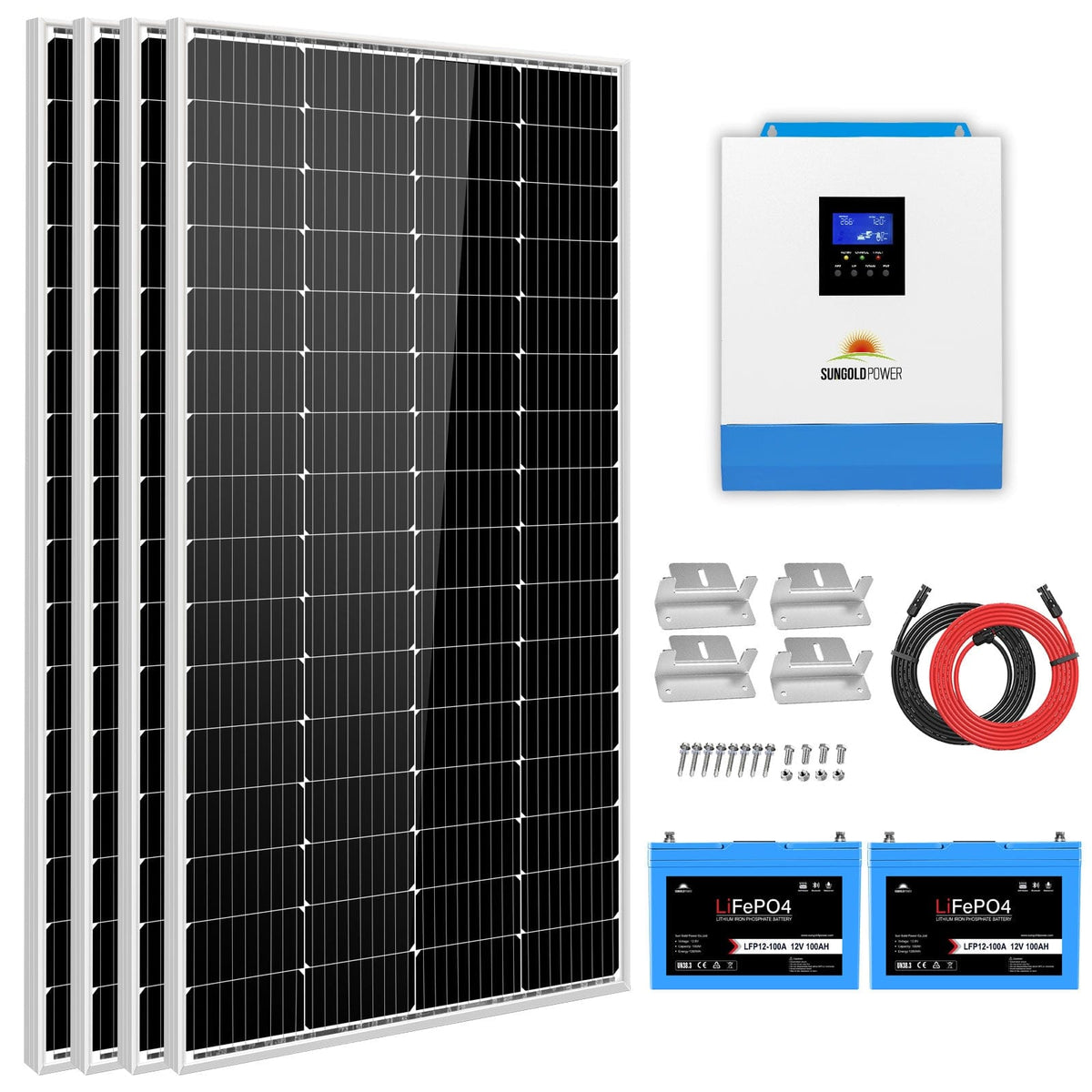

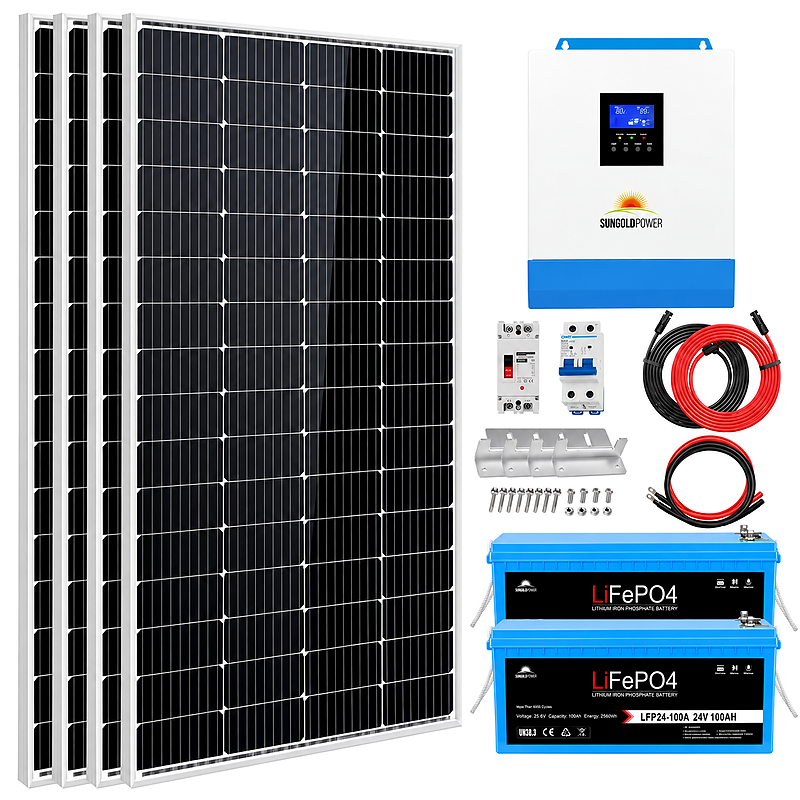

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 3000 Watt 24V DC 120V Solar Inverter
• 4 x 200 Watt Monocrystalline Solar Panels
• 2 x 24V 100AH Lifepo4 battery with Bluetooth
• 4 x Sets of Mounting Z-Brackets
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input

Sungold Power 3000W Solar Kit Feature

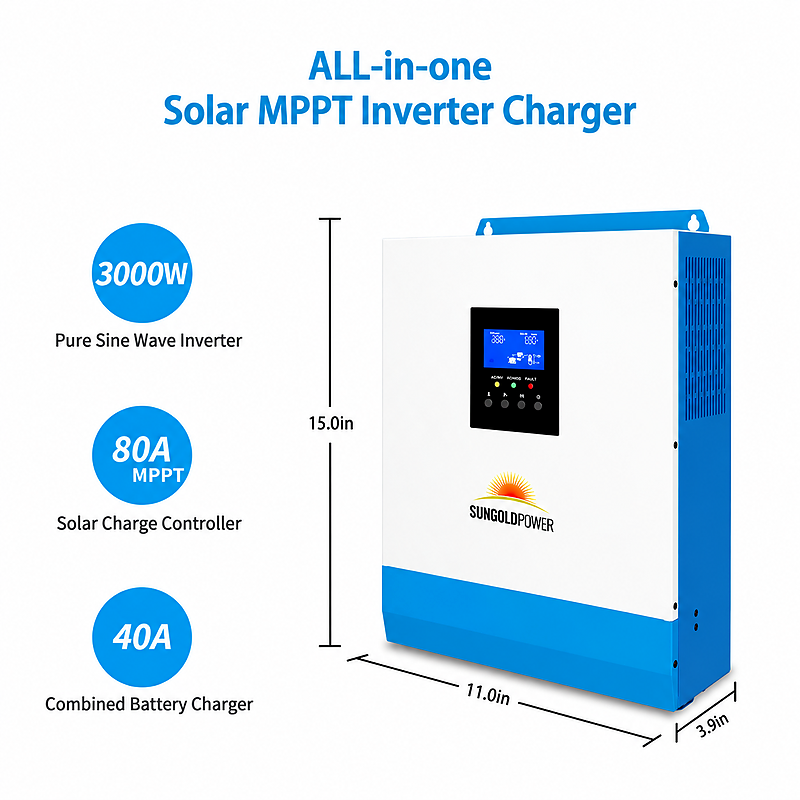

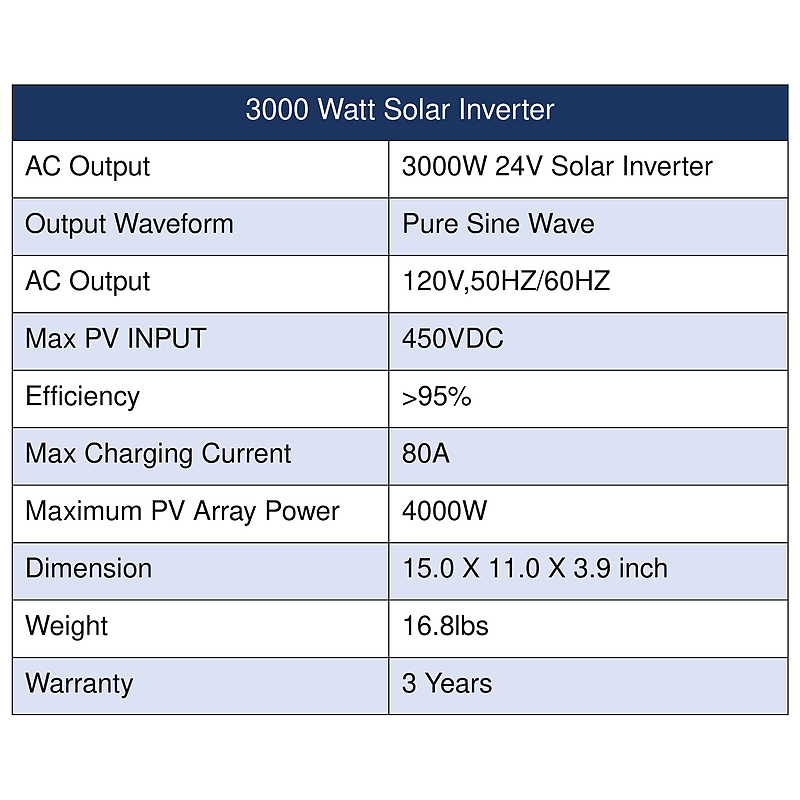

3000 Watt Pure Sine Inverter Charger

• AC Output: 3000W 24V Solar Inverter
• Output Waveform: Pure Sine Wave
• AC Output: 120V, 50HZ/60HZ
• Max PV Input: 450VDC
• Efficiency: 95%
• Max Charging Current: 80A
• Maximum PV Array Power: 4000W
• Dimension: 15.4 X 11.0 X 3.9mm
• Weight: 16.8 LB
• Warranty: 3 Years

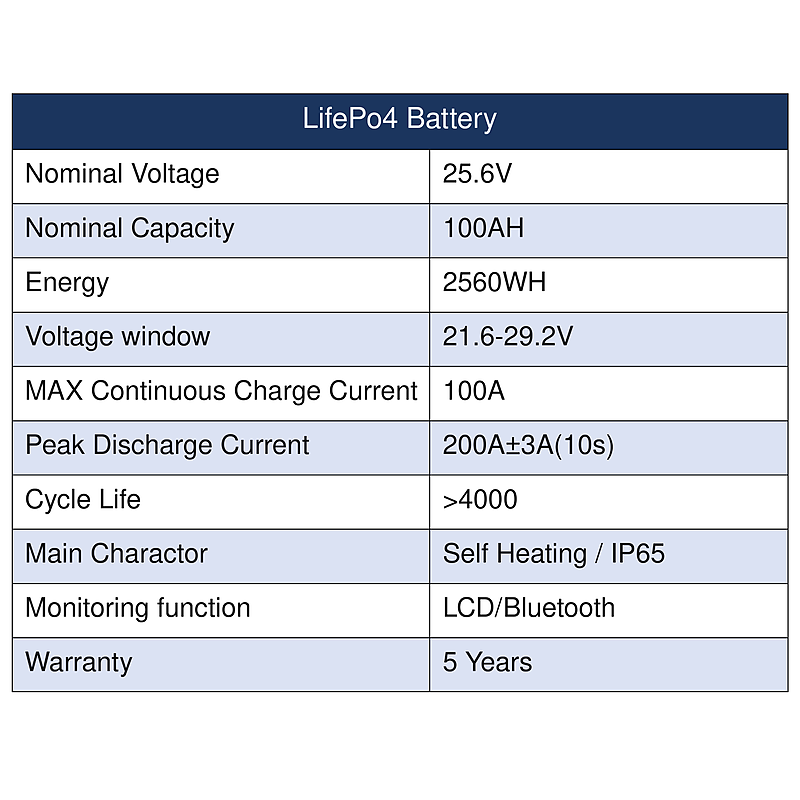

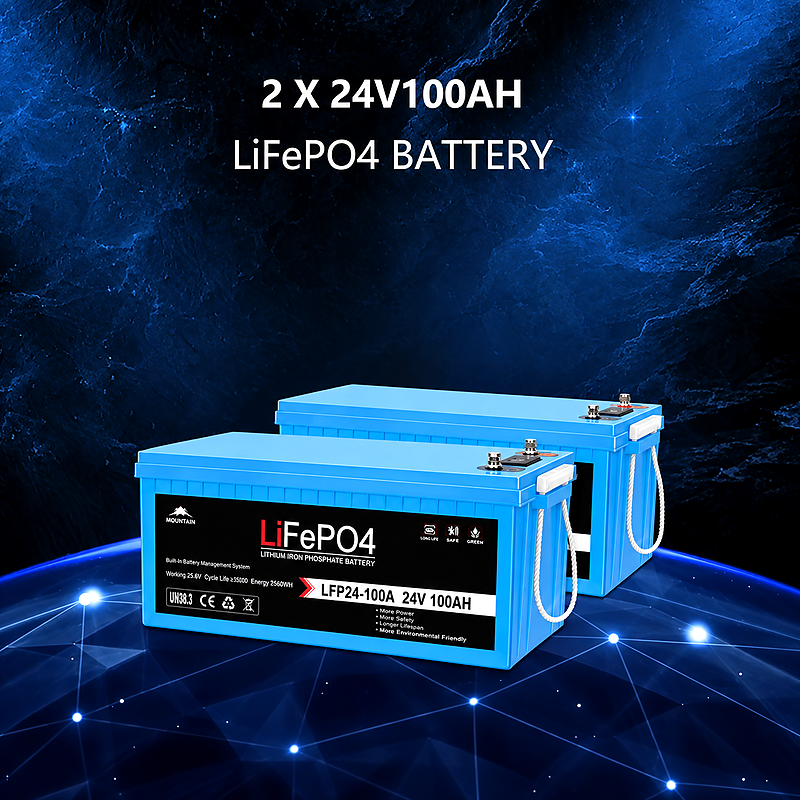

LifePo4 Battery

• Nominal Voltage: 25.6V
• Nominal Capacity: 100AH
• Energy: 2560WH
• Voltage window: 21.6-29.2V
• MAX Continuous Charge Current: 100A
• Peak Discharge Current: 200A±3A(10s)
• Cycle Life: >4000
• Main Charactor: Self Heating / IP65
• Monitoring function: LCD/Bluetooth
• Warranty: 5 Years

200 Watt Mono Solar Panel

• Peak Power: 200W
• Solar Cell: Monocrystalline
• Product Tolerance: +3%
• Maximum Power Current (IMP): 5.28A
• Maximum Power Voltage(VMP): 37.9V
• Short Circuit Current(ISC): 5.56A
• Open Circuit Voltage(VOC): 43.5V
• Product Dimension: 55.1 X 27.6 X 1.2 inch
• Product Weight: 23lbs
• Warranty: 25 Years

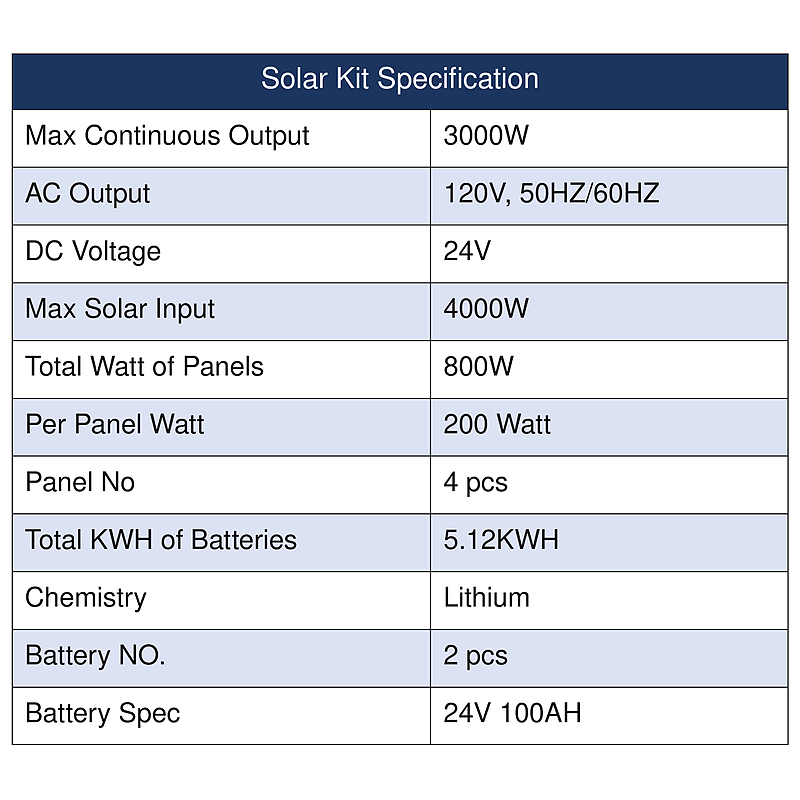

Solar Kit Specification

• Max Continuous Output: 3000W
• AC Output: 120V, 50HZ/60HZ
• DC Voltage: 24V
• Max Solar Input: 4000W
• Total Watt of Panels: 800W
• Per Panel Watt: 200 Watt
• Panel NO.: 4 pcs
• Total KWH of Batteries: 5.12WH
• Chemistry: Lithium
• Battery NO.: 2pcs
• Battery Spec: 24V 100AH

User Manual

• Sungold Power 3000W Pure Sine Wave Inverter User Manual
• Sungold Power 100AH LiFePo4 Battery With Bluetooth User Manual
• Sungold Power 200 Watt Monocrystalline Solar Panel User Manual
