Do the batteries really go outside?

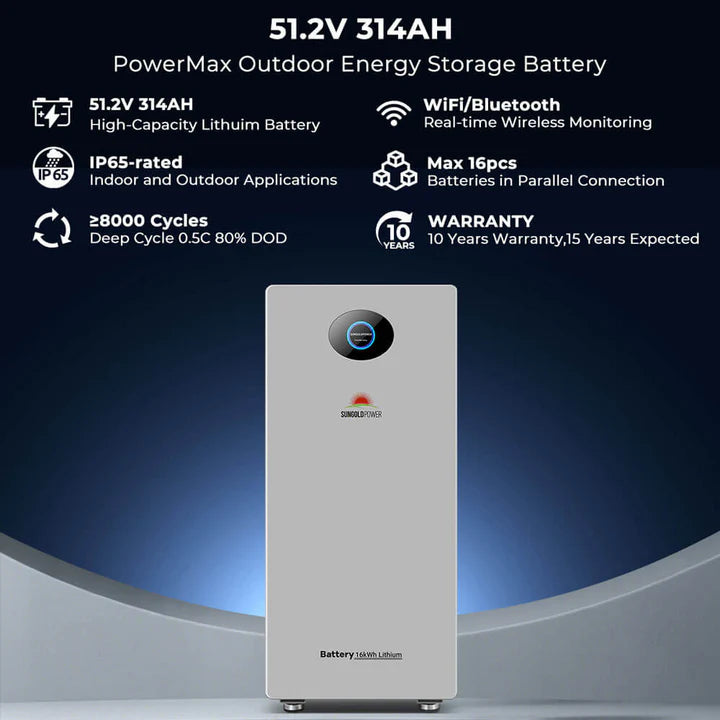

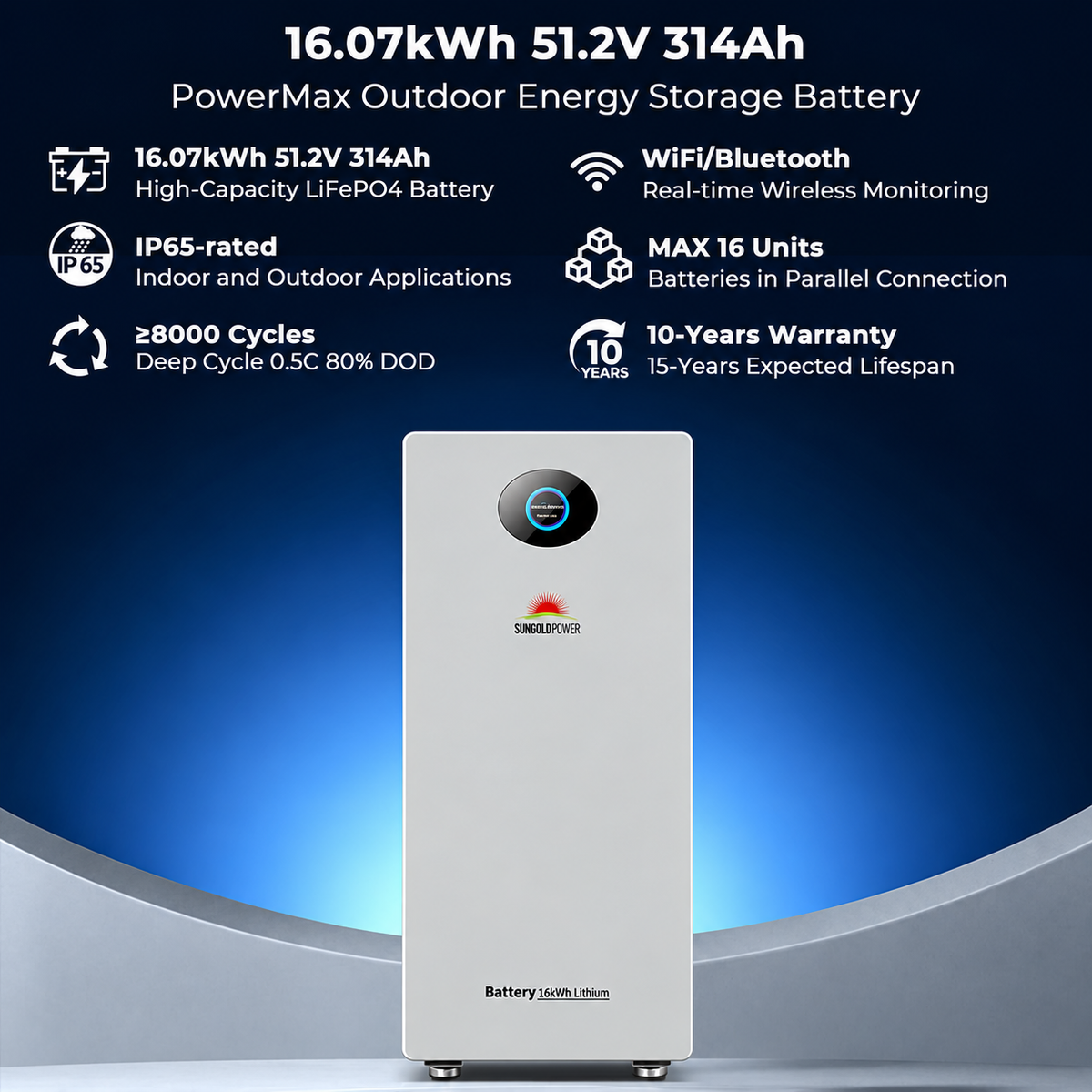

Yes. They're IP65 rated, which means sealed against dust and against low-pressure water jets from any direction, and they're built for wall or floor mounting outdoors. That is what makes this kit different from everything else we sell at this size, where the bank has to live in a conditioned indoor space. The inverter is not outdoor rated, so it still needs a garage, shed or utility space, but the heavy part stays outside.
Does this kit include everything I need to install it?

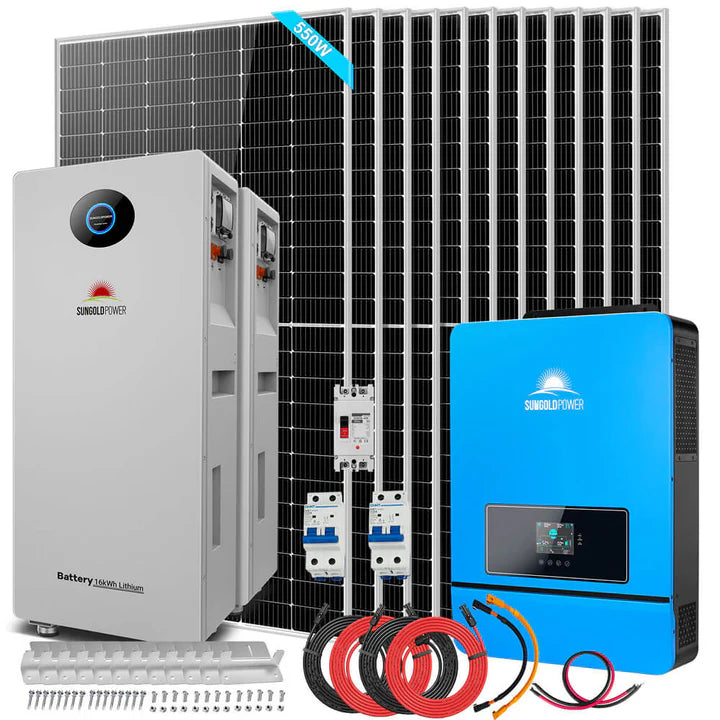

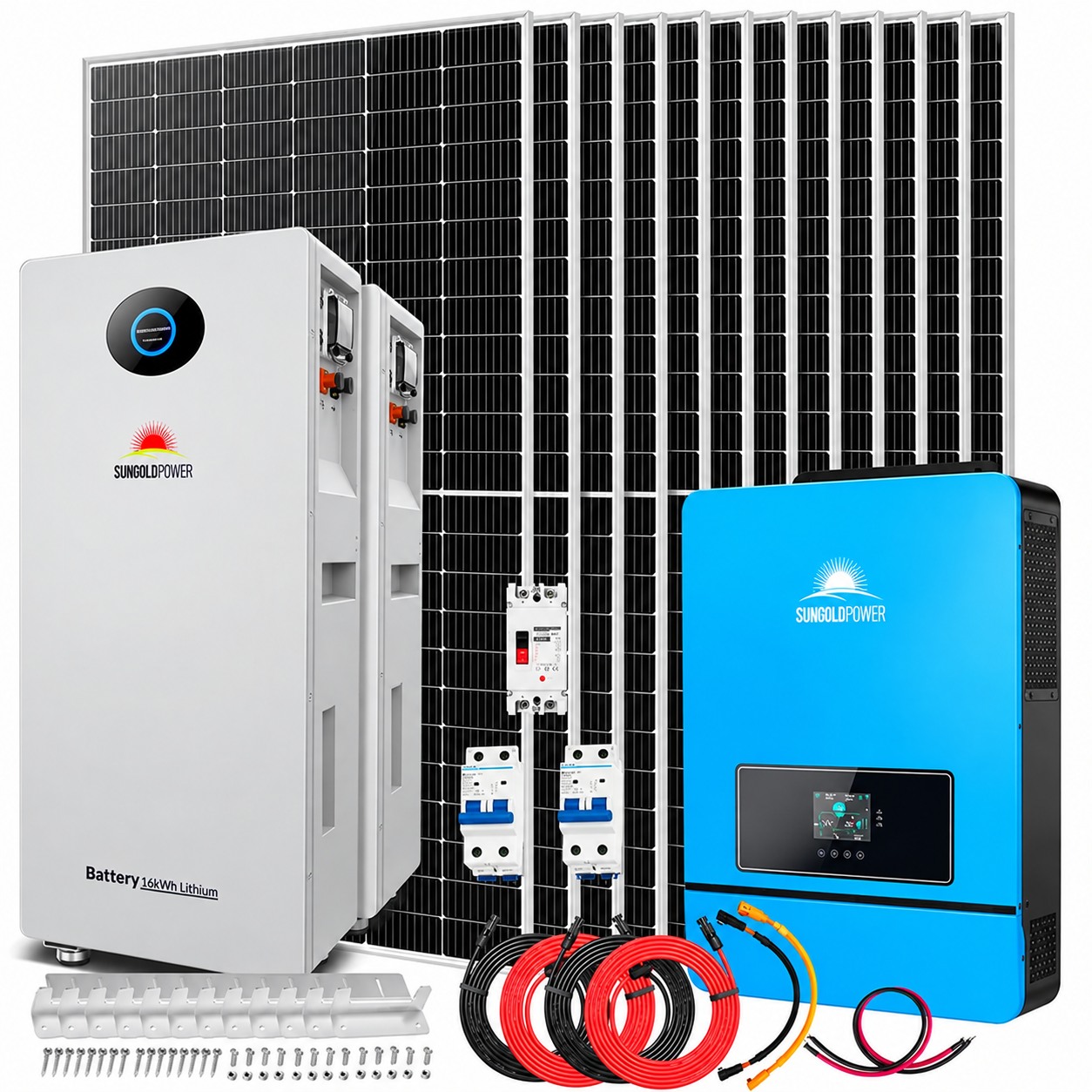

The system side, yes: the inverter, both batteries with the parallel cable, all twelve panels, the DC breaker, both PV breakers, two sets of solar extension cables, the battery cable and the Z-brackets, and no enclosure to buy because the batteries don't need one. What varies is the building side: a pad or mounting surface for the batteries, rail racking for twelve large panels on a roof or ground mount, conduit, junction boxes, building wire, a critical loads panel or transfer switch, generator or shore power input wiring, and labor. Those depend on your structure and your local code, which is why we spec them per site. Tell us about your install and we'll list exactly what yours needs.
Can two batteries really keep up with a 10,000W inverter?
Comfortably. Each PowerMax sustains 7.68kW, so the pair supplies 15.36kW where the inverter draws under 11kW from the battery at full output. The inverter is the ceiling, not the bank. That is worth knowing because it isn't true of every kit in this class: some pair a large inverter with a battery that can't sustain its rating.

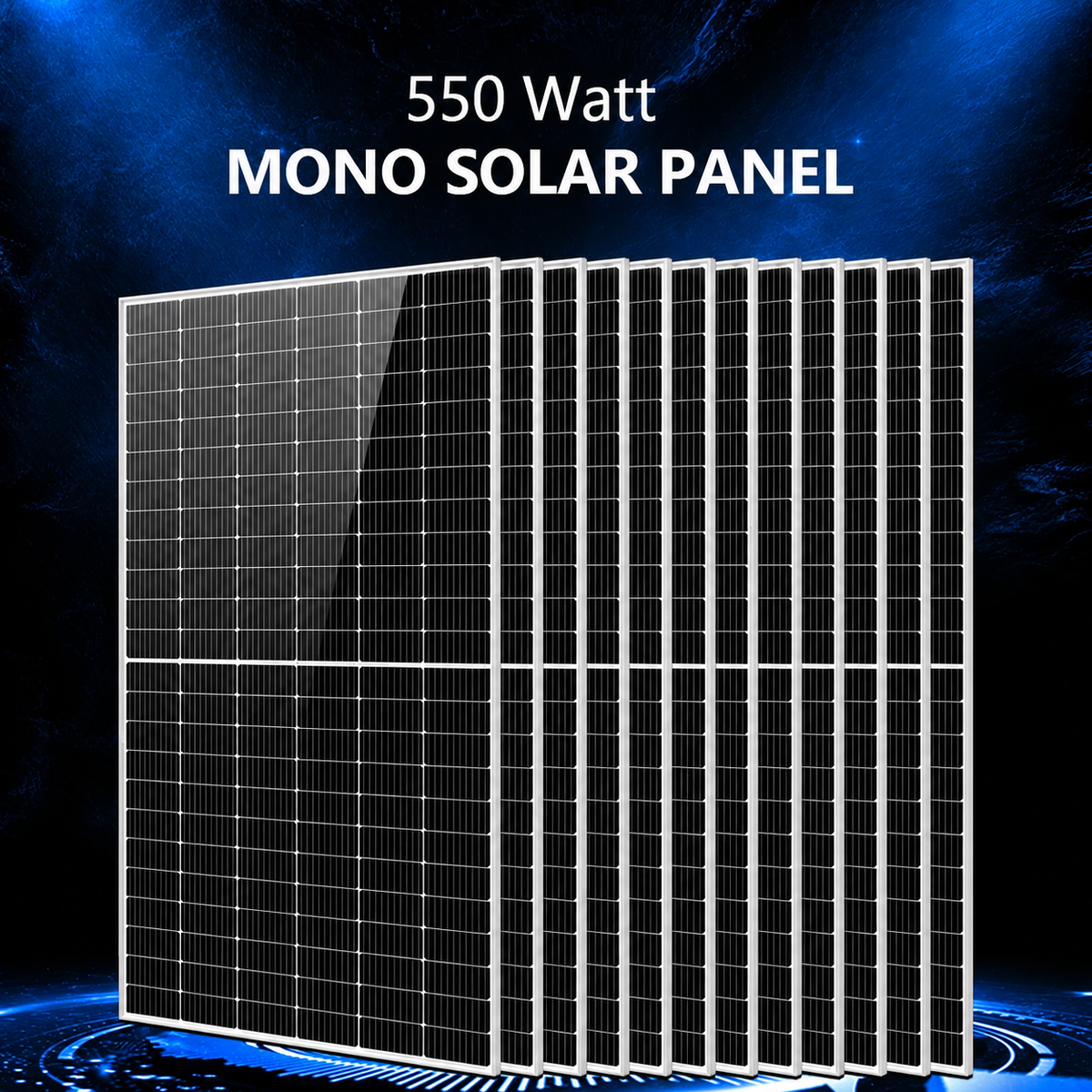

How should the panels be wired?

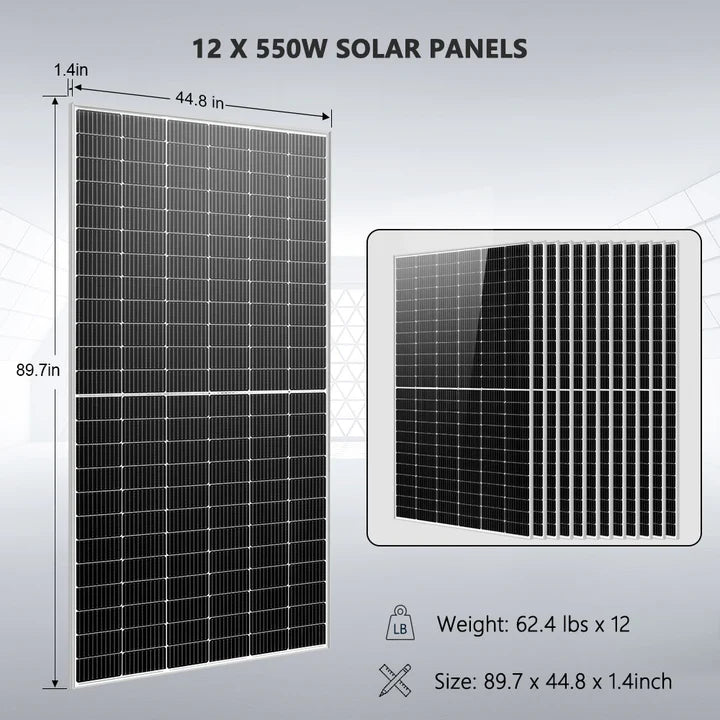

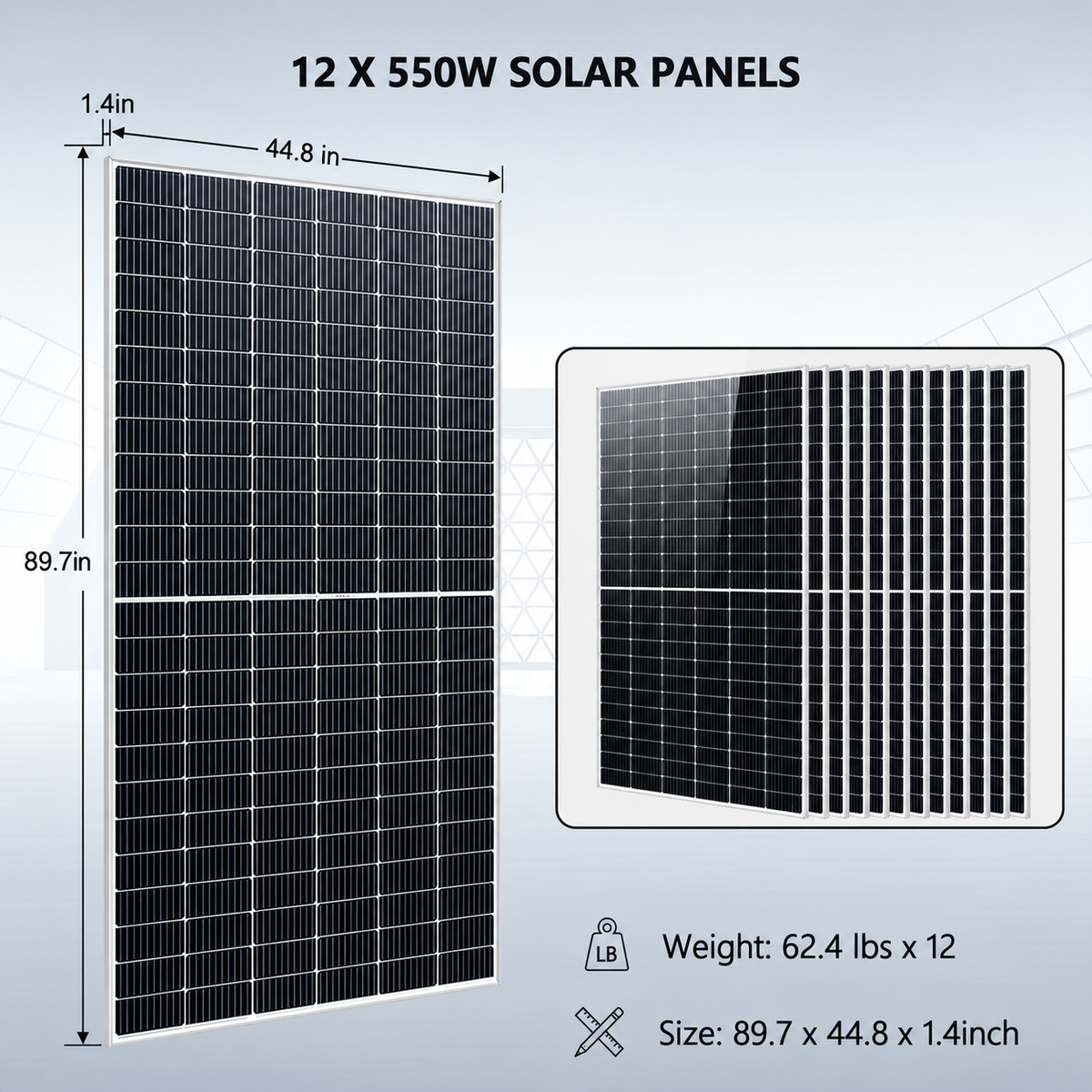

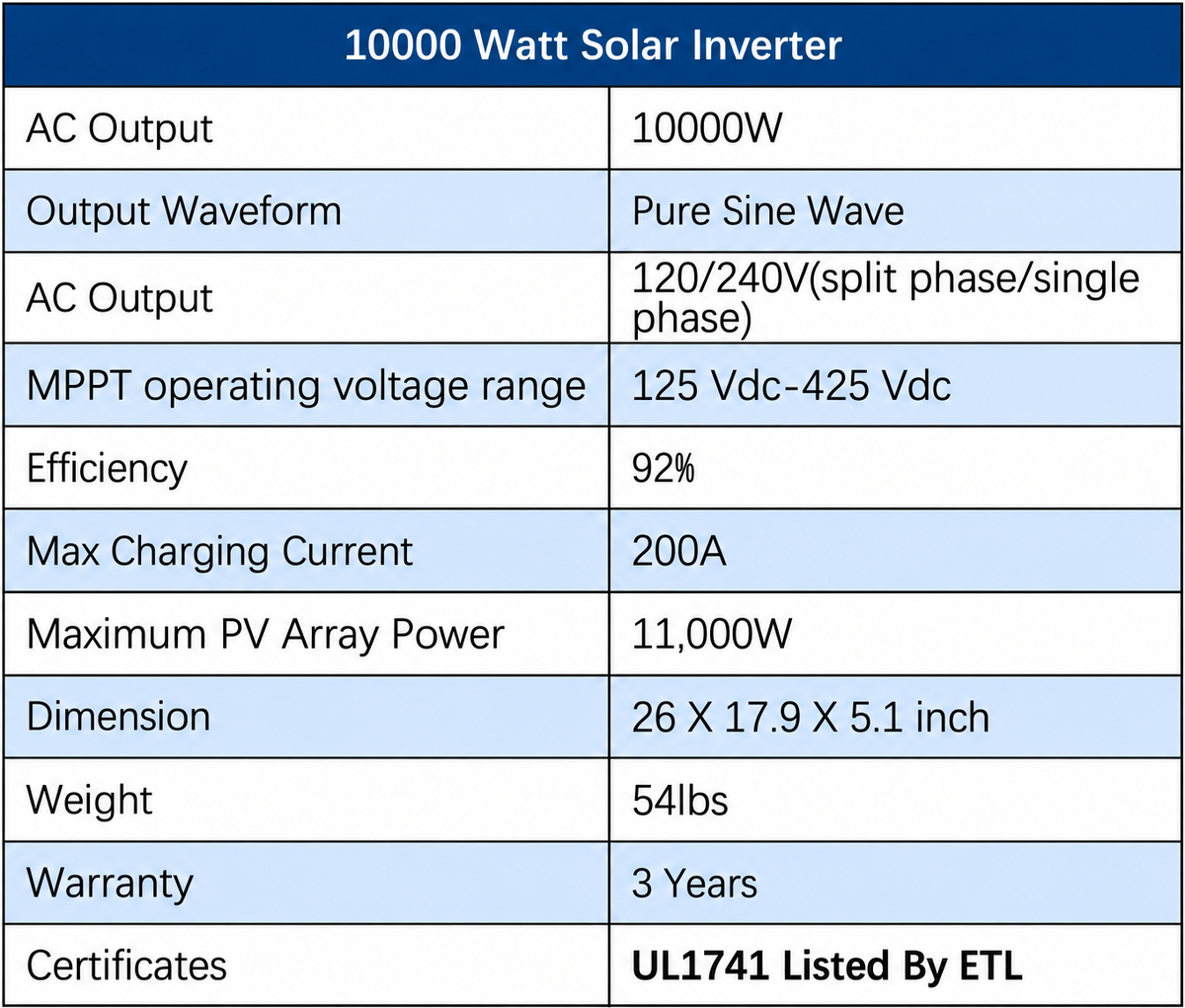

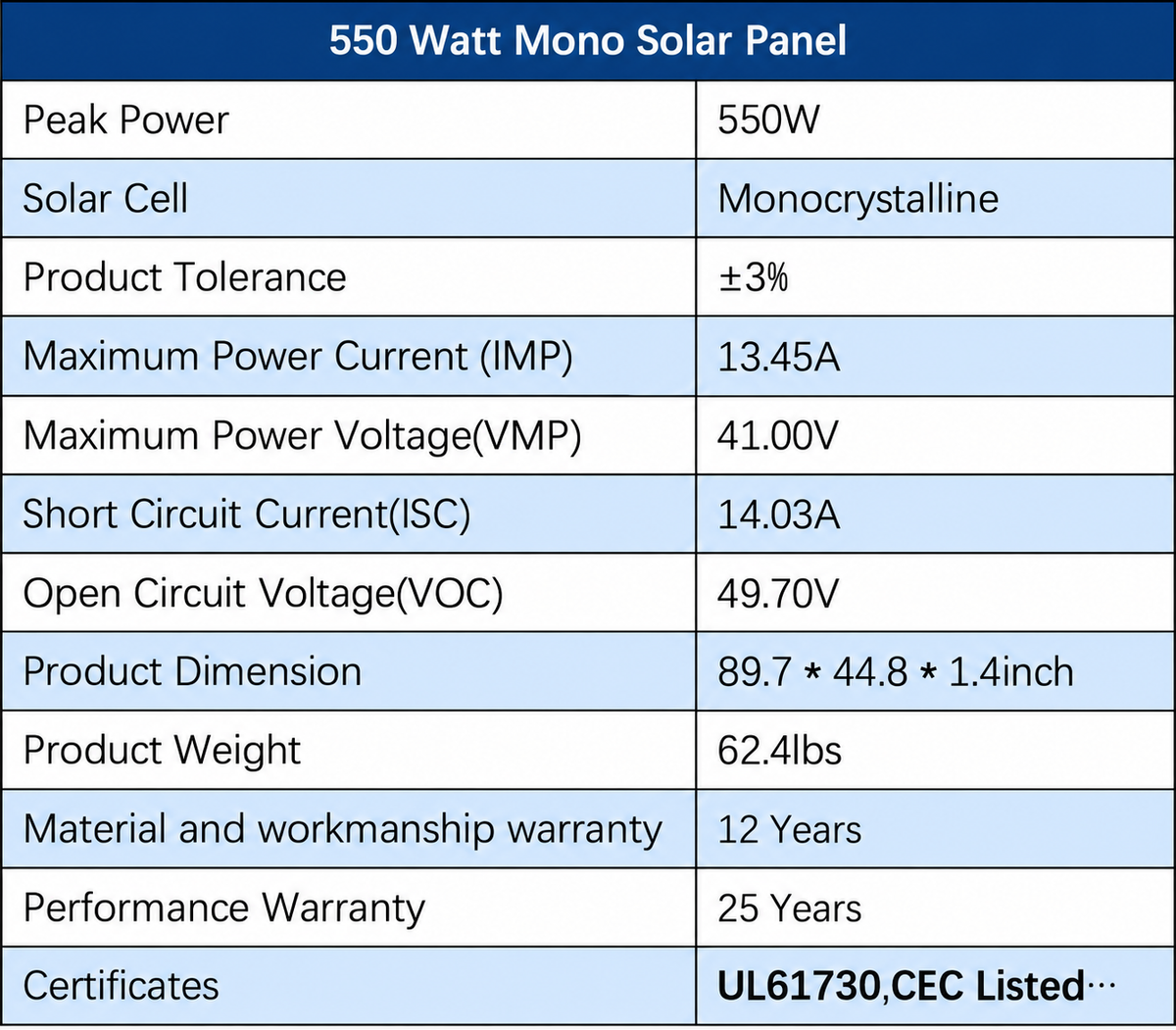

Two strings of six, one on each MPPT tracker, which is what the two PV breakers in the box are for. Six of these panels operate near 246V, in the middle of the inverter's 125 to 425V window. Don't run all twelve in one string: 550W panels have a 49.7V open-circuit voltage, so twelve in series lands near 600V against a 500V ceiling.
How much energy will this generate daily?
The 6.6kW array produces roughly 26 to 33kWh per day at 4 to 5 peak sun hours. Actual output depends on your location, season, panel angle and shading.

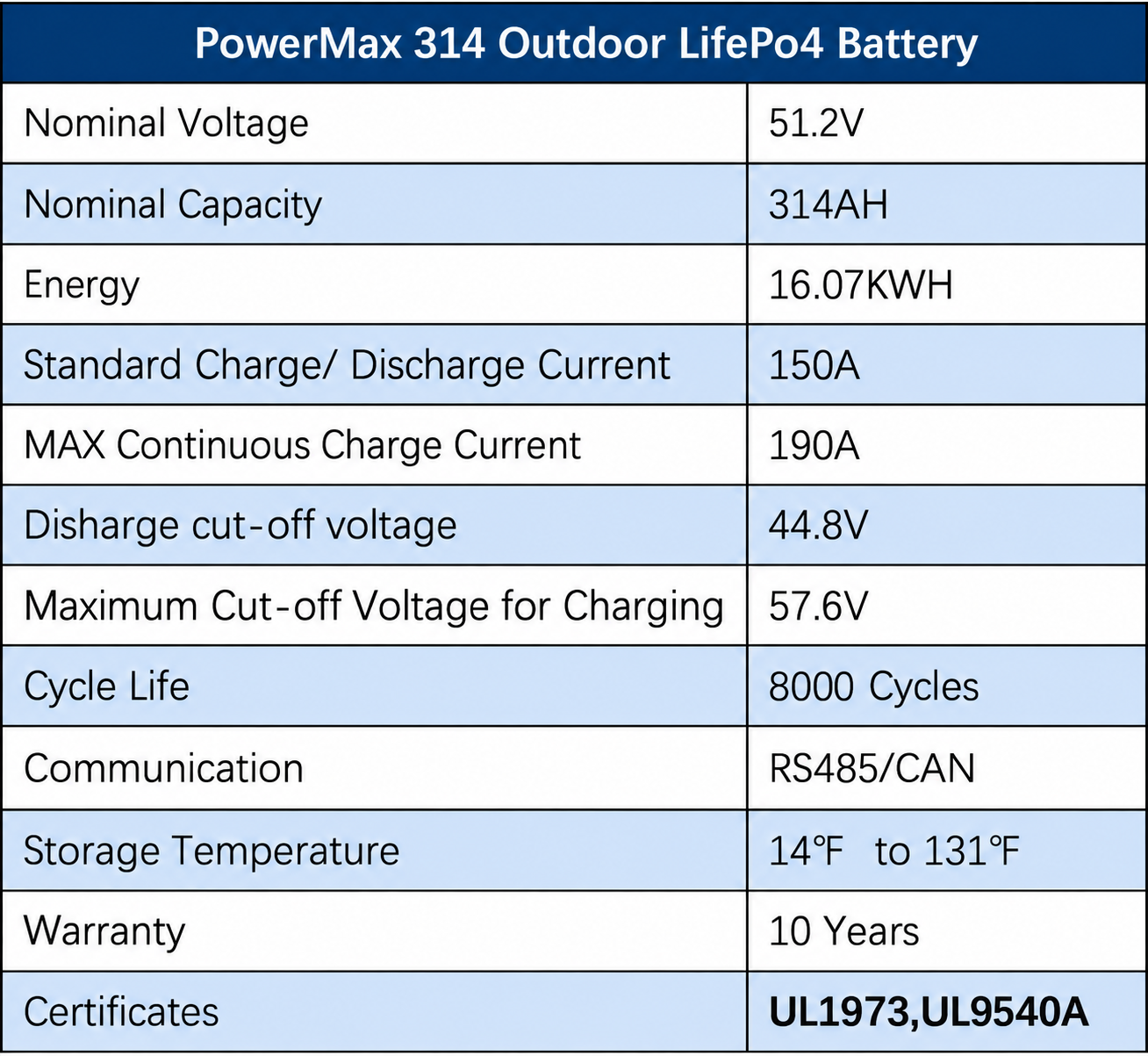

What does 8,000 cycles actually mean in years?
At one full charge and discharge a day, it's over twenty years before the batteries reach their rated end of life, which is defined as retaining 80% of original capacity rather than failing. Most off-grid systems don't complete a full cycle every day, so in practice the figure is conservative. It's also roughly 60% more cycles than the server-rack batteries in comparable kits.
Can I add batteries or panels later?

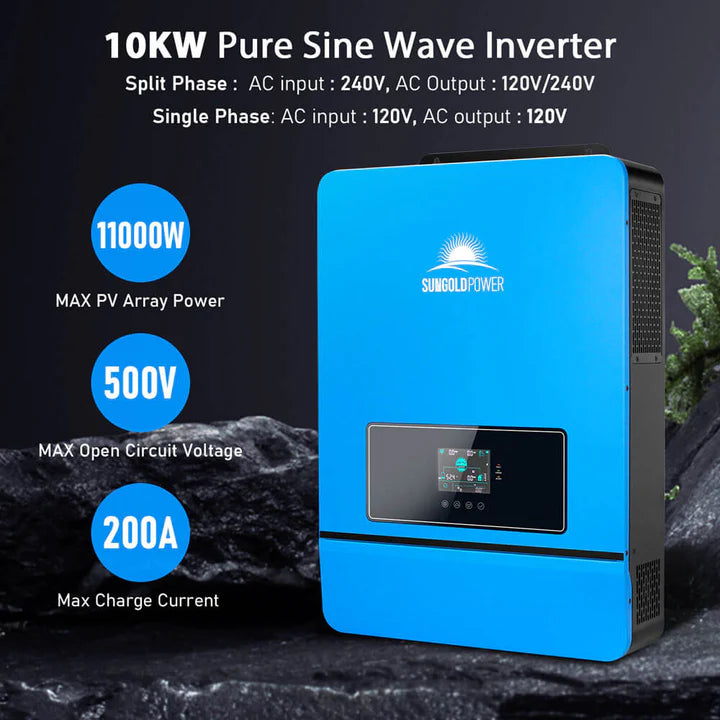

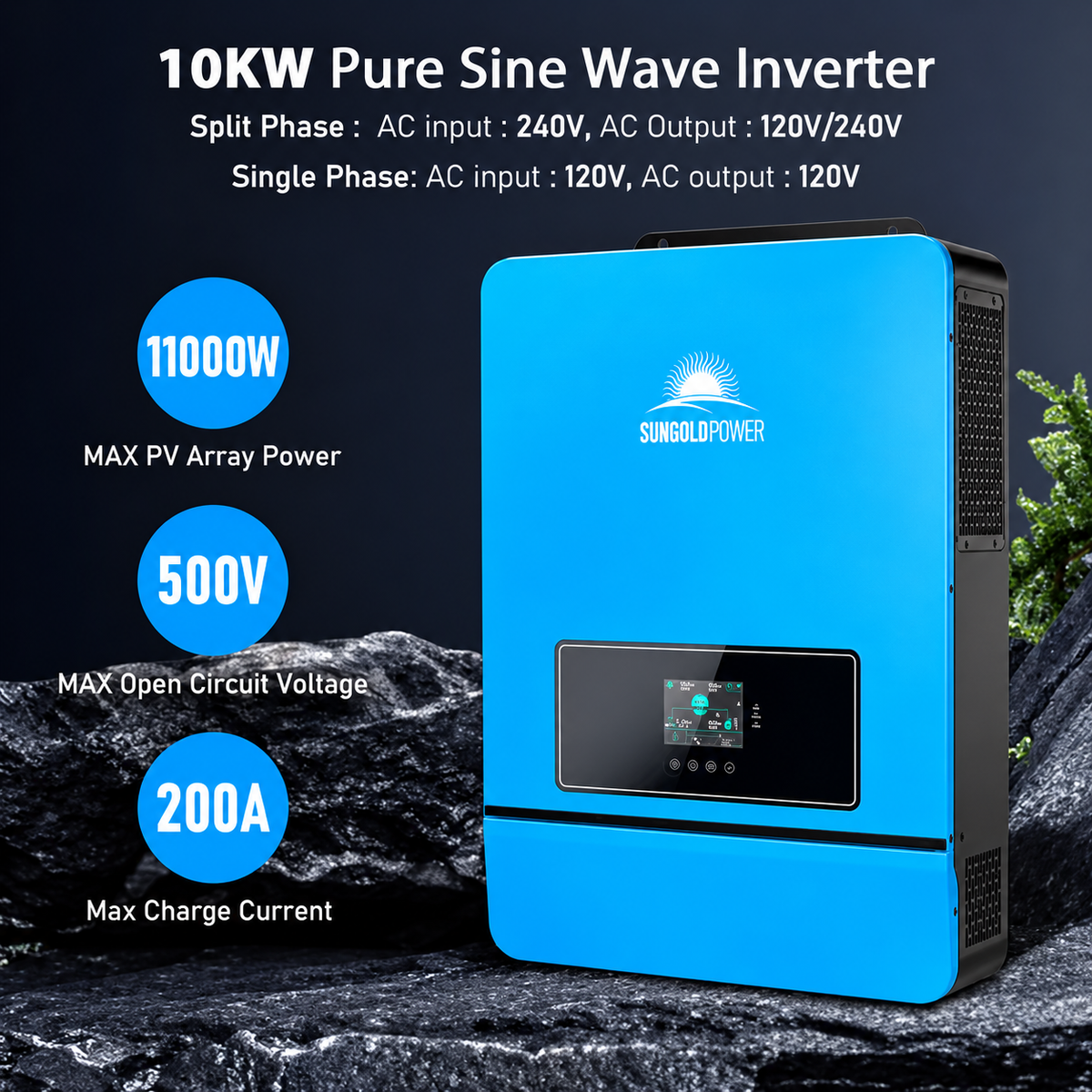

Yes. The PowerMax units parallel up to 16, so the bank can grow a long way. The inverter takes 11,000W of PV against the 6,600W included. Batteries work best when they match the originals in age and state of health, so if you expect to grow the bank it's worth buying the capacity up front.
Can I install this myself?
Parts of it. Setting the inverter, running PV and making the battery connections are within reach for someone with real electrical experience. At 10,000W, tying into an existing house panel is work for a licensed electrician, and positioning two 271 lb batteries is a job for equipment rather than enthusiasm.
Is LiFePO4 safe?
It's the safest widely available lithium chemistry, with strong thermal stability, long service life and minimal maintenance. These units carry UL1973 and UL9540A, the fire-propagation standard that matters most for a battery mounted on a building, and include BMS protection against overcharge, deep discharge, overheating, overload and short circuit.
