Why does the page say roughly 14,100W when the inverters are rated 20,000W?
Because an inverter can only deliver what the battery behind it can supply. Each PowerMax sustains 150A, which is 7.68kW, so two of them supply 15.36kW of DC. After the inverters convert that to AC you have about 14,100W at the outlet. We publish it because you would otherwise find out on the hottest day of the year. It affects sustained load only. Surge is unaffected, so motors still start normally. Adding a third and fourth battery lifts the ceiling to the full inverter rating and takes storage to 64.28kWh, and the SGR-20K30E reaches the full 20,000W with the batteries indoors.

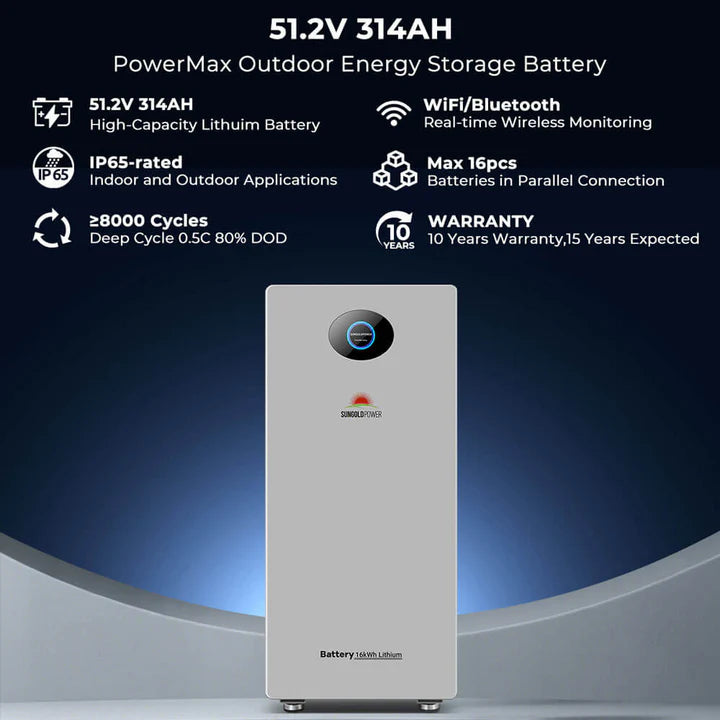

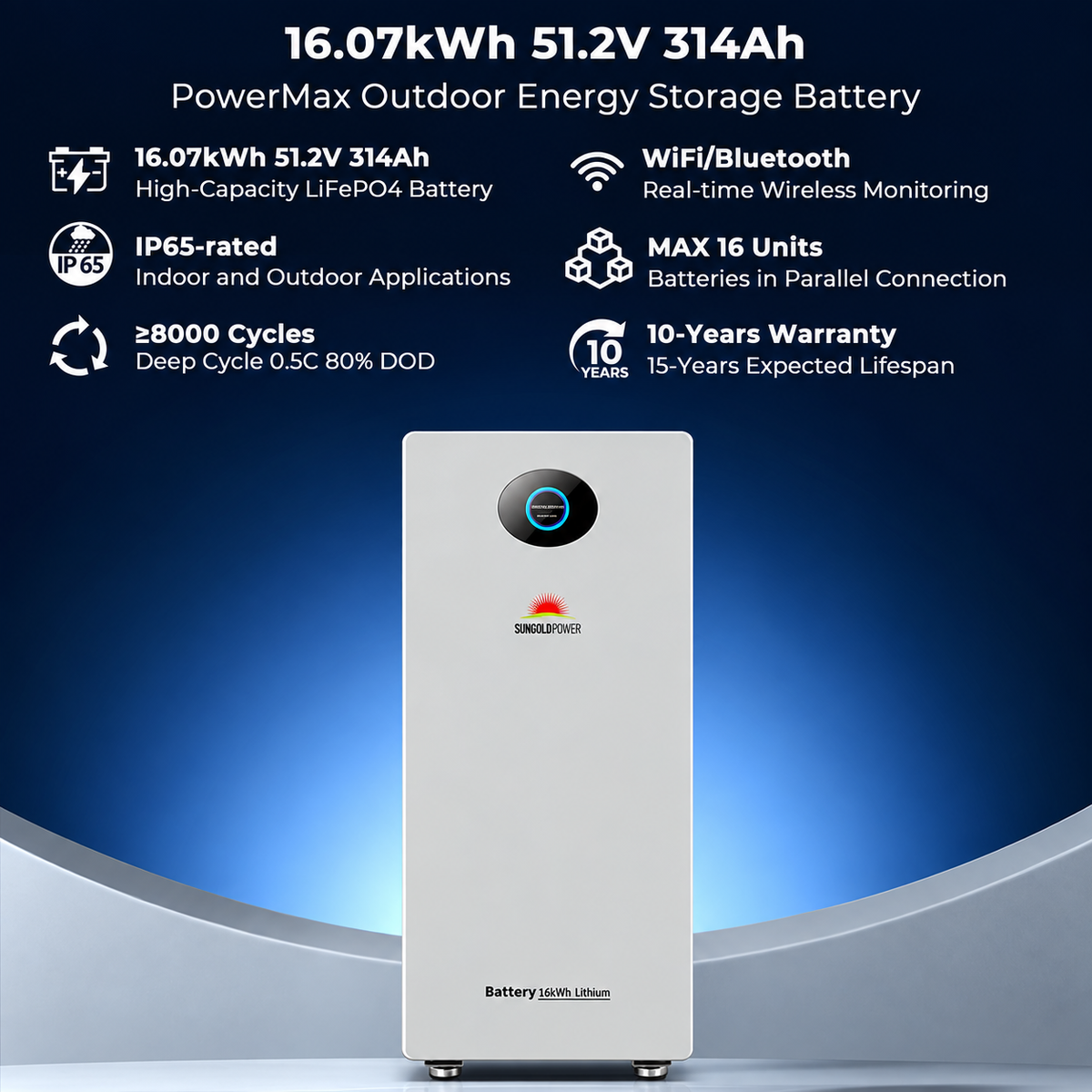

Do the batteries really go outside?
Yes. Both units are IP65 sealed and built for it, on a pad or mounted to an exterior wall. You can put them indoors if you would rather, but nothing about this kit requires a conditioned utility room or an enclosed cabinet, which is the practical difference between it and every rack-battery kit at this size.
How cold can they get?

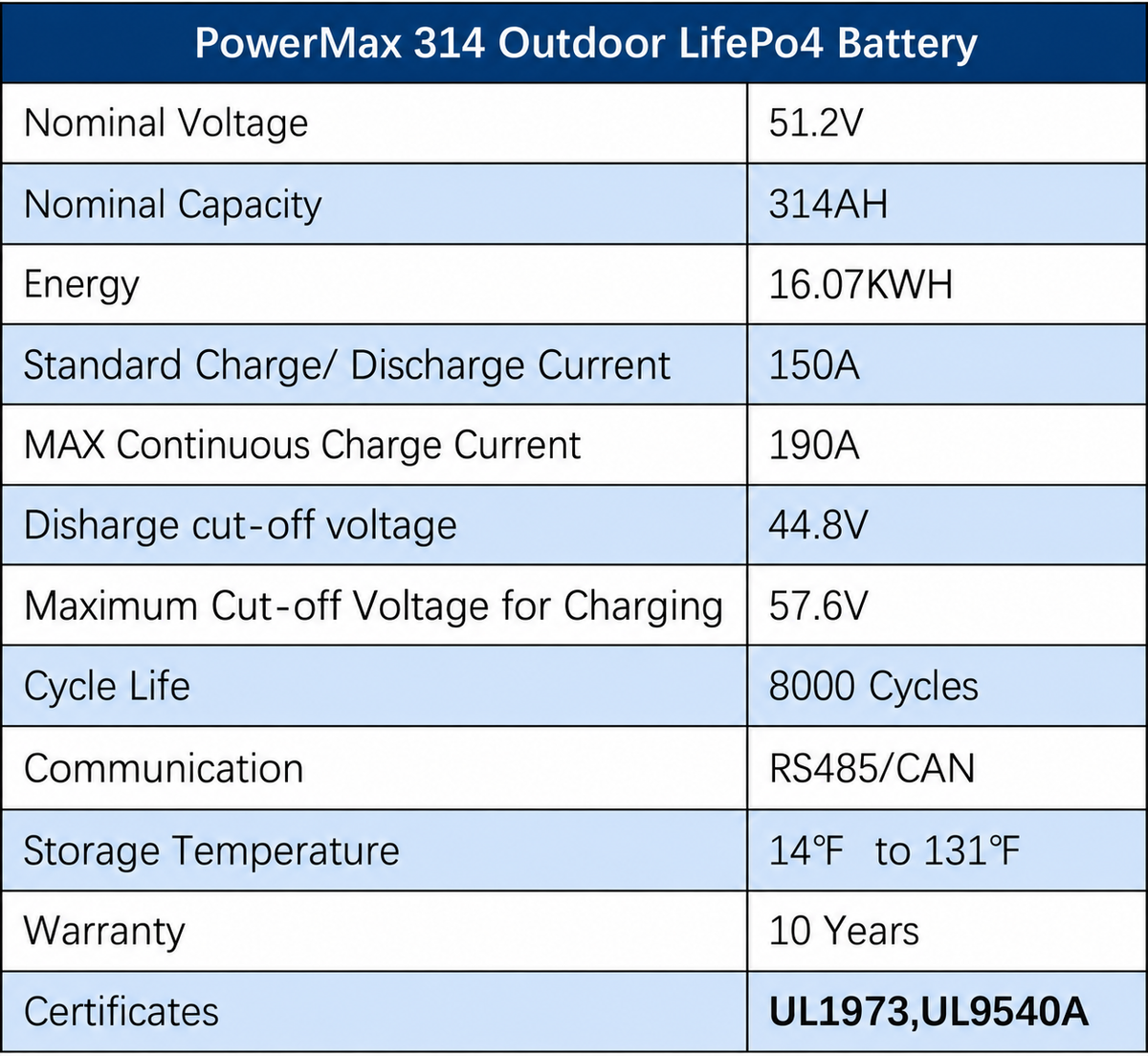

They are rated to discharge from 14°F and to store between 14°F and 131°F. Like all standard lithium, charging is what the cold restricts rather than discharging. If your winters run well below that for long stretches, say so on the call and we will talk through placement, because a sheltered north wall and an exposed pad are not the same installation.
What cabling do I need between the batteries and the inverters?
More than ships in the box, and this is the one item we would rather discuss than guess at. The kit includes one 1/0 AWG battery cable and a battery parallel cable. Two inverters drawing their full rating pull well over 400A from the bank in total, so the main run needs conductor sized for your actual layout and terminated properly. Call us with the distance between the battery pad and the inverter wall and we will spec it.
How should the panels be wired?

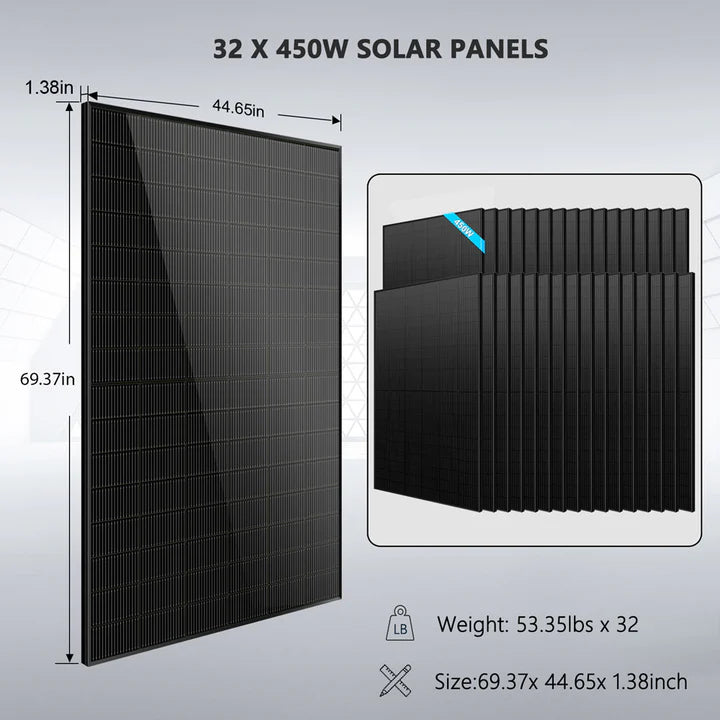

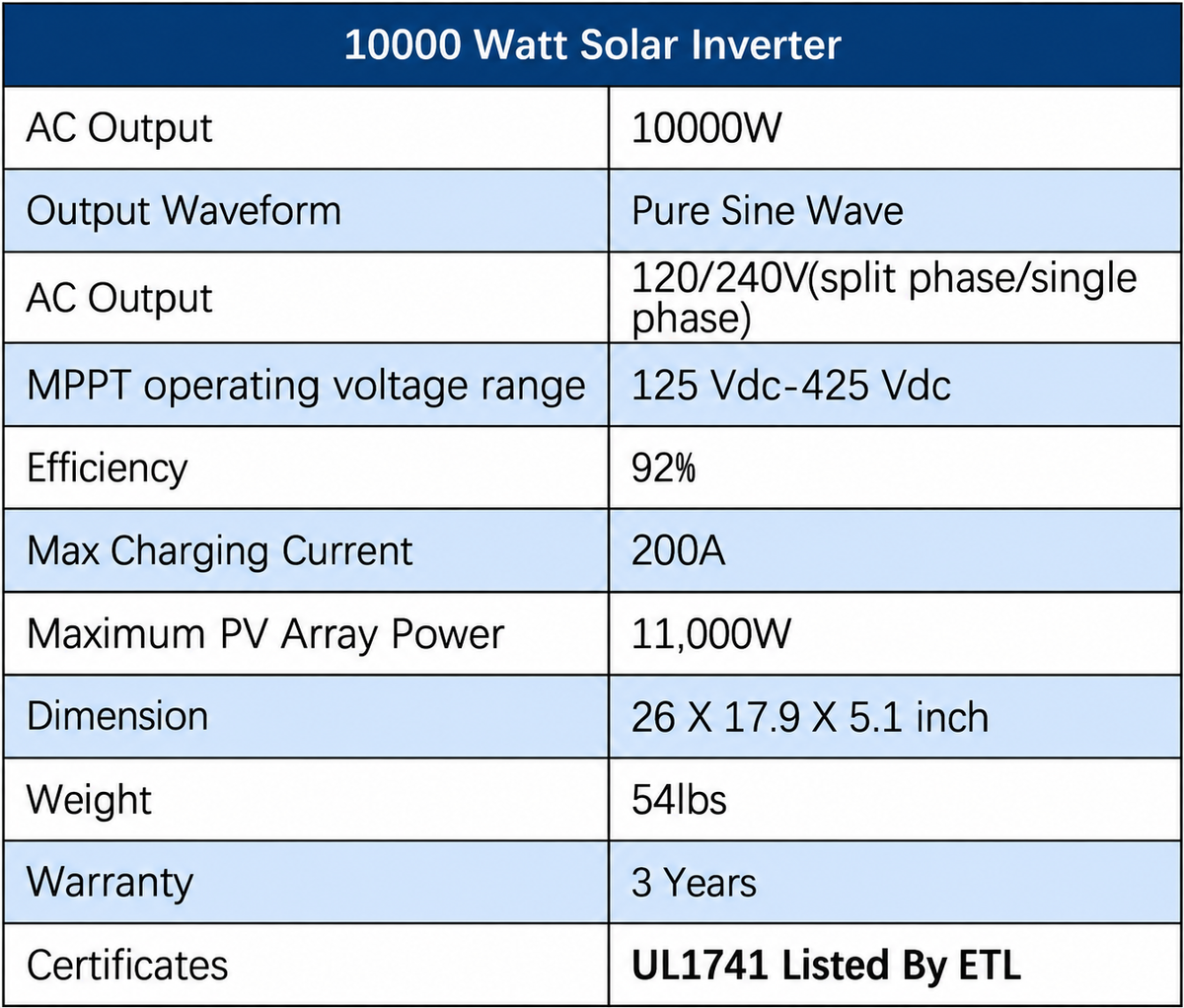

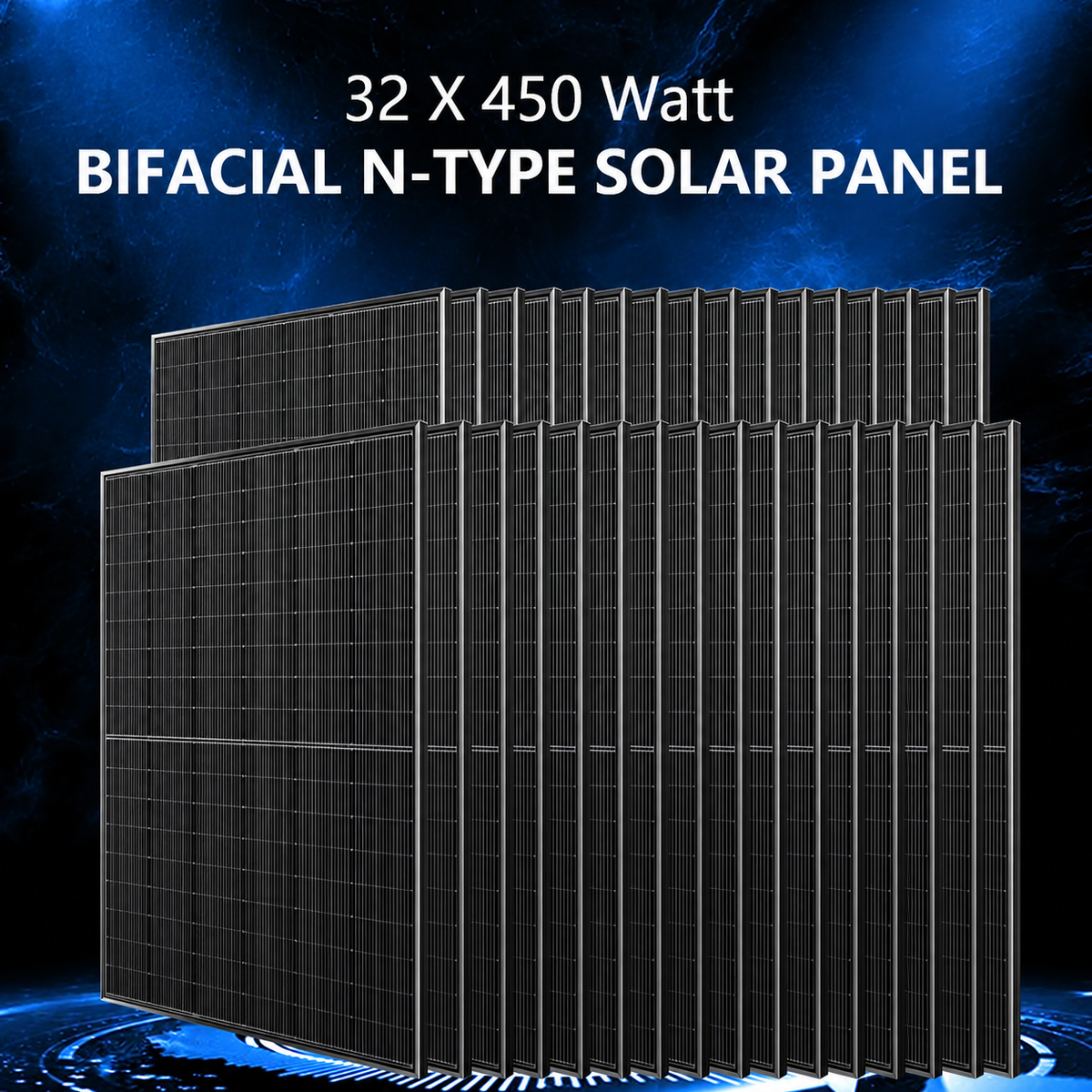

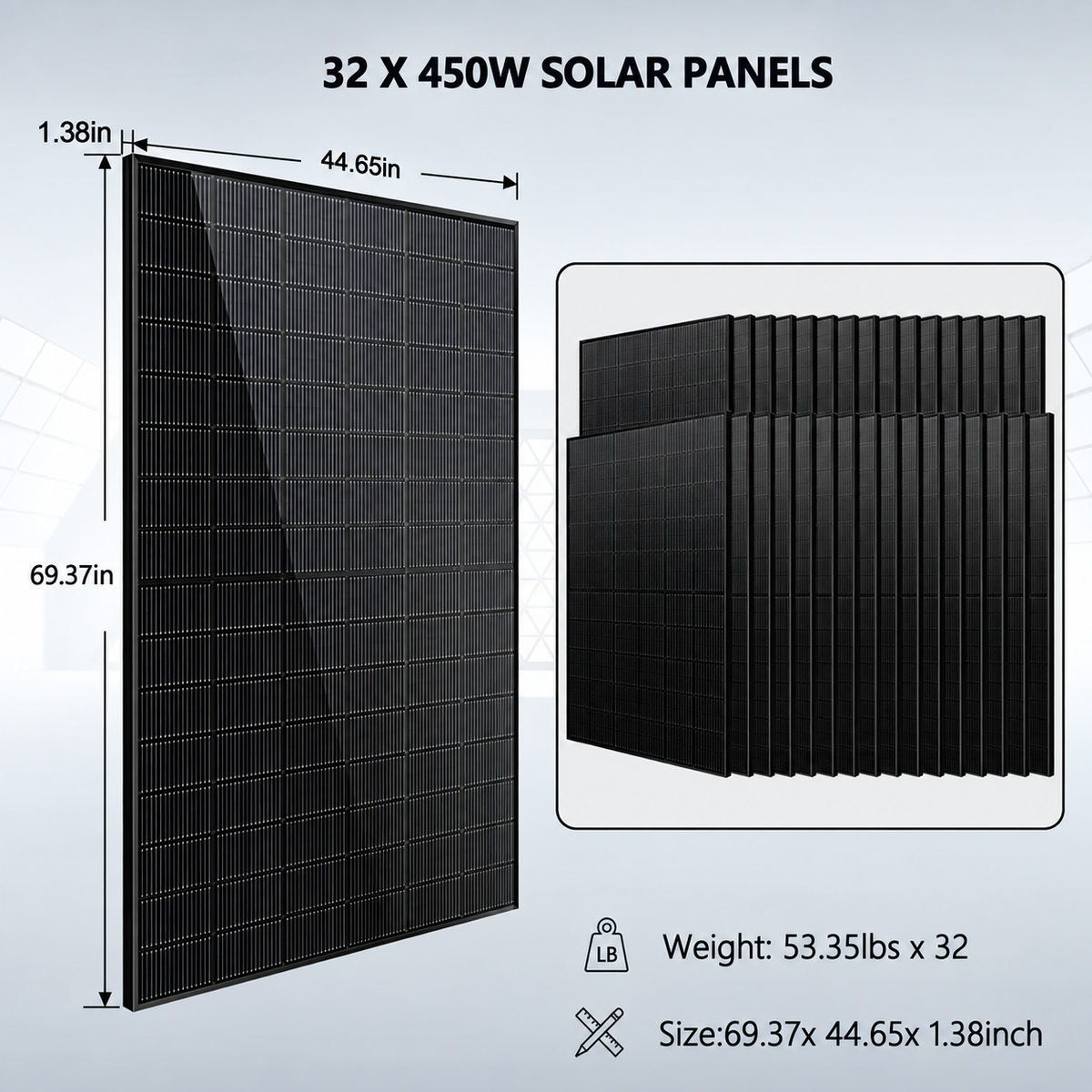

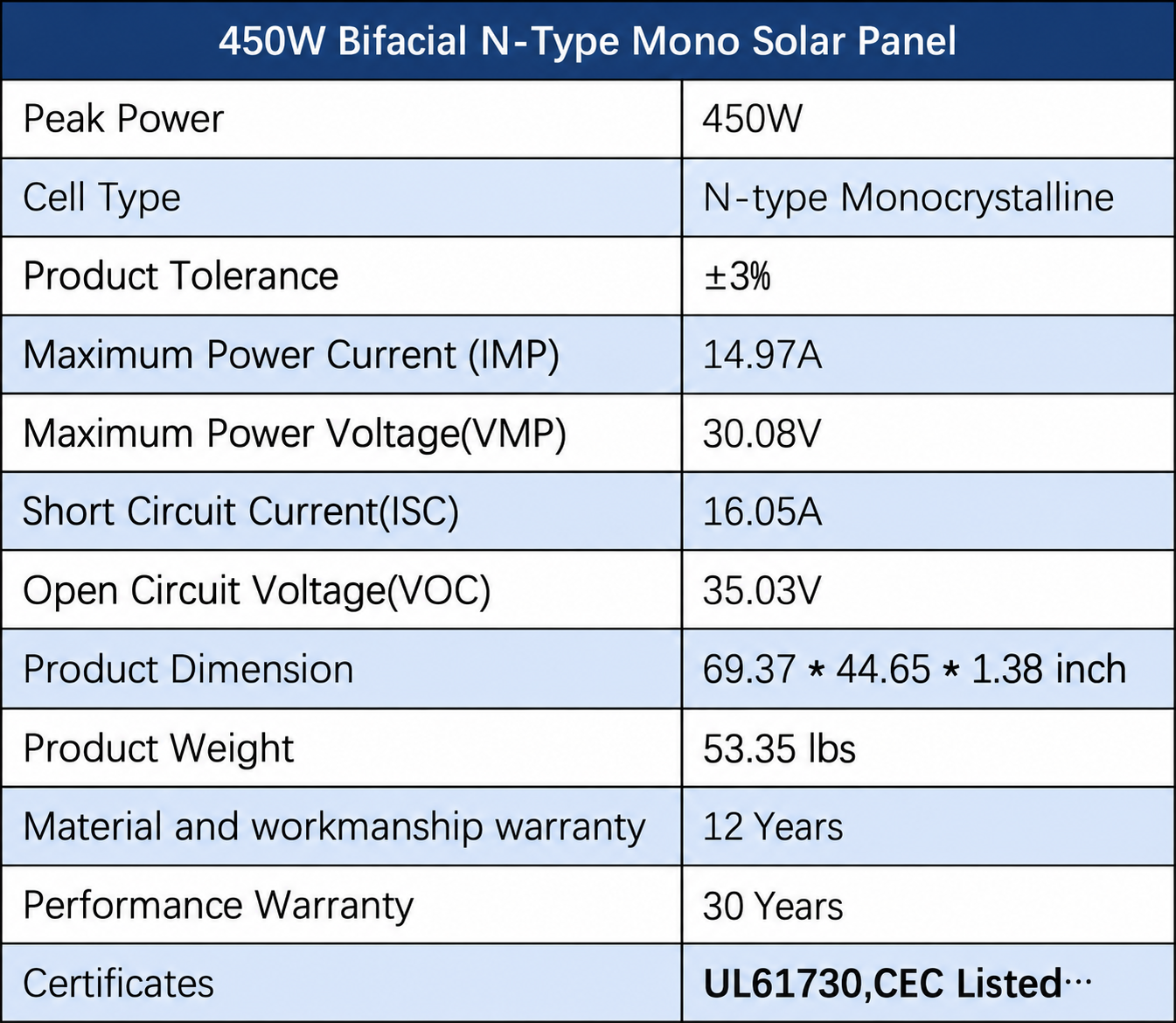

Four strings of eight, two to each inverter. Eight of these panels in series operate near 241V and reach 280V open circuit, which sits in the middle of the 125 to 425V tracking window and well under the 500V ceiling even in cold weather, and each string draws 16A against a 22A tracker limit. Four independent trackers also means you can point the four strings in four different directions without one dragging down the others, which is often what an array this large needs.
What does running two inverters in parallel actually involve?

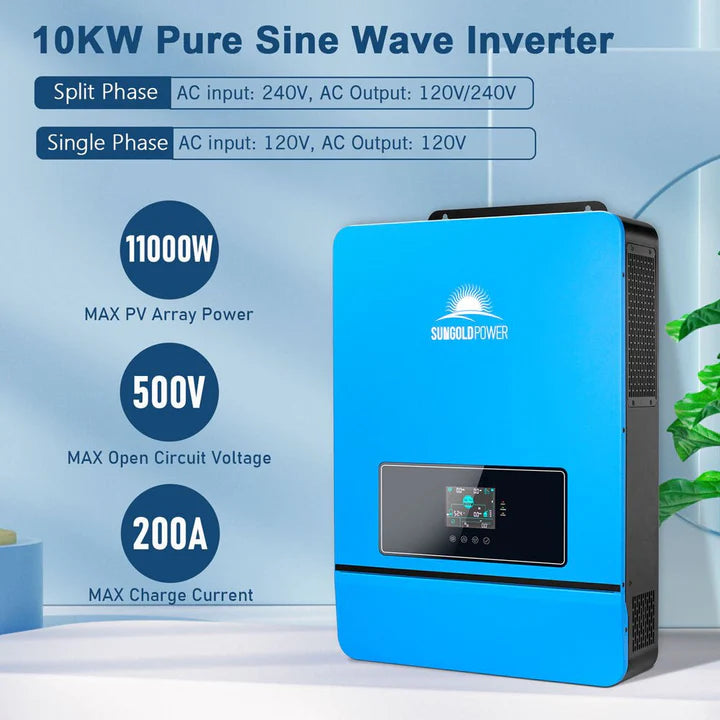

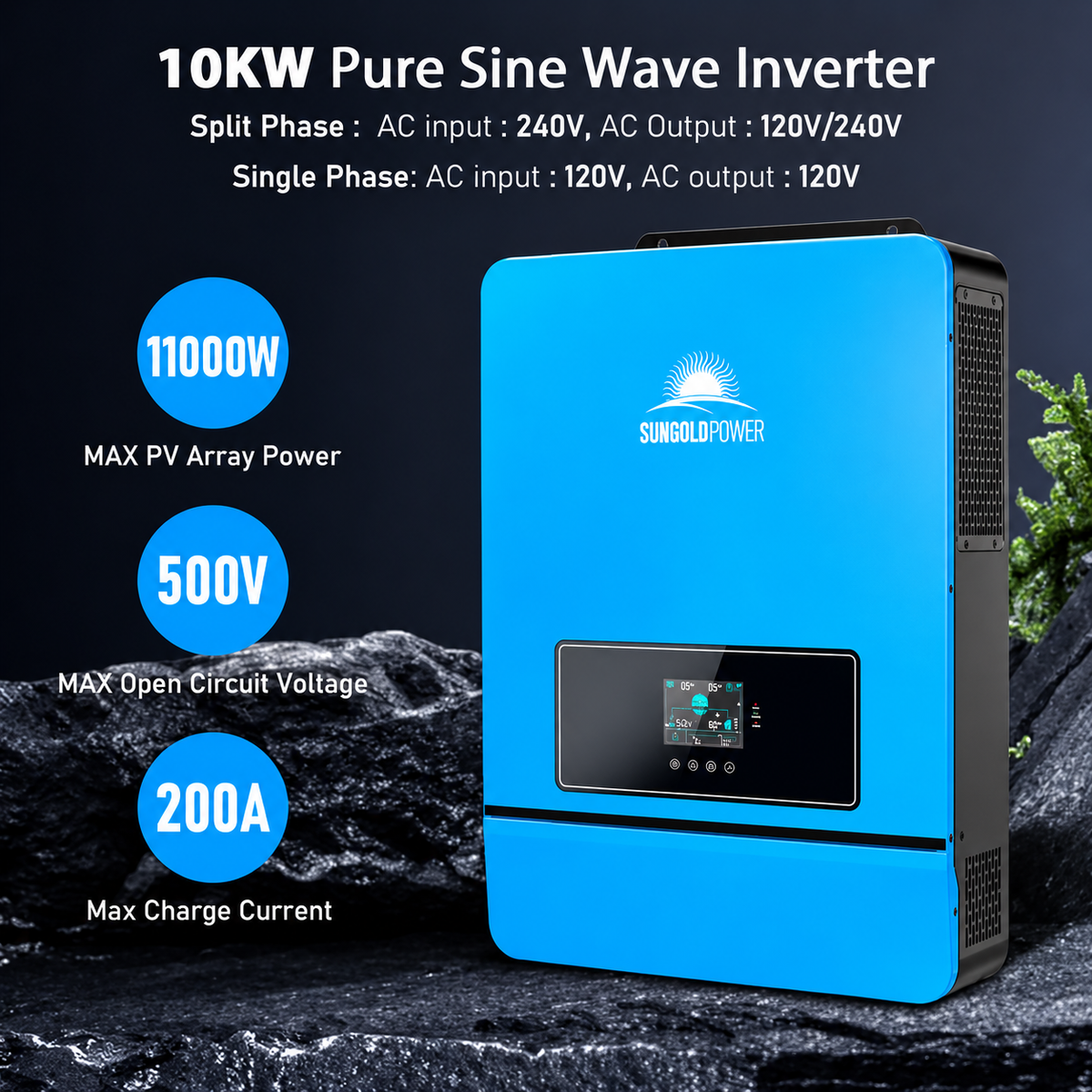

They ship configured as a pair and are joined by a communication cable that keeps them synchronised and sharing load. Both units need matching firmware settings before the system is energised. Done properly it behaves as one 20,000W inverter. Done improperly the two fight each other. It is routine work for a solar installer and it is the main reason we treat this as a professional installation rather than a DIY project.
How much energy will this generate daily?
The 14.4kW array produces roughly 58 to 72kWh per day at 4 to 5 peak sun hours, plus whatever the rear faces add on a ground mount. Actual output depends on your location, season, panel angle and shading.
Can I add batteries later?
Yes, up to sixteen units in parallel, and on this kit it does two things at once: it adds storage in 16.07kWh steps and it lifts the sustained ceiling. A third unit takes the bank to 48.21kWh and past the full inverter rating. Batteries work best when they match the originals in age and state of health, so if you know you will want a third, buy it up front.
Can I install this myself?
We would not recommend it. Thirty-two panels, a ground mount, two paralleled inverters and two 271 lb batteries is a professional job, and at 20,000W the tie-in to a distribution panel is licensed electrician work in most jurisdictions.
Is LiFePO4 safe?
It's the safest widely available lithium chemistry, with strong thermal stability, long service life and minimal maintenance. These cells carry UL1973 and UL9540A, and every battery includes BMS protection against overcharge, deep discharge, overheating, overload and short circuit.
