Does this kit include everything I need to install it?

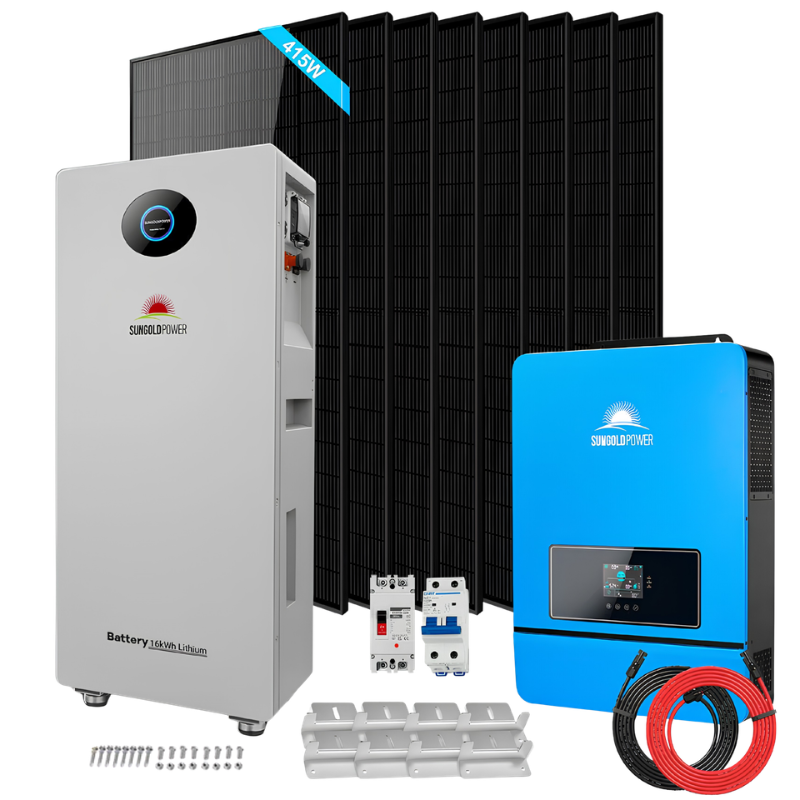

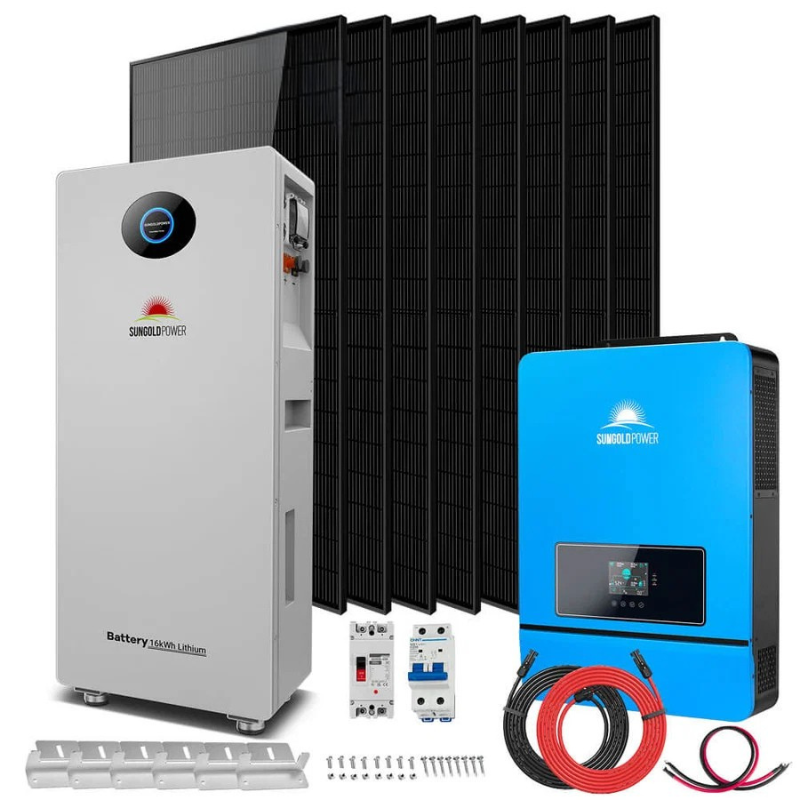

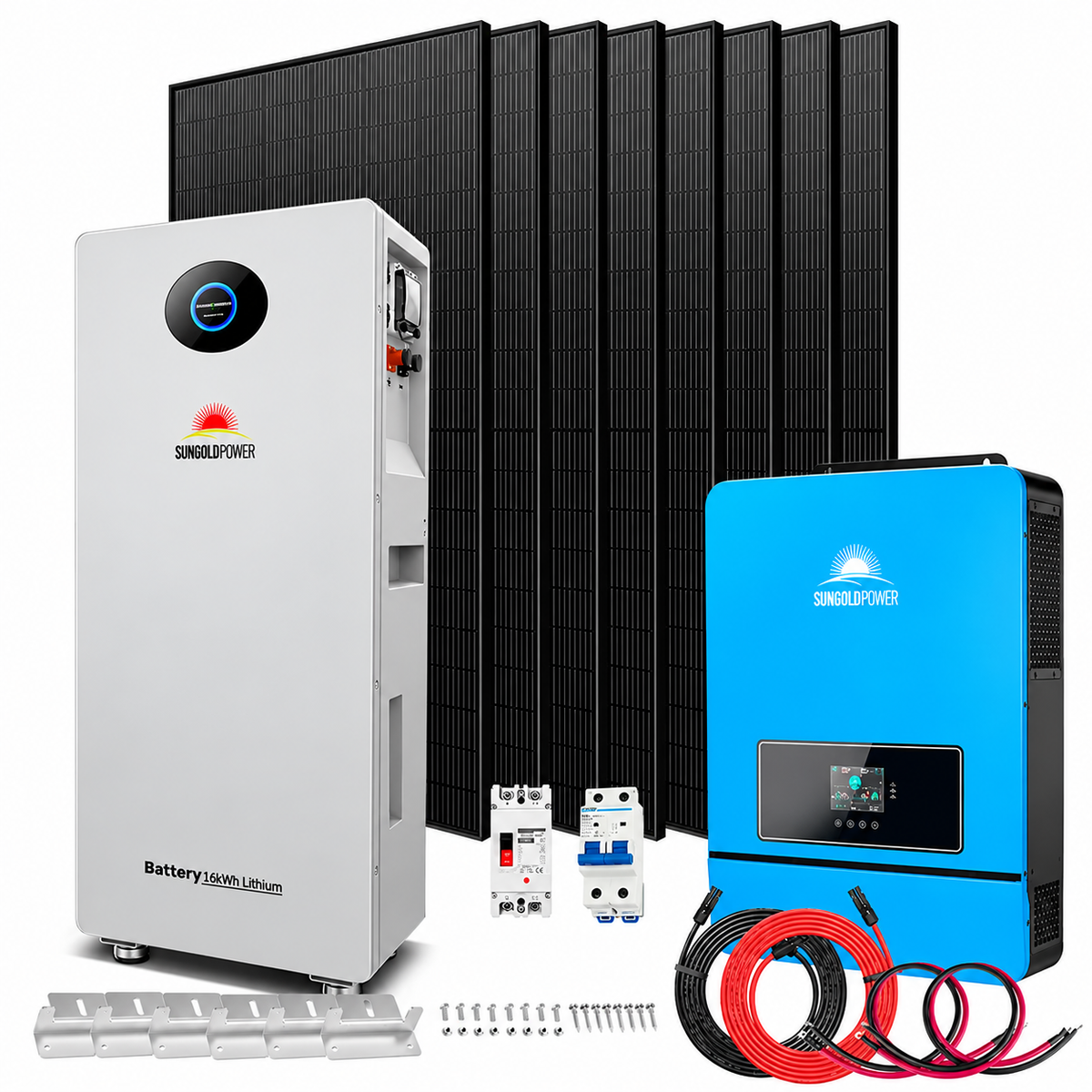

It includes the major system components: the inverter, the battery, all eight panels, the DC and PV breakers, solar extension cables, the 1/0 AWG inverter cable, Z-brackets, and the manuals and wiring diagram. What varies is the mounting and building side of the job, and that's site by site. Depending on your site that typically means the pad or structural fixing for the battery, rail racking if you're mounting on a shingle roof or the ground, conduit and outdoor-rated wiring between the battery and the inverter, junction boxes, building wire, a critical loads panel or transfer switch, and labor. Those depend on your structure and your local code, which is why we spec them per site rather than boxing a set that might not fit. Tell us about your install and we'll list exactly what yours needs.

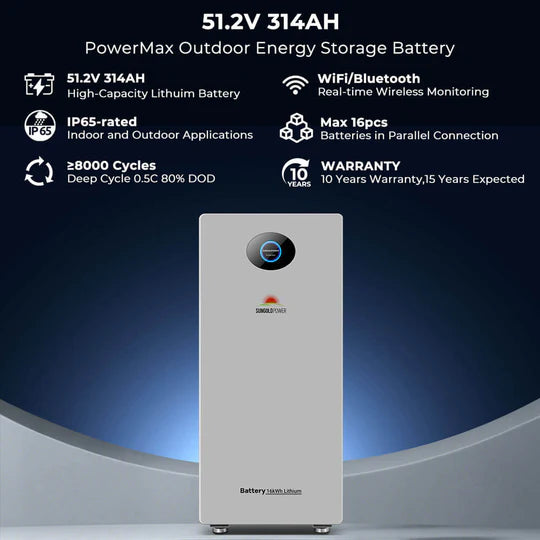

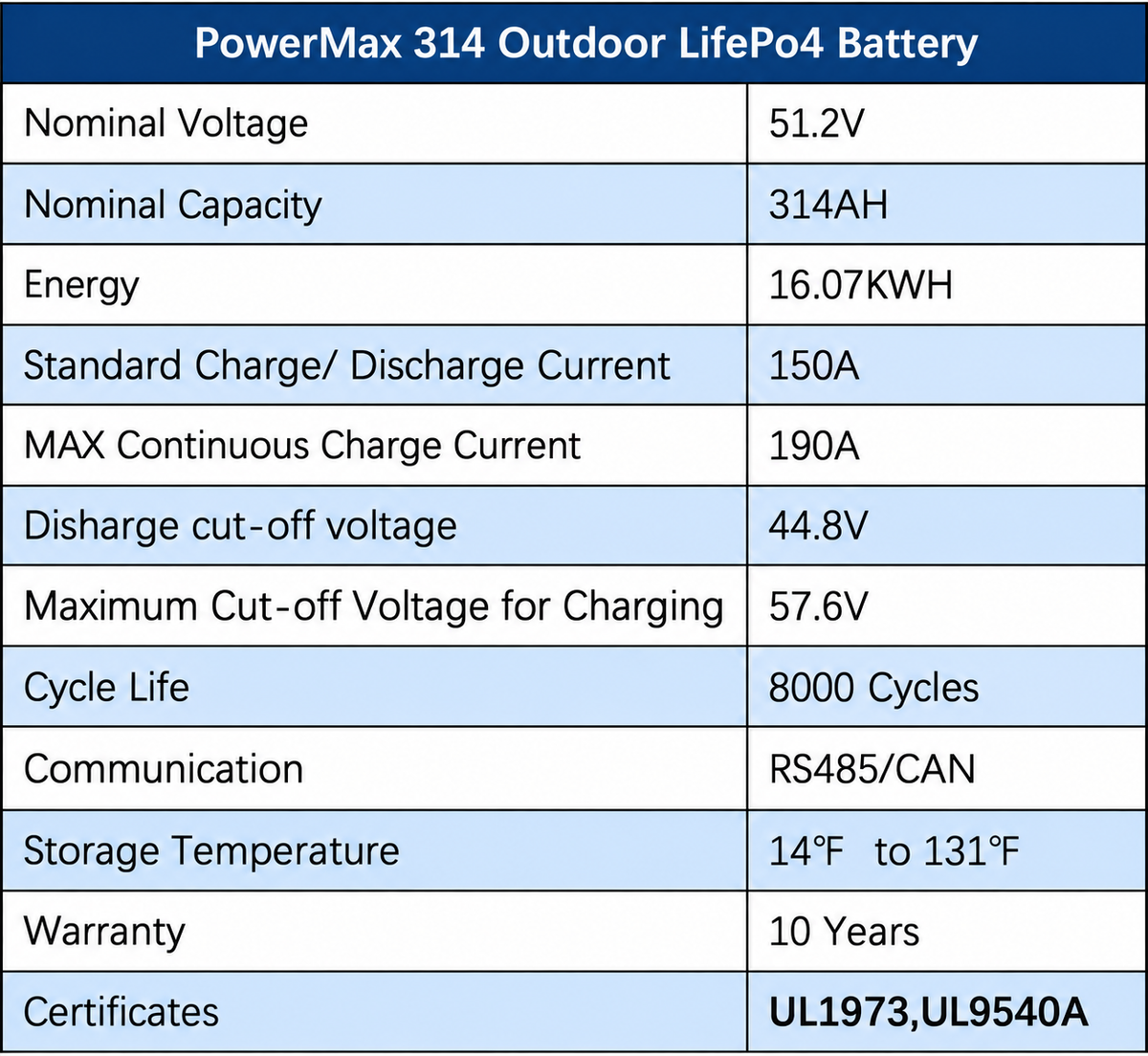

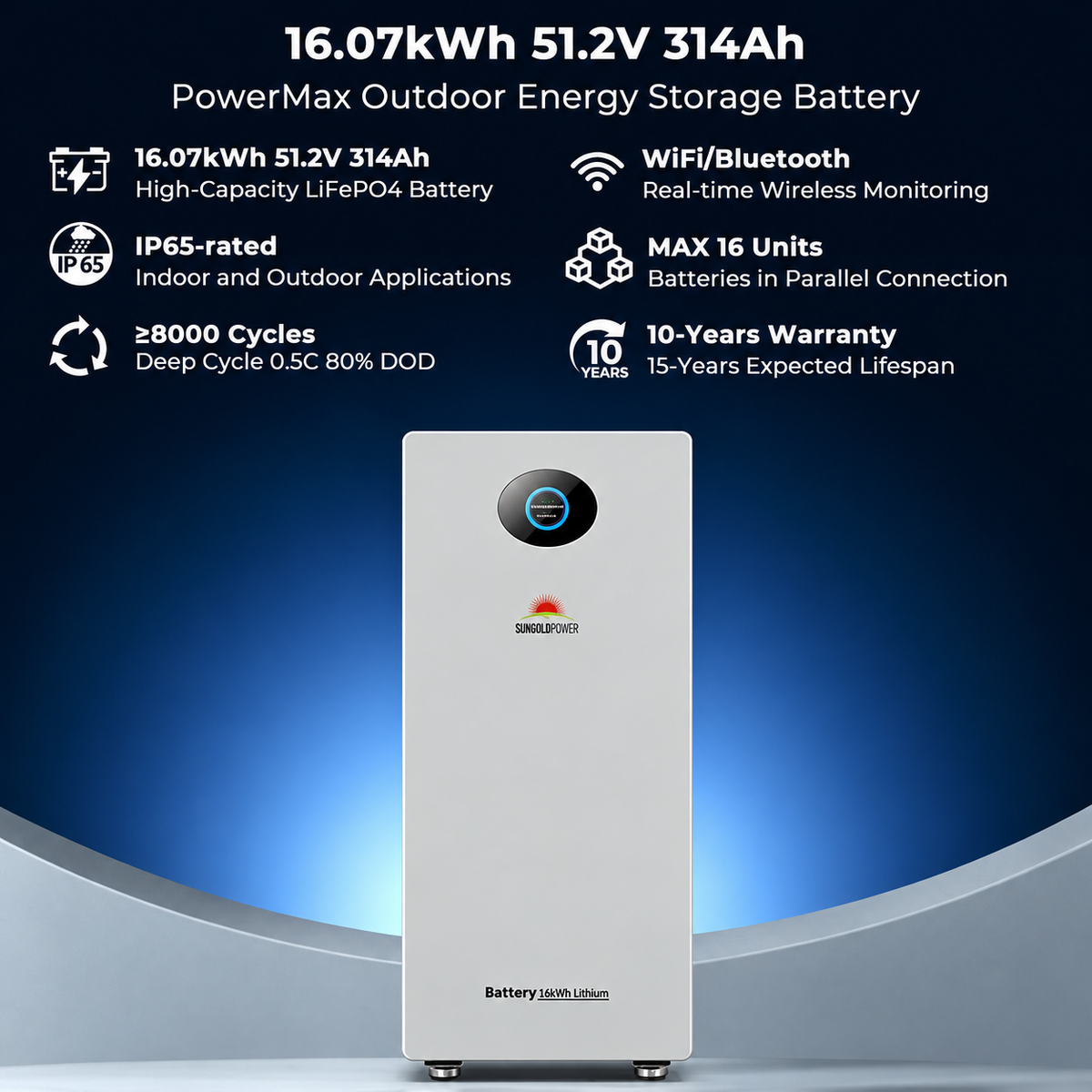

Can the battery really live outside?
Yes. It's IP65 rated, self-heats for charging down to freezing, and discharges from 14°F. Wall and floor mounting are both supported. The inverter is a different matter: it isn't weatherproof and needs to be indoors or in a sheltered enclosure.

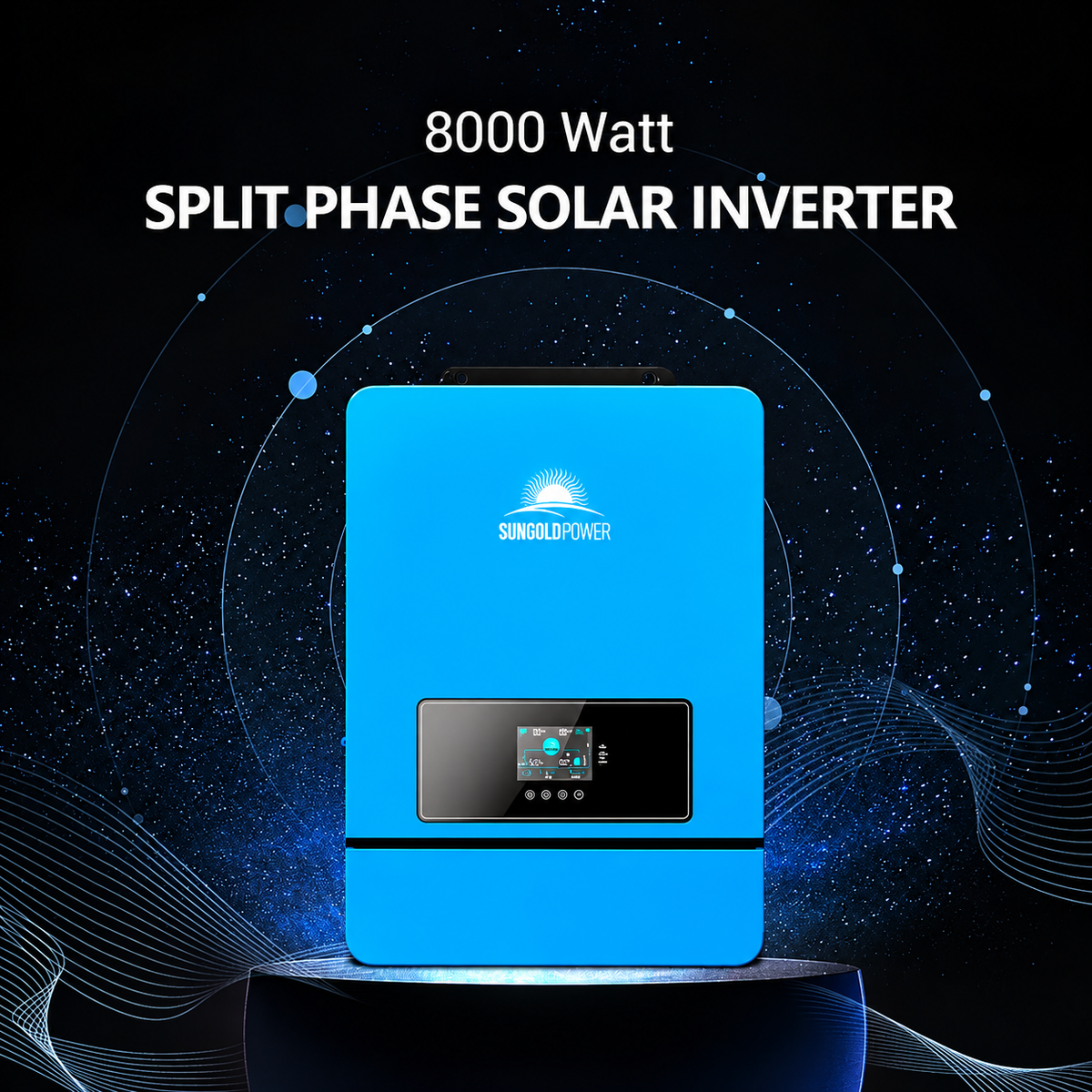

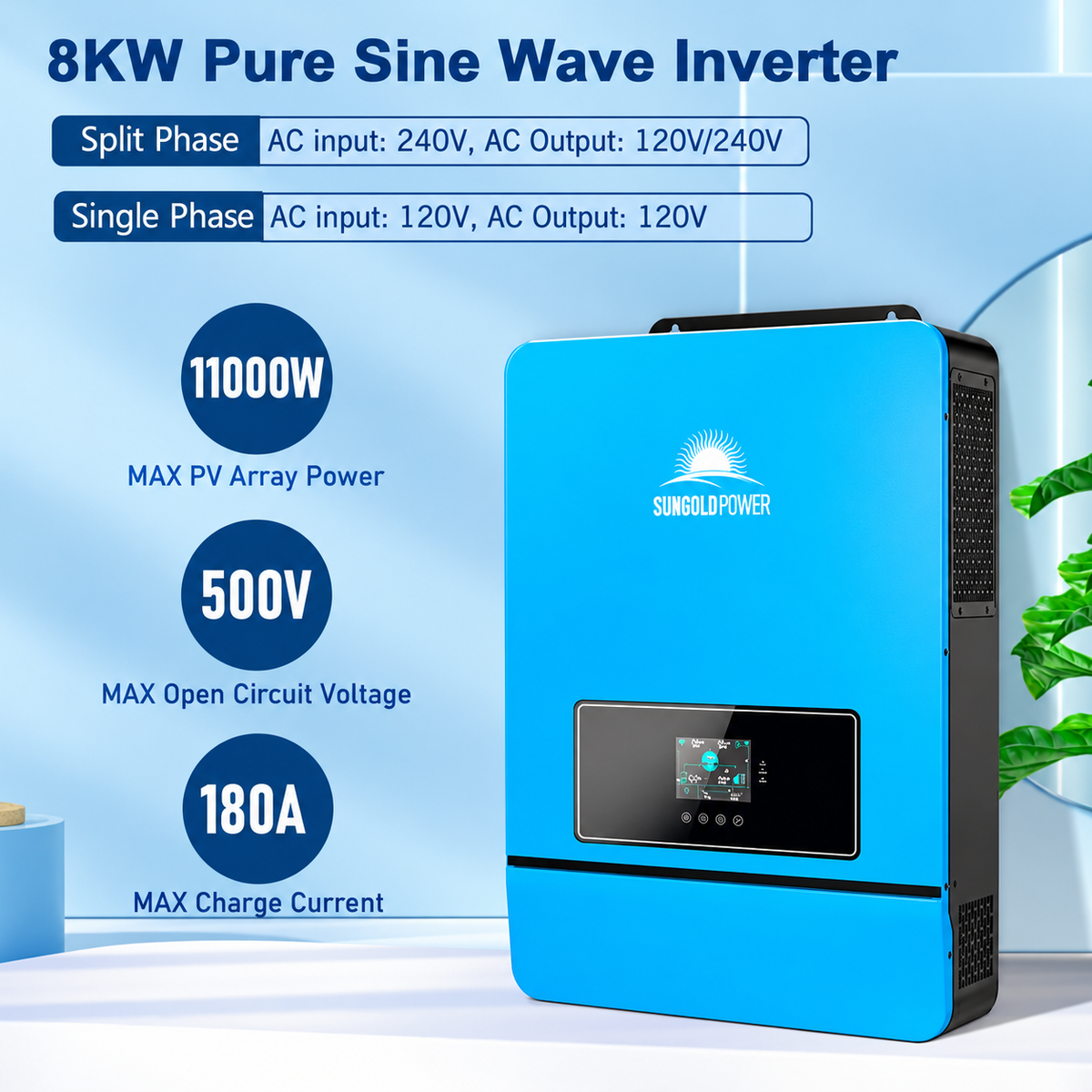

Why does it say 7kW sustained when the inverter is 8,000W?
The battery is rated for 7.68kW of continuous discharge, which works out to around 7,000W at the outlet after inverter losses. That's the honest ceiling for sustained load. Starting surge isn't affected, and most off-grid households never draw 7kW continuously, but it's worth knowing before you order rather than after.

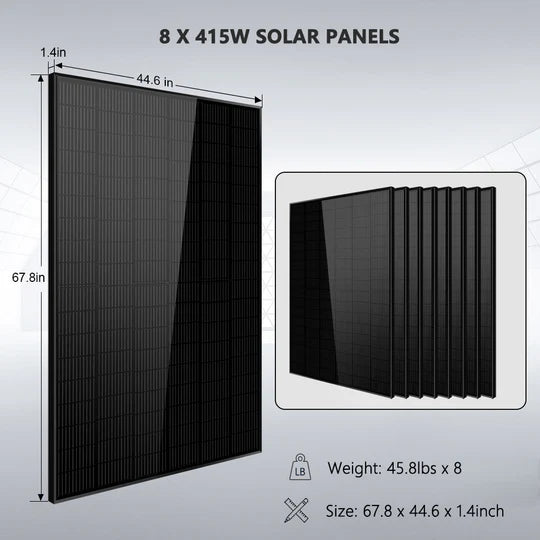

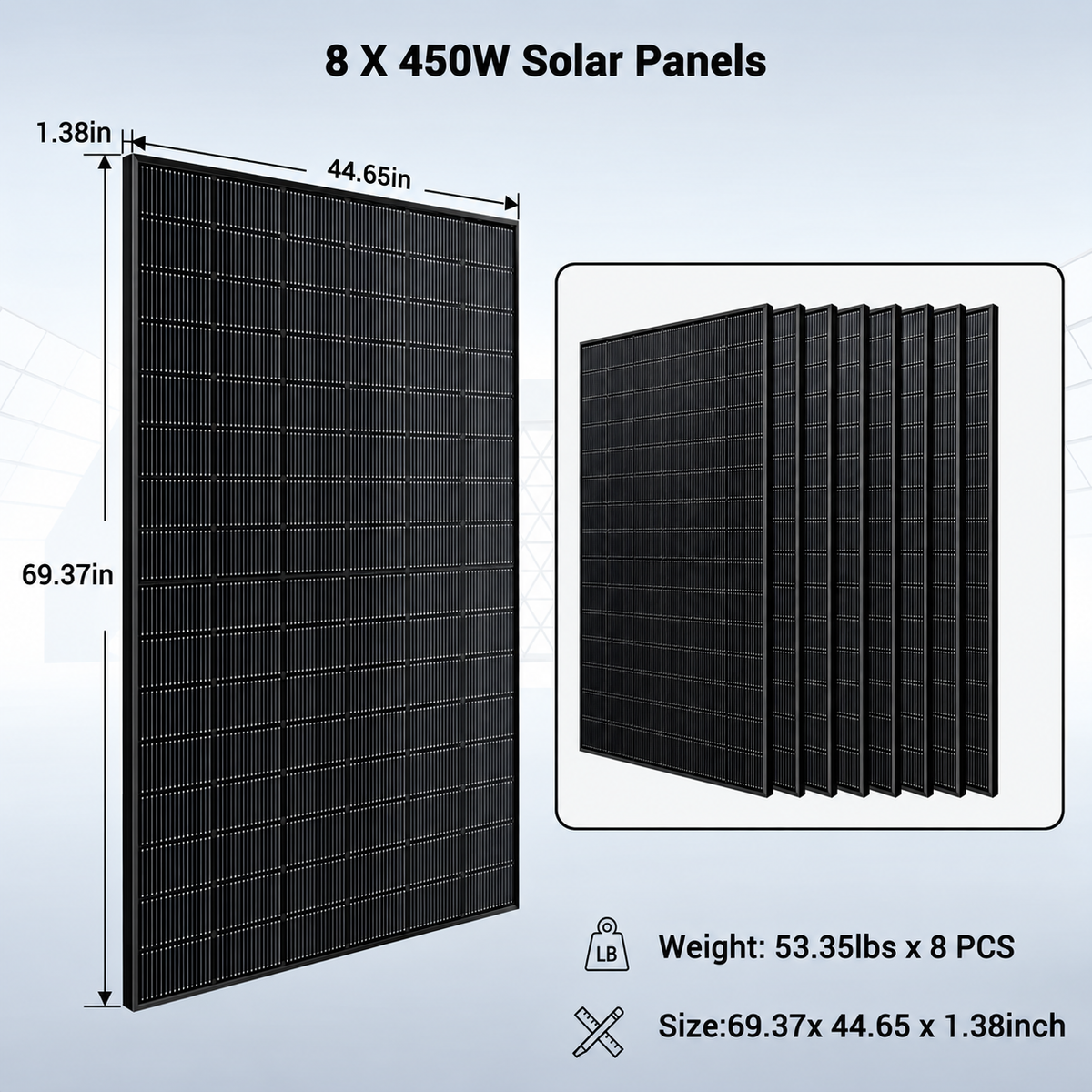

How should the panels be wired?

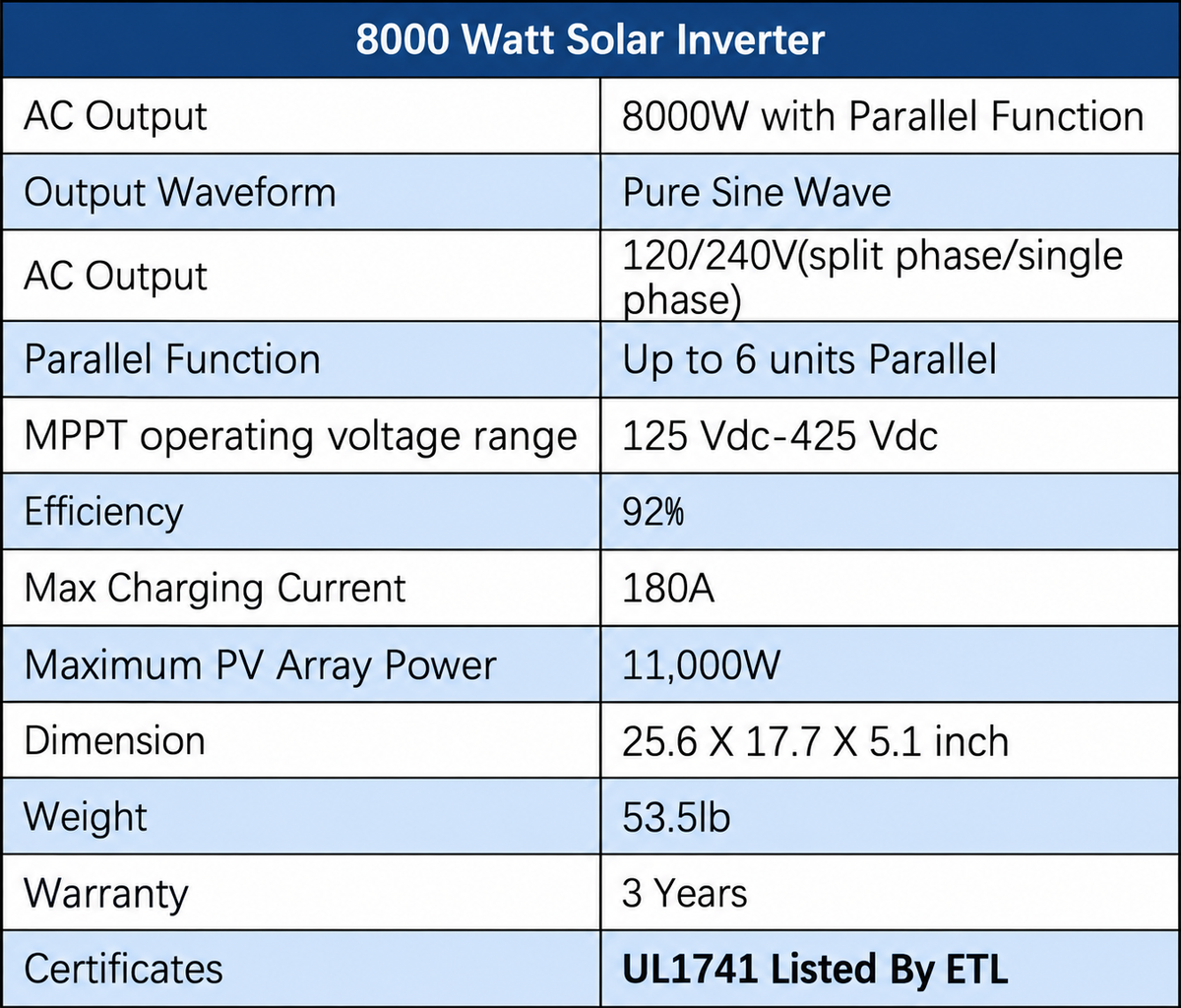

All eight in one series string, on one of the two MPPT trackers. The inverter tracks between 125 and 425VDC and eight of these panels operate near 240V, right in the middle of that window. Four and four across both trackers sits near 120V under load, below the tracking floor, so it works erratically and drops out when panel voltage sags on a hot day. Any string you add later wants at least five of these panels.
How much energy will this generate daily?

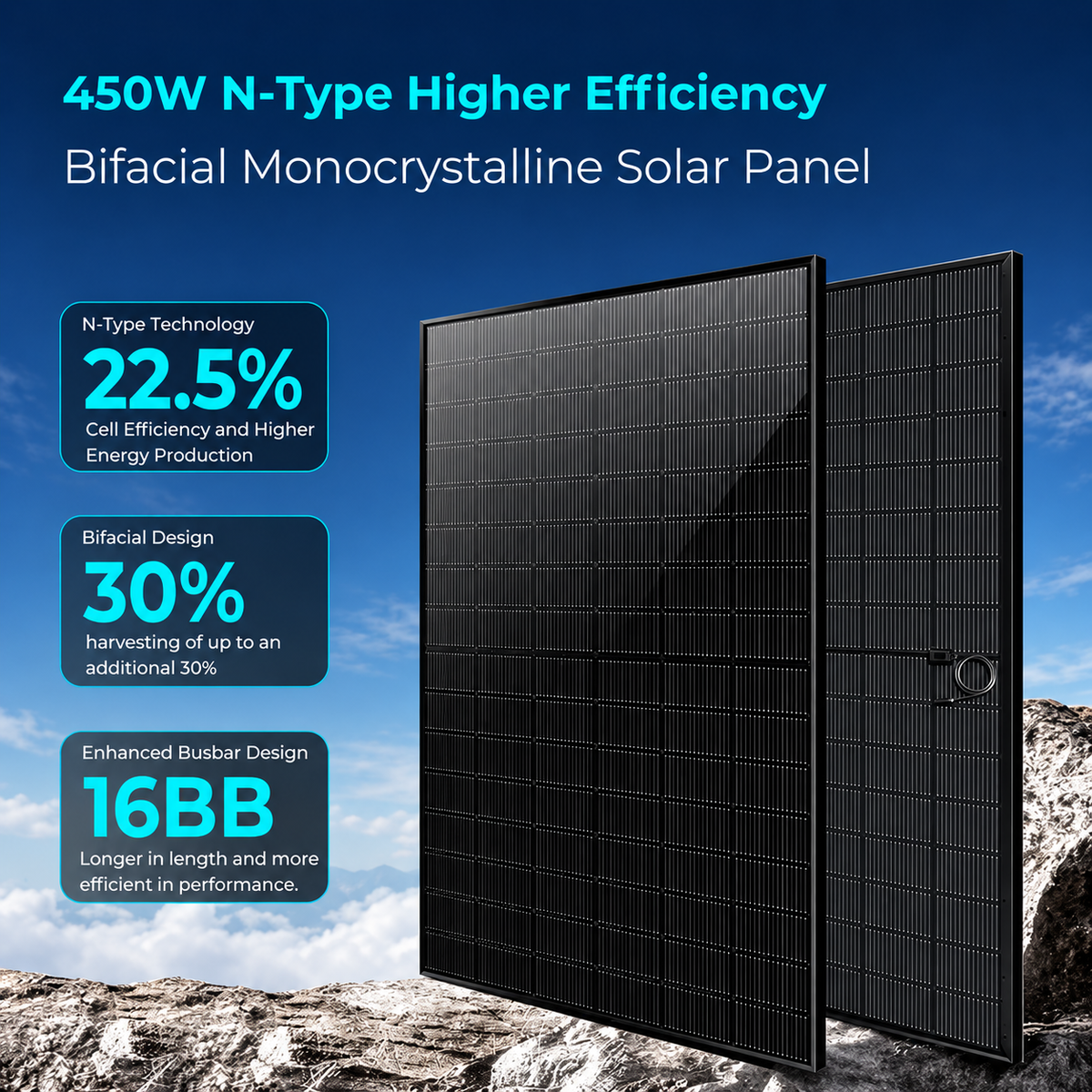

The 3.6kW array produces roughly 14 to 18kWh per day at 4 to 5 peak sun hours, and more where the rear face picks up reflected light. Actual output depends on your location, season, panel angle, and shading.
Can I add more battery later?

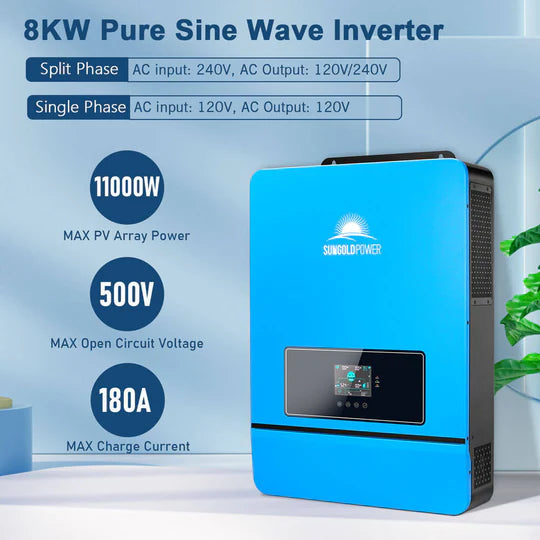

Yes. The PowerMax 314 supports up to 16 units in parallel, so there's a great deal of headroom. On the solar side the inverter takes 11,000W against the 3,600W included, and the second MPPT tracker is sitting empty for a new string of five or more panels.
What does UL9540A mean?
It's a fire-propagation test standard for energy storage systems. Some jurisdictions now ask for it specifically, particularly for batteries near or inside a dwelling. Along with UL1973 on the battery and UL1741 on the inverter, this kit is better placed for an inspection than most off-grid equipment at this price.
Can I install this myself?
Many customers do. The line worth drawing is where the system meets your building: setting the inverter, running PV, and wiring the battery are within reach for someone with real electrical experience, while tying into an existing house panel is work for a licensed electrician. Moving a 271 lb battery into position is its own job, and worth planning before delivery day.
