Sungold Power Off-Grid Solar Kit 5000W 48VDC 120V 10.24KWH PowerWall Lithium Battery 6 X 370 Watts Solar Panels

Sungold Power 5000W Off-Grid Solar Kit Overview

Our off grid solar system kit comes nearly everything you need to bring 2.22KW off-grid solar power and storage to mid-sized off-grid homes or remote cabins. With 2PCS 51.2V 100AH PowerWall Lithuim battery and solar panel mounting, and you're on your way ! this system includes 5000W 48V 120V Pure Sinve Wave Inverter, which power the most of home applicance, the system is ready for expansion, up to 6 identical inverters can be paralleled in single-phase (120VAC) or split-phase (240VAC) or three-sphase (208V). You can add more batteries and solar panel according to your requirment. with Wi-Fi monitor shows the performance and energy data of your solar system through an app. Let’s Enjoy off grid living and the adventure with Solar Energy Kit !

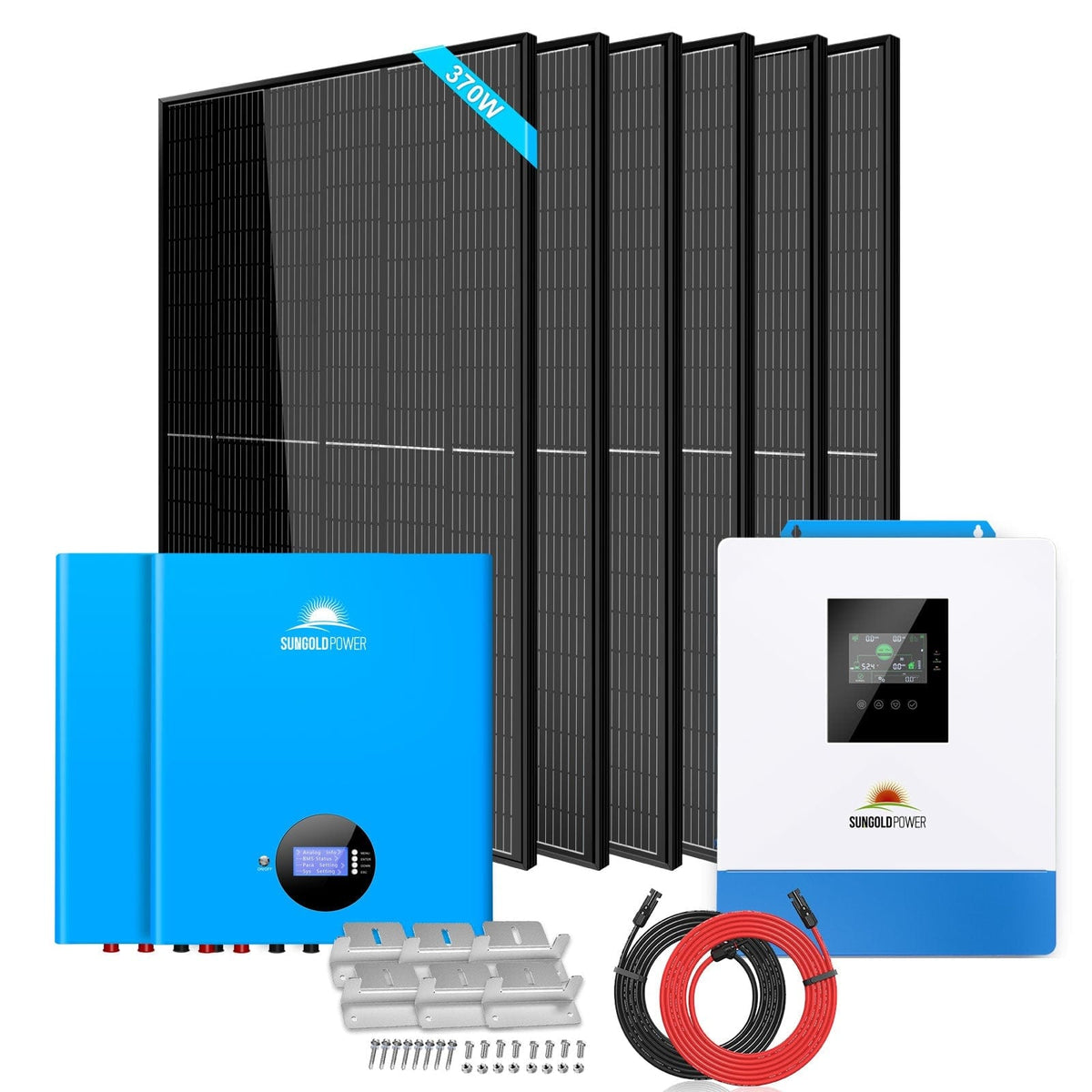

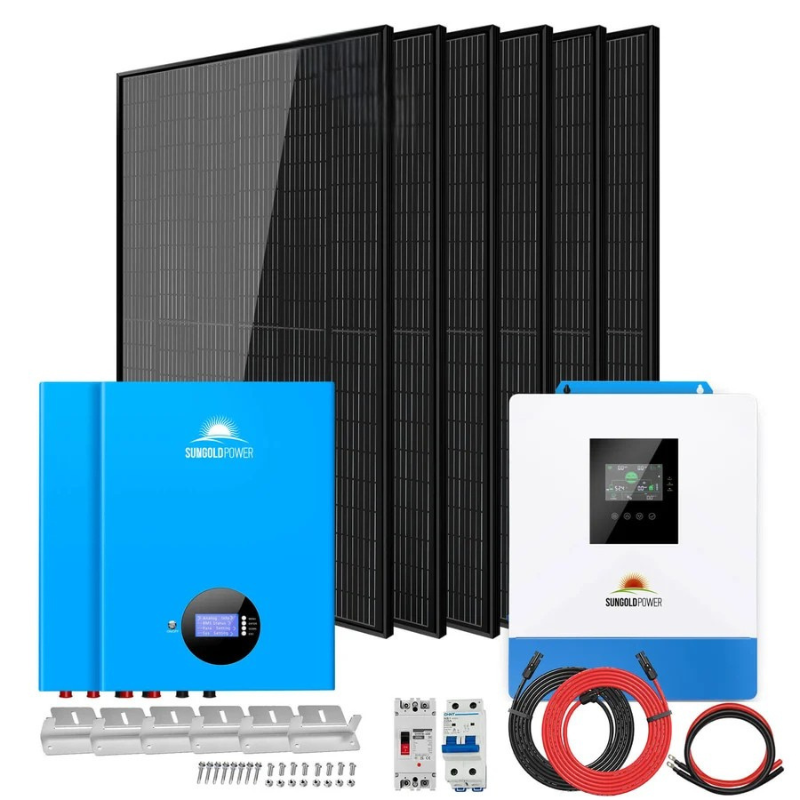

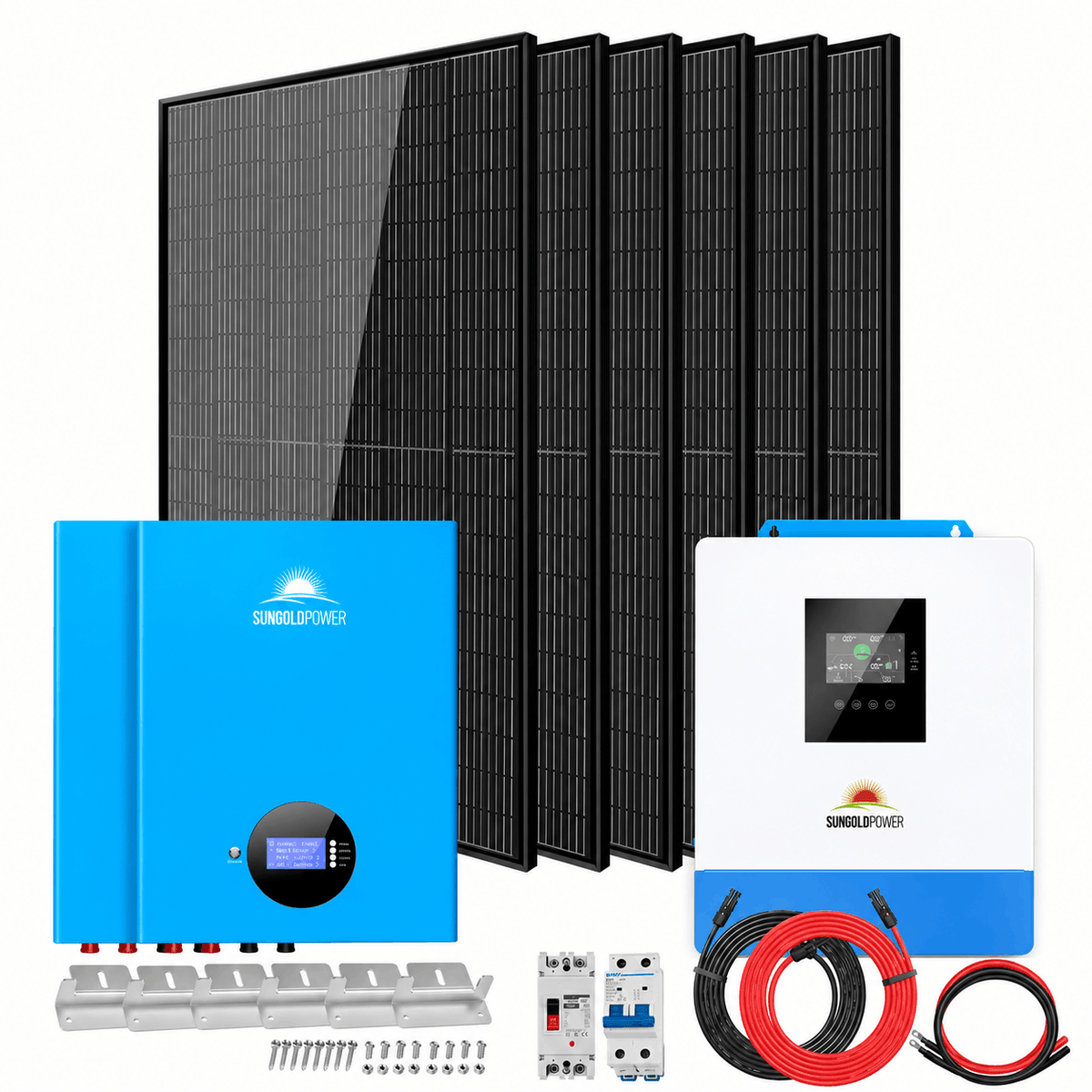

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 5000 Watt 48V DC 120V Output with Wifi Model
• 6 x 370 Watt Monocrystalline Solar Panels
• 2 x 100AH 51.2V PowerWall Lithium Battery
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input
• 6 x Sets of Mounting Z-Brackets

Sungold Power 5000W Off-Grid Solar Kit Feature

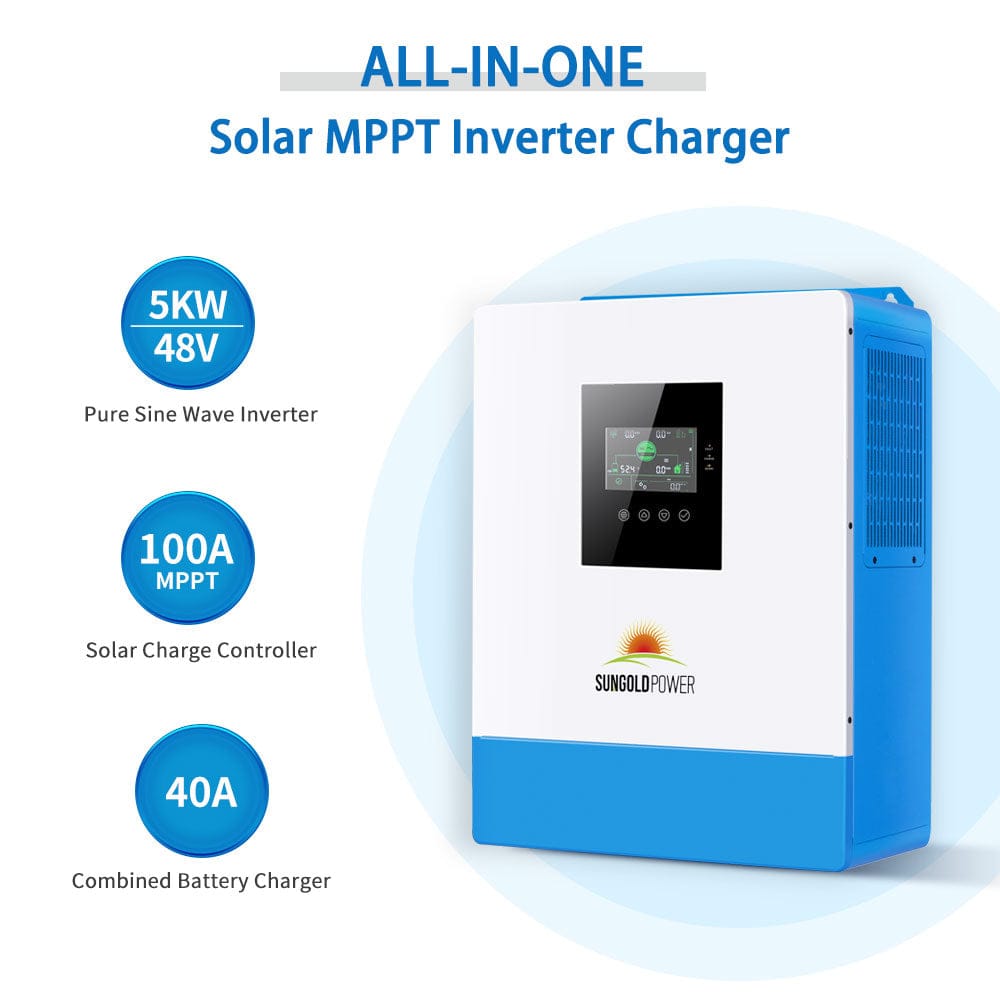

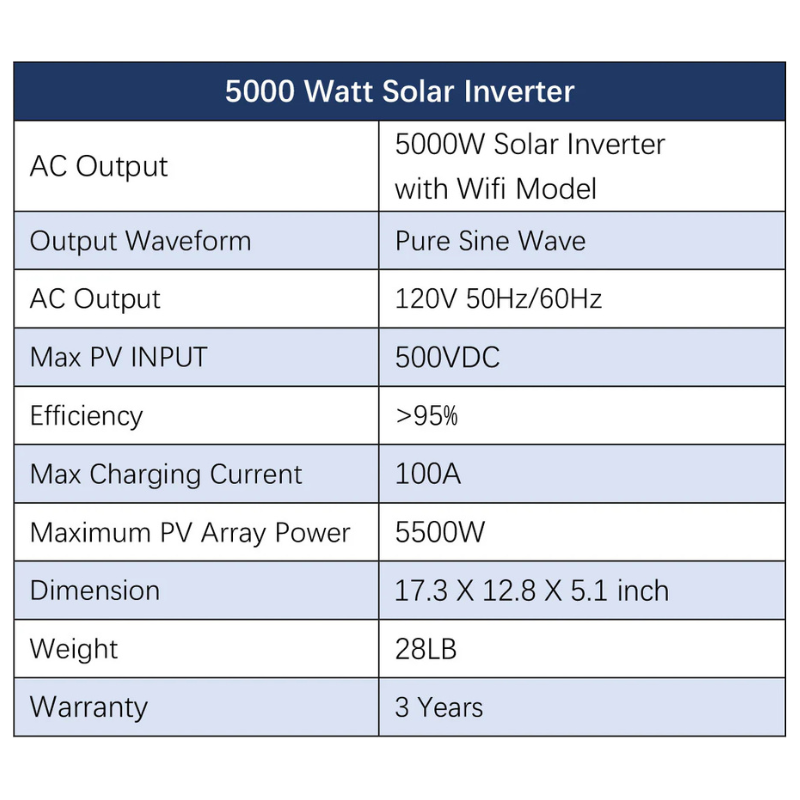

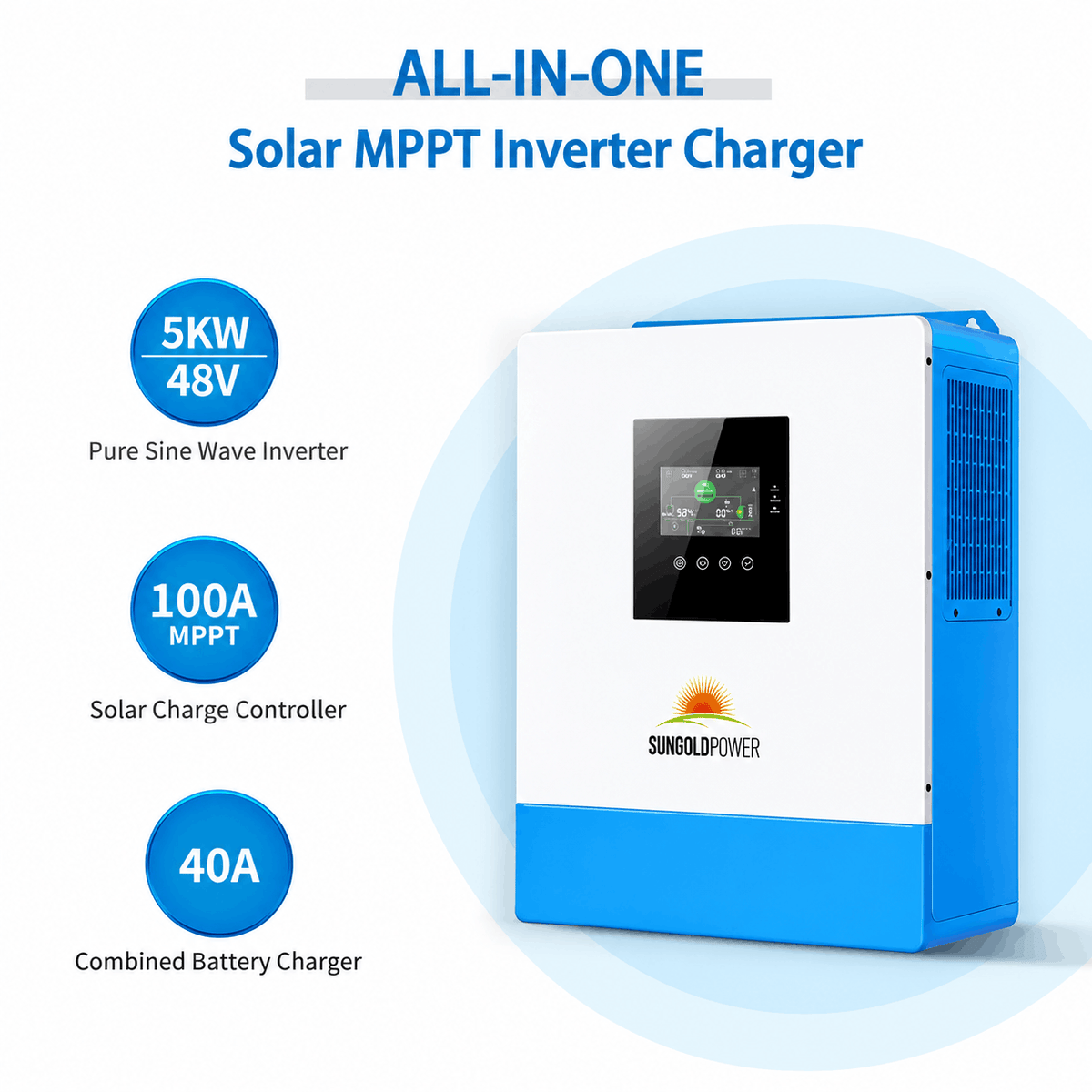

5000 Watt Solar Inverter

• AC Output: 5000W Solar Inverter with Wifi Model
• Output Waveform: Pure Sine Wave
• AC Output: 120V 50Hz/60Hz
• Max PV INPUT: 500VDC
• Efficiency: >95%
• Max Charging Current: 100A
• Maximum PV Array Power: 5500W
• Dimension: 17.3 X 12.8 X 5.1 inch
• Weight: 28LB
• Warranty: 3 Years

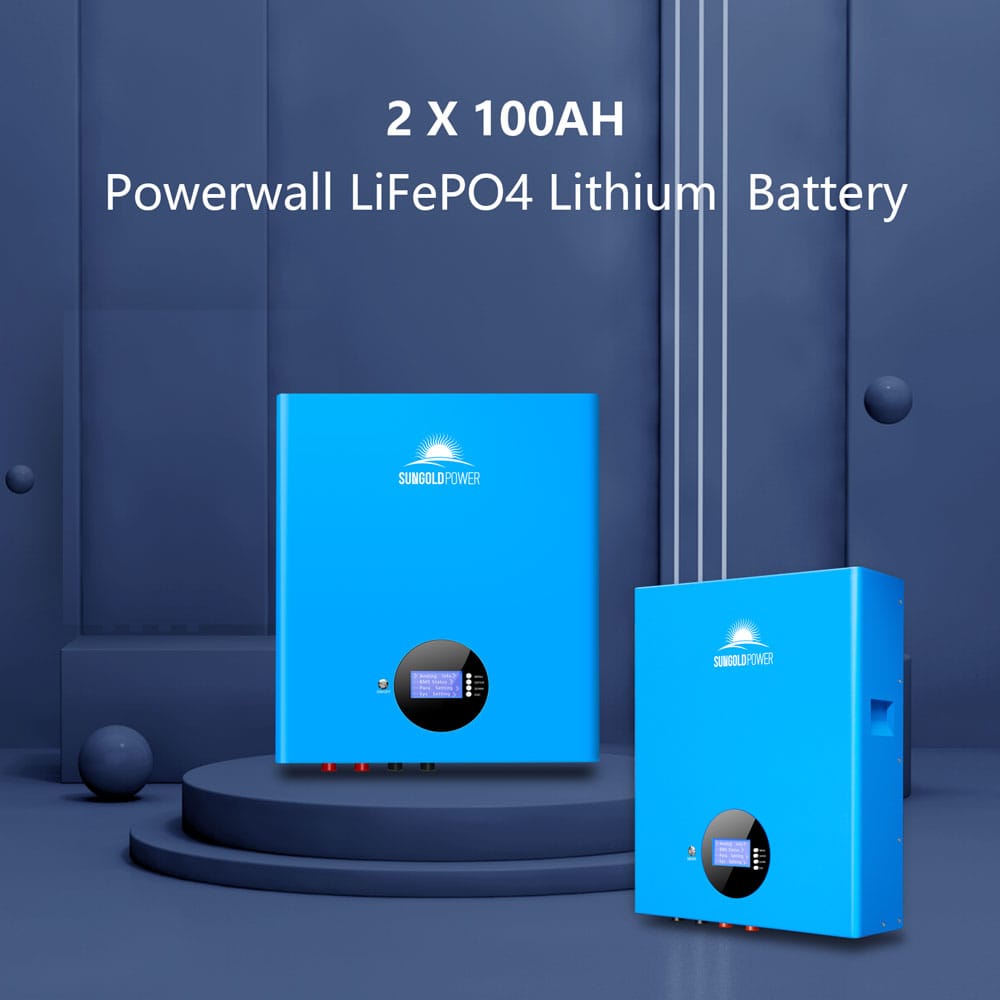

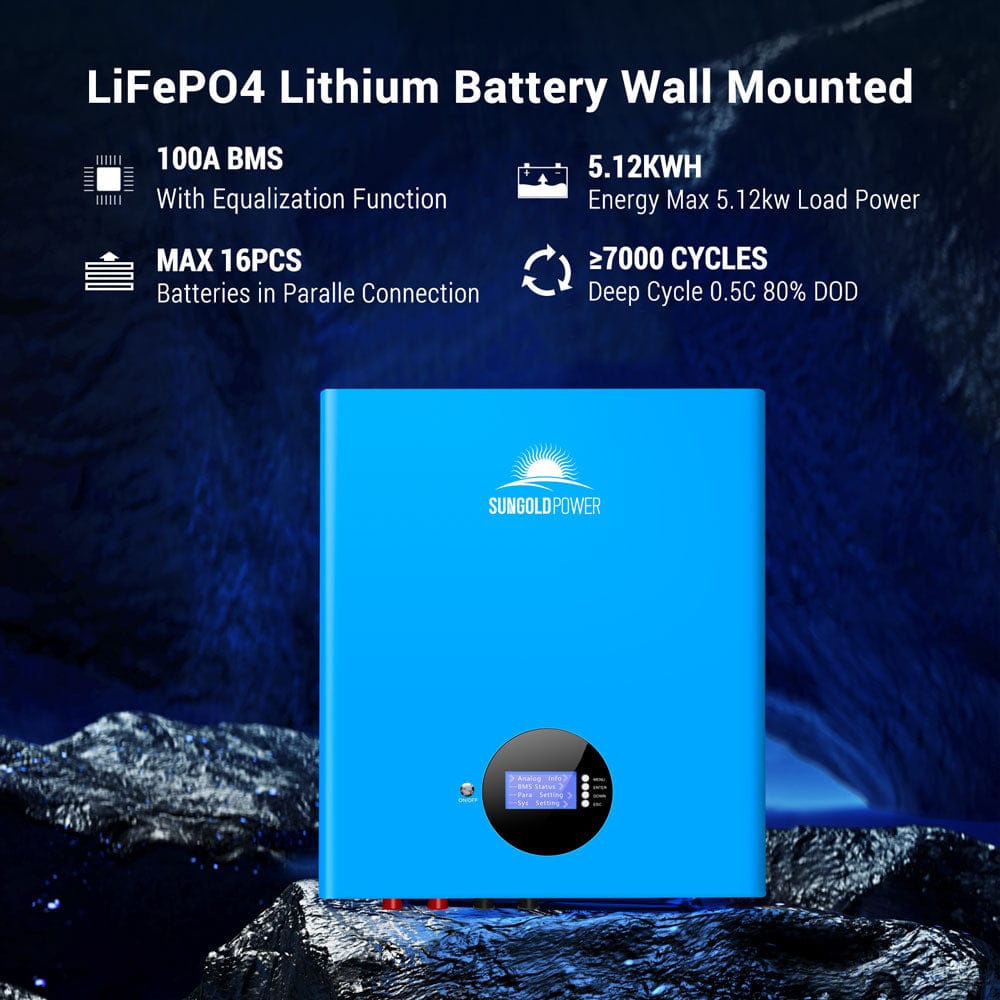

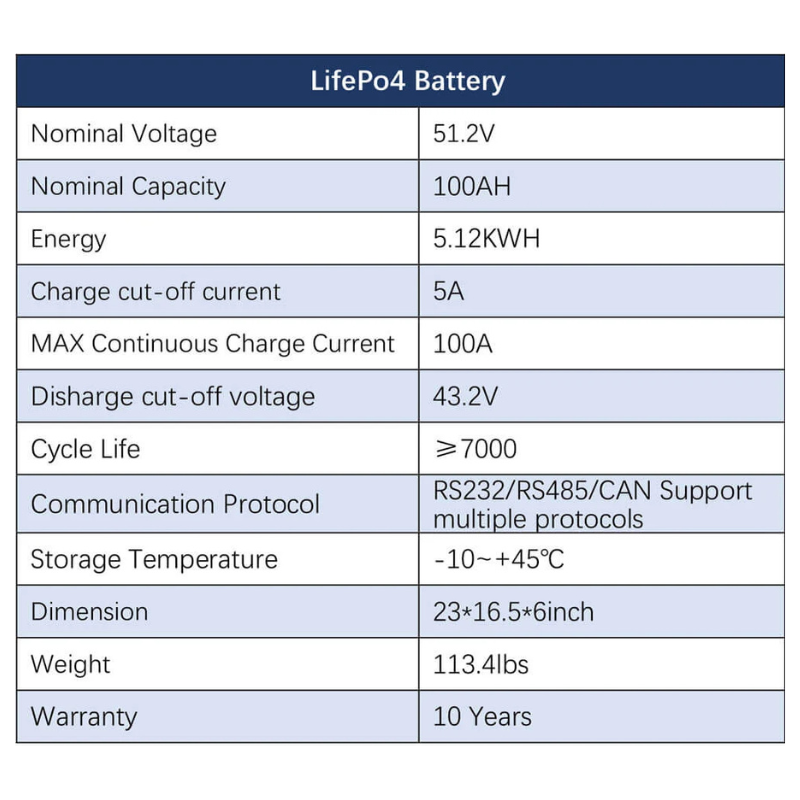

LifePo4 Battery

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Energy: 5.12KWH
• Charge cut-off current: 5A
• MAX Continuous Charge Current: 100A
• Discharge cut-off voltage: 43.2V
• Cycle Life: > 7000
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Storage Temperature: -10~+45°C
• Dimension: 23*16.5*6inch
• Weight: 113.4lbs
• Warranty: 10 Years

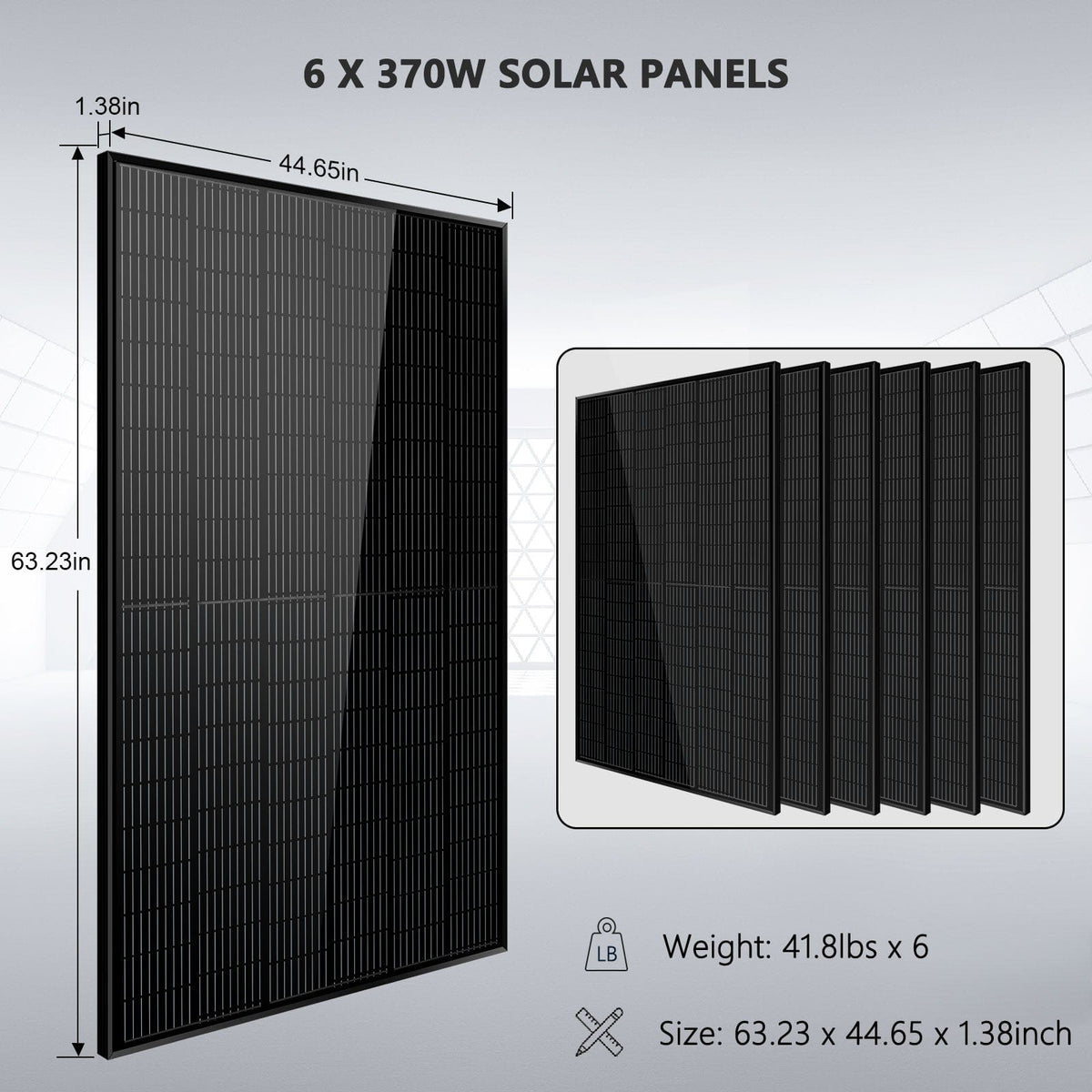

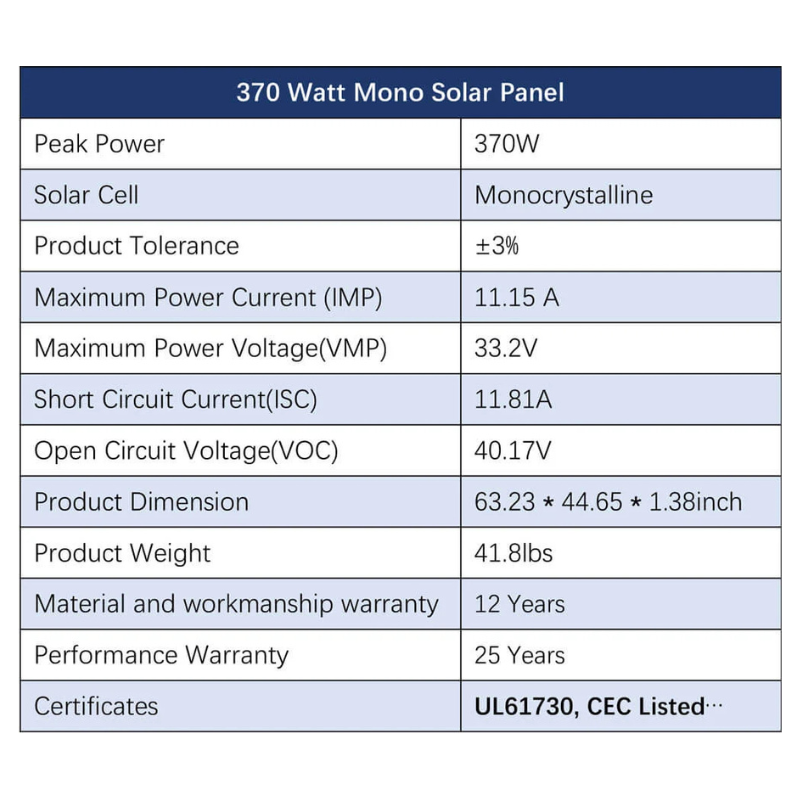

370 Watt Mono Solar Panel

• Peak Power: 370W
• Solar Cell: Monocrystalline
• Product Tolerance: +3%
• Maximum Power Current (IMP): 11.15A
• Maximum Power Voltage(VMP): 33.2V
• Short Circuit Current(ISC): 11.81A
• Open Circuit Voltage(VOC): 40.17V
• Product Dimension: 63.23 X 44.65 X 1.38 inch
• Product Weight: 41.8LB
• Warranty: 25 Years

Solar Kit Specification

• Max Continuous Output: 5000W
• AC Output: 120V
• DC Voltage: 48V
• Max Solar Input: 5000W
• Total Watt of Panels: 2220W
• Per Panel Watt: 370 Watt
• Panel NO.: 6 pcs
• Total KWH of Batteries: 10.24KWH
• Chemistry: Lithium
• Battery NO.: 2pcs
• Battery Spec: 48V 100AH

User Manual

• Sungold Power 5000W Pure Sine Wave Inverter User Manual
• Sungold Power 5.12KWH Powerwall LifePo4 Battery User Manual
• Sungold Power 370 Watt Monocrystalline Solar Panel User Manual
