Sungold Power Off-Grid Solar Kit 6000W 48VDC 120V/240V LifePO4 10.24KWH Lithium Battery 6 X 370 Watt Solar Panels

Sungold Power 6000W Off-Grid Solar Kit Overview

Our off grid solar system kit contains nearly everything you need to bring 2.22KW off-grid solar power and storage to mid-sized off-grid homes or remote cabins. With 10.24KWH Lithuim battery type and solar panel mounting,  and you're on your way !  this system includes a 6000W 48V split phase Inverter/Charger UL1741, which power the most of 120V and 240V home applicance, auto generator start, you will get the clean,quiet and amazing off grid power !

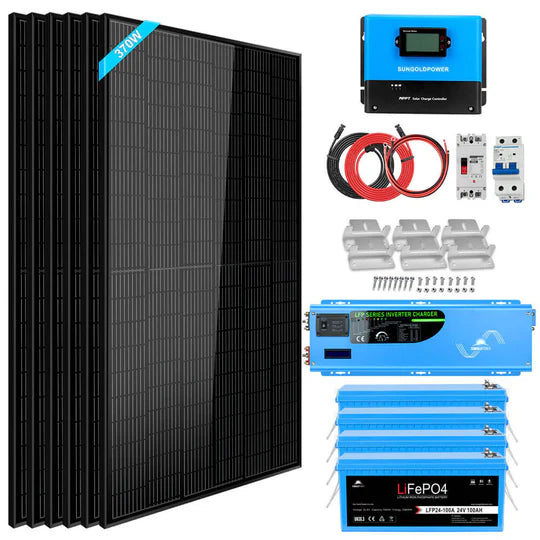

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 6000 Watt 48V DC 120V/240V Inverter/Charger
• 6 x 370 Watt Monocrystalline Solar Panels

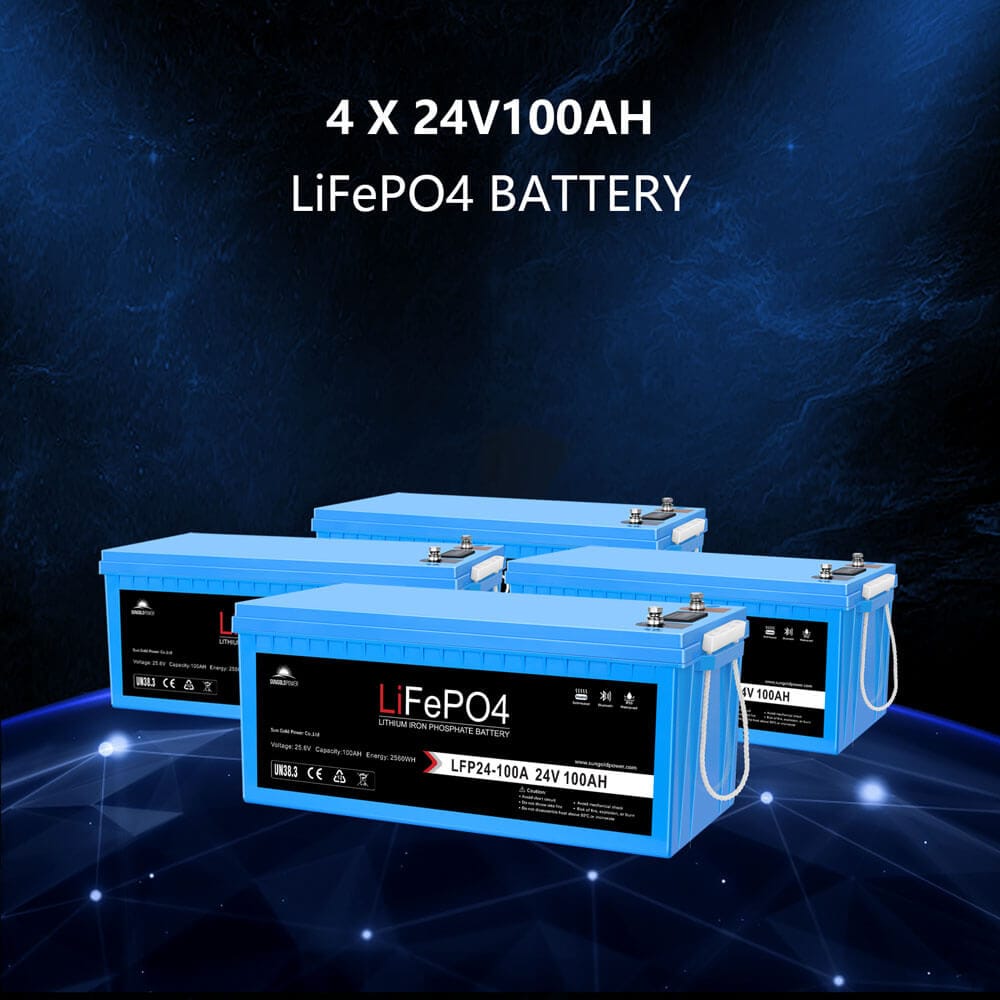

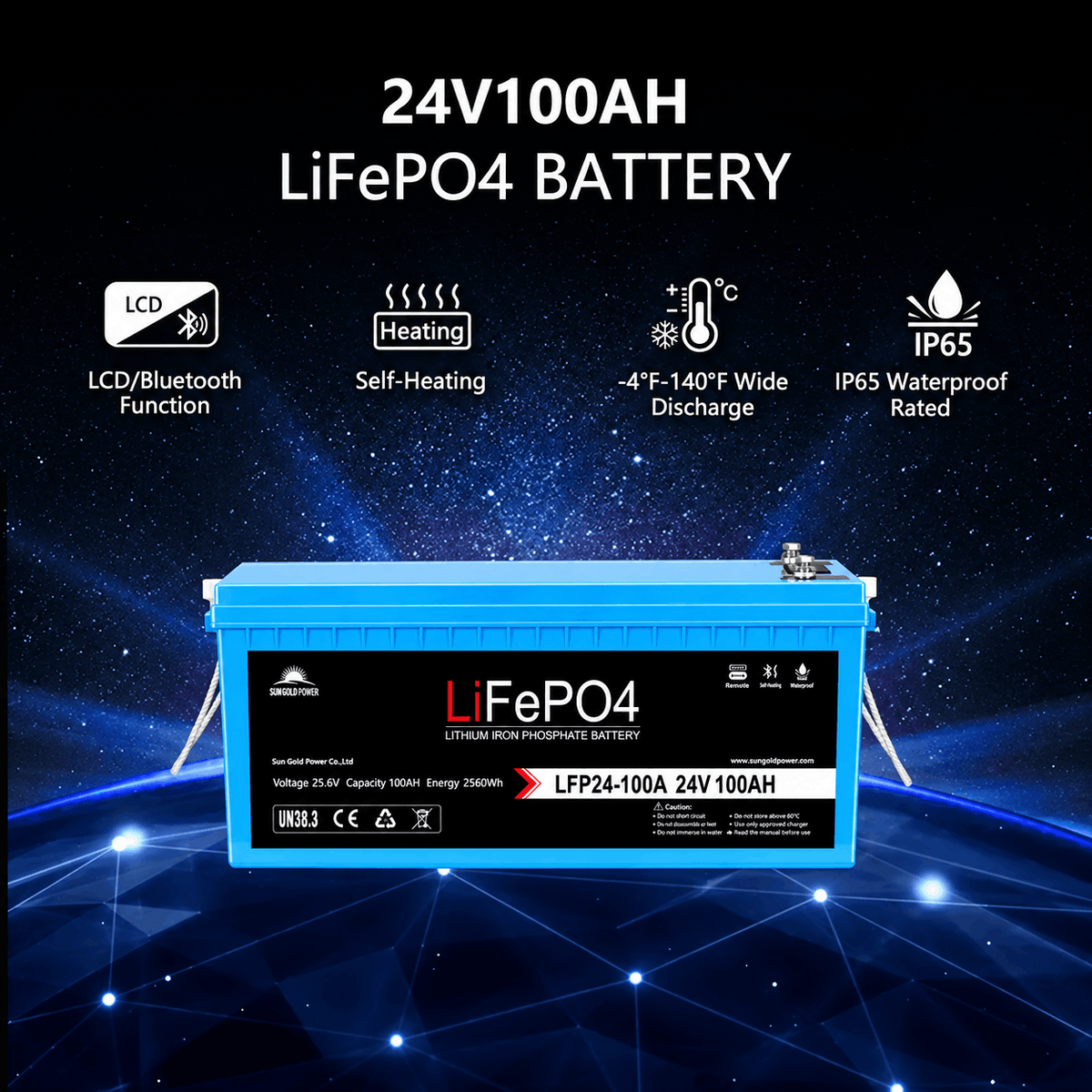

• 4 x 24V 100AH Lifepo4 Battery with Bluetooth
• 1 x 100A MPPT Solar Charge Controller
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input
• 1 x Solar Cables Between Solar Panel and MPPT Controller
• 6 x Sets of Mounting Z-Brackets

Sungold Power 6000W Off-Grid Solar Kit Feature

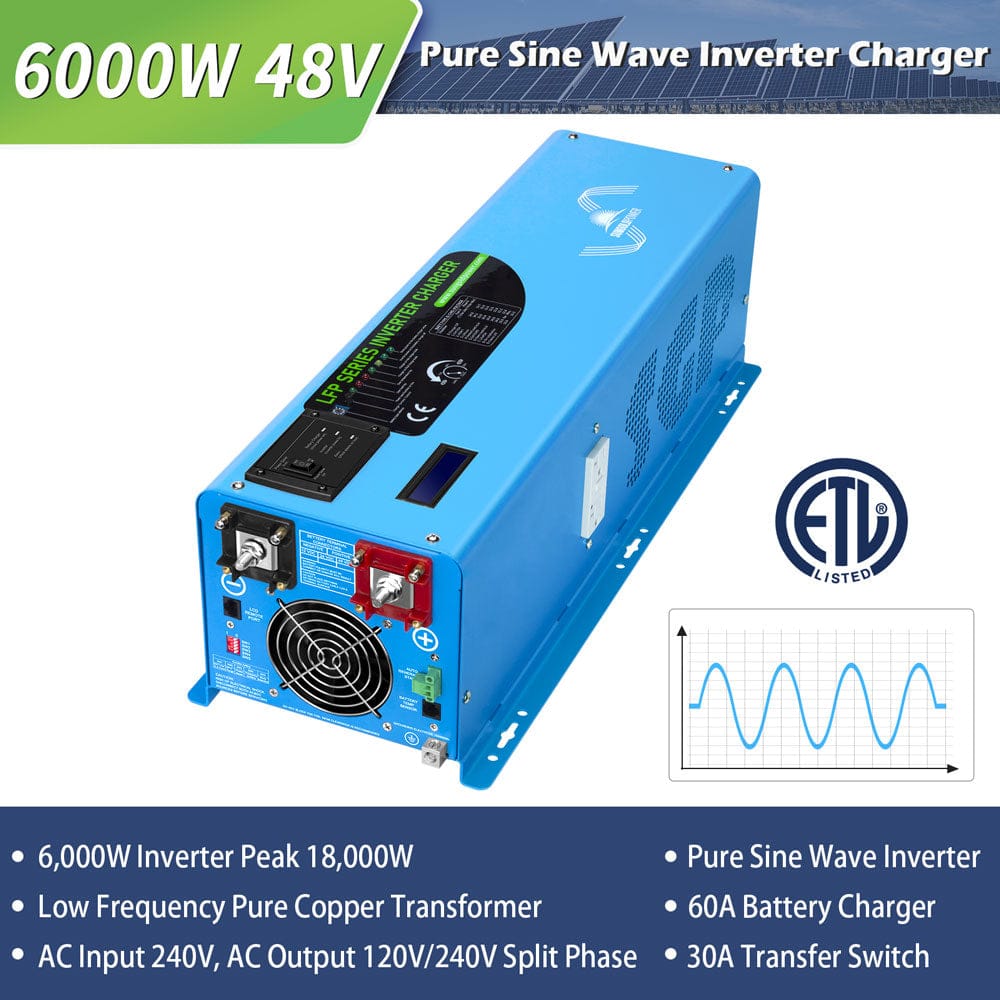

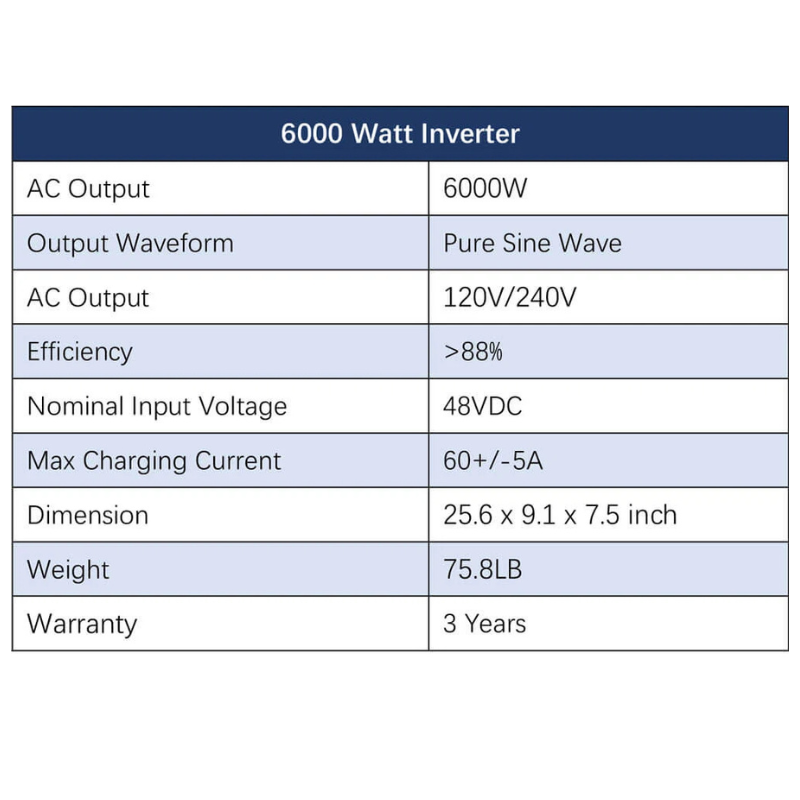

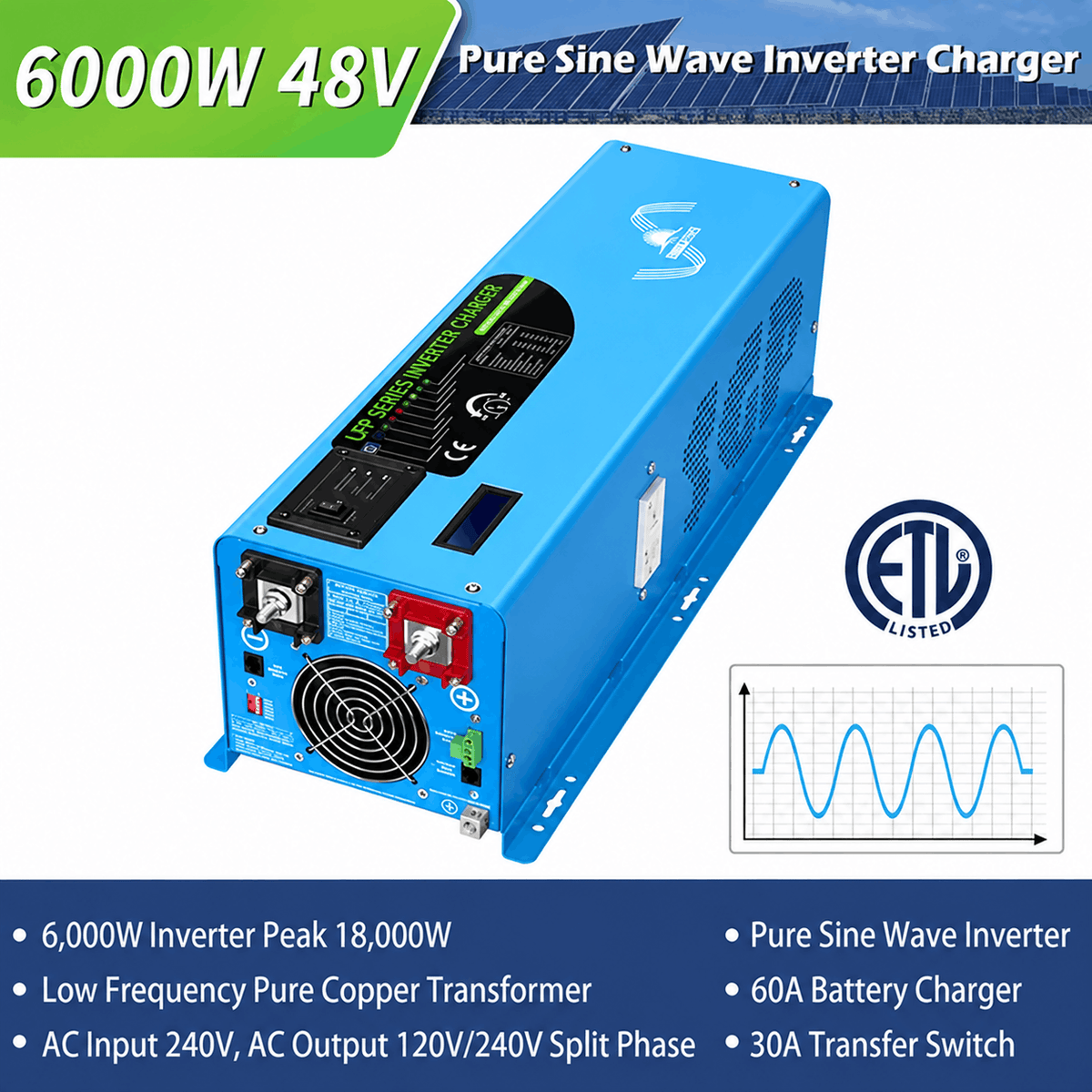

6000 Watt Solar Inverter

• AC Output: 6000W
• Output Waveform: Pure Sine Wave
• AC Output: 120V/240V
• Efficiency: >88%
• Nominal Input Voltage: 48VDC
• Max Charging Current: 60+/-5A
• Dimension: 25.6 x 9.1 x 7.5 inch

• Weight: 75.8LB
• Warranty: 3 Years

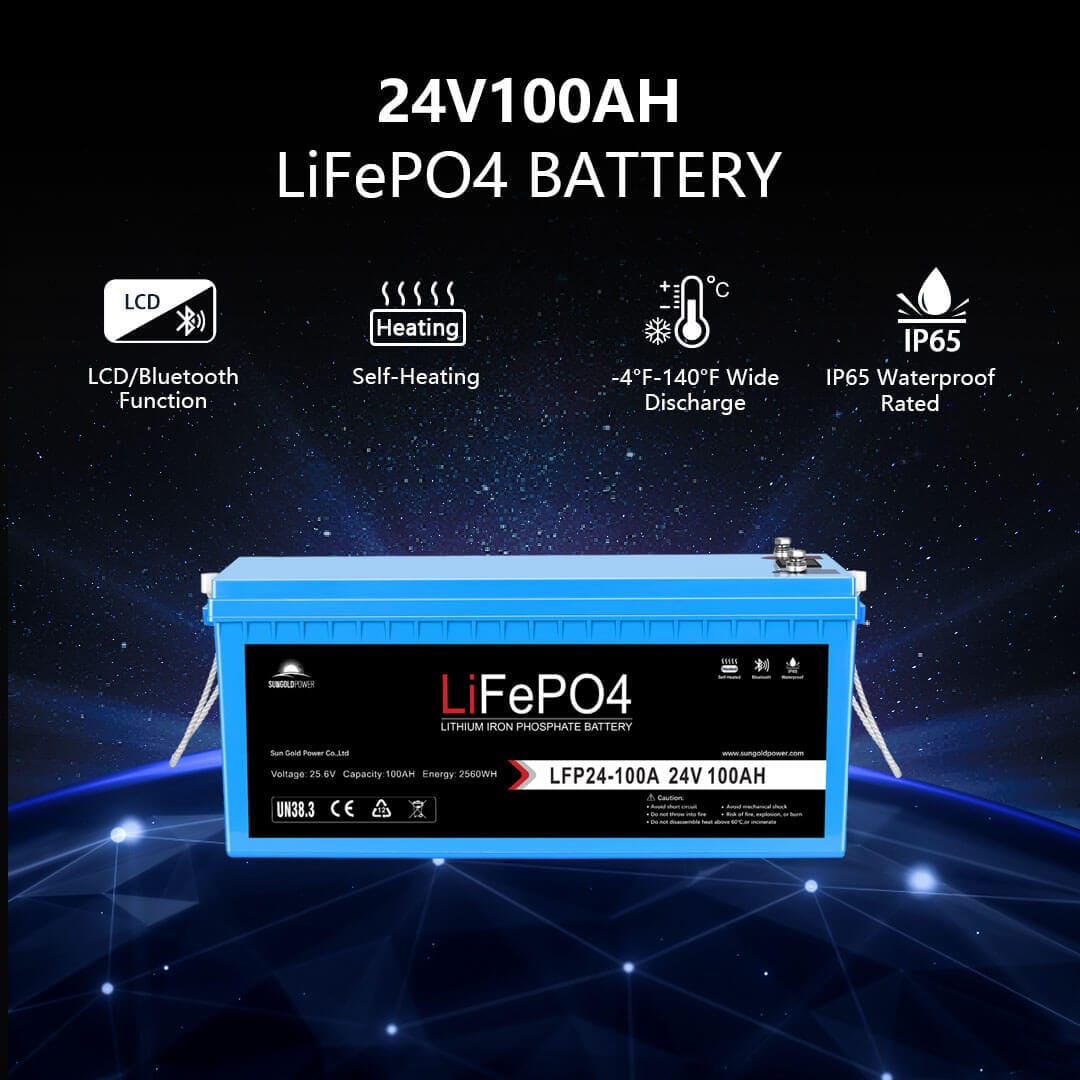

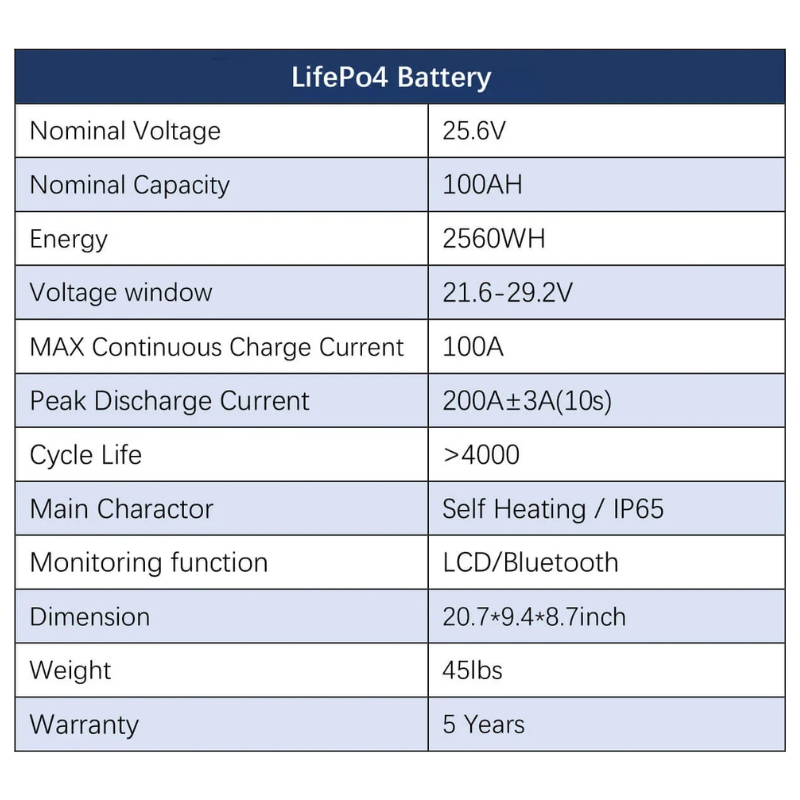

LifePo4 Battery

• Nominal Voltage: 25.6V
• Nominal Capacity: 100AH
• Energy: 2560WH
• Voltage window: 21.6-29.2V
• MAX Continuous Charge Current: 100A
• Peak Discharge Current: 200A±3A(10s)
• Cycle Life: >4000
• Main Charactor: Self Heating / IP65
• Monitoring function: LCD/Bluetooth
• Dimension: 20.7 x 9.4 x 8.7 inch
• Weight: 45 lbs
• Warranty: 5 Years

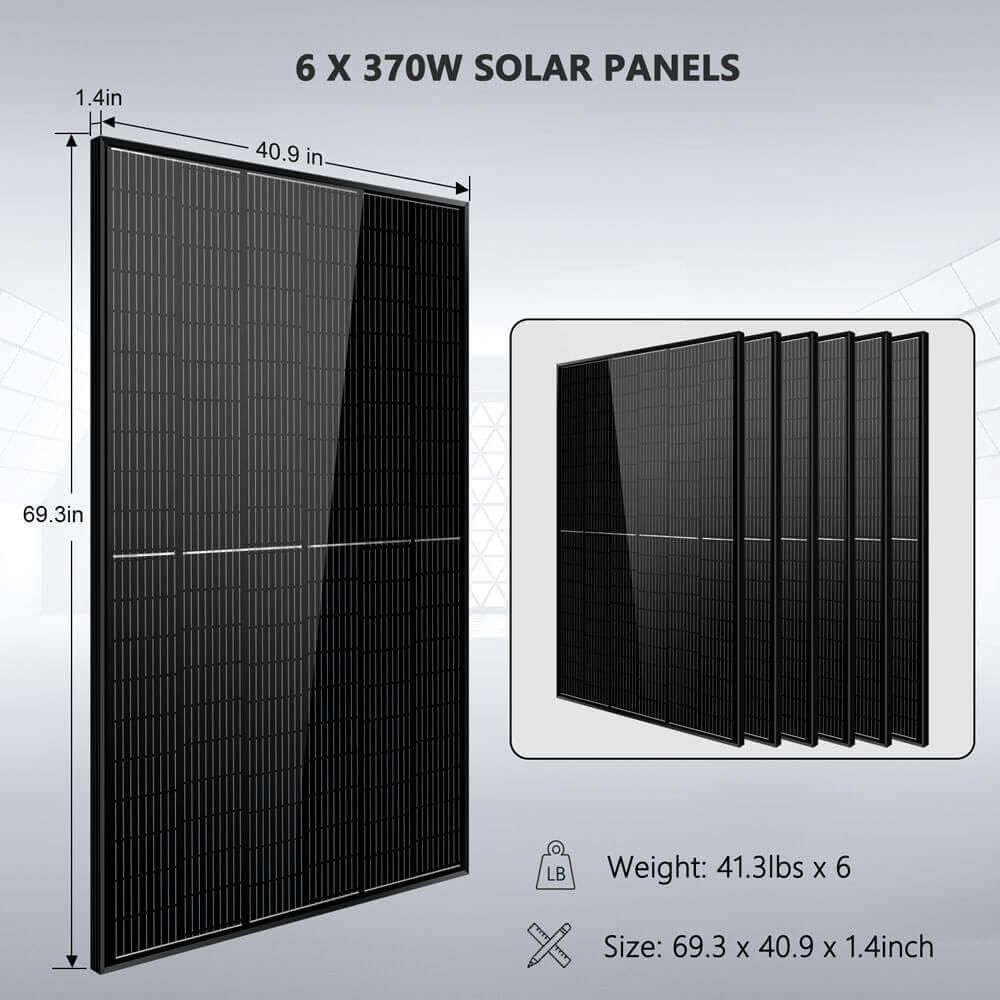

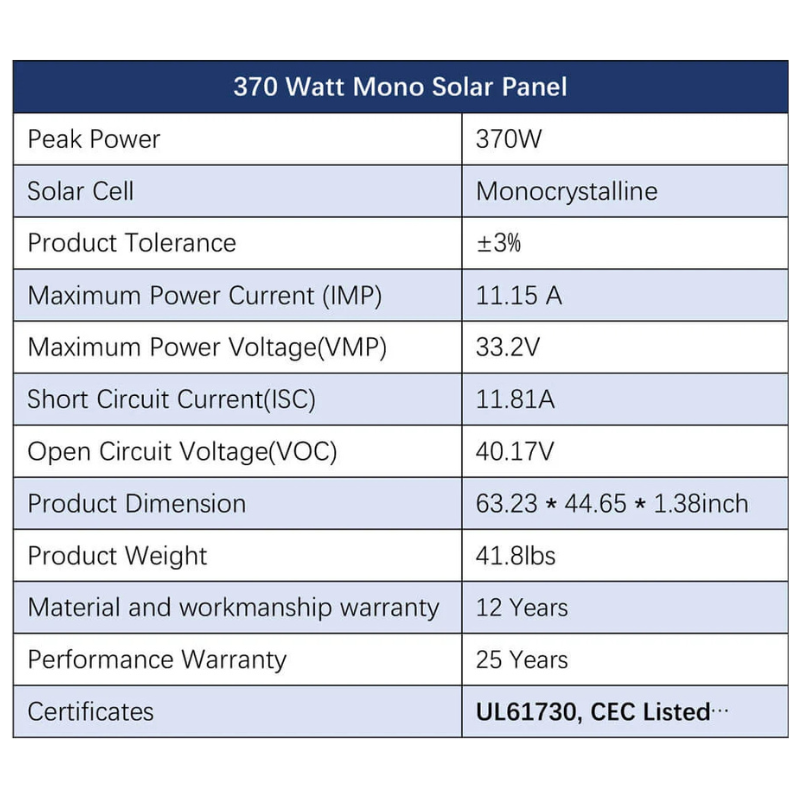

370 Watt Mono Solar Panel

• Peak Power: 370W
• Solar Cell: Monocrystalline
• Product Tolerance: +3%
• Maximum Power Current (IMP): 11.15A
• Maximum Power Voltage(VMP): 33.2V
• Short Circuit Current(ISC): 11.81A
• Open Circuit Voltage(VOC): 40.17V
• Product Dimension: 63.23 X 44.65 X 1.38 inch
• Product Weight: 41.8LB
• Warranty: 25 Years

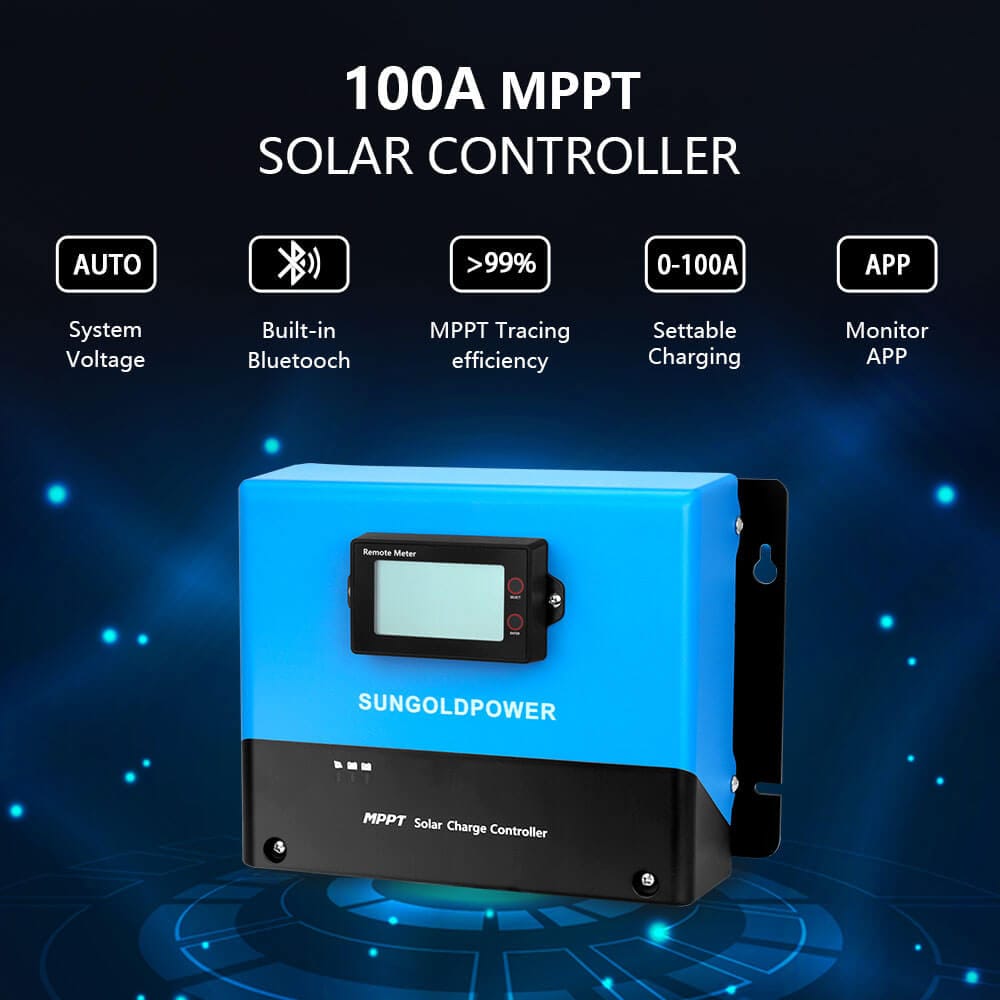

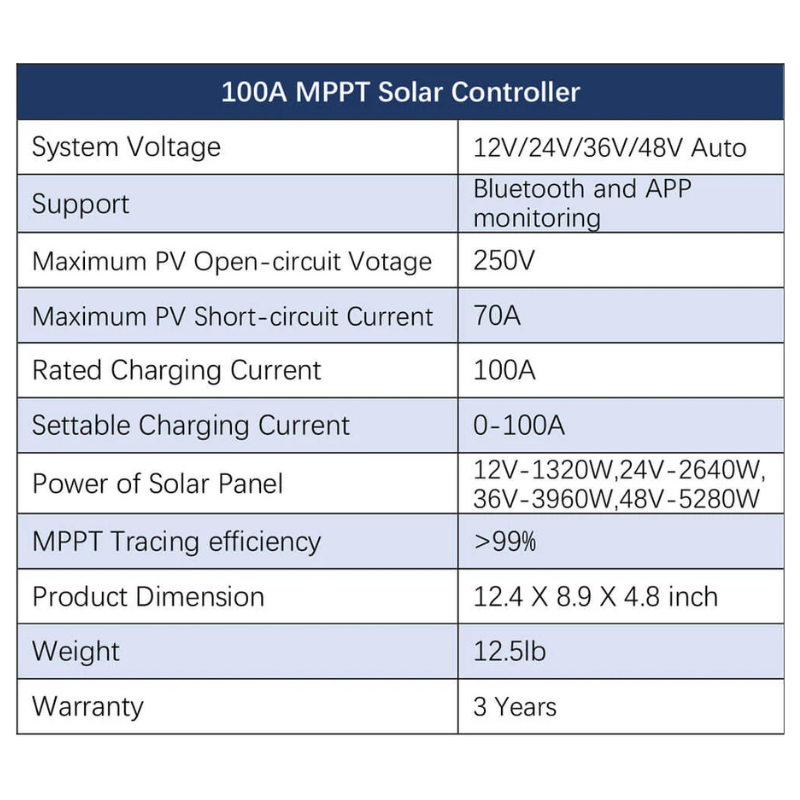

100A Mppt Solar Controller

• System Voltage: 12V/24V/36V/48V Auto
• Support: Bluetooth and APP monitoring
• Maximum PV Open-circuit Voltage: 250V
• Maximum PV Short-circuit Current: 70A
• Rated Charging Current: 100A
• Settable Charging Current: 0-100A
• Power of Solar Panel: 12V-1320W, 24V-2640W, 36V-3960W, 48V-5280W
• MPPT Tracing efficiency: >99%
• Product Dimension: 12.4 X 8.9 X 4.8 inch
• Product Weight: 12.5lb
• Warranty: 3 Years

Solar Kit Specification

• Max Continuous Output: 6000W
• AC Output: 120V/240V
• DC Voltage: 48V
• Max Solar Input: 5280W
• Total Watt of Panels: 2220W
• Per Panel Watt: 370 Watt
• Panel NO.: 6 pcs
• Total KWH of Batteries: 10.24KWH
• Chemistry: Lithium
• Battery NO.: 4pcs
• Battery Spec: 24V 100AH

User Manual

• Sungold Power 6000W Pure Sine Wave Inverter User Manual
• Sungold Power 100Ah LiFePo4 Battery With Bluetooth User Manual
• Sungold Power 370 Watt Monocrystalline Solar Panel User Manual
• Sungold Power 100A MPPT Solar Charge Controller User Manual
