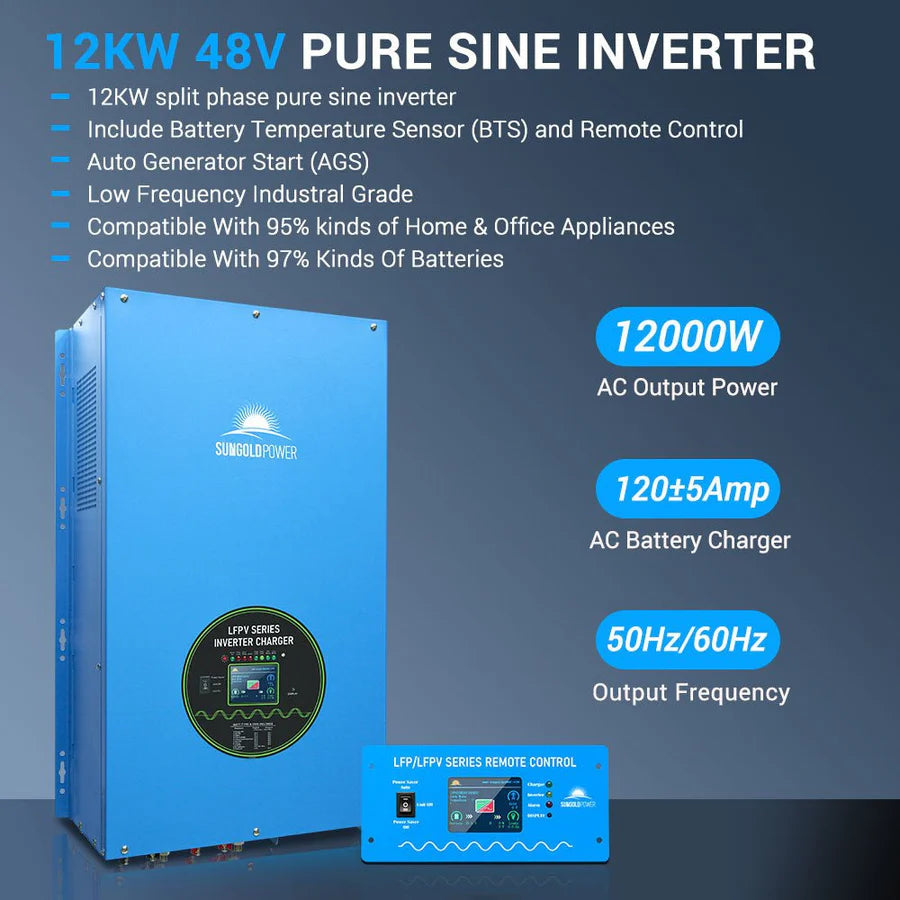

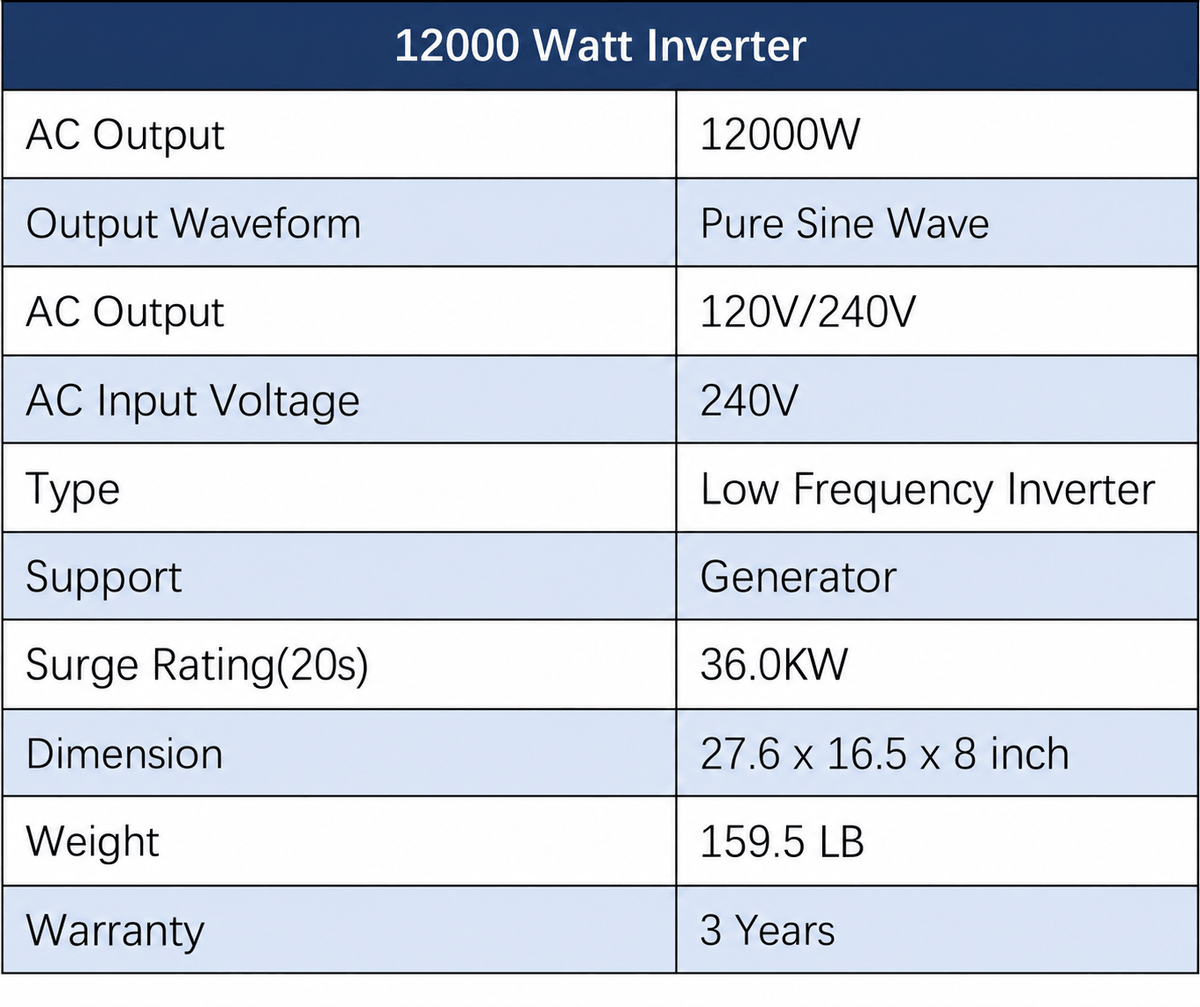

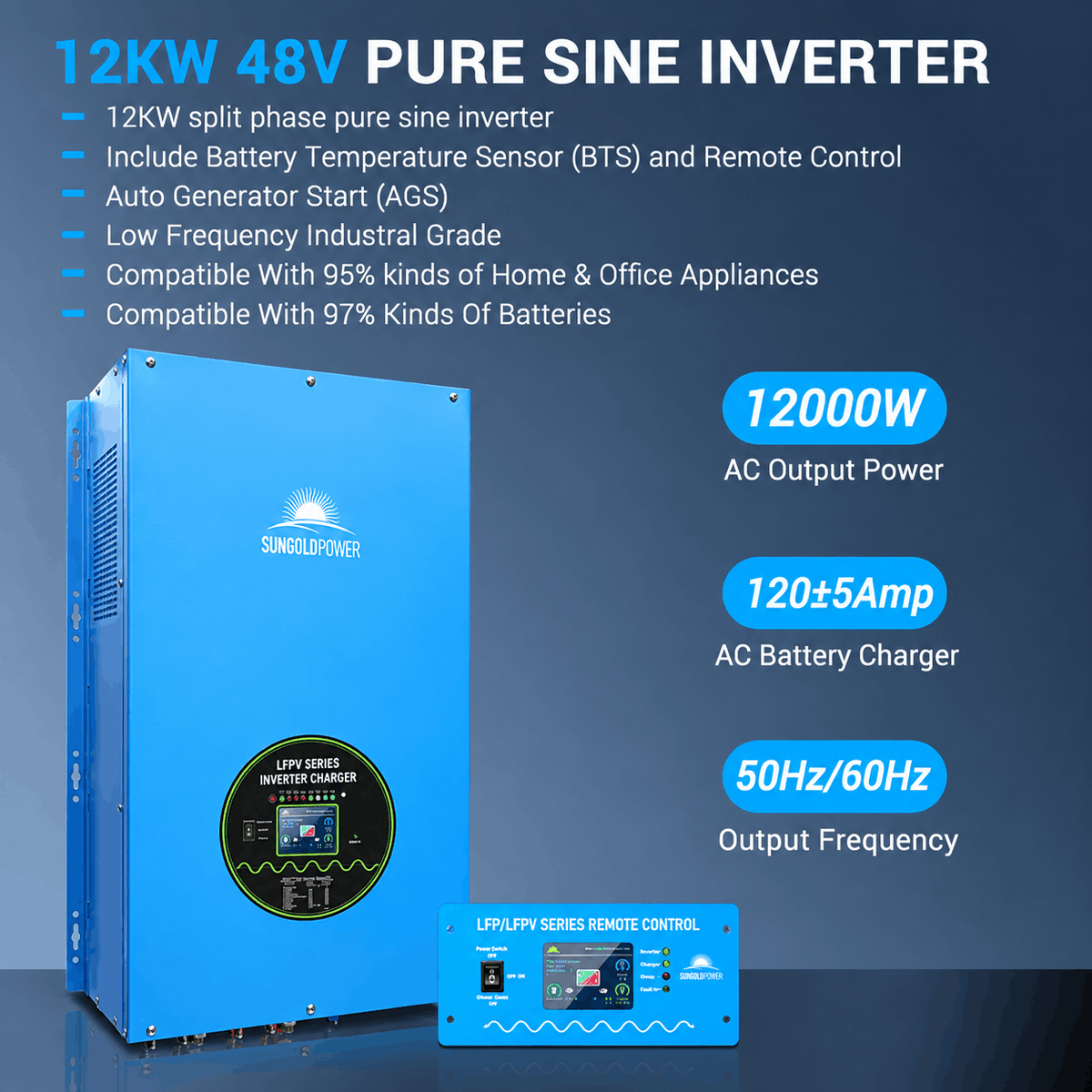

What does low frequency actually mean, and why would I want it?

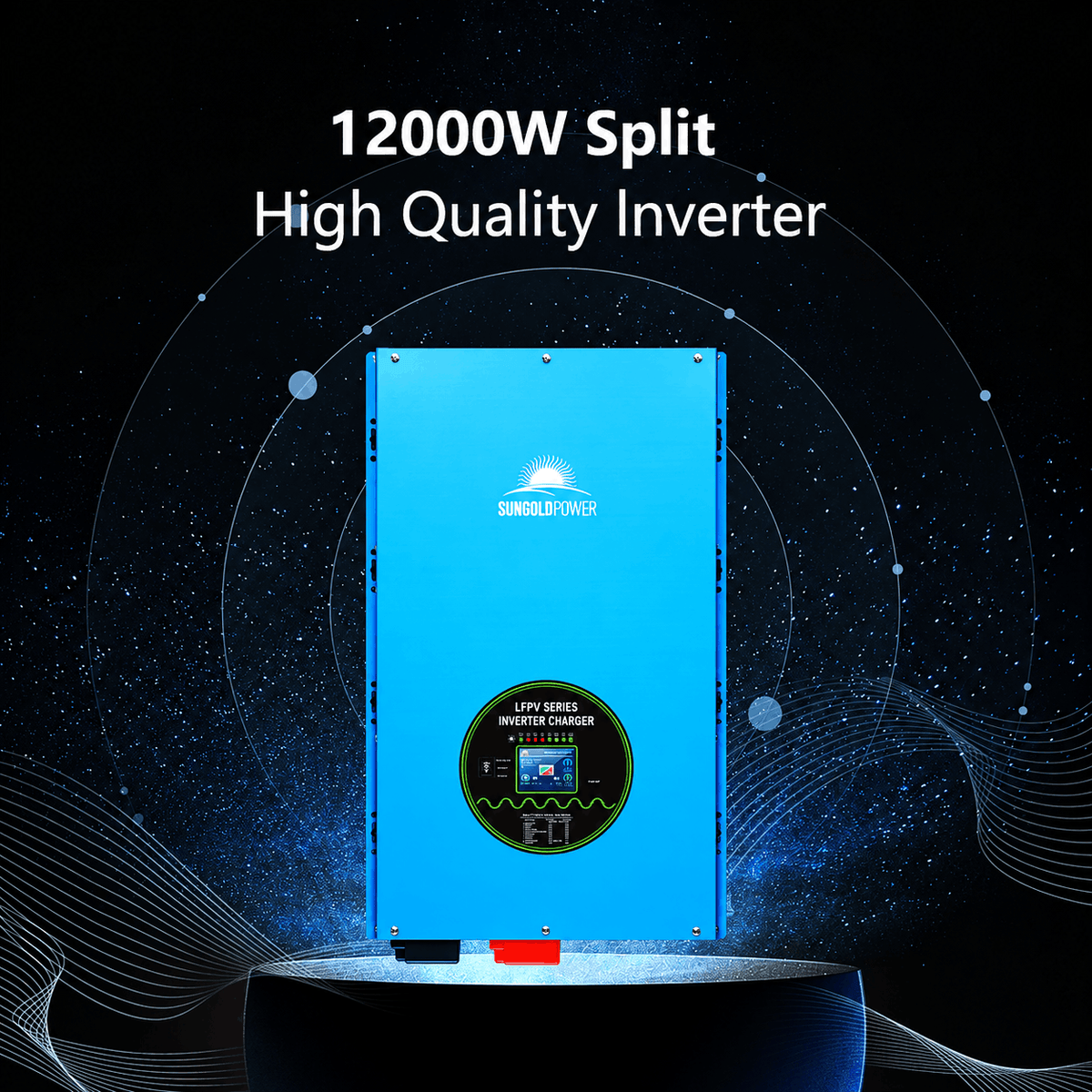

It describes how the inverter builds its AC output. A low-frequency inverter uses a heavy iron transformer, which is why this unit weighs 159.5 lbs where a comparable high-frequency inverter weighs about 54 lbs. The transformer stores energy and lets the inverter deliver enormous current for a moment without folding, which is exactly what a motor demands at startup. The trade is weight, cost, a lower peak efficiency of 88% against 92%, and up to 25W of idle draw. If you have hard-starting equipment it is worth every one of those trades. If you do not, it is not.

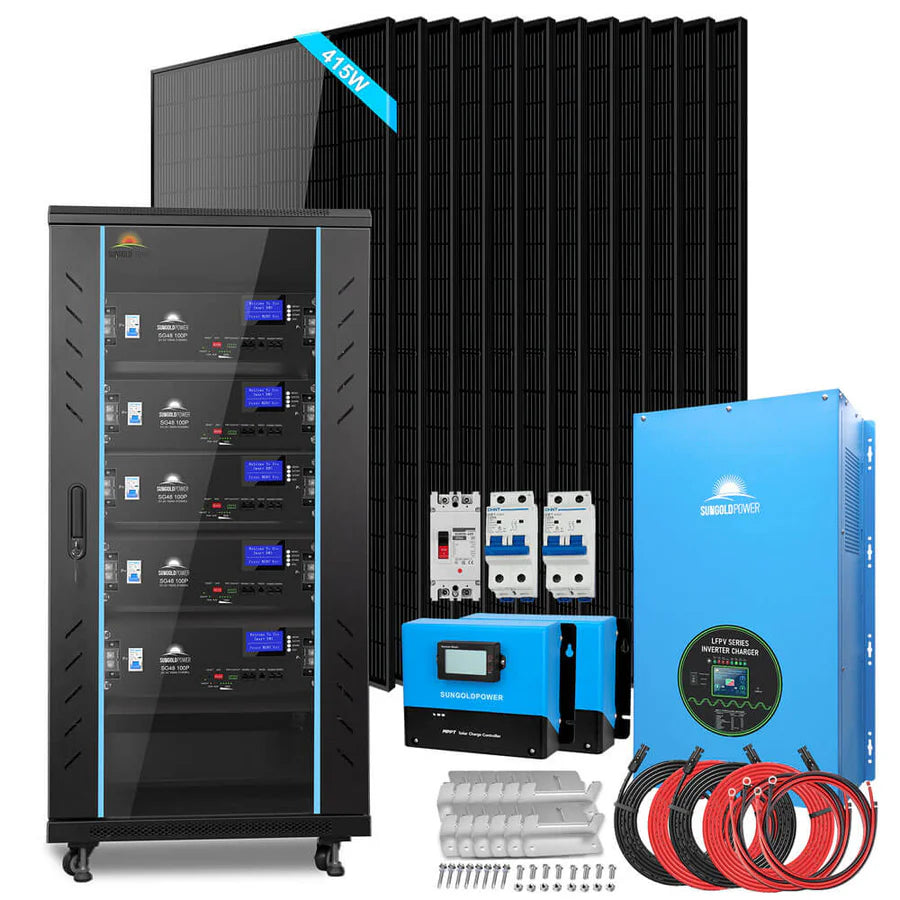

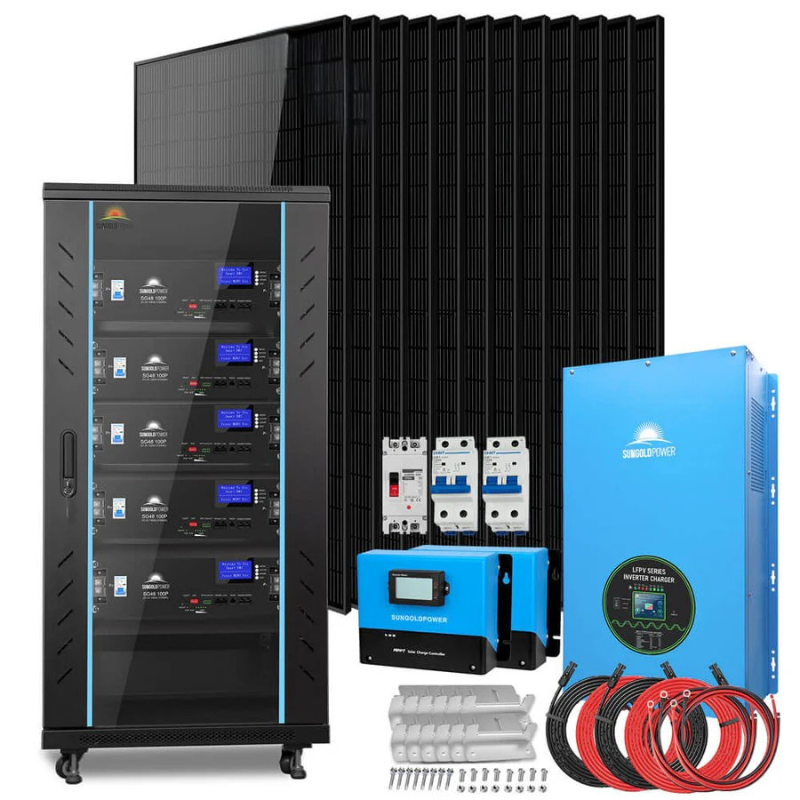

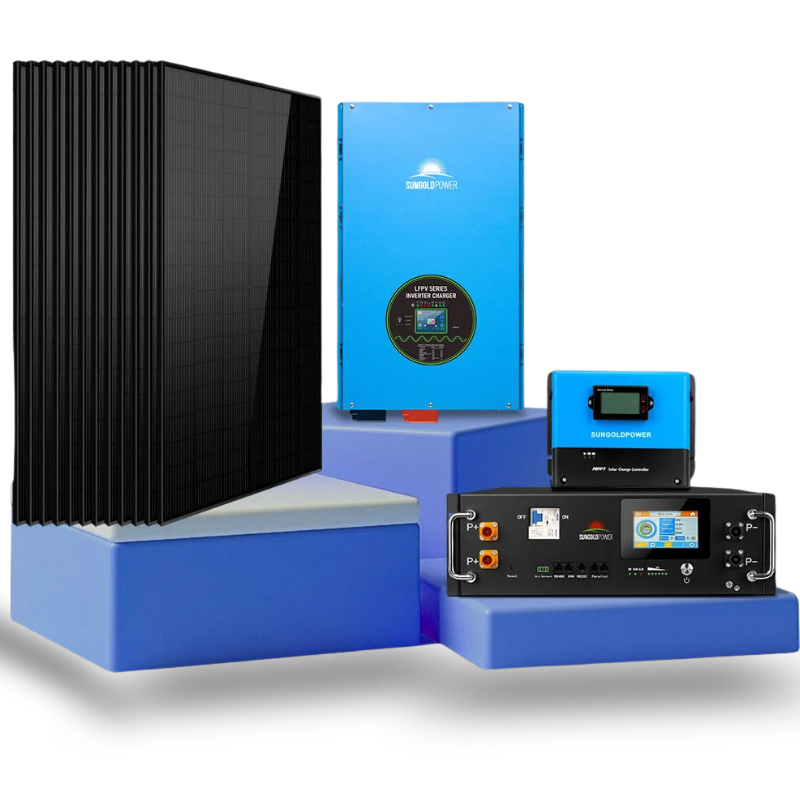

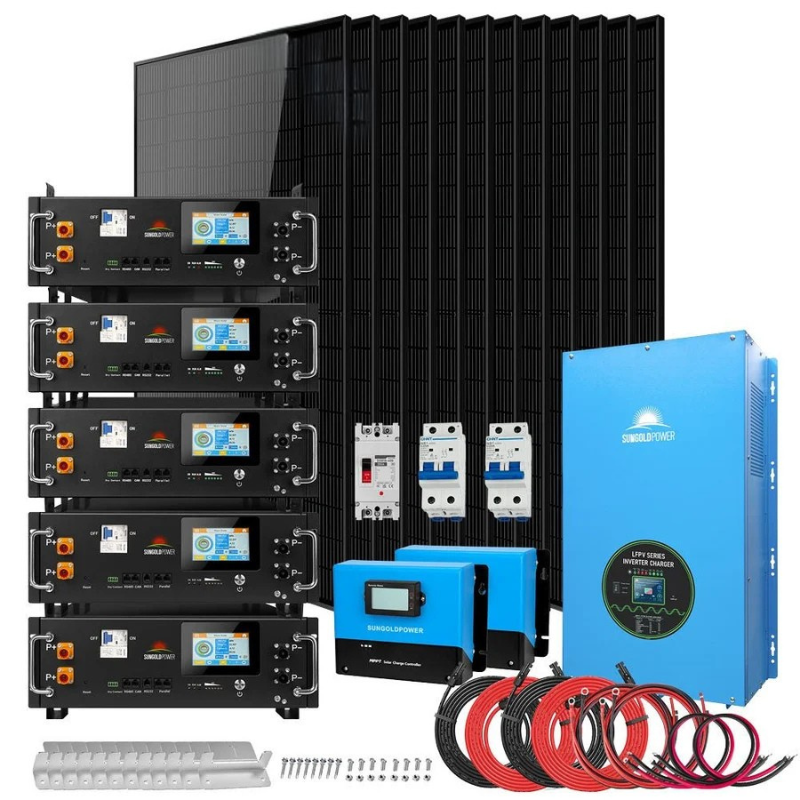

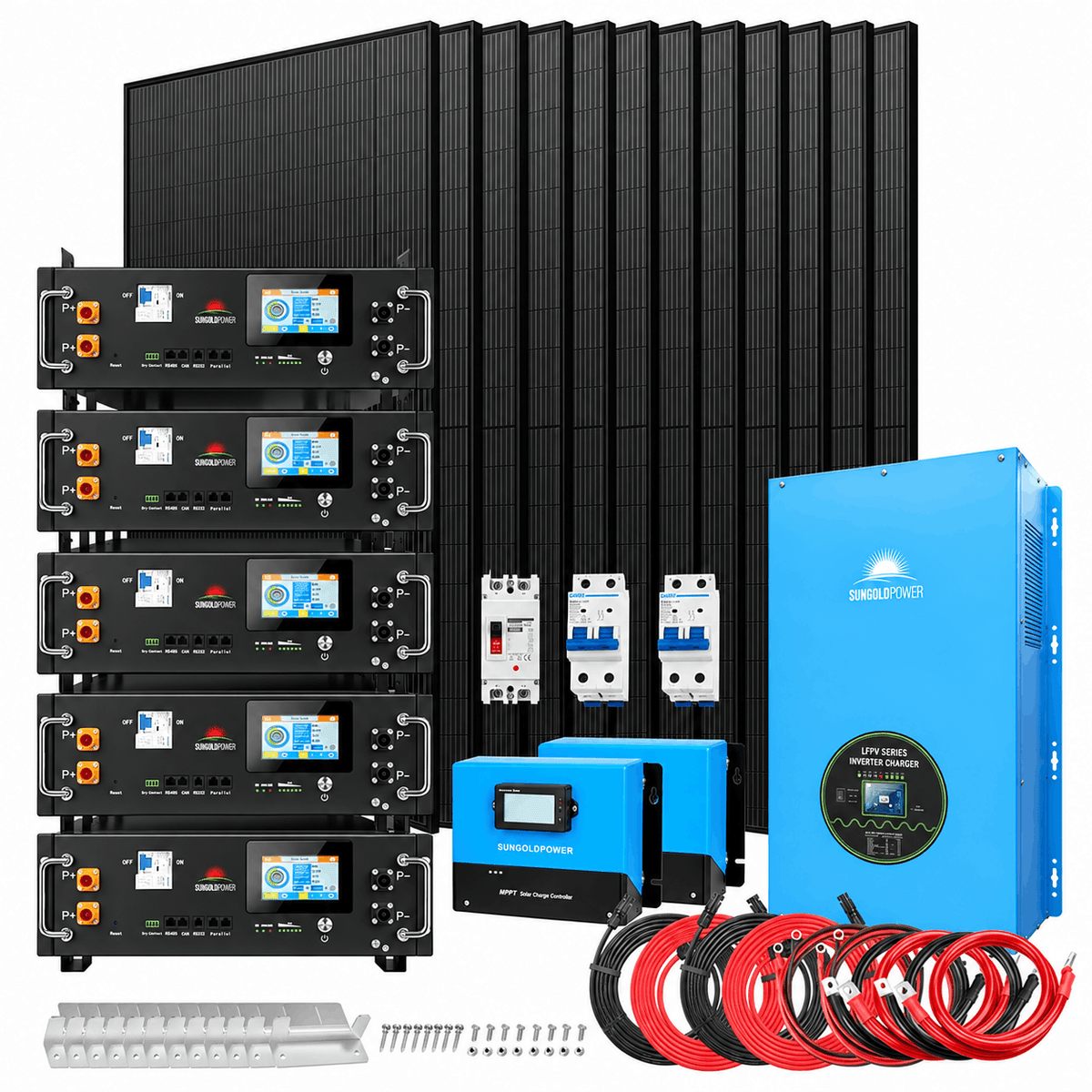

Does this kit include everything I need to install it?

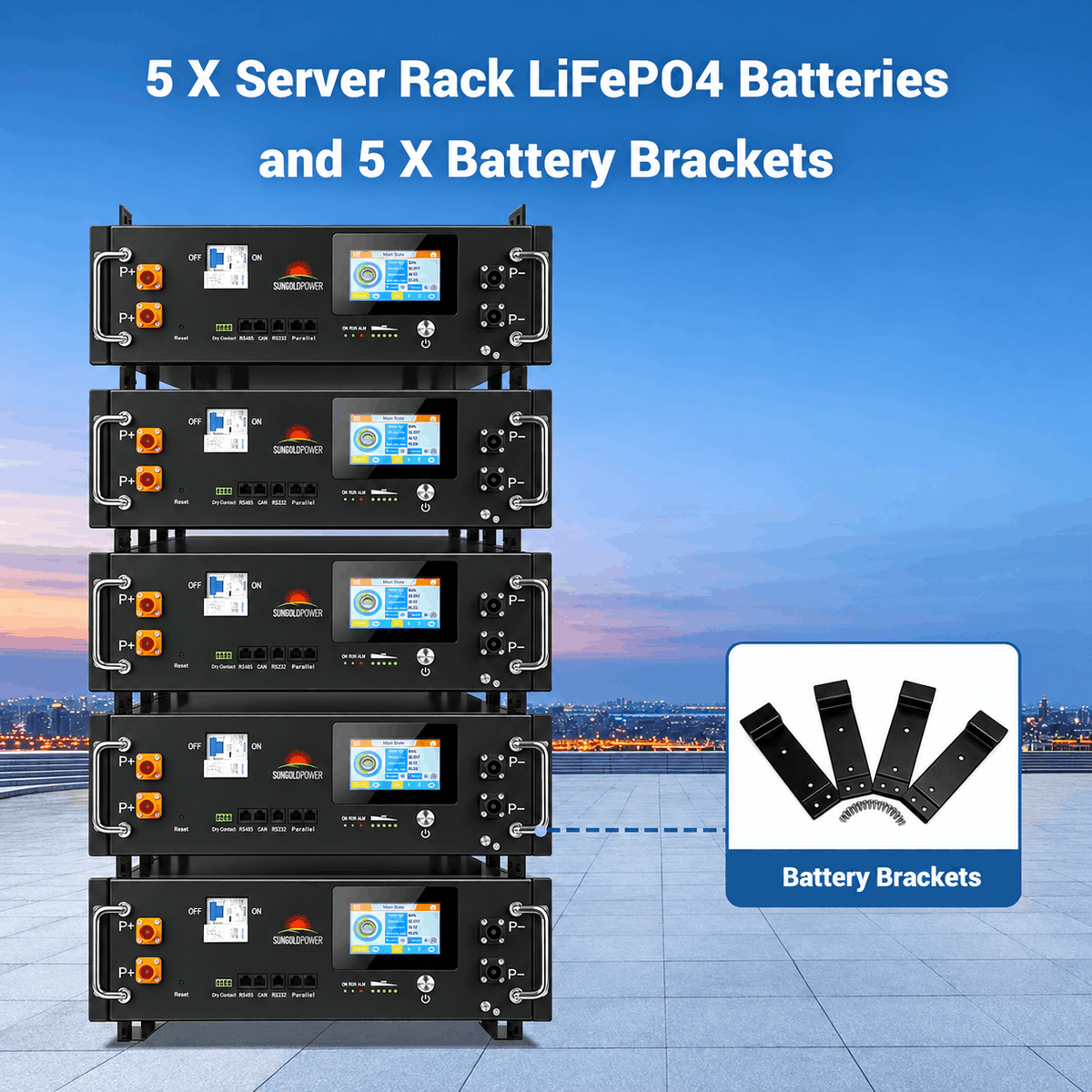

The system side, yes: the inverter, all five batteries with brackets, both charge controllers, all twelve panels, the 400A DC breaker, both PV breakers, two sets of solar extension cable, the battery-to-controller cabling, the 4/0 AWG battery cable and the Z-brackets. Two things to add. First, a properly rated DC busbar for the battery bank, described above, which we will spec with your order. Second, the building side: rail racking, conduit, junction boxes, building wire, a critical loads panel or transfer switch, generator input wiring and labor. Those depend on your structure and your local code, which is why we spec them per site.

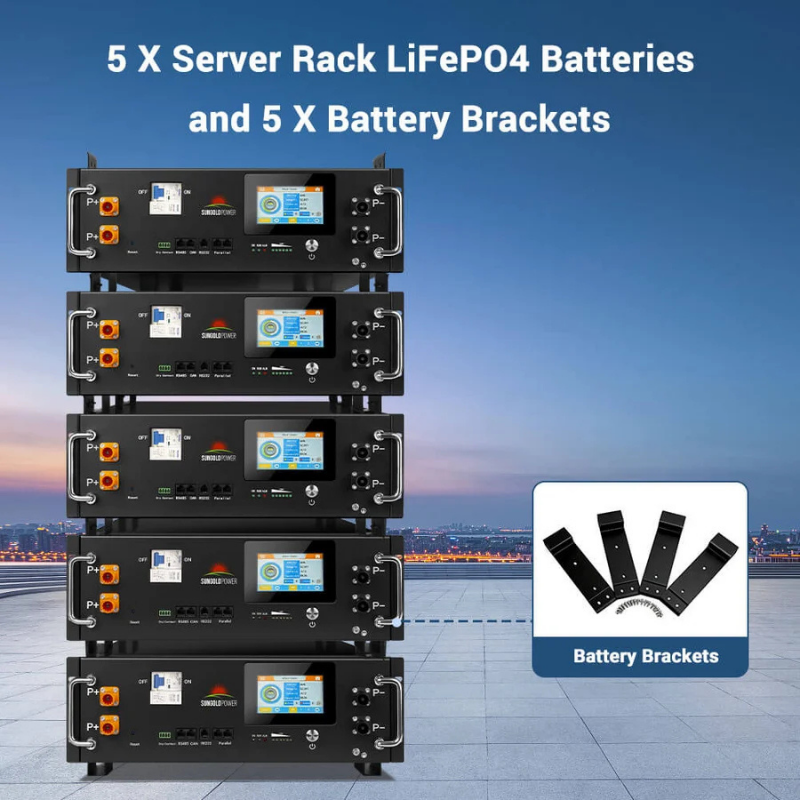

Why does the battery bank need a busbar?
Because a 12,000W inverter draws about 265A from a 48V bank, and the CoreX manual limits a standard parallel battery connection to 100A total. Without a busbar the current has nowhere sensible to go and the first battery in the chain carries far more than its share. With one, all five batteries share the load evenly and each stays well inside its 100A rating. This is normal practice at this system size and it is a cheap part, but it has to be planned rather than discovered.

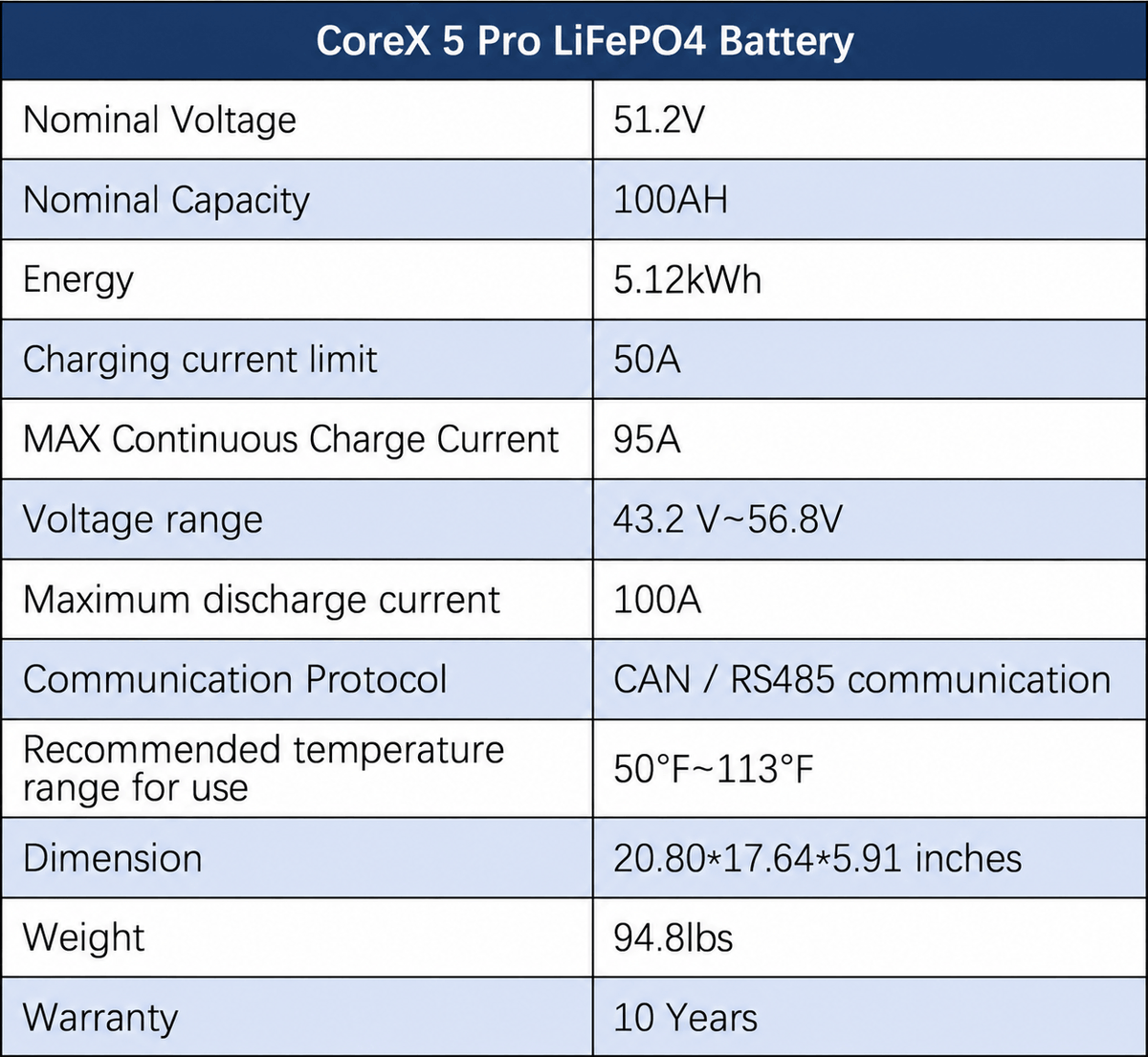

How cold can the batteries get?
They discharge down to -4°F, so a cold night never leaves you without power. Charging is the narrower window: 39.2°F to 131°F. That is slightly tighter than the standard lithium in our other kits, which cut off at freezing. In practice it means an unheated battery room in a real winter will discharge normally but refuse to take a charge until it warms. If that describes your install, call us before ordering.

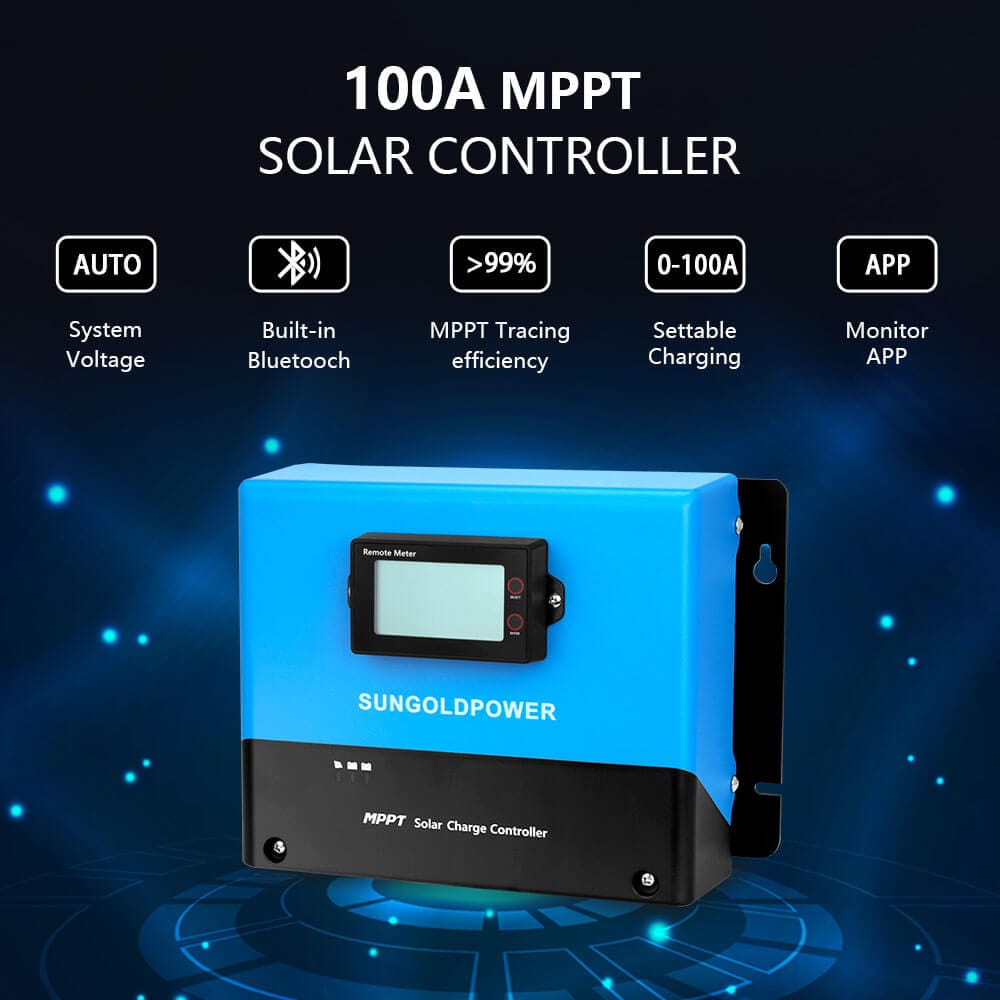

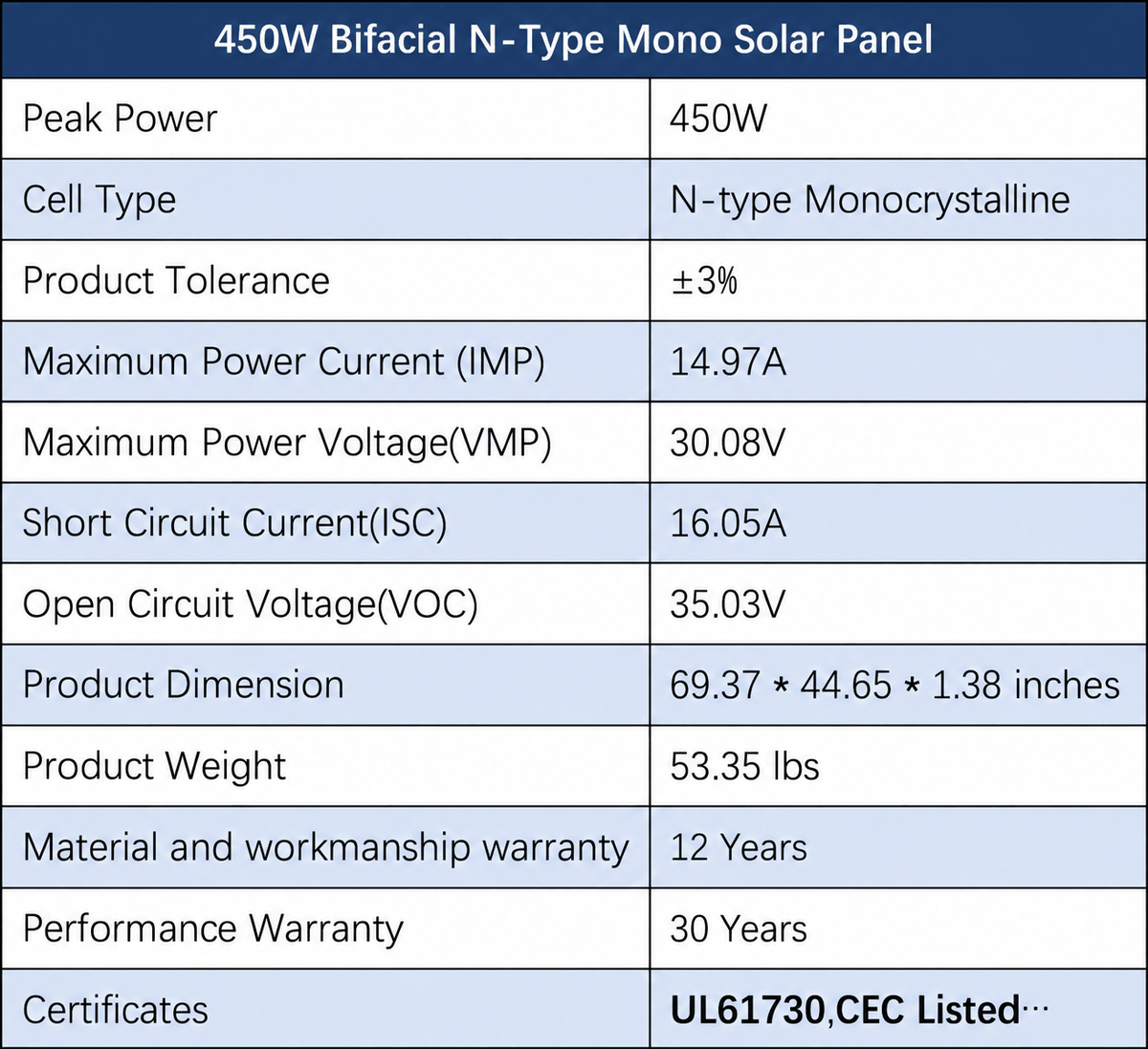

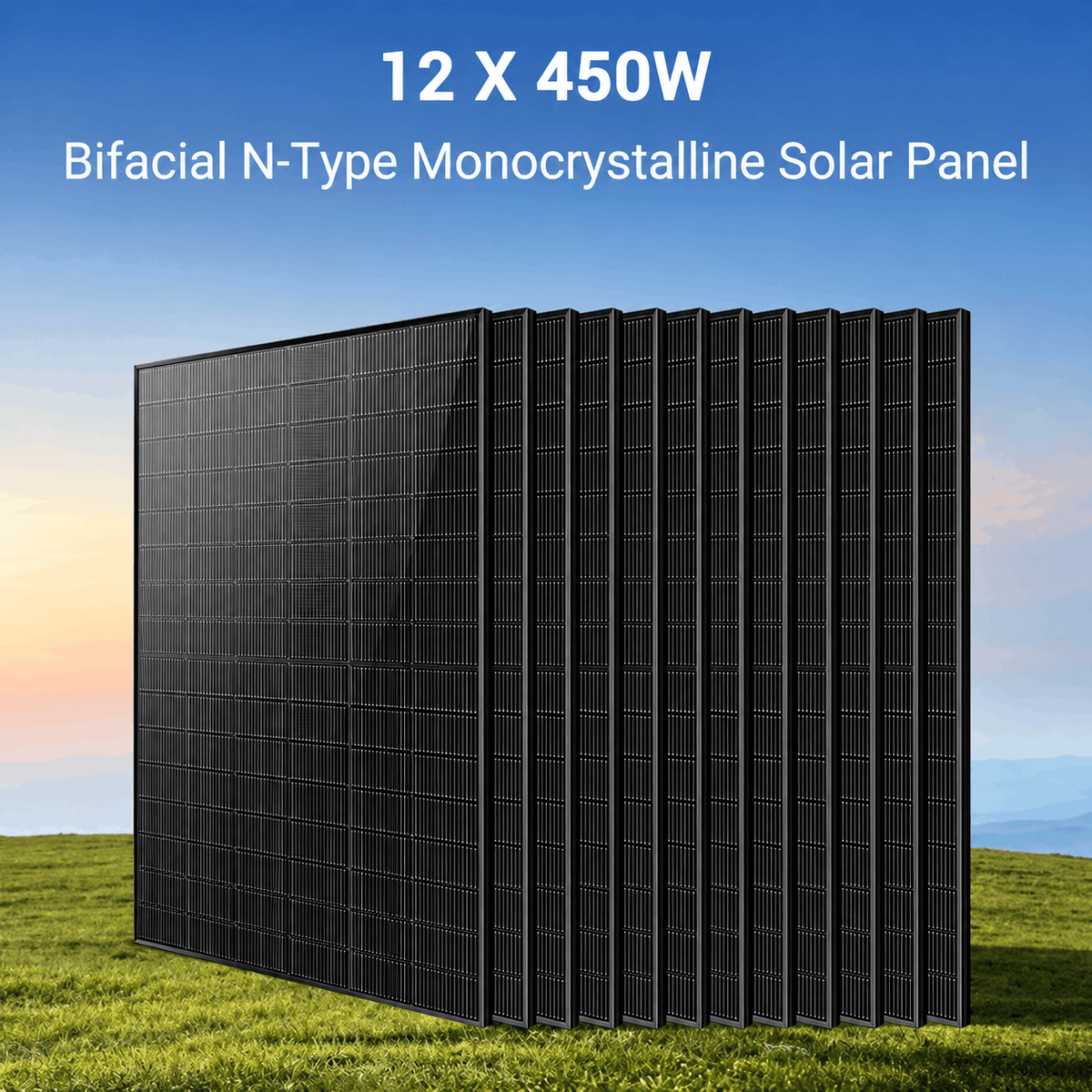

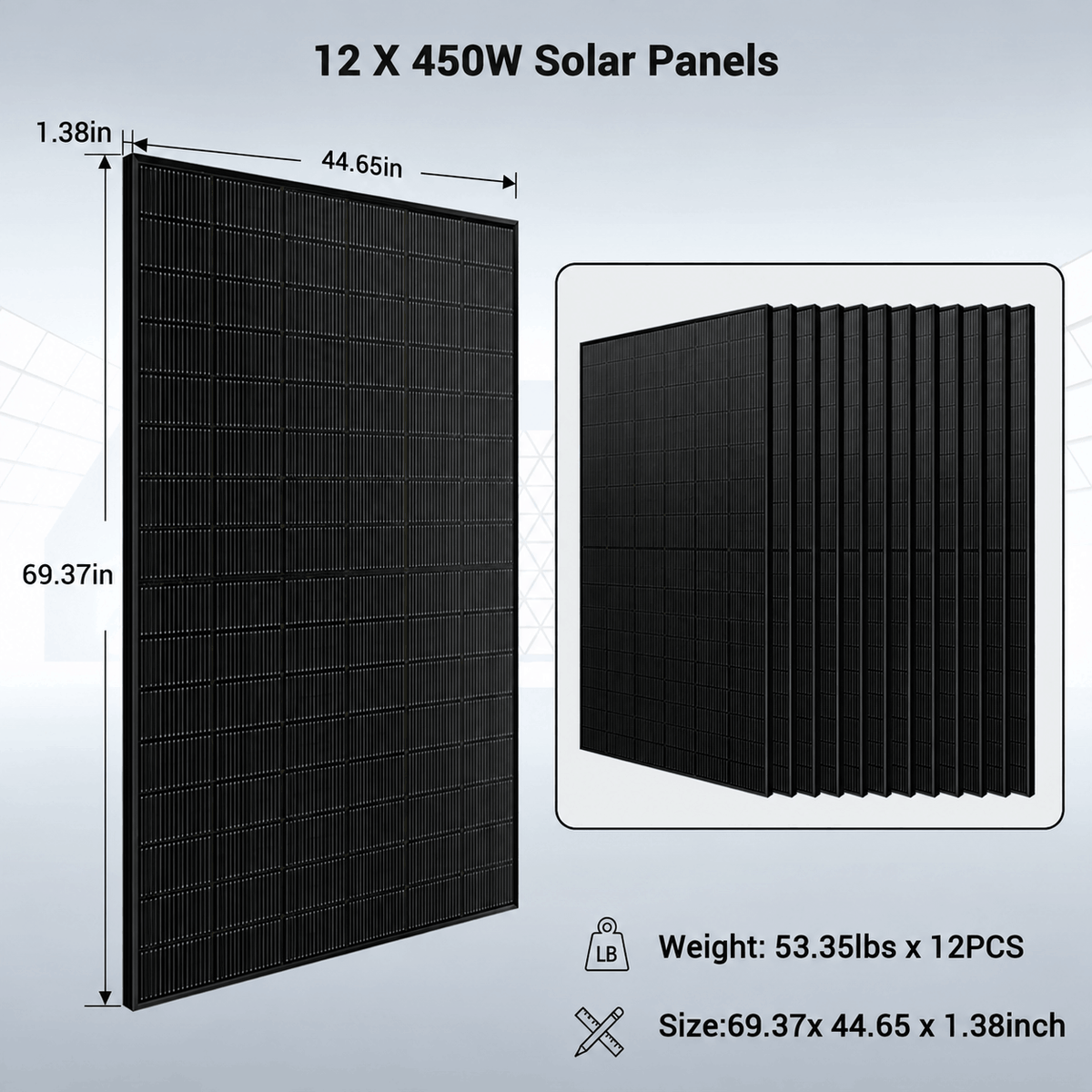

How should the panels be wired?

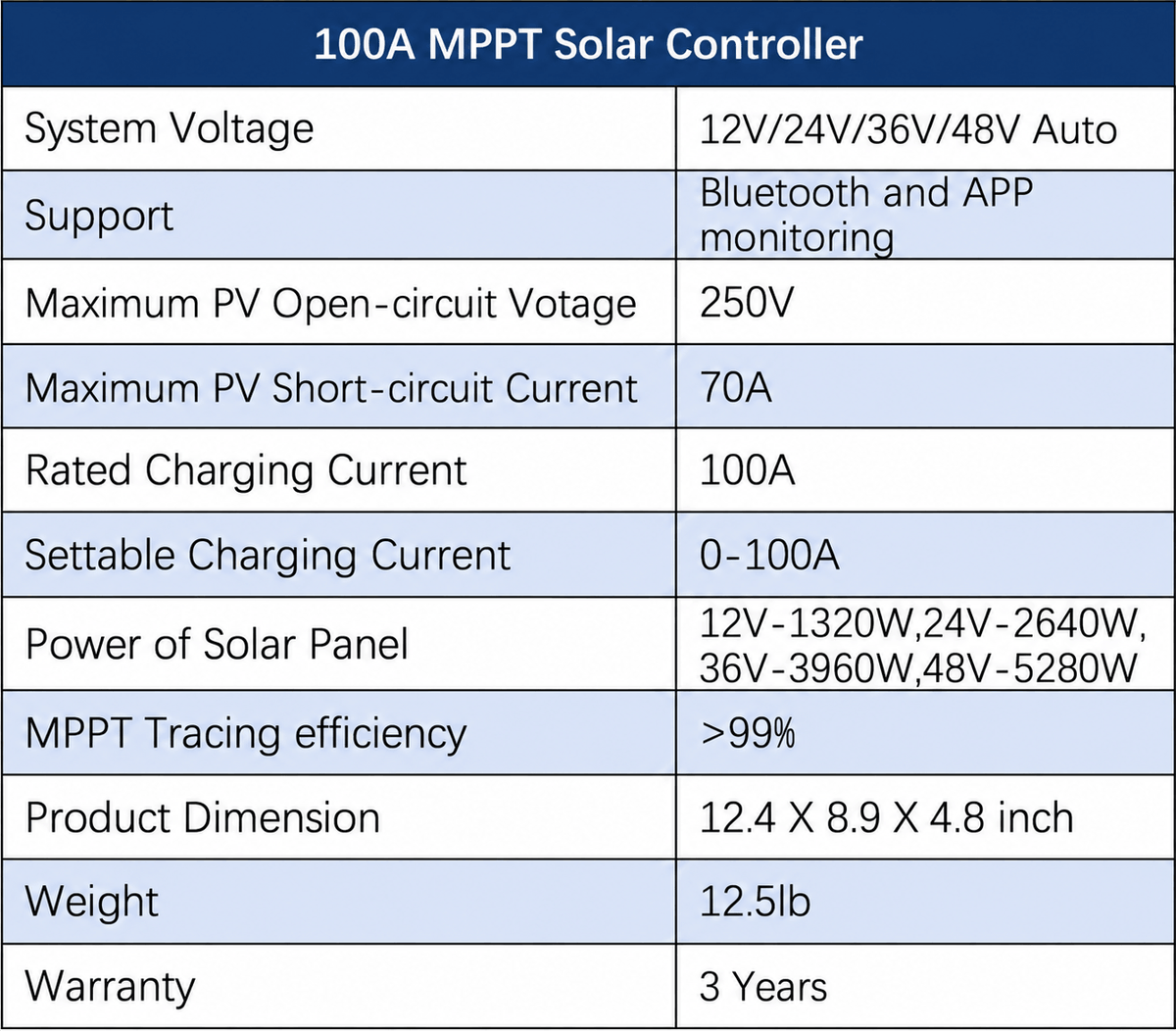

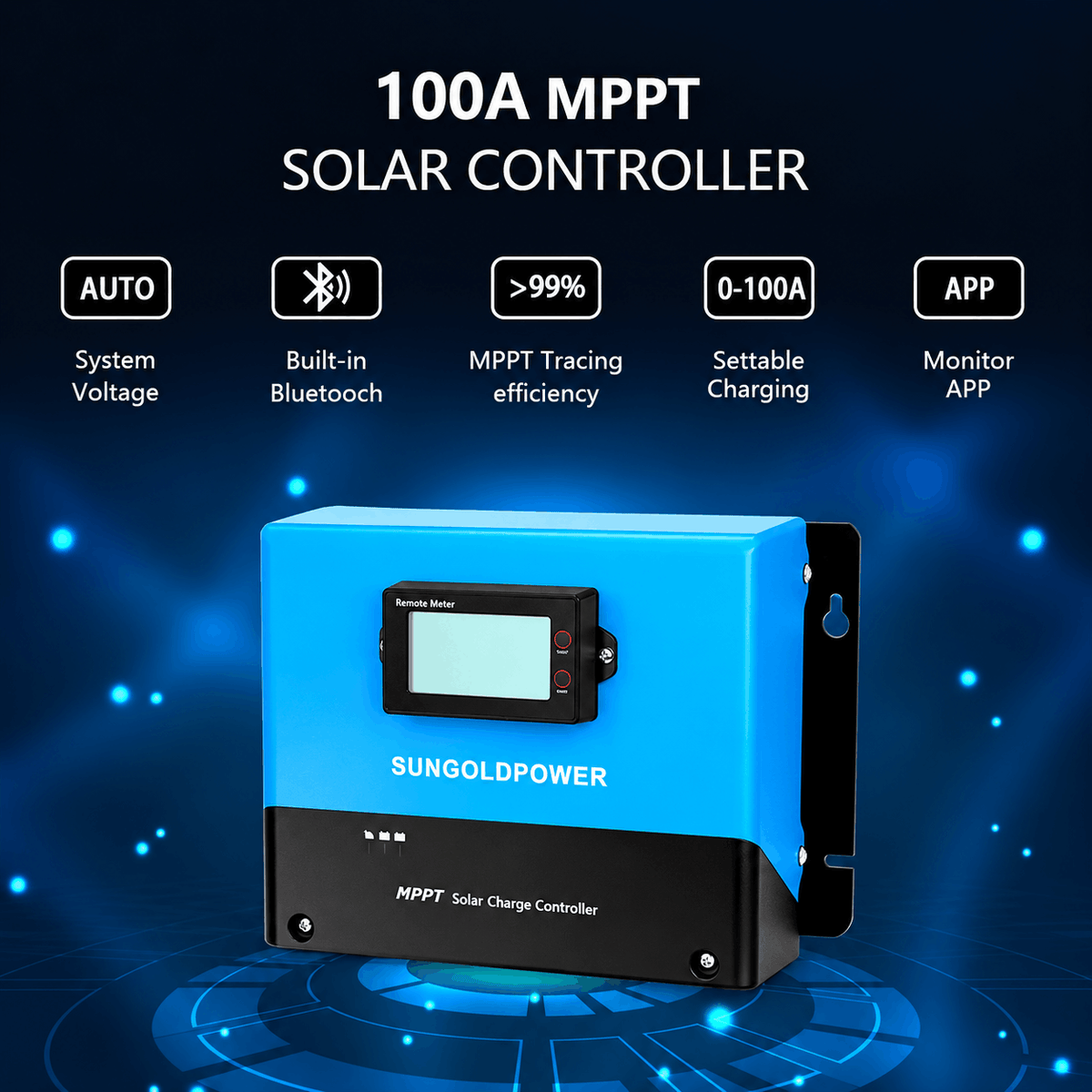

Two strings of six, one to each charge controller. Six of these panels in series operate near 180V and reach 210V open circuit, which stays under the controller's 250V ceiling even on a cold morning when panel voltage rises, and each string draws 16A against a 70A limit. Each controller then handles 2,700W of the 5,400W array, well inside its 5,280W capacity at 48V.
How much energy will this generate daily?

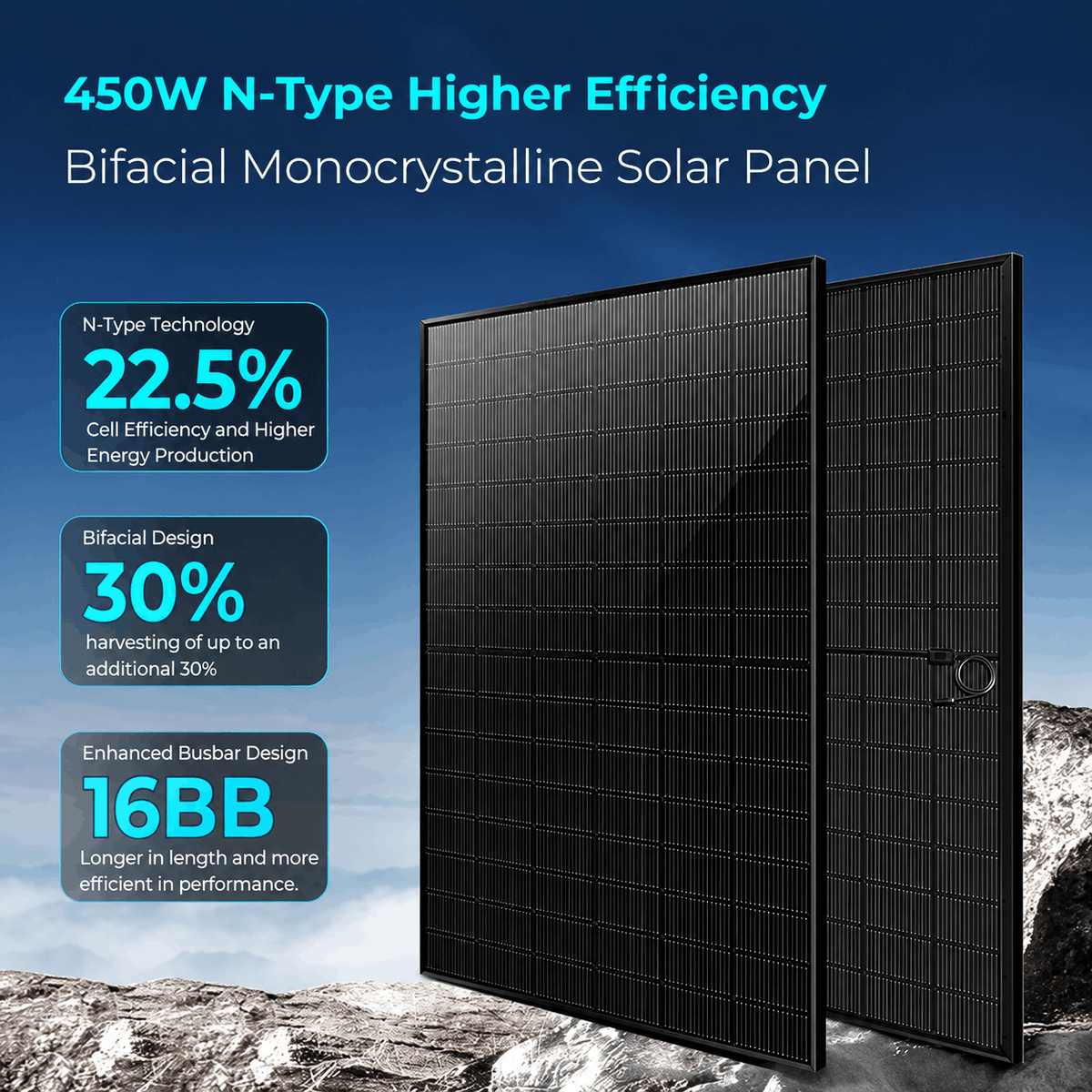

The 5.4kW array produces roughly 22 to 27kWh per day at 4 to 5 peak sun hours, plus whatever the rear faces of the panels add. Actual output depends on your location, season, panel angle and shading.
Can I add panels or batteries later?
Both. Each controller accepts 5,280W at 48V against the 2,700W it currently carries, so the array can nearly double on the existing hardware. The batteries parallel up to fifteen units. Batteries work best when they match the originals in age and state of health, so if you expect to grow the bank it is worth buying the capacity up front.
Can I run a generator with this?
Yes, and this kit is unusually good at it. The inverter accepts generator input from 140V to 270V and charges at 115A, which is roughly 5.9kW into the battery. A bad weather week that would flatten a solar-only system is a few hours of generator run time here.
Can I install this myself?
Parts of it. Running PV, setting the controllers and wiring the DC side are within reach for someone with real electrical experience. Hanging a 159.5 lb inverter is a two-person job with proper fixings, tying into a house panel at 12,000W is work for a licensed electrician, and the battery busbar should be sized by someone who has done it before.

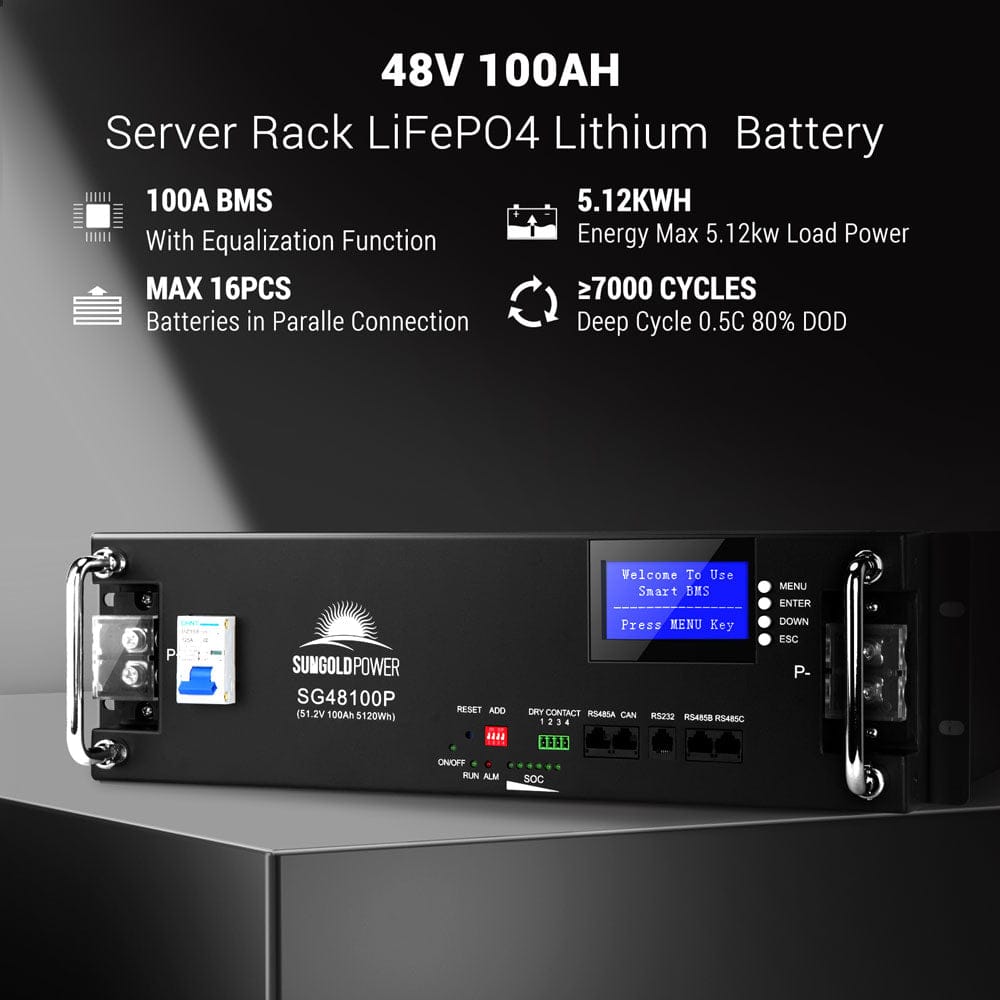

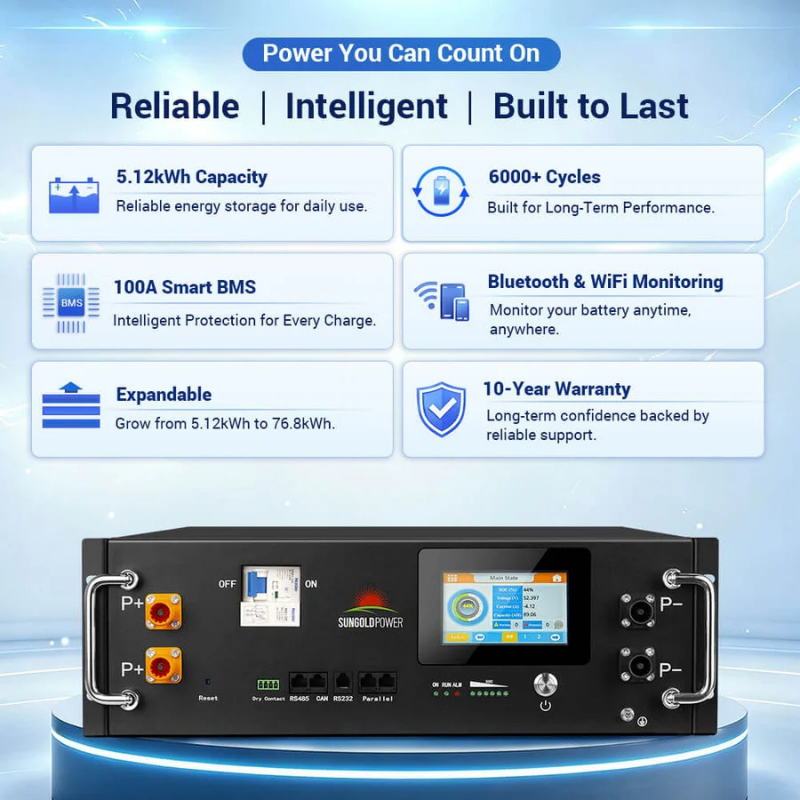

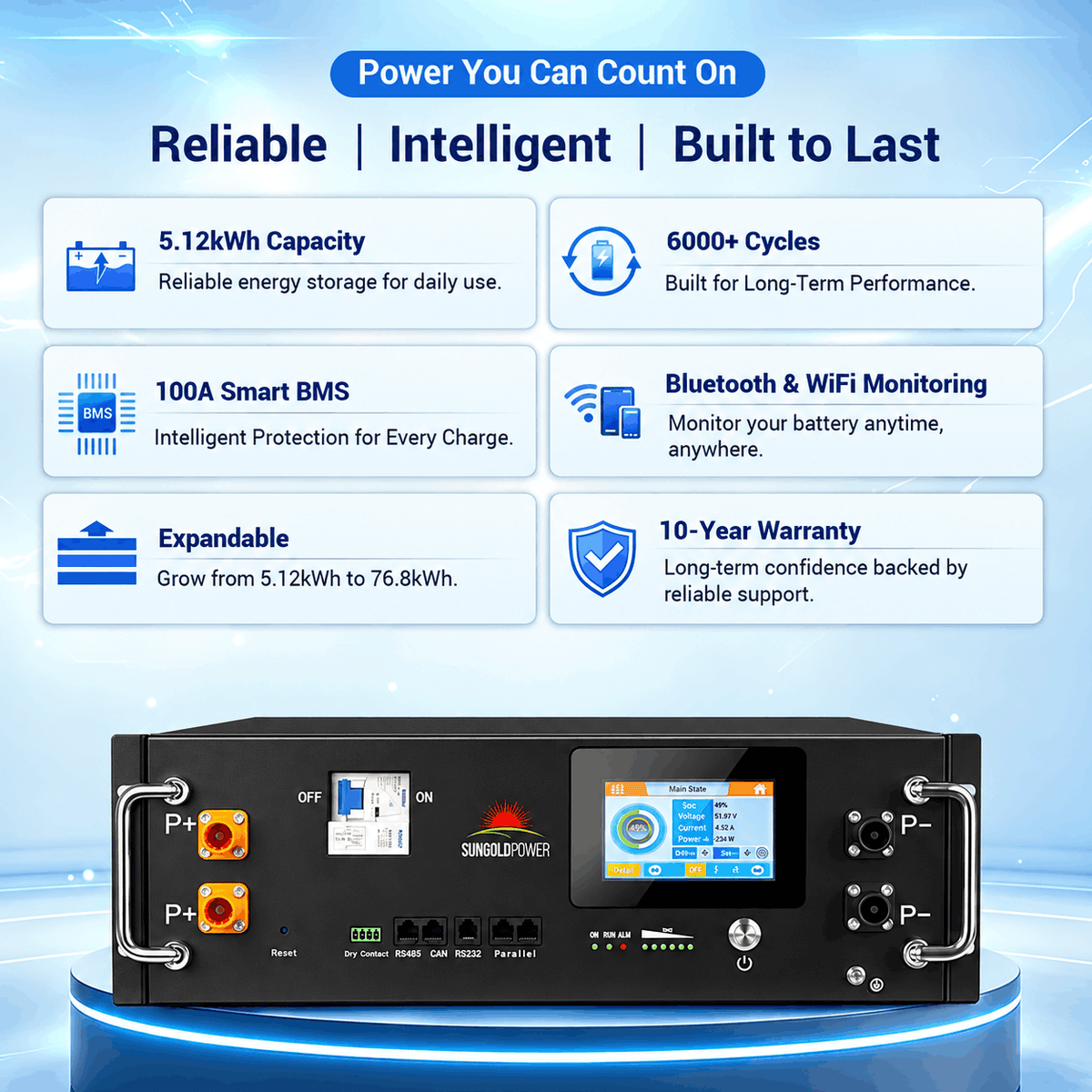

Is LiFePO4 safe?
It's the safest widely available lithium chemistry, with strong thermal stability, long service life and minimal maintenance. Every battery includes BMS protection against overcharge, deep discharge, overheating, overload and short circuit.
