Sungold Power Off-Grid Solar Kit 15000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery 18 X 415 Watts Solar Panels

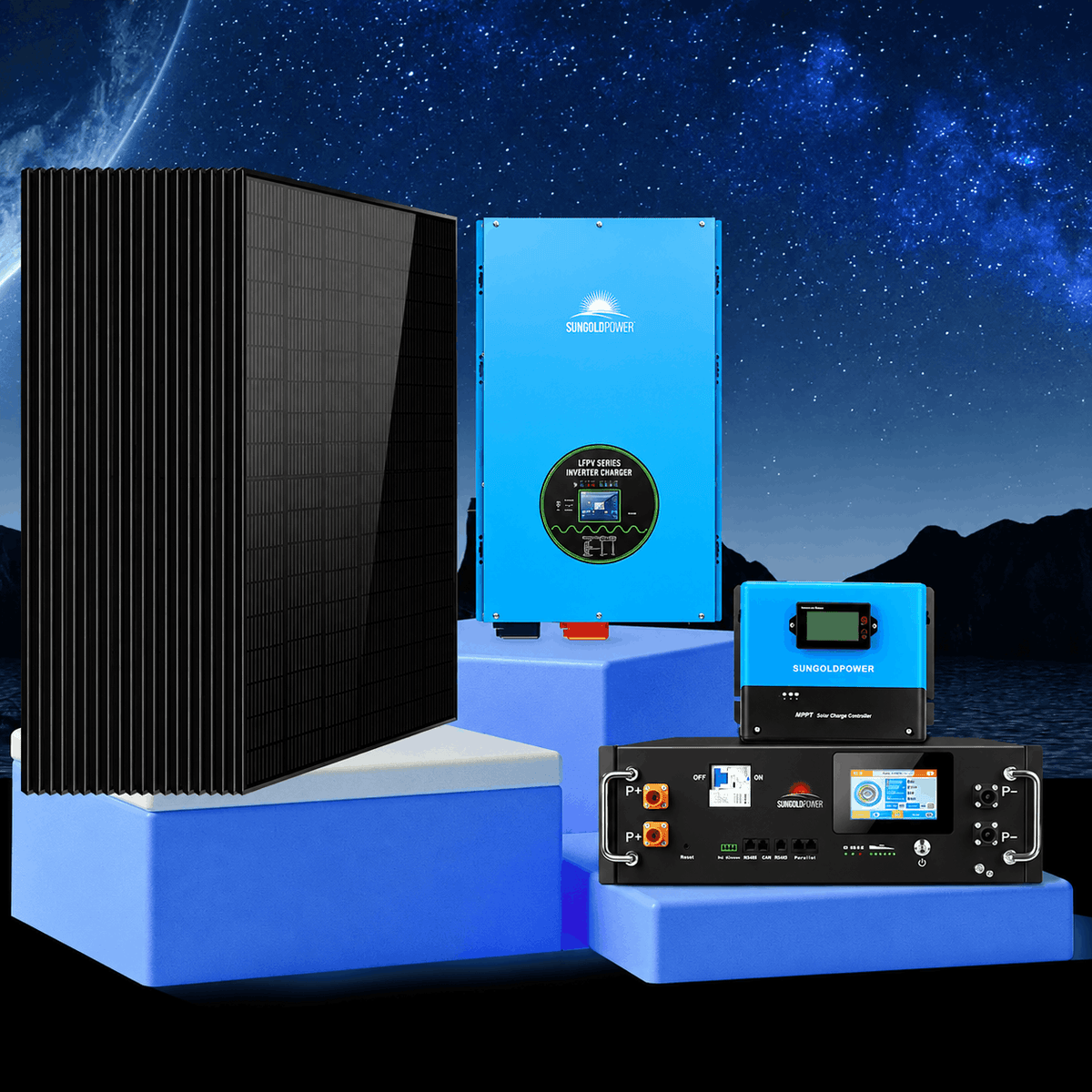

Sungold Power 15000W Off-Grid Solar Kit Overview

This Complete Off-Grid Solar Kit comes with what you need to run your home or cabin completely off-grid, or commercial solar system,it inlcudes the 18 X 415W solar panel, 20.48KWH battery, 15000W solar inverter and two set of solar cable and bracket. it will produce around 30KWH per day based on 4 hours sun. With 15KW split phase inverter (120/240V) output, it is more than powerful enough to run everything from air conditioners and well pumps to lights, fridge, tv, workshop, office and even light commercial and industrial applications. Easily expandable, you can always add more batteries and more solar panels in the future.

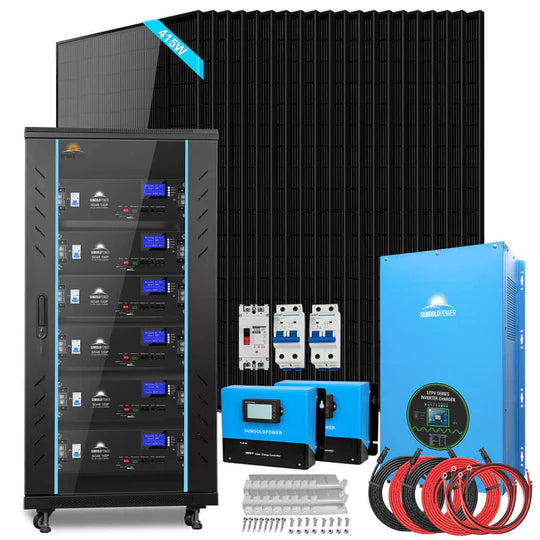

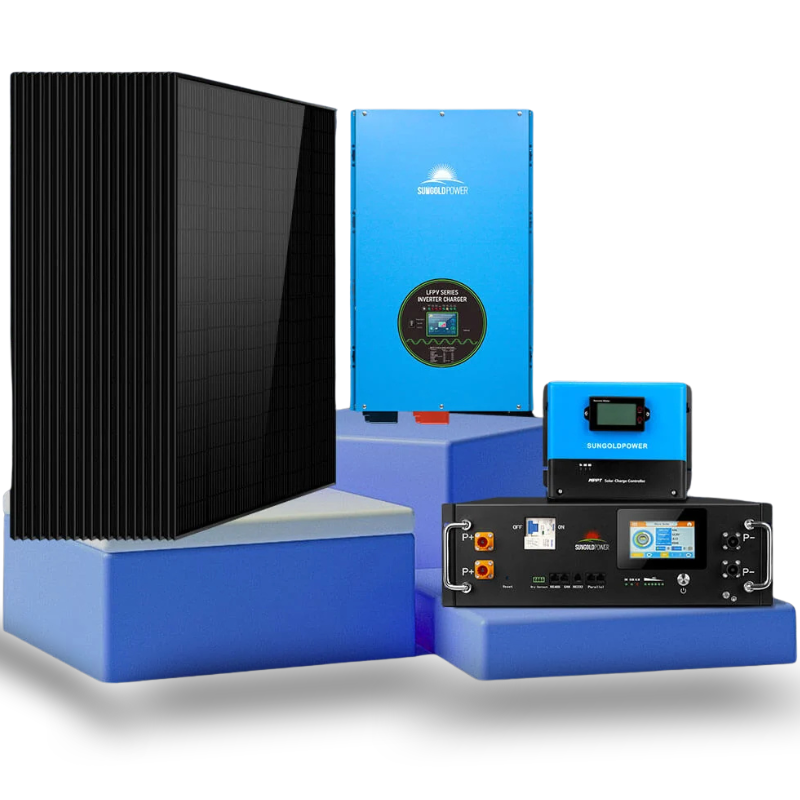

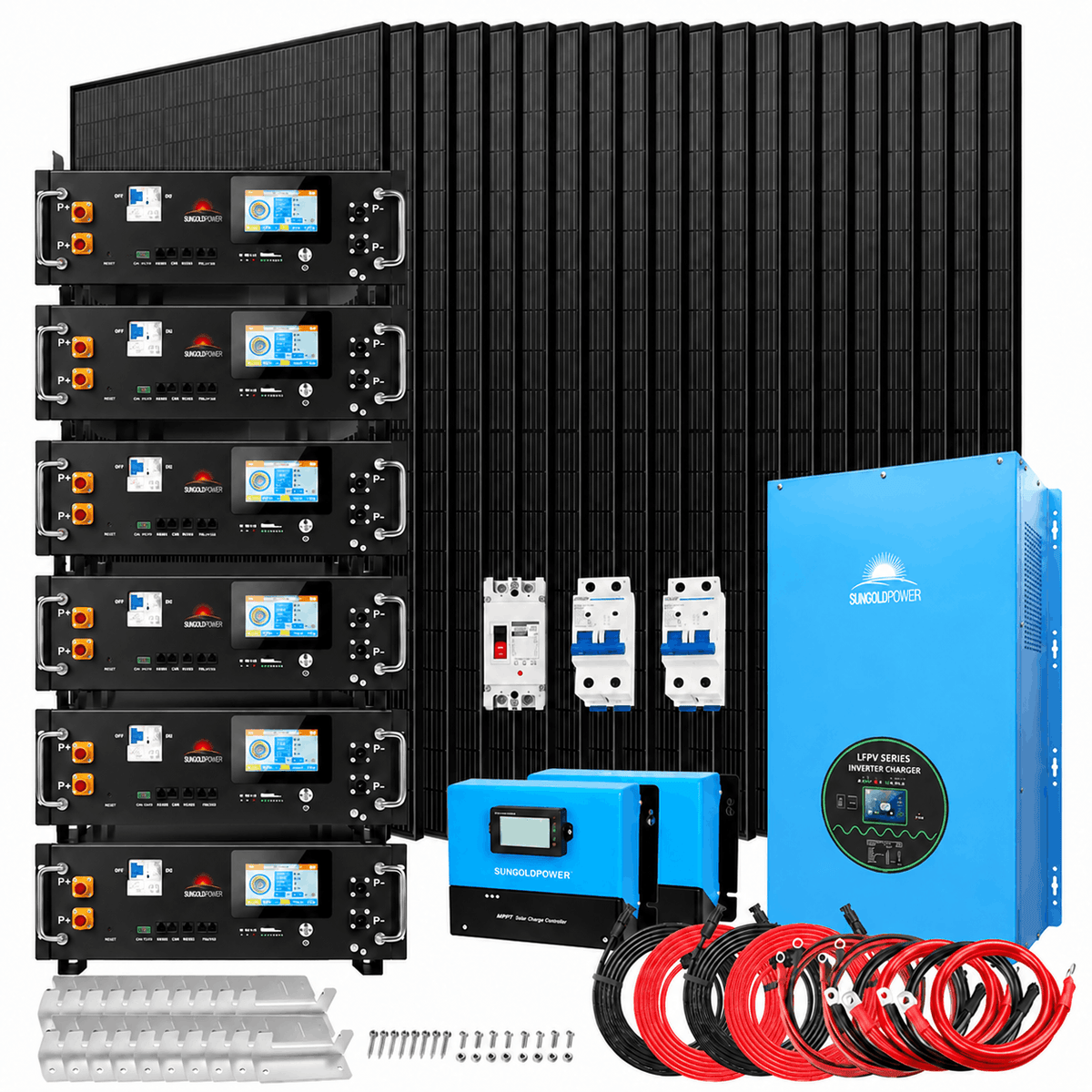

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 15000 Watt 48V DC 120V/240V Inverter
• 18 x 415 Watt Monocrystalline Solar Panels
• 4 X 100AH 51.2V Lifepo4 Battery
• 2 X 100A MPPT Solar Charge Controller
• 2 x 50 Feet, Solar Extension Cables-Inverter PV input
• 2 x Solar Cables Between Solar Panel and MPPT Controller
• 18 x Sets of Mounting Z-Brackets

Sungold Power Complete 15000W Off-Grid Solar Kit Specification

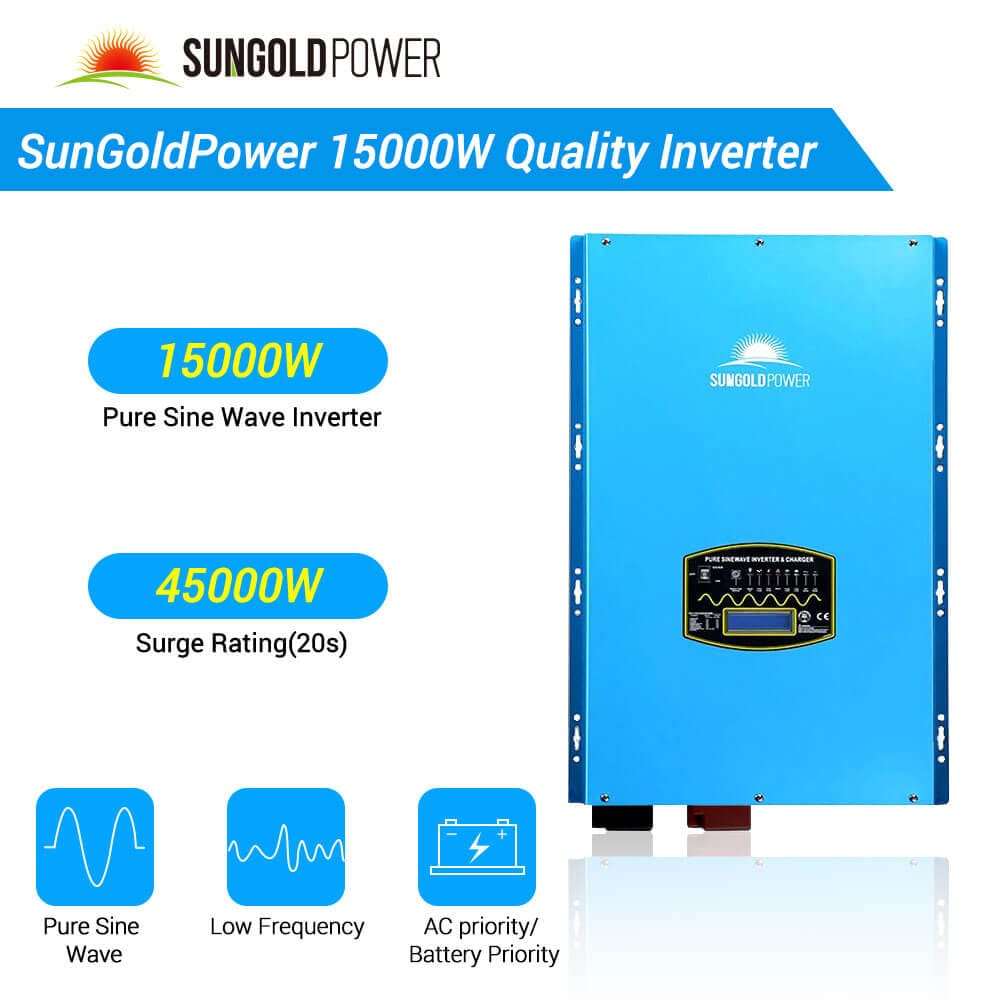

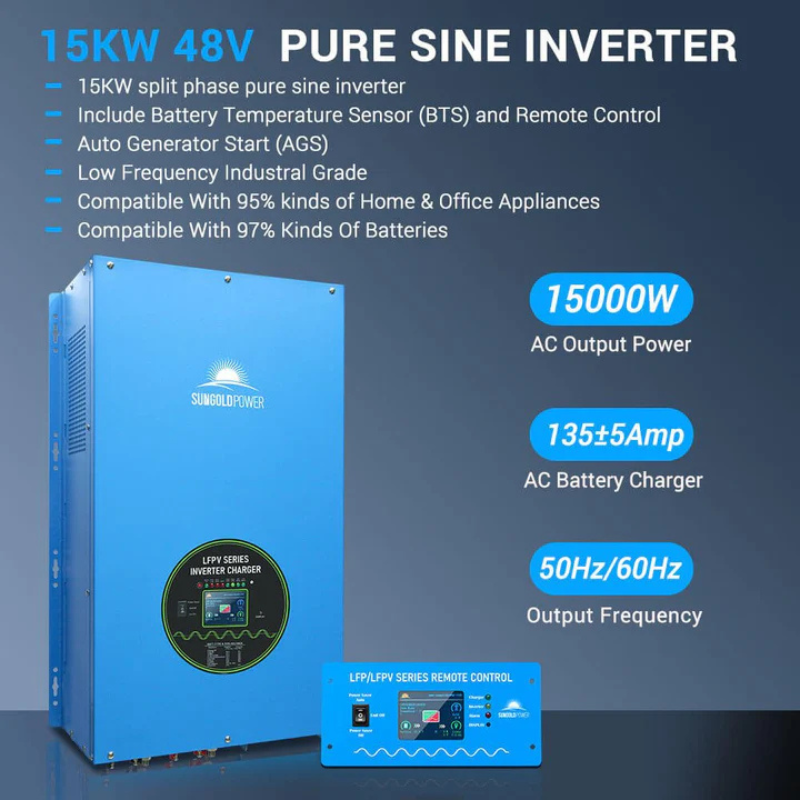

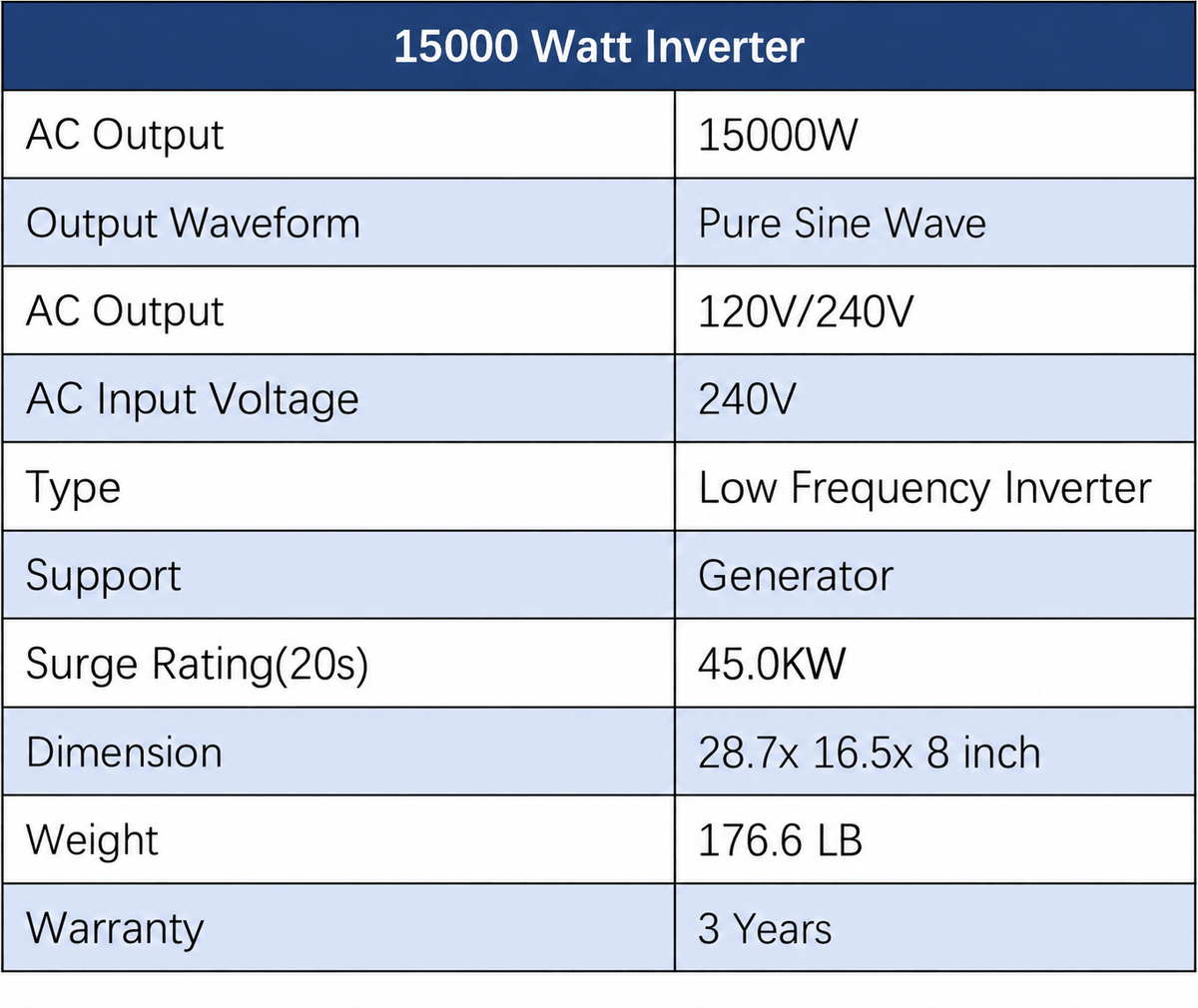

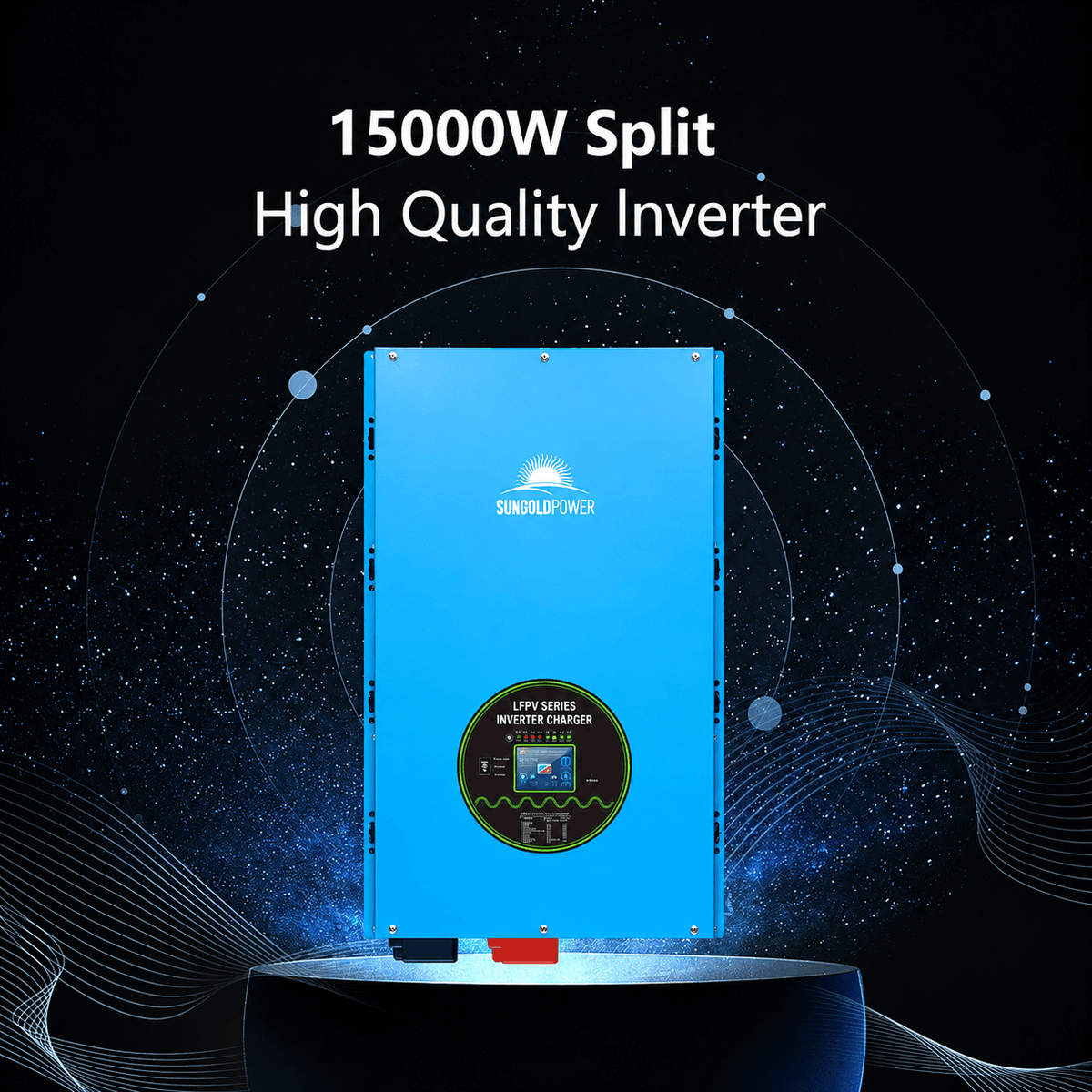

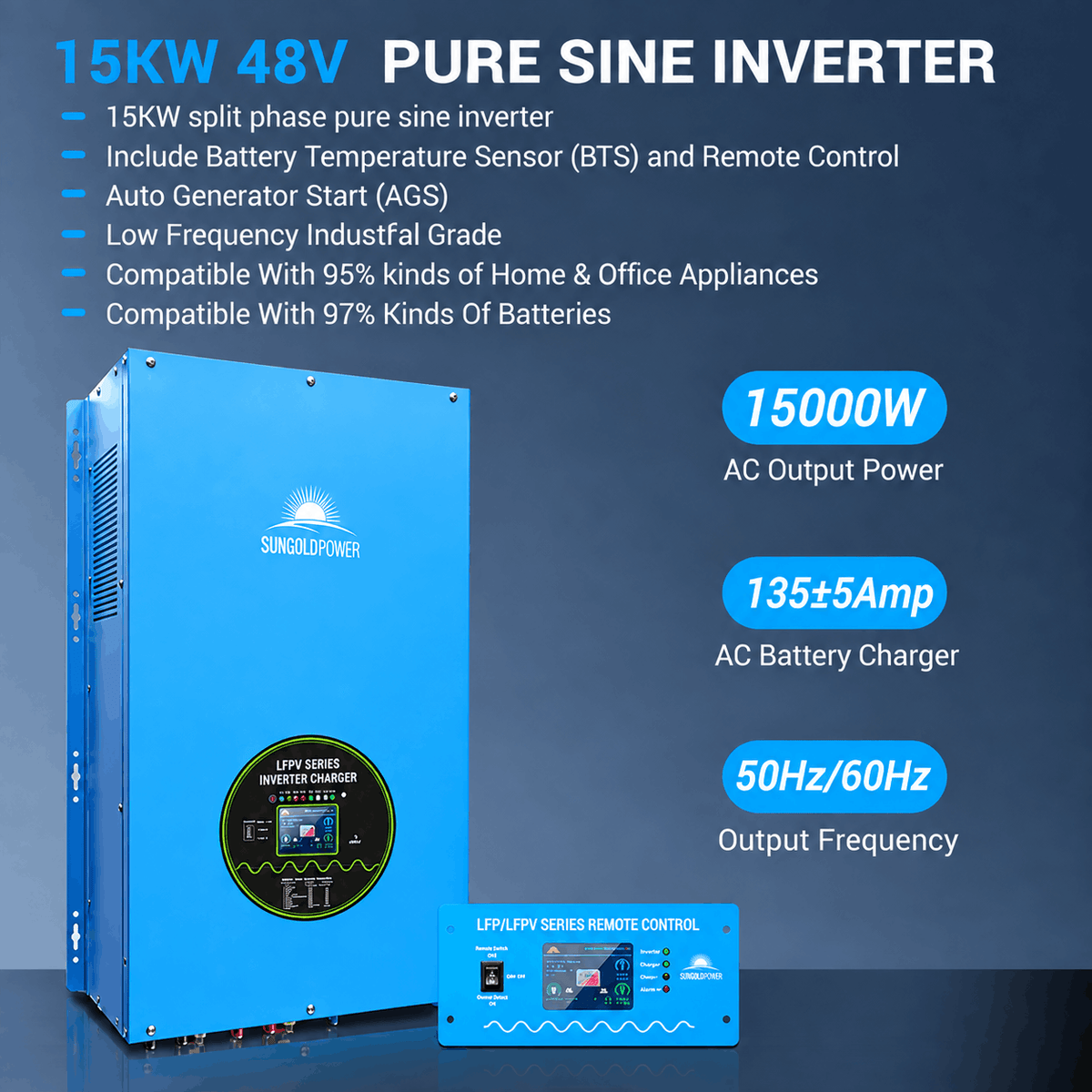

15000 Watt Inverter

• AC Output: 15000W
• Output Waveform: Pure Sine Wave
• AC Output: 120V/240V
• AC Input Voltage: 240V
• Type: Low Frequency Inverter
• Support: Generator
• Surge Rating (20s): 45.0KW
• Dimension: 28.7 x 16.5 x 8 inch
• Weight: 176.5 LB
• Warranty: 3 Years

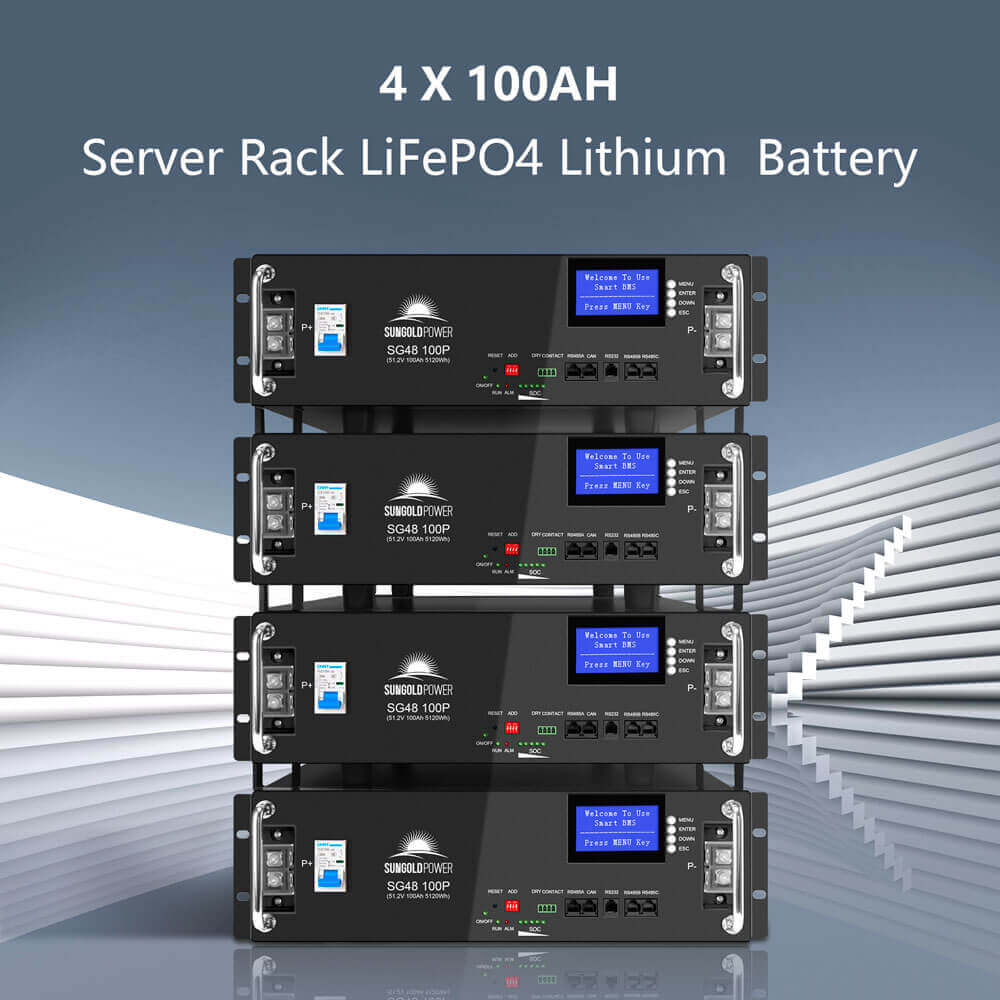

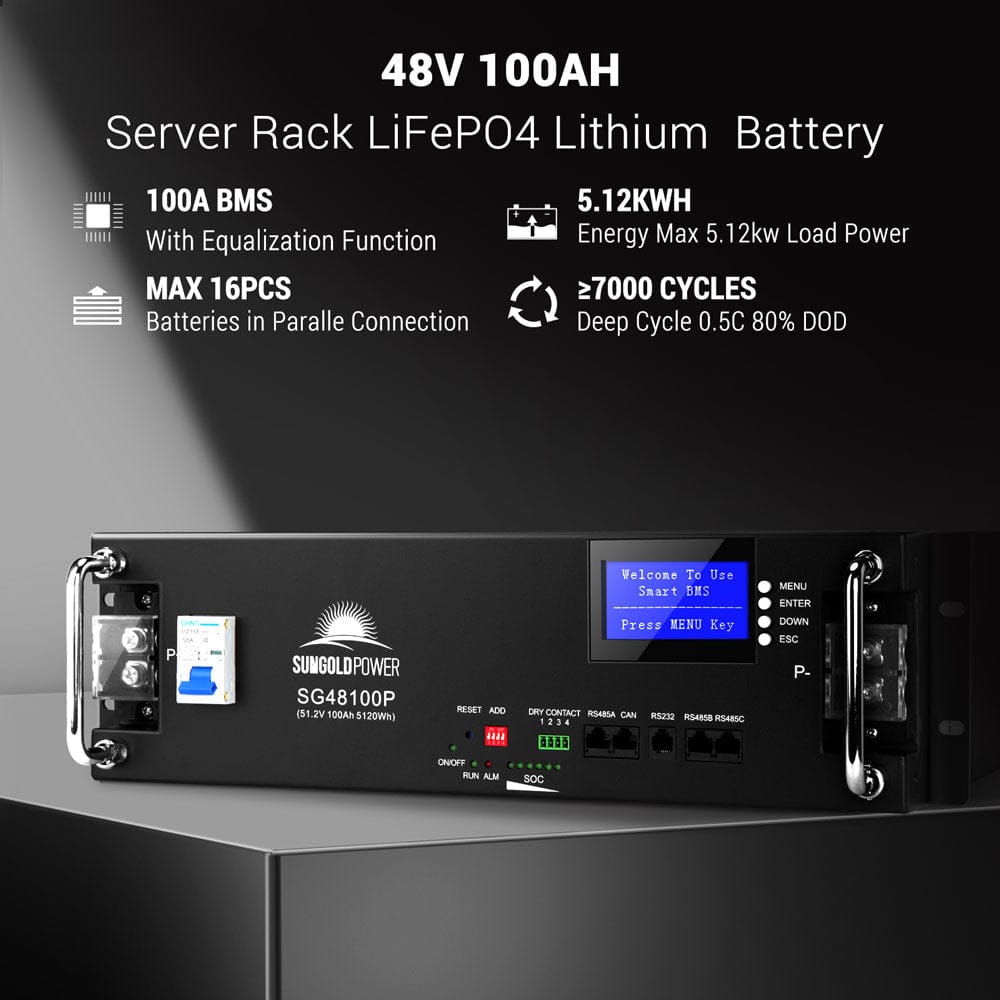

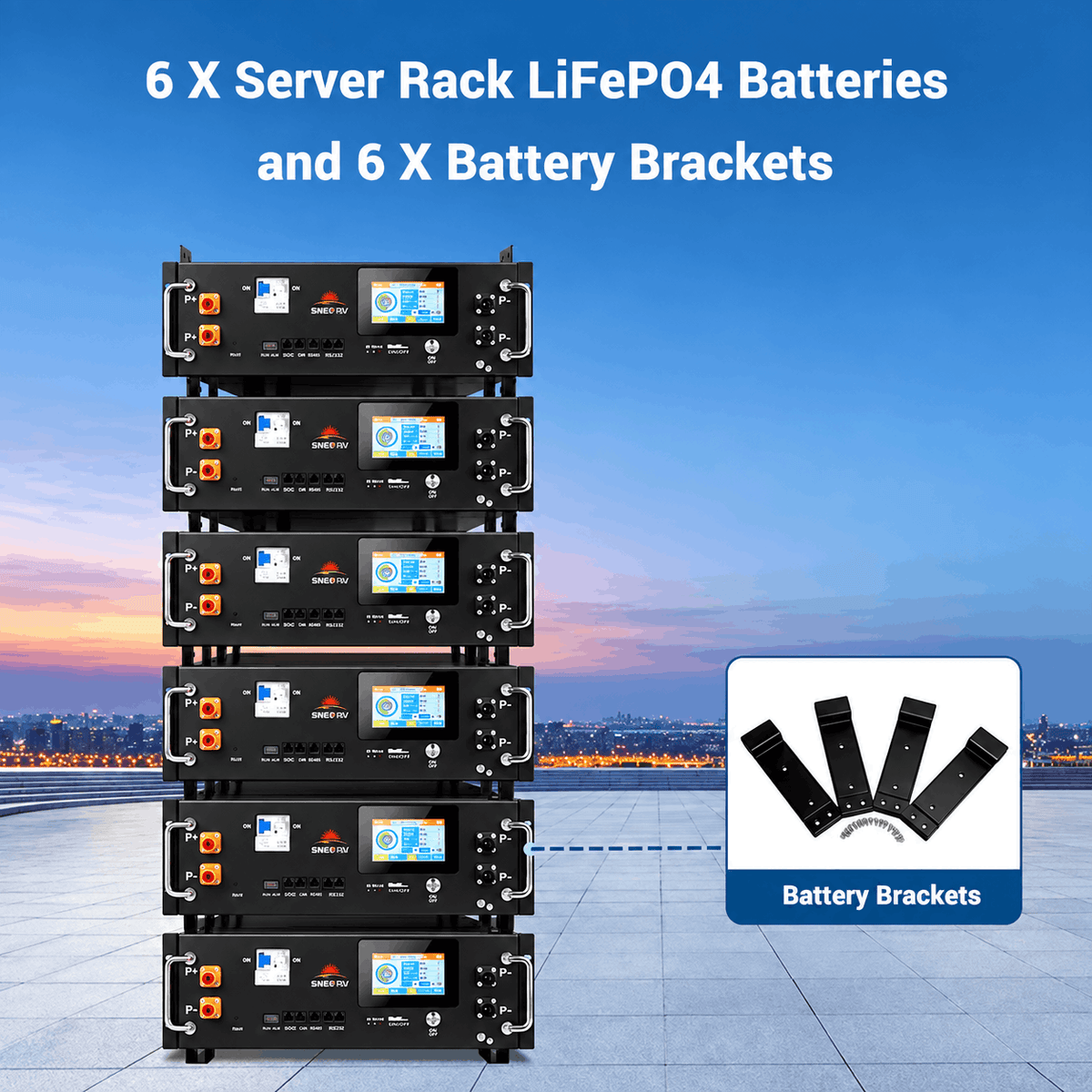

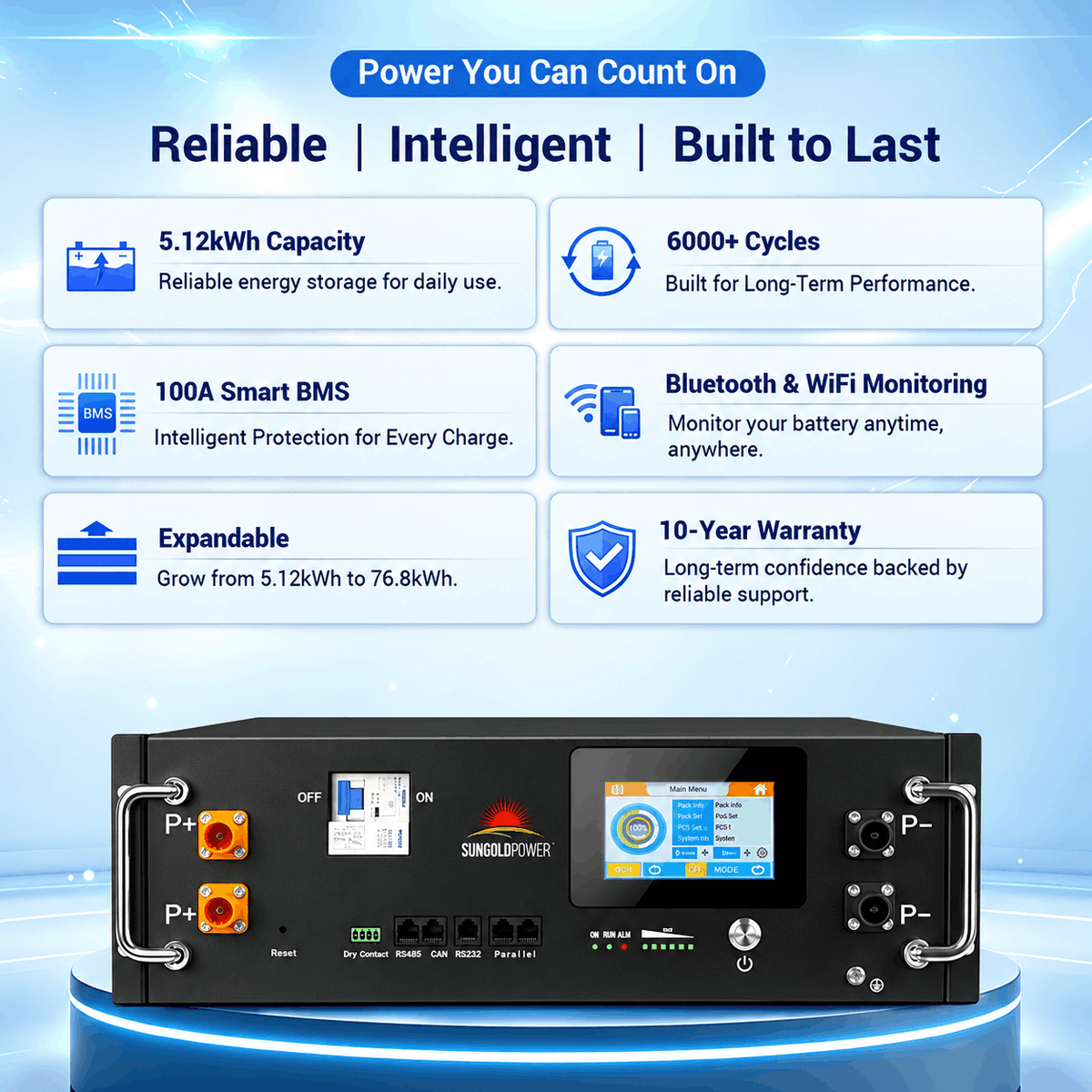

LifePo4 Battery

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Energy: 5.12KWH
• Charge cut-off current: 5A
• MAX Continuous Charge Current: 100A
• Discharge cut-off voltage: 43.2V
• Cycle Life: >7000
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Storage Temperature: -10~+45°C
• Dimension: 19.3*18.9 5.5inch
• Weight: 93lbs
• Warranty: 10 Years

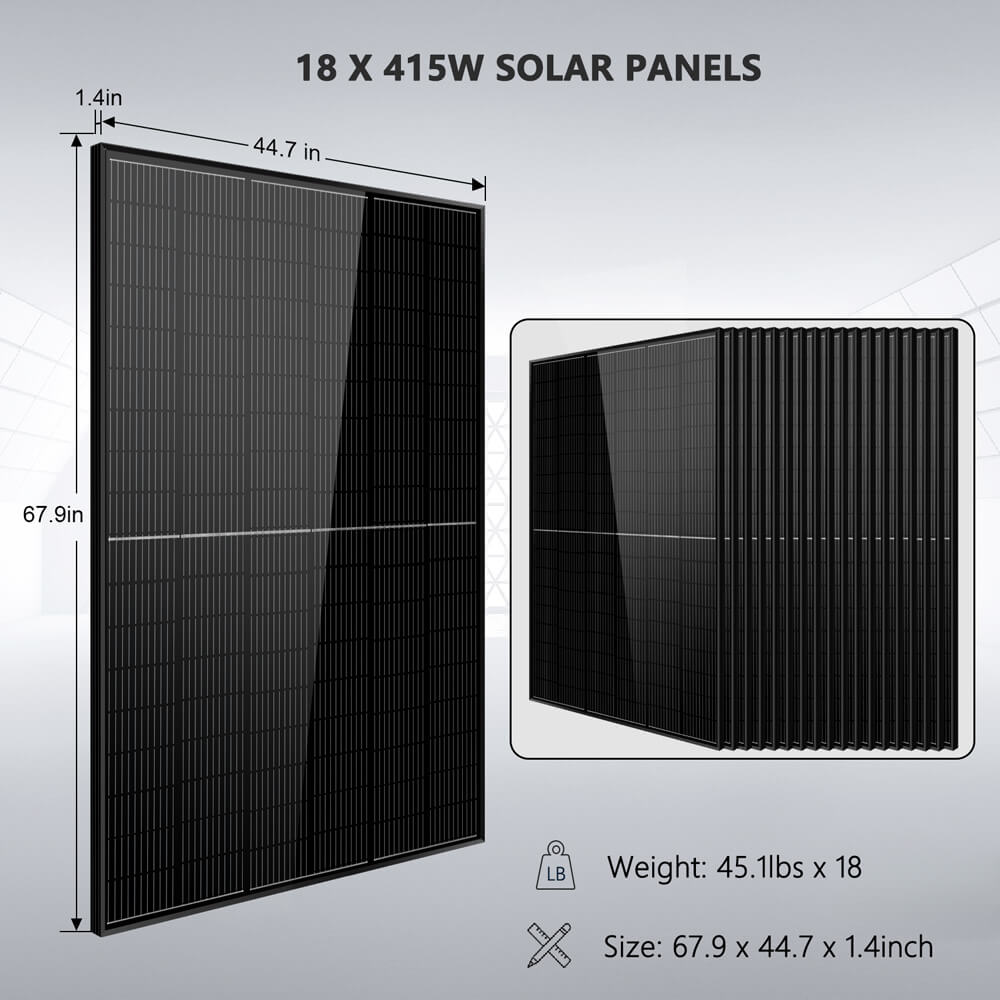

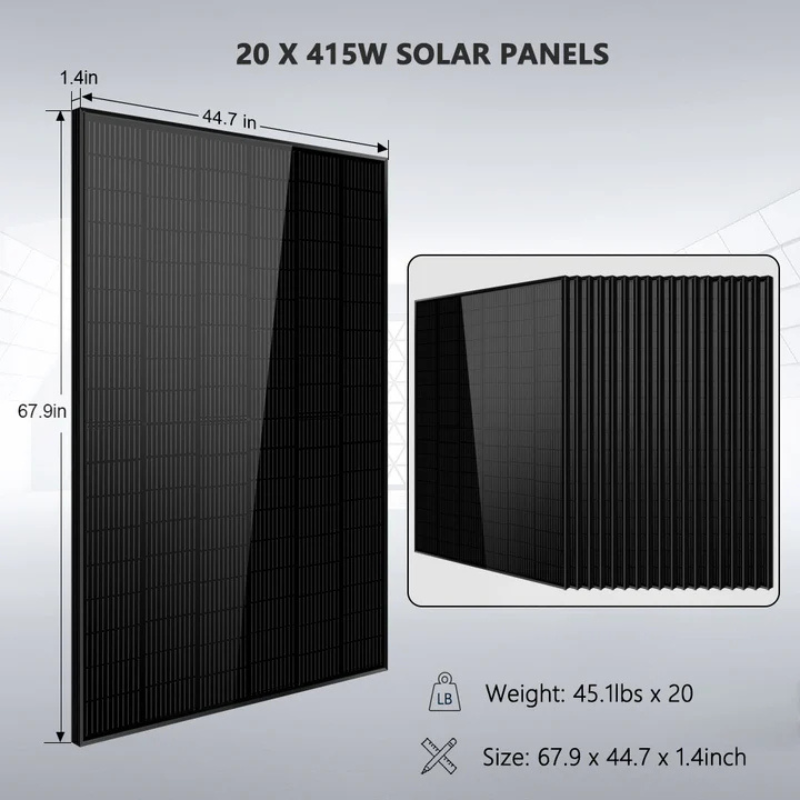

415 Watt Mono Solar Panel

• Peak Power: 415W
• Solar Cell: Monocrystalline
• Product Tolerance: ±3%
• Maximum Power Current (IMP): 13.13A
• Maximum Power Voltage (VMP): 31.61V
• Short Circuit Current(ISC): 13.79A
• Open Circuit Voltage(VOC): 38.82V
• Product Dimension: 67.9 X 44.7 X 1.4 inch
• Product Weight: 45.1LB
• Warranty: 25 Years

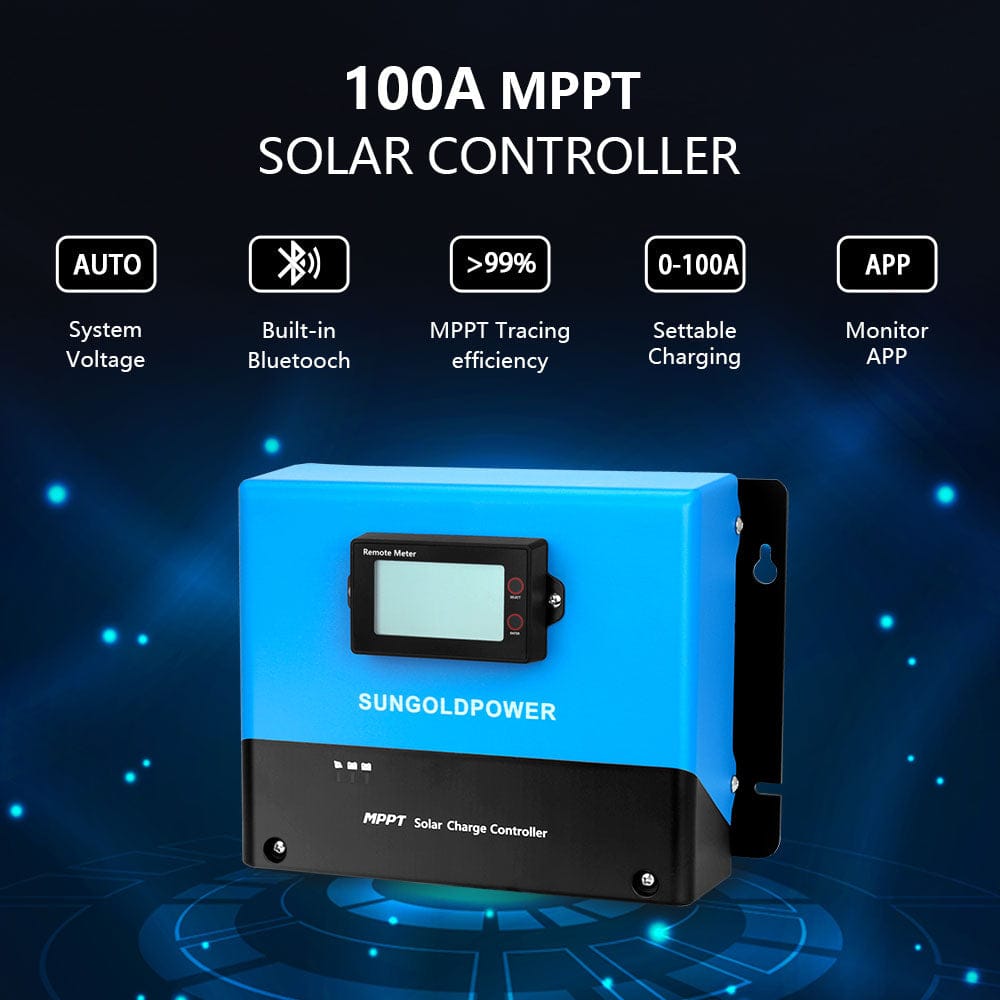

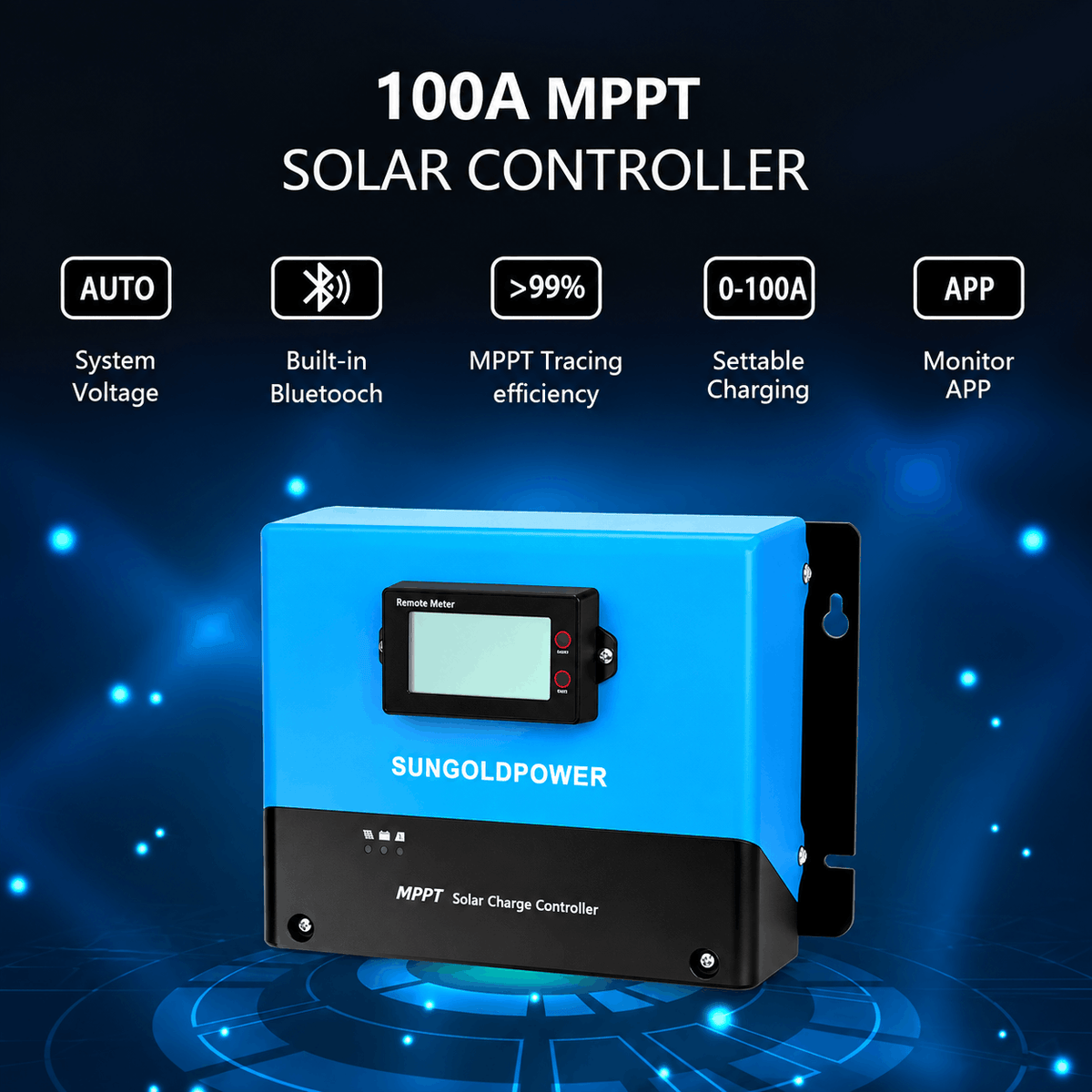

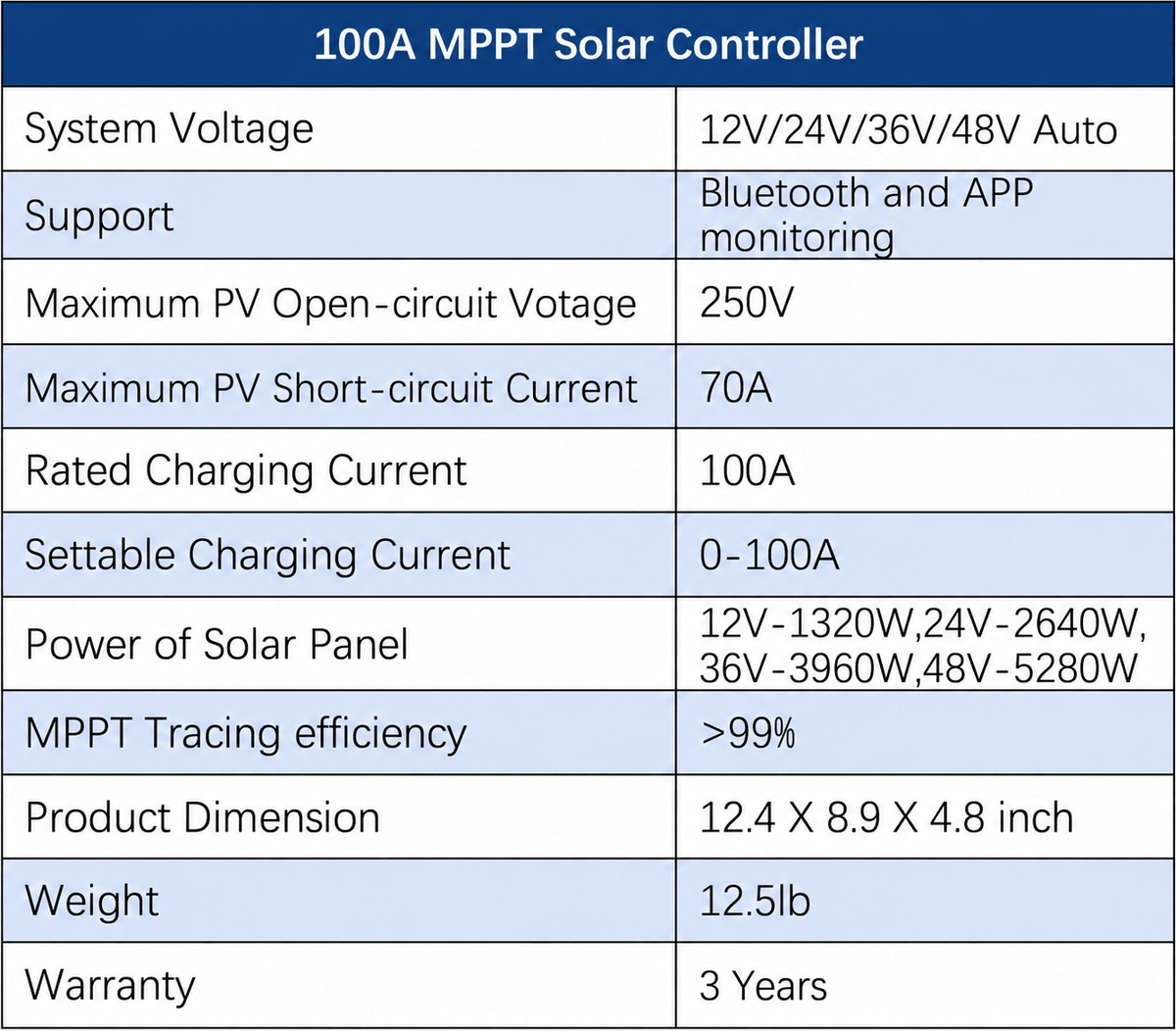

100A MPPT Solar Controller

• System Voltage: 12V/24V/36V/48V Auto
• Support: Bluetooth and APP monitoring
• Maximum PV Open-circuit Voltage: 250V
• Maximum PV Short-circuit Current: 70A
• Rated Charging Current: 100A
• Settable Charging Current: 0-100A
• Power of Solar Panel: 12V-1320W, 24V-2640W, 36V-3960W, 48V-5280W
• MPPT Tracing efficiency: >99%
• Product Dimension: 12.4 X 8.9 X 4.8 inch
• Weight: 12.5lb
• Warranty: 3 Years

Solar Kit Specification

• Max Continuous Output: 15000W
• AC Output: 120V/240V
• DC Voltage: 48V
• Total Watt of Panels: 7470W
• Per Panel Watt: 415 Watt
• Panel NO.: 18 pcs
• Total KWH of Batteries: 20.48KWH
• Chemistry: Lithium
• Battery NO.: 4 pcs
• Battery Spec: 48V 100AH

User Manual

• Sungold Power 15000W Pure Sine Wave Inverter User Manual
• Sungold Power LifePo4 5.12KWH Lithium Battery User Manual
• Sungold Power 415 Watt Monocrystalline Solar Panels
• Sungold Power 100A MPPT Solar Charge Controller User Manual
