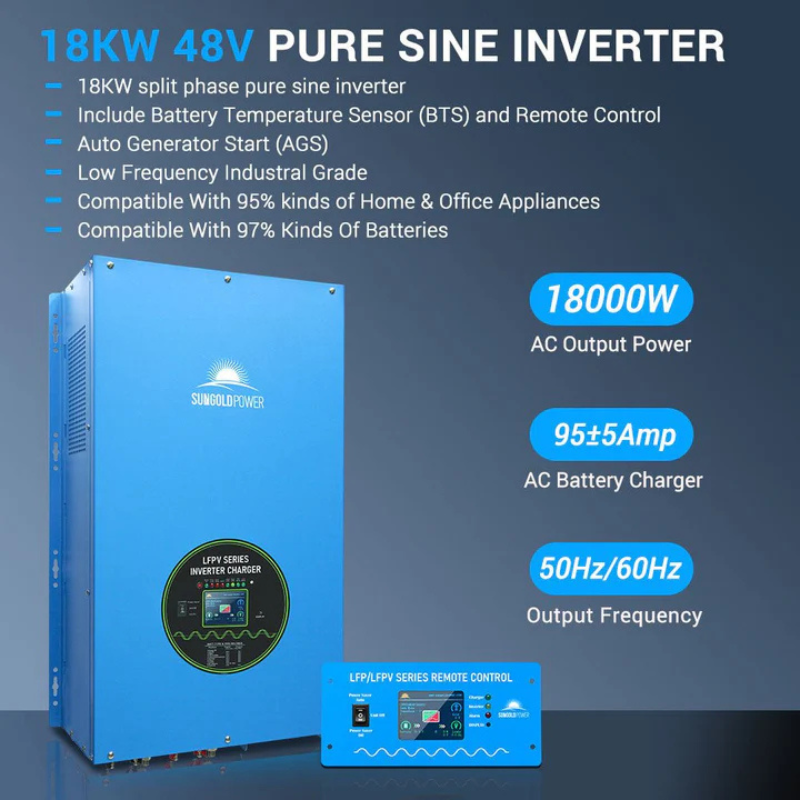

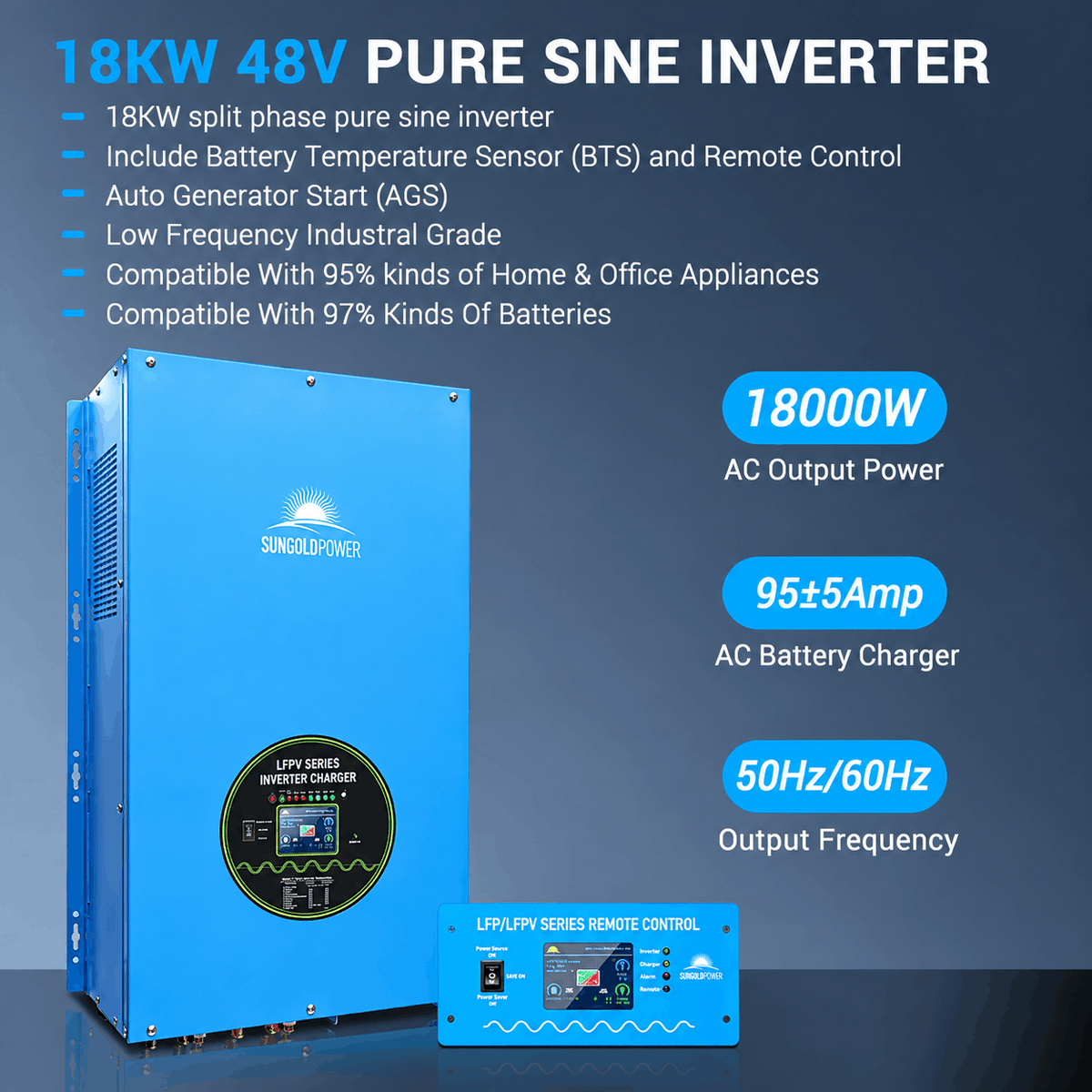

What does low frequency actually mean, and why would I want it?

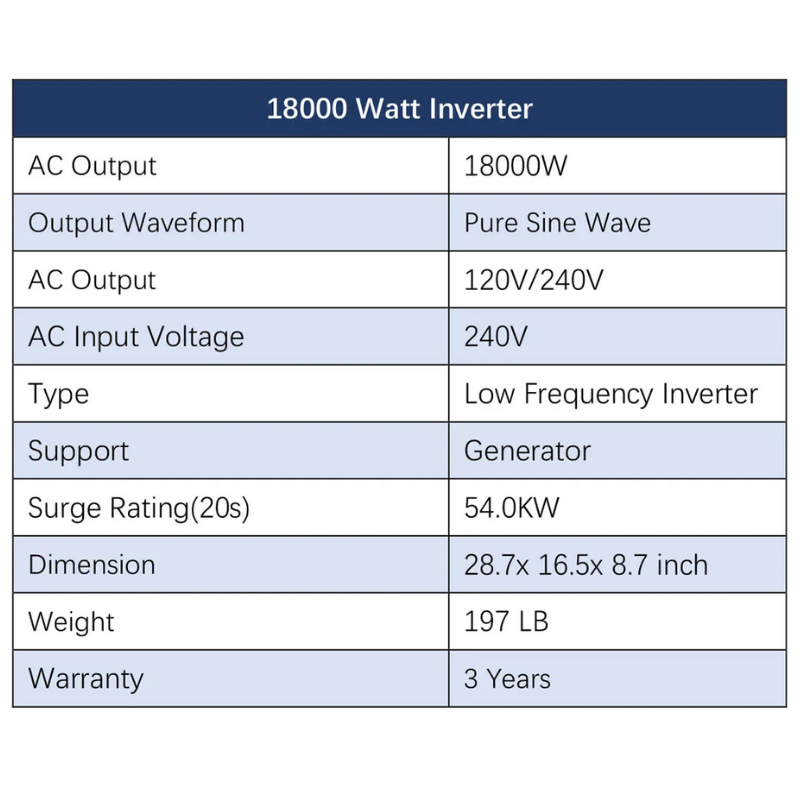

It describes how the inverter builds its AC output. A low-frequency inverter uses a heavy iron transformer, which is why this unit weighs 197 lbs where a comparable high-frequency inverter weighs about 54 lbs. The transformer lets it deliver enormous current for a moment without folding, which is exactly what a motor demands at startup. The trade is weight, cost, a peak efficiency of 88% against 92%, and up to 25W of idle draw. If you have hard-starting equipment those trades are worth making. If you do not, they are not.

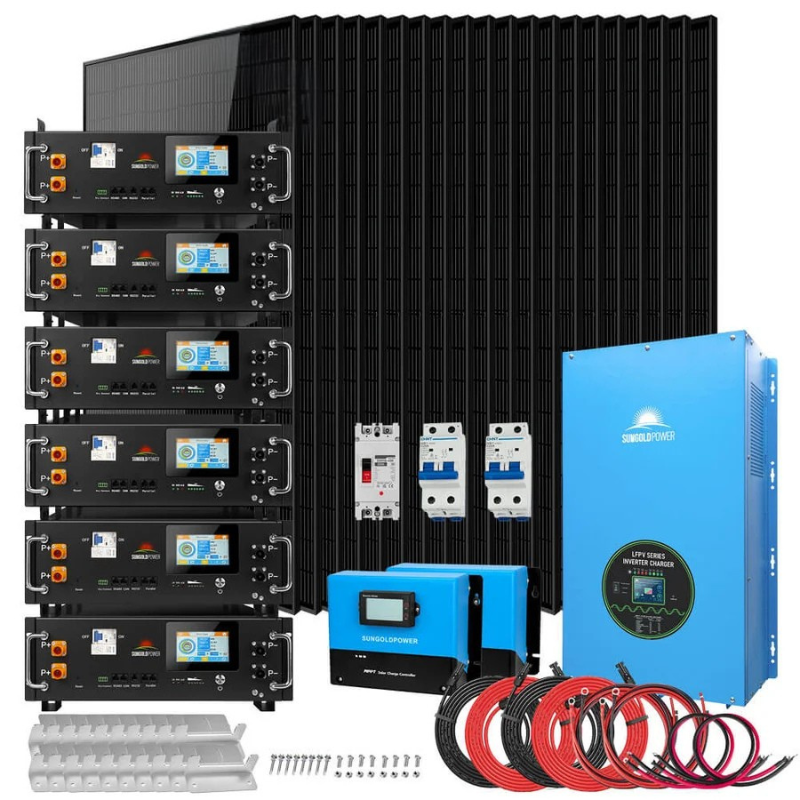

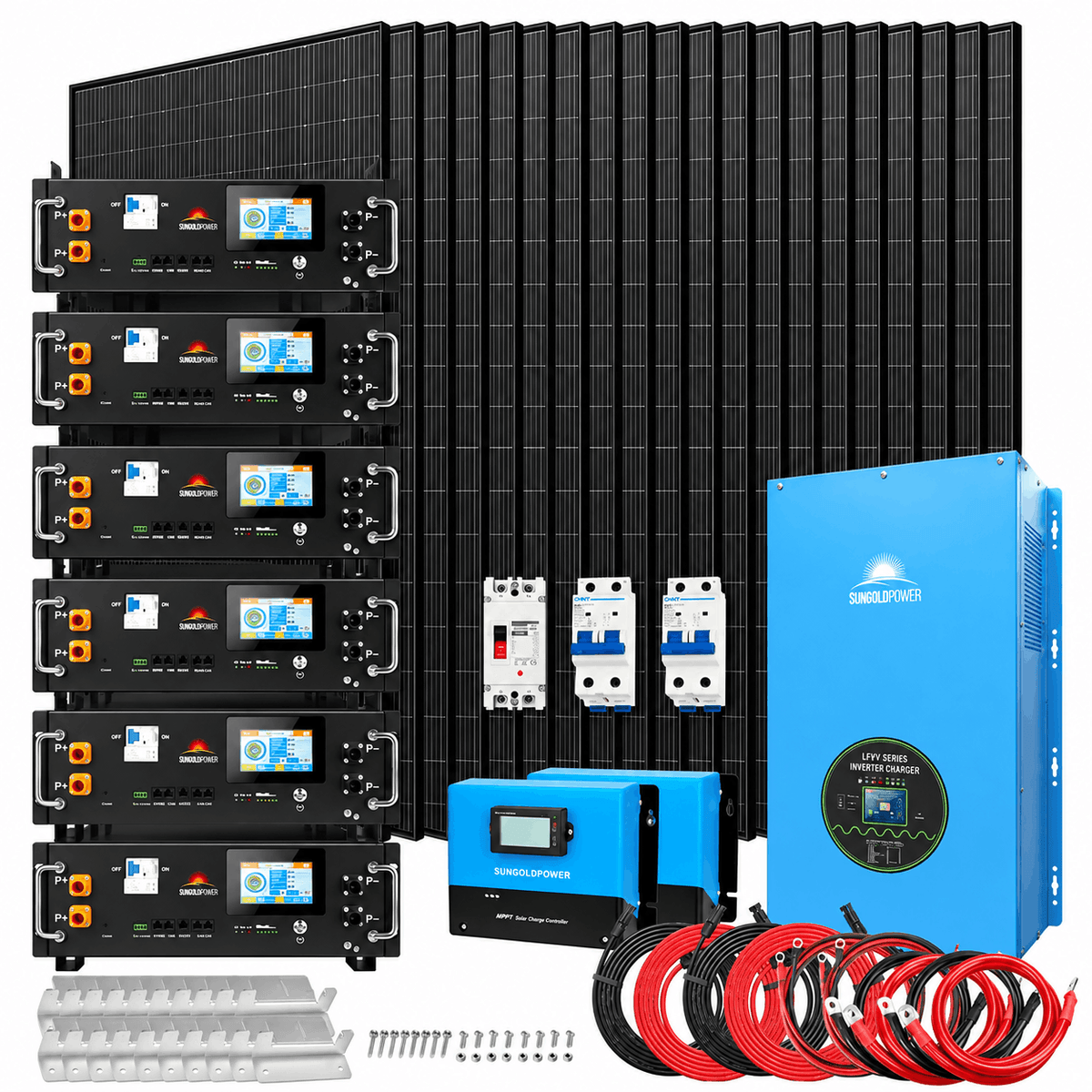

Does this kit include everything I need to install it?

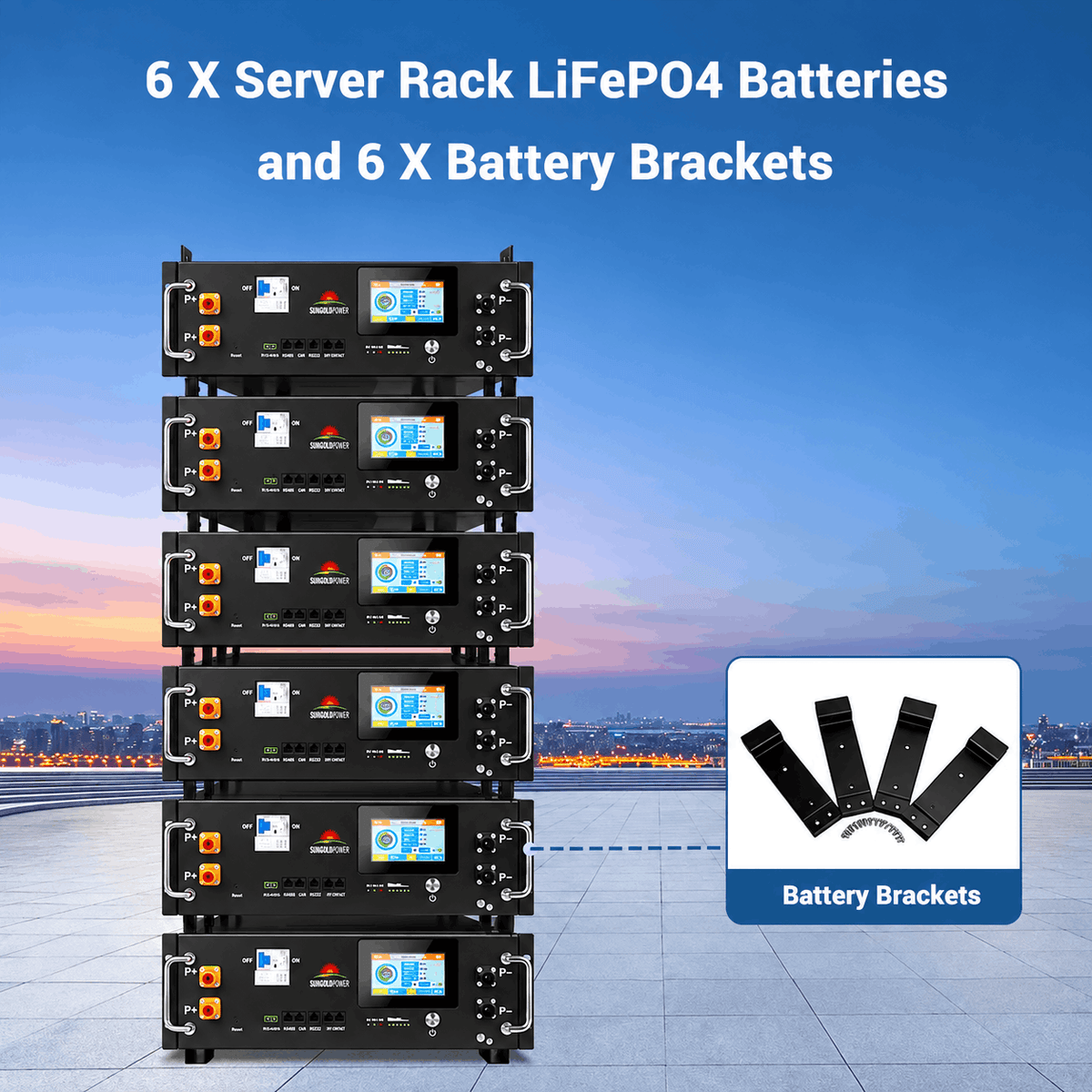

The system side, yes: the inverter, all six batteries with brackets, both charge controllers, all twenty panels, the 400A DC breaker, both PV breakers, two sets of solar extension cable, the battery-to-controller cabling, the 4/0 AWG battery cable and the Z-brackets. Two things to add. First, a properly rated DC busbar for the battery bank, described above, which we spec with your order. Second, the building side: rail racking for twenty panels, conduit, junction boxes, building wire, a critical loads panel or transfer switch, generator input wiring and labor. Those depend on your structure and local code, which is why we spec them per site.

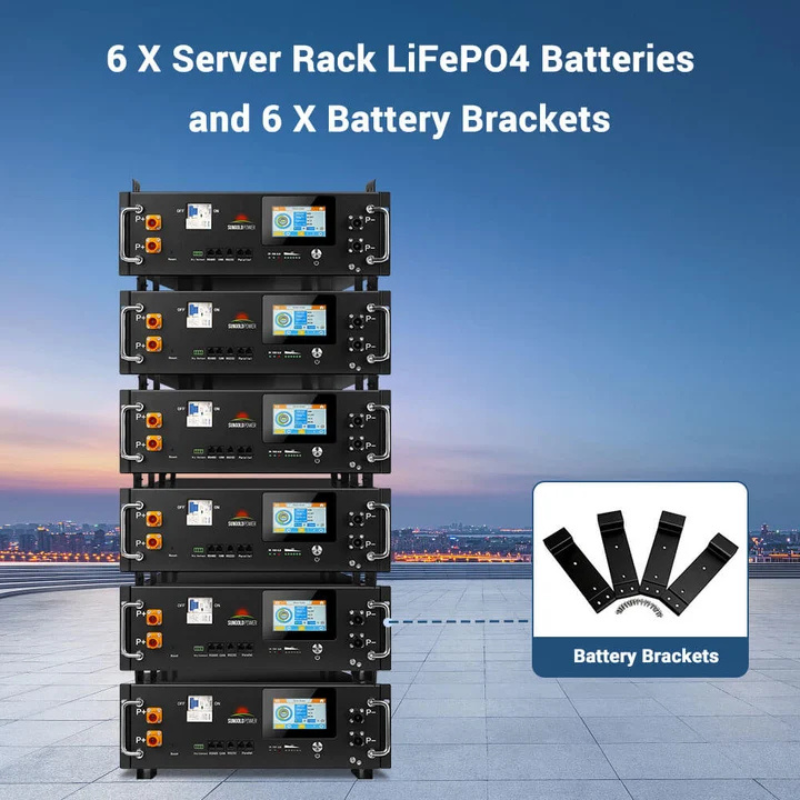

Why does the battery bank need a busbar?
Because a 18,000W inverter draws about 400A from a 48V bank, and the CoreX manual limits a standard parallel battery connection to 100A total. Without a busbar the first battery in the chain carries far more than its share. With one, all six share the load evenly and each stays inside its 100A rating. This is normal practice at this system size, it is a cheap part, and it needs planning rather than discovering.
How cold can the batteries get?
They discharge down to -4°F, so a cold night never leaves you without power. Charging is the narrower window at 39.2°F to 131°F, slightly tighter than the standard lithium in our other kits, which cut off at freezing. An unheated battery room in a real winter will discharge normally but refuse a charge until it warms. If that describes your install, call us first.

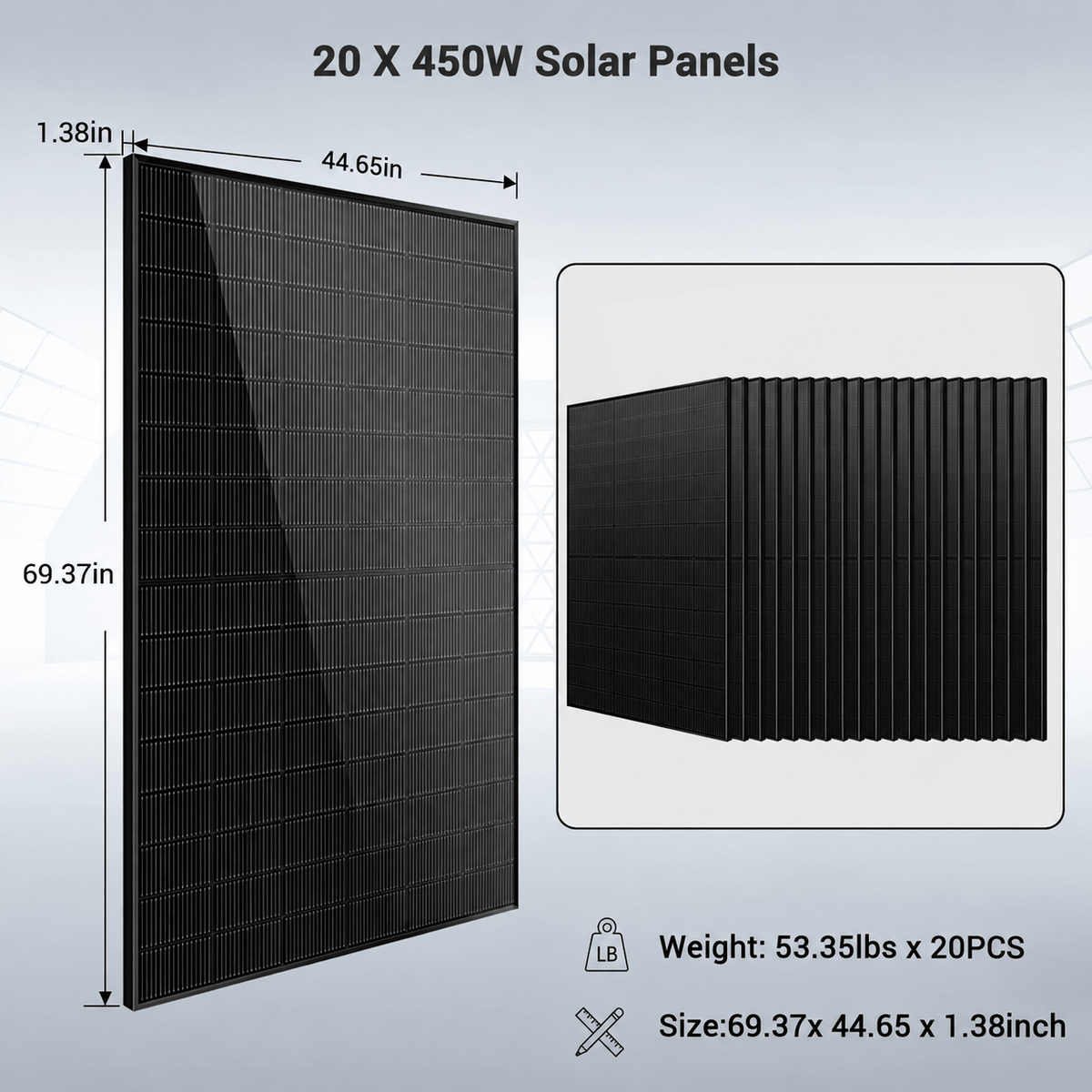

How should the panels be wired?

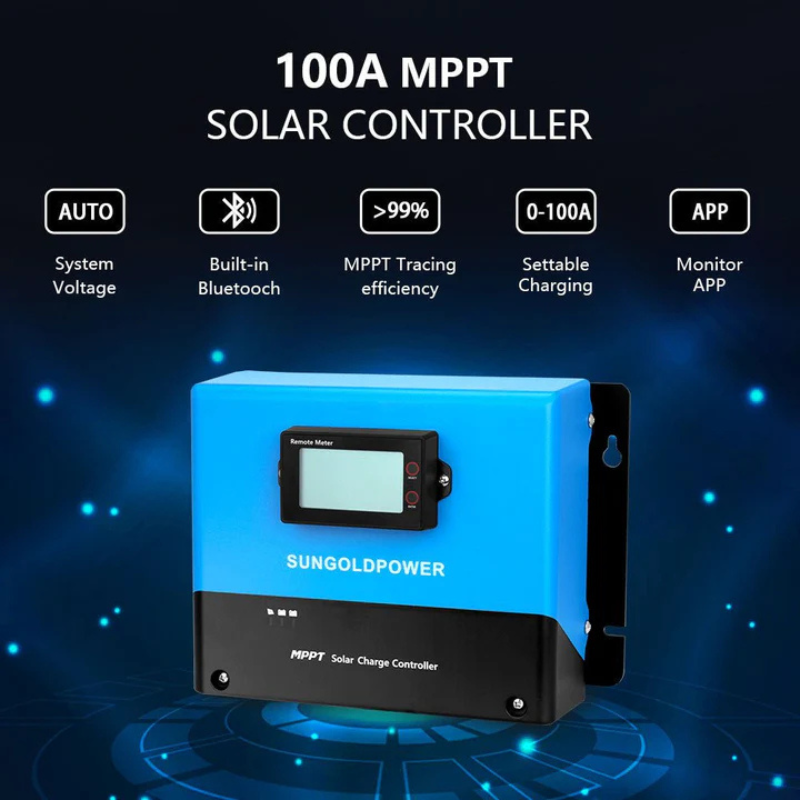

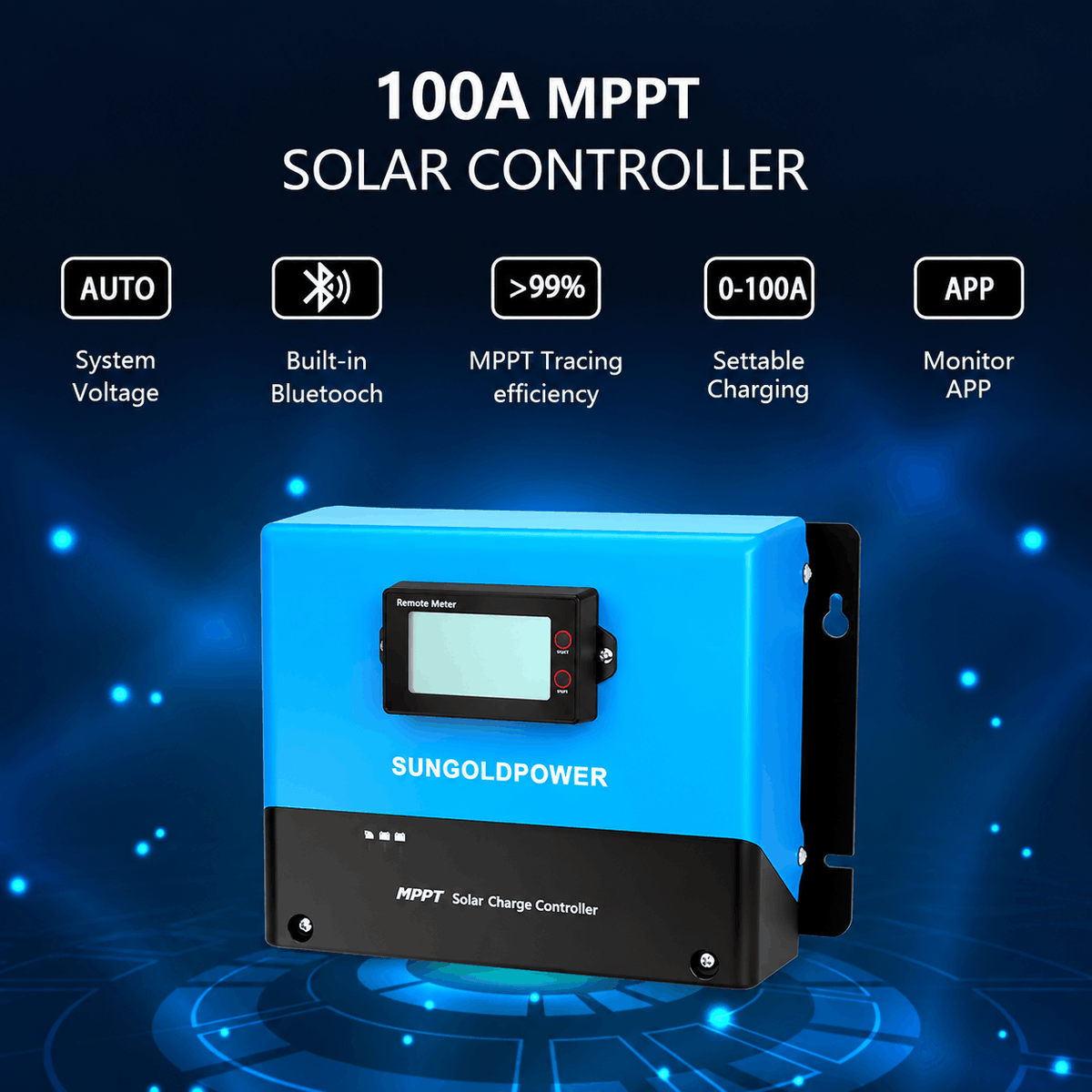

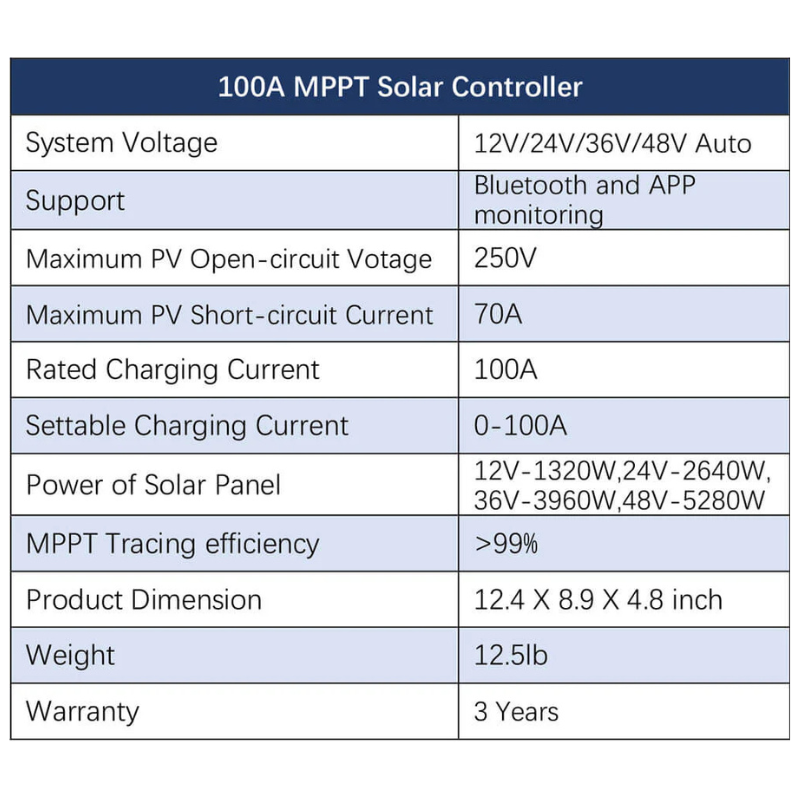

Two strings of ten, one to each controller, with each string built as five panels in series and two of those runs paralleled. Five in series operate near 150V and reach 175V open circuit, staying under the 250V ceiling even on a cold morning. Paralleled they draw 32A against a 70A limit and deliver 4,500W into a controller rated for 5,280W at 48V. Ten in series into one controller would exceed the voltage ceiling.
How much energy will this generate daily?
The 9kW array produces roughly 36 to 45kWh per day at 4 to 5 peak sun hours, plus whatever the rear faces add. That is more than the 30.72kWh bank holds, which is the intent: the battery refills and the property runs off the panels while it does.
Should I buy this or the 15kW version?
Ask what you need to start. The two kits carry the same twenty panels and the same six batteries, so they generate the same energy and run for exactly as long as each other. This one gives 3,000W more continuous output and 9,000W more surge. If you have a deep submersible pump or a large compressor that needs it, take this one. If you do not, the 15kW costs less, runs identically, and actually has the larger AC charger for generator recharging.
Can I install this myself?
Parts of it. Running PV, setting the controllers and wiring the DC side are within reach for someone with real electrical experience. Hanging a 197 lb inverter is a two-person job with proper fixings, tying into a house panel at 18,000W is work for a licensed electrician, and the battery busbar should be sized by someone who has done it before.

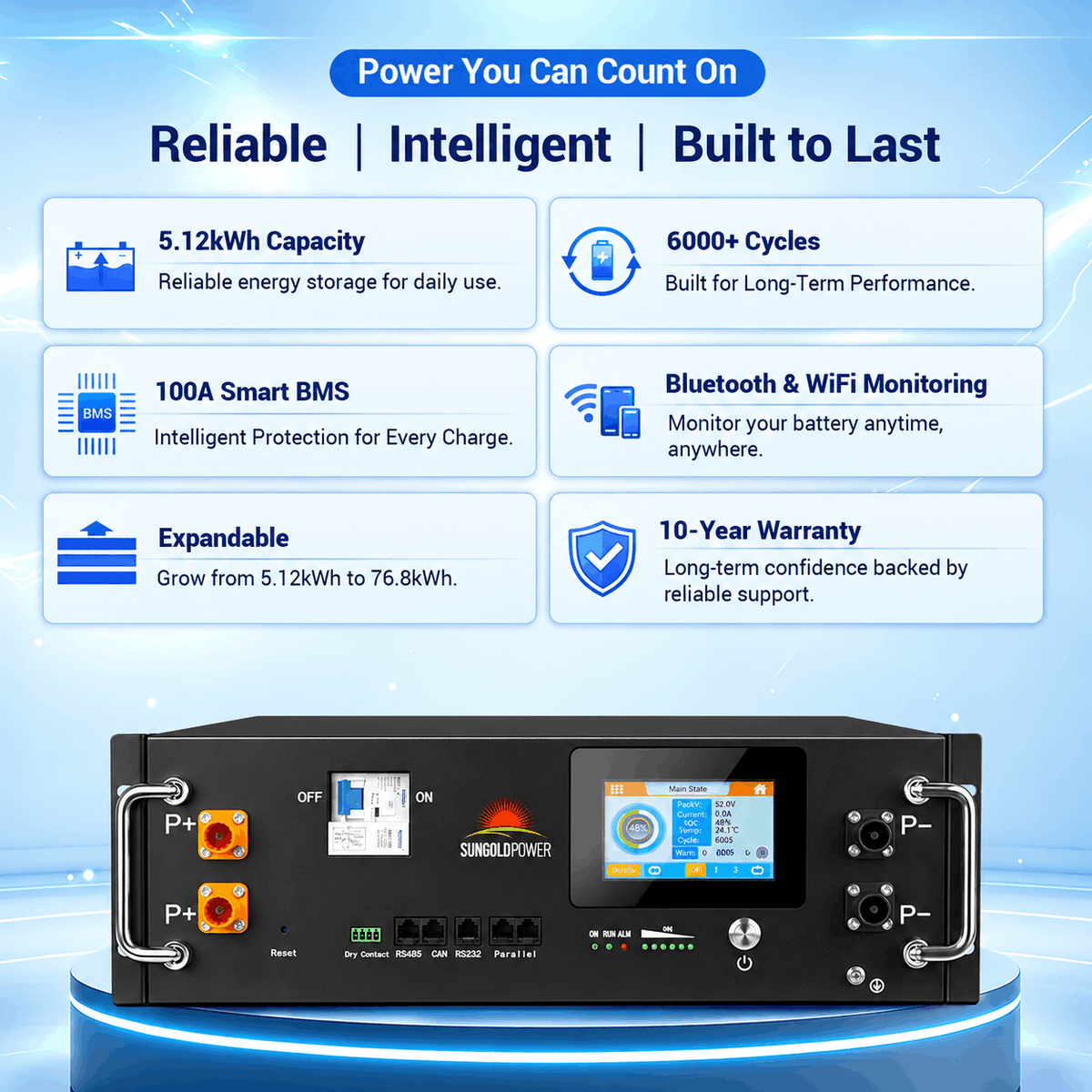

Is LiFePO4 safe?
It's the safest widely available lithium chemistry, with strong thermal stability, long service life and minimal maintenance. Every battery includes BMS protection against overcharge, deep discharge, overheating, overload and short circuit.
