Sungold Power Off-Grid Solar Kit 6500W 48VDC 120VAC LifePo4 10.24KWH Lithium Battery 8 X 415W Solar Panels

Sungold Power 6500W Off-Grid Solar Kit Overview

This Solar Panel Kit is a great starter package for a Complete Offgrid cabin or shop, it inlcudes the 8 X 415W solar panel, 10.24KWH battery, 6500W solar inverter and a set of solar cable.The Solar Array will produce around 13KWH per day based on 4 hours sun. This size of system generally works great for cabins, shops, RVs and etc that use around 390 KWH per month. The system is ready for expansion, up to 6 identical inverters can be paralleled in single-phase (120VAC) or Split-phase (240VAC) or Three-Sphase (208V). You can add more batteries and solar panel according to your requirment. Let’s Enjoy off grid living and the adventure with Solar Energy Kit!

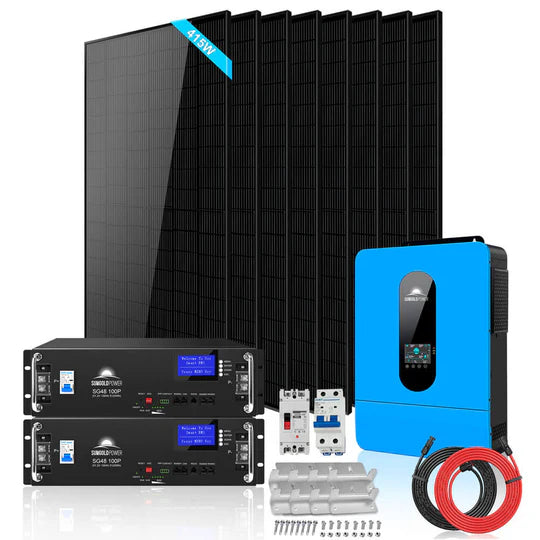

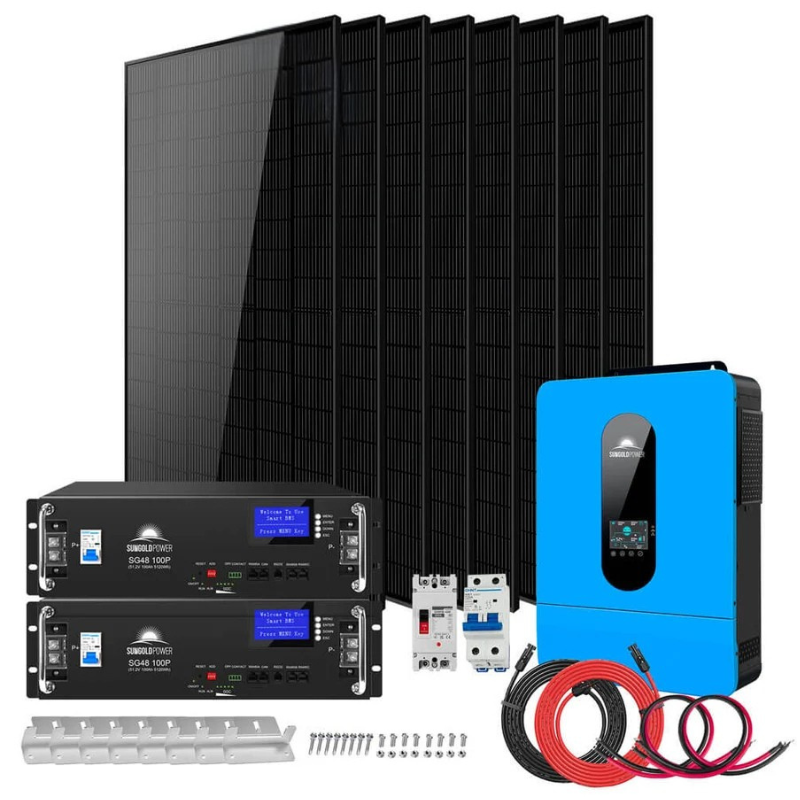

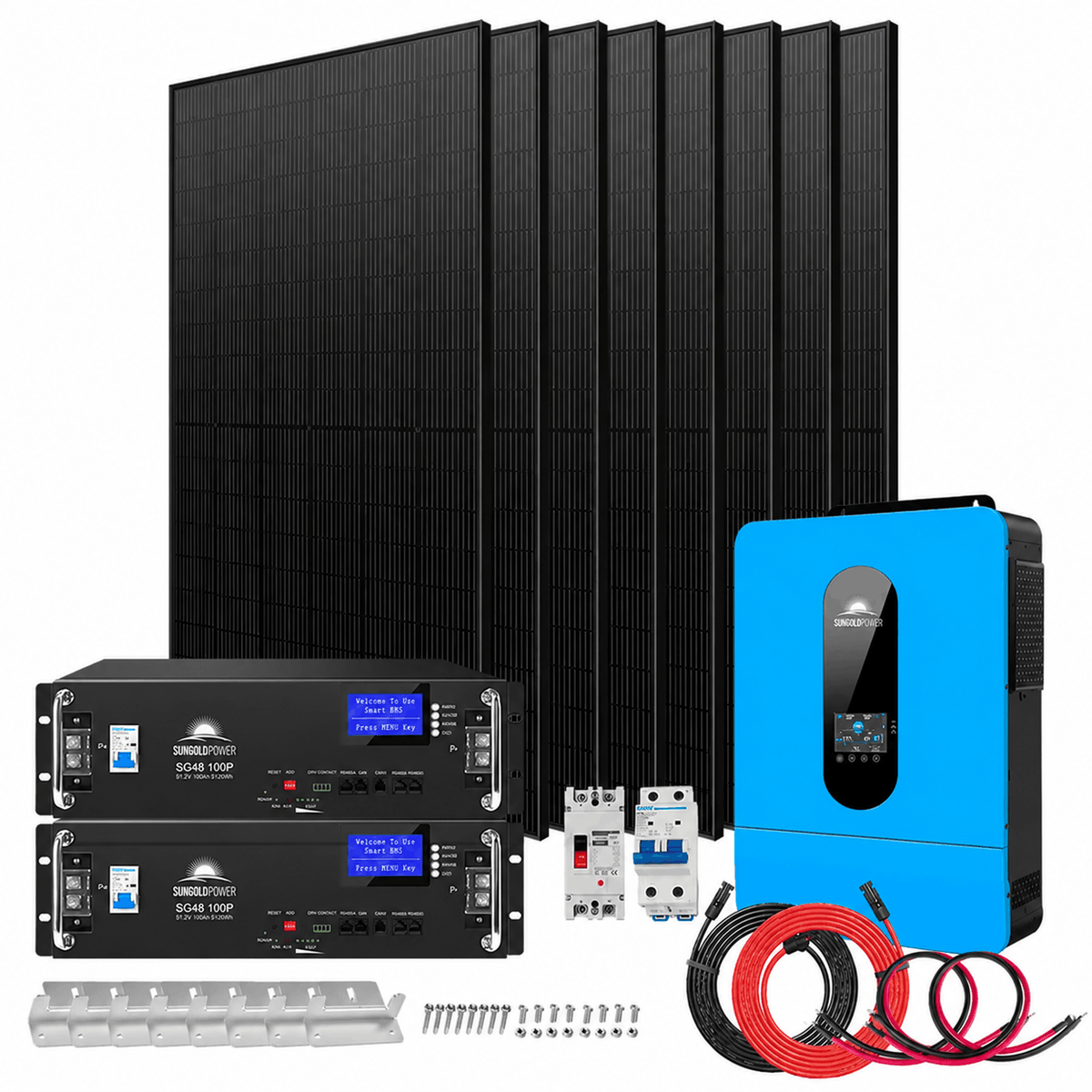

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 6500 Watt UL 1741 48V DC 120V AC Output
• 8 x 415 Watt Monocrystalline Solar Panels
• 2 x 100AH 51.2V Lifepo4 Battery
• 1 x 50 Feet, Solar Extension Cables-Inverter PV input
• 8 x Sets of Mounting Z-Brackets

Sungold Power 6500W Off-Grid Solar Kit Feature

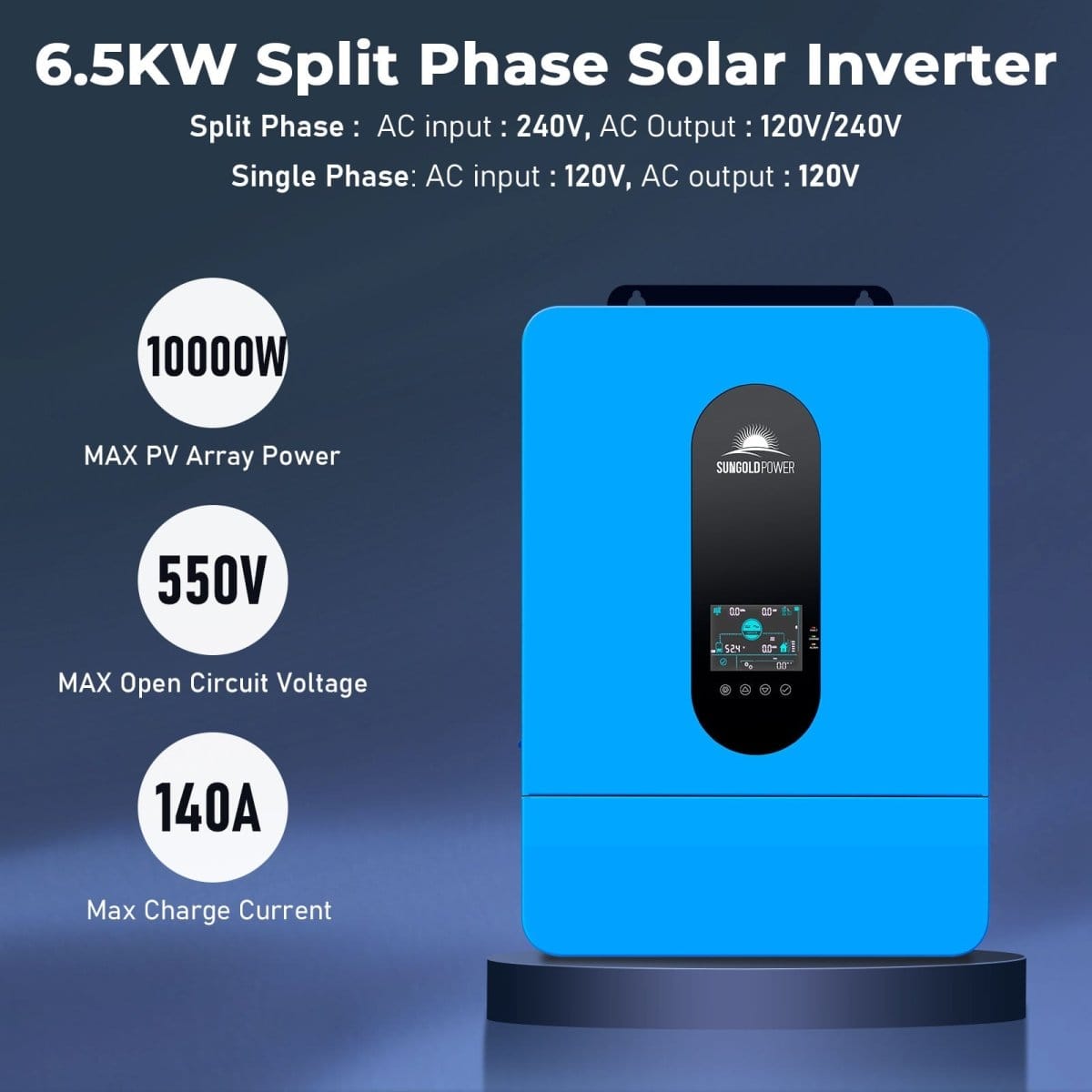

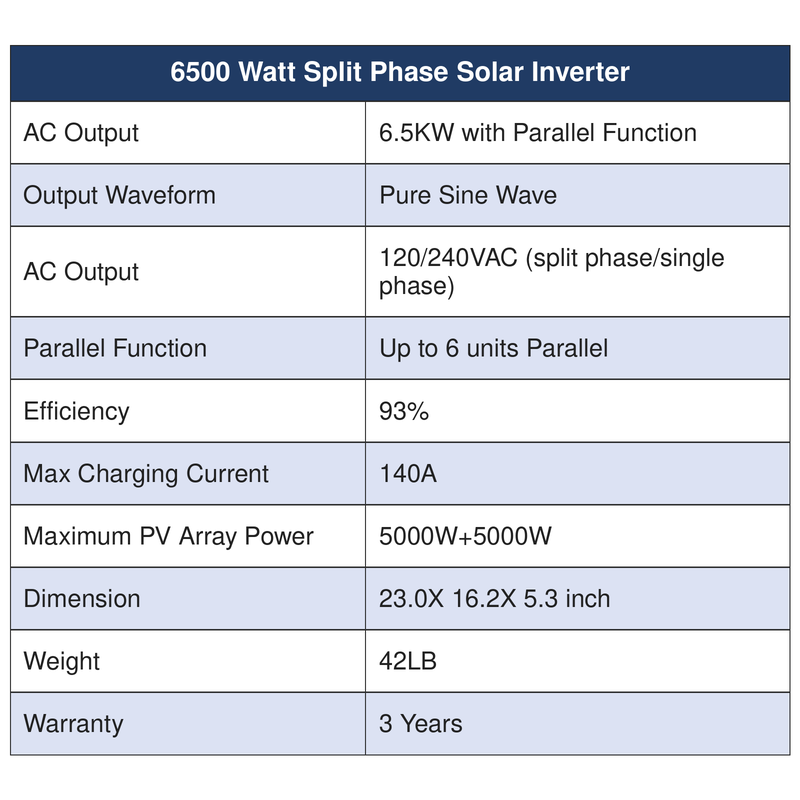

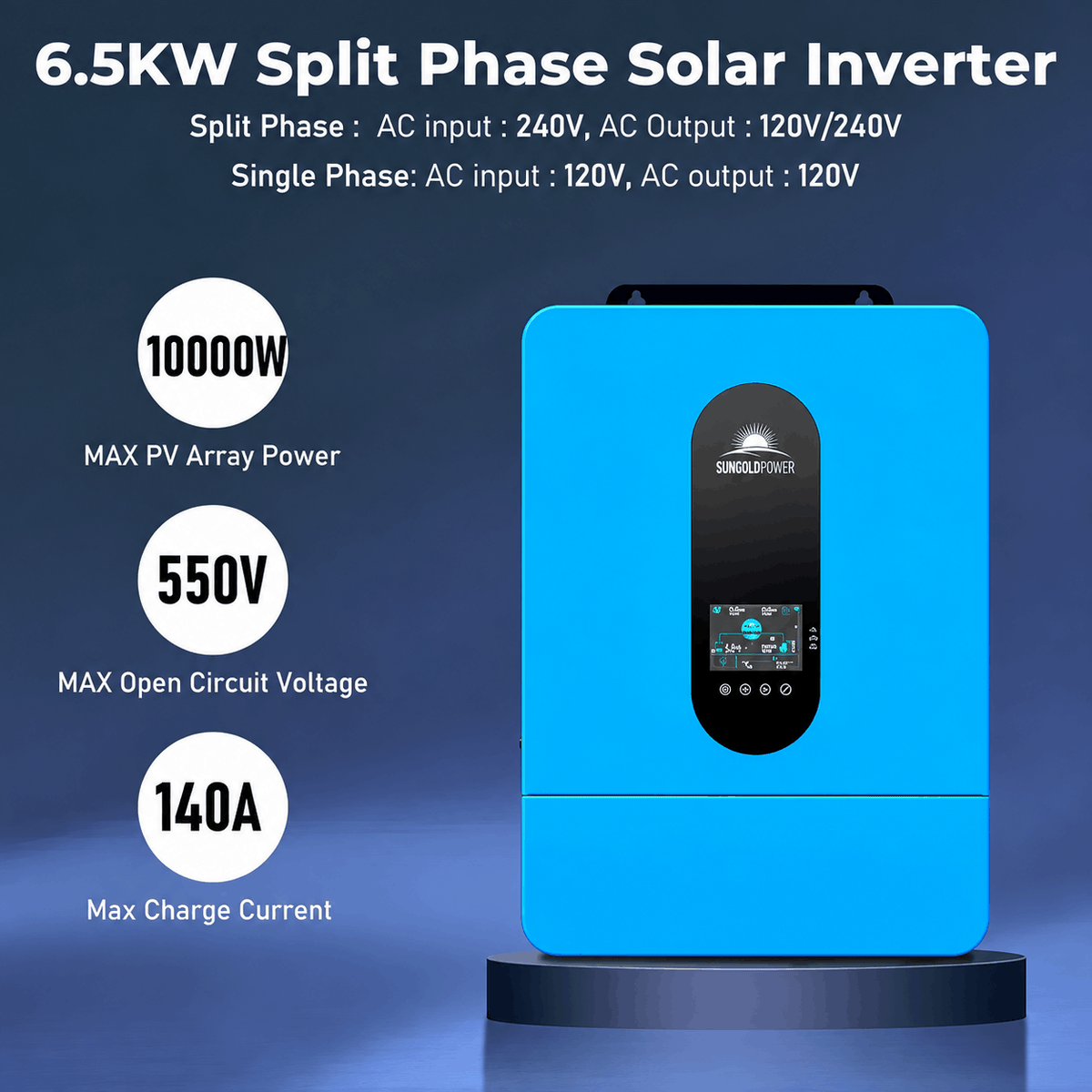

6500 Watt Solar Inverter

• AC Output: 6500W
• Output Waveform: Pure Sine Wave
• AC Output: 120V 60HZ
• Max PV Mppt Operation Voltage: 90-390VDC
• Efficiency: 93%
• Max Charging Current: 120A
• Maximum PV Array Power: 2 x 4000W
• Dimension: 23.6 X 16.9X 5.9 inch
• Weight: 43LB
• Warranty: 3 Years

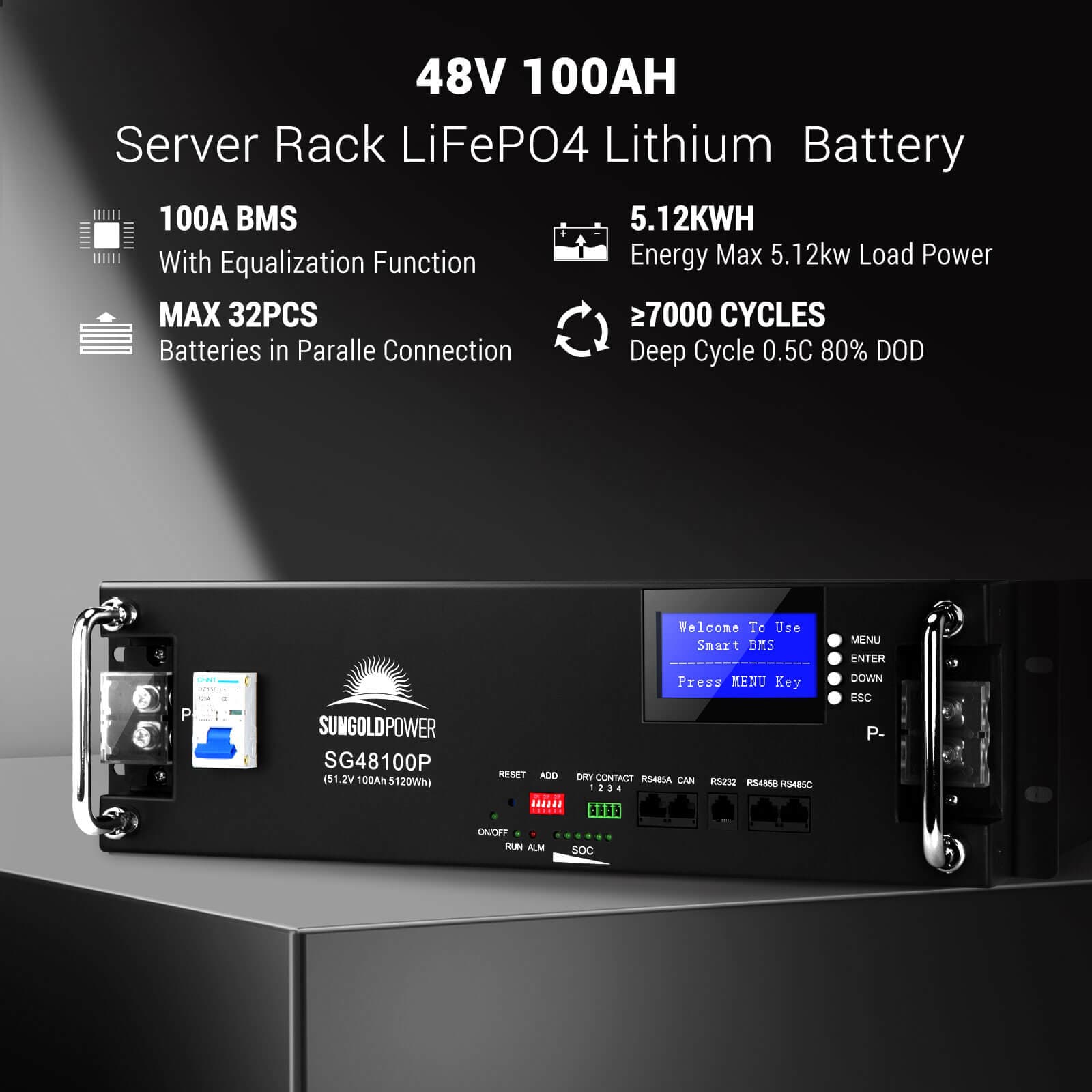

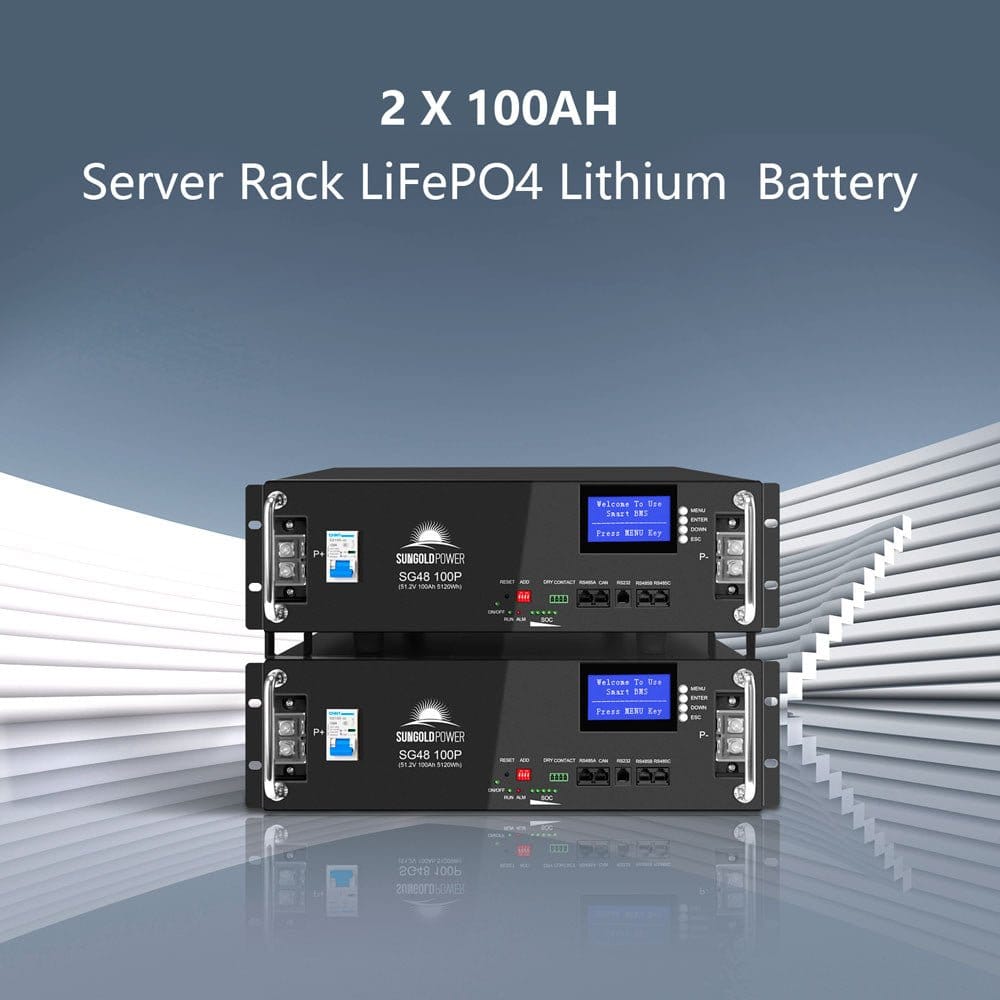

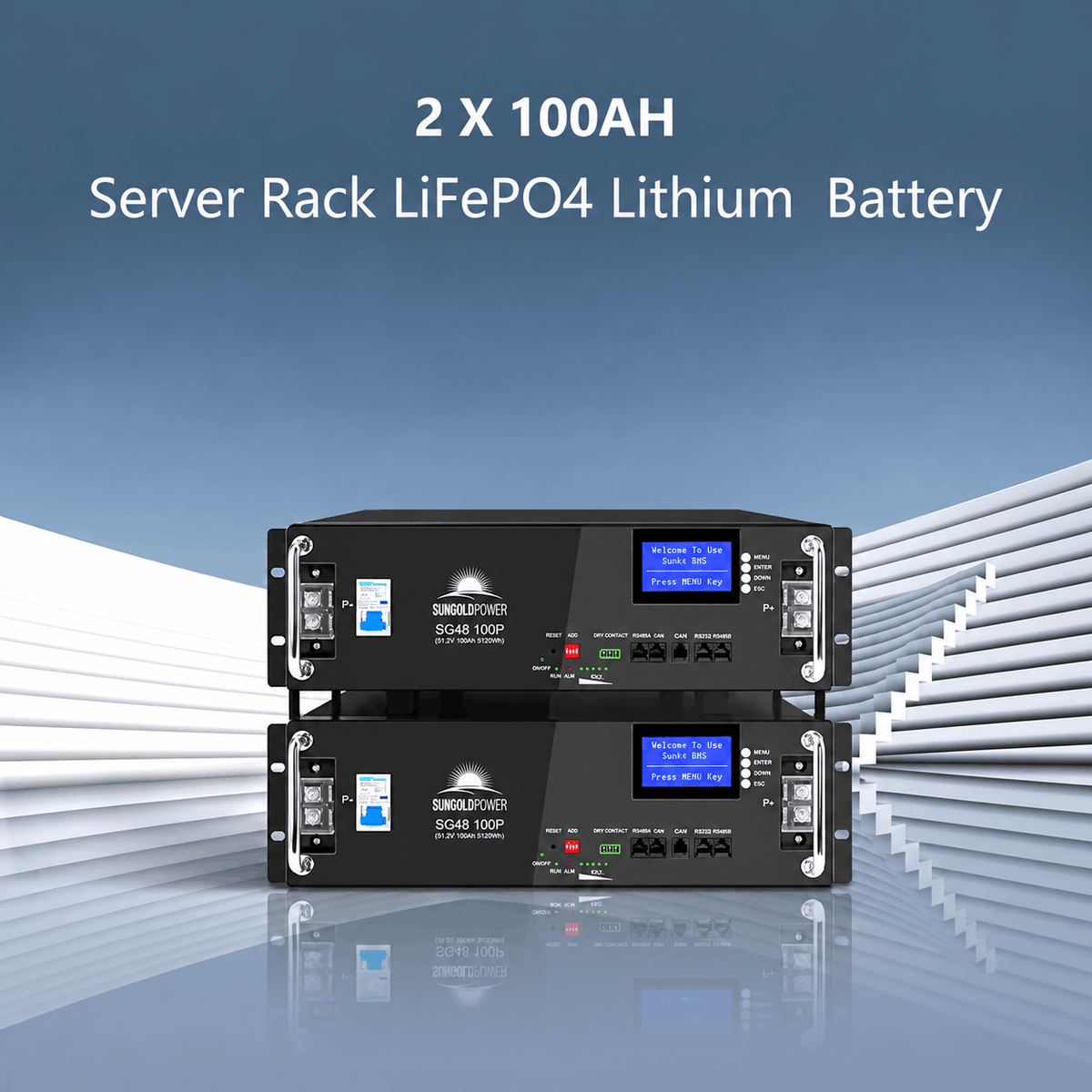

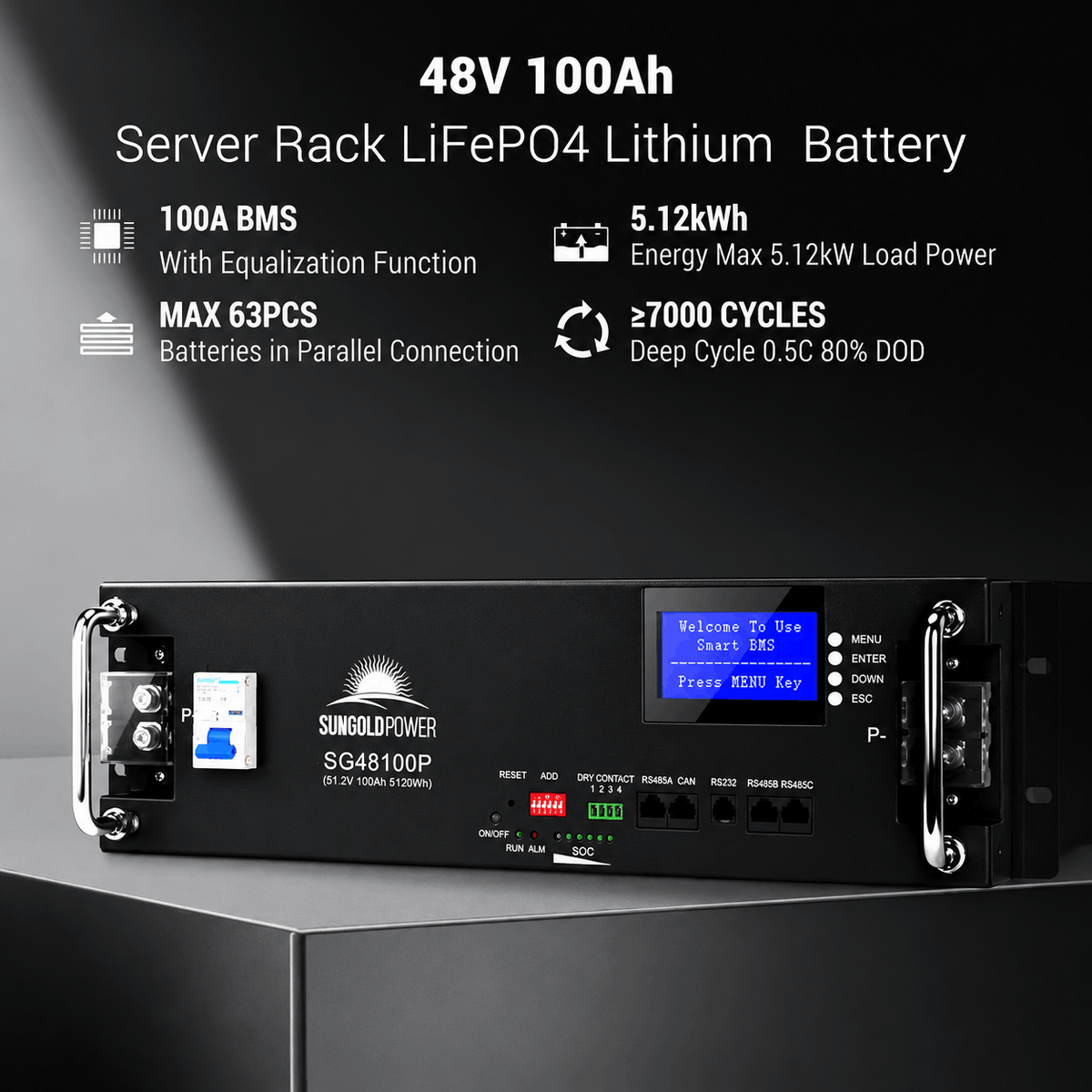

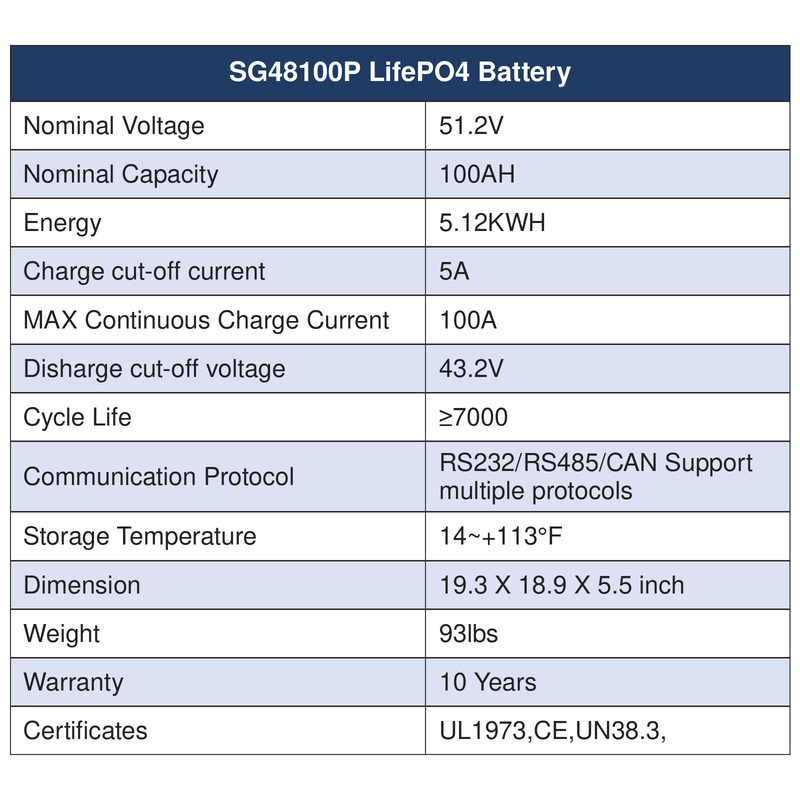

LifePo4 Battery

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Energy: 5.12KWH
• Charge cut-off current: 5A
• MAX Continuous Charge Current: 100A
• Discharge cut-off voltage: 43.2V
• Cycle Life: >7000
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Storage Temperature: -10~+45°C
• Dimension: 19.3*18.9 5.5inch
• Weight: 93lbs
• Warranty: 10 Years

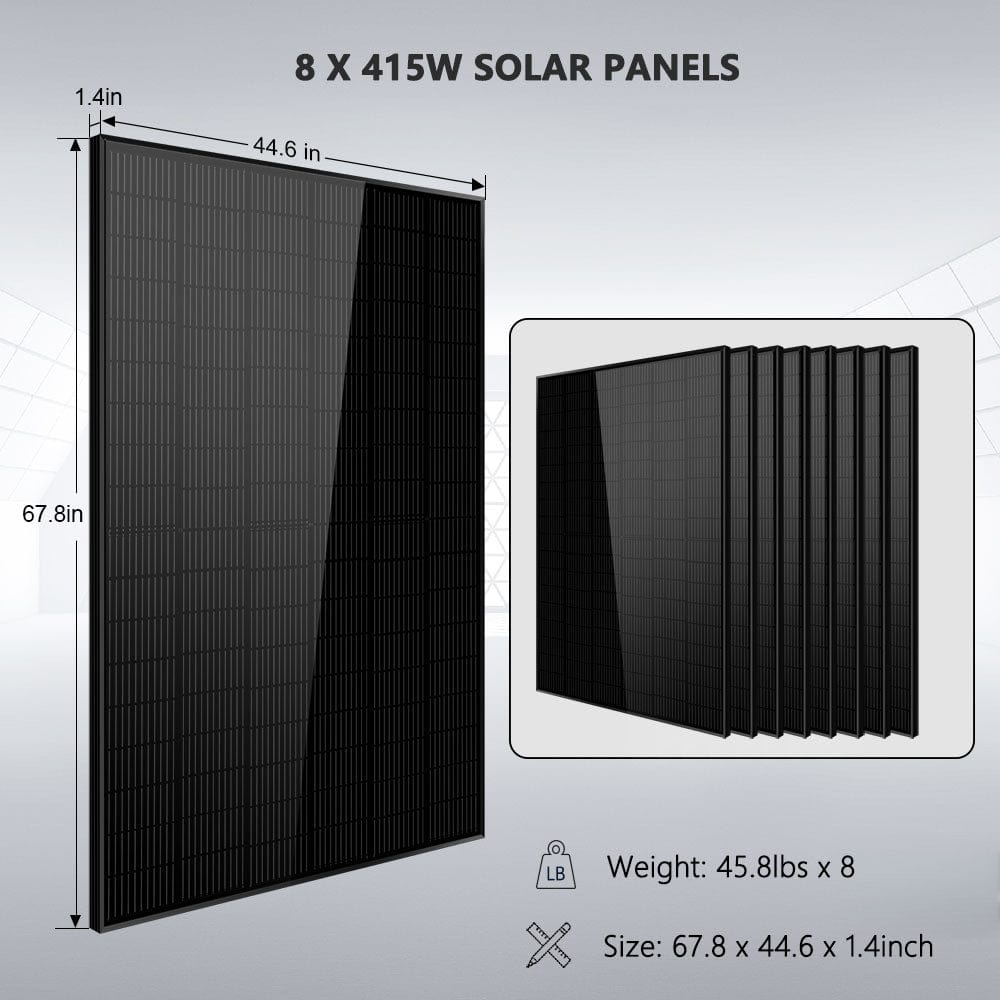

415 Watt Mono Solar Panel

• Peak Power: 415W
• Solar Cell: Monocrystalline
• Product Tolerance: ±3%
• Maximum Power Current (IMP): 13.13A
• Maximum Power Voltage (VMP): 31.61V
• Short Circuit Current(ISC): 13.79A
• Open Circuit Voltage(VOC): 38.82V
• Product Dimension: 67.9 X 44.7 X 1.4 inch
• Product Weight: 45.1LB
• Warranty: 25 Years

Solar Kit Specification

• Max Continuous Output: 6500W
• AC Output: 120V
• DC Voltage: 48V
• Max Solar Input: 2 x 4000W
• Total Watt of Panels: 3320W
• Per Panel Watt: 415 Watt
• Panel NO.: 8 pcs
• Total KWH of Batteries: 10.24KWH
• Chemistry: Lithium
• Battery NO.: 2 PCS
• Battery Spec: 48V 100AH

User Manual

• Sungold Power 6500W Inverter User Manual
• Sungold Power LifePo4 5.12KWH Lithium Battery User Manual
• Sungold Power 415 Watt Monocrystalline Solar Panels
