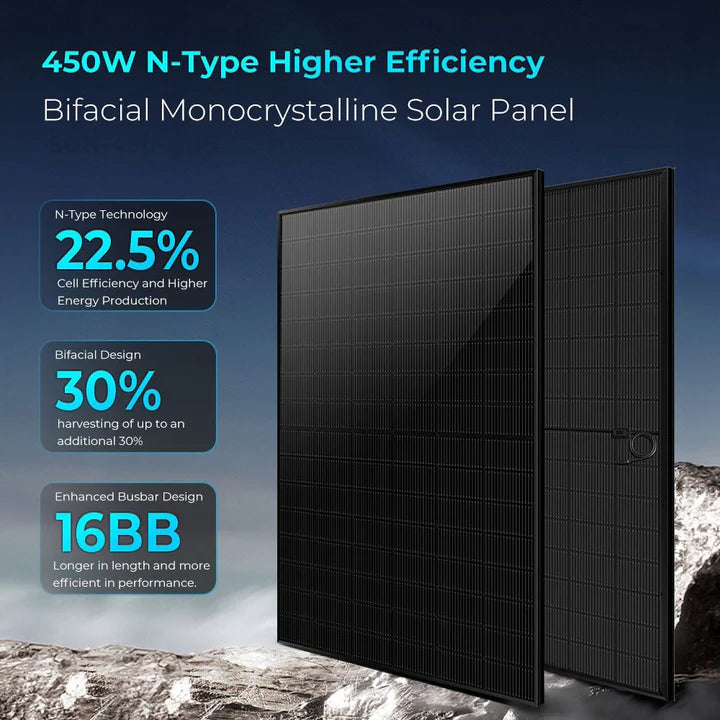

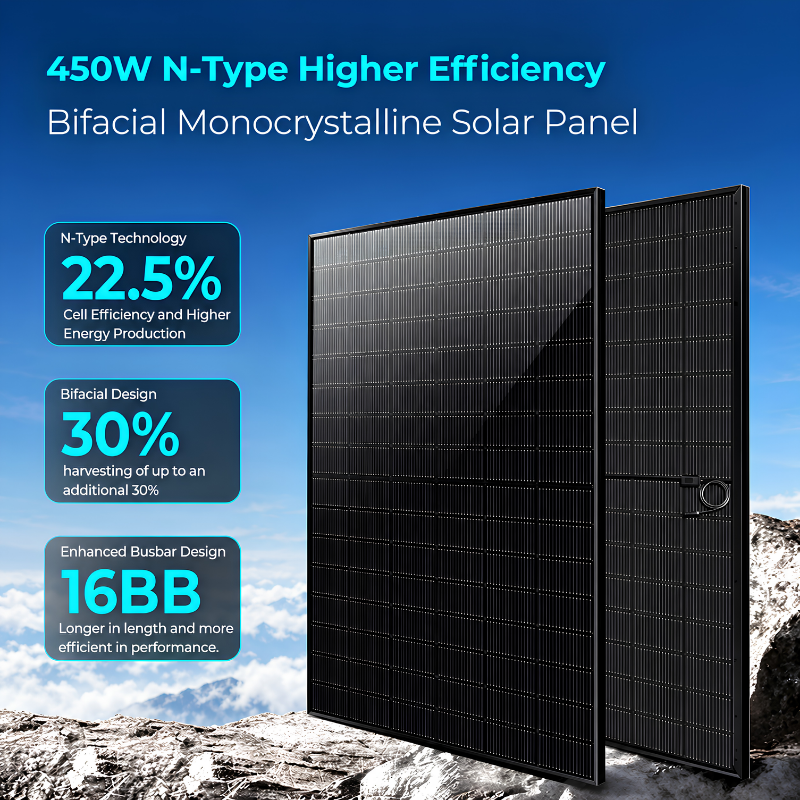

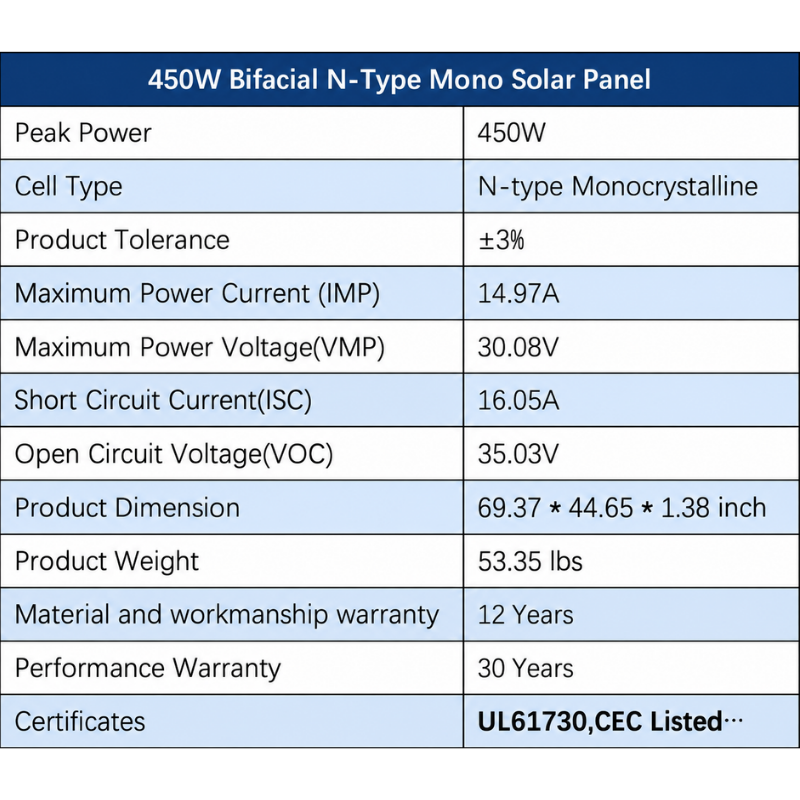

Sungold Power 450 Watt Bifacial N-Type Monocrystalline Solar Panel SGN-450-BDG5 UL61730 CEC Listed Specifications
| Specification |
Details |
| Peak Power (Pmax) |
450W |
| Production tolerance |
±3% |
| Maximum Power Current (Imp) |
14.97A |
| Maximum Power Voltage (Vmp) |
30.08V |
| Short Circuit Current (Isc) |
16.05A |
| Open Circuit Voltage (Voc) |
35.03V |
| Maximum System Voltage |
1500V |
| Wind Resistance |
2400Pa |
| Output Cables |
12 AWG (1ft per cable) |
| Number of Cells |
96 cells |
| Cell Type |
N-type monocrystalline ( 7.17 X 8.27 inch) |
| Certifications |
UL61730 Certified by ETL,CEC Listed,ISO 9001, ISO 14001, ISO 45001 |
| Product Weight |
53.35 lbs |

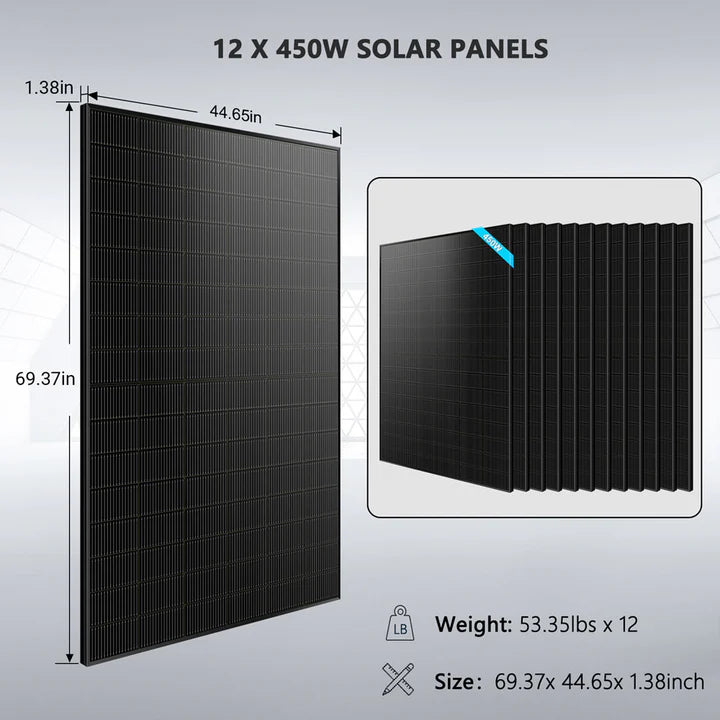

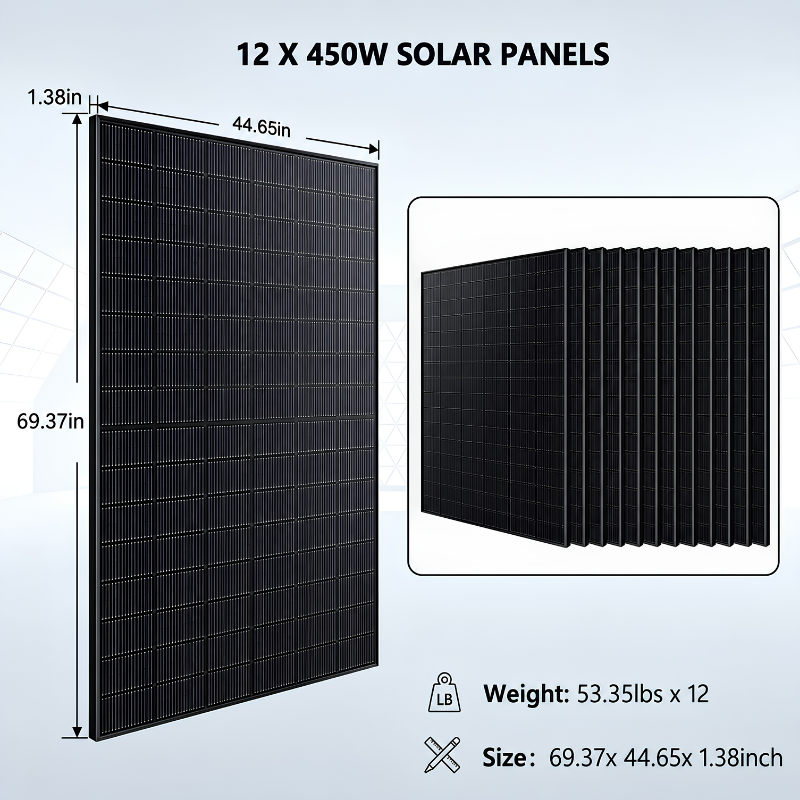

| Product Dimension |
69.37 x 44.65 x 1.38 inch |
| Package Weight |
120.8lbs(2PCS) |
| Package Dimension |
70.9*46.1*3.7inch(2PCS) |
| Warranty |
12 years material and workmanship warranty,30 years Linear power warranty |
Frequently Asked Questions
Is this a 5.4kW or a 10kW system?

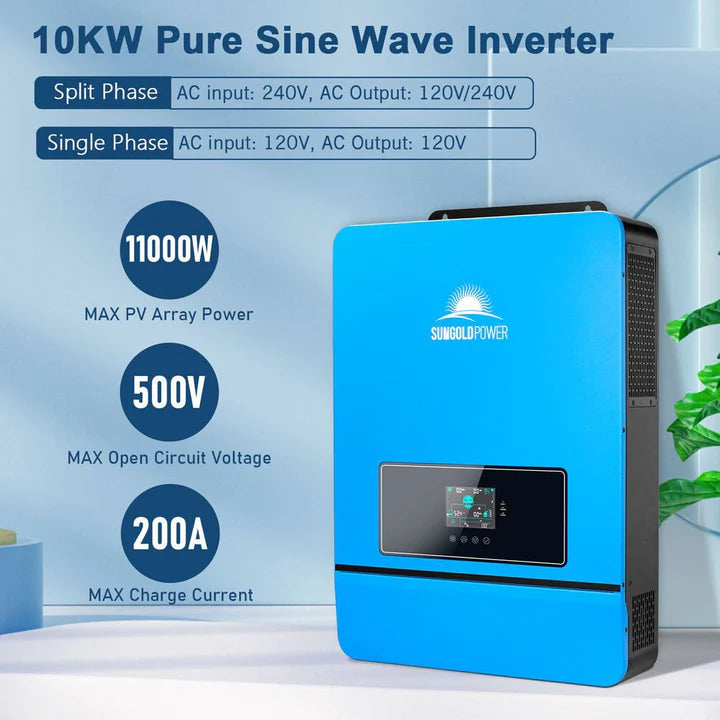

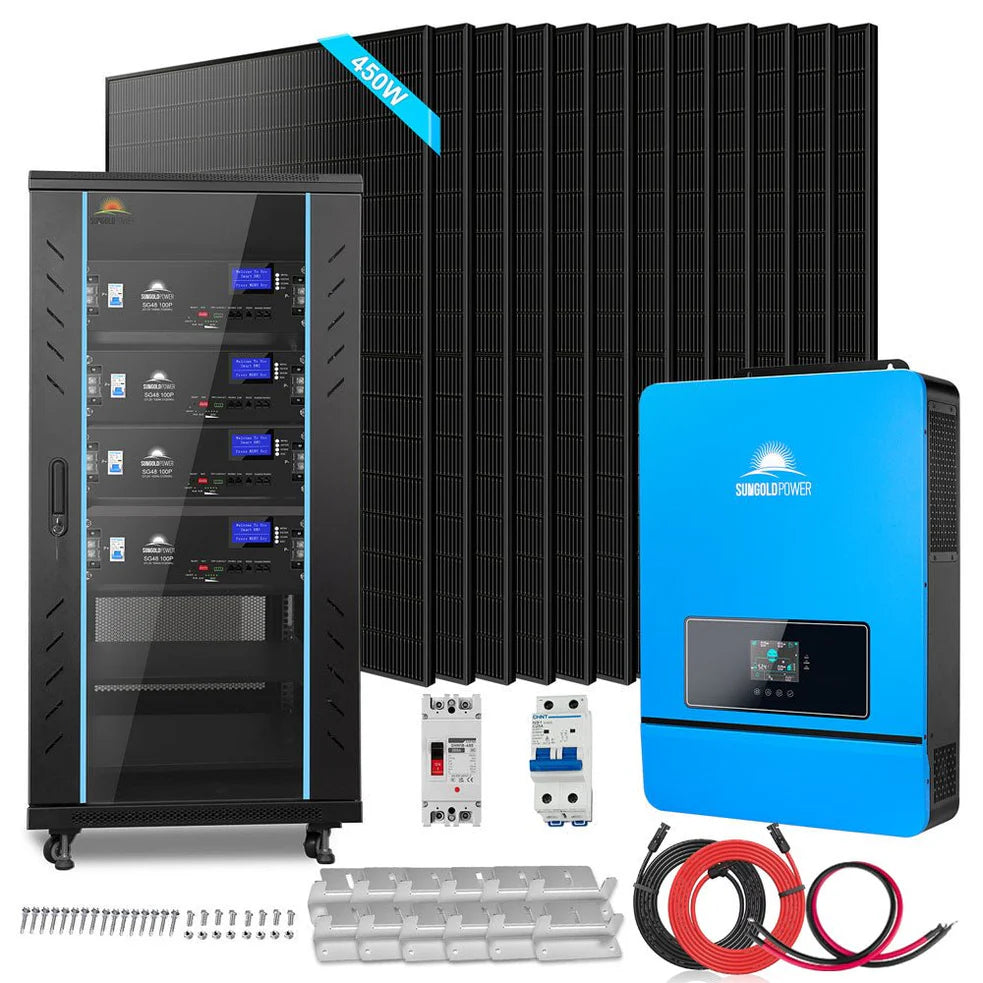

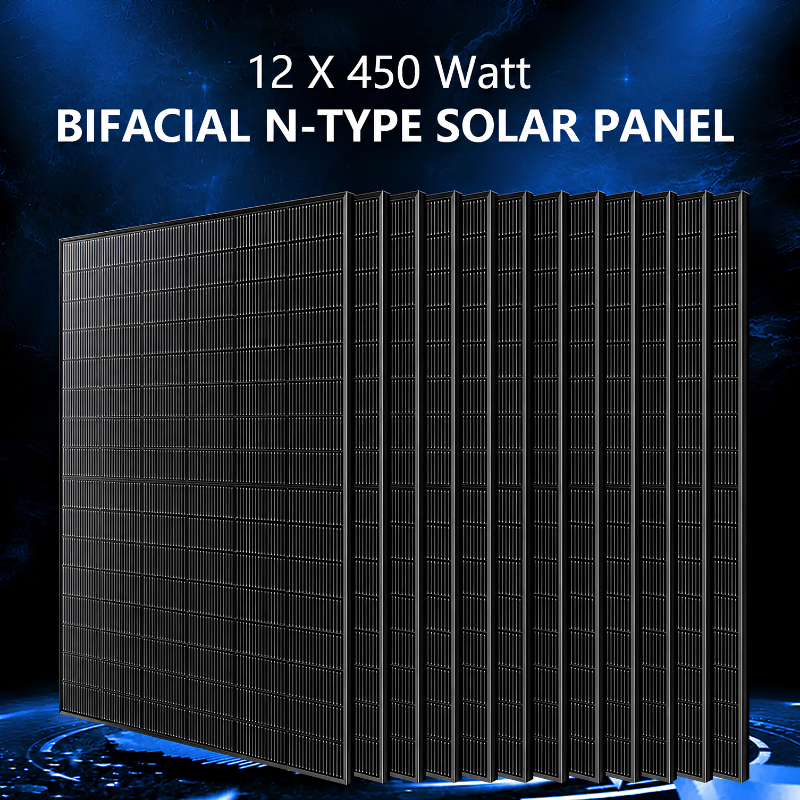

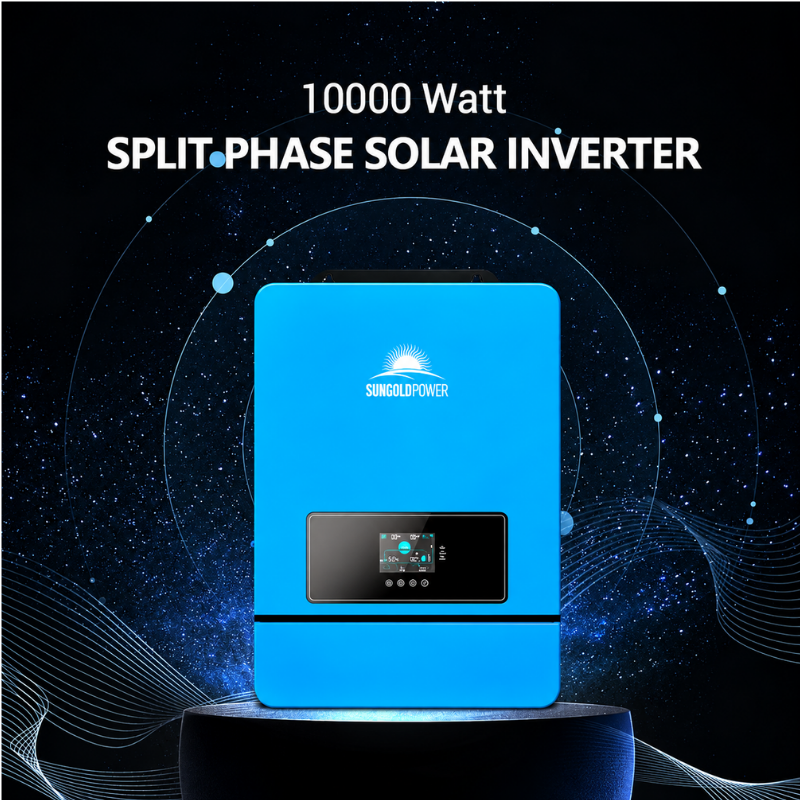

The included solar panels total 5.4kW: twelve 450W panels. The inverter is rated for 10,000W of continuous AC output. These ratings describe different parts of the system.
How many batteries are included, and does the kit include everything needed for installation?

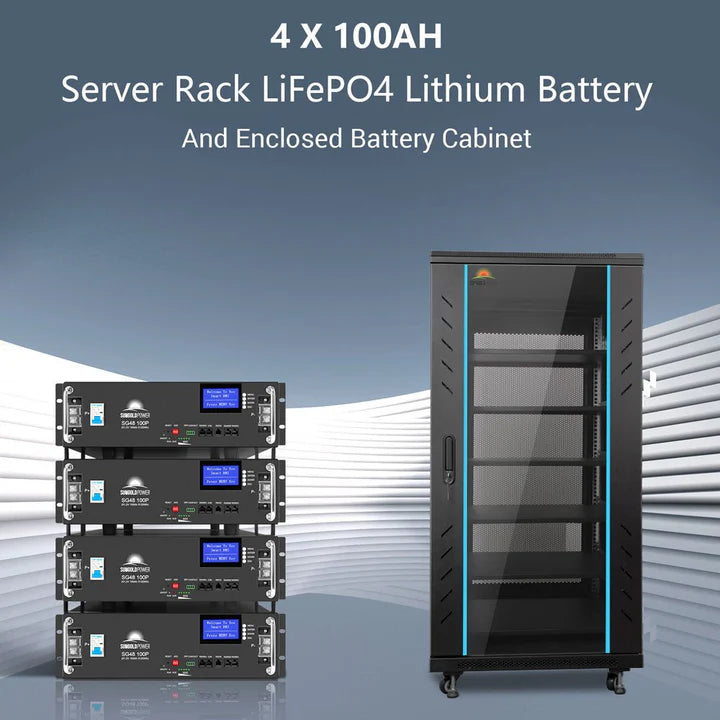

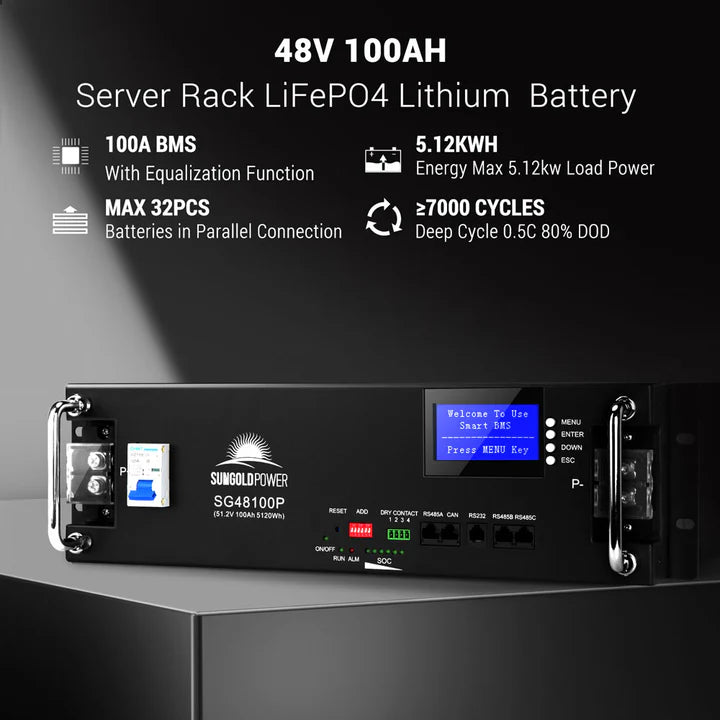

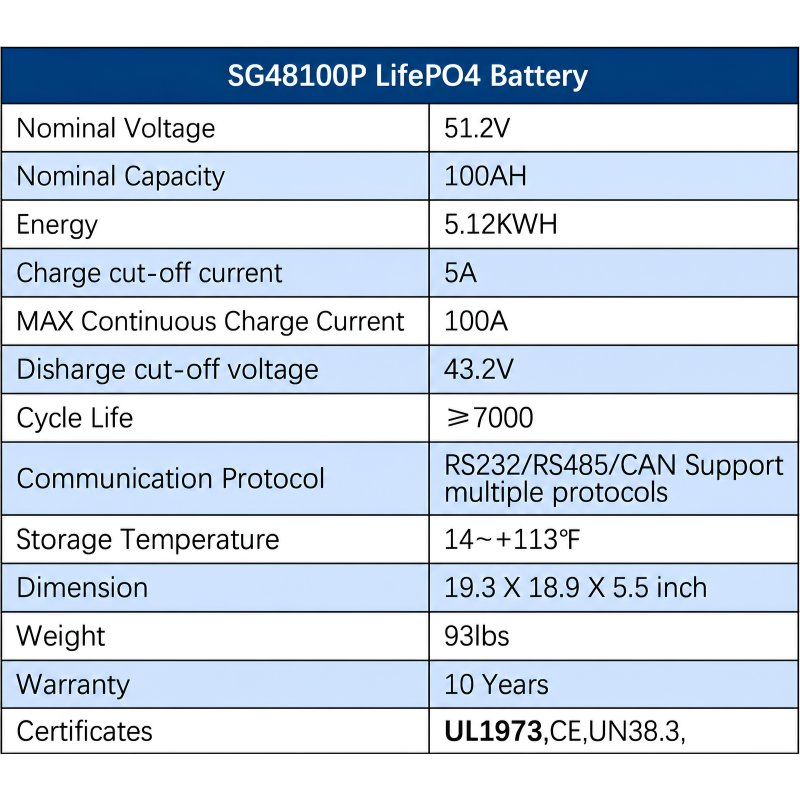

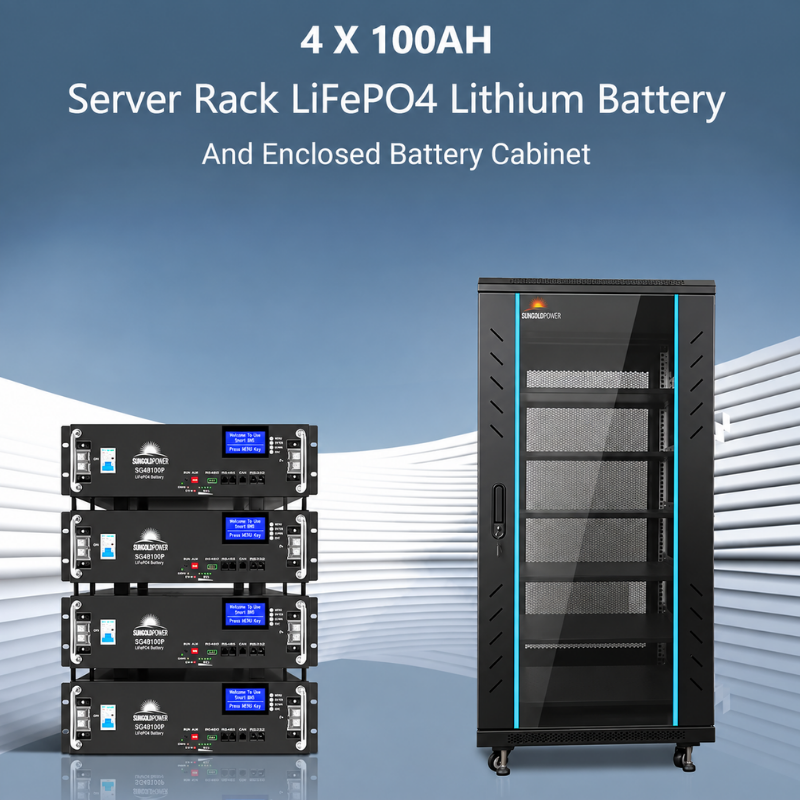

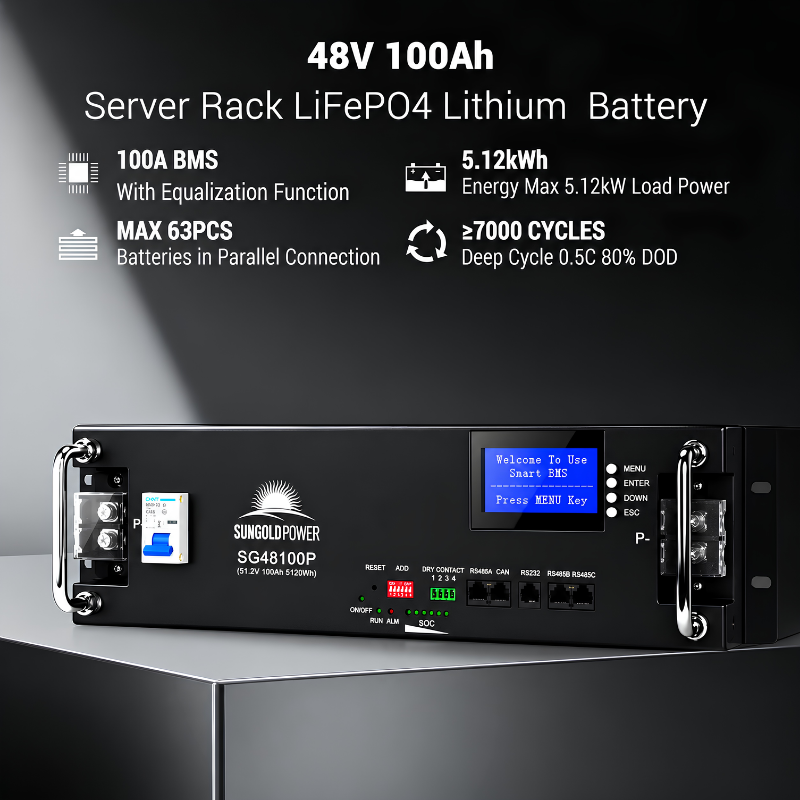

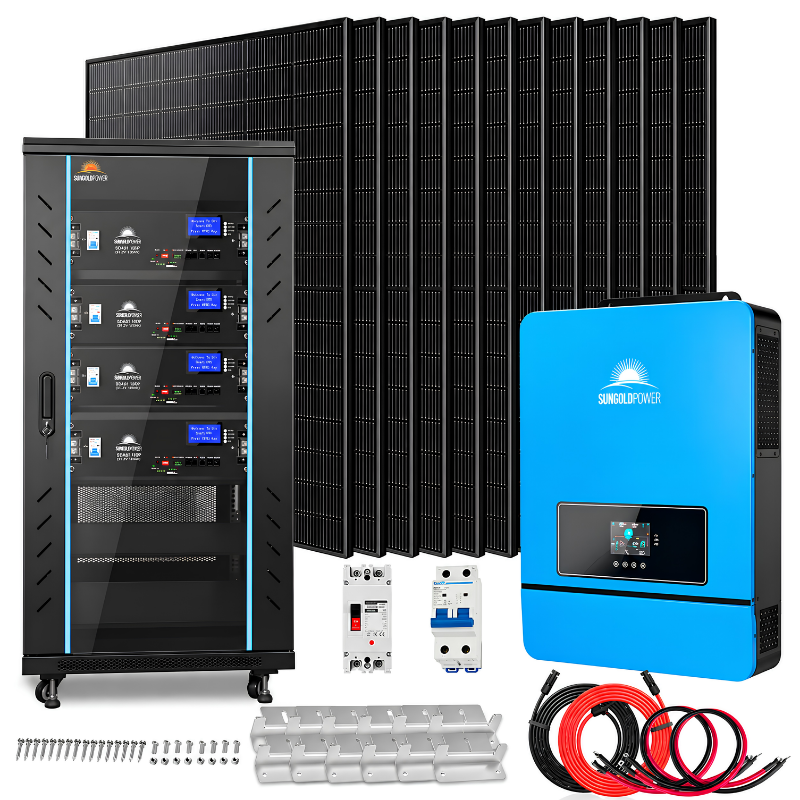

The kit includes four SG48100P 51.2V 100Ah LiFePO4 batteries, providing 20.48kWh of nominal storage, plus an enclosed cabinet. The inverter, panels, and listed accessories are also included. Additional mounting structures, electrical materials, transfer equipment, permits, and labor depend on your installation.
How much energy will the panels generate each day?
At 4–5 peak sun hours, the 5.4kW array has a theoretical daily production of 21.6–27kWh before system losses. Actual generation depends on location, season, weather, orientation, shading, and operating conditions. Daytime appliance use reduces the energy available for battery charging.
Can I add batteries or panels later?

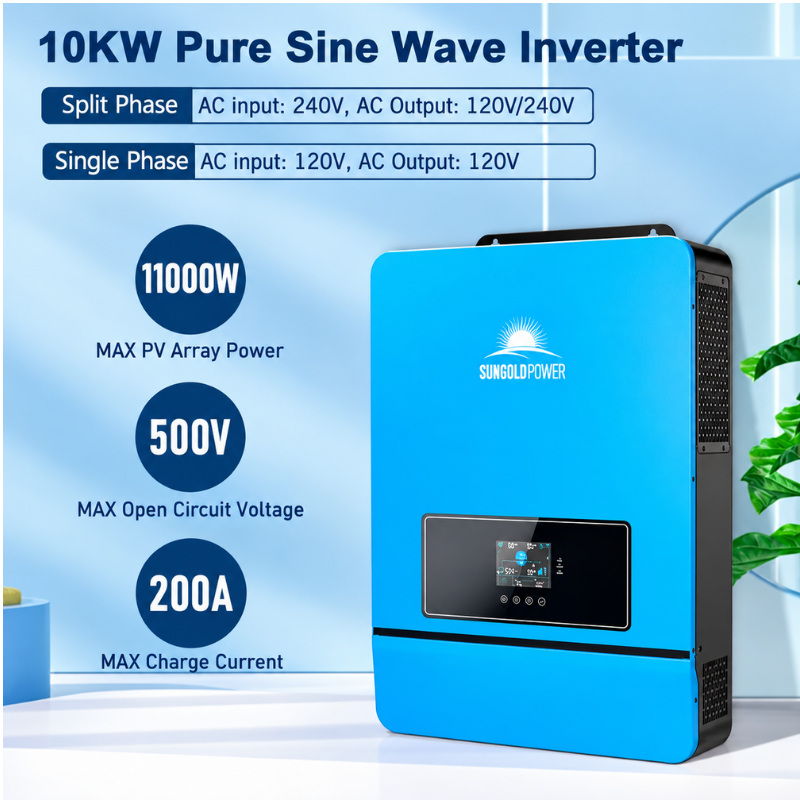

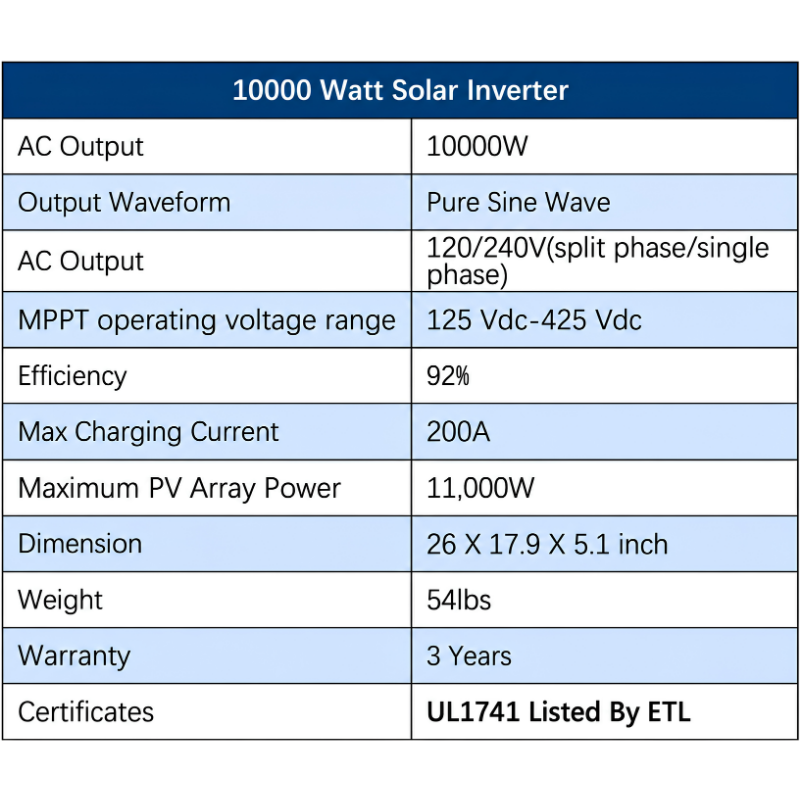

Expansion may be possible with compatible equipment. The inverter supports up to 11,000W of PV input, subject to its voltage, current, and input limits. Have your installer verify battery compatibility, cabinet capacity, charging settings, wiring, and protective devices before adding equipment.
Can I install this system myself, and how should it be wired?
Installation requires electrical knowledge, suitable handling equipment, and compliance with applicable requirements. Have a qualified installer follow the SGR-10K20E wiring diagram and the manuals for the equipment supplied. Panel string design, battery connections, grounding, and connections to building circuits must be checked for your specific installation.
