SunGold Power | High Voltage 11.4kW Hybrid Split Phase Inverter | APS Transmitter | SG11.4KHB-HV Hybrid Inverters SunGoldPower

SunGold Power | High Voltage 11.4kW Hybrid Split Phase Inverter | APS Transmitter | SG11.4KHB-HV

Name: SunGold Power | High Voltage 11.4kW Hybrid Split Phase Inverter | APS Transmitter | SG11.4KHB-HV
Brand: SunGoldPower
SKU: SG11.4KHB-HV
Price: 1990.0 USD
Availability: InStock

BY: SunGoldPower

SKU: SG11.4KHB-HV

| Availability: In stock

$1,990.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized SunGoldPower Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

SunGold Power High Voltage 11.4kW Hybrid Split Phase Inverter

The SunGold Power 11.4kW Hybrid Split Phase Inverter is a powerful, high-voltage energy solution designed for off-grid solar systems, home backup, and commercial applications. With advanced hybrid technology, it seamlessly integrates solar, battery, and grid power to optimize energy usage while ensuring uninterrupted power supply. Featuring APS transmitter compatibility, this inverter enhances efficiency and performance for modern energy storage systems.

SunGold Power 11.4kW Hybrid Split Phase Inverter Features

High-Powered & Versatile

11.4kW Pure Sine Wave Output ensures clean and stable power for all appliances.
Split Phase 120V/240V Capability supports home and commercial energy needs.
Hybrid Functionality optimizes solar, battery, and grid power integration.

Smart Energy Management

Built-in MPPT Solar Charger maximizes energy efficiency.
Advanced Battery Management System (BMS) ensures safe and effective power storage.
Seamless Automatic Transfer Switching for uninterrupted power supply.

APS Transmitter Compatibility

Enhanced Power Stability with grid-tied and off-grid applications.
Remote Monitoring & Control for easy energy management.
Scalable & Expandable Design supports additional battery capacity.

Reliable & Safe Design

Multiple Protection Features: Overload, short circuit, over-temperature protection.
Heavy-Duty Construction for long-term performance.

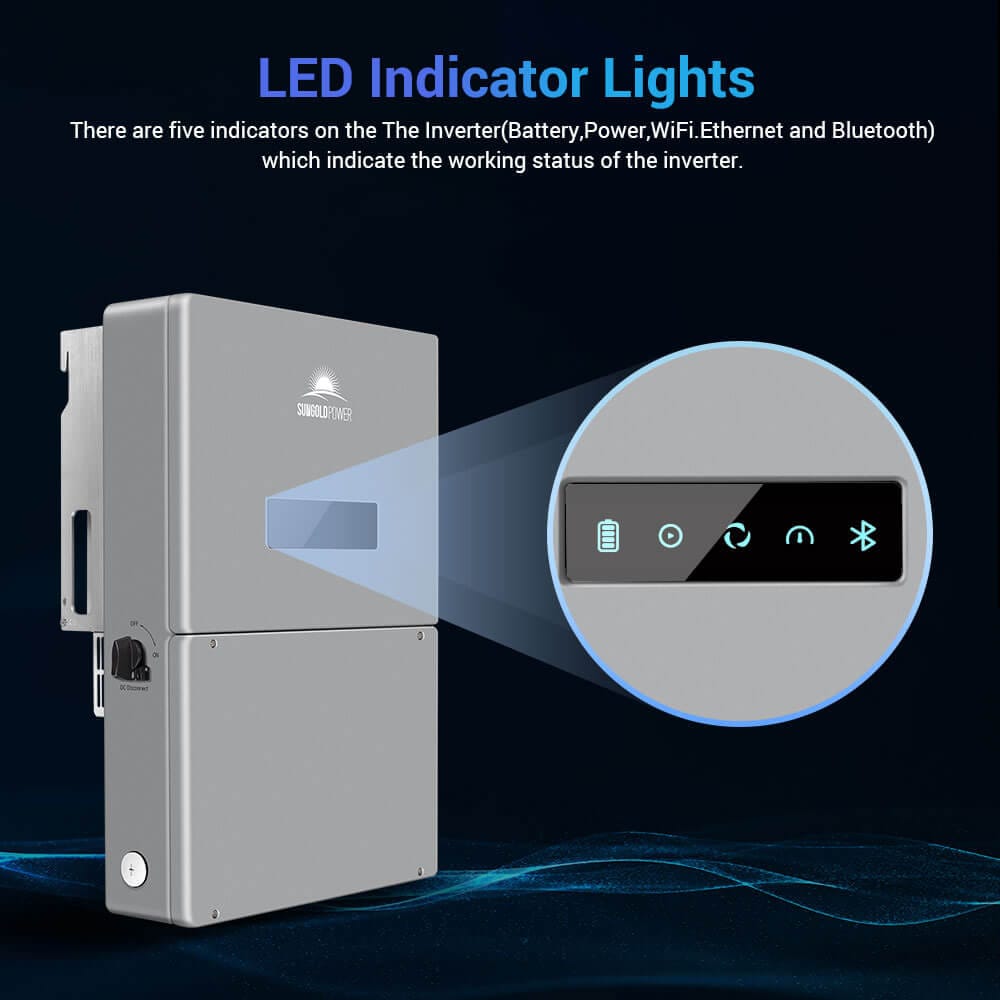

User-Friendly LCD Display for real-time system monitoring.

SunGold Power 11.4kW Hybrid Split Phase Inverter Applications

Off-Grid Solar Systems

Perfect for homes, cabins, and remote locations that operate entirely off the grid. This inverter allows users to store and utilize solar energy efficiently, ensuring reliable power even in areas with no access to utility electricity.

Home Backup Power

Acts as a standby power solution during outages, keeping essential appliances like refrigerators, medical devices, and lights running. With seamless automatic transfer switching, it instantly shifts to battery or solar power when grid failure occurs.

Commercial & Industrial Use

Designed for businesses, farms, and workshops that require high-powered energy solutions. With its 11.4kW capacity and split-phase output, it can power multiple devices simultaneously, including motors, HVAC systems, and heavy-duty equipment.

Hybrid Solar-Grid Integration

Allows users to combine solar, battery storage, and grid electricity for a cost-effective and energy-efficient setup. It prioritizes solar and battery use, reducing reliance on expensive utility power and lowering electricity costs.

What's Included

Everything you need is included with your product.

SunGold Power High Voltage 11.4kW Hybrid Split Phase Inverter

User Manual

SunGold Power 11.4kW Hybrid Split Phase Inverter Specifications

Input DC (PV side)

Specification	Details
Recommended max. PV power	18,240W
Max. input voltage	600V
MPPT voltage range	80-550V
Max. input current per string	16A
Number of MPPTs / Number of strings per MPPT	4/1

Energy Storage

Specification	Details
Battery Type	Lithium-ion
Battery voltage range	120-500V
Maximum charge/discharge current	50A
Battery Communication	CAN/RS485

AC Output (Grid)

Specification	Details
Rated output power	11.4kW
Rated output voltage	240V
Rated frequency	60Hz
Rated output current	47.5A
THDi	<3%

AC Input (Grid)

Specification	Details
Input voltage range	211-264V
Max. input current	71.3A
Frequency range	58.8-61.2 Hz

AC Output (Backup and Off-grid)

Specification	Details
Rated output power	11.4kW
Max. apparent output power	18.2 kVA, 10 sec
Back-up switch time	<10ms
Phase Power	240V Split-Phase
Rated AC output voltage	240V
AC output voltage range	211-264V
Rated frequency	60Hz
Rated AC output current (continuous)	47.5A
Power Factor	>0.99 (0.8 leading - 0.8 lagging)
THDv (@linear load)	<3%

General Data

Specification	Details

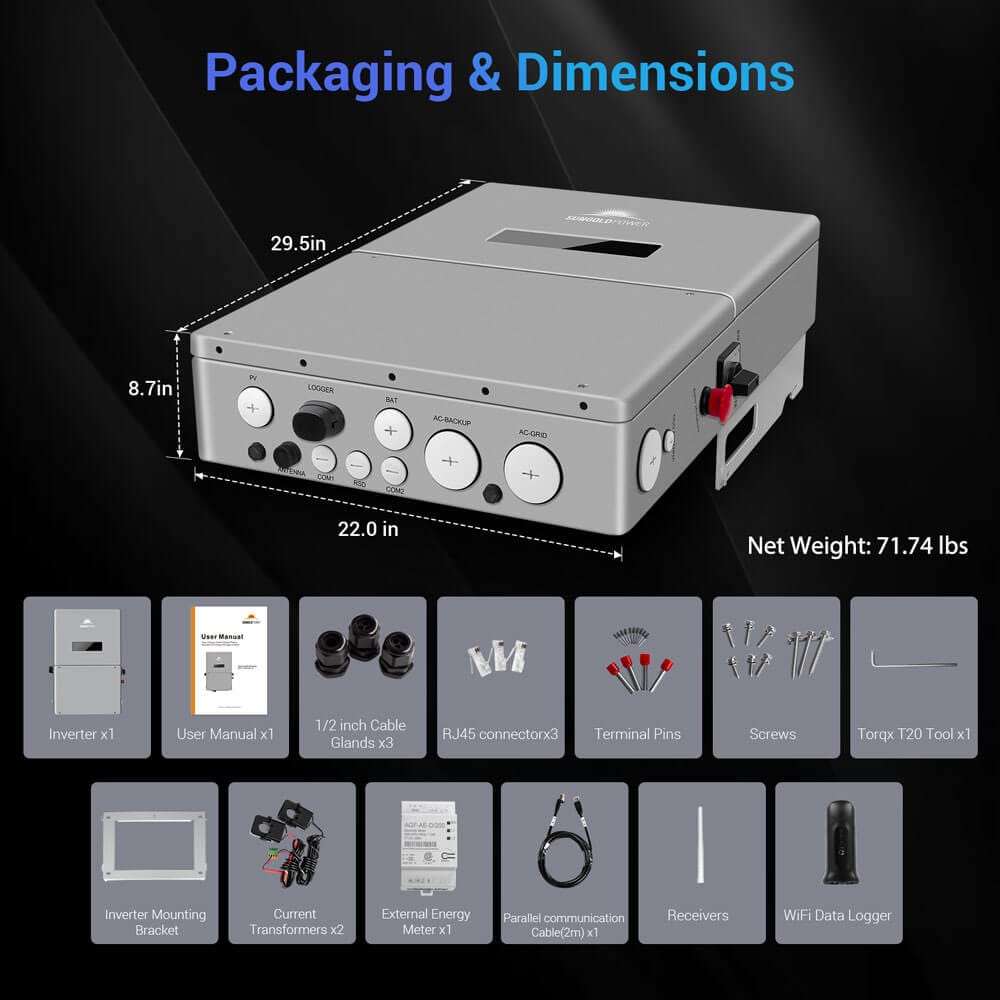

Dimensions (H/W/D)	29.53 × 22.05 × 8.66 in (750 × 560 × 220 mm)
Weight	71.74 lbs (32.54 kg)
Operation temperature range	-25°C to +60°C / -13°F to +140°F
Ingress protection	TYPE 4X (IP66)
Noise emission (Typical)	<30 dB (A)

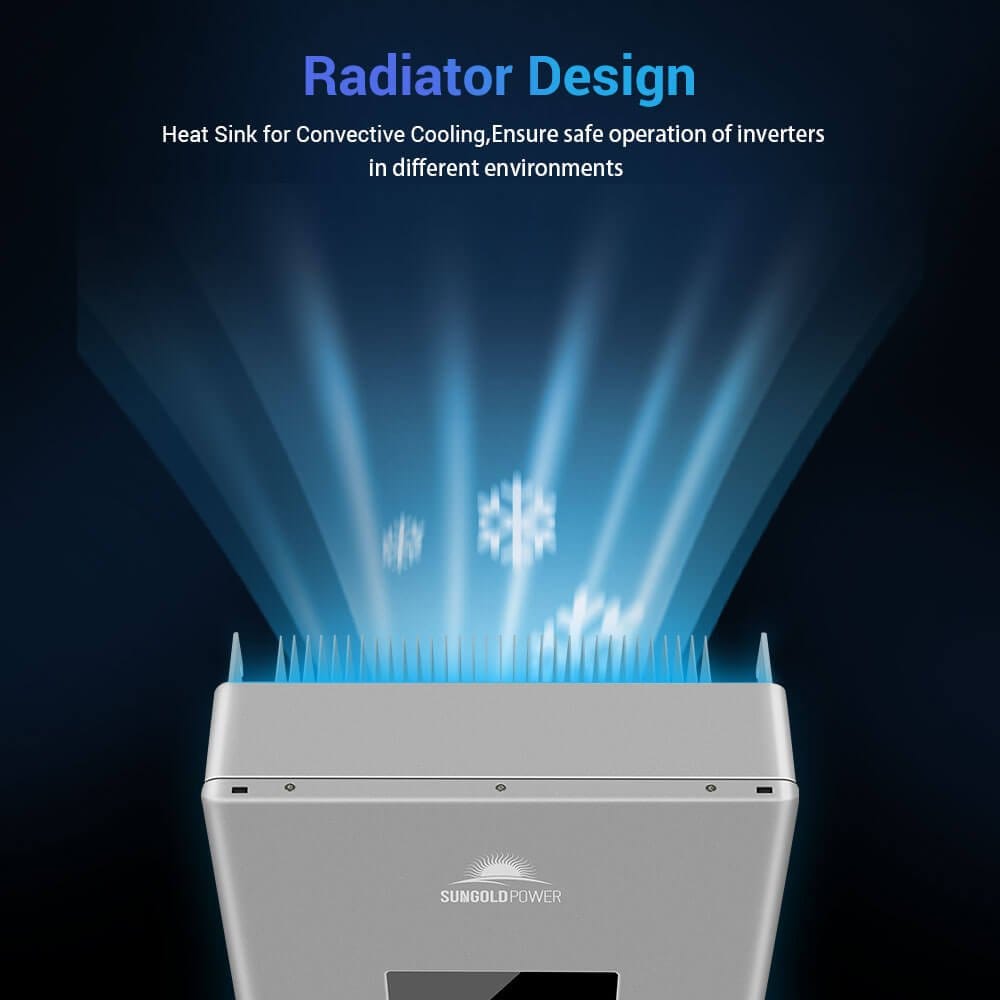

Cooling method	Natural convection
Max. operation altitude	3,120 ft (4000 m)
Compliance	UL1741 SB, UL1741 SA, IEEE1547.1-2020, UL1699B, UL1998, FCC Part15 Class B, California Rule 21, HECO Rule 14H (pending), NEC 690.12-2020, CAN/CSA C22.2107.1-1
Warranty	10 Years Warranty

SunGold Power 11.4kW Hybrid Split Phase Inverter Videos

FAQs

How does the APS Transmitter improve performance?

The APS Transmitter enables seamless energy transition and enhances grid-tied and off-grid capabilities, ensuring stable power output and intelligent energy management.

Can I use this inverter for whole-home backup?

Yes, this high-capacity inverter supports split-phase 120V/240V power, making it ideal for whole-house backup and large appliance operation.

What type of batteries are compatible with this inverter?

The SunGold Power 11.4kW Hybrid Inverter supports various battery types, including Lithium, Lead-Acid, AGM, and Gel.

Does it come with a monitoring system?

Yes, the inverter features a built-in LCD display and remote monitoring compatibility for easy tracking of system performance.
